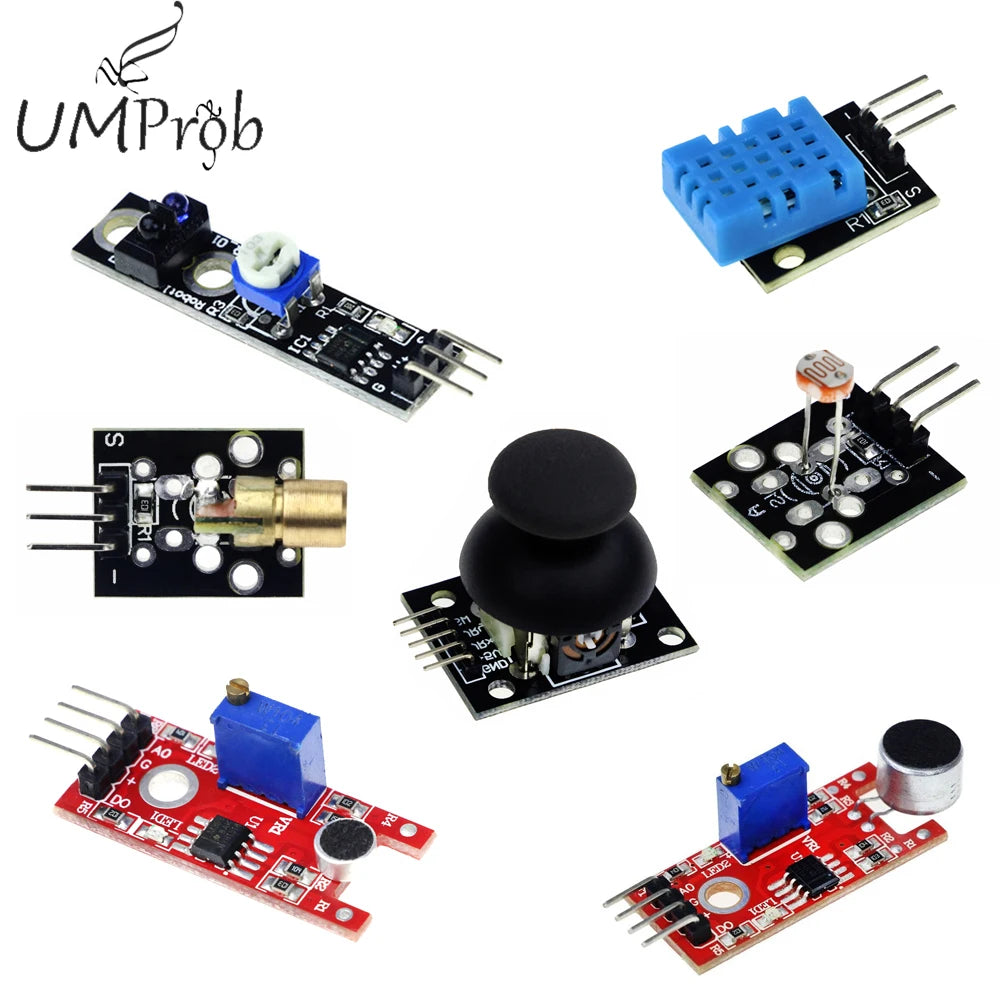

KY-008 KY-015 KY-018 KY-023 KY-033 KY-037 KY-038 Module for Arduino DIY Kit

KY-008 KY-015 KY-018 KY-023 KY-033 KY-037 KY-038 Module for Arduino DIY Kit

$9.59

$9.59 $0.00

Color KY-015 KY-008 KY-018 KY-023 KY-033 KY-037 KY-038

Description

SPECIFICATIONS

Brand Name: UMProb

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

semi_Choice: yes

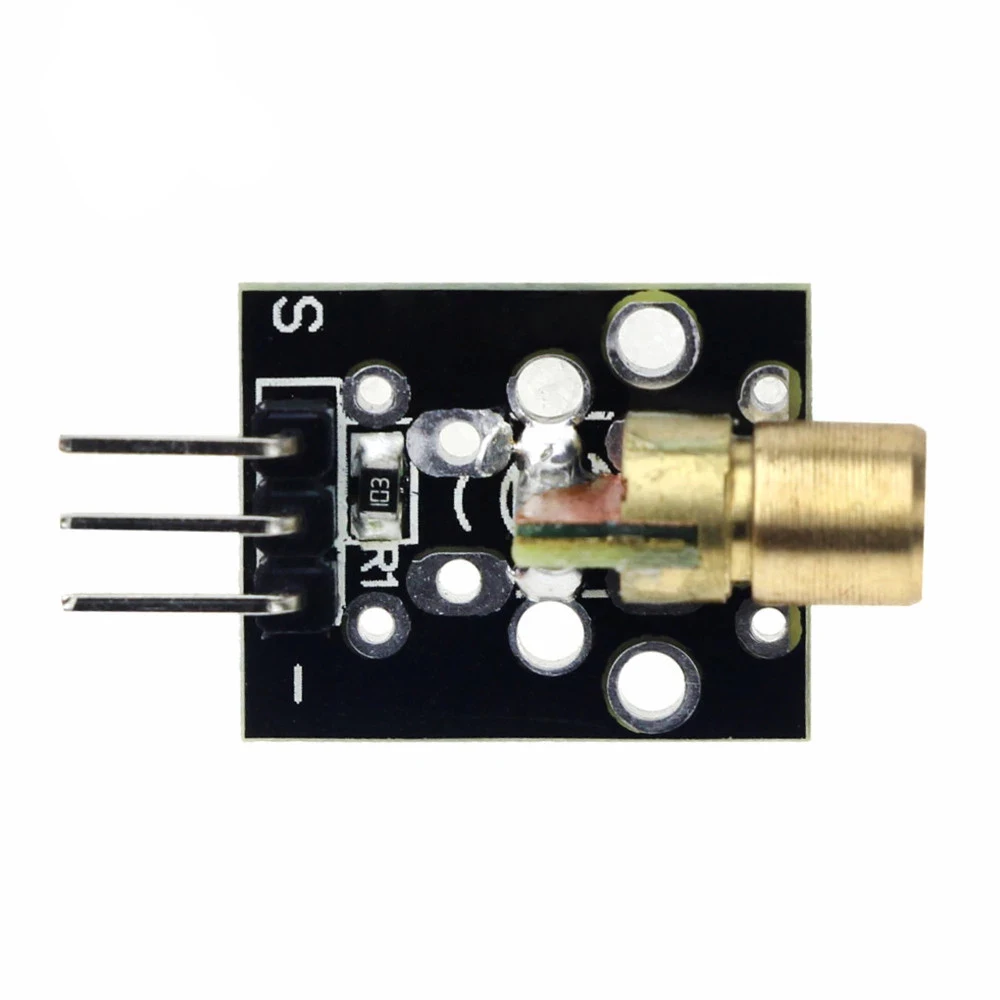

Dot laser
Operating voltage 5V
Power 5Mw
Wavelength 650n m
OD 6mm

1. Size: 30.5mmX long, 12mmX wide and 7.2mm high.

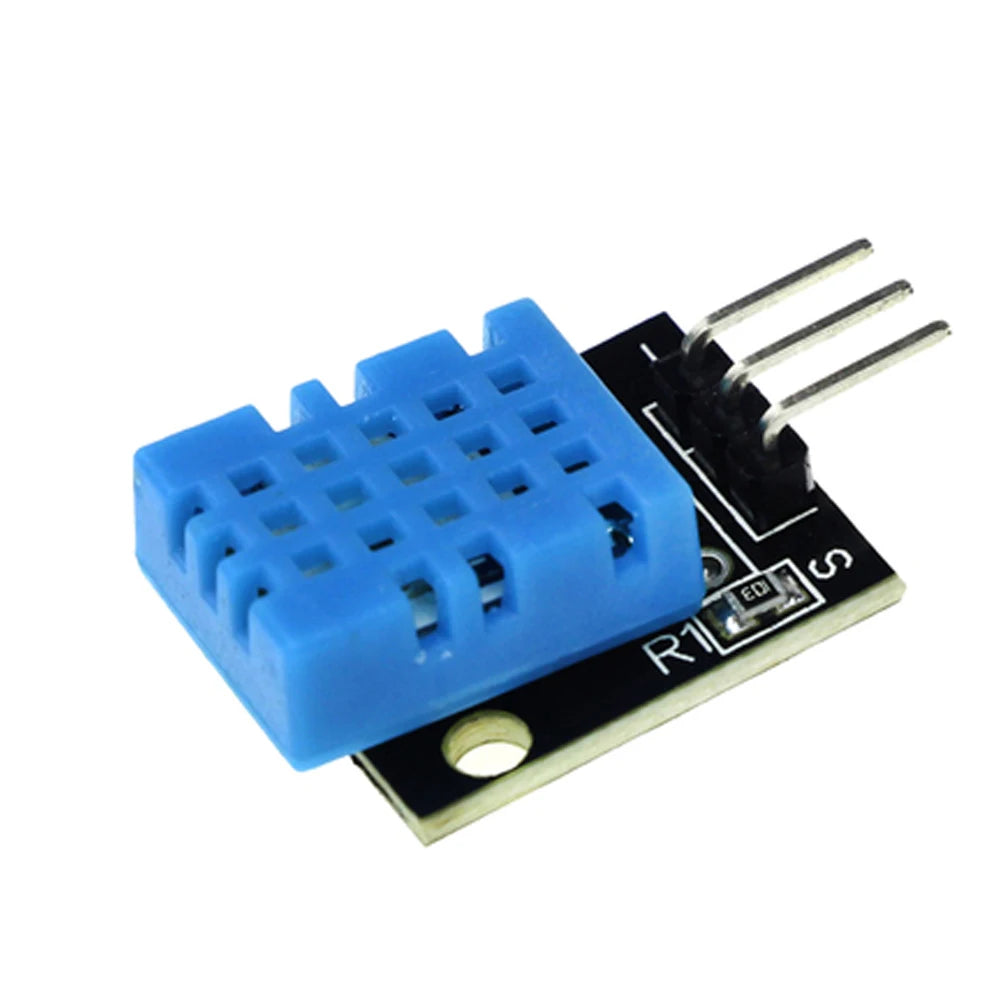

II. Sensor model: DHT11 temperature and humidity sensor

III. Working voltage: 5V DC

IV. Features:

1. Humidity measurement range: 20-90 hundred RH.

2. Humidity measurement accuracy: 500 RH

3. Temperature measurement range: 0-50℃

4. Temperature measurement accuracy: 2℃

5. Working voltage: DC5V/3.3V

6. Digital signal output

7. Pull-up resistor on data port

8, with 3mm fixing screw hole, easy to install.

V. Wiring method:

VCC → 3.3V/5V positive power supply

GND → negative power supply

DATA → IO port of single chip microcomputer

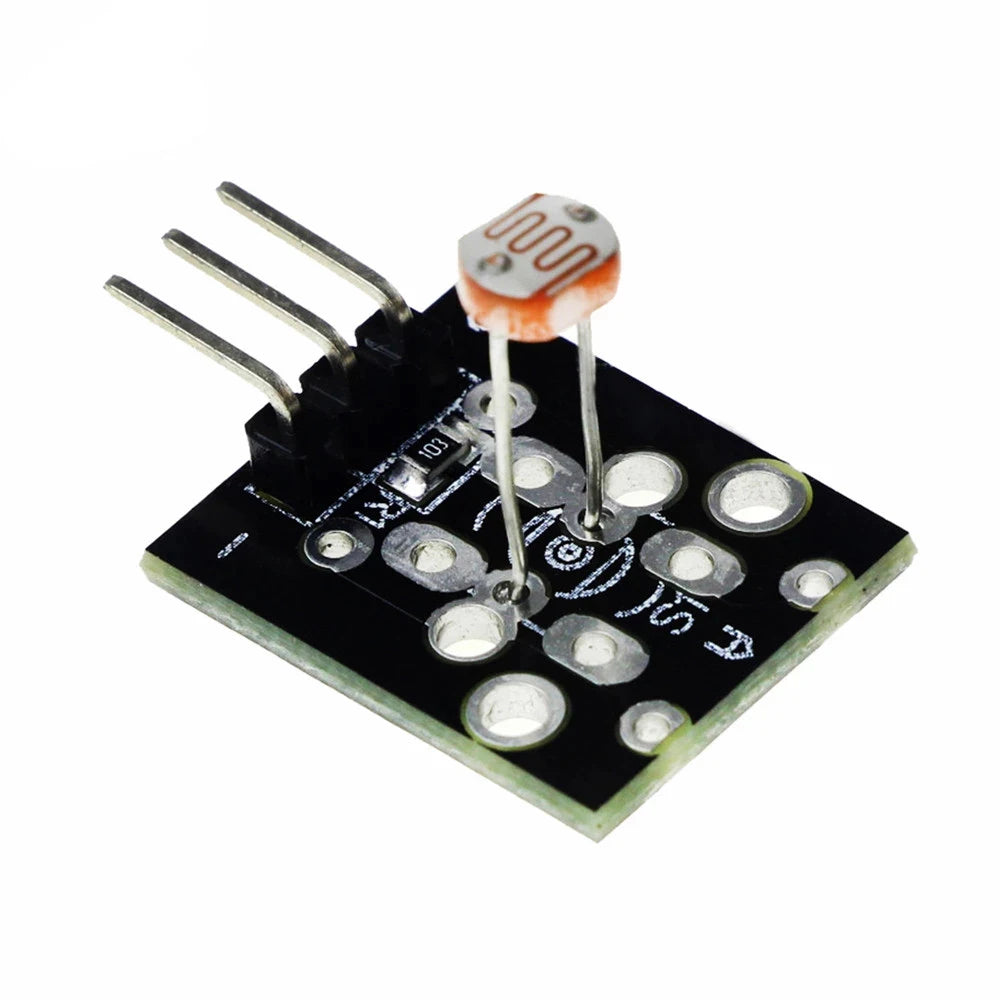

1, according to the spectral characteristics of three photoresistor photoresistor: UV light-sensitive resistors, infrared light-sensitive resistors,

Visible photoresistor;

2, the main parameters are as follows:

A, dark current, the dark resistance: photoresistor at a certain applied voltage, when no light irradiation, when flowing

Current is called dark current. Applied voltage and the dark current ratio is called dark resistance;

B, Sensitivity: Sensitivity refers to the resistance value of the photoresistor from light irradiation (dark resistance) when irradiated with light and the

Resistance (light resistance) of the relative change value.

C, voltage characteristic curve. Volt-ampere characteristic curve used to describe the relationship between the applied voltage and the photoresistor photocurrent, of

The photosensitive device, its photocurrent increases with the applied voltage.

D, the temperature coefficient. Photoelectric effect photoresistor influenced by temperature, partial photoresistor optoelectronic at low temperatures

Higher sensitivity, whereas the sensitivity at high temperatures are lower.

E, rated power. Refers to the rated power for a certain line photoresistor allowed power consumed, when the temperature rise

High, its power consumption is reduced.

Feature:

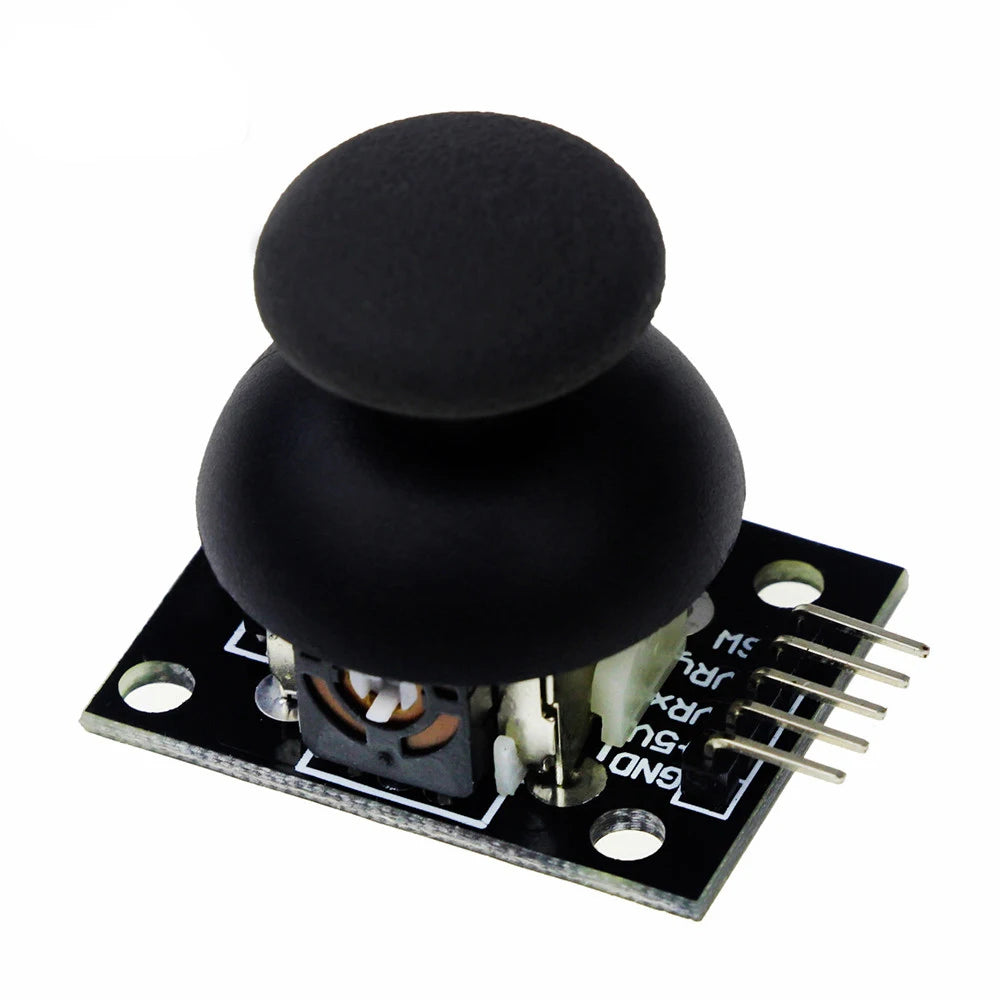

Dual-axis XY Joystick Module
Dimensions:
Size: 4 X 2.6 X 3.2CM
2 potentiometers for 2 axes
1 switch
Connector: +5Vcc - GND - VRx - VRy - SW

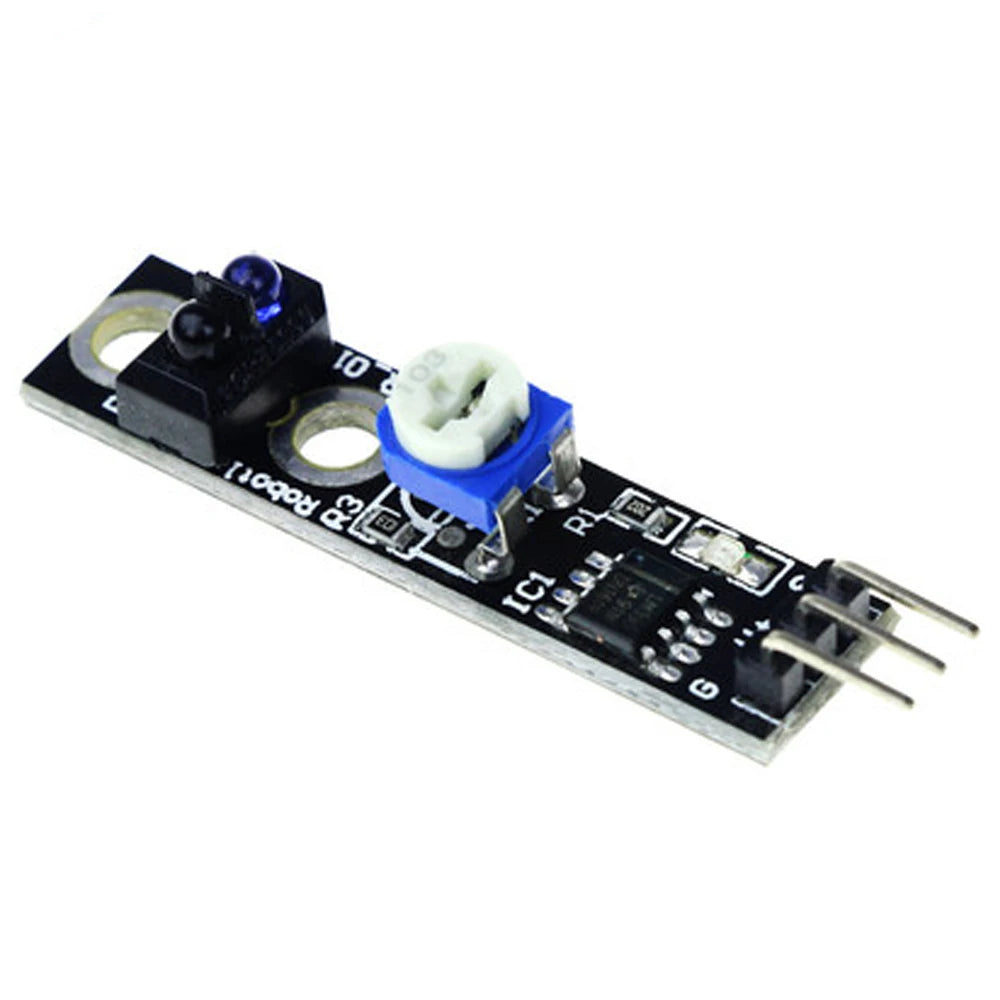

Line-finding sensor module KY-033 for

KY-033 tracking path DIY kit tracking module of intelligent probe car infrared detection sensor channel 3 pins

We will issue a new version of the product with upgraded functions. It may have different shapes or colors. If you can't agree, please don't buy. Please select the available tracking information transportation method, and don't ask for a tracking number, if your transportation method is unavailable.

1。 Detection distance, test white paper about 2cm. Different colors, different distances, whiter.

2。 Power supply voltage: 2.5V ~ 12V, no more than 12V (Note: if the power supply voltage is low or too high, the life of the sensor will be shortened, and the 5 V power supply is the preferred power supply).

3. Working current, 5 V 18-20ma. After many tests, the sensor hardware is set to the best performance of 18 mA and 20 mA at present, which is mainly manifested in capacity interference resistance. If you need low power consumption, we can modify it, at least they can do 5mA. You can display a message.

4。 The detected object, the final output signal level is low; No object is detected, and the final output signal is high.

5。 TTL level sensor output can be directly connected with 3.3v or 5v of MCU IO port.

1×3 pin path tracking module

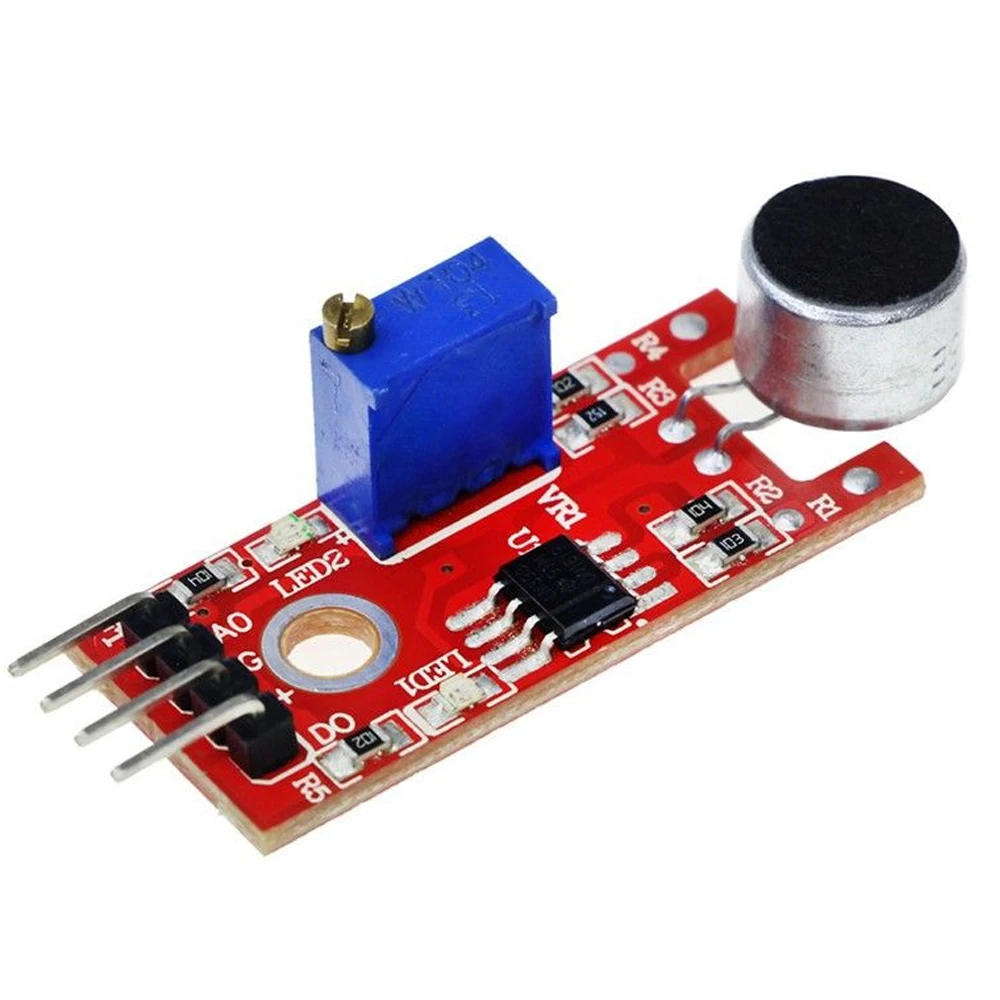

KY-037

For sound detection

Module has two outputs:

1, AO, analog output, real-time output voltage signal of the microphone

2, DO, when the sound intensity reaches a certain threshold, the output high and low signal [threshold - sensitivity can be adjusted via potentiometer]

Module features:

2, there is a mounting screw hole 3mm

3, the use 5v DC power supply

4, with analog output

5, there are threshold level output flip

6, high sensitive microphone and high sensitivity.

7, a power indicator light

8, the comparator output is lightKY-037

For sound detection

Module has two outputs:

1, AO, analog output, real-time output voltage signal of the microphone

2, DO, when the sound intensity reaches a certain threshold, the output high and low signal [threshold - sensitivity can be adjusted via potentiometer]

Module features:

2, there is a mounting screw hole 3mm

3, the use 5v DC power supply

4, with analog output

5, there are threshold level output flip

6, high sensitive microphone and high sensitivity.

7, a power indicator light

8, the comparator output is light

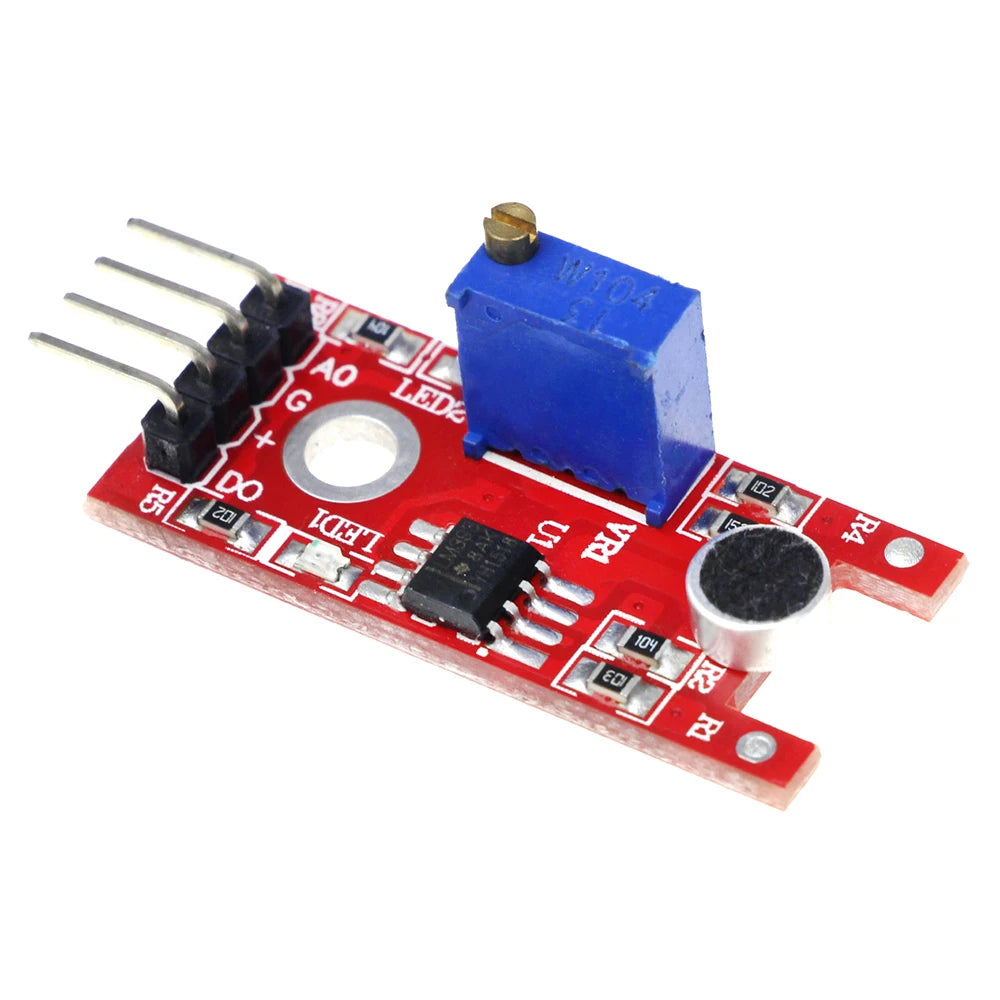

KY-038 microphone amplifier module sound module MIC module sound sensor voice module

This module uses professional microphone amplifier IC, which has low output noise, small size, high sensitivity, fixed gain of 20dB, and can support 2 power supply modes of 3.3v and 5 V.

Product description:

1. Electret condenser microphone (ECM) sensor with high sensitivity

2. Power indicator light

3. Comparator output indicator

4. AO, real-time microphone voltage signal output

5. DO, high/low level signal output

6. Analog output

7. Threshold flip level output

8. Adjust the sensitivity by potentiometer

Shipping list:

KY-038 sound sensor module *1PCS

[Wiring]: G is connected to the negative pole,+is connected to the positive pole, and A0 outputs analog signals by default. Output numbers 1 and 0.
