SPECIFICATIONS

Complete Motor Control Solution - Full Range Kit from Micro Stepping to Industrial Drives

Key Features & Benefits:

🌉 Dual H-Bridge Versatile Drive
Feature → L298N can drive 2 DC motors or 1 stepper motor simultaneously
Advantage → Supports forward/reverse, speed control, works with multiple motor types
Benefit → One module meets power needs for most small robot projects

🎛️ 10A High Current Speed Control
Feature → PWM controller supports 10A continuous current, with mechanical switch
Advantage → Simple knob control, adjust motor speed without programming
Benefit → Quickly implement speed control for power tools, large DC motors

💪 Industrial Grade Power Drive
Feature → 160A peak driver supports 40A continuous current
Advantage → Uses high-power MOSFETs, low heat high efficiency
Benefit → Drive heavy loads like large motors, high-power LED arrays

🔄 Precision PWM Control
Feature → All modules support PWM signal input
Advantage → Perfect compatibility with Arduino, ESP32 microcontrollers
Benefit → Achieve precise speed control and complex motion algorithms

🛡️ Comprehensive Protection Design
Feature → Modules feature overheat protection, reverse connection protection
Advantage → Automatic protection against accidental short circuits or overloads
Benefit → Protect your equipment and motors, safer and more reliable operation

Product Description:

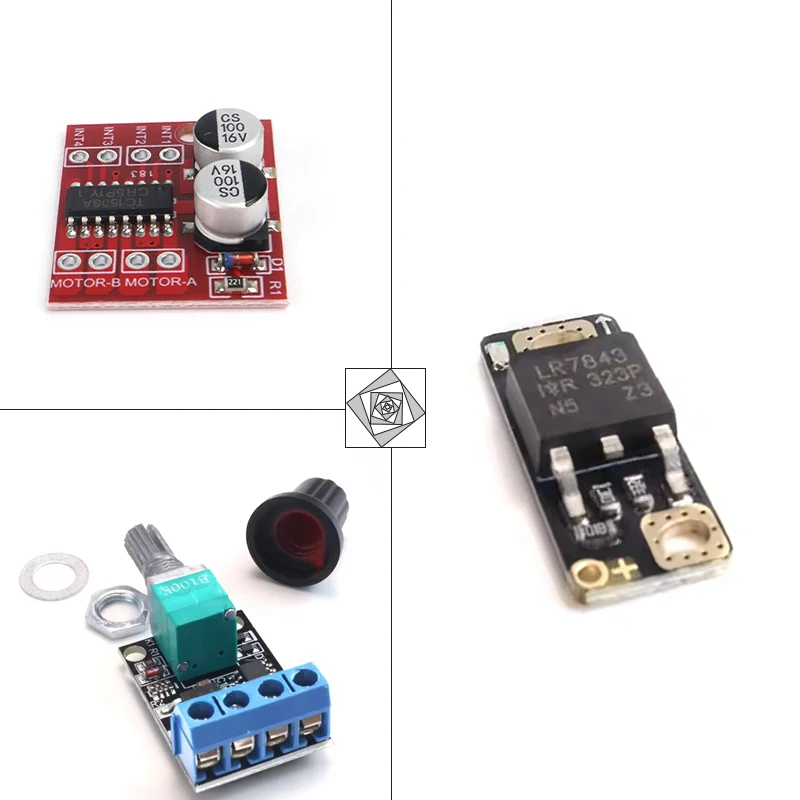

Whether you're building small robots, smart cars, or need to control industrial-grade high-power motors, this kit provides a complete solution. The L298N is a classic motor driver chip suitable for education and small projects; the 10A PWM module offers simple and effective medium-power control; the 160A driver module handles the most demanding power requirements. Together, these three modules cover the entire power range from educational experiments to industrial applications.

🚨 Important Notes / How to Use:

【Purchasing Model】: All modules sold individually. Combo recommended for full power coverage

【Power Matching】: Choose appropriate power supply based on motor power requirements

【Heatsink Requirement】: Heatsink mandatory for high-power use, 160A module requires forced air cooling

【Voltage Range】: Strictly adhere to module voltage specifications, over-voltage causes permanent damage

【Wiring Check】: Confirm correct wiring before powering on, reverse connection may damage modules

Specifications:

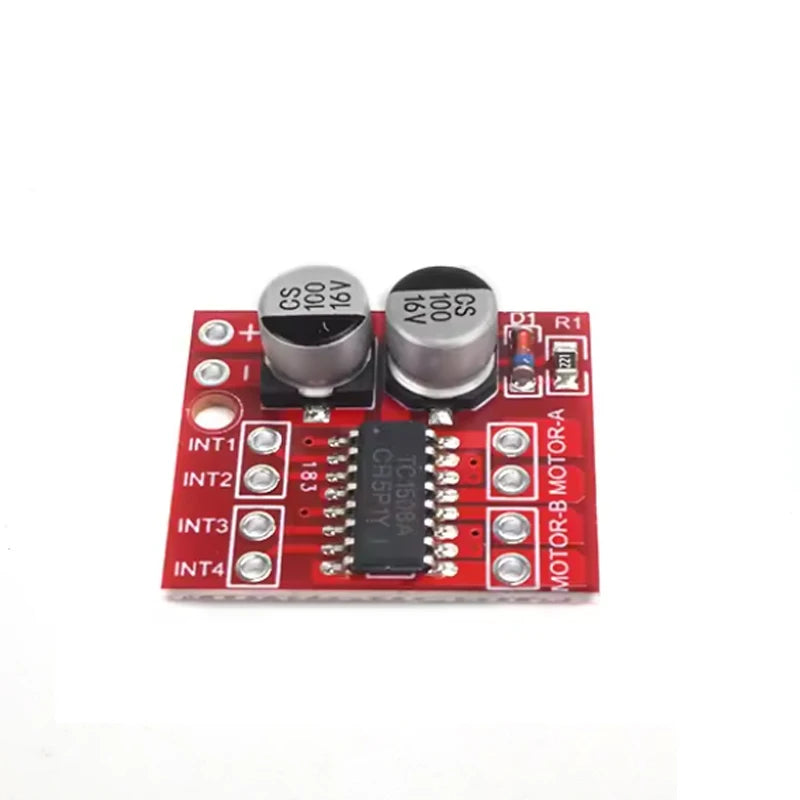

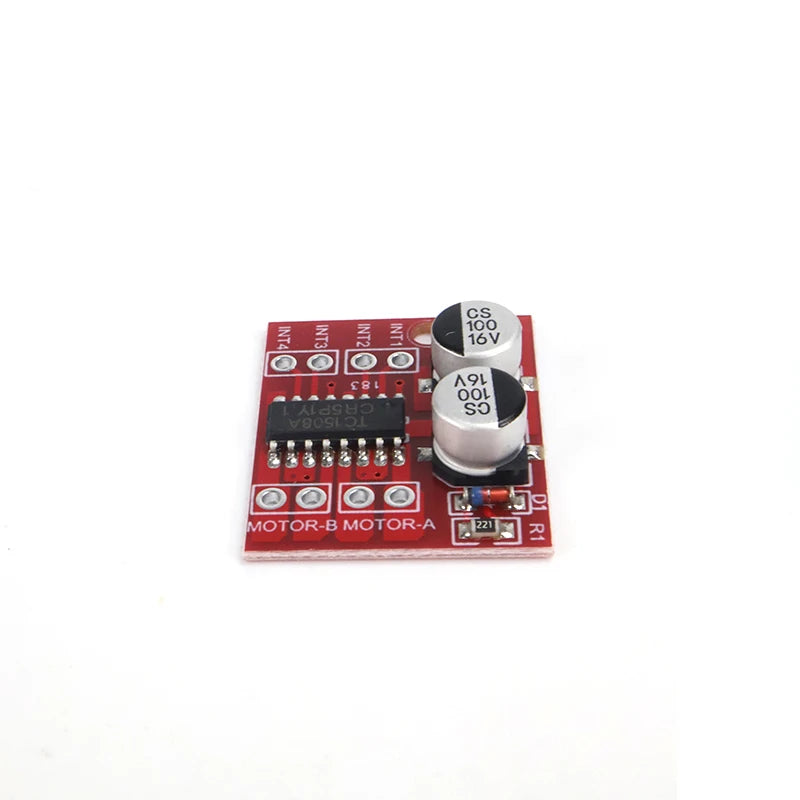

L298N Motor Driver Module:

Driver IC: L298N

Drive Capacity: 2A/channel (peak)

Motor Voltage: 2-10V

Logic Voltage: 1.8-7V

Supported Motors: DC Motors, Stepper Motors

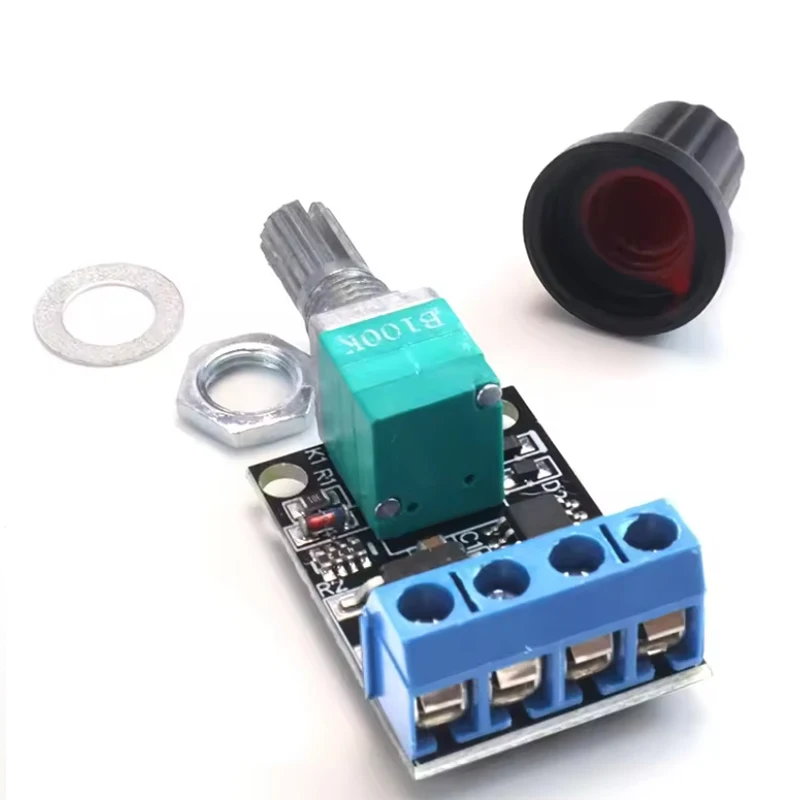

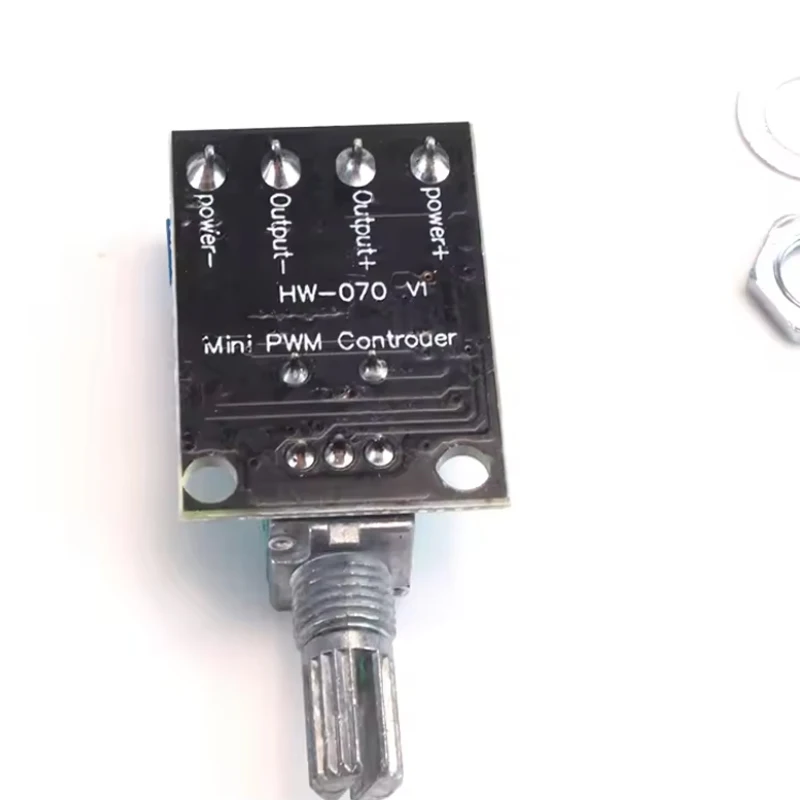

10A PWM DC Motor Speed Controller:

Continuous Current: 10A

Peak Current: 20A

Input Voltage: 5-16V

Control Method: Potentiometer knob + switch

Efficiency: Up to 98%

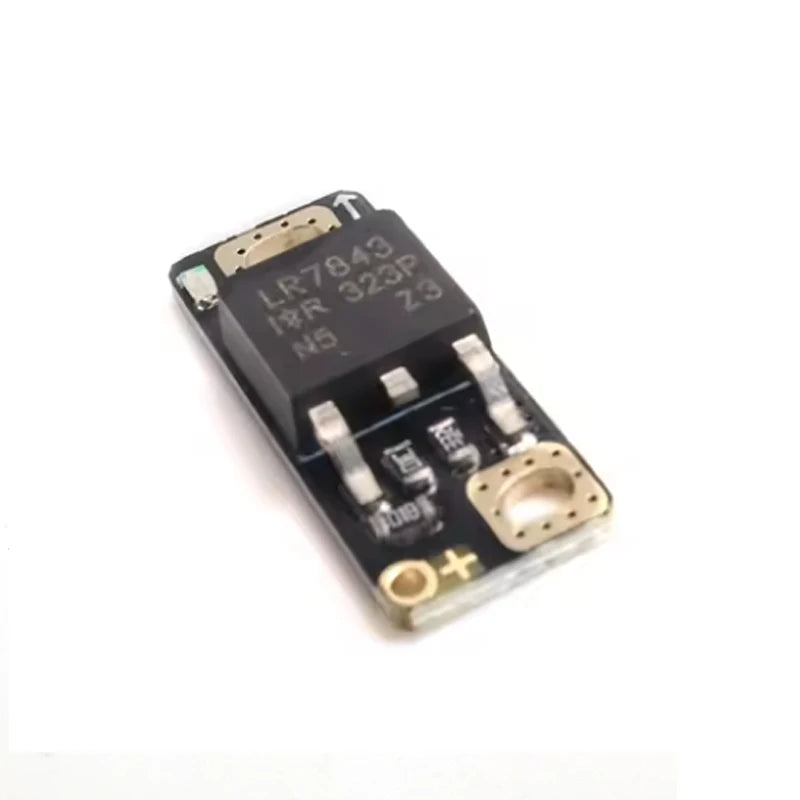

160A Peak PWM Driver Module:

Continuous Current: 40A

Peak Current: 160A (≤10s)

Input Voltage: 5-18V

Control Signal: 3.3V/5V PWM

Max Withstand Voltage: 30V

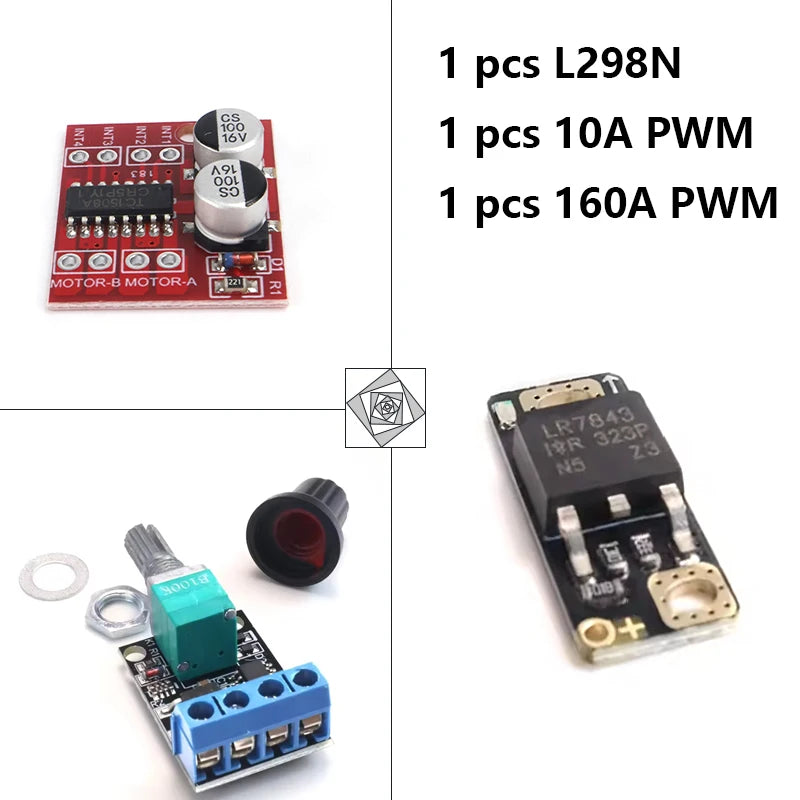

Package Includes:
Final items depend on SKUs selected in your cart.
