L76K GPS Module Heltec V4 T114 V2 WiFi LoRa 32 Support Meshtastic IoT L76K GNSS Module
1 PC
$49.72
Sale price
$49.72
Regular price
$0.00
Skip to product information
L76K GPS Module Heltec V4 T114 V2 WiFi LoRa 32 Support Meshtastic IoT L76K GNSS Module
$49.72
Sale price
$49.72
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: USB To DC Cable
Battery Included: no
Brand Name: Heltec Automation
Choice: yes
Compatible With: LoRa 32 V4 and Mesh Node T114
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Internet of Things (IoT)
semi_Choice: yes
Resource

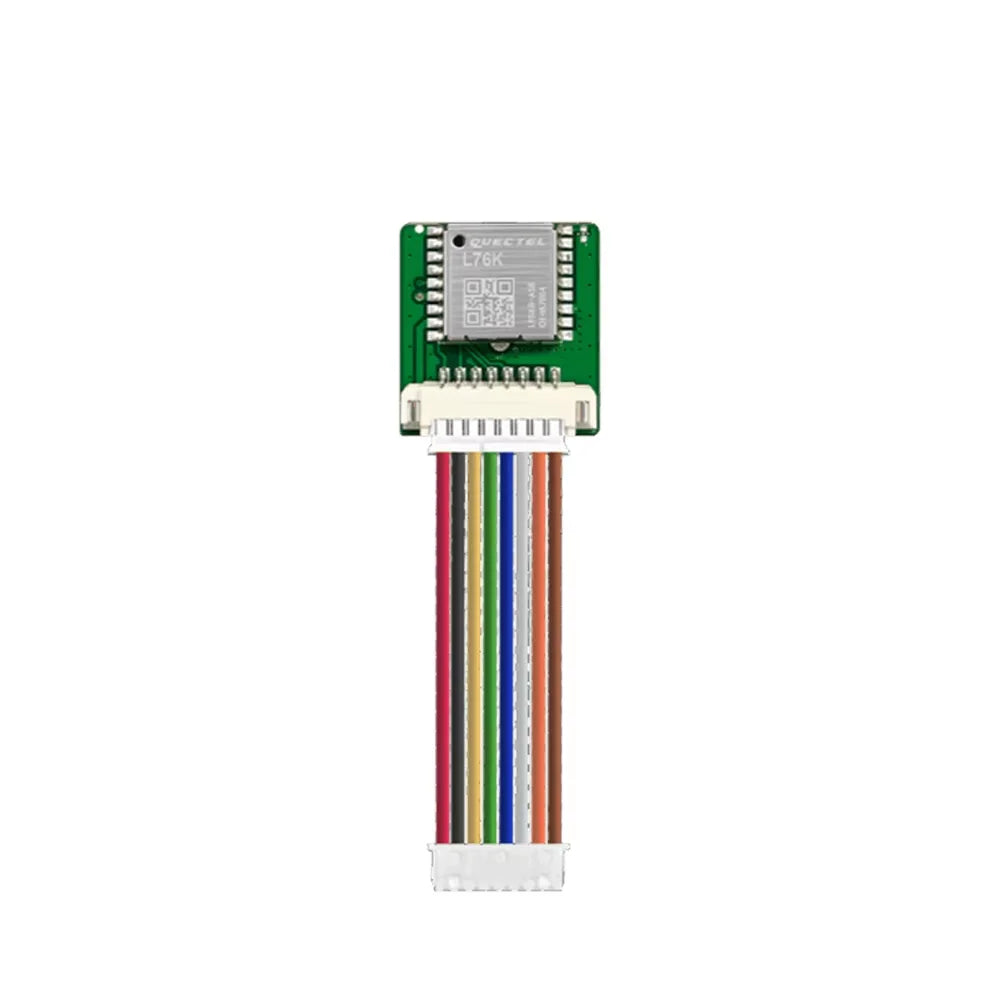

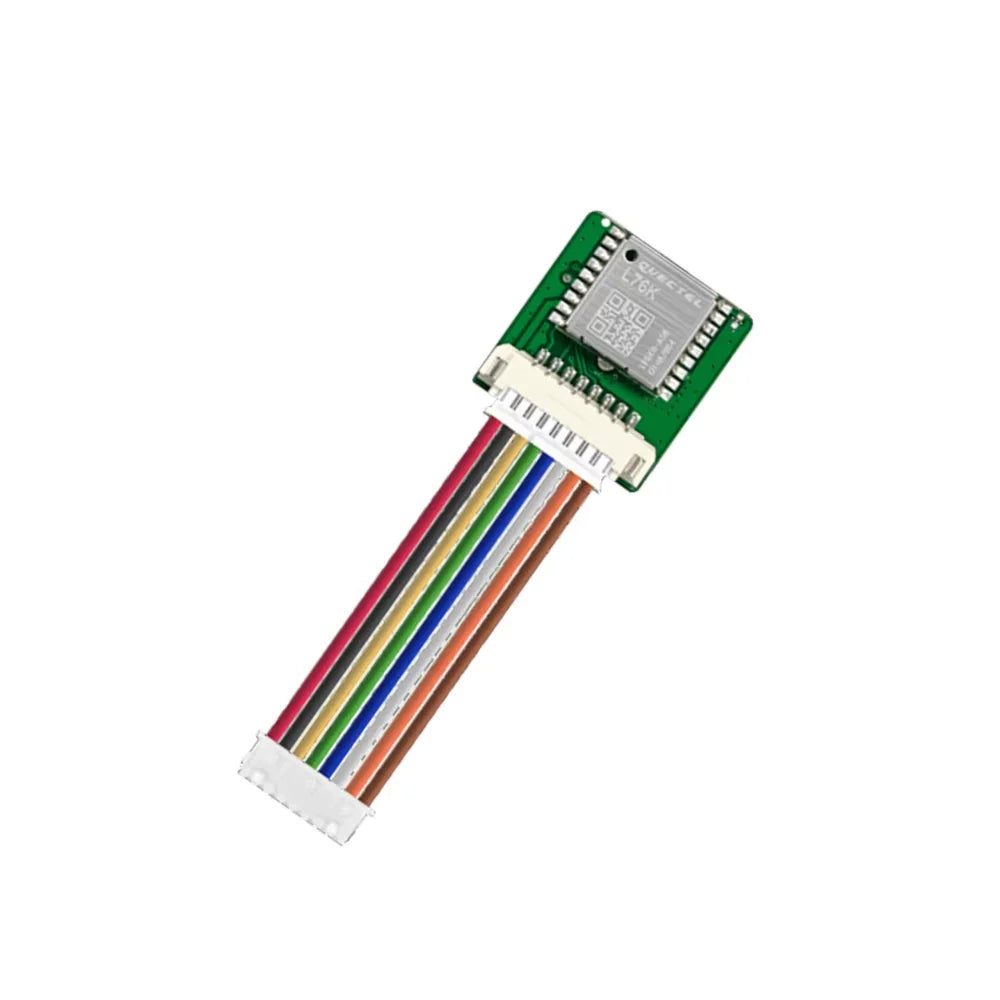

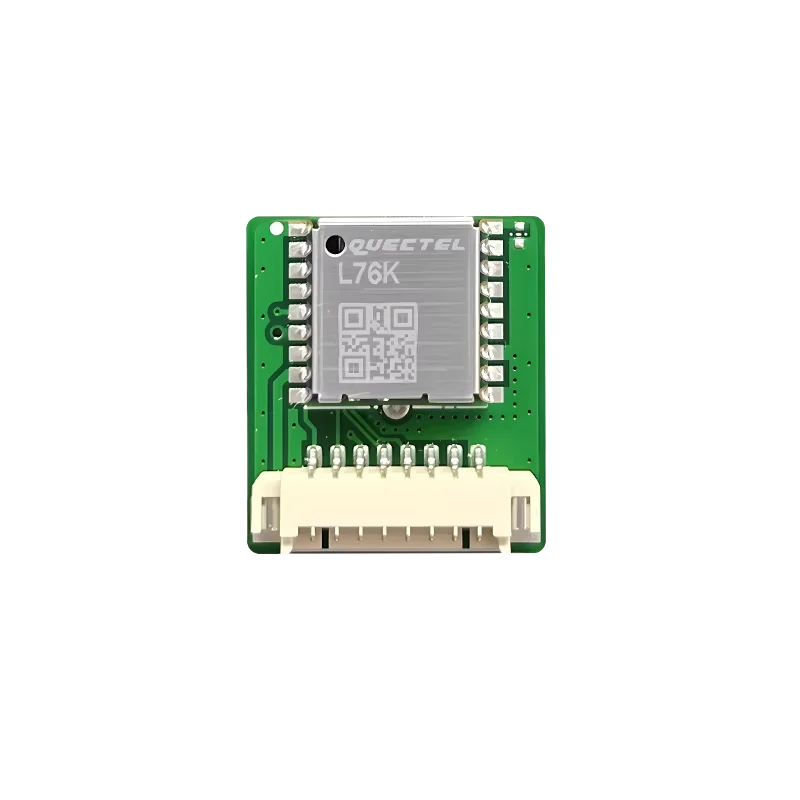

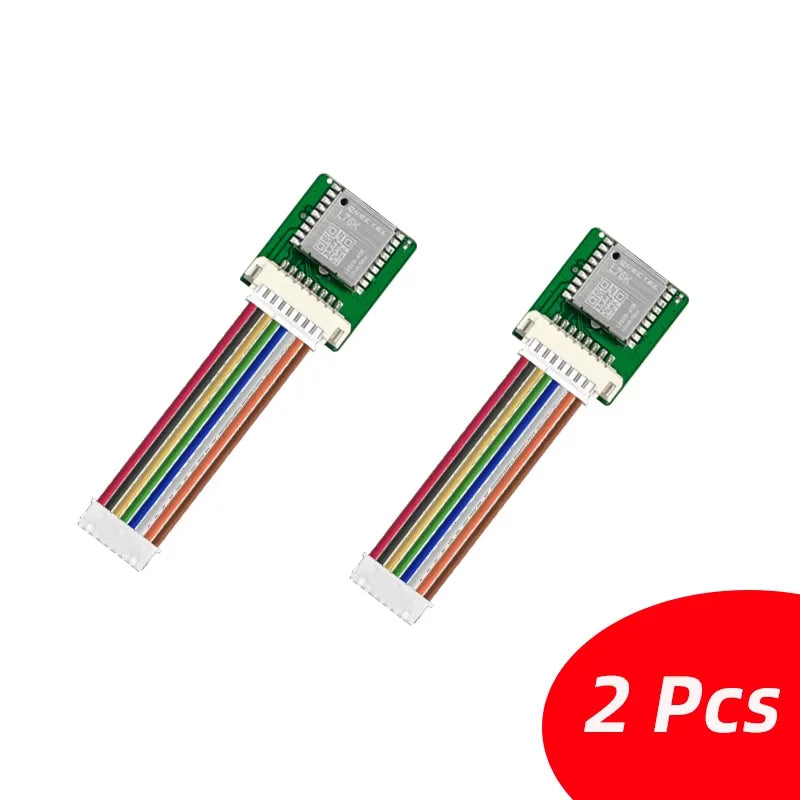

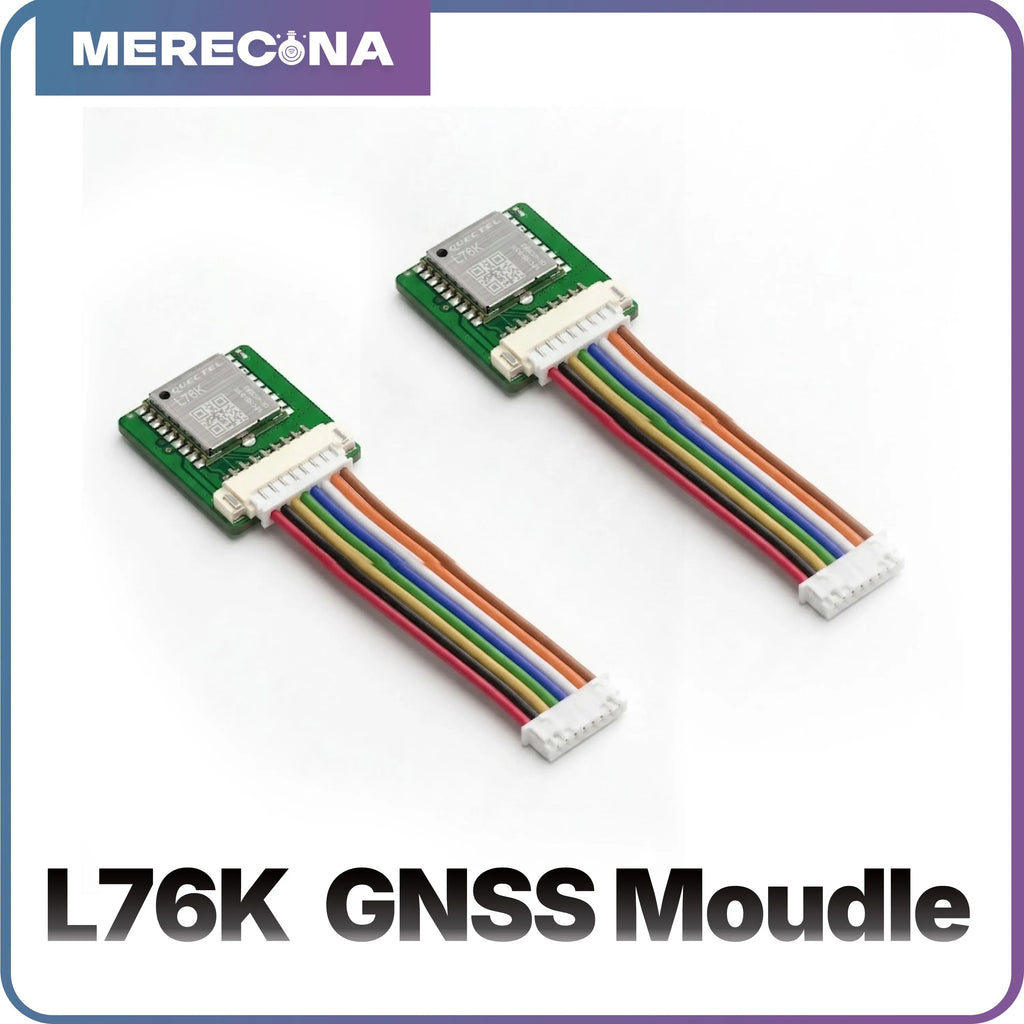

L76K GNSS Module
L76K is a low-power GNSS positioning module with multi-constellation support. It is fully compatible with
WiFi LoRa 32 V4 and Mesh Node T114, making it an ideal choice for projects like Meshtastic.
Specifications
Parameters |
Description |
Power supply |
2.8V~4.3V |
Power Consumption |
18mA@3.3V |
Position Accuracy |
2.5m CEP |
Timing Accuracy 1PPS |
10ns |
Data Update Rate |
Up to 10Hz |
Operating temperature |
-40℃ to 85℃ |
Storage temperature |
-45℃ to 125℃ |

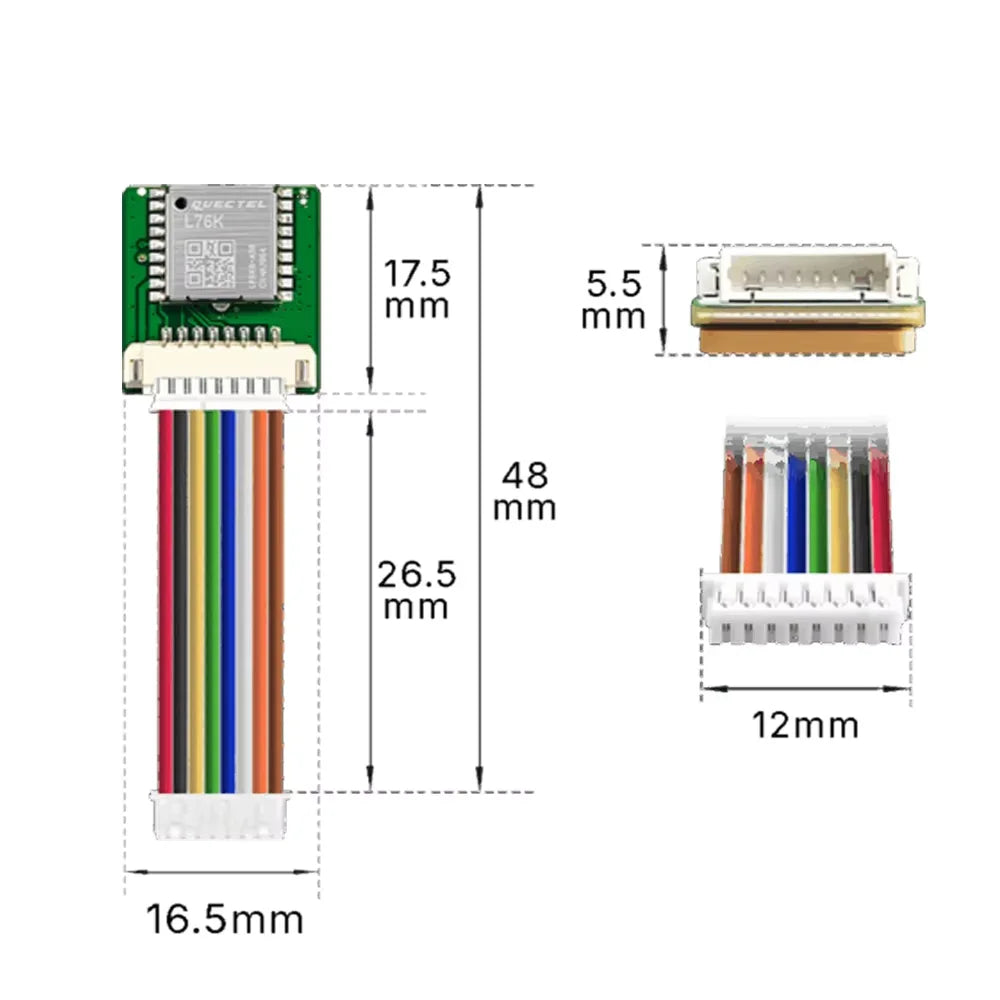

Dimension |
10.1*9.7*2.5mm |

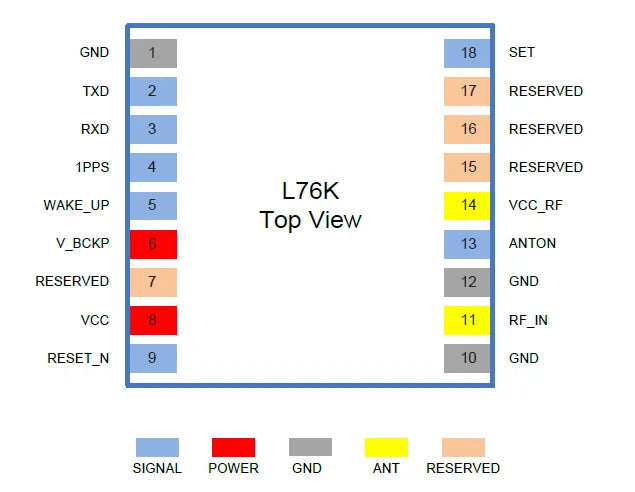

Interface |
1.25mm 8-Pin SMD, With 8P adapter cable |
●Advanced GPS Technology: T114 V2 GPS Module is equipped with cutting-edge technology ensuring
high precision and reliability for location tracking. Ideal for IoT applications and complex navigation
projects.
●Energy Efficient: Designed for low power consumption, it extends the battery life of your projects,
making it perfect for mobile applications and remote monitoring.
●Compact and Versatile: Its small form factor makes it easy to integrate into various devices, from
drones to handheld navigational aids.
●Easy Integration: Comes with detailed documentation and compatible with various development
platforms, simplifying the setup process for developers.
Colour:As Shown
Material:PCB
Package Contents:1 * Module/2 * Module/4 *Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a
little different from the real thing. The measurement allowed error is +/- 1-3cm.
