SPECIFICATIONS

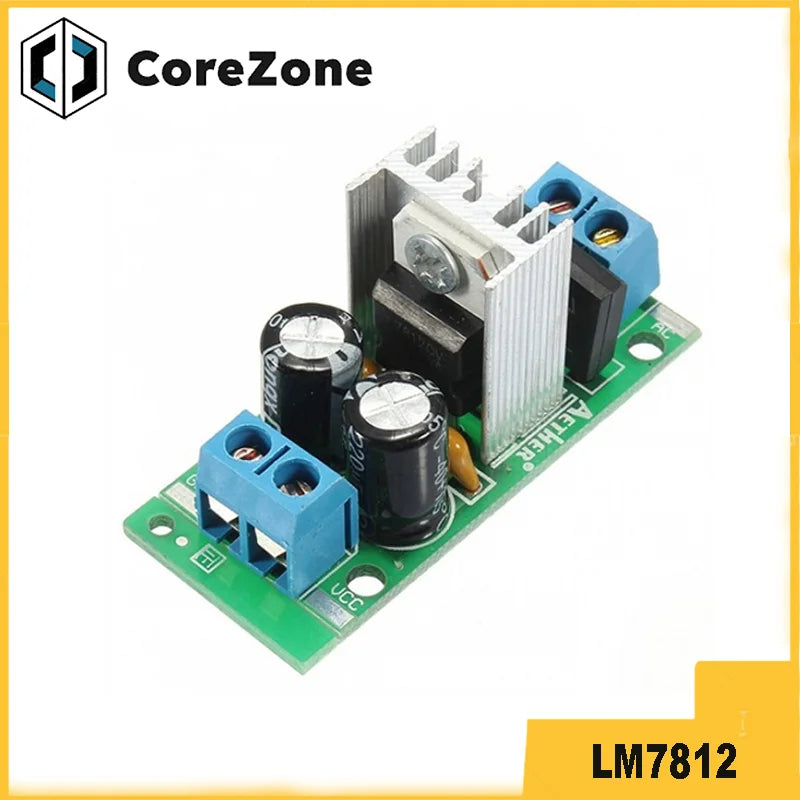

L7812 LM7812 Three-terminal voltage regulator 12V voltage regulator module 12V voltage regulator power module

1) 3A rectifier bridge (AC, DC can be input)

2) 2*35V 220UF high voltage capacitor (do buffer filtering)

3) High quality radiator (equipped with heat sink to enhance heat dissipation)

4) 1.5A high current chip (network products generally use 1.2A and below, cutting corners)

The board adopts full wave bridge rectifier, both AC and DC can be input, and the input is not positive or negative. Filter using two 35V 220UF large-capacity electrolytic capacitors as buffer filter, the output current can be stable and smooth. The L7812 is equipped with heat sink and 3A rectifier bridge for continuous output of high current.

Application field:

DIY power supply, monitoring power supply, experimental power supply, camera power supply, vehicle power supply, communication equipment power supply.

Other parameters:

Module size: 43mm*20mm

Input voltage (withstand voltage) :

Dc: 15~24V,

Ac: 12~18V

Output characteristics:

Load adjustment rate: 100mV

Static current: 8mA

Output noise voltage: 42uV

Input/output pressure difference: 2V

Output impedance: 15mΩ

Peak current: 1.5A

One-module description
1 Board size: 5.7cm*2.3cm
2 Input voltage: The input voltage is non-polar, both AC and DC, and ranges from 7.5v to 20v
3 Output voltage 5v
4 Output current: 1.2A
5 Fixed bolt holes are provided for easy installation
