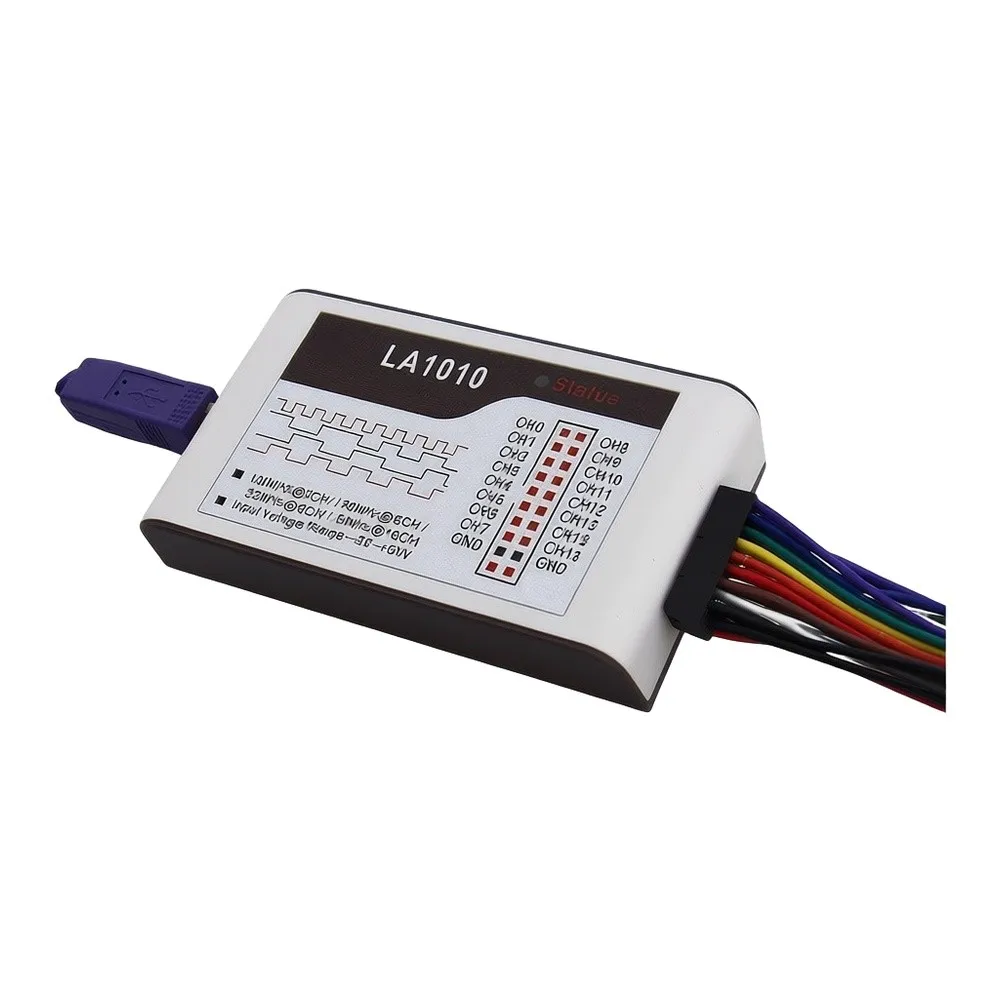

LA1010 For Logic Analyzer 16 Channel 100MHz Sampling Rate For Protocol Debugging UART I2C For Spi RS232 Electronic Testing Tool

LA1010 For Logic Analyzer 16 Channel 100MHz Sampling Rate For Protocol Debugging UART I2C For Spi RS232 Electronic Testing Tool

$347.88

$347.88 $0.00

Description

SPECIFICATIONS

Brand Name: ANENG

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: Yes

Features:

* Broad Compatibility: The LA1010 for logic analyzer supports multiple operating systems, including for Windows XP/7/8/10, for Linux, and for macOS, seamless integration with your existing systems.

* Intuitive Interface: A clean and efficient user interface allows for easy and provides powerful analytical capabilities, simplifying data review and improving efficiency.

* Comprehensive Protocol Support: This analyzer decodes various communication protocols, such as UART, for RS232, I2C, and for SPI, facilitating extensive analysis of different devices and standards.

* Flexible Data Display Options: Users can view data in multiple formats, including decimal, hexadecimal, binary, and ASCII, providing flexible data interpretation options to meet specific needs.

* High Sampling Performance: The LA1010 boasts a for maximum sampling rate of up to 100MHz for across three channels, accurate and detailed data acquisition, making it for ideal for complex applications such as electronic testing and debugging.

Specifications:

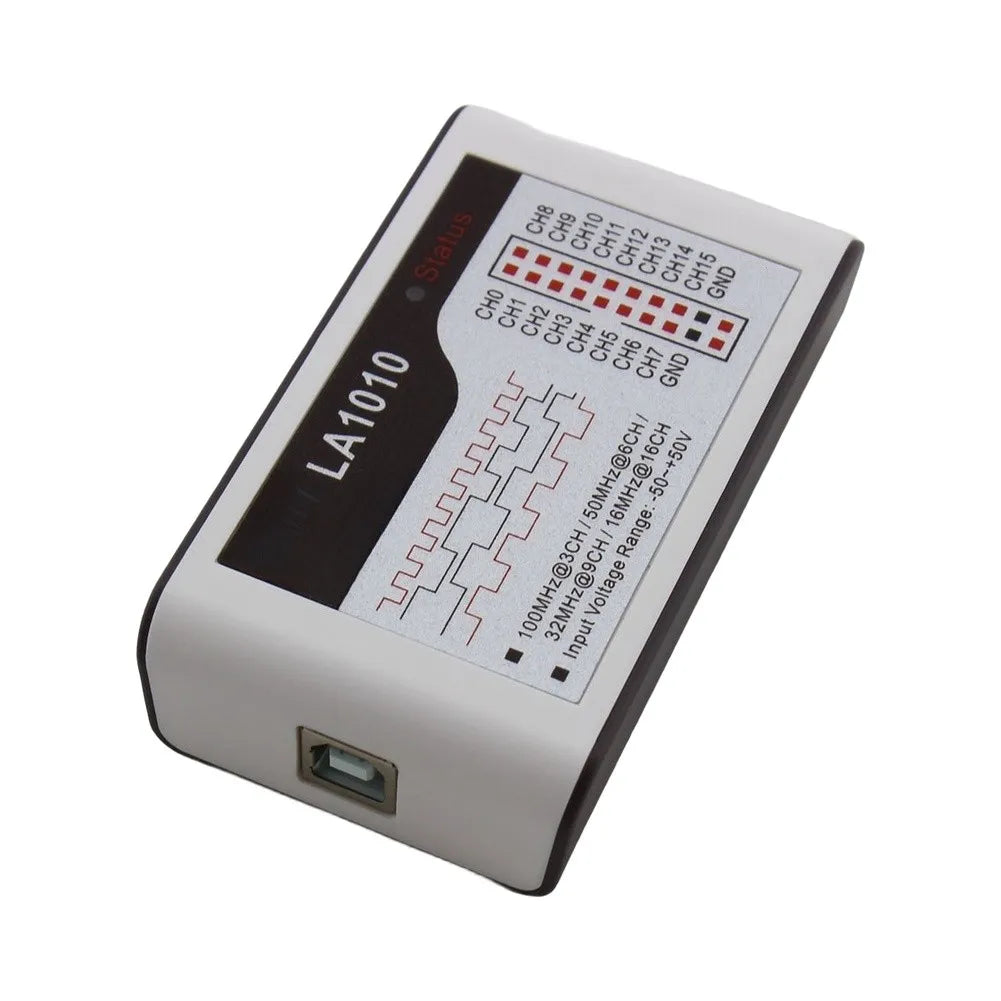

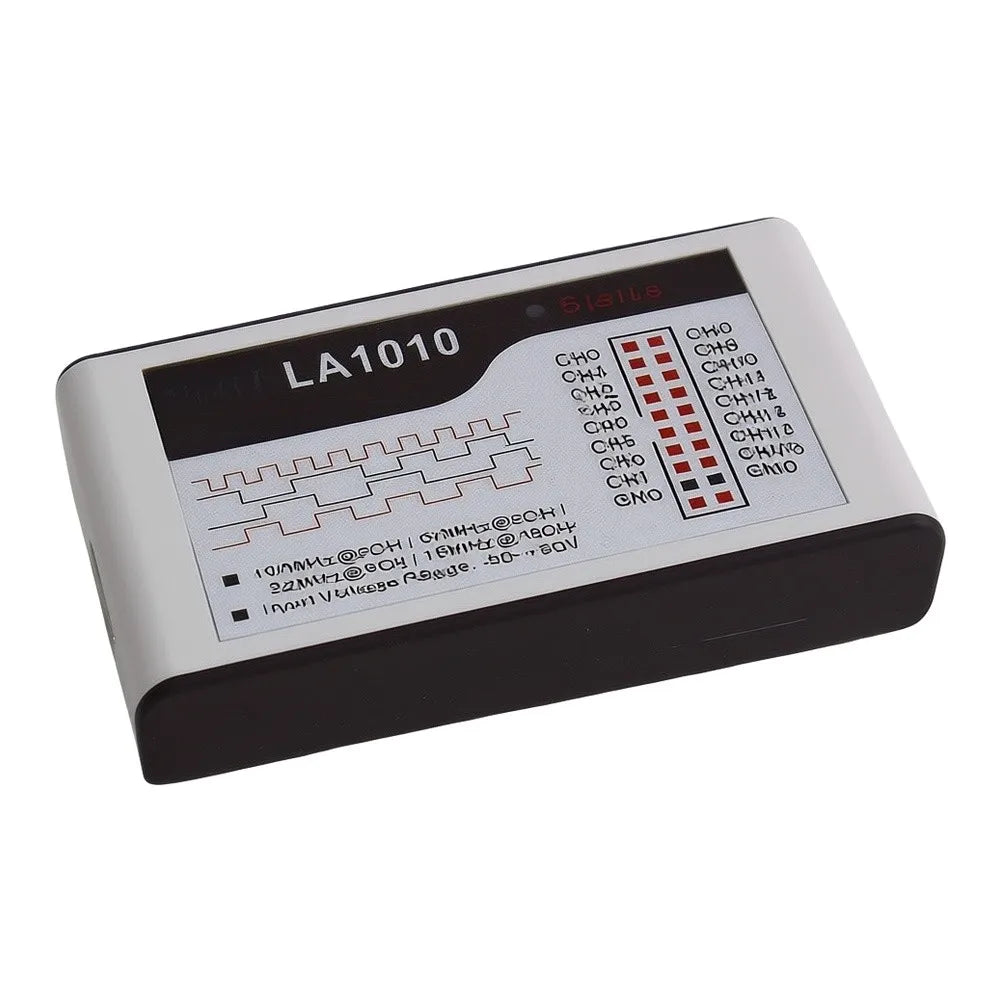

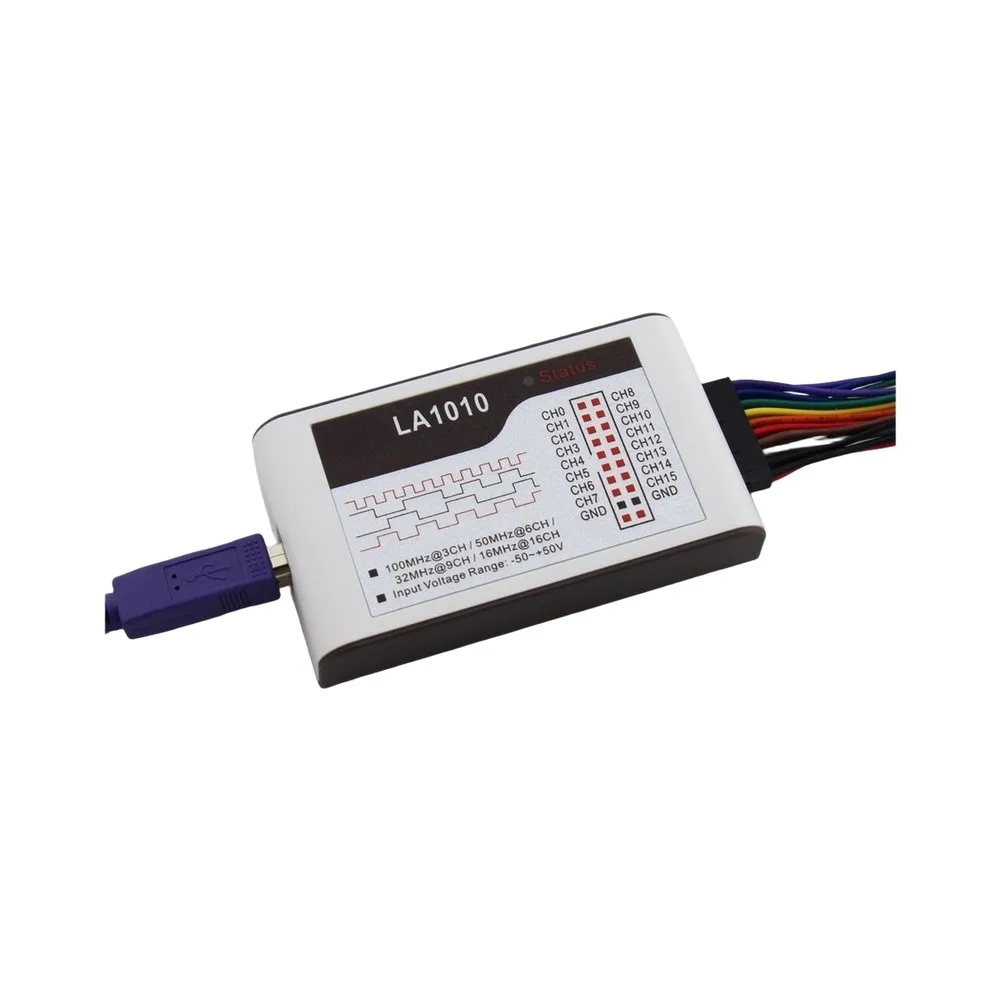

part Name: LA1010 for Logic Analyzer

Material: Plastic

size: 91*55*18mm

Color: White

- Number of Channels: 16

- for Maximum Sampling Rate: 100M@3CH, 50M@6CH, 32M@9CH, 16M@16CH

- Measurement Bandwidth: 20MHz

- Minimum Captured for Pulse Width: 20ns

- for Maximum Sampling Depth: 10G/channel

- Input Voltage Range: -50V~+50V

- Equivalent Input Impedance: 220KΩ, 12pF

- Threshold Voltage: Adjustable threshold: -4~+4V, adjustment step: 0.01V

- Number of Channels: 2

- Output for Frequency Range: 0.1~10MHz

- Period Adjustment Step: 10ns

- for Pulse Width Adjustment Step: 10ns

- Output Voltage: +3. for 3V

- Output Impedance: 50Ω

- Power Supply Interface: USB 2.0/3.0

- Standby Current: 100mA

- for Maximum Operating Current: 150mA

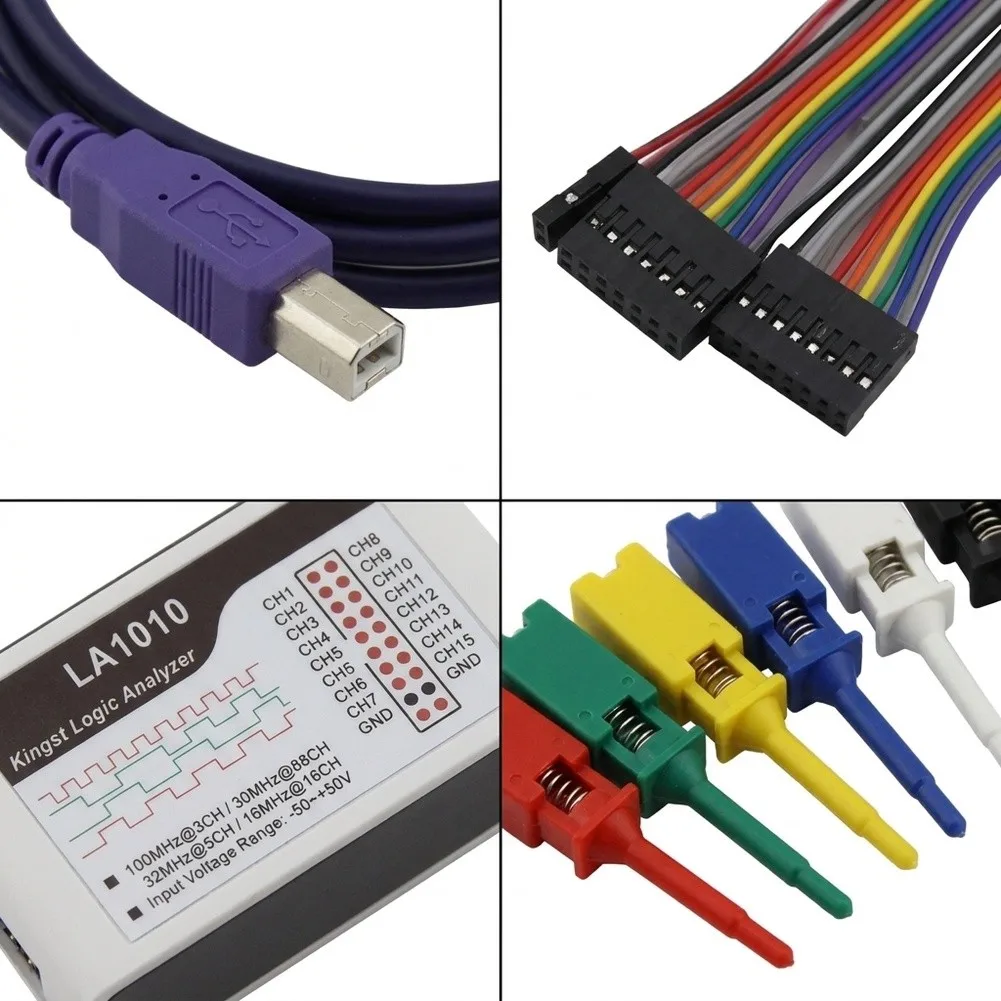

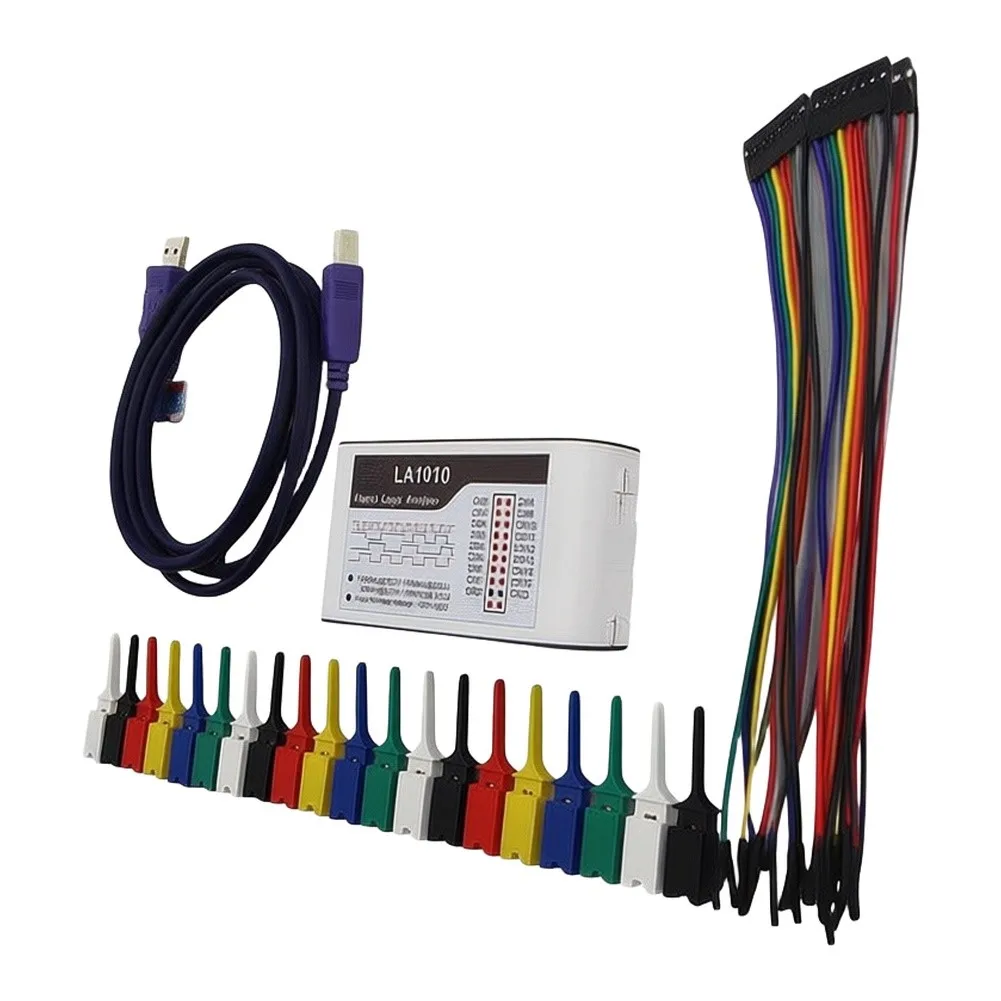

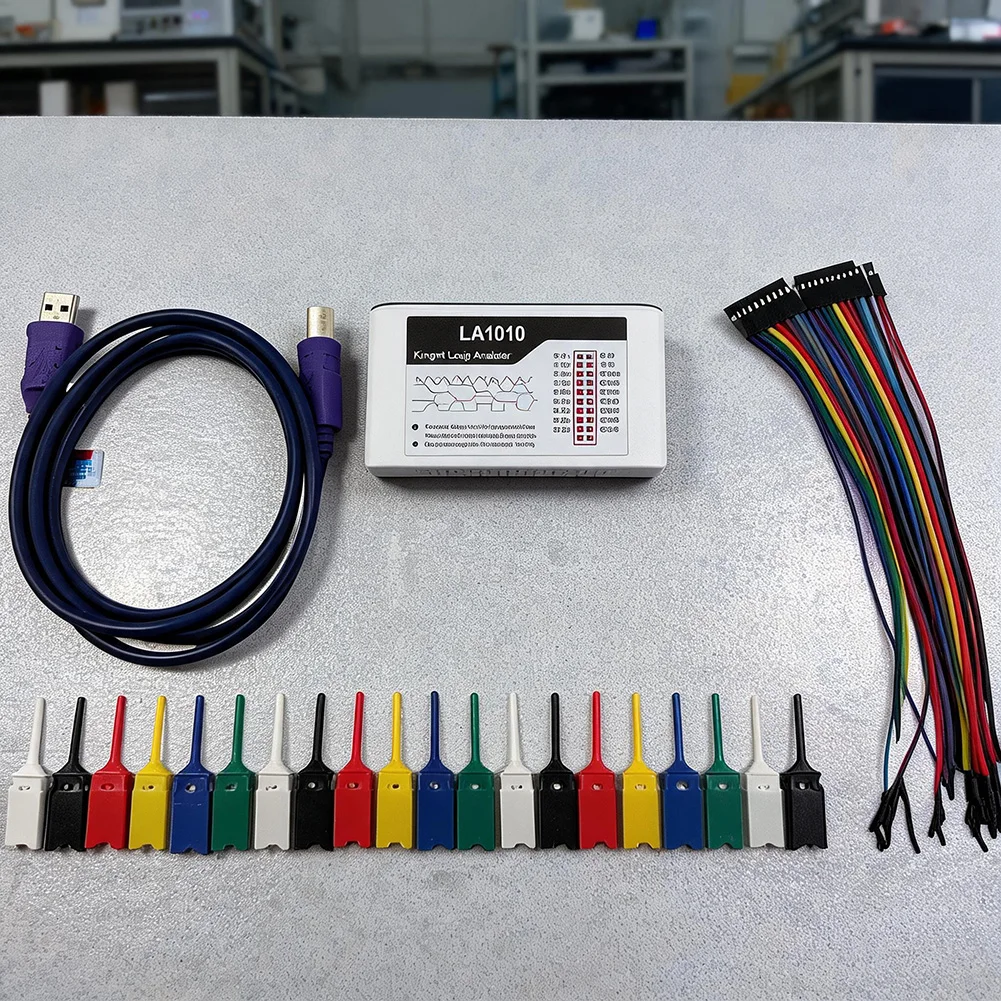

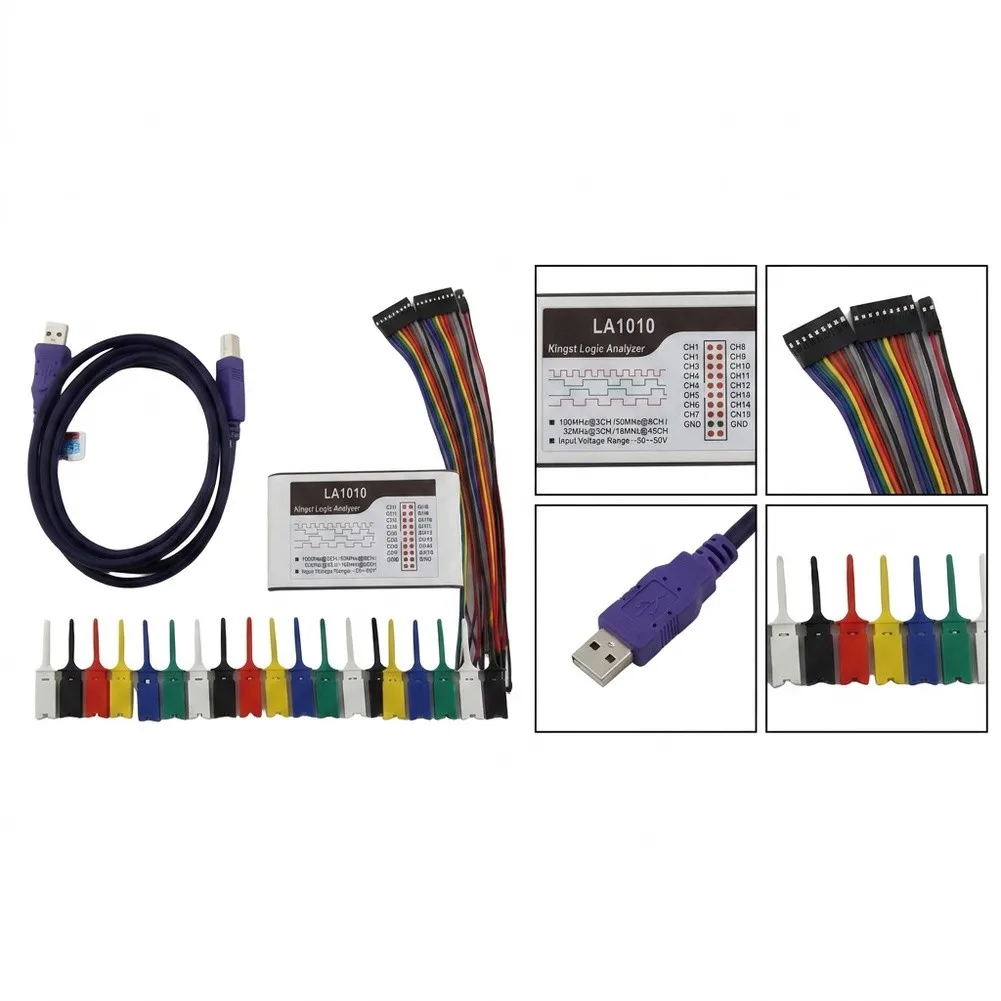

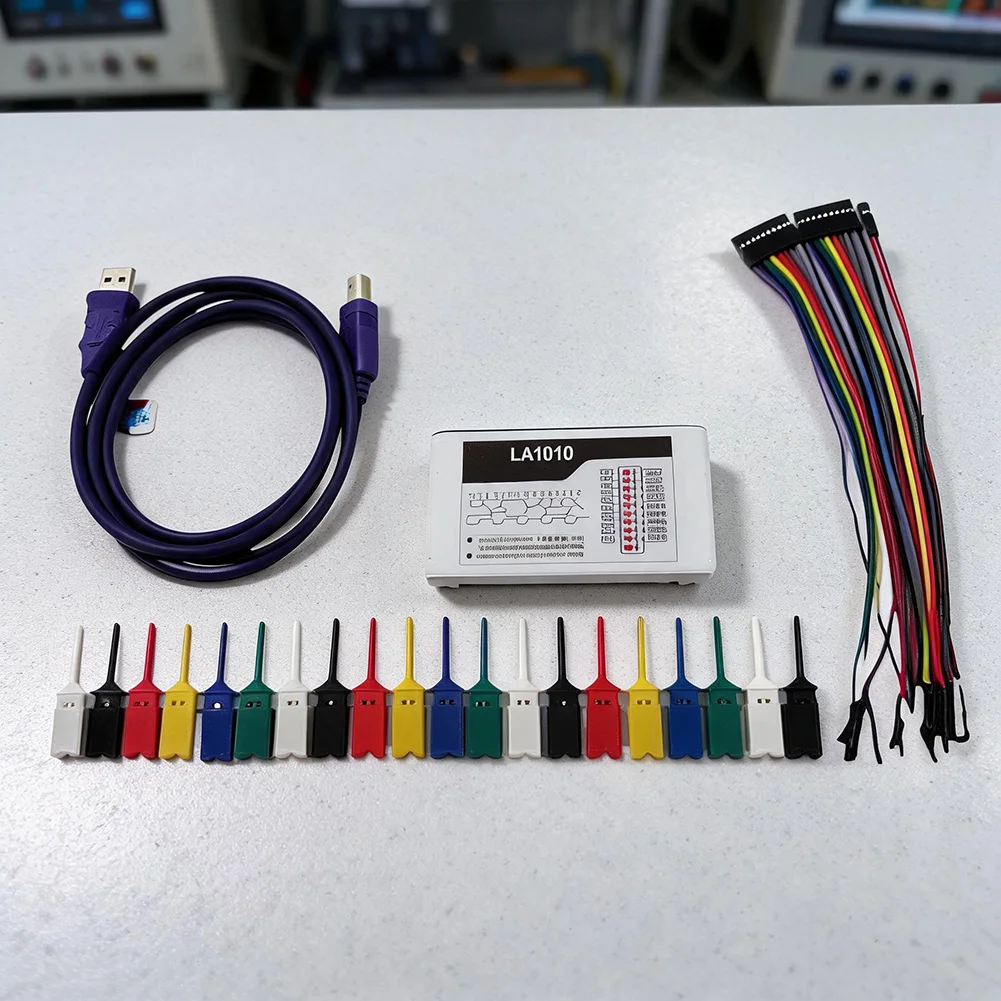

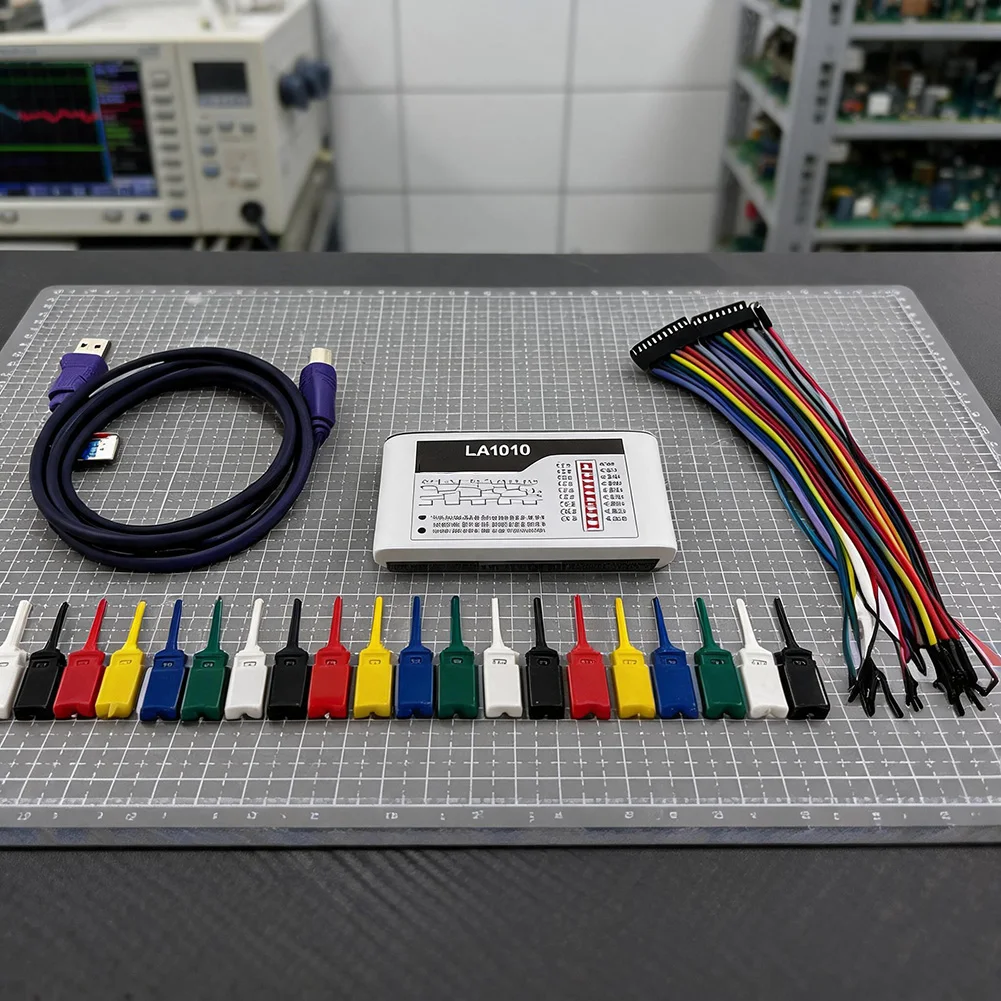

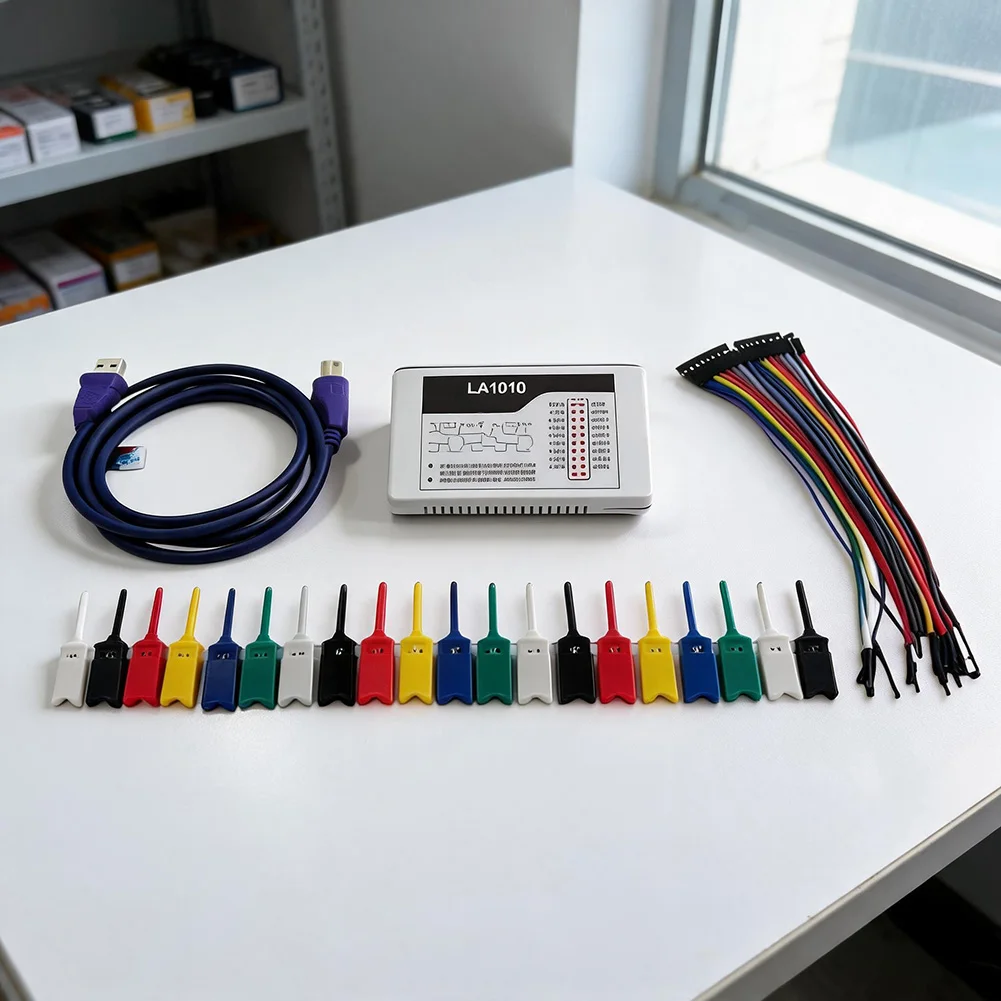

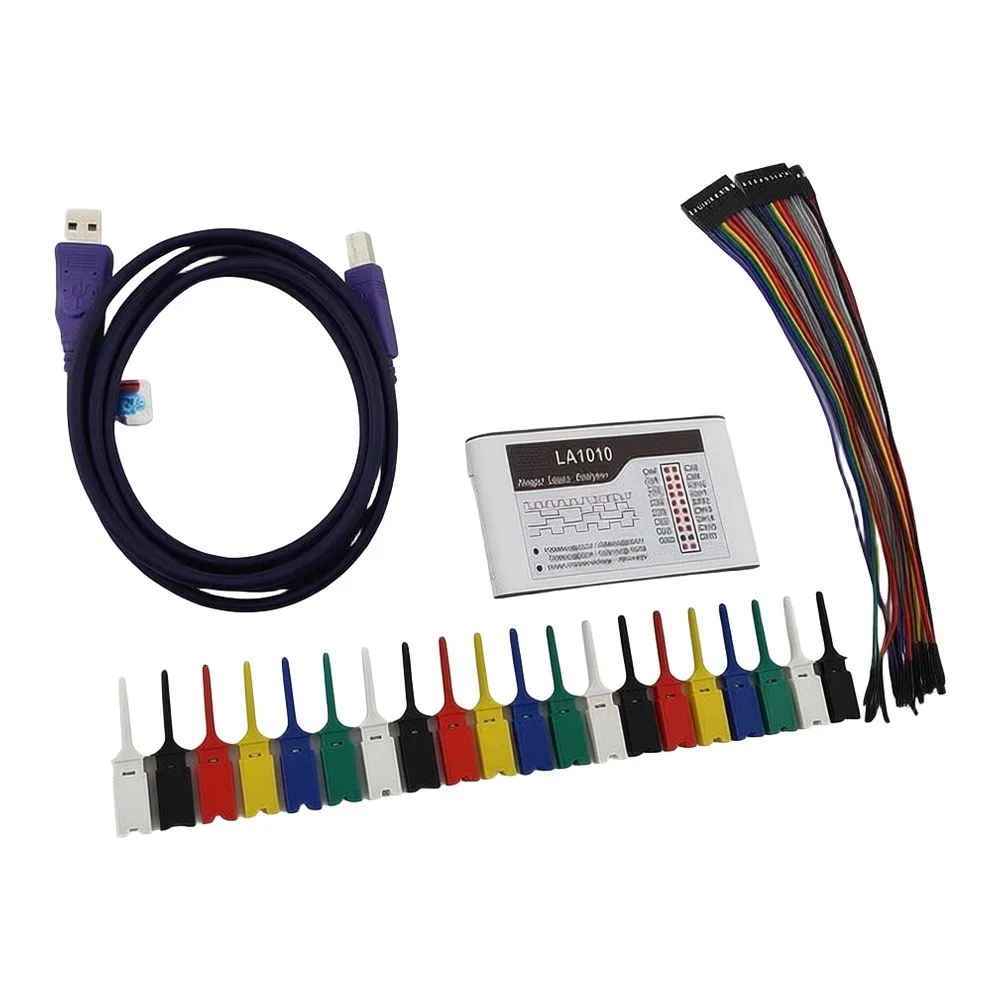

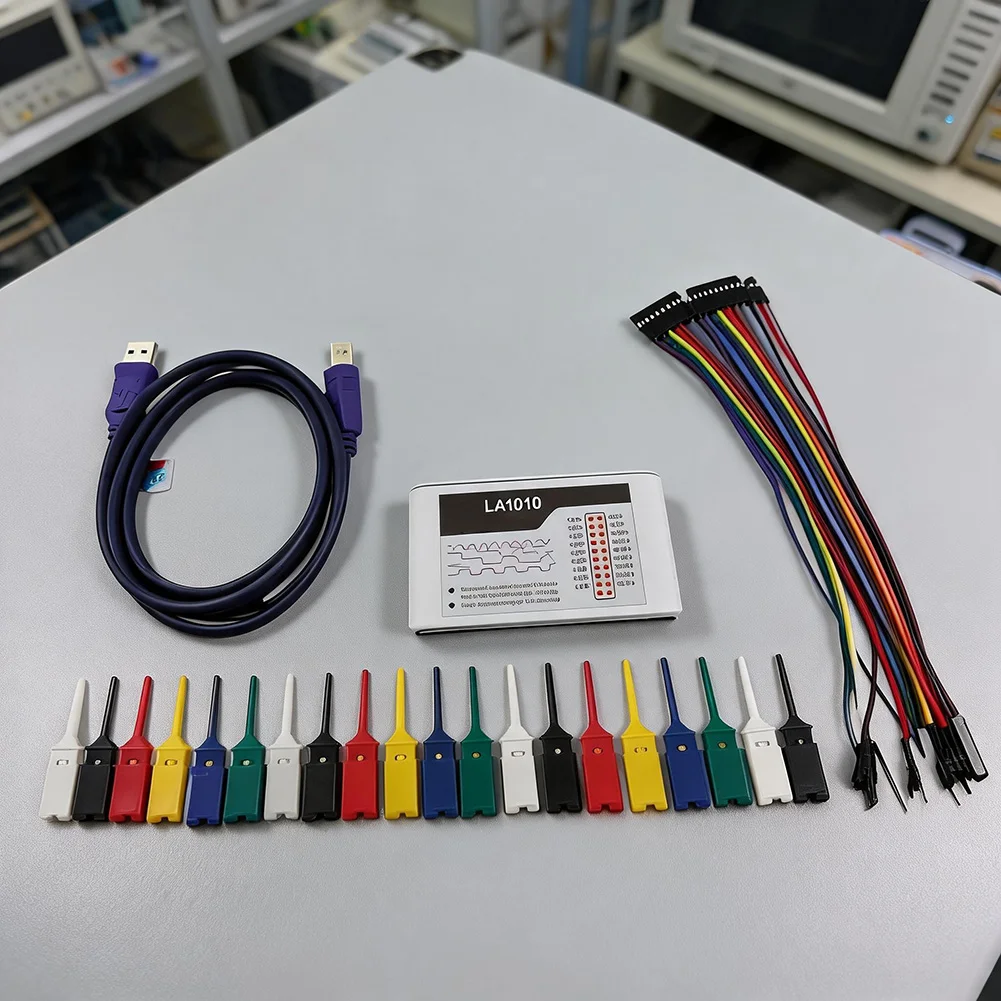

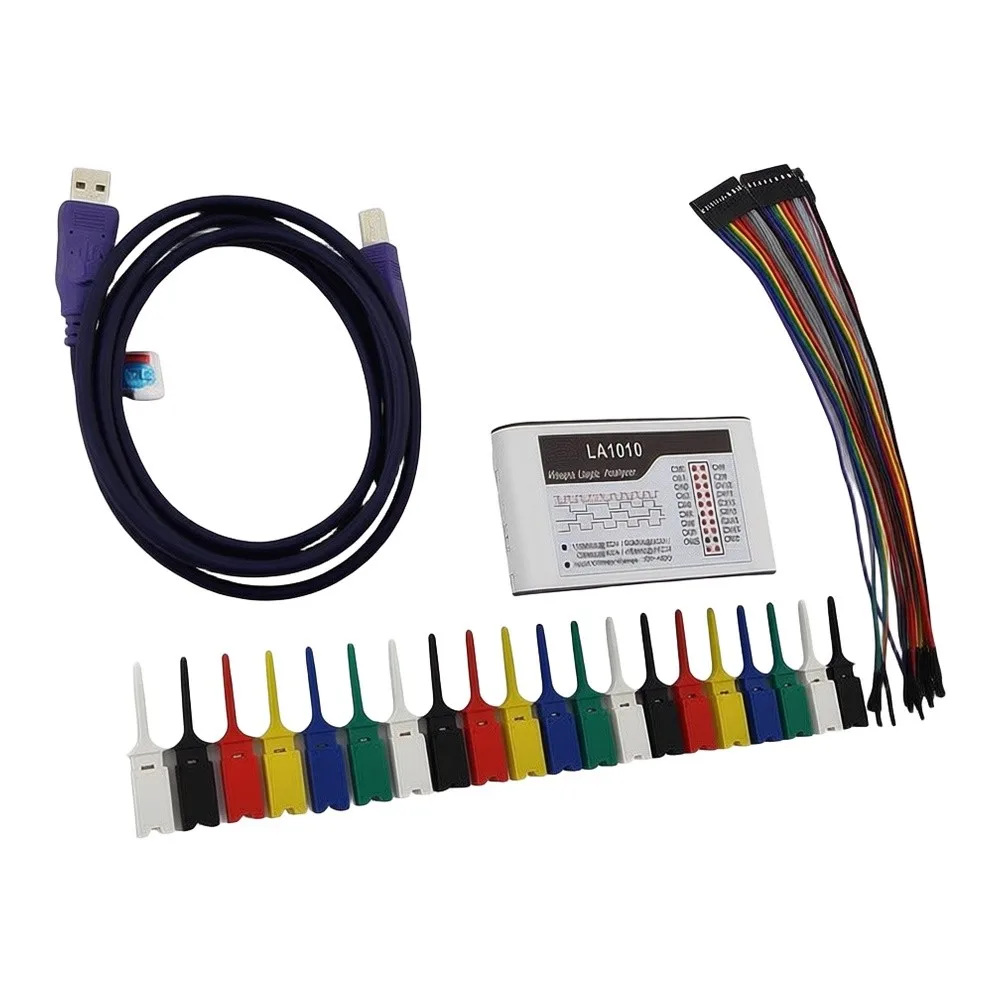

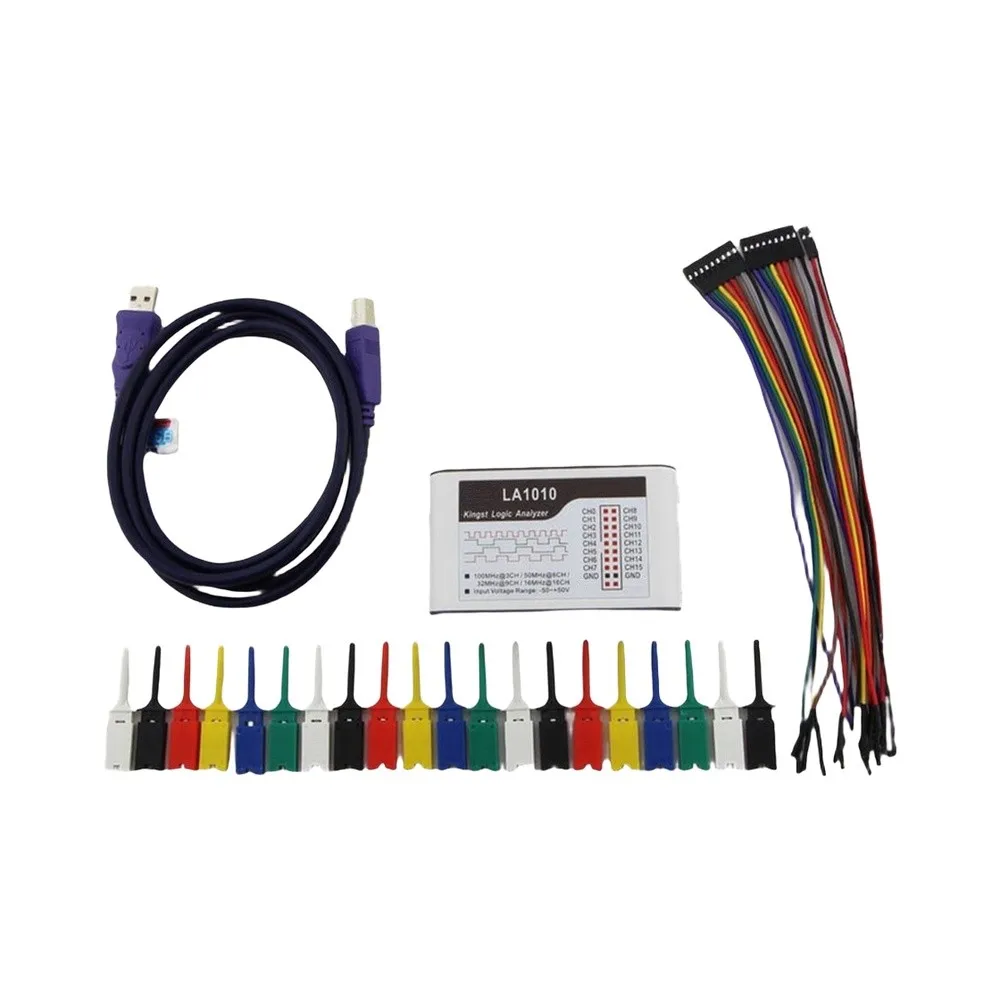

Package Contents:

1. LA1010 Main Unit x1

2. for 9P Ribbon Cable x2

3. 2P Ribbon Cable x1

4. Test Hooks for x20

5. USB Cable x1

Note:

1. Due to factors such as monitor brightness and ambient light, the actual color of the product may differ slightly from the image displayed on the website.

2. Please allow for slight manual measurement errors.
