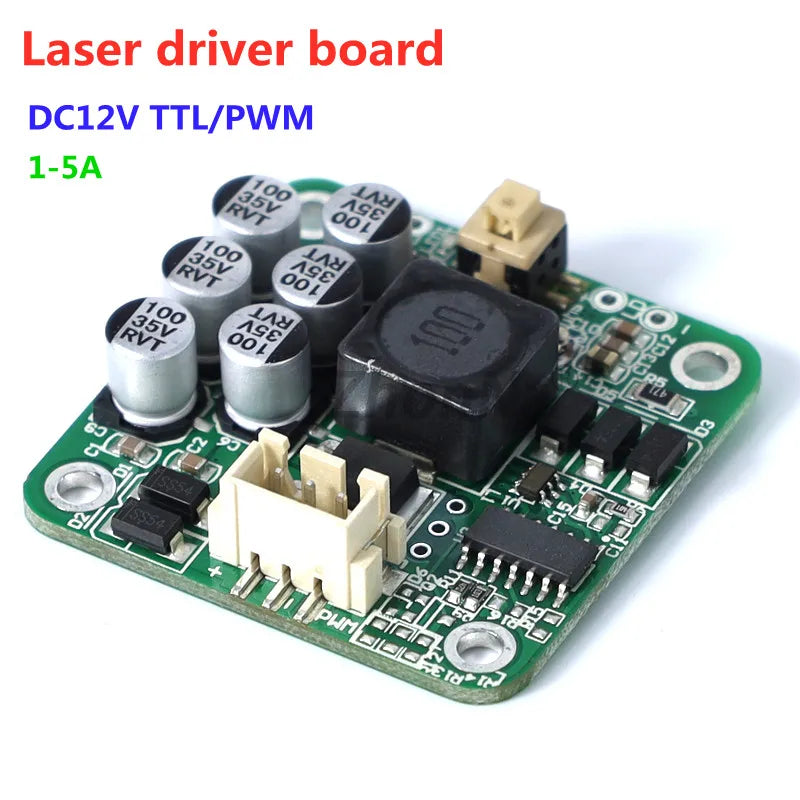

Laser Diode LD Driver Board with TTL/PWM Modulation Current 1A - 5A 12V Voltage Current Adjustable 405nm 445nm 450nm Universal

Laser Diode LD Driver Board with TTL/PWM Modulation Current 1A - 5A 12V Voltage Current Adjustable 405nm 445nm 450nm Universal

$122.13

$122.13 $0.00

Description

SPECIFICATIONS

Brand Name: ZhonNa

Certification: ce

Choice: yes

Extension of time: TTL/ PWM

High-concerned chemical: none

Model: ZN-PCB-09

Model Number: ZN-PCB-009

Name: PCB circuit board

Origin: Mainland China

Protection voltage: 12V

Rated current: MAX3500mA

Rated voltage: DC12V

Shape: SQUARE

Size: 400*400*110MM

Terminal type: PH2.5

Use for: LASER

semi_Choice: yes

The Small Laser Engraving Machine with Fan Drive and Power Adjustment Potentiometer Drives the PCB with Pulse Width Modulation.

Brand:ZhonNa

Name:PCB Circuit board

Model: ZN-PCB-09

Terminal type: PH2.5

Circuit control: 12V step-down circuit, constant current output (adjustable current)

Output specifications: Max 5A+/-0.0001A

Scope of application: 200mW-5000mW 405/445/450/520nm/638nm red, green, blue and purple laser drive power supply

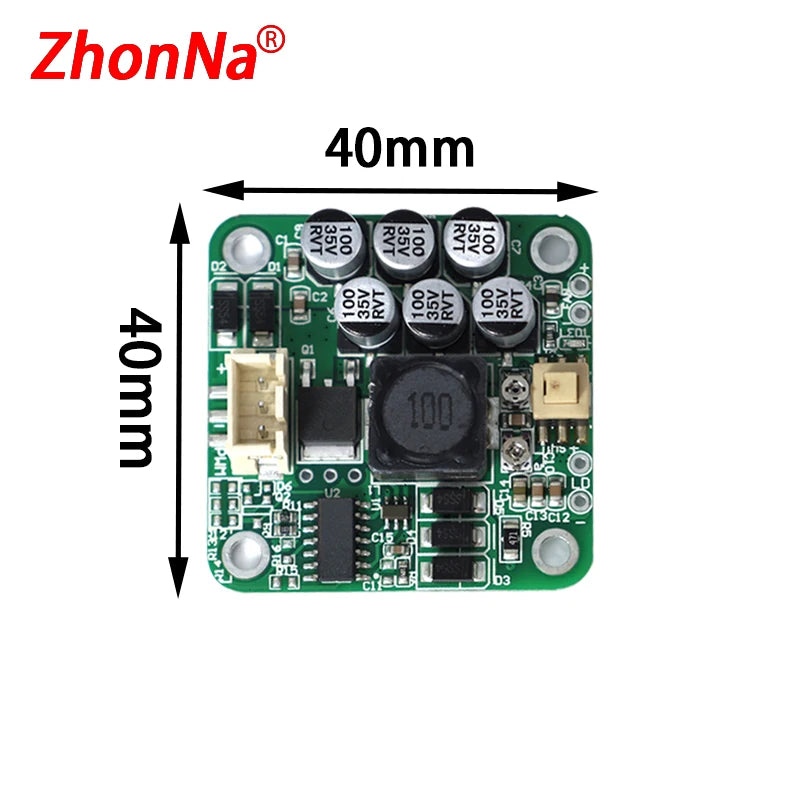

Dimensions: 40*40*mm+/-0.1mm (length * width), the height of the component including the board 11mm

Input voltage: 12V+/-0.0001V

TTL modulation description: External 0-5V voltage signal (0 is on, 5 is off, the frequency determines the speed of the laser flashing PWM)

Temperature resistance: -40~80 degrees Celsius

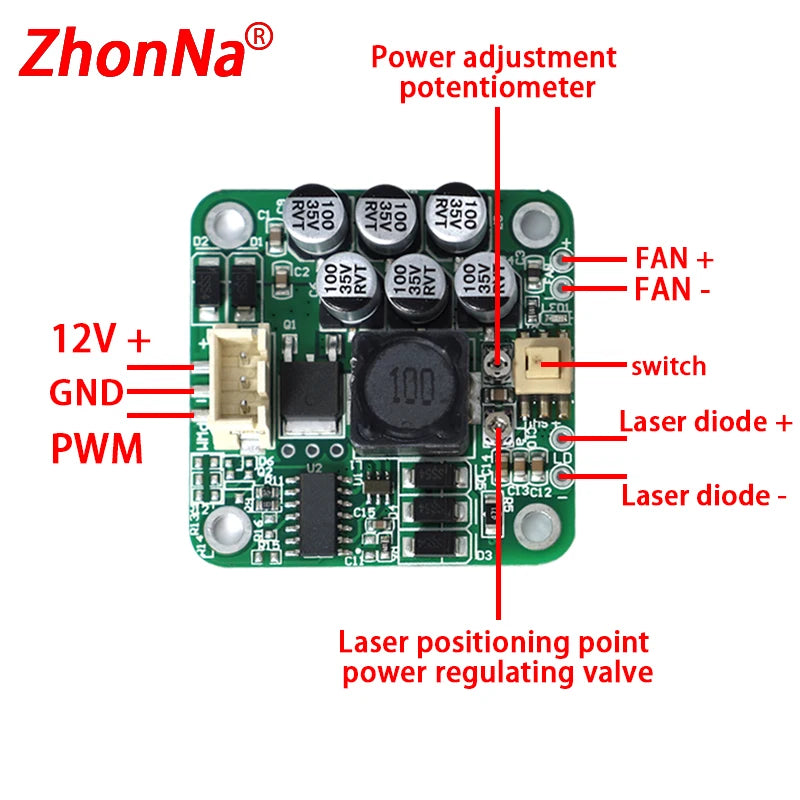

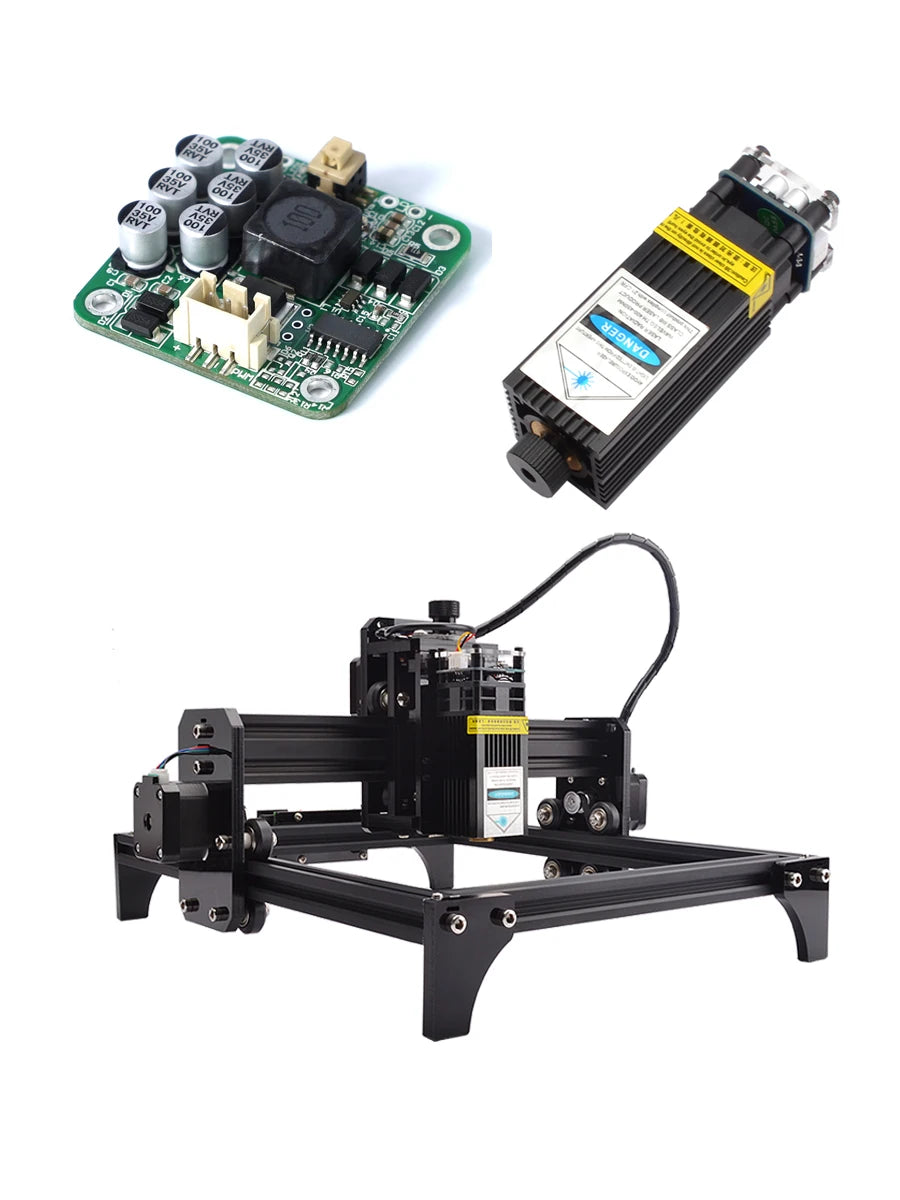

Function: Used to drive laser and cooling fan on small or household laser engraving machine, with PWM function and power adjustment potentiometer. Input 12V, output voltage is about 6V, output current is about 100mA-5000mA, it can drive 0.1W-5W laser. It is suitable for most laser engraving machines on the market.
