Laser Galvo Scanner 15/20/25/30/40Kpps X-Y Galvanometer Scanning for RGB Stage Light / Engraving / 3D Printing

Laser Galvo Scanner 15/20/25/30/40Kpps X-Y Galvanometer Scanning for RGB Stage Light / Engraving / 3D Printing

$287.24

$287.24 $0.00

Color 15Kpps 20Kpps 40Kpps 25Kpps 30Kpps

Description

SPECIFICATIONS

Are they goggles: No

Brand Name: NONE

Certification: NONE

High-concerned chemical: none

Origin: Mainland China

15/20/25/30/40Kpps Laser Galvo X-Y Scanning Galvanometer

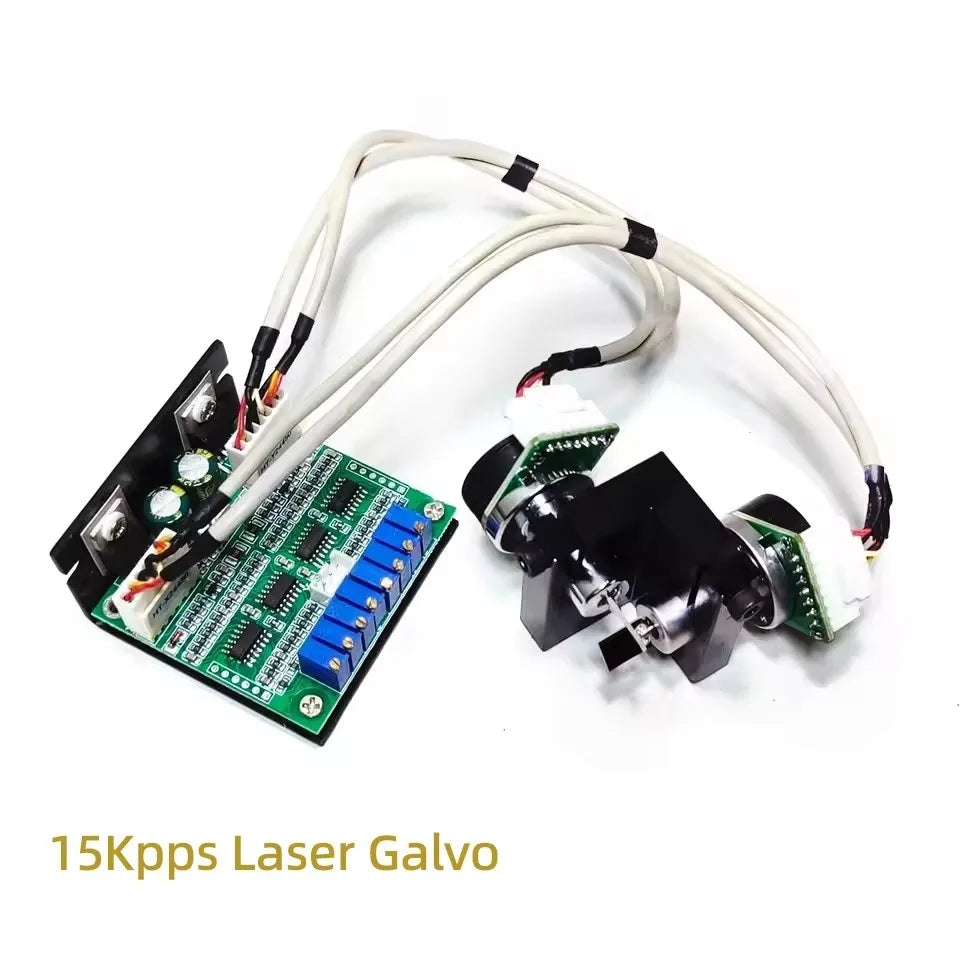

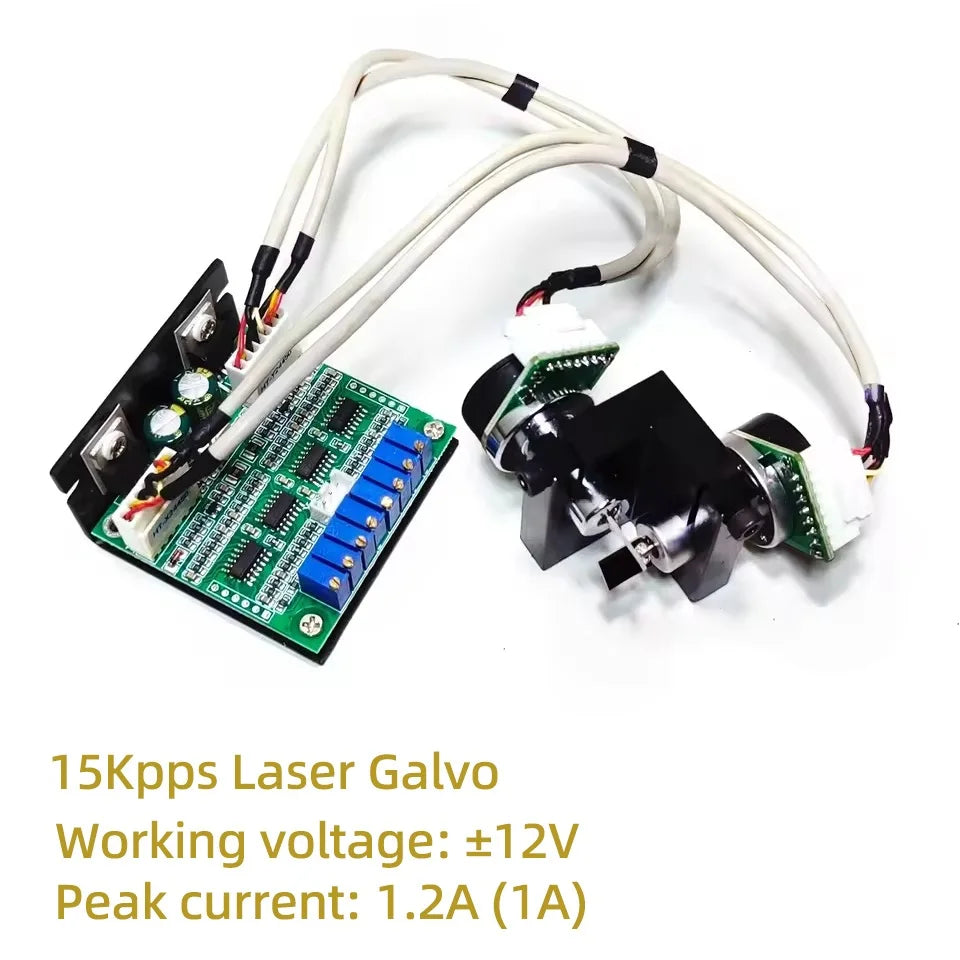

15Kpps Laser Galvo Parameters:

Maximum scanning angle: ±30 °
optical angle (default setting ±15 °)
Lens size: 11x7x0.7mm (high-quality dielectric film)
Lens reflectivity:>99% at 45 ° incident angle
Covering wavelengths : 400nm-700nm
Working voltage: ±12V
Working temperature: 0 ℃ -45 ℃
Storage temperature: -10 to+60 ℃
Work noise: ≤ 30db
Average working current: 0.5A
Peak current: 1.2A (1A)
Linearity: 99.9%
Small step response time: ≤ 0.50ms
Long term drift (continuous operation for 8 hours):
Proportional drift:<50PPM/℃
Zero drift:<15 μ Rad./℃
Repetition accuracy: 8 μ Rad
Coil resistance: 4 Ω± 10%
Coil inductance: 200 μ H ± 10
Coil temperature: ≤ 95 ℃

Driver Board Input voltage: ± 12VDC
Analog signal input range: ± 5V

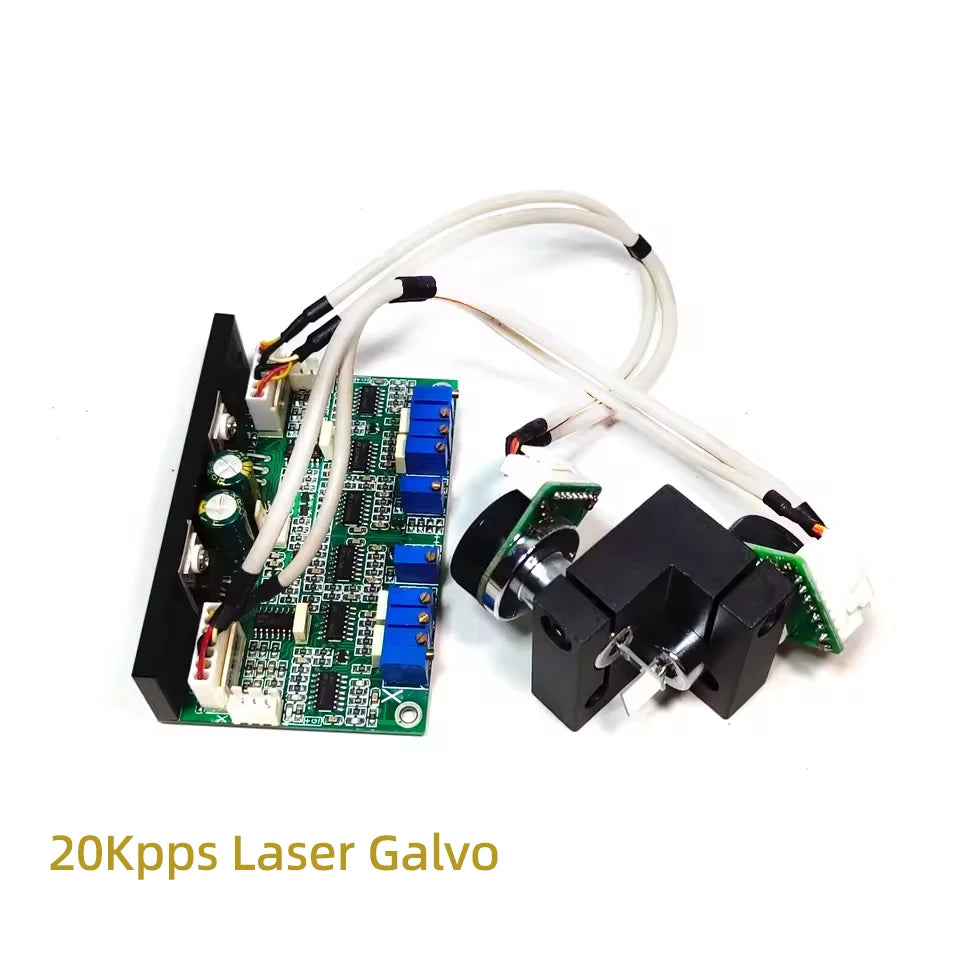

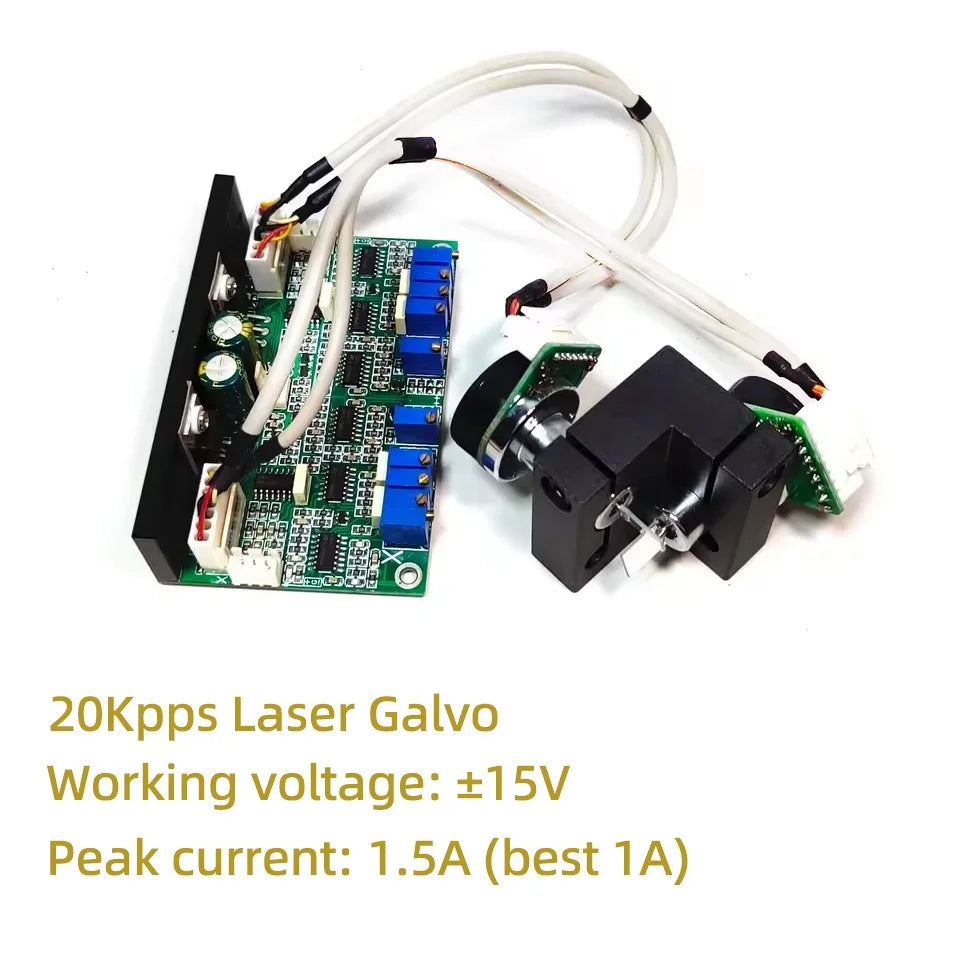

20Kpps Laser Galvo Parameters:

Maximum scanning angle: ±30 °
optical angle (default setting ±15 °)
Lens size: 11x7x0.7mm (high-quality dielectric film)
Lens reflectivity:>99% at 45 ° incident angle
Covering wavelengths : 400nm-700nm
Working voltage: ±15V
Working temperature: 0 ℃ -45 ℃
Storage temperature: -10 to+60 ℃
Work noise: ≤ 30db
Average working current: 0.5A
Peak current: 1.5A (1A)
Linearity: 99.9%
Small step response time: ≤ 0.50ms
Long term drift (continuous operation for 8 hours):
Proportional drift:<50PPM/℃
Zero drift:<15 μ Rad./℃
Repetition accuracy: 8 μ Rad
Coil resistance: 4 Ω± 10%
Coil inductance: 200 μ H ± 10
Coil temperature: ≤ 95 ℃

Driver Board Input voltage: ± 15VDC
Analog signal input range: ± 5V

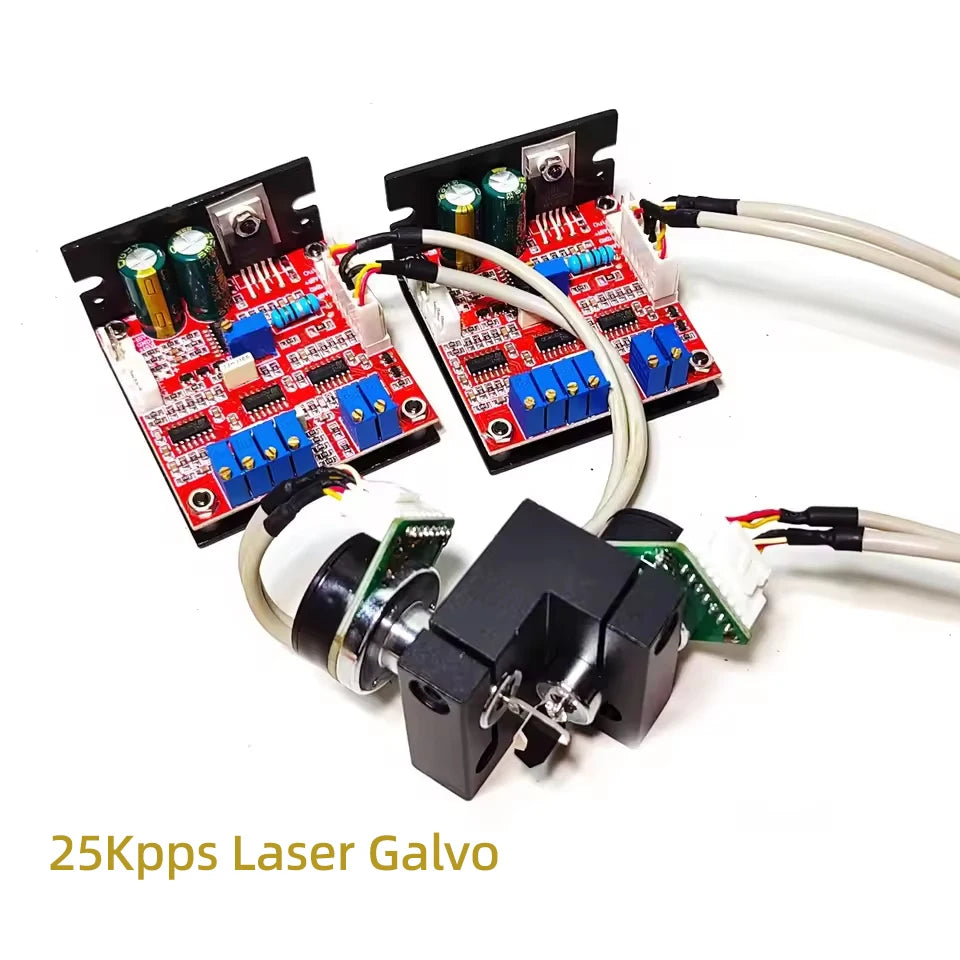

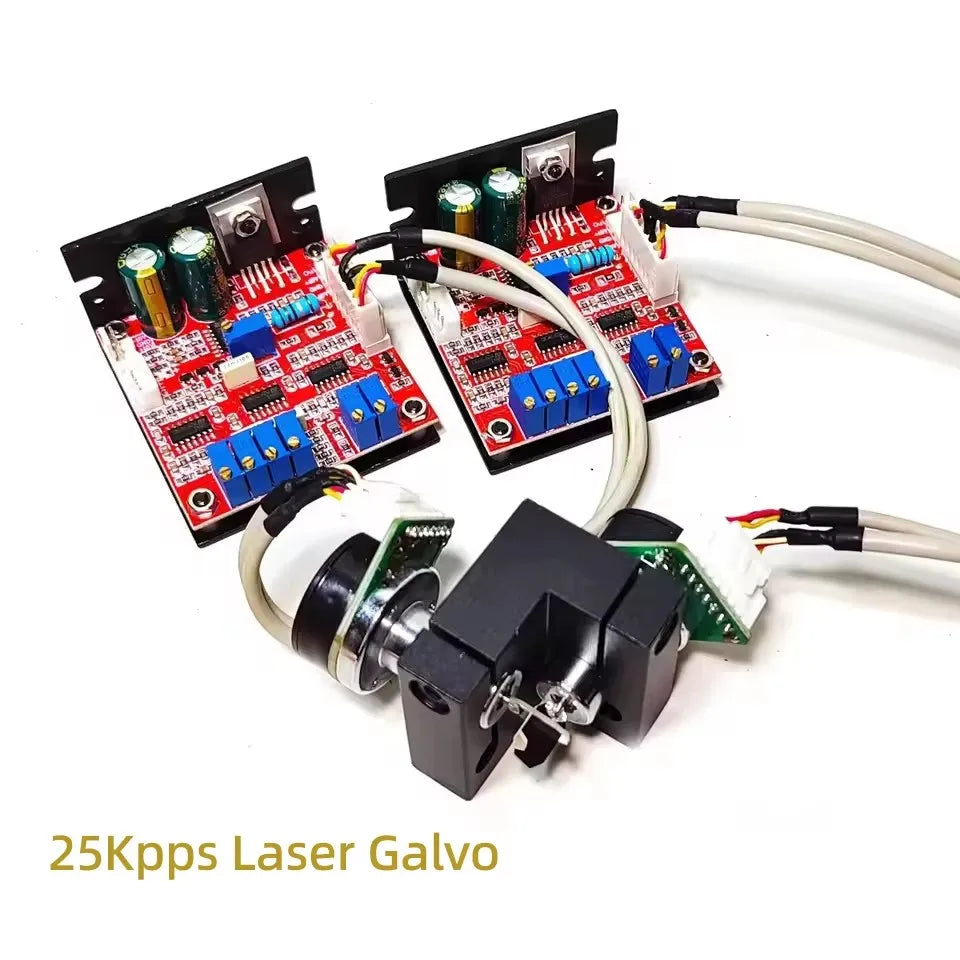

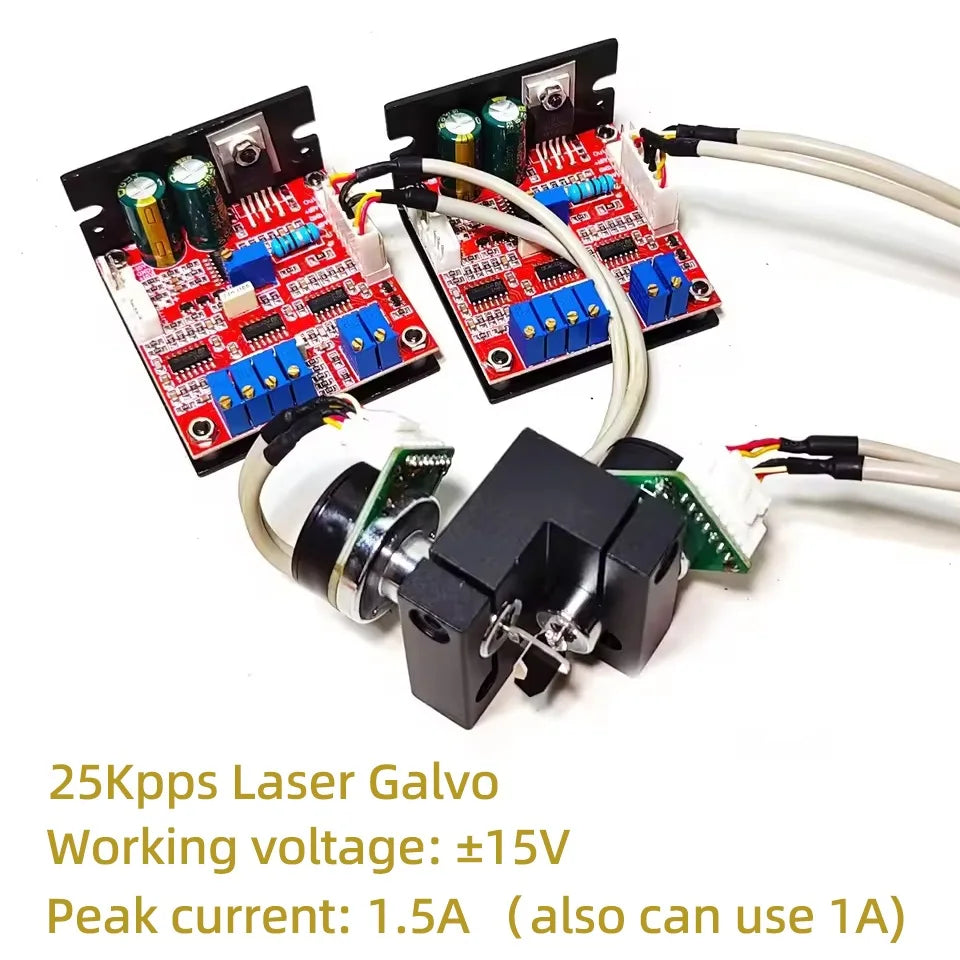

25Kpps Laser Galvo Parameters:

Maximum scanning angle: ±30 °
optical angle (default setting ±15 °)
Lens size: 12x7x0.9mm (high-quality dielectric film)
Lens reflectivity:>99% at 45 ° incident angle
Covering wavelengths : 400nm-700nm
Working voltage: ±15V
Working temperature: 0 ℃ -45 ℃
Storage temperature: -10 to+60 ℃
Work noise: ≤ 30db
Average working current: 0.5A
Peak current: 1.5A
Linearity: 99.9%
Small step response time: ≤ 0.50ms
Long term drift (continuous operation for 8 hours):
Proportional drift:<50PPM/℃
Zero drift:<15 μ Rad./℃
Repetition accuracy: 8 μ Rad
Coil resistance: 4 Ω± 10%
Coil inductance: 200 μ H ± 10
Coil temperature: ≤ 95 ℃

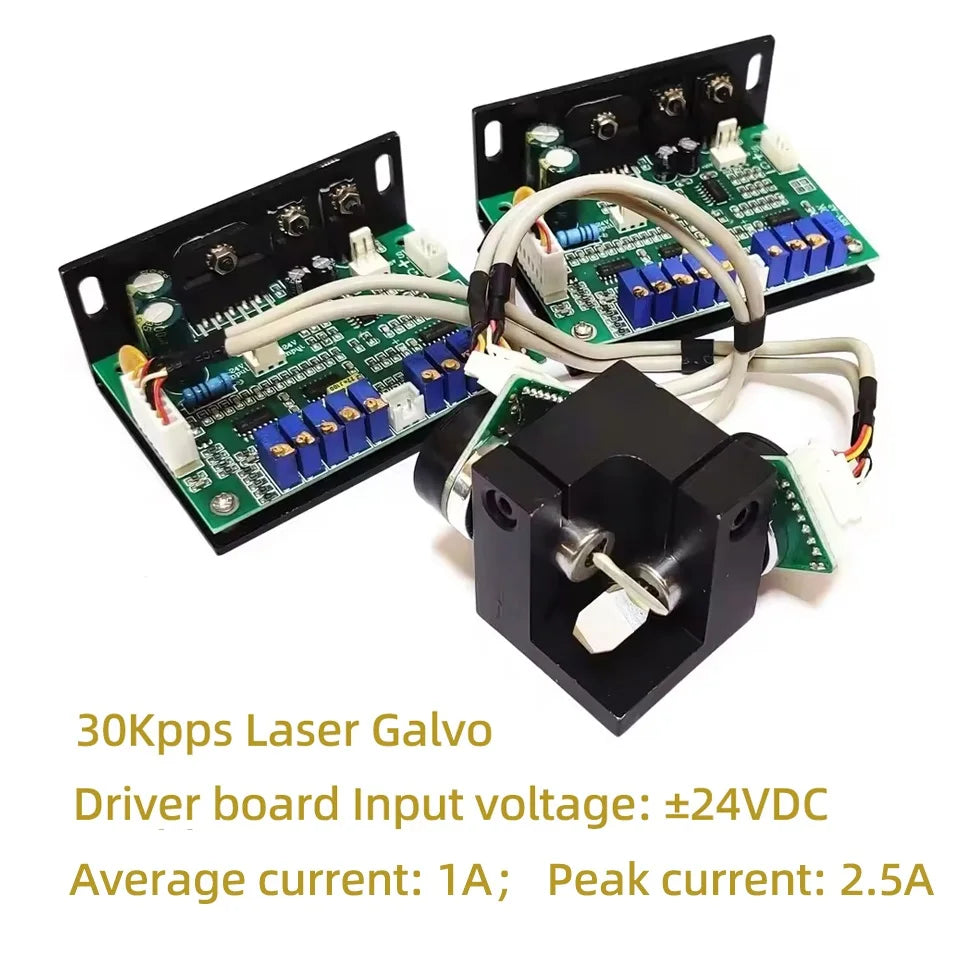

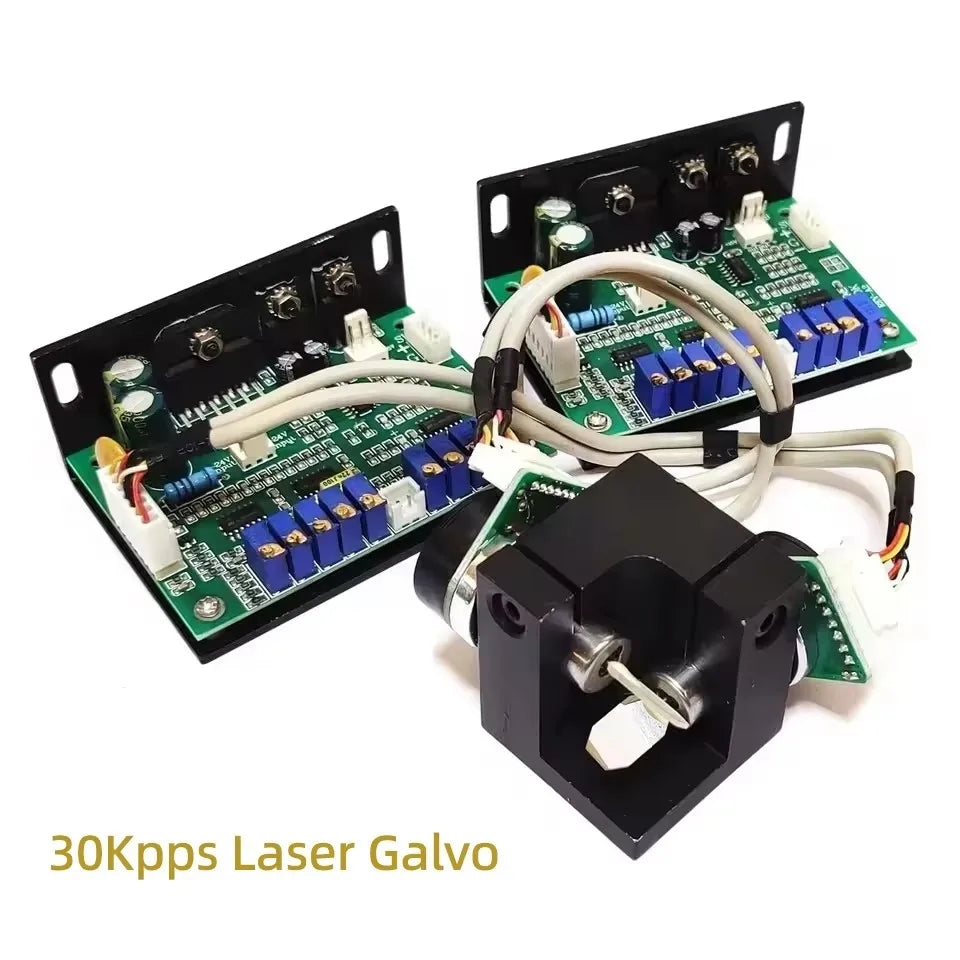

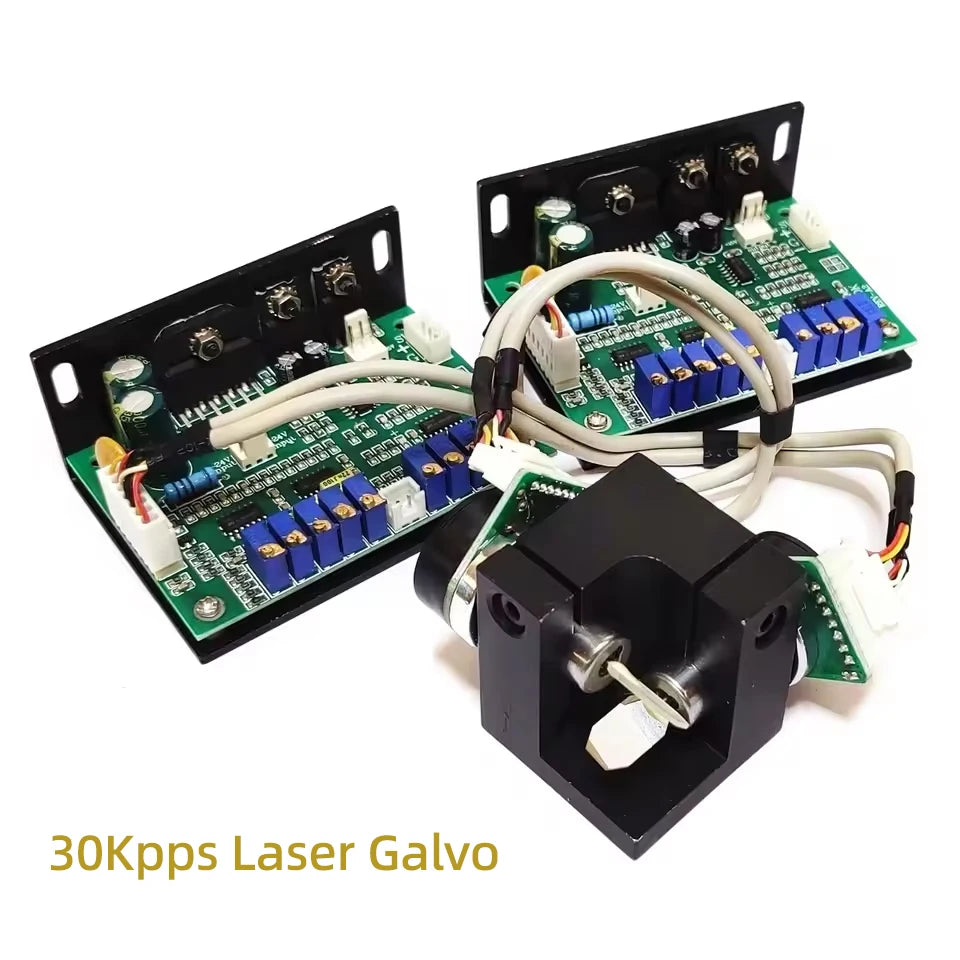

30Kpps Laser Galvo Parameters:

Maximum scanning angle: ± 30 ° optical angle (factory set ± 20 °)
Working temperature: 0 ℃ -45 ℃
Storage temperature: -10 to+60 ℃
Work noise: ≤ 30db
Average working current: 1A
Peak current: 2.5A
Linearity: 99.9%
Small step response time: ≤ 0.50ms
Long term drift (continuous operation for 8 hours):
Proportional drift:<50PPM/℃
Zero drift:<15 μ Rad./℃
Repetition accuracy: 8 μ Rad
Coil resistance: 3.8 Ω± 10
Coil inductance: 180 μ H ± 10
Coil temperature: ≤ 95 ℃
Lens size: 12mm * 7mm * 0.9mm (high-quality dielectric film)
Lens reflectivity:>99% at 45 ° incident angle (covering wavelengths of 400nm-700nm)

Driver board Input voltage: ±24VDC
Analog signal input range: ±5V

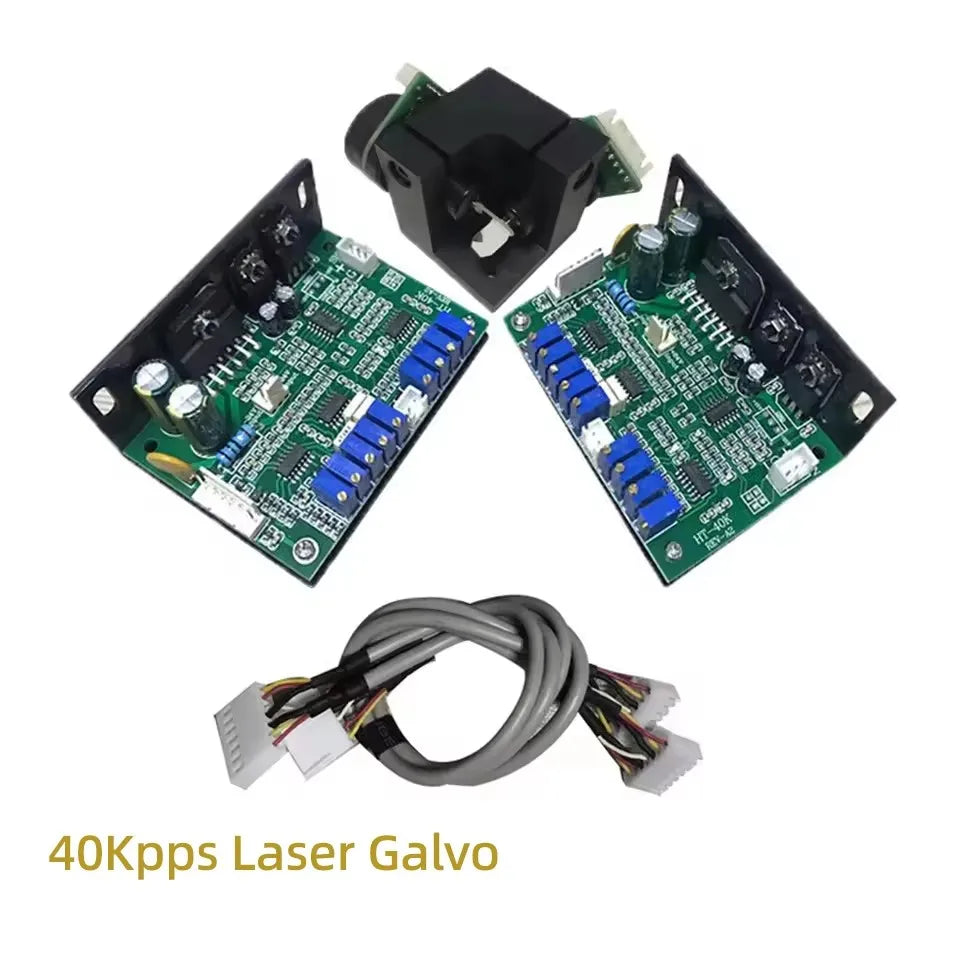

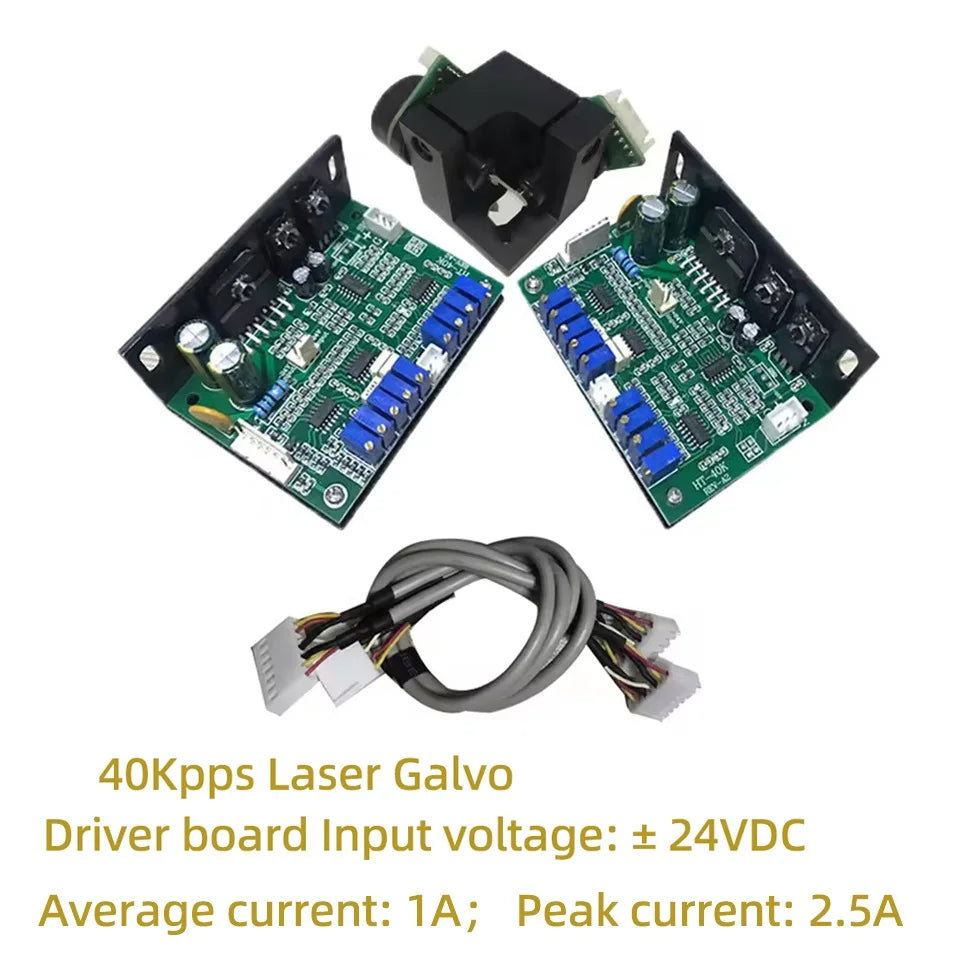

40Kpps Laser Galvo Parameters:

Maximum scanning angle: ± 30 ° optical angle (factory set ± 20 °)
Working temperature: 0 ℃ -45 ℃
Storage temperature: -10 to+60 ℃
Work noise: ≤ 30db
Average working current: 1A
Peak current: 2.5A
Linearity: 99.9%
Small step response time: ≤ 0.50ms
Long term drift (continuous operation for 8 hours):
Proportional drift:<50PPM/℃
Zero drift:<15 μ Rad./℃
Repetition accuracy: 8 μ Rad
Coil resistance: 3.8 Ω± 10%
Coil inductance: 180 μ H ± 10
Coil temperature: ≤ 95 ℃
Lens size: 12mm * 7mm * 0.9mm (high-quality dielectric film)
Lens reflectivity:>99% at 45 ° incident angle (covering wavelengths of 400nm-700nm)
