LASER TREE 20W Laser Module 450nm 40W TTL Blue Light Laser Engraver Head for Laser Engraving Cutting Machine Wood Working Tools

LASER TREE 20W Laser Module 450nm 40W TTL Blue Light Laser Engraver Head for Laser Engraving Cutting Machine Wood Working Tools

$263.97

$263.97 $0.00

Color LT-40W-AA 20W Adjustable Focus 40W Adjustable Focus 40W Adjustable Kit

Ships From Russian Federation Brazil China Mainland Poland United States

Description

SPECIFICATIONS

Adjustable power: Support 5V PWM modulation

Brand Name: Laser Tree

CNC or Not: CNC

Cable: 3PIN, 80cm

Certification: CE

Condition: New

Feature: Adjustable laser head,suitable for DIY engraving machine

Focus: Adjustable

High-concerned chemical: none

Input: 12V 1A-2A

Input port: XH2.54-3P socket

Is Smart Device: Yes

LT-20W-A: 4W Optical Power

LT-40W-A-GOLD(KIT): 5W Optical Power

Light Color: Blue

Main application: Engraving / Cutting

Material: Aluminum Alloy + Plastic

Model Number: 20W 40W Laser Engraving Head

Operating Temperature: 0-60℃

Origin: Mainland China

Service: Dropping Shipping Service

Wavelength: 450nm

Recommend :

1--- LT-K1-MINI-10W (10W Laser Engraving Machine)

2-----LT-K20/ K30 / K40 / K60 : (20W/30W/40W/60W+ Laser Module)

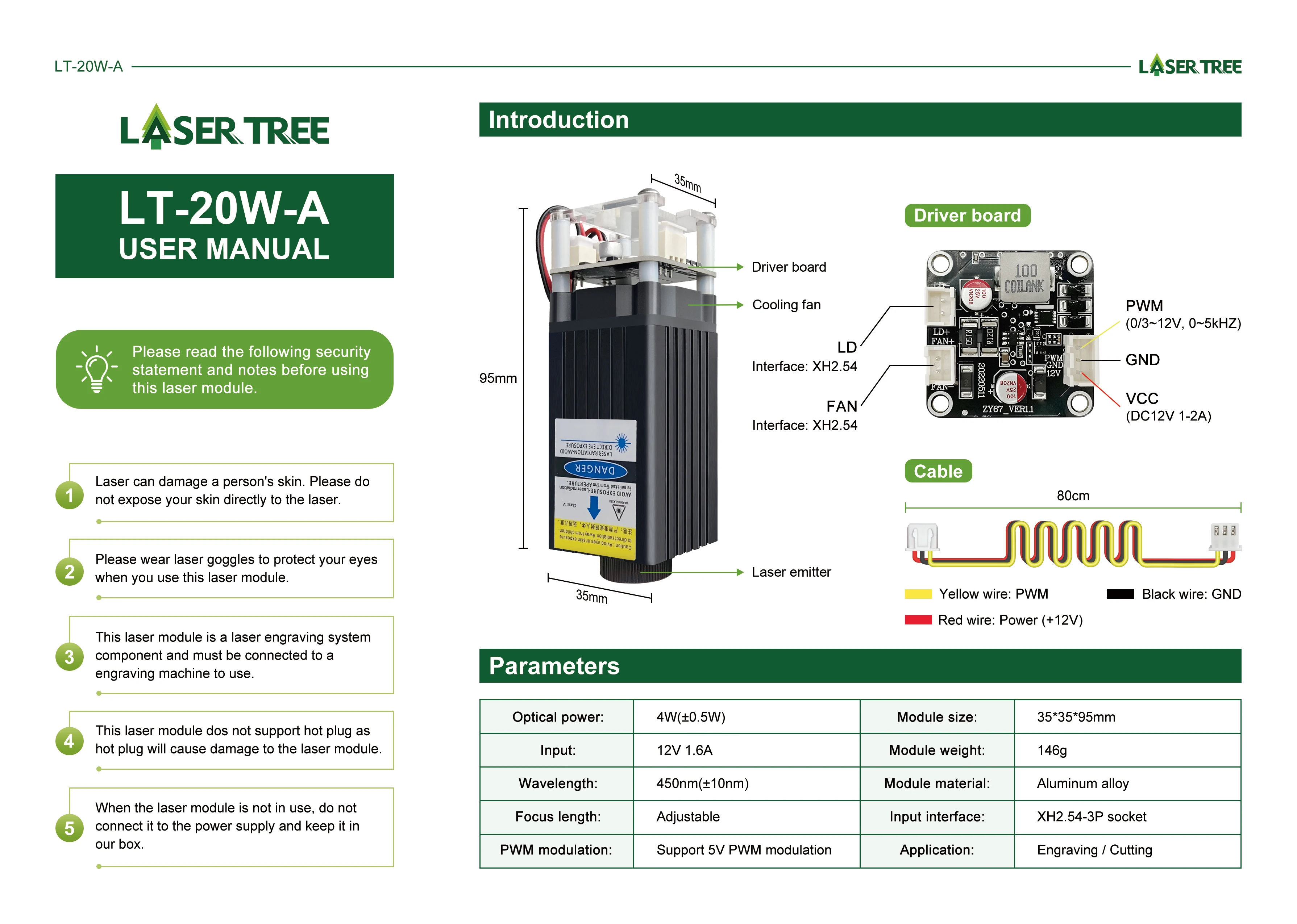

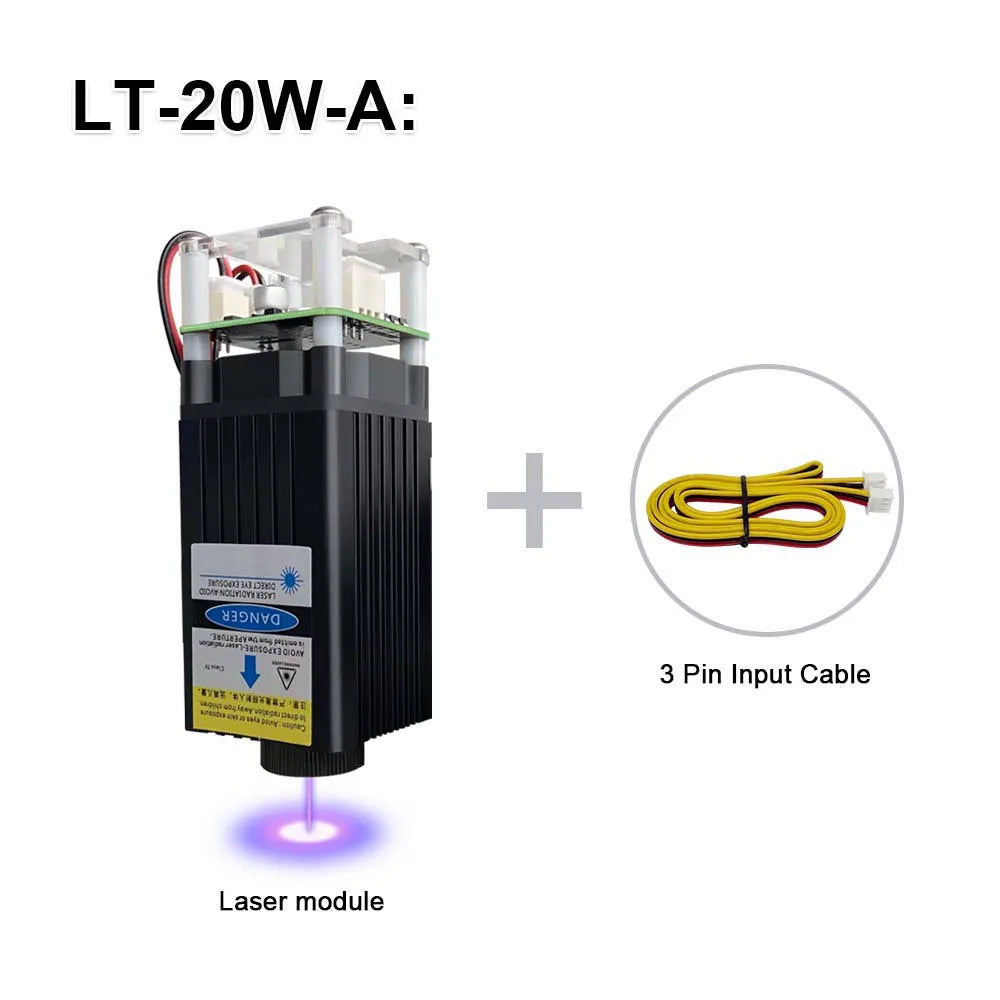

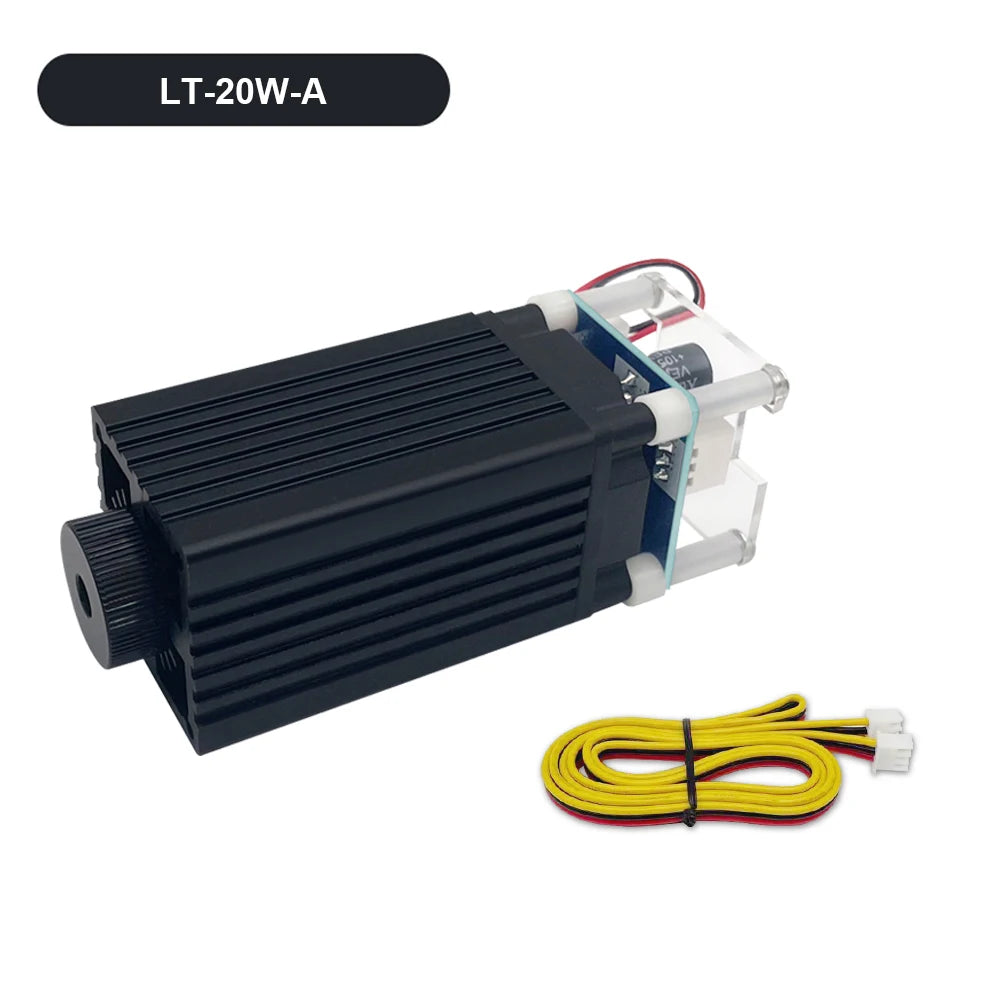

LT-20W-A: 4-5W Laser Module

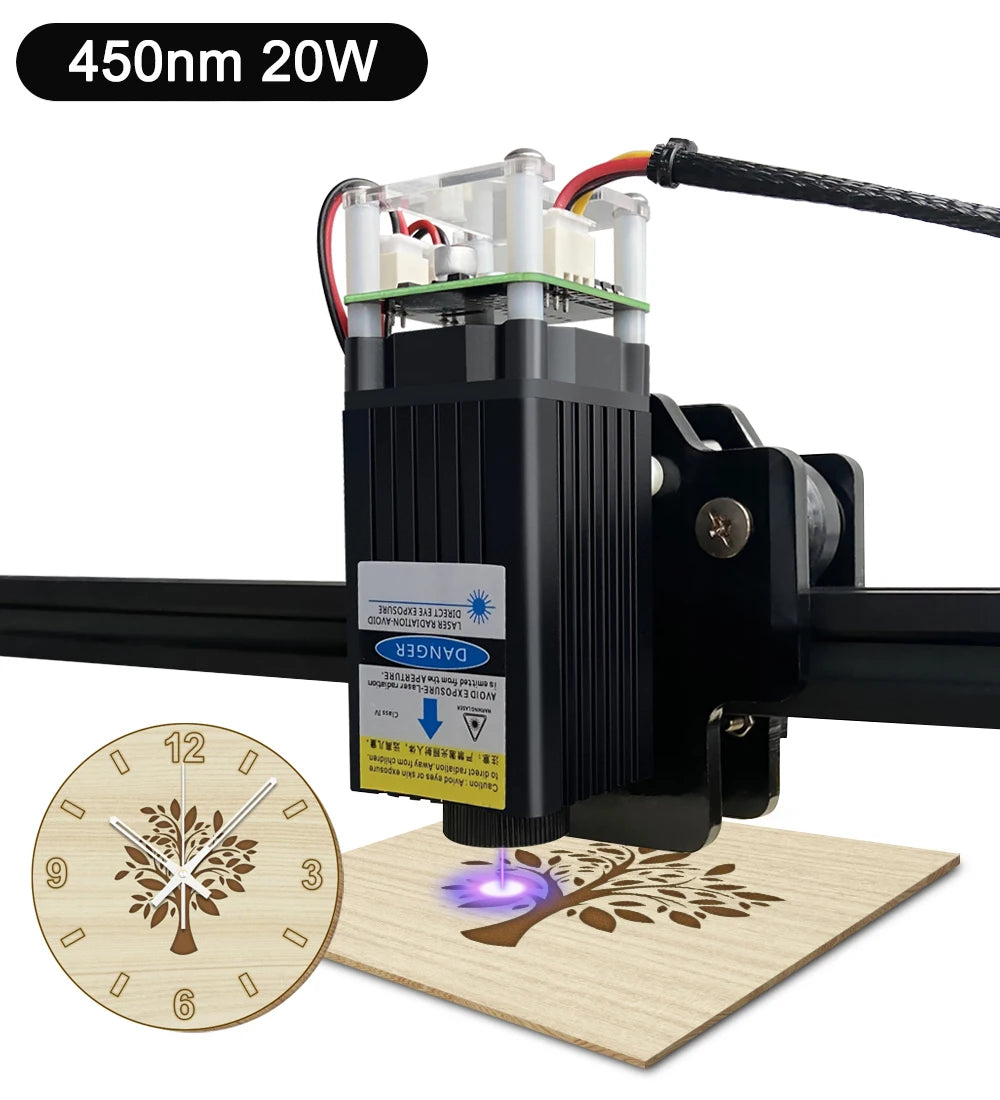

450nm Adjustable Focus Laser Module for Laser Engraving Machine

Product Description：

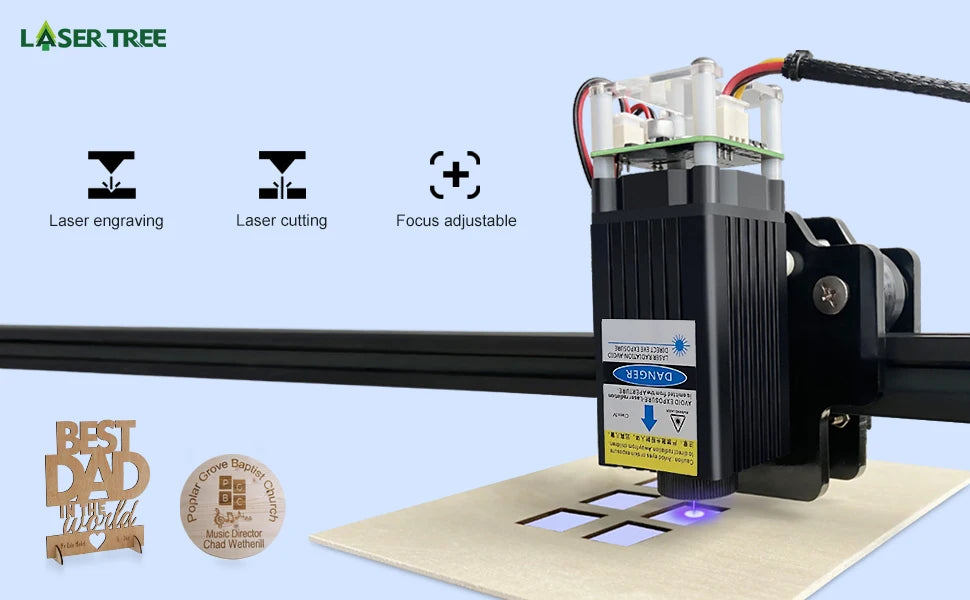

The blue laser module is specially designed for CNC milling machine and DIY engraving. The wavelength is 450nm, which is an effective tool for laser engraving and cutting. They can engrave and cut various materials.

Features:

Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to assemble---small, compact, convenient and easy to install.

Specification:

Mode: LT-20W-A
Optical power: 4W
Material: aluminum alloy + plastic
Wavelength: 450nm
Light color: blue
Spot form: Punctiform, Adjustable focus
Input voltage: 20W- 12V 1.6A(1.4A-1.8A)
Interface parameters: support TTL signal control power
Product weight: 100g
Packing List:1 * Laser head, 1 * Cable

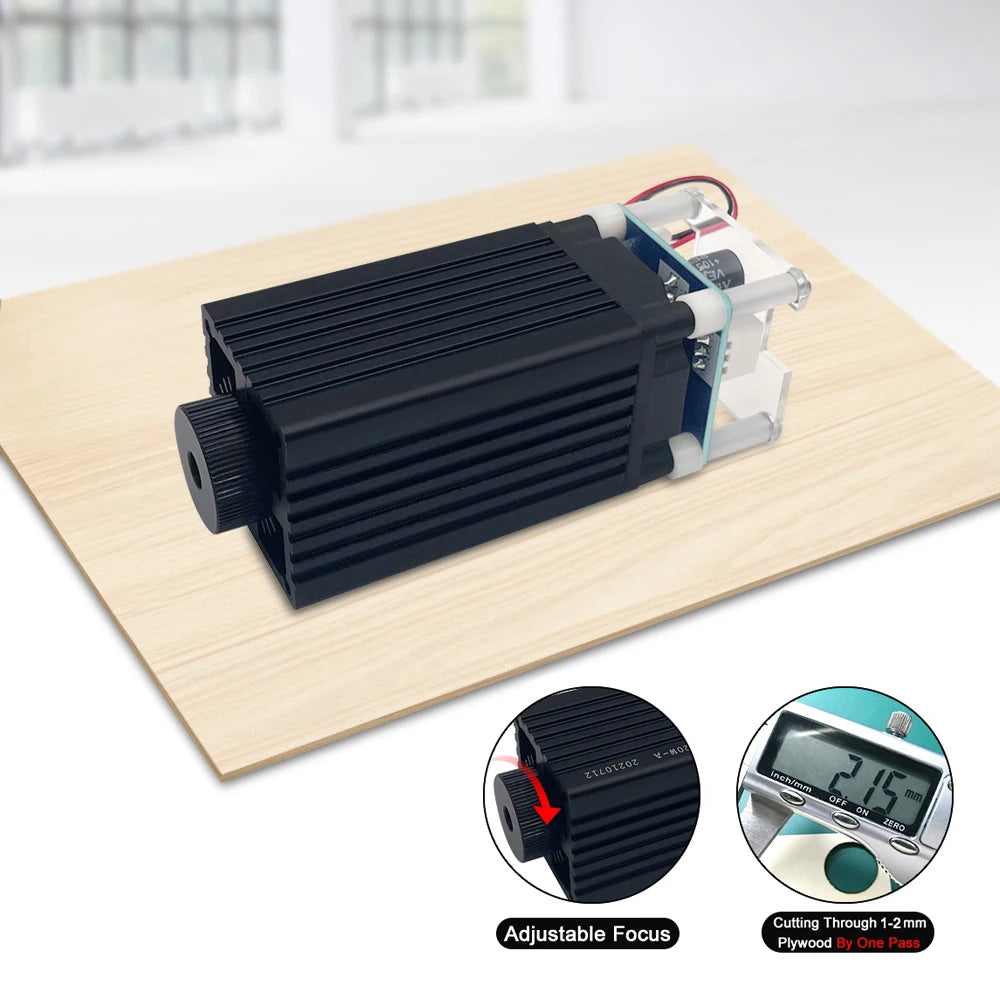

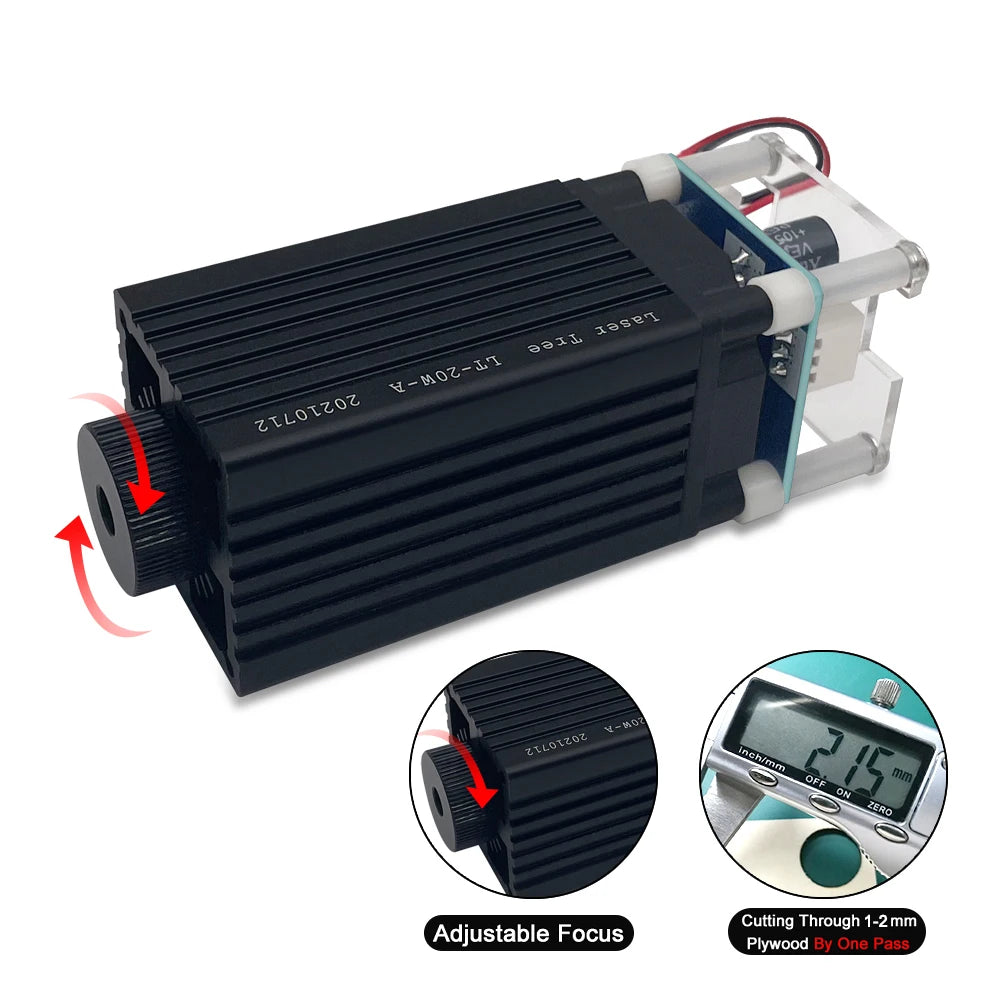

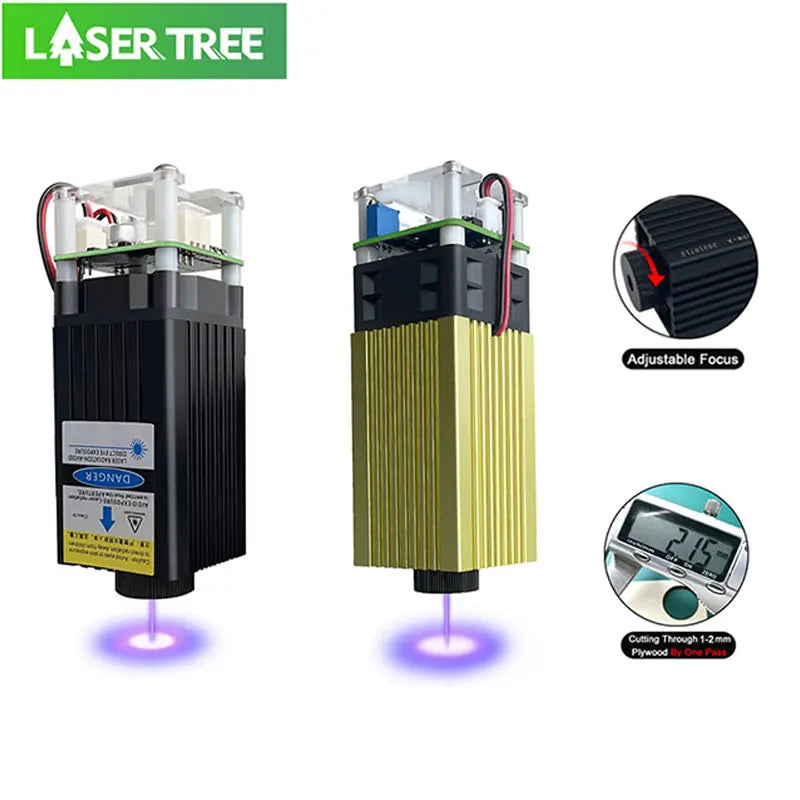

Adjustable Focus:

Can cut 1-2mm Plywood by one pass

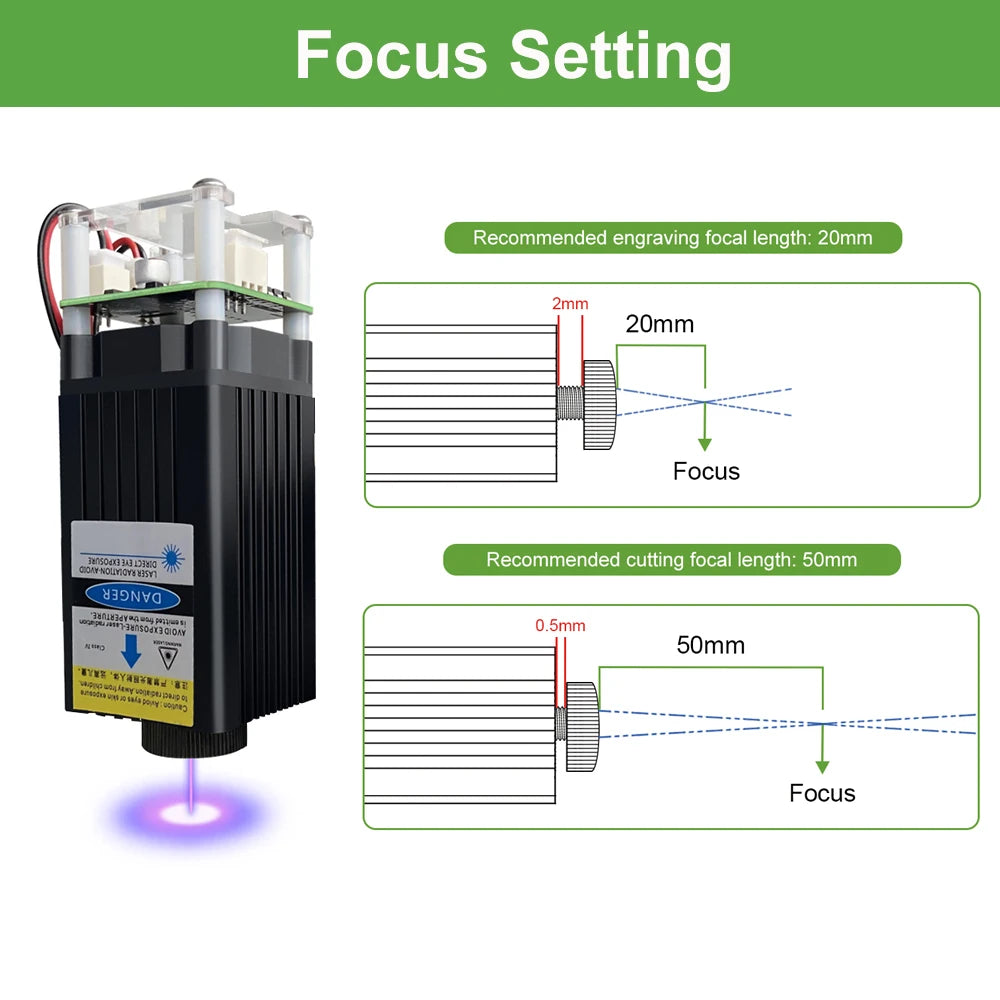

Focus Setting:

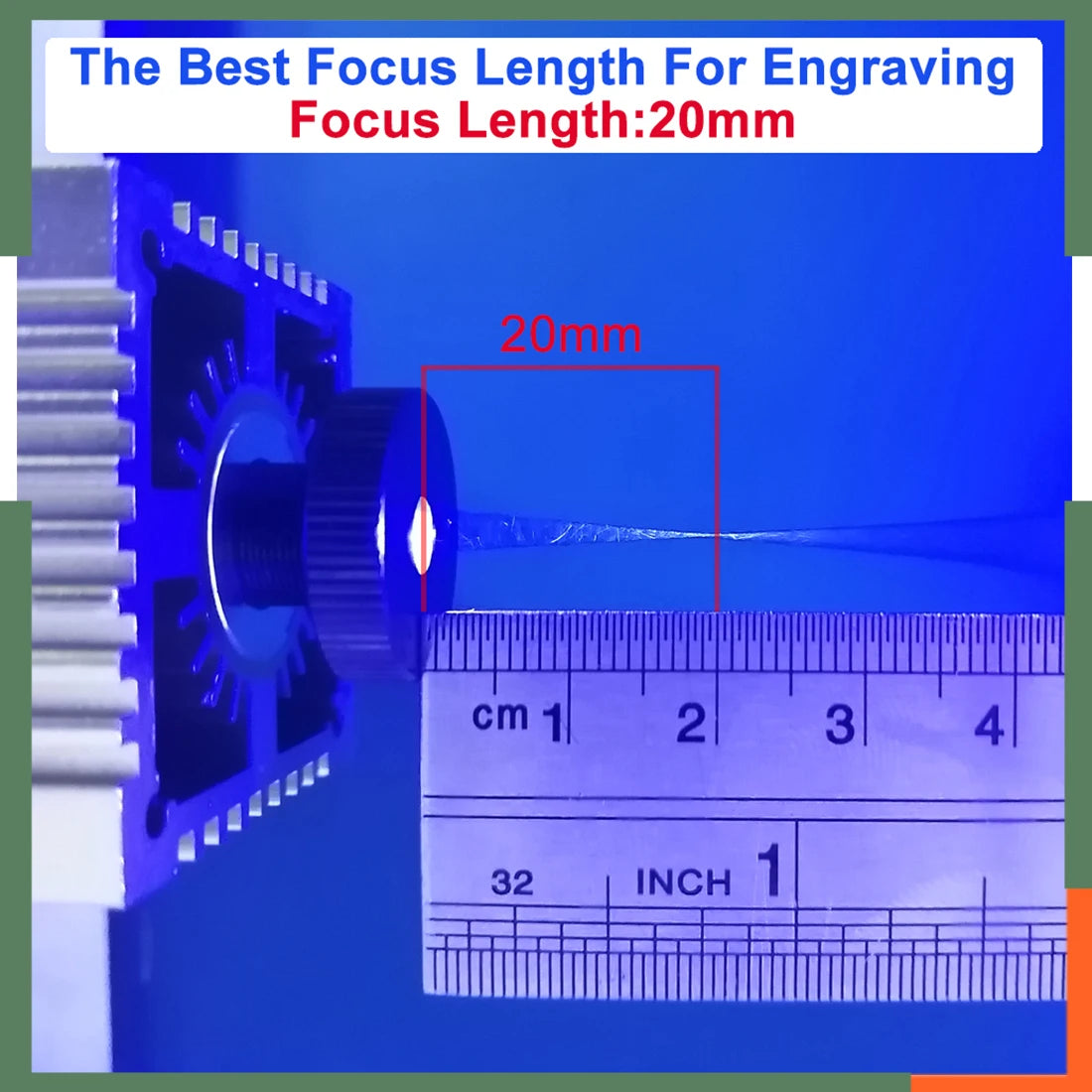

Recommended engraving focal length: 20mm
Recommended cutting focal length: 50mm

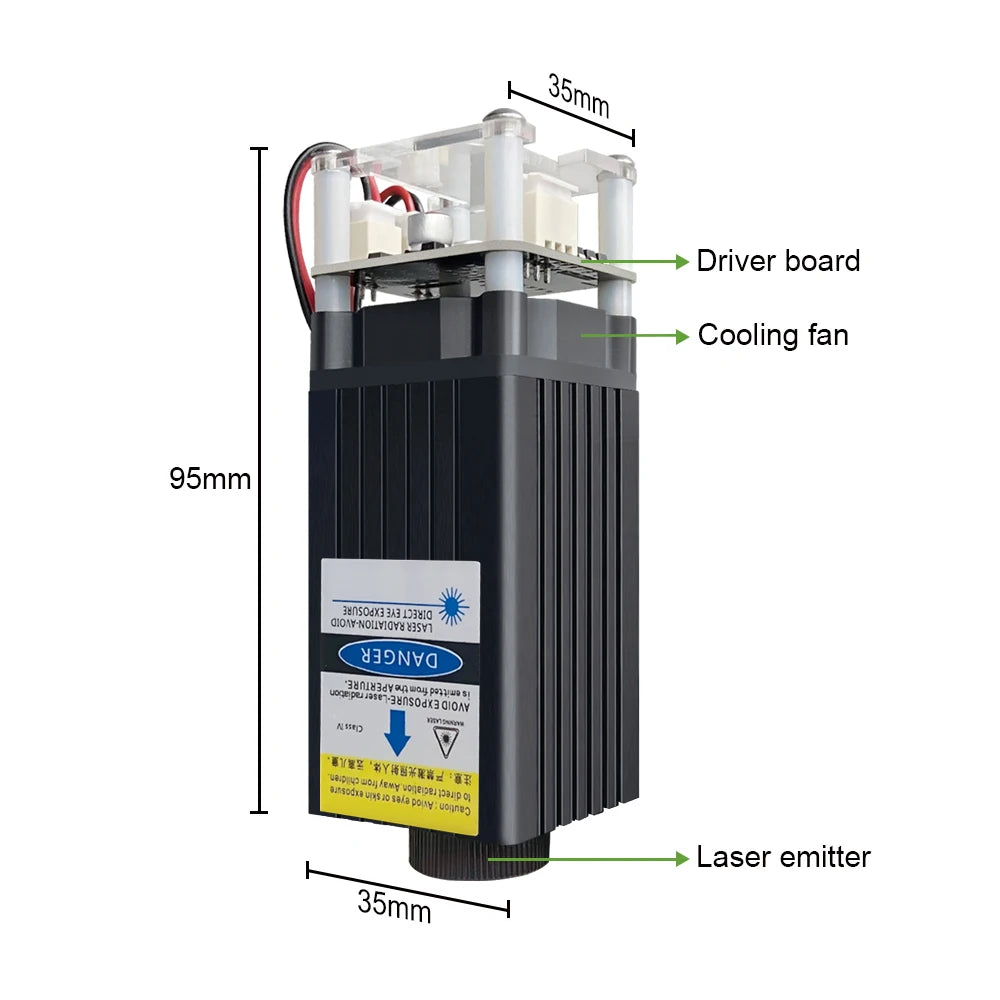

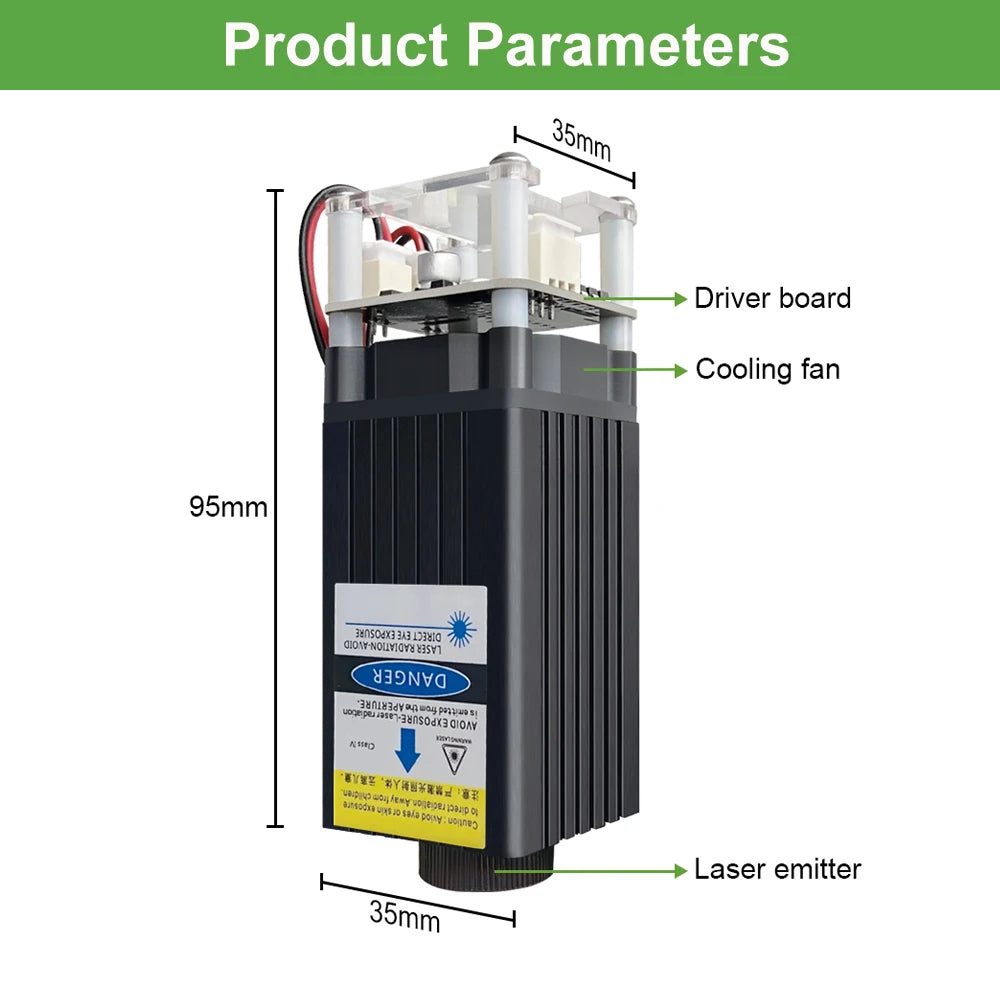

Product Parameters:

Driver board

Cooling fan
Laser emitter
size:95mm*35mm

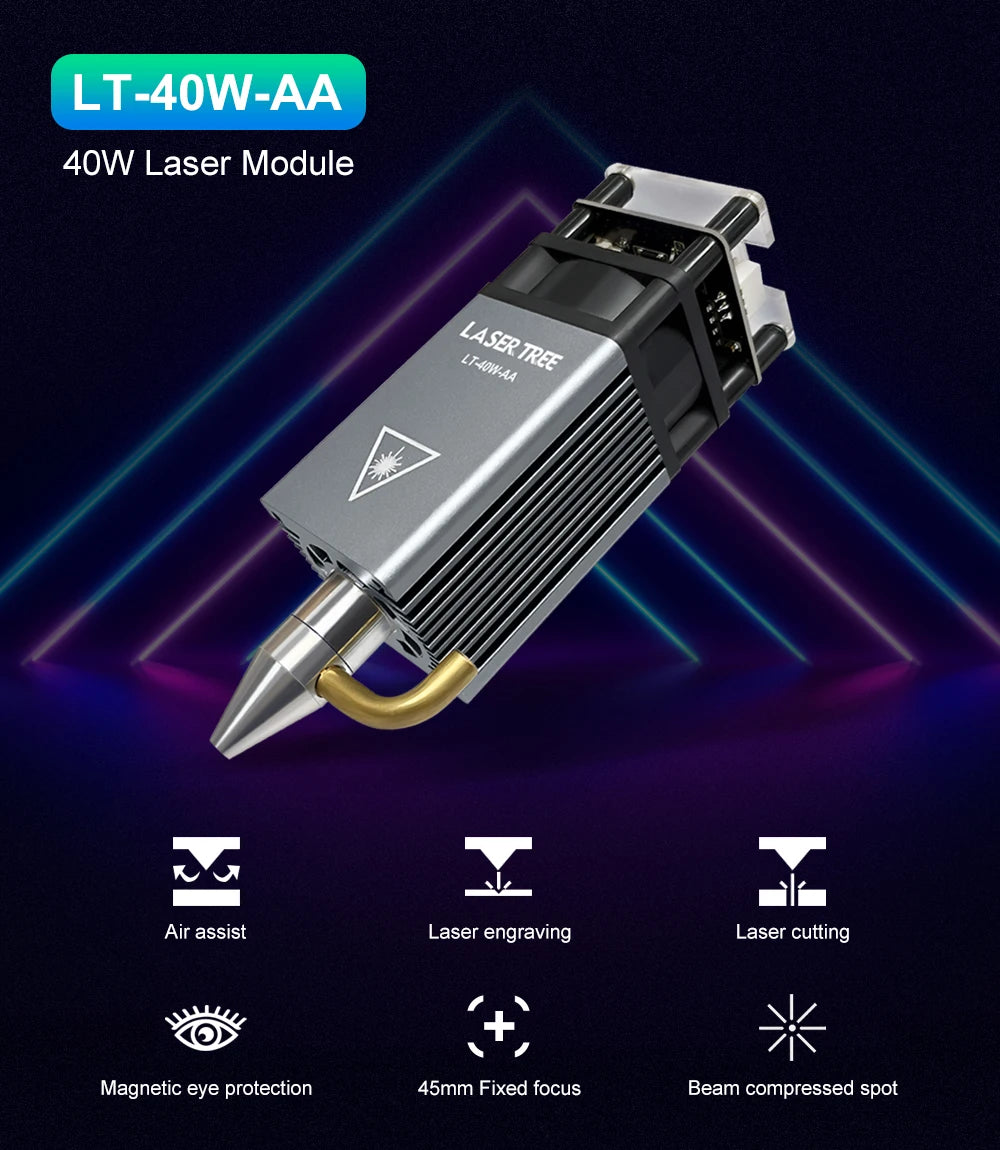

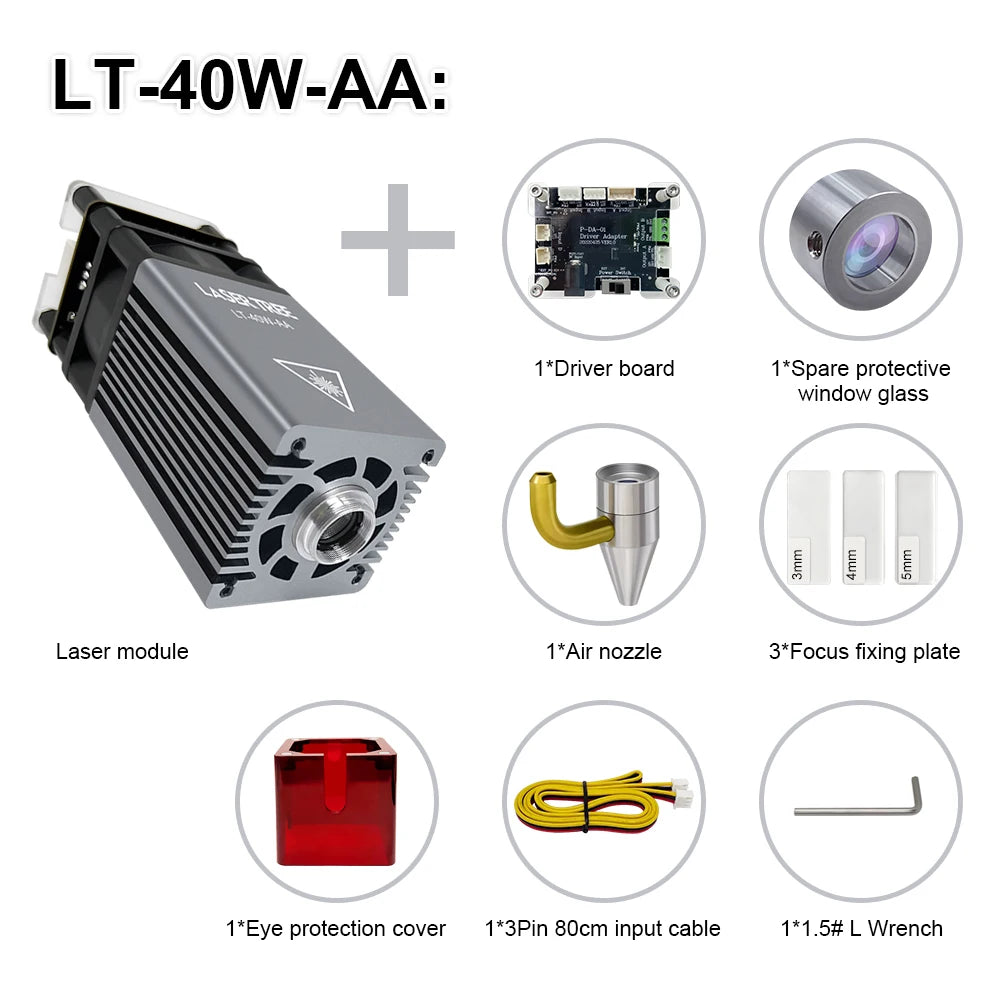

LT-40W-AA, as a 40W laser module with air assist, can effectively get clean-cut edges, improve cutting performance and increase the service life of lens.

1.Beam compression technology, 5W optical power laser module
2.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 190mm/s.

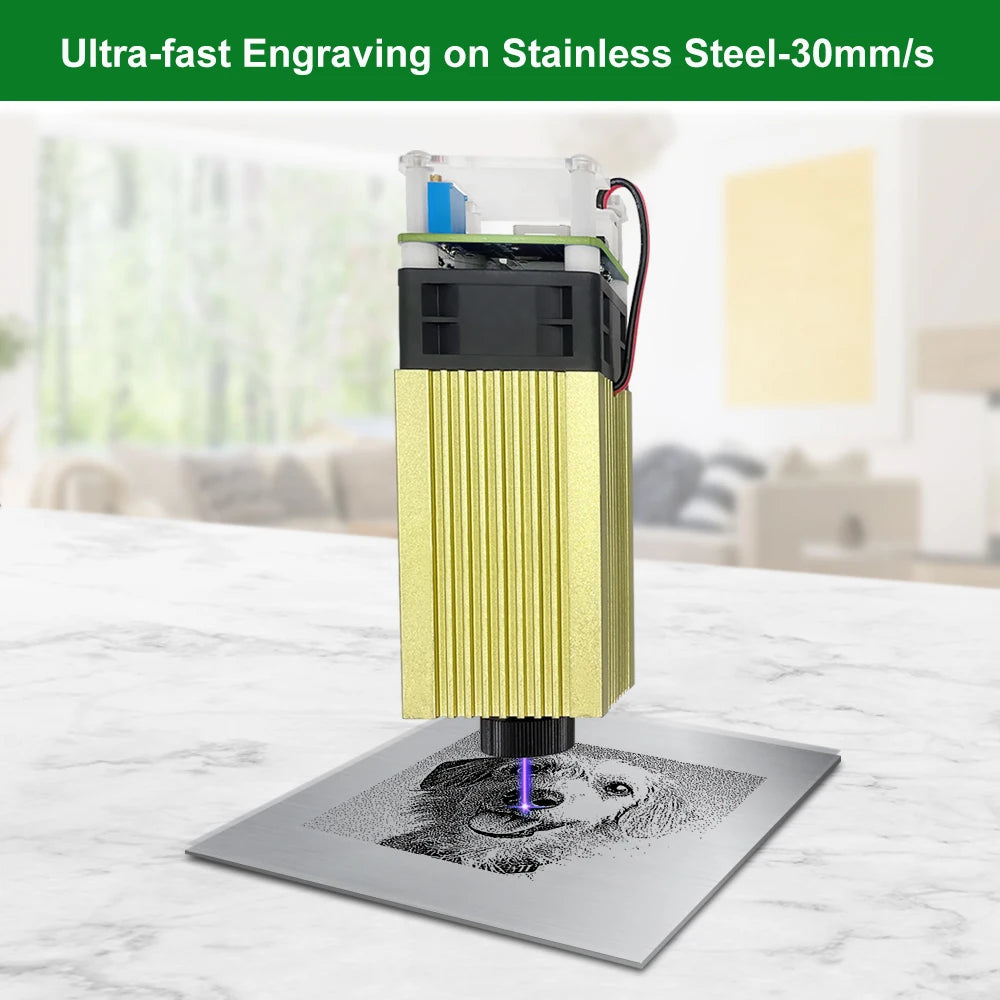

3.Very Fast Engraving Speed: 45mm focal length, engrave 304 stainless steel at speeds up to 6000mm/min.

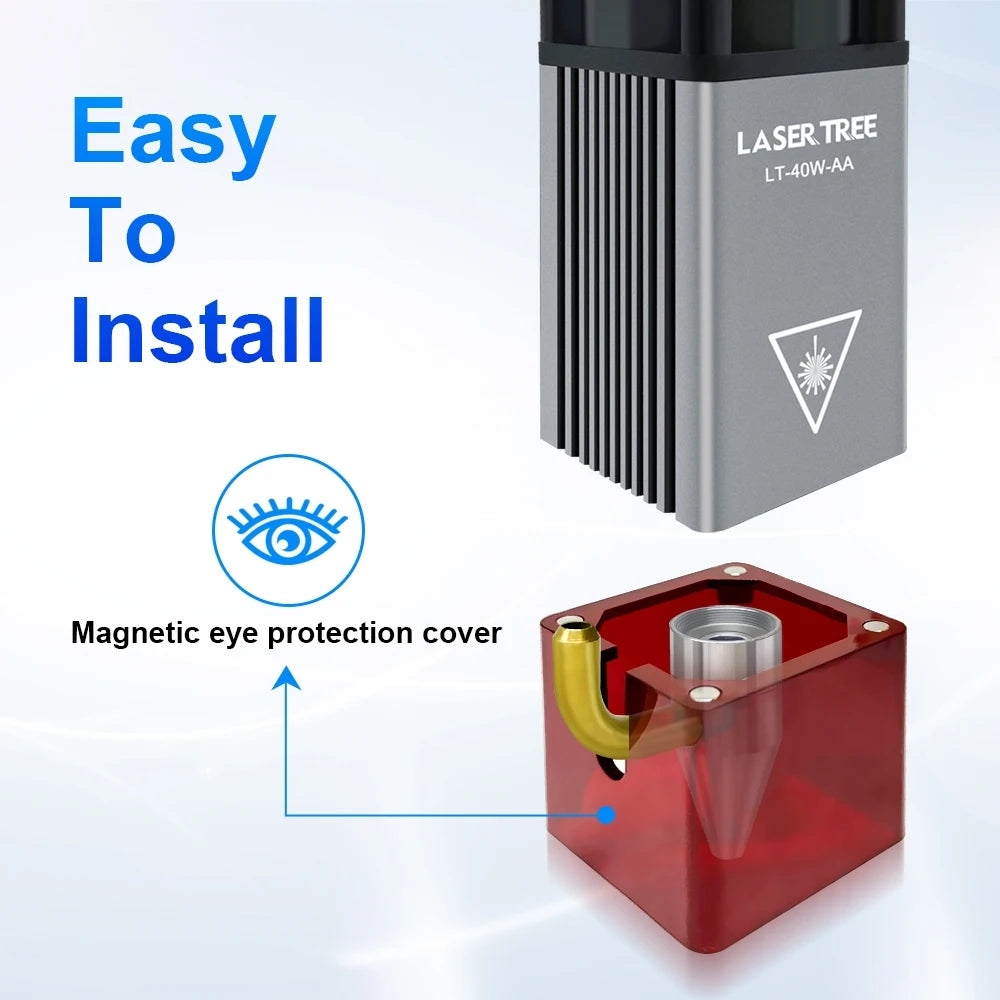

4.Magnetic eye protective cover: Eye protection and easy disassembly.
5.Can be installed on Ato**tack, ZBAIT*, Ortu*, Two Tr**s and other models of DIY laser engraving machines.

For various 12V 3PIN laser engraving machines, plug and play. For 12V 4PIN machines, just use the driver adapter to connect.

Specification:
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)
Item size: 40*40*141.4mm
Product weight: 255g

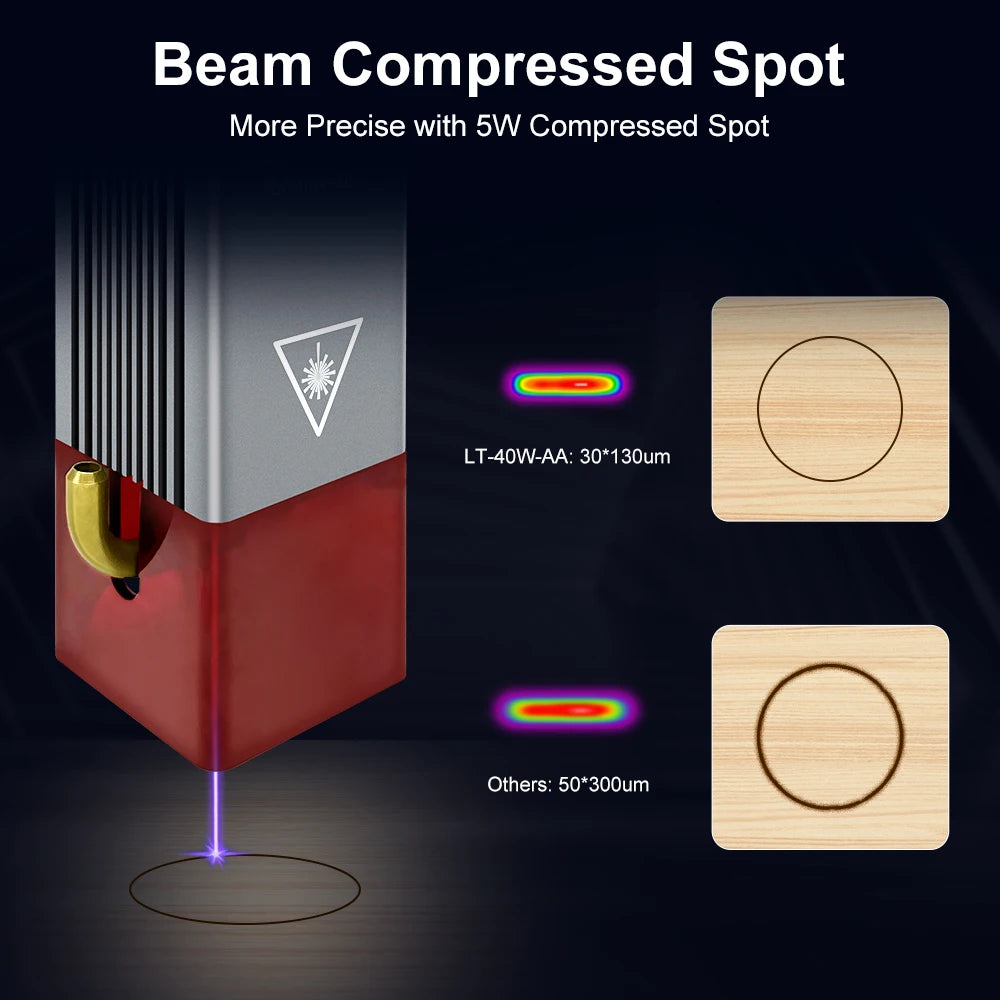

Beam Compressed Spot

More Precise with 5W Compressed Spot

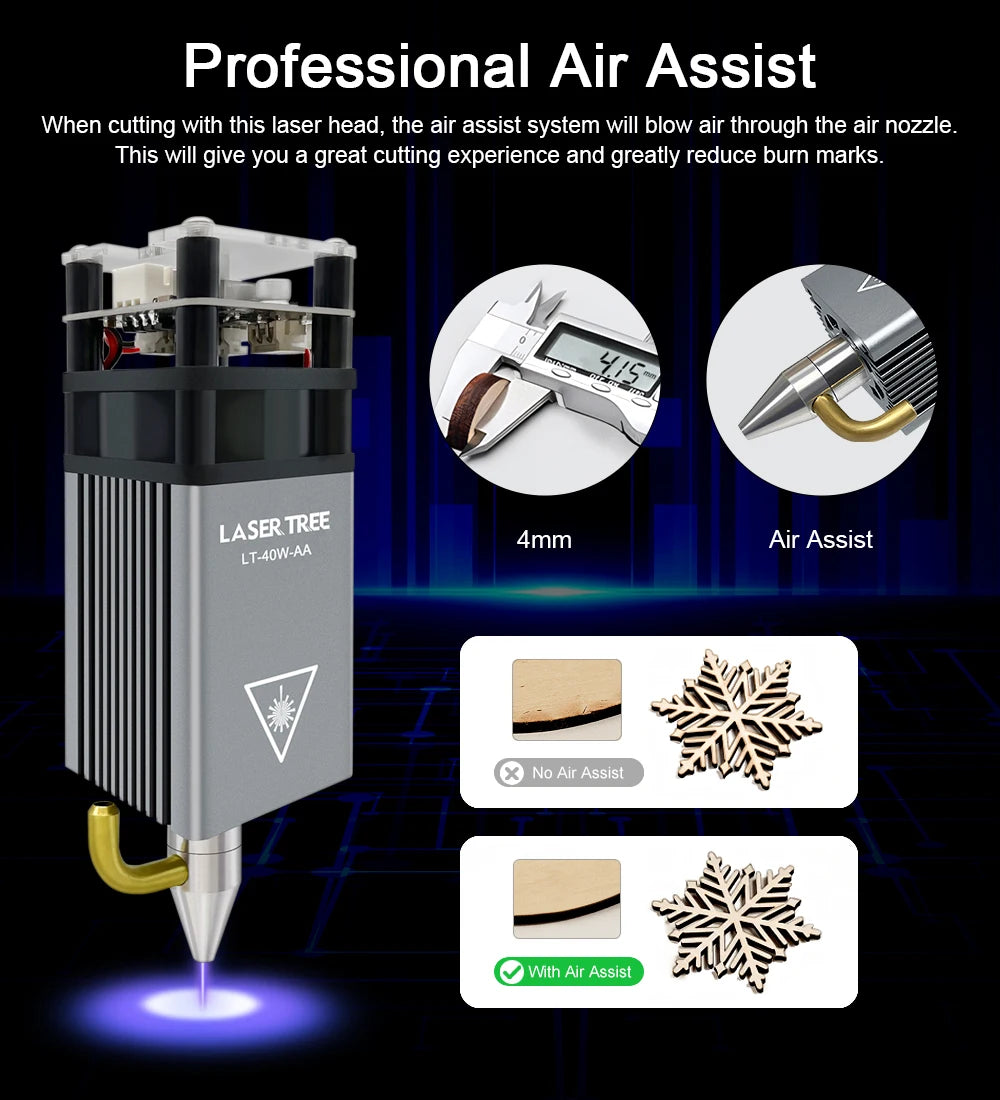

Powerful High Speed Air Assist

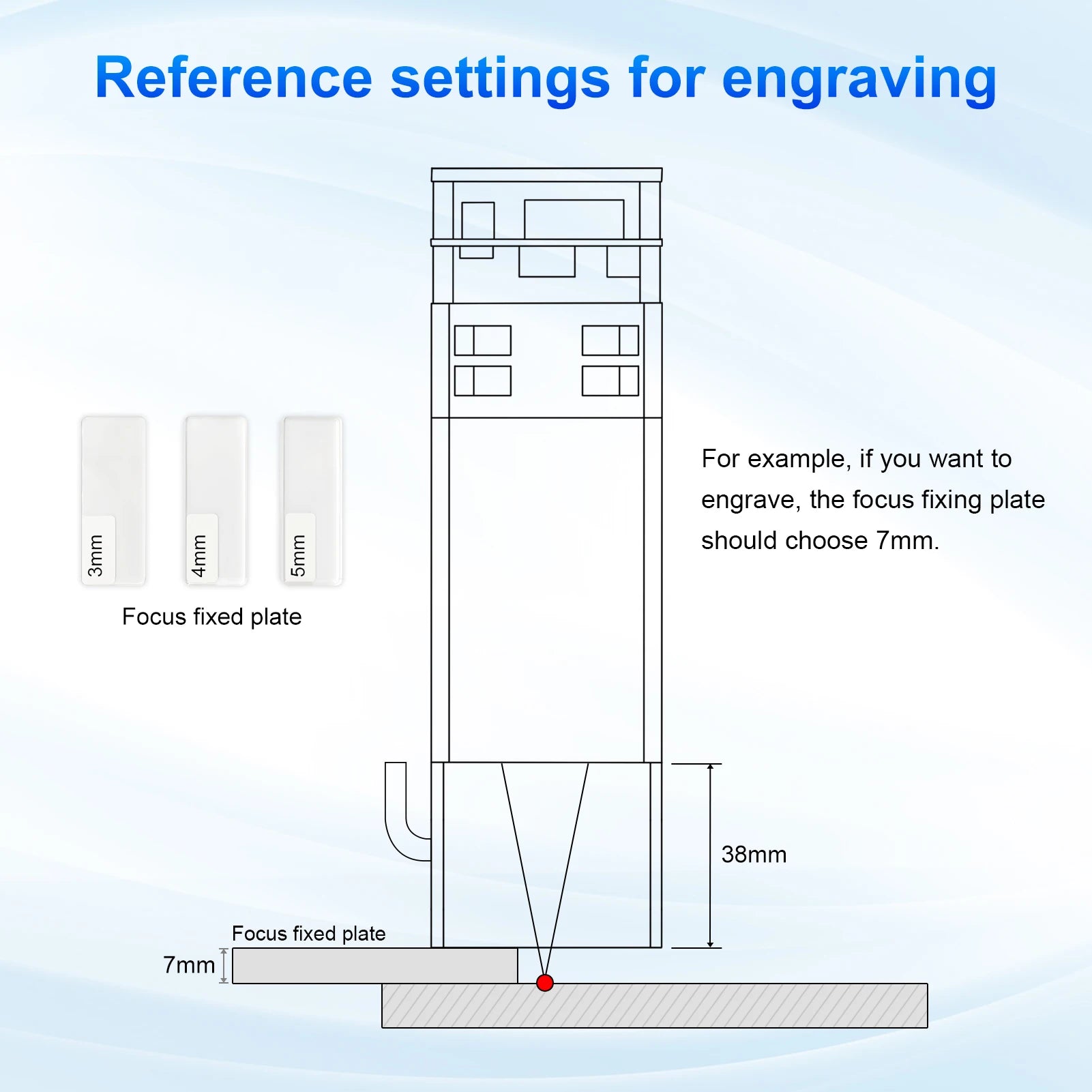

Reference Settings for Engraving

For engraving, the focal point is at the surface of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.
Put a 7mm thick focus fixing plate between the nozzle and the board for the best engraving point

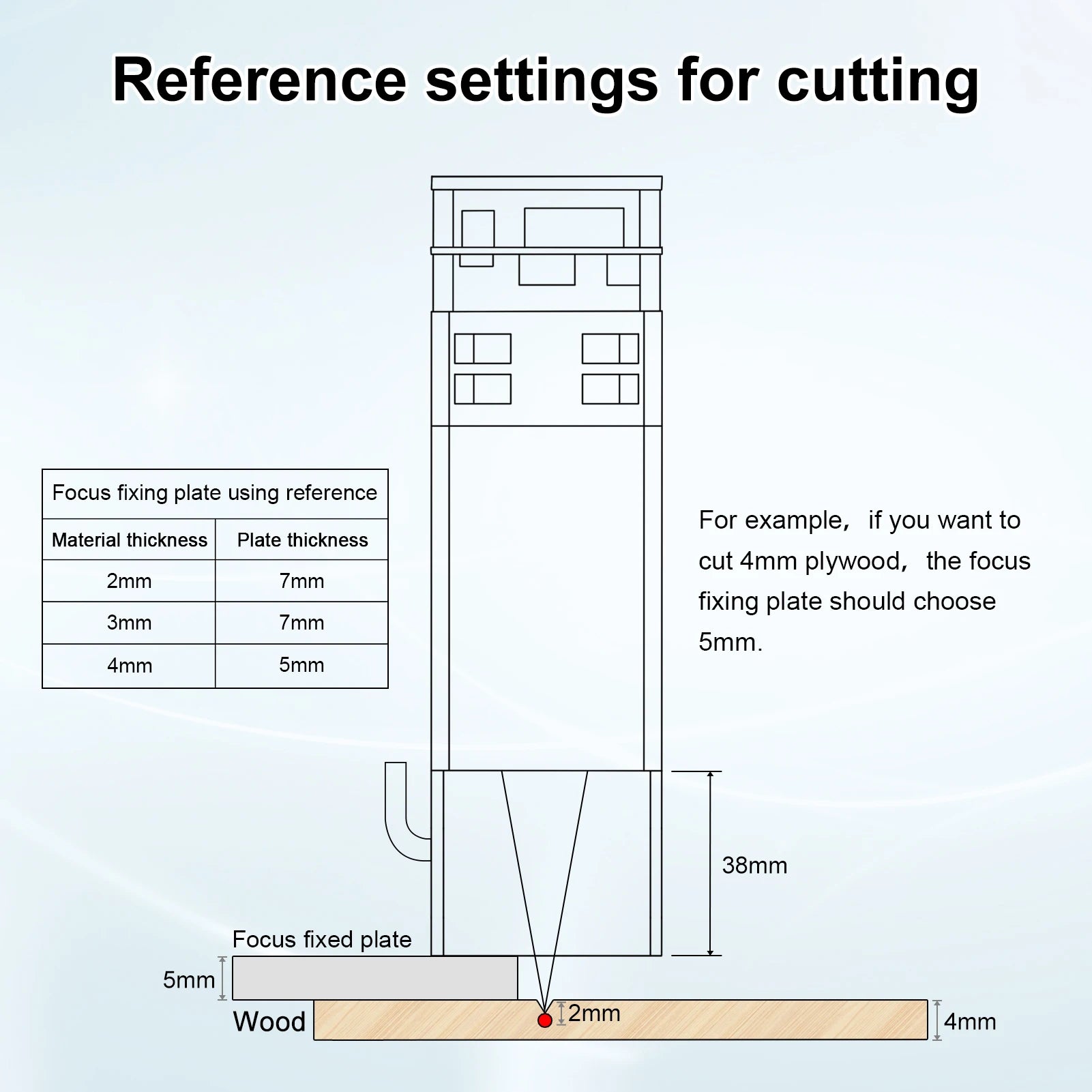

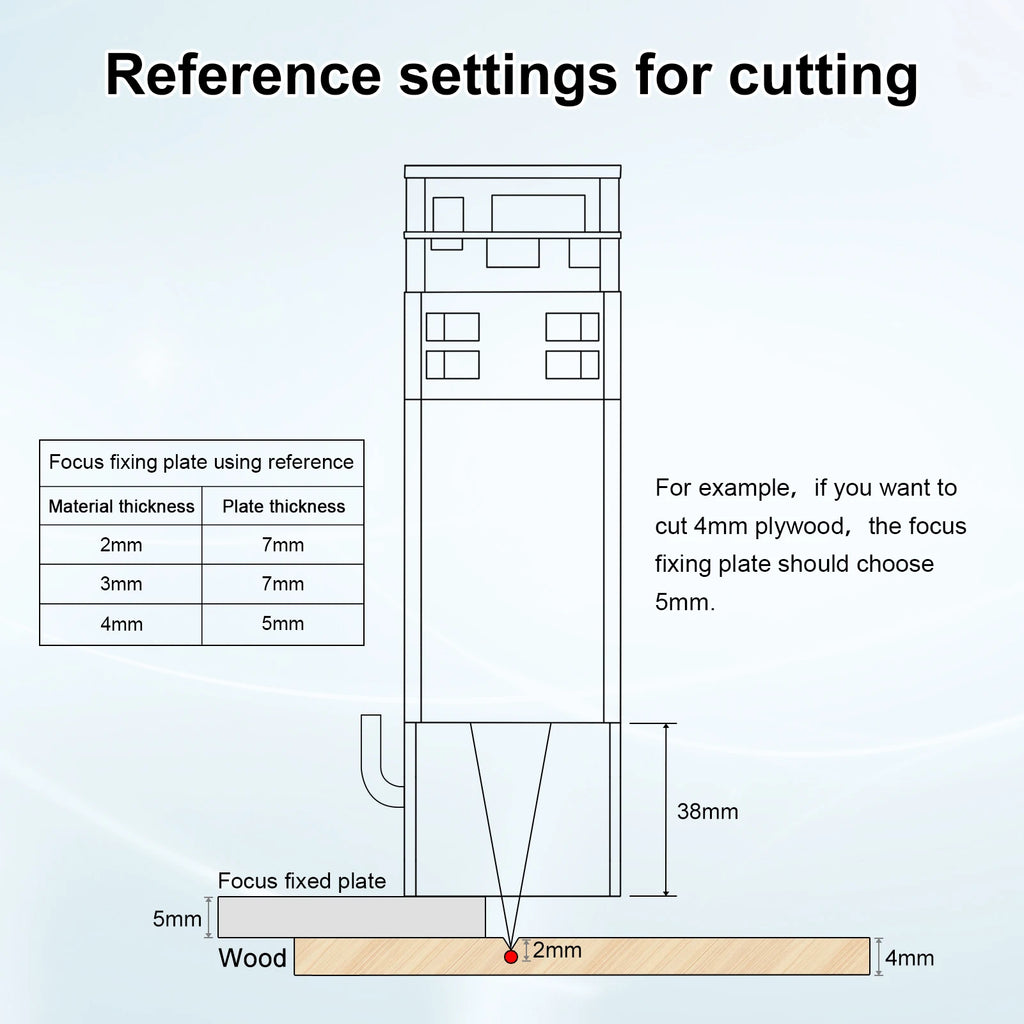

Reference Settings for Cutting

For cutting, the ideal position of the focal point is in the middle of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.

Cut 4mm plywood, the distance from the air nozzle to the surface of the material should be 7mm-4mm/2=5mm.

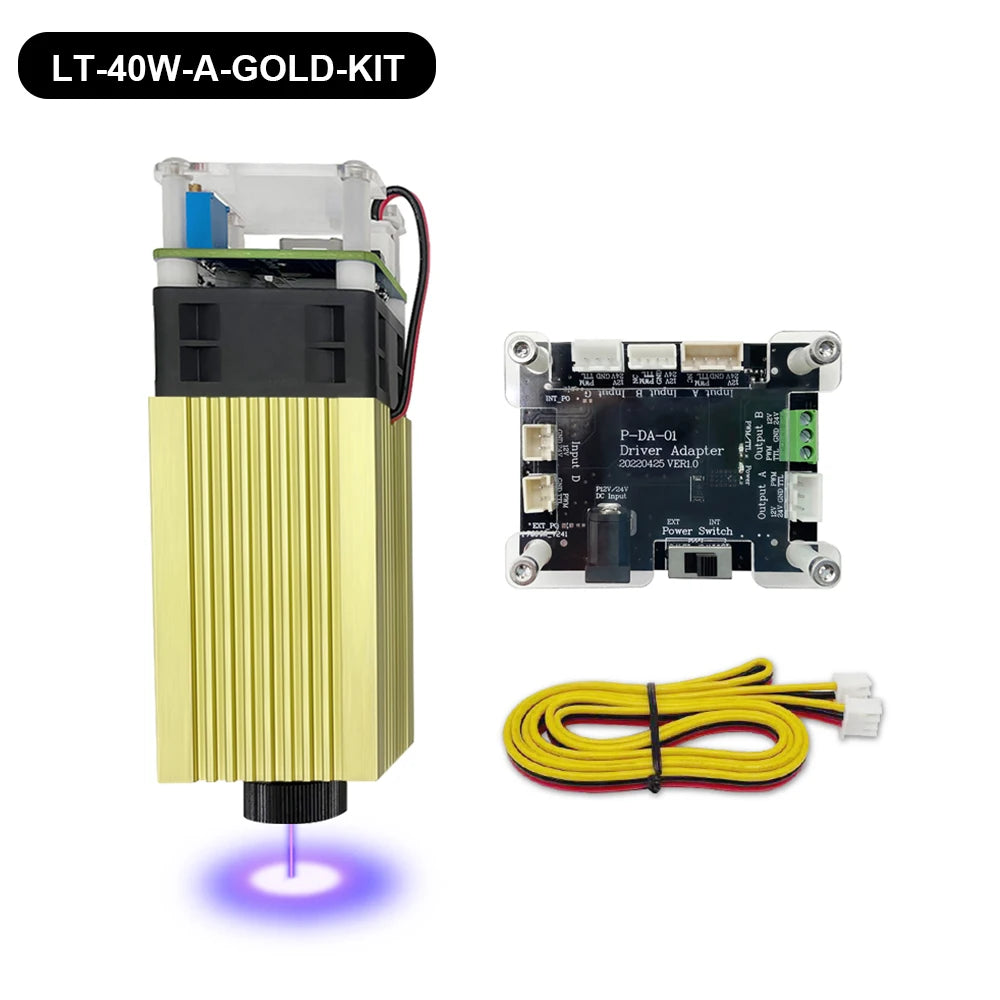

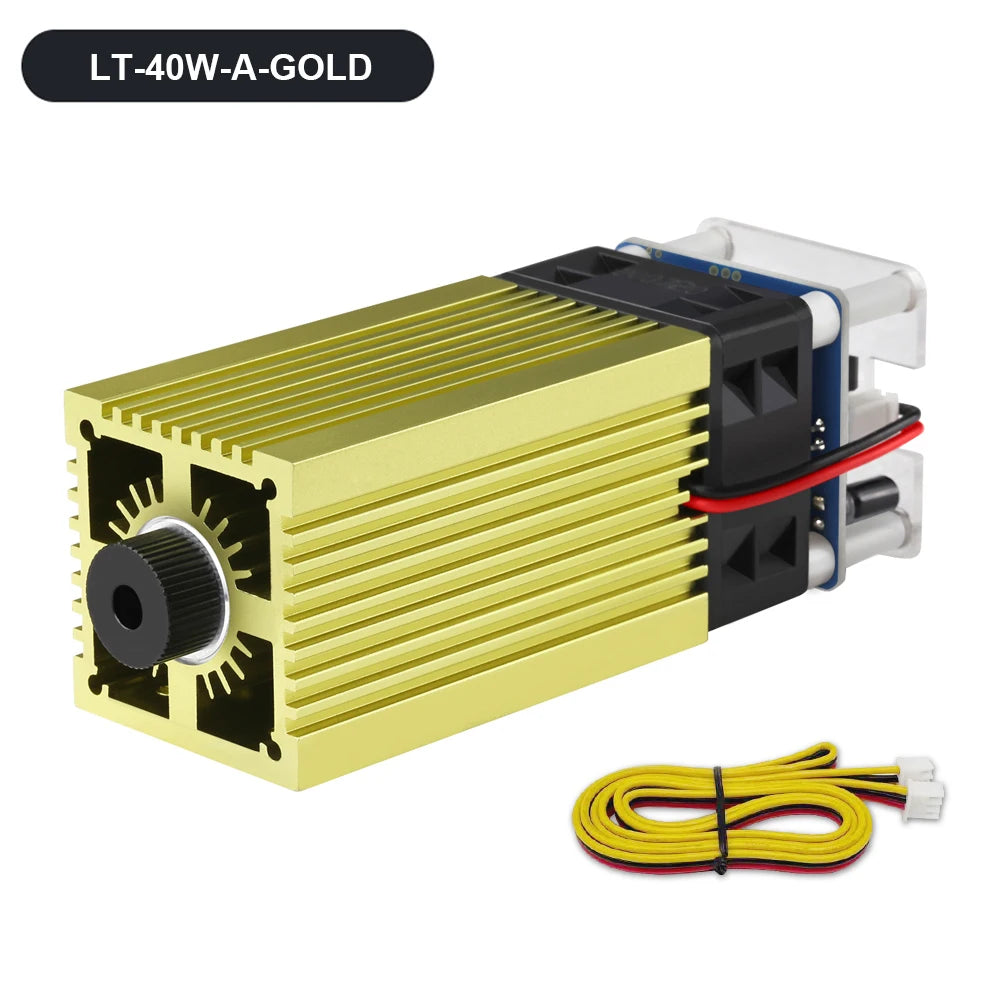

LT-40W-A-GOLD: 5W Laser Module

Product Description

The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variaty of materials.

Features:
Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue light, easy for locating when engraving.
Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to Assemble --- Small and compact

Engraving Material ---MDF, Black acrylic, Stainless steel, Plywood, Leather, Alumina, etc.

Cutting material---Plywood, leather, bamboo,black acrylic,leather, MDF, etc

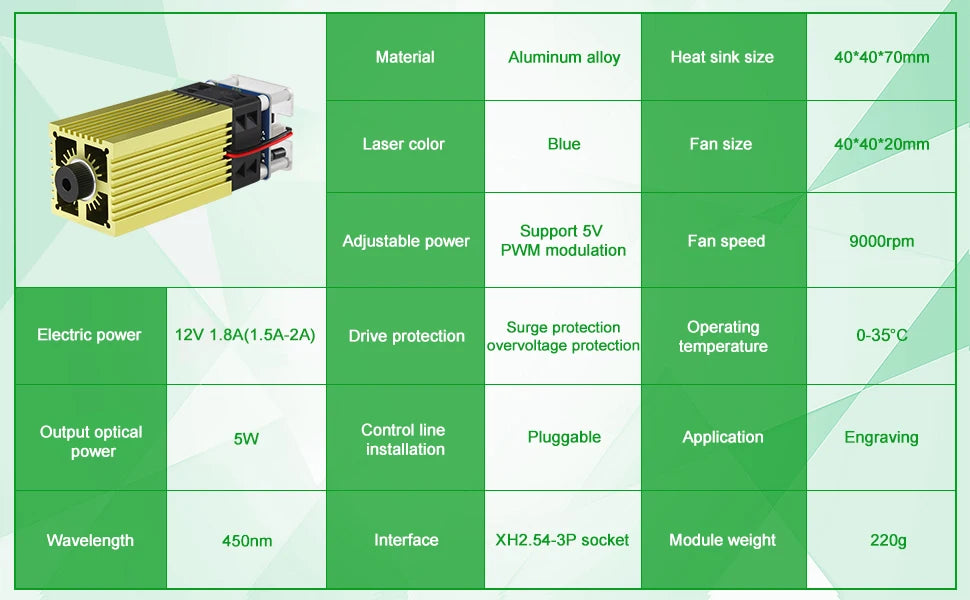

Specifications:

Electric power 40W
Optical Output Power: 5W
Material: Aluminum Alloy+Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 1.5-2A
Modulation: 0/5-12V TTL/PWM
Item Size: 40x40x120mm
Item Weight: 225g
