SPECIFICATIONS

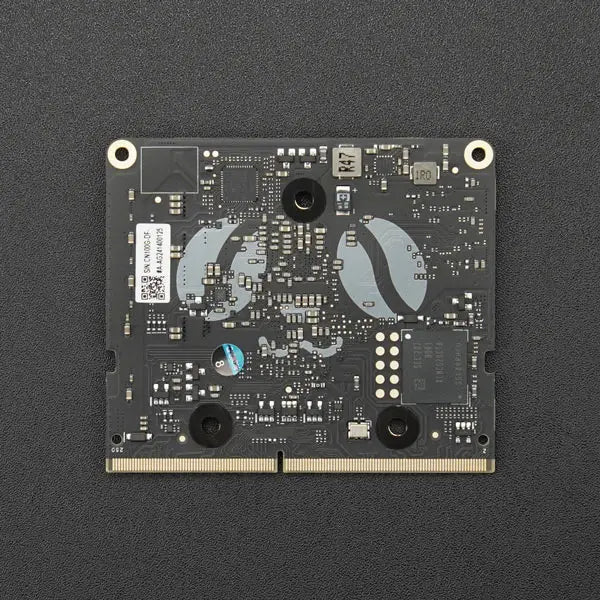

LattePanda Mu is a miniature x86 computing module with an Intel N305 octa-core processor, 16GB of LPDDR5 memory, and 64GB of storage. The module offers a wealth of pins, such as: 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, and up to 9 PCIe 3.0 lanes, combined with open-source carrier board design files, allowing users to easily design or customize the carrier board to meet their unique needs.

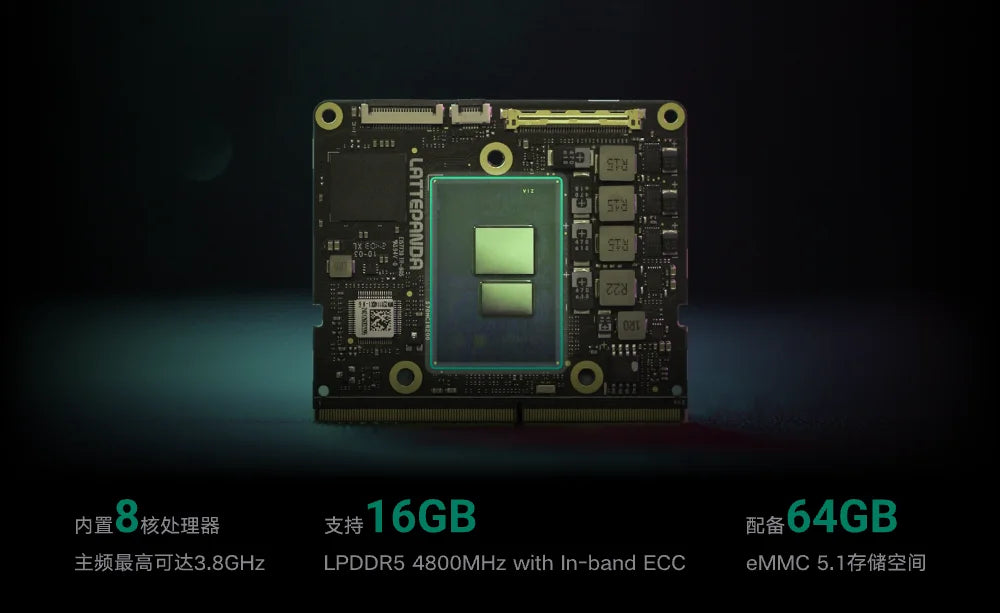

Small but powerful

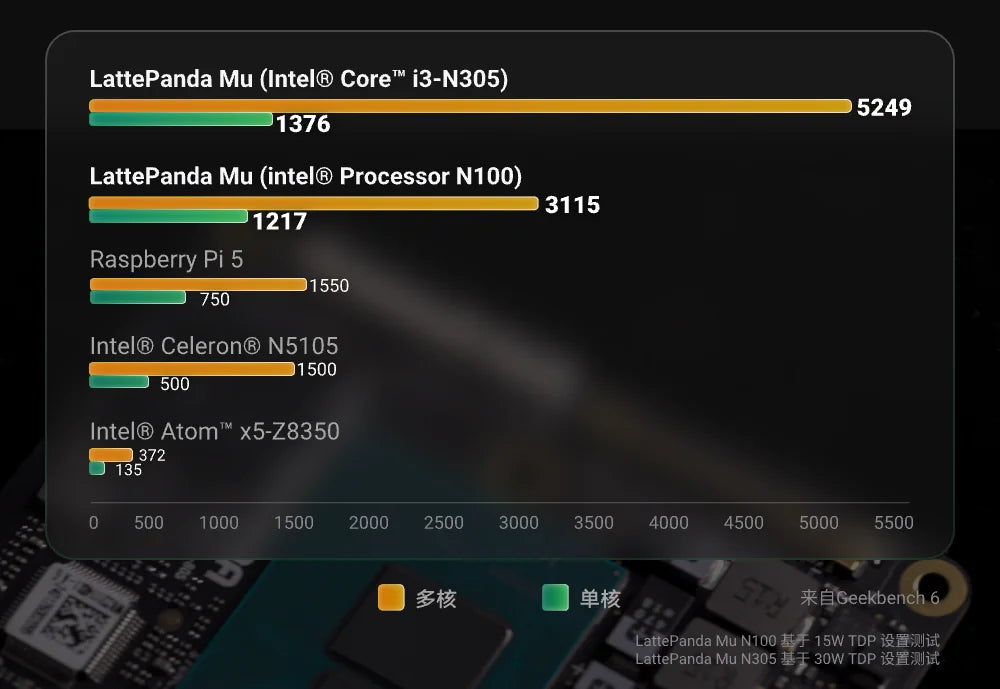

The LattePanda Mu x86 computing module uses an Intel N305 octa-core processor with up to 3.8GHz turbo frequency, 8 cores and 8 threads, providing sufficient performance and multitasking capabilities for most applications.

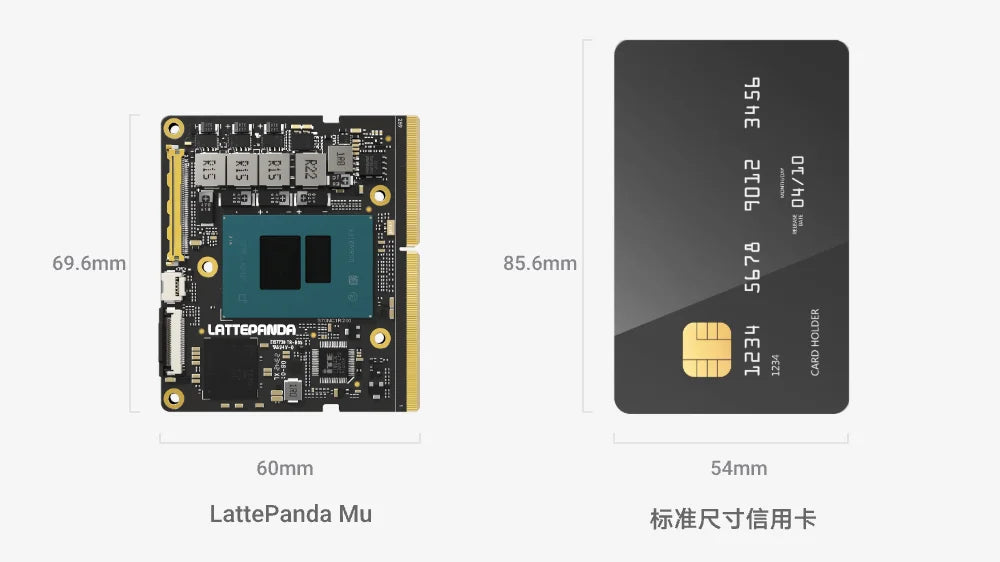

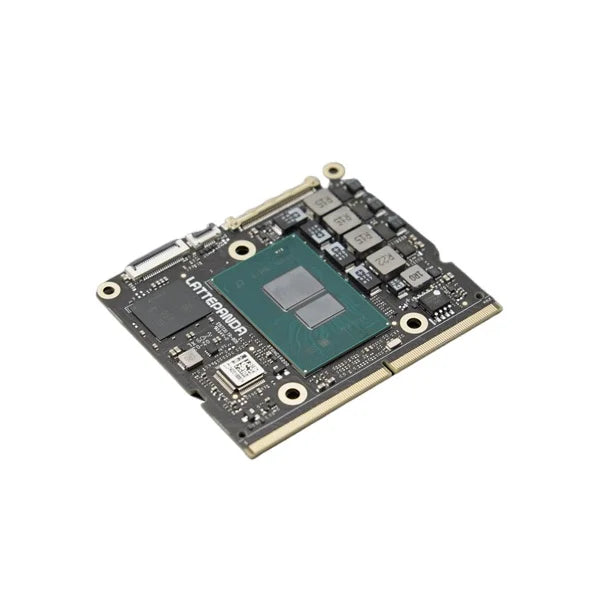

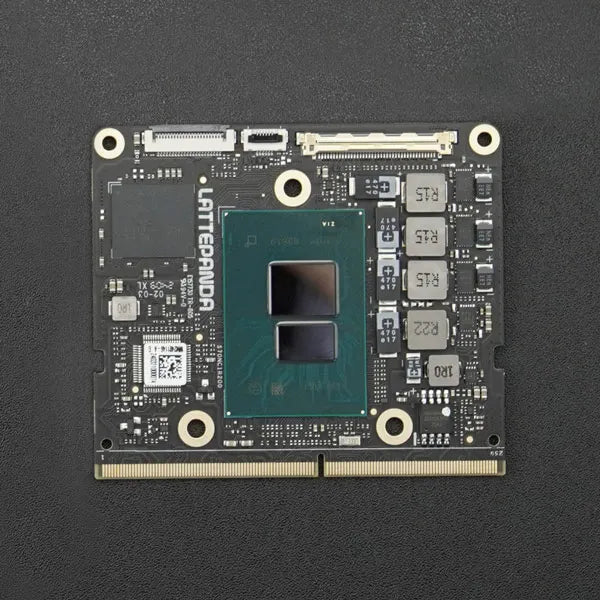

Card size
This card-sized computing module can be easily integrated into space-constrained devices, enabling powerful computing without taking up too much space.

Quiet or surging, flexible choice
The processor's TDP (thermal design power consumption) can be adjusted in the range of 6W to 35W, and can be flexibly selected between power consumption and performance. The 6W TDP setting can achieve low-power operation, low heat generation, and silent passive cooling. The 35W TDP setting provides strong performance, but requires fan cooling.

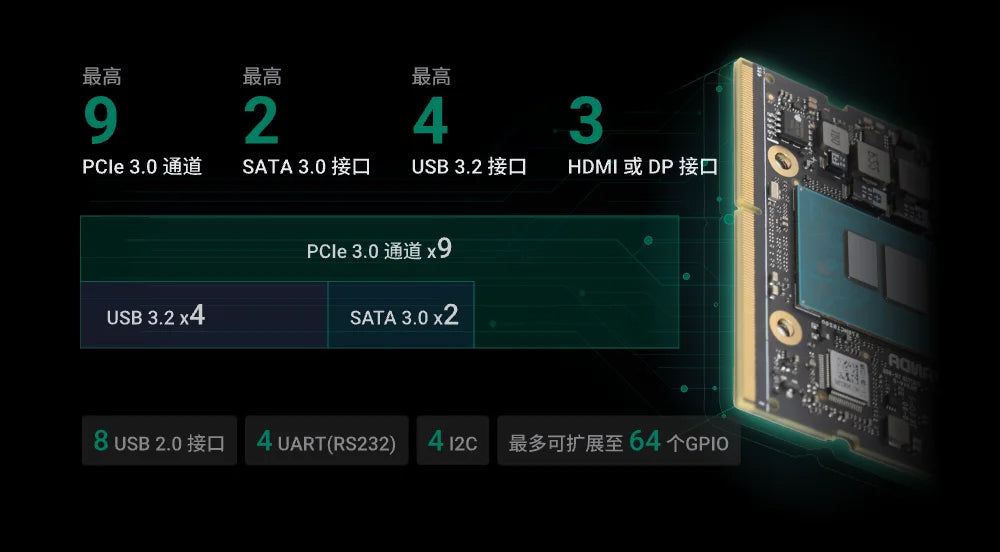

Rich expansion pins
The LattePanda Mu Compute Module provides a wealth of expansion pins, including 3 HDMI/DisplayPort video outputs, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0, and 64 expandable GPIOs, providing unprecedented flexibility and scalability to create exclusive solutions.

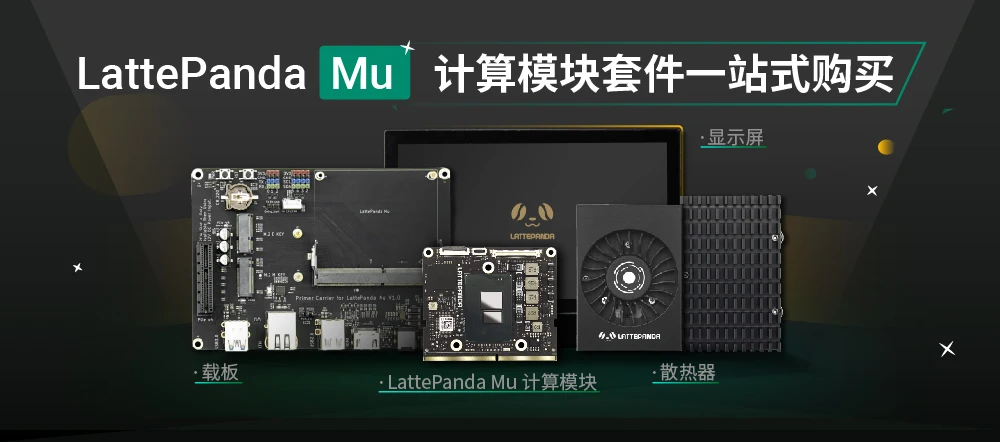

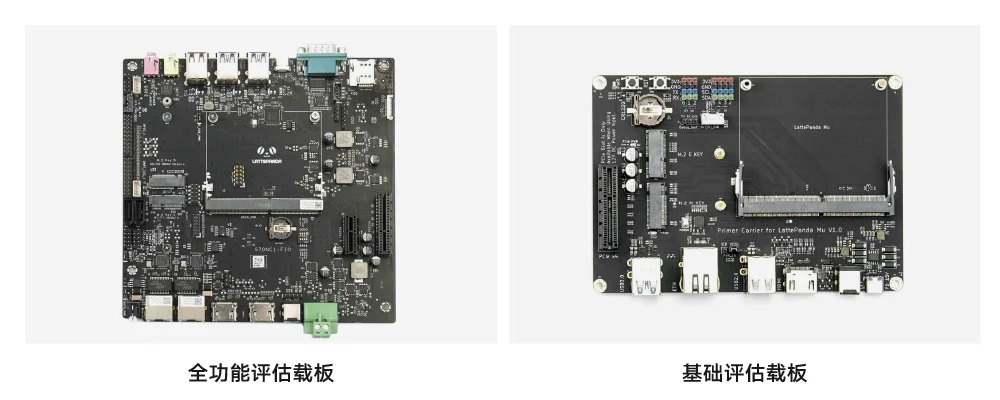

A variety of carrier boards, opening up infinite possibilities
DFRobot provides a basic carrier board for the LattePanda Mu Compute Module, which is a comprehensive development platform with multiple interfaces for rapid design verification. In addition, a fully functional evaluation carrier board is available, which leads all the pins of the LattePanda Mu Compute Module and is suitable for a wide range of hardware and software testing.

Note: The PCIe slot of the base carrier board is only available when powered by a 12V power supply.

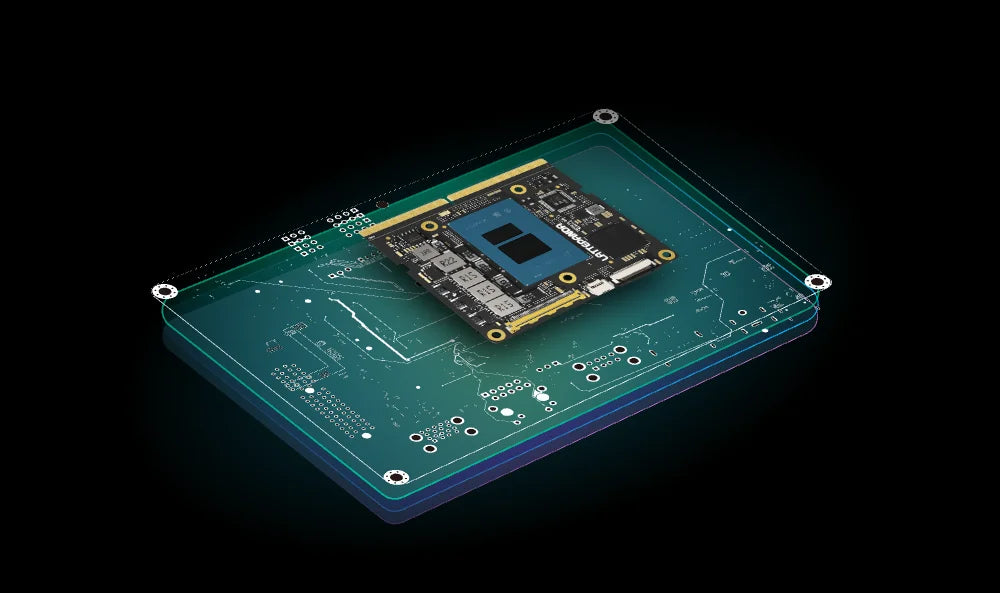

Designing carrier boards has never been easier
The LattePanda Mu x86 Compute Module provides open-source carrier board files and libraries as reference materials, allowing for fine-tuning carrier board designs to meet specific needs, significantly reducing development time.

Supports multiple operating systems
LattePanda Mu supports multiple operating systems such as Windows 10, Windows 11, and Ubuntu, ensuring that there is always a system that meets your needs.

Customized service
The LattePanda team provides customization services including custom carrier boards, boot logos, BIOS functions, operating systems, etc. If you have any specific needs, please feel free to contact LattePanda via solution@lattepanda.com. The LattePanda team is committed to providing timely and professional support to meet customization needs.

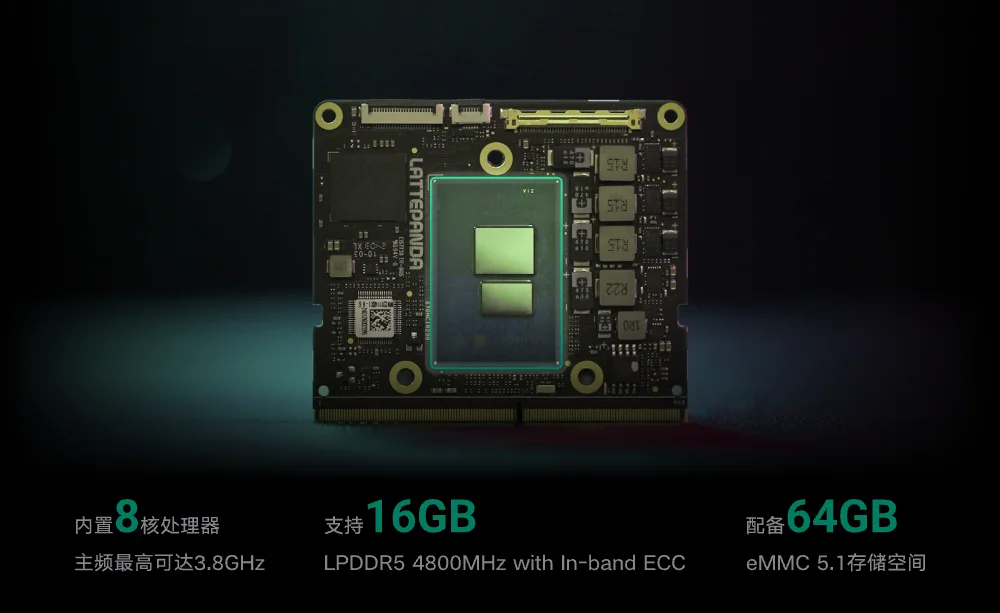

Intel N305 processor (max. 3.8GHz, 8 cores and 8 threads)
Onboard 16GB 4800MHz LPDDR5 memory, IBECC support
Onboard 64GB eMMC 5.1 storage
Adjustable TDP: 9W to 35W
Multi-OS support: Windows 10, Windows 11, Ubuntu
Rich expansion pins, such as: 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0, 64 expandable GPIOs, etc
Provision of open source carrier board design files (KiCAD)

Processor: Intel ® N305 processor (Turbo frequency: 3.8GHz, 8 cores and 8 threads, adjustable 9~ 35W TDP)
Memory: 16GB LPDDR5 4800MT/s, IBECC support
Storage: 64GB eMMC V5.1
Video output: eDP 1.4b; DisplayPort 1.4; HDMI 2.0; Maximum resolution per channel: 4096 x 2160@60Hz
Input/Output Pins (Gold Finger):
PCIe 3.0: Up to 9 lanes
SATA 3.0: Up to 2 ports
USB 3.2 (10Gbps): Up to 4 ports
USB 2.0 (480Mbps): 8 ports
Audio: high definition audio; I2S
I2C: SoC 4 ports
UART: SIO 1 port; SoC 3 port
GPIO: Expand to 64 pins via shift register
Power supply: 9~ 20V
Operating System (officially supported): Windows 10 IoT Enterprise LTSC; Windows 11; Ubuntu 22.04 LTS
Environmental conditions: Operating temperature: 0~ 60 ° C; Operating humidity: 0~ 80% relative humidity, non-condensing
Size: 69.6 x 60mm

LattePanda Mu Compute Module (N305 16GB) x1
Product manual x1

Product vecu: https://gitee.com/LattePandaTeam/LattePanda-Mu/tree/zh
