SPECIFICATIONS

Our Default:

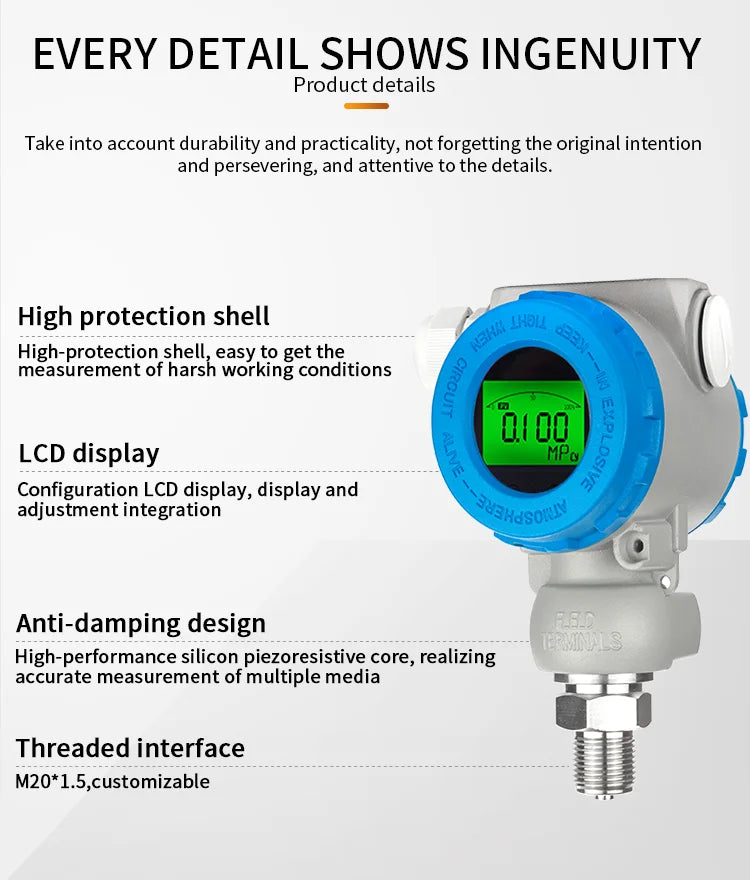

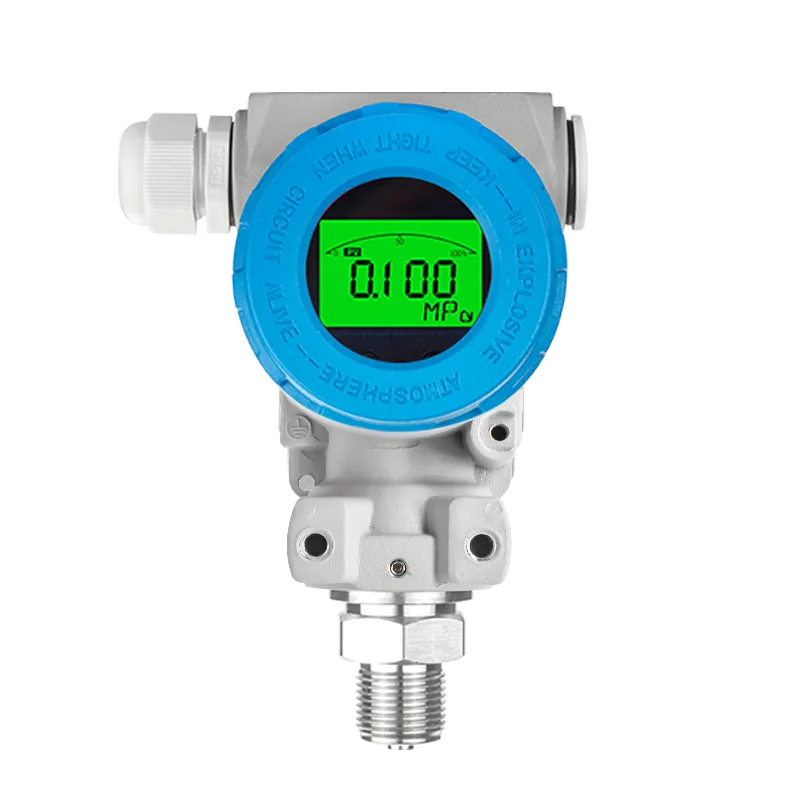

LCD display

Power Supply:24VDC

If you need other pressure range,output signal,Thread size,power supply,pls contact us or note it on the order,tks

Paraments:

Overload pressure: 2 times full scale

Measuring medium: gas and liquid compatible with 316L stainless steel

Output signal: 4-20mA ,RS485 （LCD type with  0-10V output is not available ,0-10V without display ）

Power supply voltage: 24VDC default (12-36V)

Accuracy: ±0.5%F.S

Long-term stability: ≤±0.2%F.S/year

Compensation temperature: -10～＋70℃

Medium temperature: -20～＋85℃

Storage temperature: -40～＋125℃

Response time: ≤1ms

Pressure port: M20×1.5

Protection level: IP65

Features:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ RS485,4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

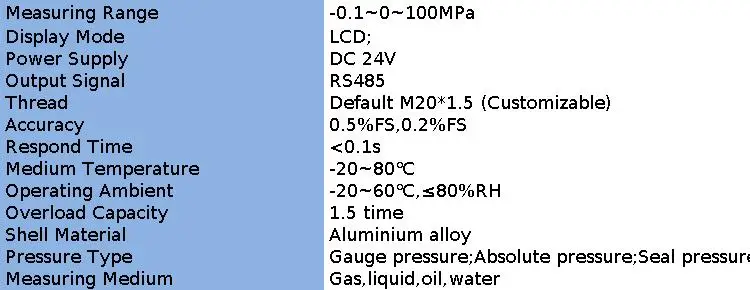

Technical parameters:

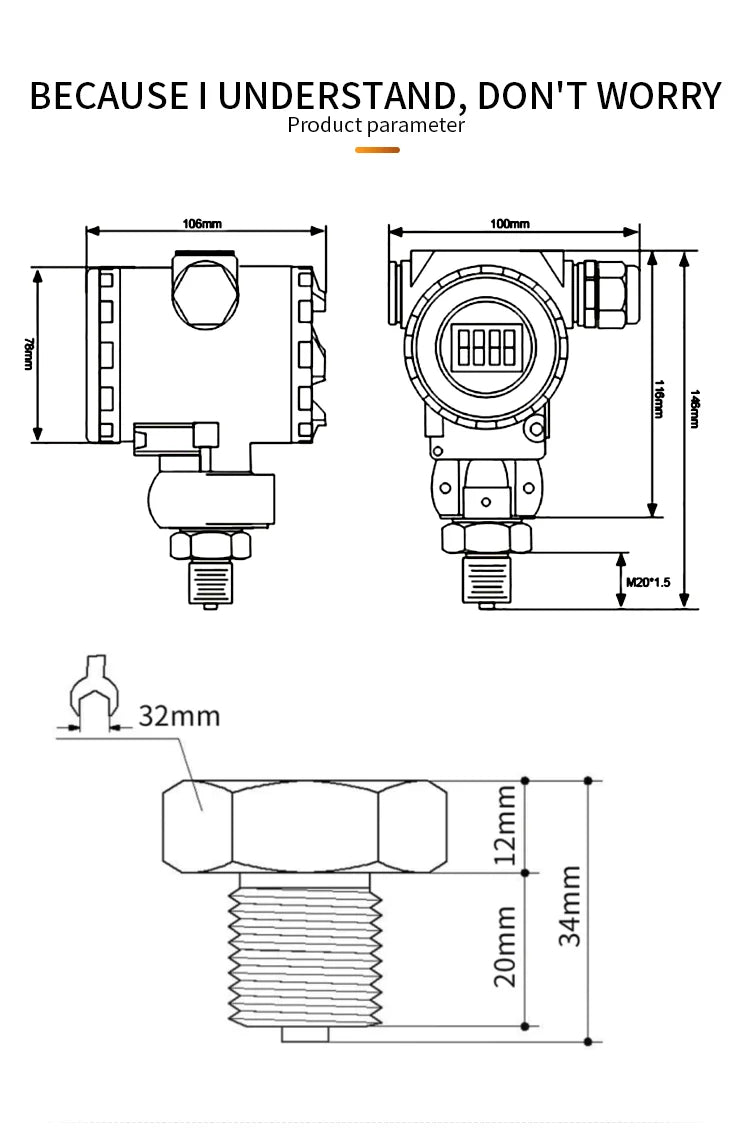

Size:

\

FAQ :

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure transducer.

Q:Could I get samples?

A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:How about the quality of the magnets?

A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?

A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.

Q:Could you provide me the shortest lead time?

A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

Q:Could I visit your factory?

A:Of course,if you need we will help you to visit our factory.

Q: How can I get the quotation?

A: Contact us directly at  you will get the reply within 12hours, and the quotation will send to you according to your requirements.

Q: How can I get my sensors?/ What's the means of transport?

A: We main delivery goods by express: Aliexpress, e-Packet, DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q: How to order other parameters I want ?

A:In order to recommend you the most suitable (Sensors) and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. Measuring Range: 1 bar, 10bar, 50bar or others

2. Output signal: 4-20mA, 0-5V , RS485 or others

3. Power Supply: DC24V; DC12V; DC12-36V

4. Thread Size: M20*1.5, M10%1.5, G1/2, G1/4 or others
