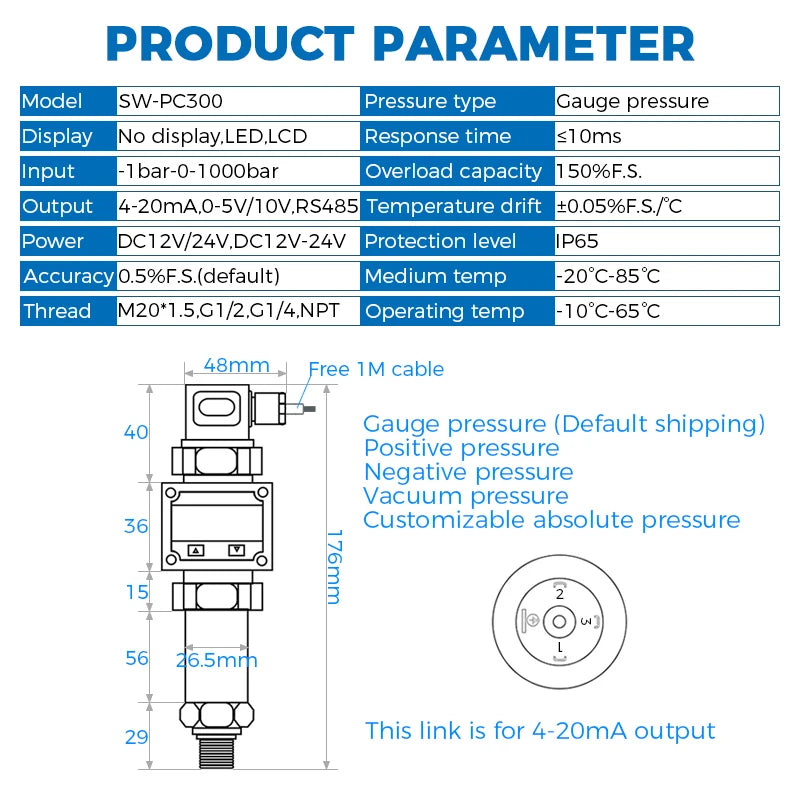

SPECIFICATIONS

Accuracy: 0.5%F.S.(Default)

Battery Included: no

Brand Name: SOWAKAM

High-concerned chemical: none

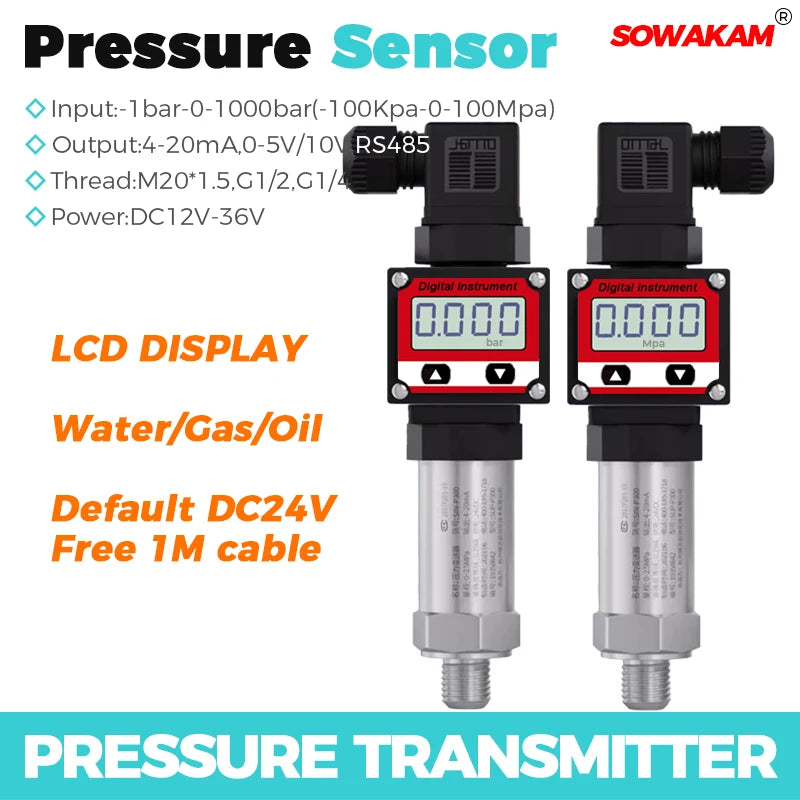

Input range: -1bar-0-1000bar(-0.1Mpa-0-100Mpa)

Long-term stability: ≤0.2%F.S./℃

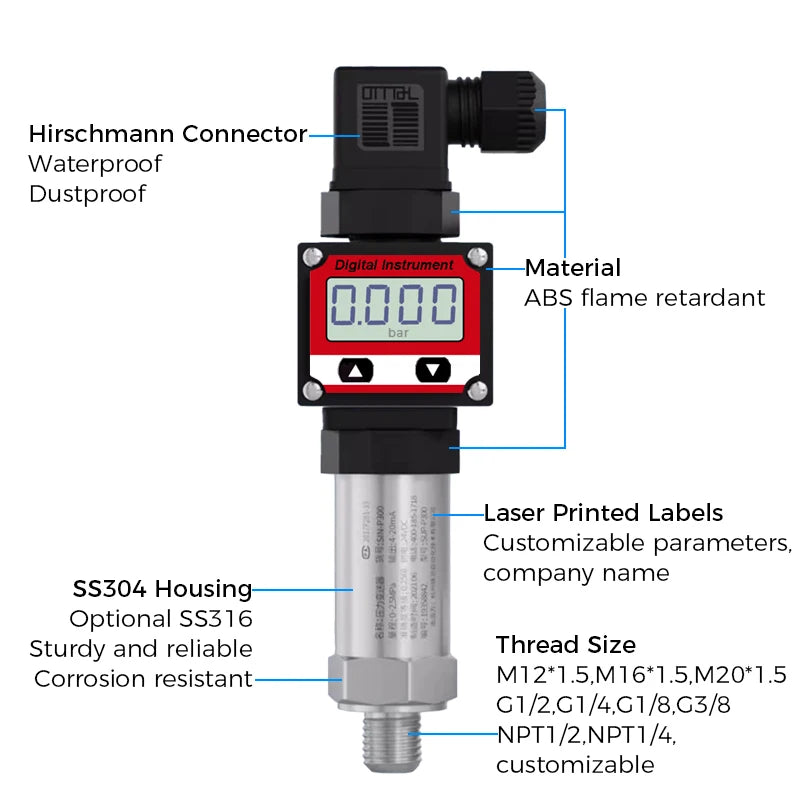

Material: Shell SS304, diaphragm 316L

Max Measuring Range: 400 Bar & Above

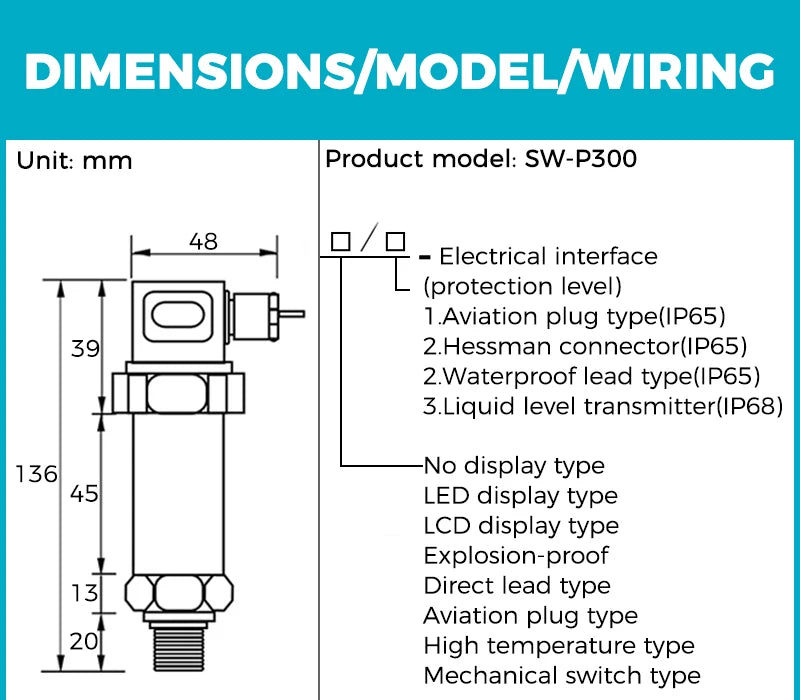

Model Number: SW-PC300

Operating temperature: -10℃-65℃

Origin: Mainland China

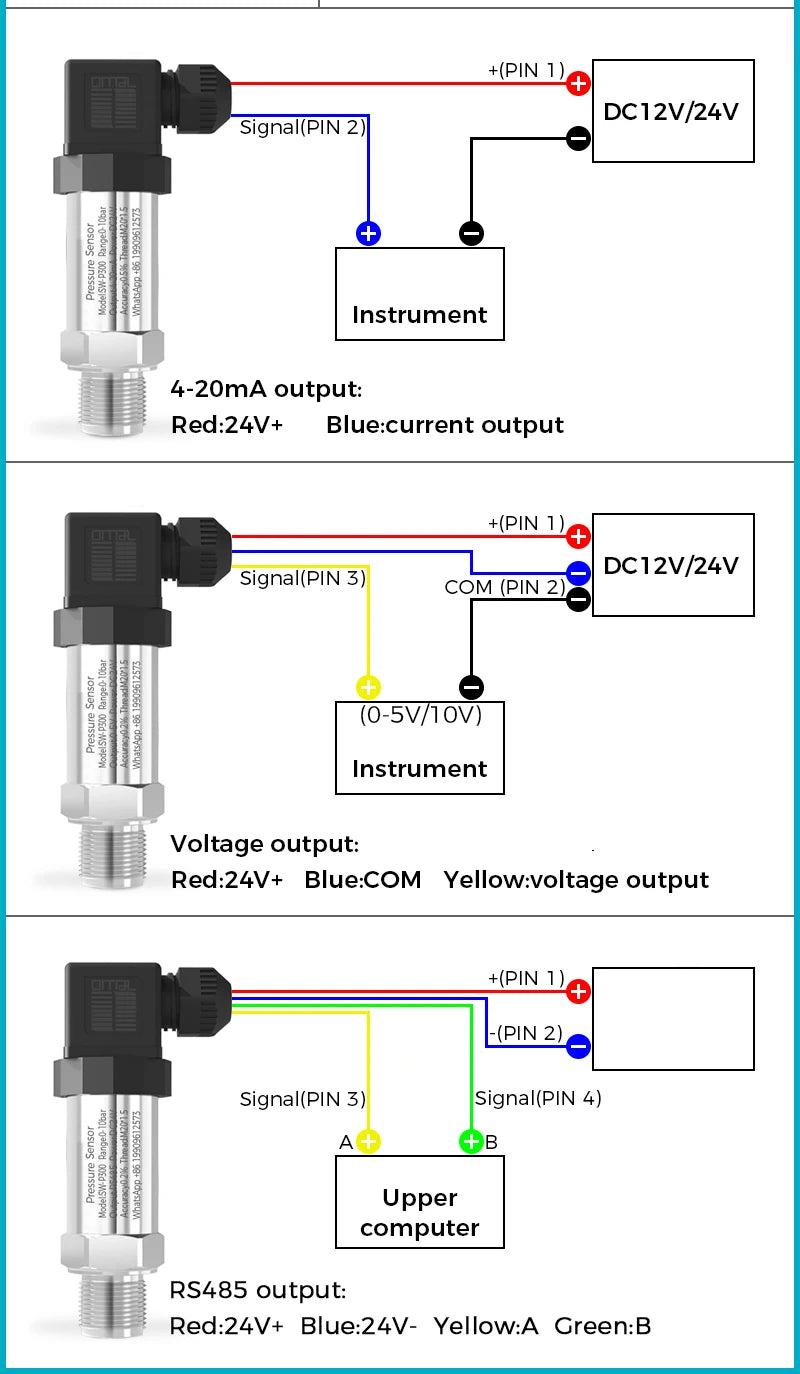

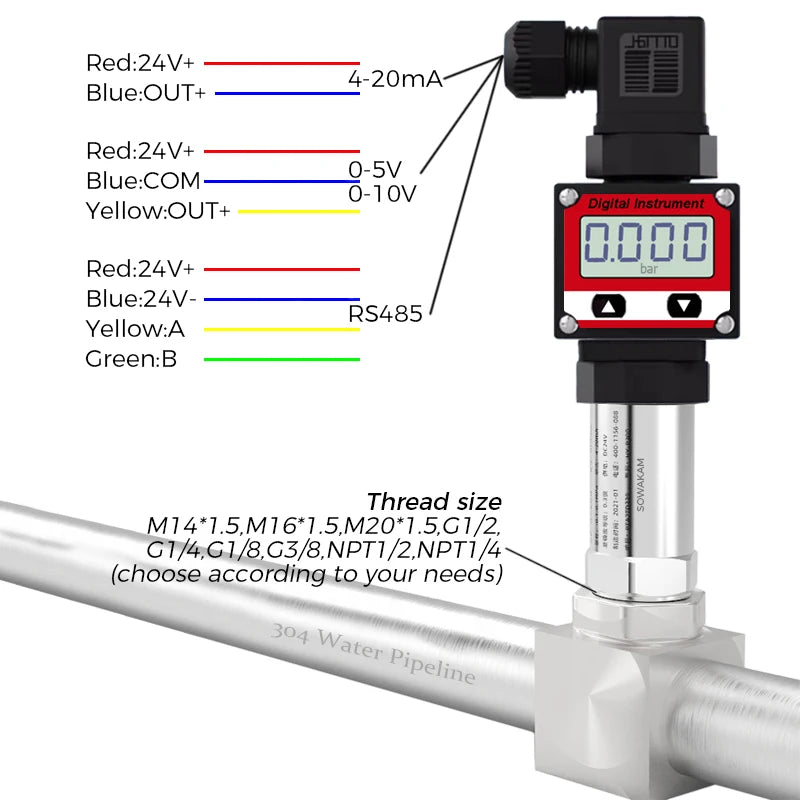

Output: 4-20mA,0-5V,0-10V,RS485

Overload pressure: 150%F.S.

Power supply: 12V-36VDC(default 24VDC)

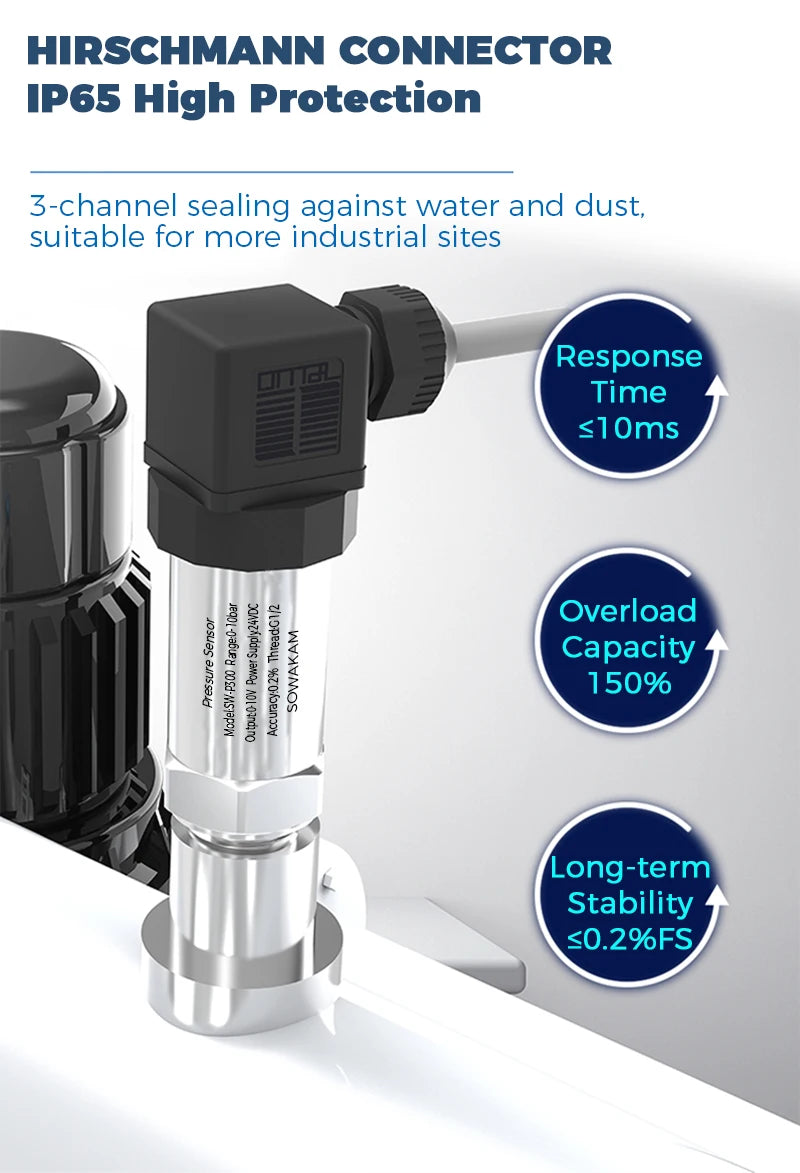

Protection class: IP65

Response time: ≤10ms

Semi-finishedproduct: No

Sowakam Model: SW-PC300

Temperature drift: ±0.05%F.S./℃

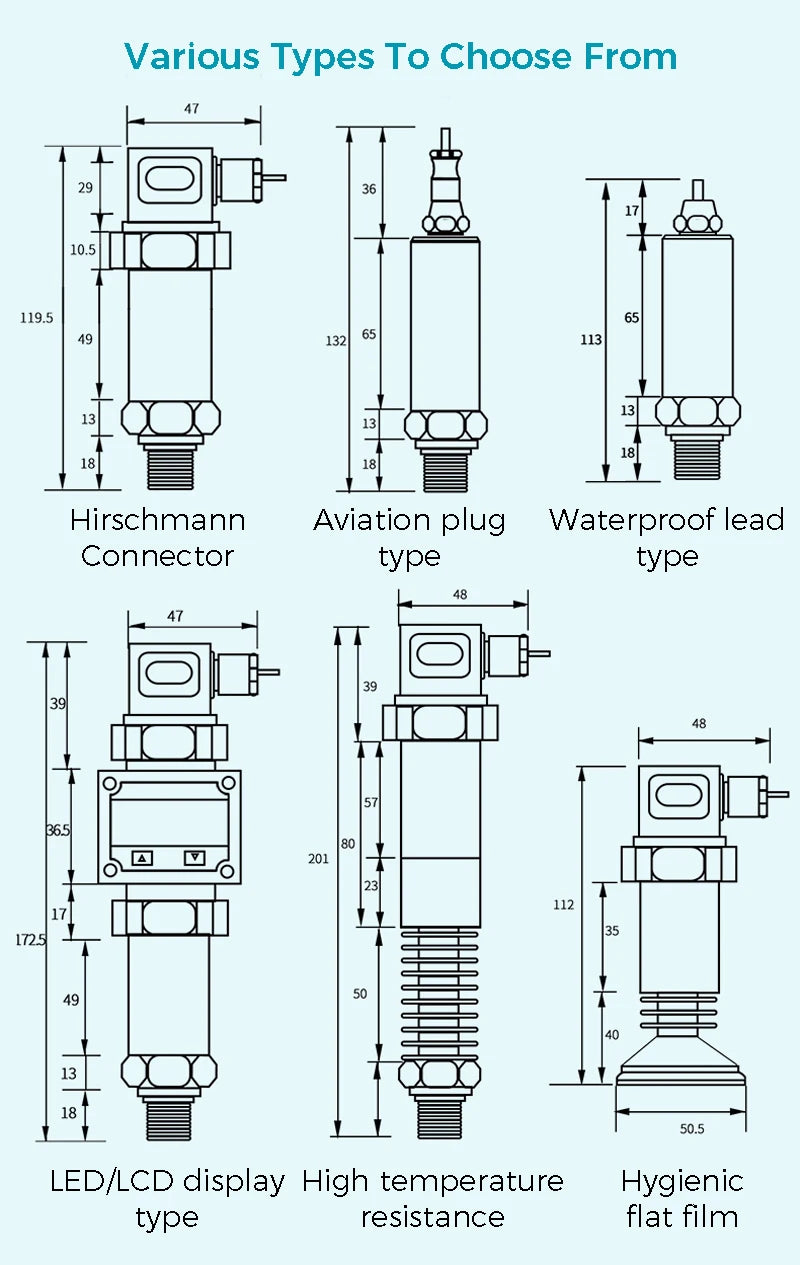

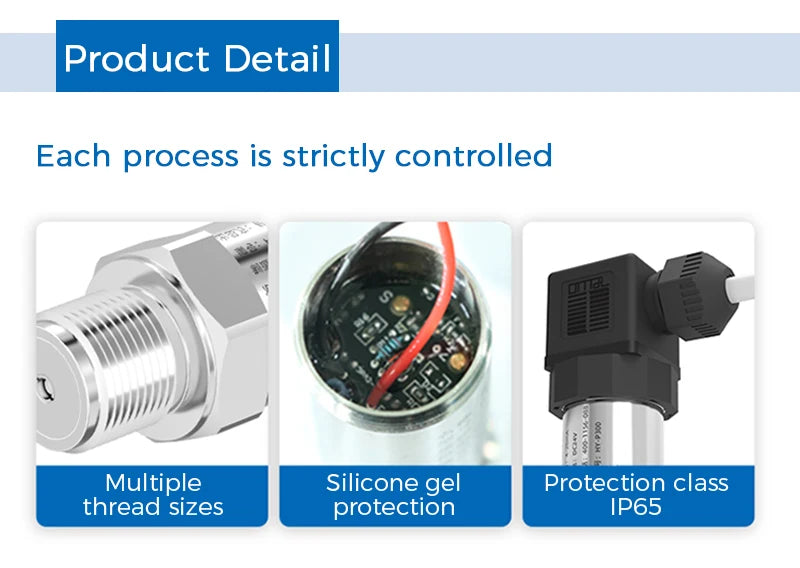

Thread size: M20*1.5,G1/2,G1/4,G3/8,NPT1/2,NPT1/4,NPT1/8

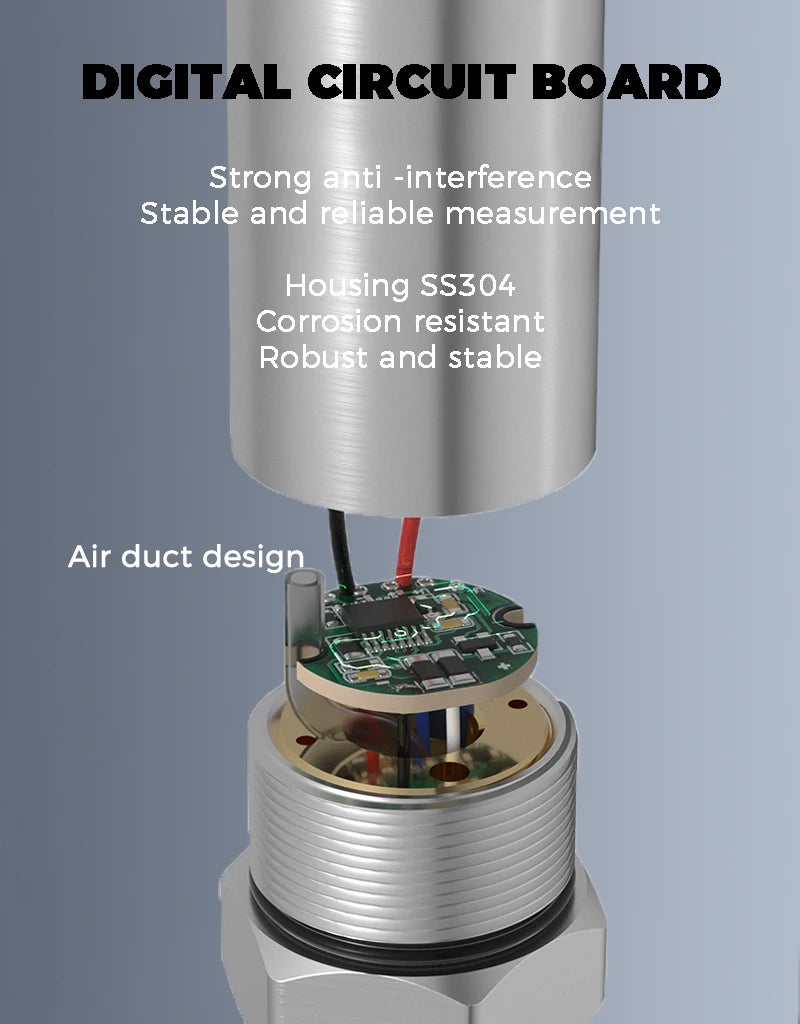

.By using imported diffused silicon cores, high-performance circuit boards, sensitivity and temperature compensation technology, the physical pressure parameters sensed by pressure sensors such as gases and liquids are converted into standard electrical signals, which are supplied to secondary instruments such as indicator alarms, recorders, and regulators for measurement, indication, and process adjustment.

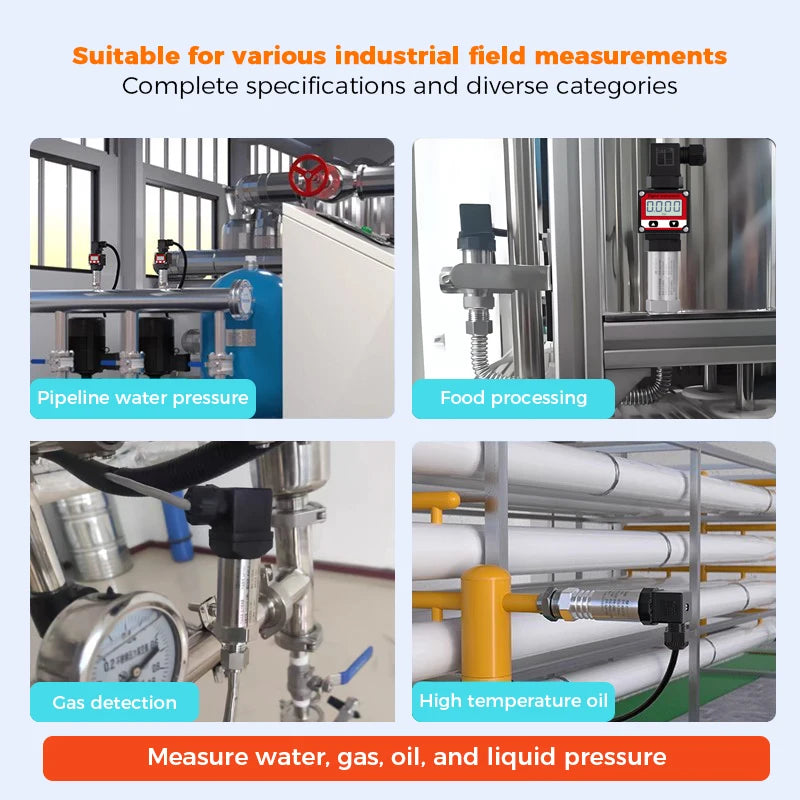

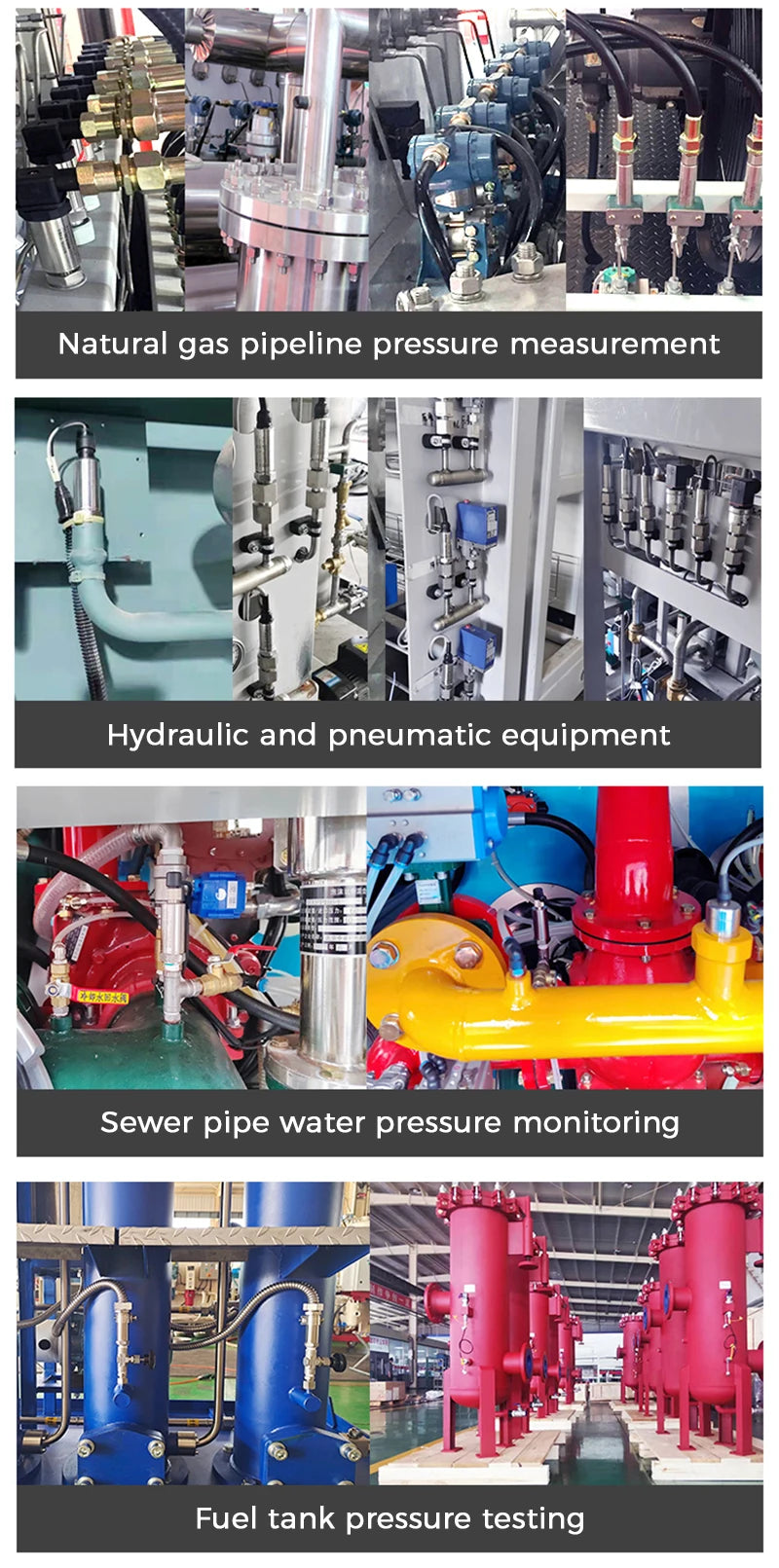

2.Absolute pressure, negative pressure, and gauge pressure can be measured according to different models. Suitable for pressure measurement in liquid or gas and process industries. Default gauge pressure, absolute pressure needs to be customized.

Features

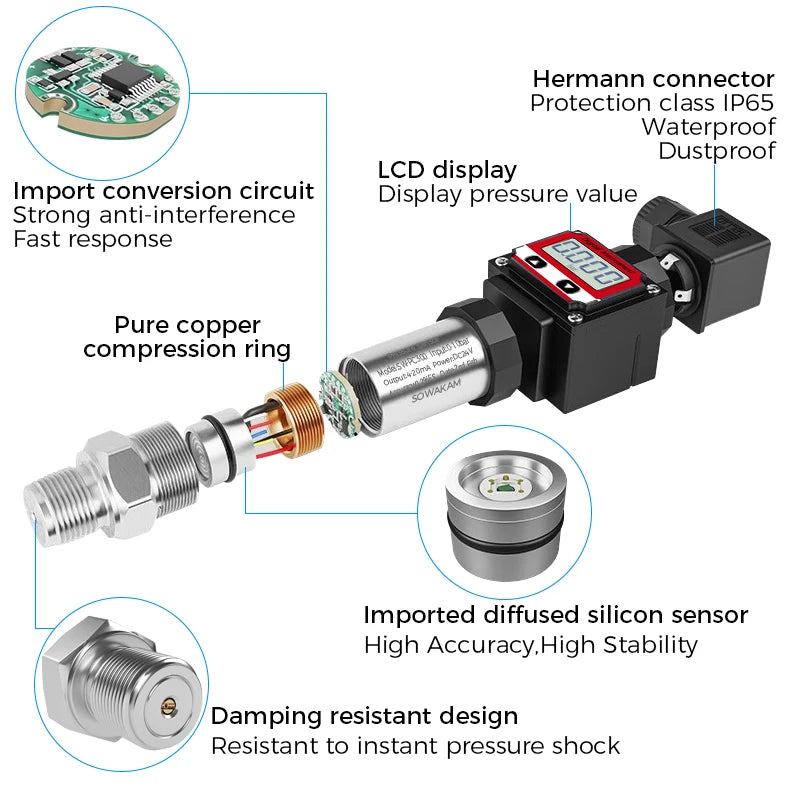

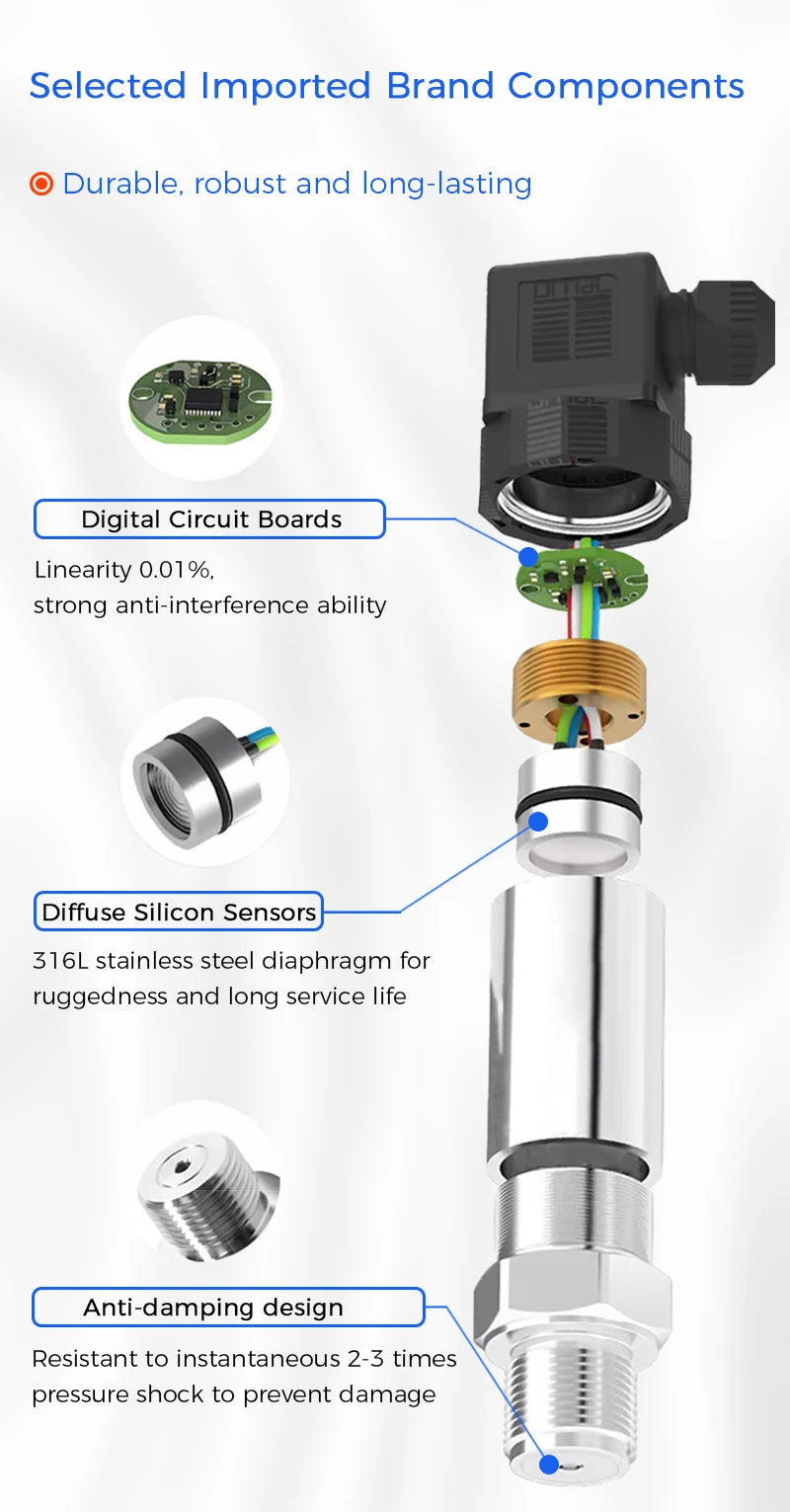

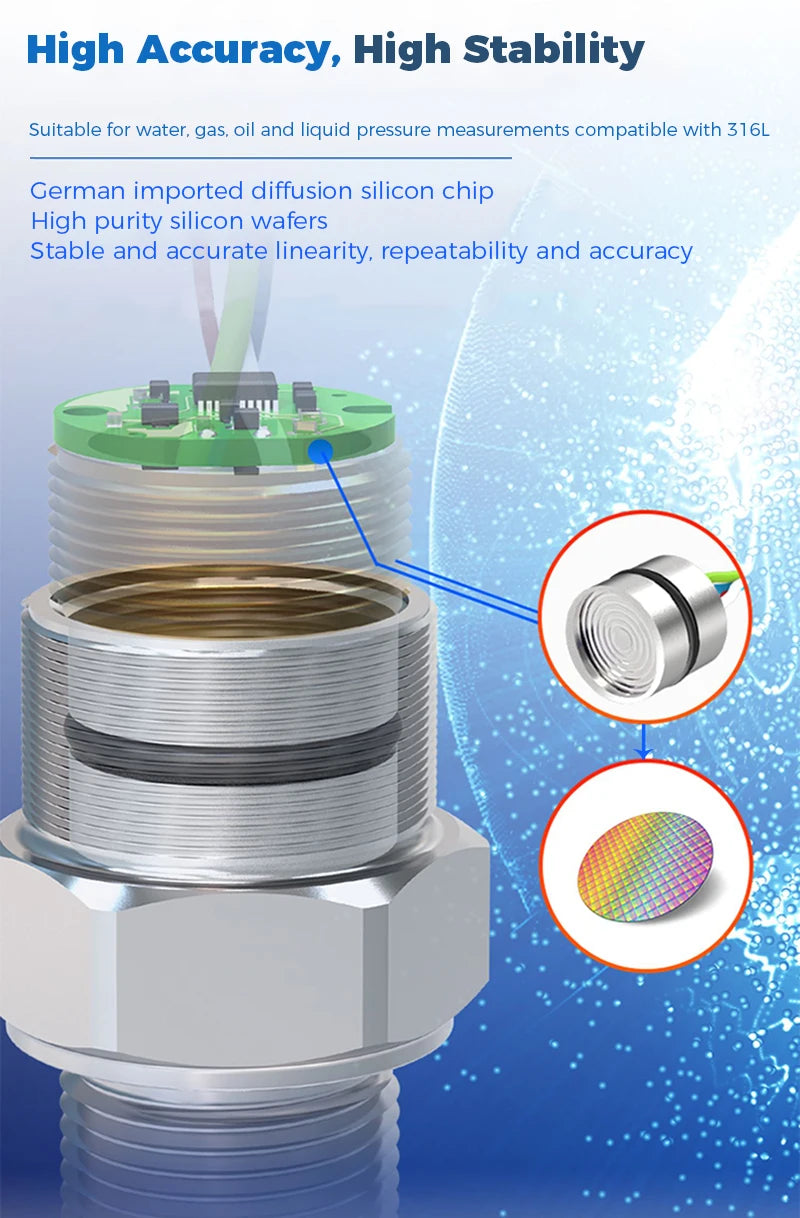

1.German imported diffusion silicon sensors have fast response, accurate and stable measurement.

2.Adopting diaphragm isolation technology, integrated core, wide voltage power supply.

3.Digital compensation and non-linear correction techniques are used.

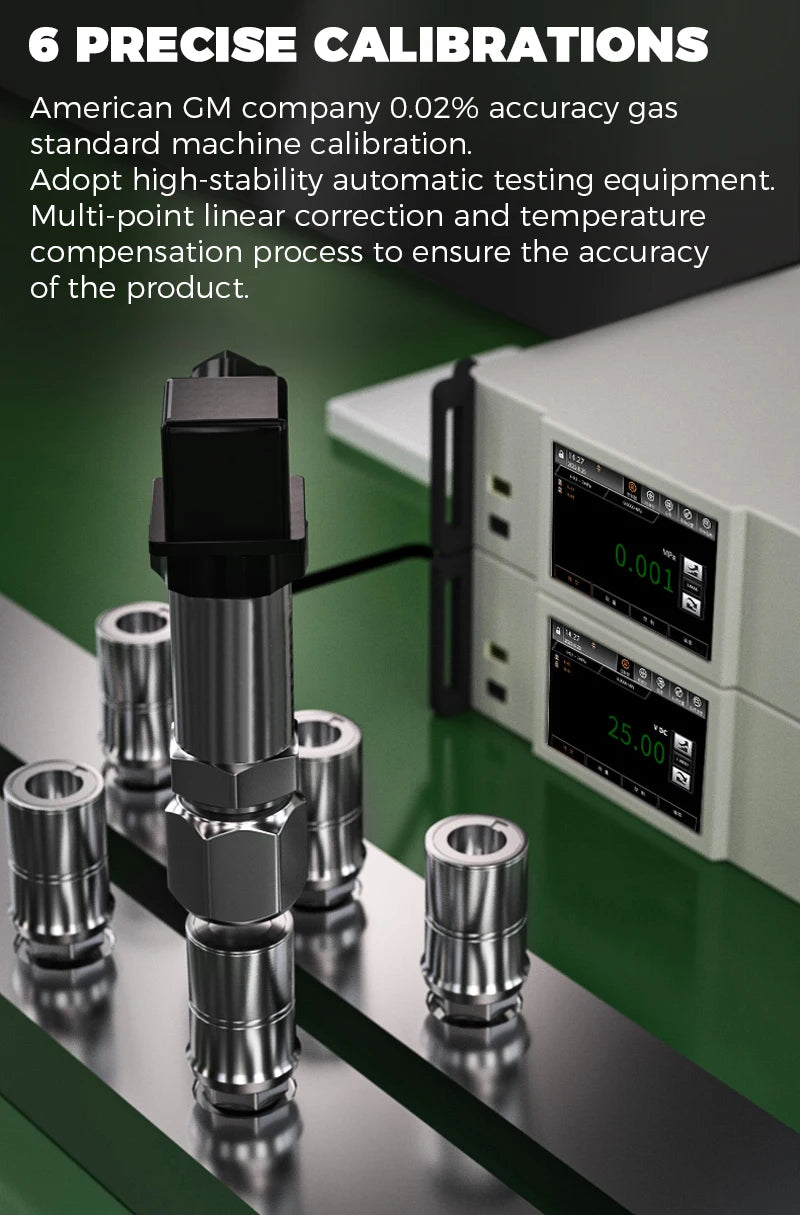

4.The product adopts 8-point standard calibration and 4-point detection calibration, covering full range measurement.

5.No moving parts inside for reliable performance.

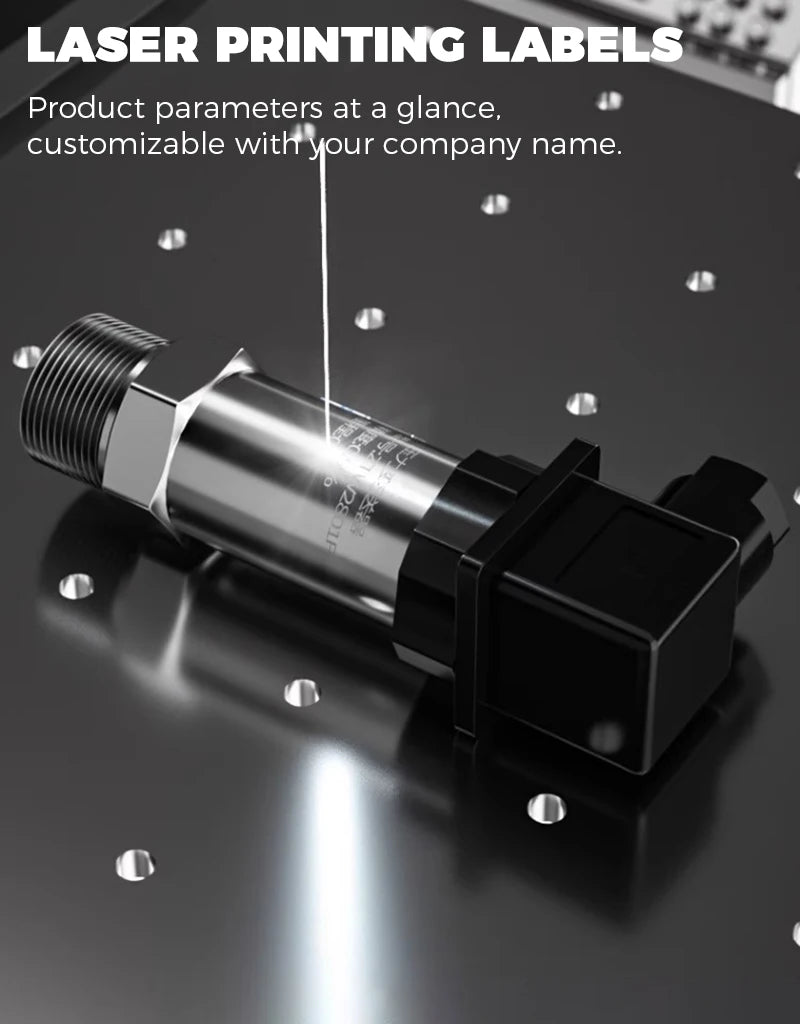

6.Parameters and product labelling can be customised on request.

FAQ

1.Retailers are welcome to wholesale.

If you buy in bule, we will offer you a discount.If you send to your customers, please contact us,

we will not leave any information about us.

2.What if I don't have the parameters I need?

Our product parameters are customizable:input, output,power supply,thread size.

3.Can I customize the information of my company?

We customize your company name,logo,wdbsite,phone number,etc.

4.What if the product does not return to use?

Please contact us in time,we will help you solve it.
