SPECIFICATIONS

AC Current: Details page

AC Voltage: Details page

Battery Included: Yes

Battery capacity: 300mAh

Brand Name: Gaqqee

Certification: CE,RoHS

Charging specifications: USB Type-C, 5V/1A

Choice: yes

DC Current: Details page

DC Voltage: Details page

DIY Supplies: Electrical

Data Record: Yes

Dimensions: 62*90*32mm

Display: 1.9 inches

Display Type: Digital Display

GAQQEE Model: LCR-AR1

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: Details page

Measuring Inductance Range: Details page

Measuring Resistance Range: Details page

Model Number: LCR-AR1 Transistor Tester

Operating Mode: Auto Range

Operating Temperature: Details page

Origin: Mainland China

Semi-finishedproduct: No

Product Features:

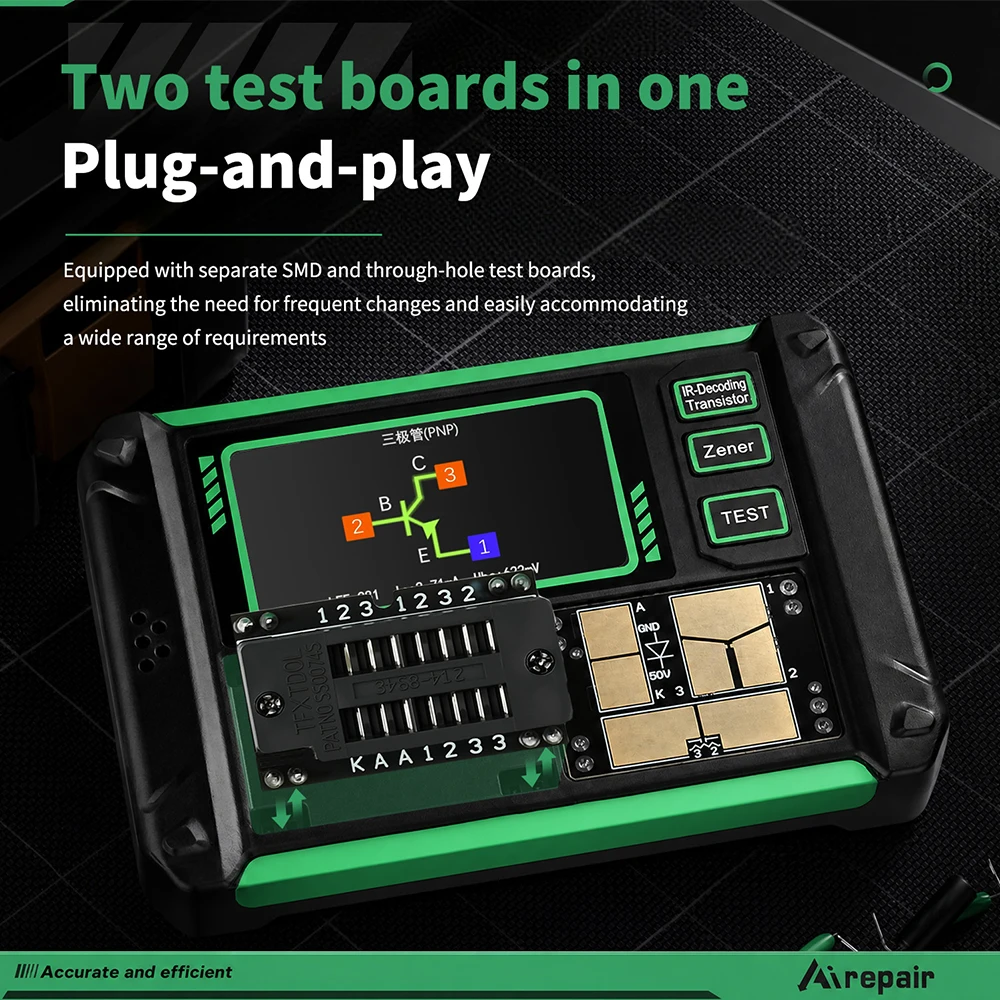

1. Compatible with SMD sockets, allowing flexible handling of various components. Easily measure all types of surface-mount components without frequent changes, making testing more convenient and efficient.

2. Short-circuit test ports 1, 2 and 3, then press and hold the TEST button for 3 seconds to enter the self-calibration process. Regular calibration ensures measurement data remains reliable at all times.

3. Supports decoding of NEC protocol infrared signals, enabling the reading of remote control codes and the display of waveforms – an essential feature for home appliance repairs.

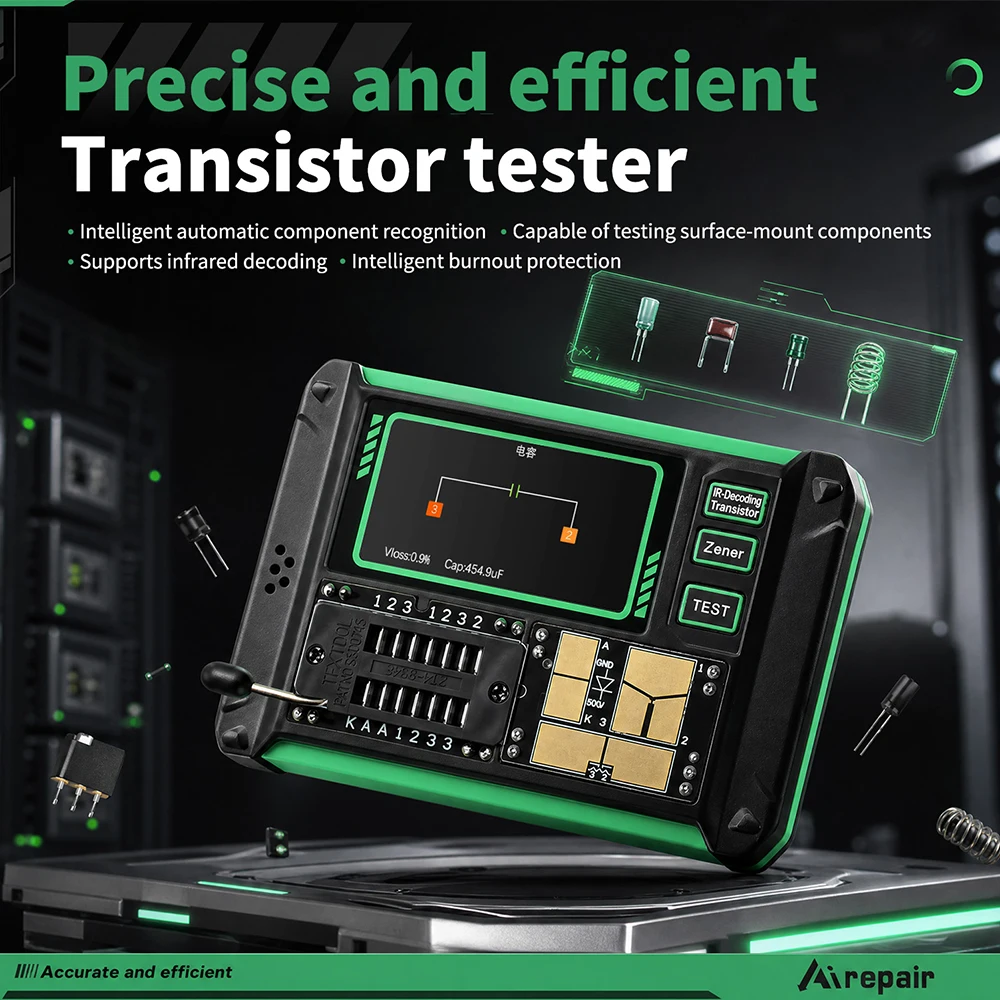

4. Switch to Auto mode for the device to automatically identify component types; a short press of the TEST key initiates measurement, handling transistors, diodes, capacitors, inductors and resistors with ease.

5. Press the buttons to manually switch between measurement modes; the screen displays the corresponding icon in real time to meet specific testing requirements.

6. Suitable for product R&D, home appliance repairs, educational experiments and scientific research testing, this is a valuable tool for electronics engineers and enthusiasts.

Product Description:

The LCR-AR1 Transistor Tester is a high-precision, multi-functional electronic testing device designed specifically for electronics engineers, technicians and electronics enthusiasts.

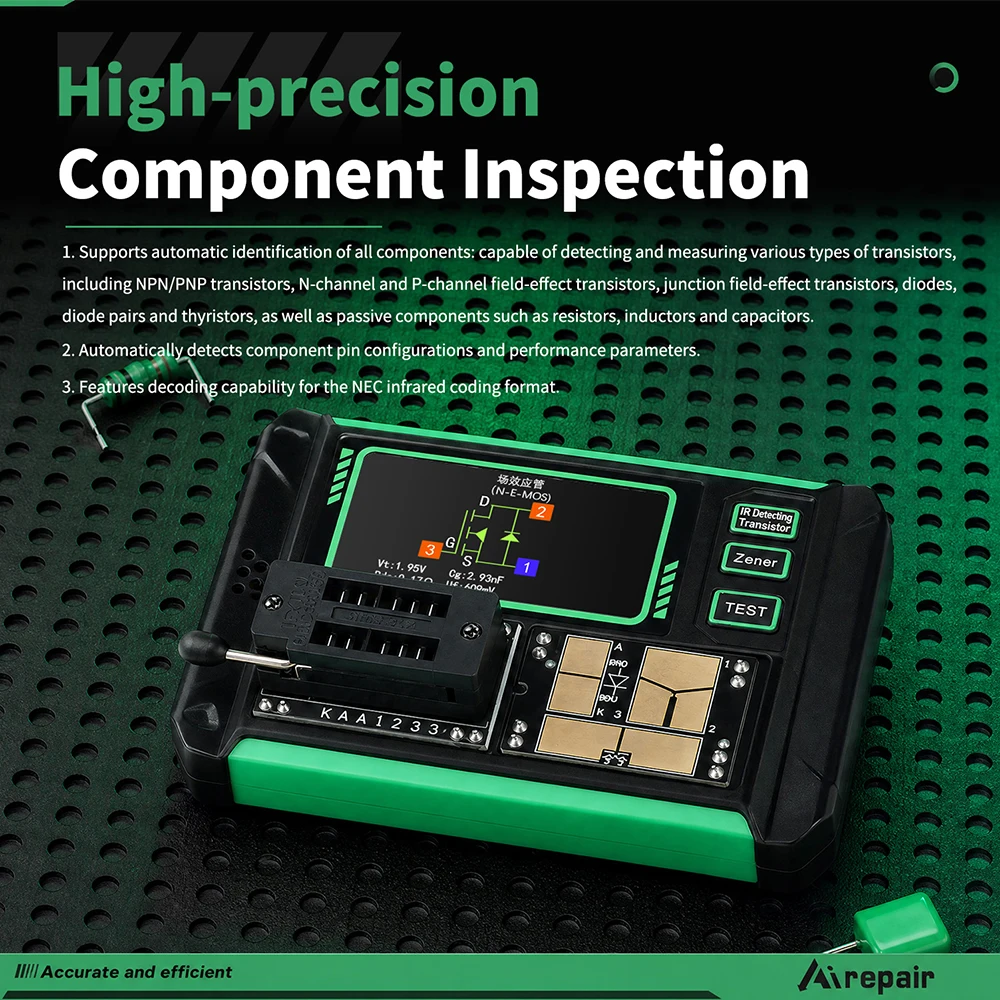

This device is designed to detect and analyse the performance and characteristics of semiconductor components such as transistors, diodes, triodes and field-effect transistors (FETs). Equipped with a colour screen, it enables multi-parameter measurement of various components, automatically identifies the type and pin configuration of the component under test, simplifies the operating process and improves testing efficiency.

Product Specifications:

Model: LCR-AR1

Display: 1.9-inch

Battery Capacity: 300mAh

Charging Specifications: USB Type-C, 5V/1A

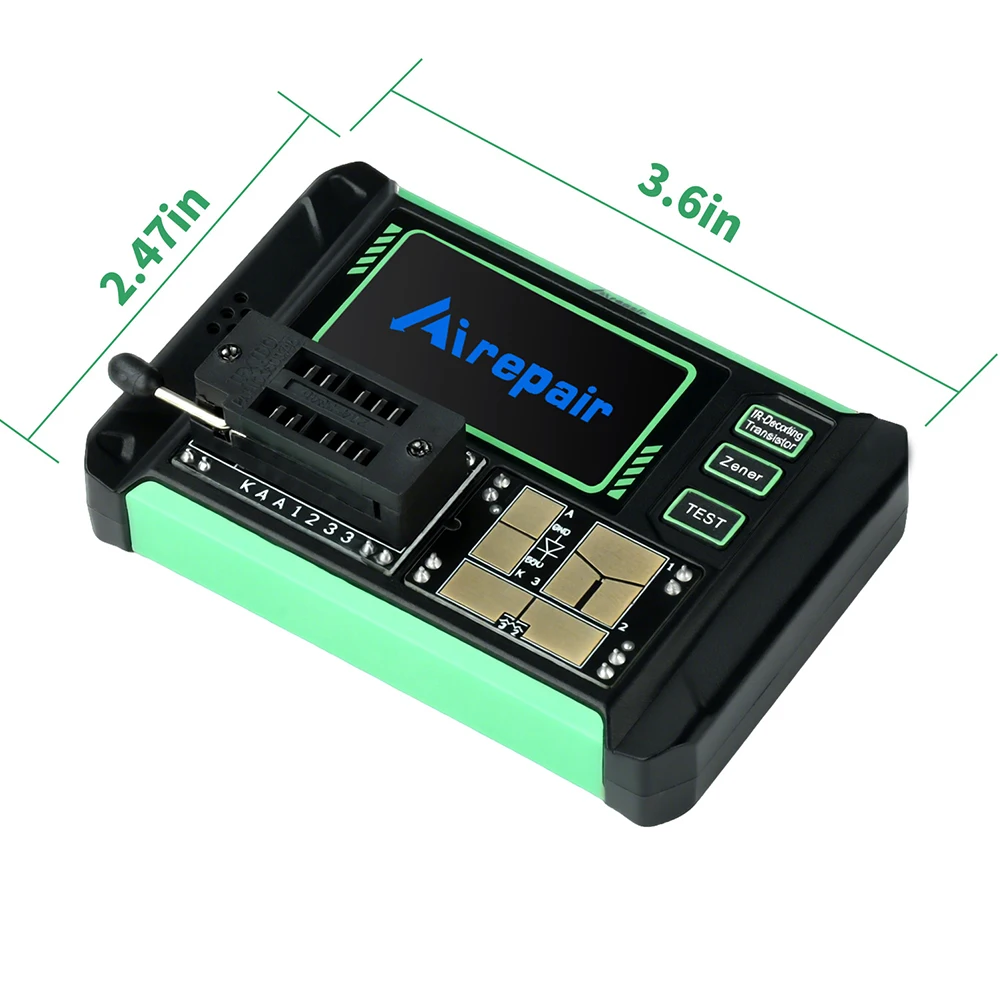

Dimensions: 62 x 90 x 32 mm

Important Notes:

1. If a capacitor is measured without first being discharged, the device will discharge the capacitor upon insertion, which may cause a spark. This function is intended solely as a safety measure to prevent accidental discharge; for correct usage, it is recommended to manually discharge the capacitor before testing.

2. When not in use, the 123 locking interface remains in a conductive state; do not insert the battery directly.

3. If component parameters fall outside the test range, the results may indicate an incorrect component type.

Package Contents:

Transistor Tester × 1

Test Socket × 1

Test Probes × 3

Type-C Cable × 1

Bilingual (Chinese/English) Manual × 1
