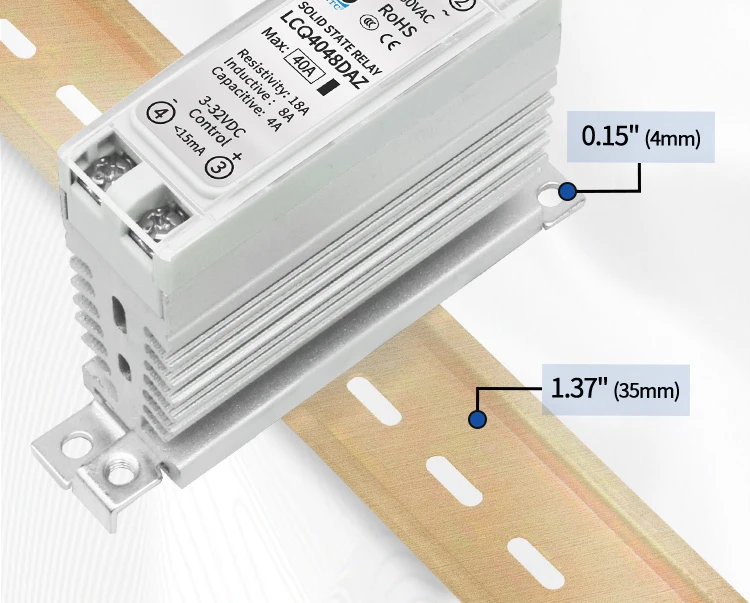

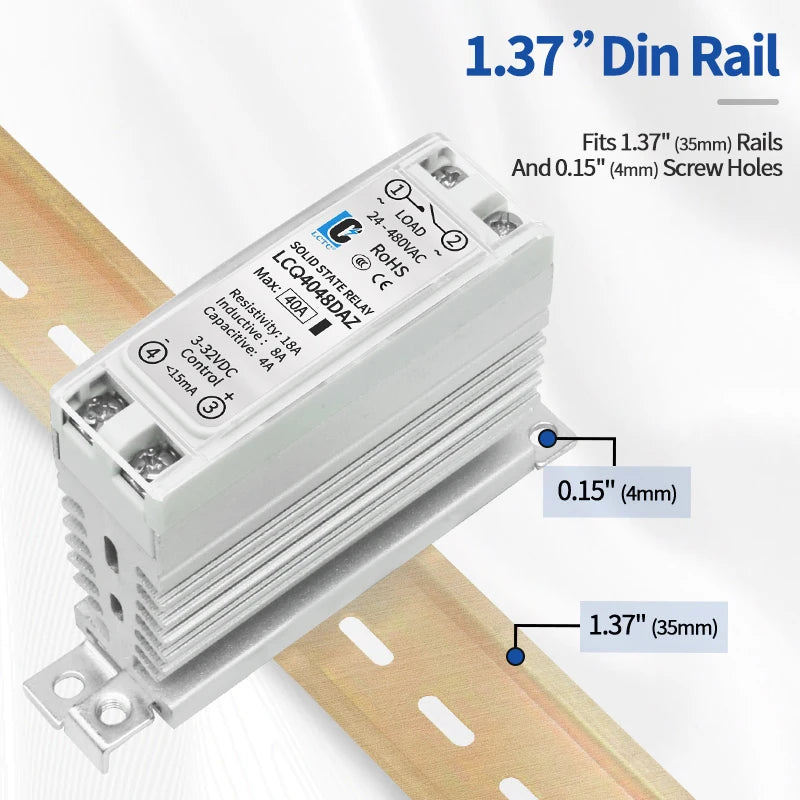

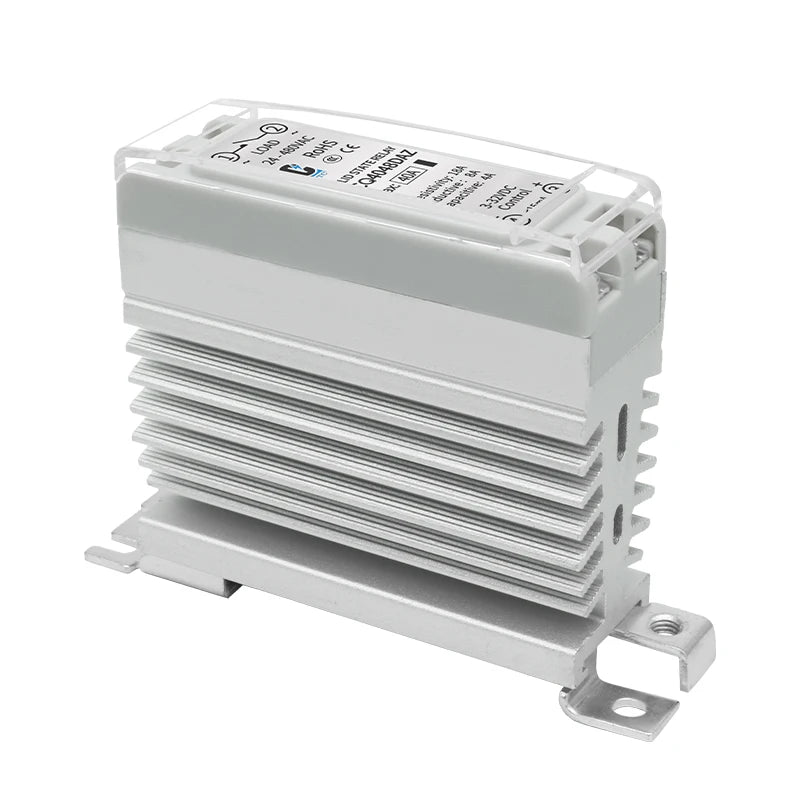

LCTC Solid State Relay DIN Installation DC-AC AC-AC DC-DC Single-Phase Relay With Radiator 10a15a25a40a SSR
DC-DC 10A
$66.92
Sale price
$66.92
Regular price
$0.00
Skip to product information
LCTC Solid State Relay DIN Installation DC-AC AC-AC DC-DC Single-Phase Relay With Radiator 10a15a25a40a SSR
$66.92
Sale price
$66.92
Regular price
$0.00
Description
SPECIFICATIONS
Applicable Object: Electromechanica
Brand Name: LCTC
Certification: CE
Choice: yes
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: LCQ
Origin: Mainland China
Theory: Solid State Relay
Use: General Purpose
is_customized: Yes
semi_Choice: yes

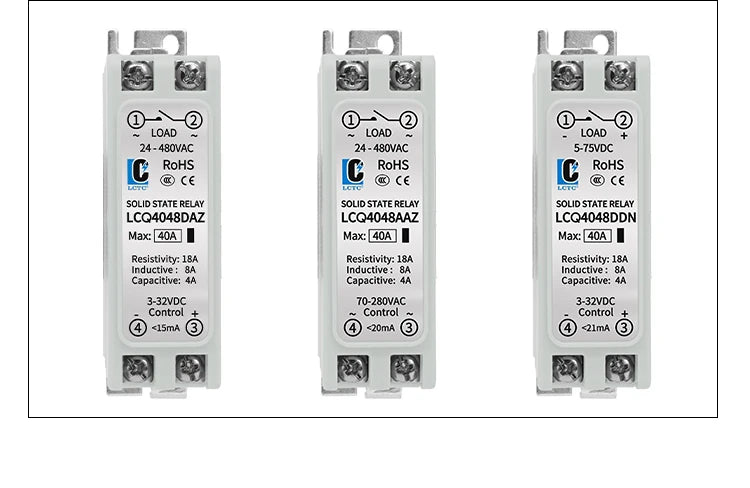

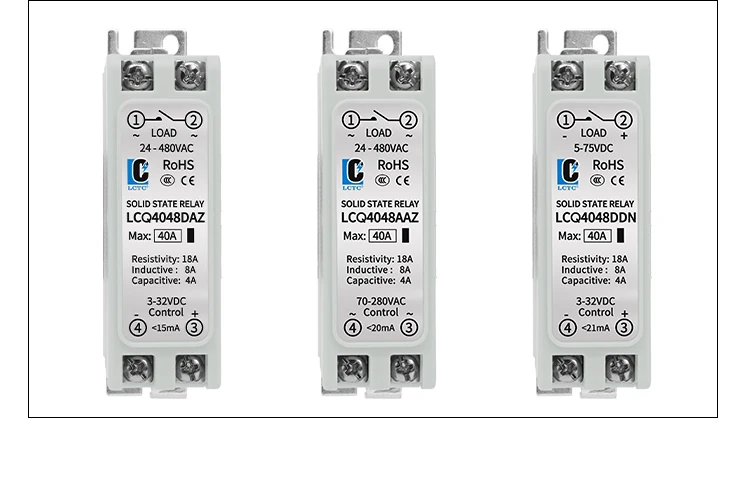

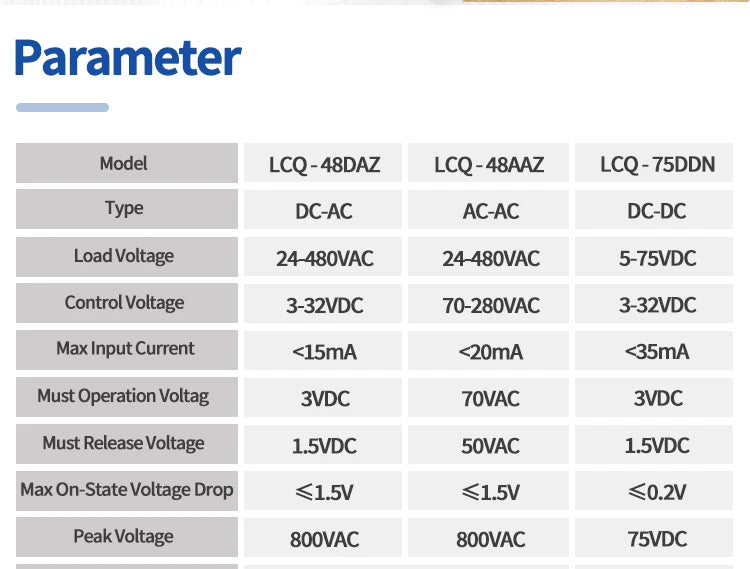

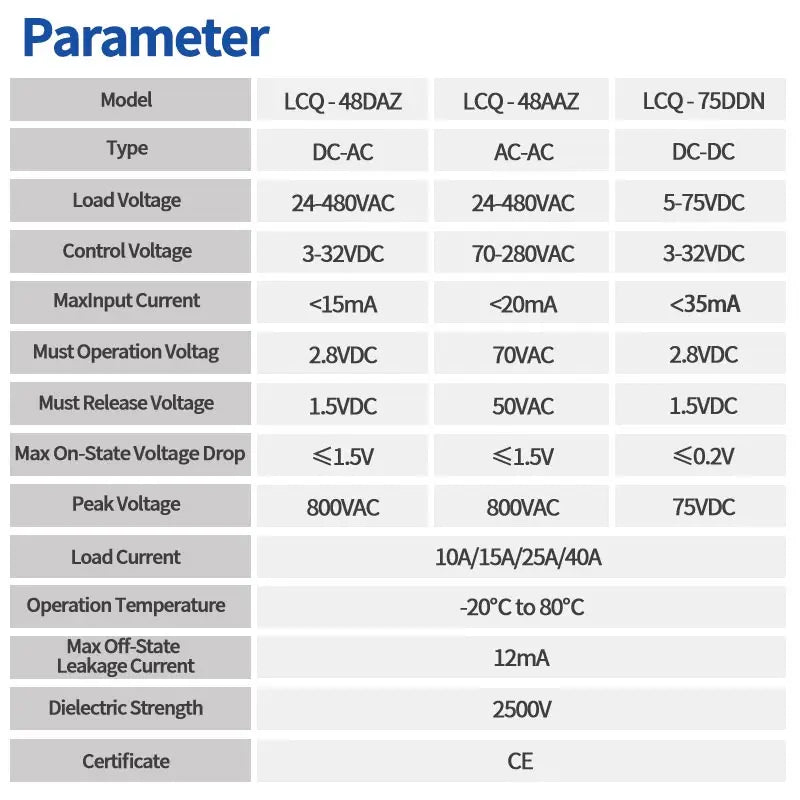

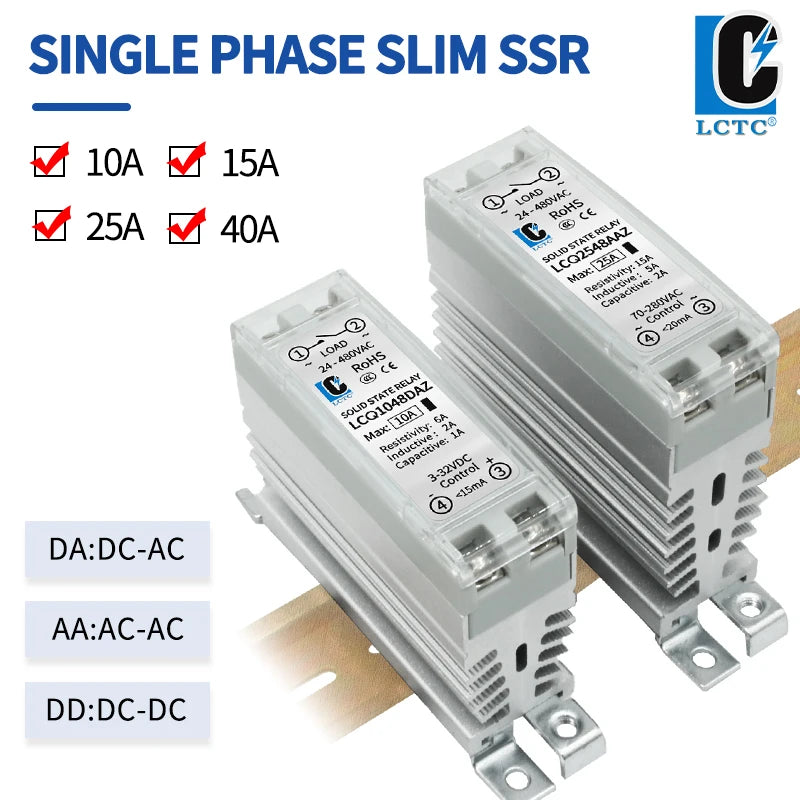

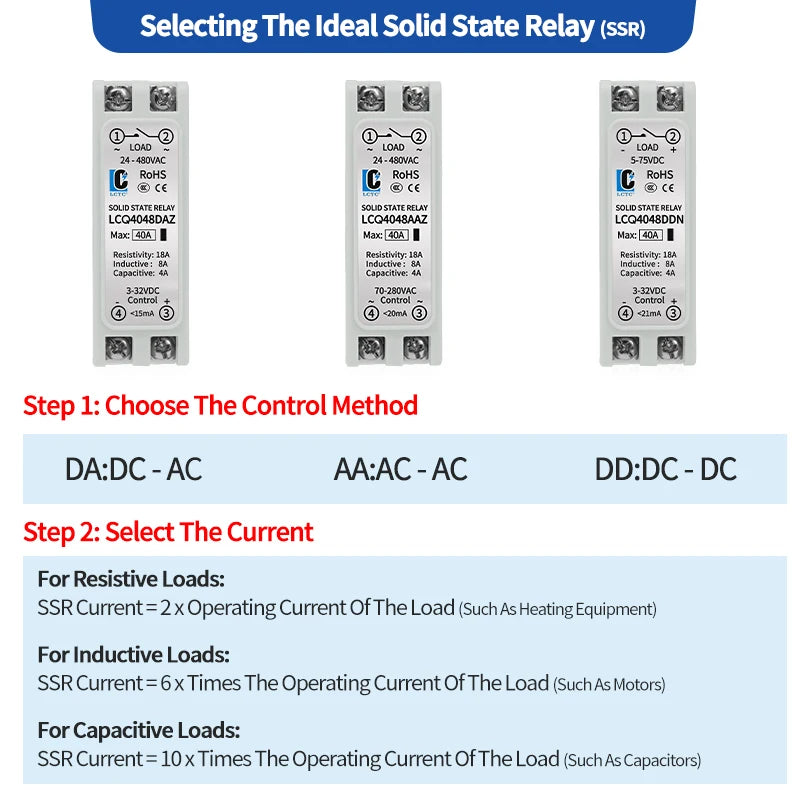

STEP 1: Choose a correct control Mode

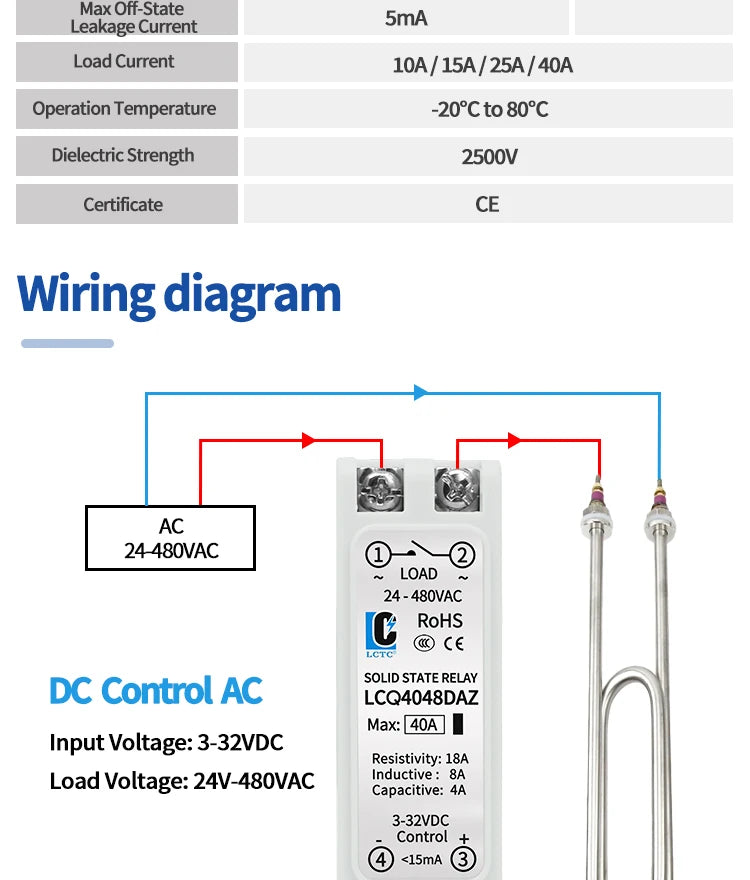

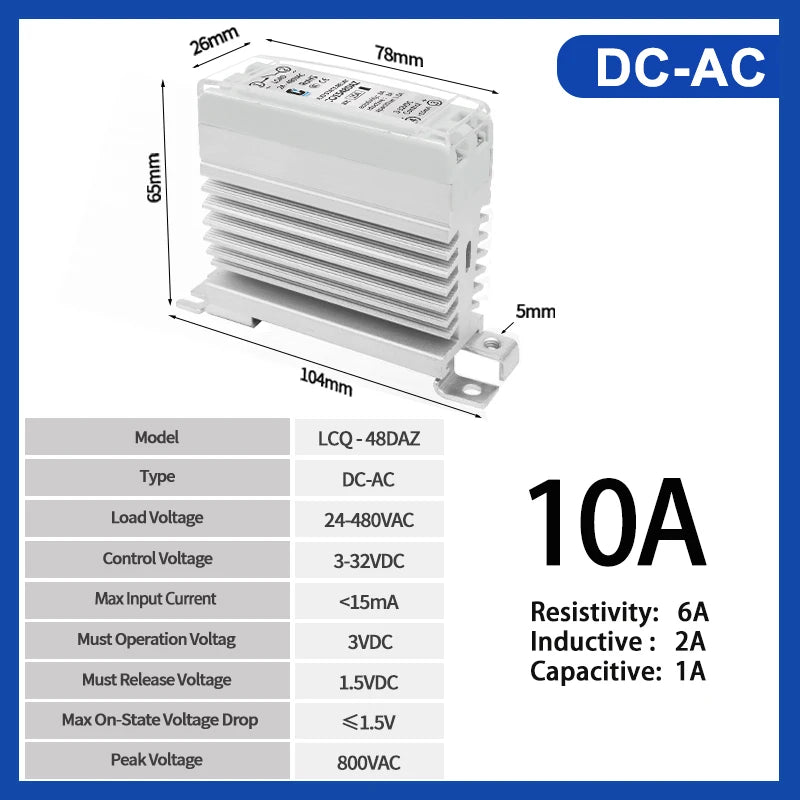

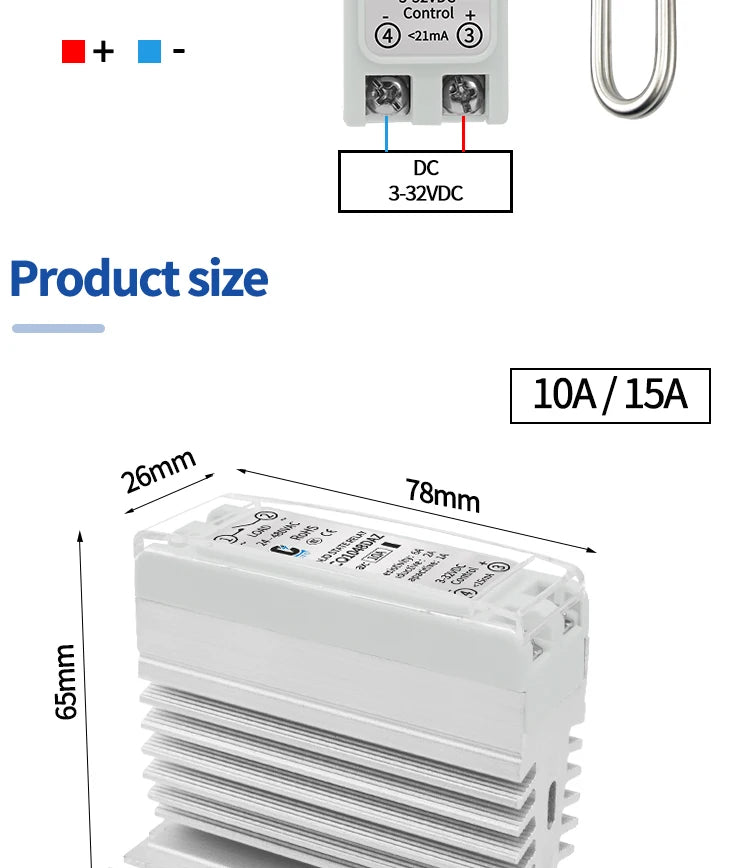

DA: DC Control AC Input：DC3-32V Load：AC24-480V

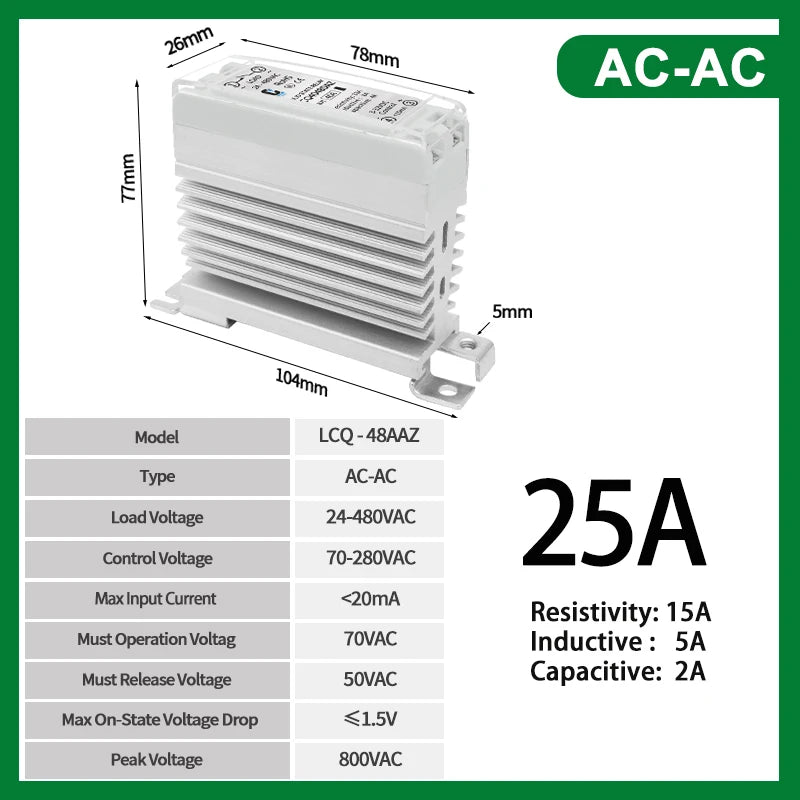

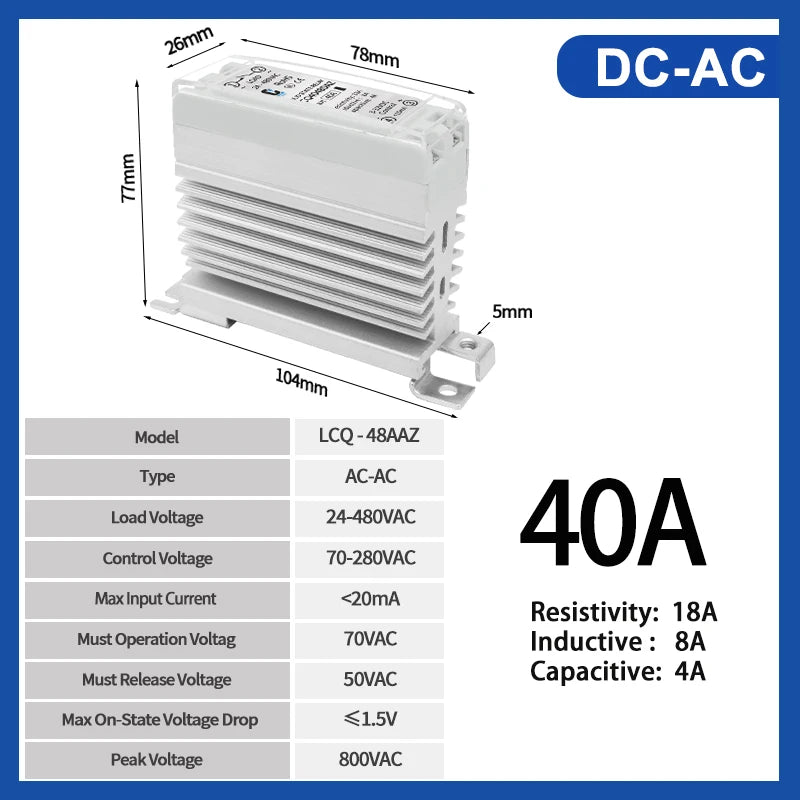

AA: AC Control AC Input：AC70-280V Load：AC24-480V

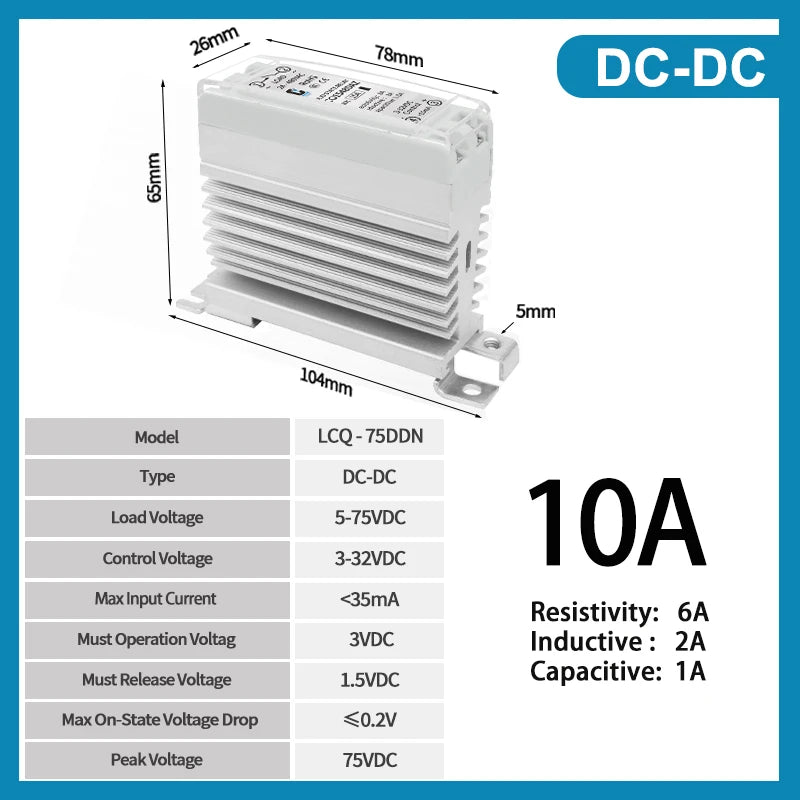

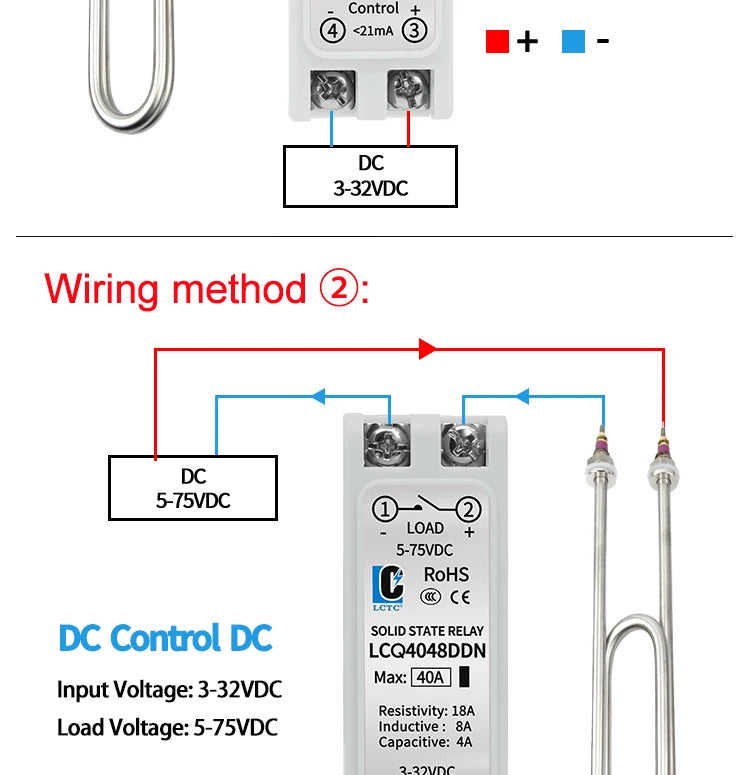

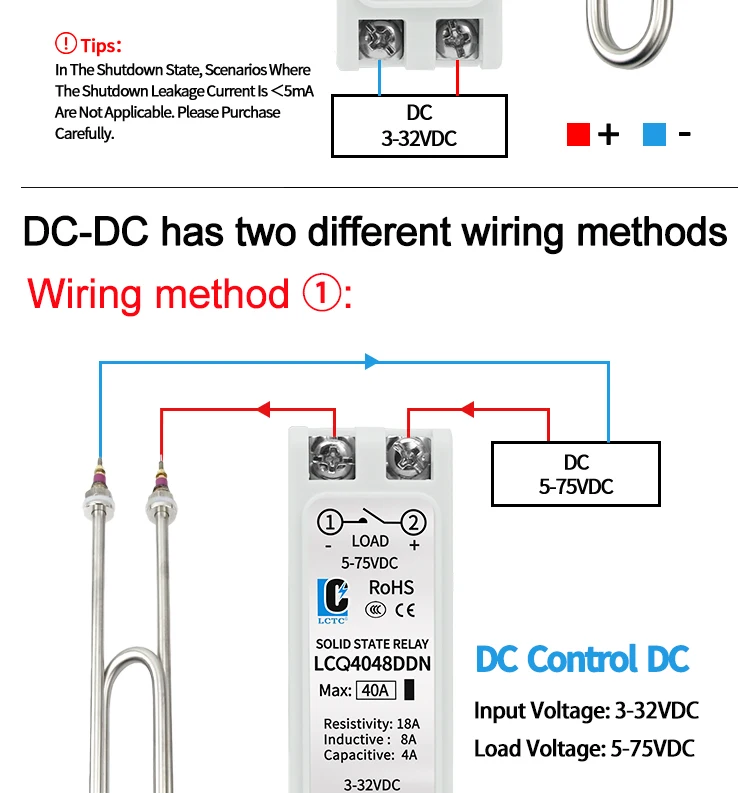

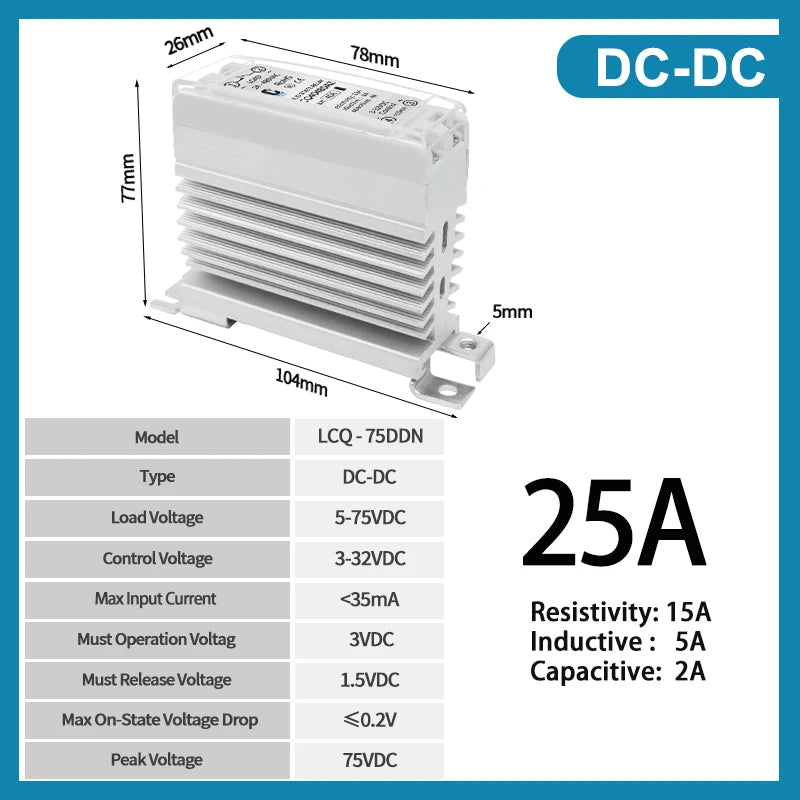

DD: DC Control DC Input：DC3-32V Load：DC5-75V
STEP 2: Choose a correct type for current
For Resistive load: Current of SSR =3 x working current of load
Resistive load such as Resistance furnace, Incandescent lamp, Oven, Heating rod, Electric water heater.
For Inductive load: Current of SSR =6 x working current of load
Inductive load such as Motor,Fan,Transformer,Pump,Air conditioner and other loads with inductives.
For Capacitive load: Current of SSR =10 x working current of load
Capacitive load such as Compensating capactitors,Batteries and other loads with capacitors

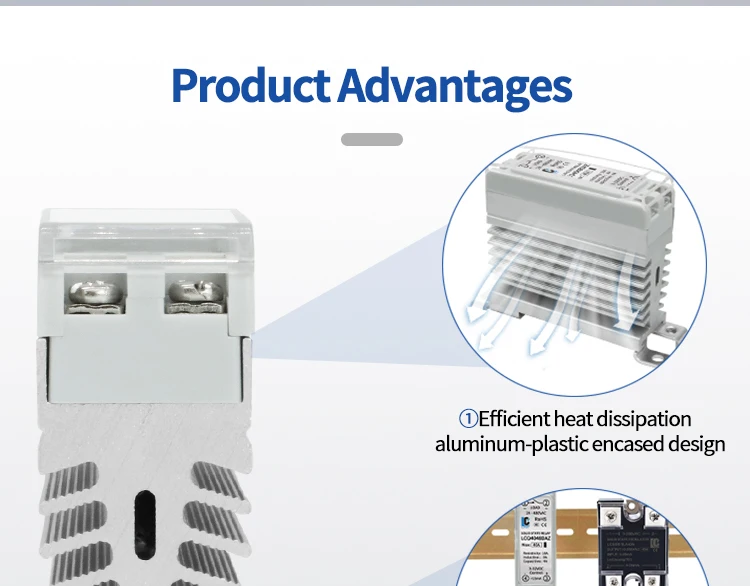

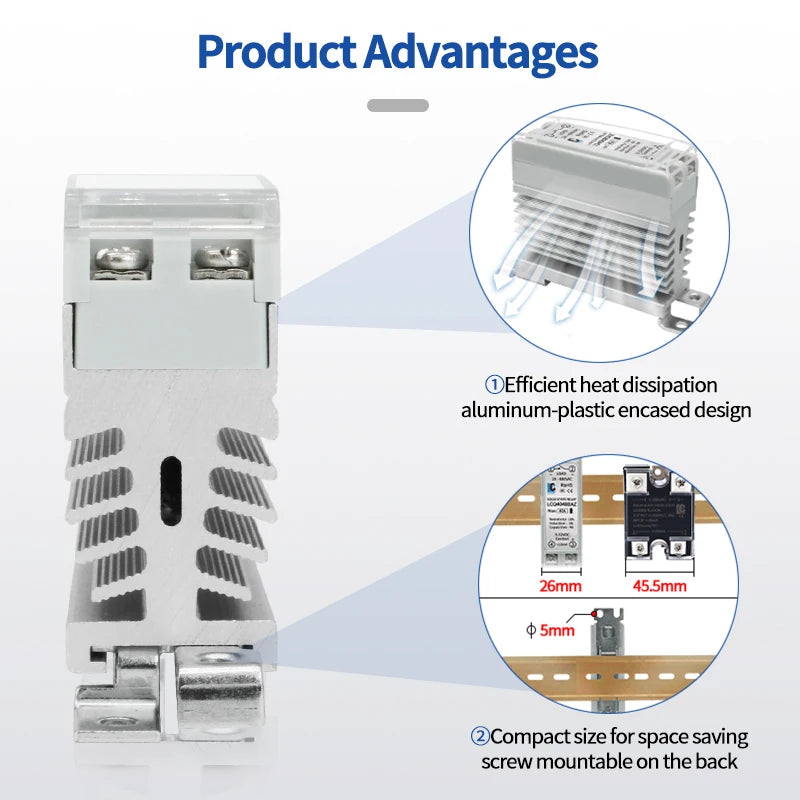

STEP 3: Choose a suitable heat sink.
The temperature of heatsink at use must below 80℃ .Apply heat-conductive silicon grease between SSR and heatsink.
Attention 1: SSR cannot be tested without load,and must be added load of more than 50W to test
Attention 2: Use fast fuse(70% Amp of rated SSR) to protect SSR from load short circuit.
Attention 3: Zero-cross Or Random turn-on.The default is zero cross SSR.Random turn-on needs to be customized
