Description

SPECIFICATIONS

Brand Name: LCTC

Certification: CE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: LCQ

Origin: Mainland China

Power Source: DC

Protect Feature: Epoxy

Theory: Solid State Relay

Usage: Protective

Voltage: 240V

is_customized: Yes

semi_Choice: yes

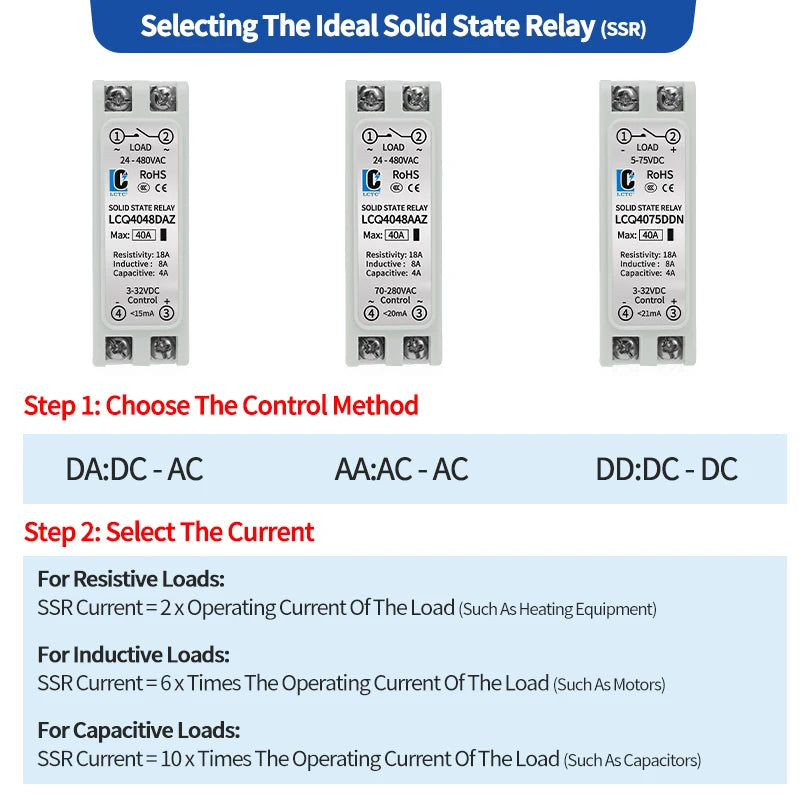

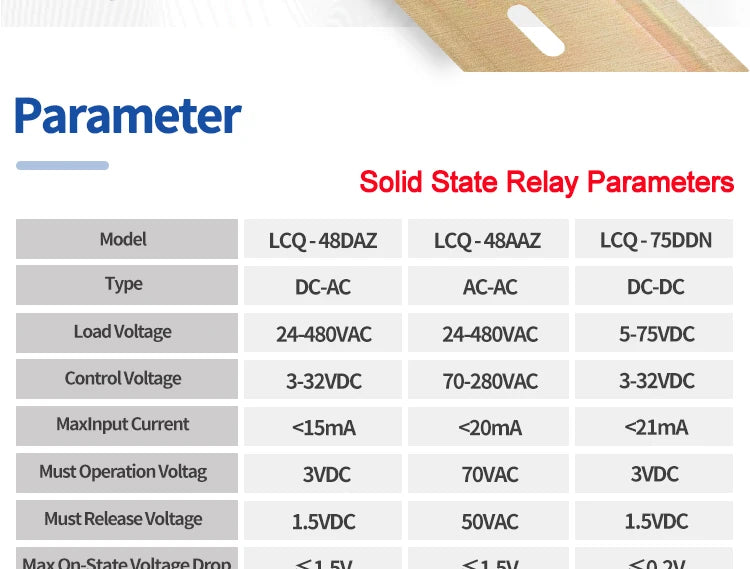

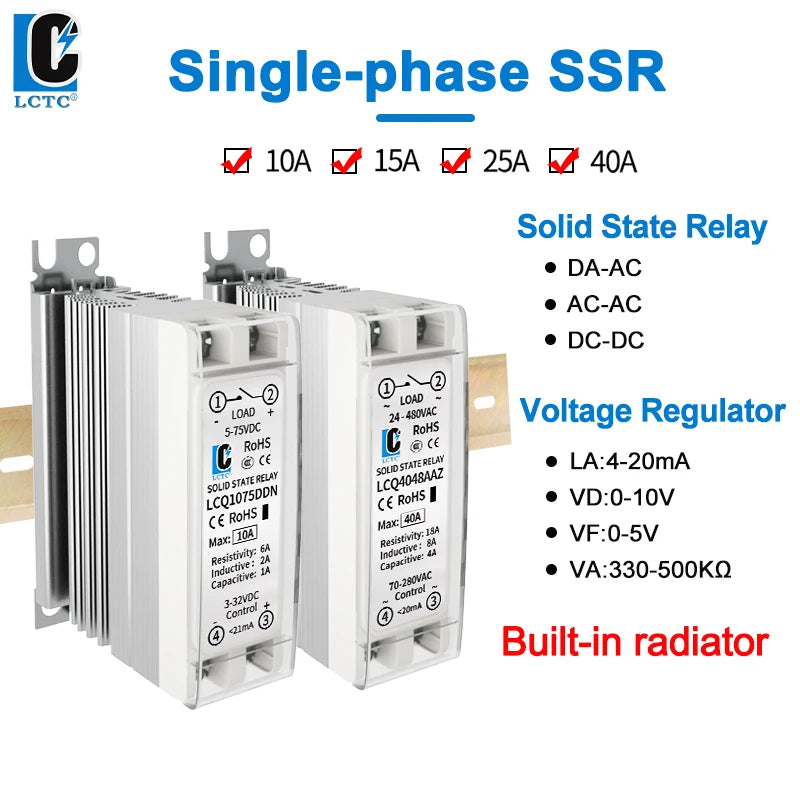

Solid State Relay Selection：

STEP 1: Choose a correct control Model

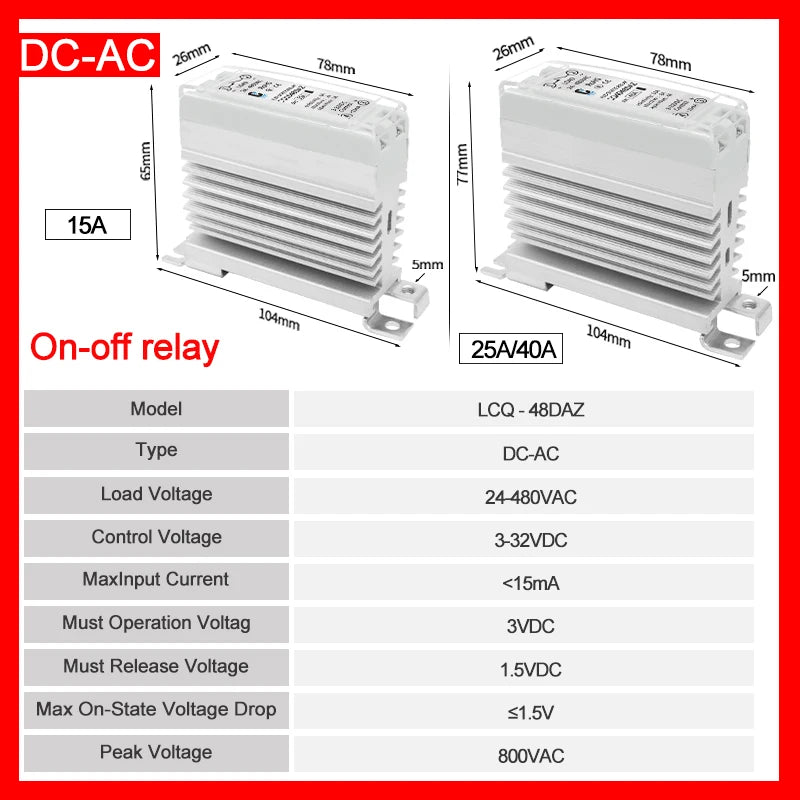

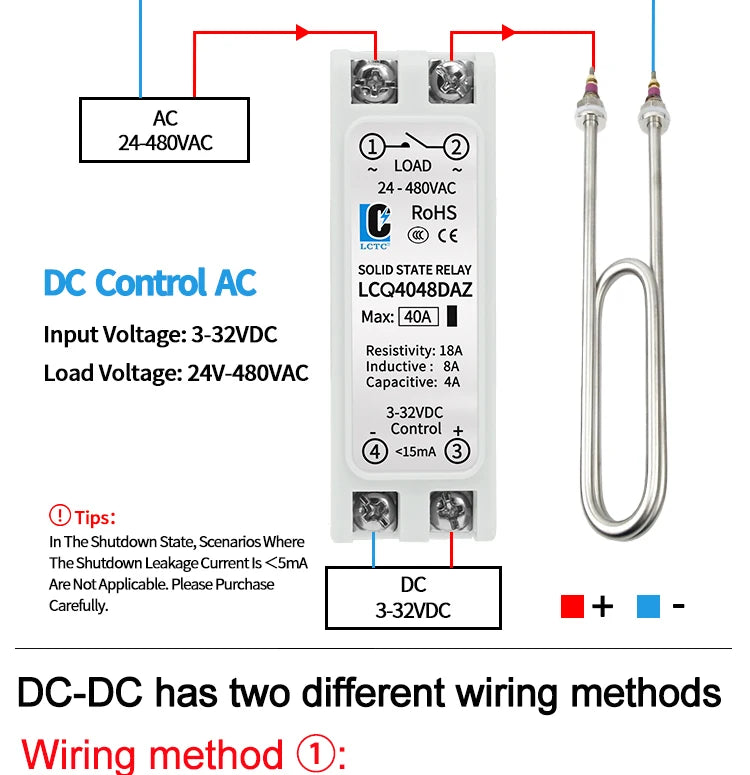

DA: DC Control AC  Input：DC3-32V     Load：AC24-480V

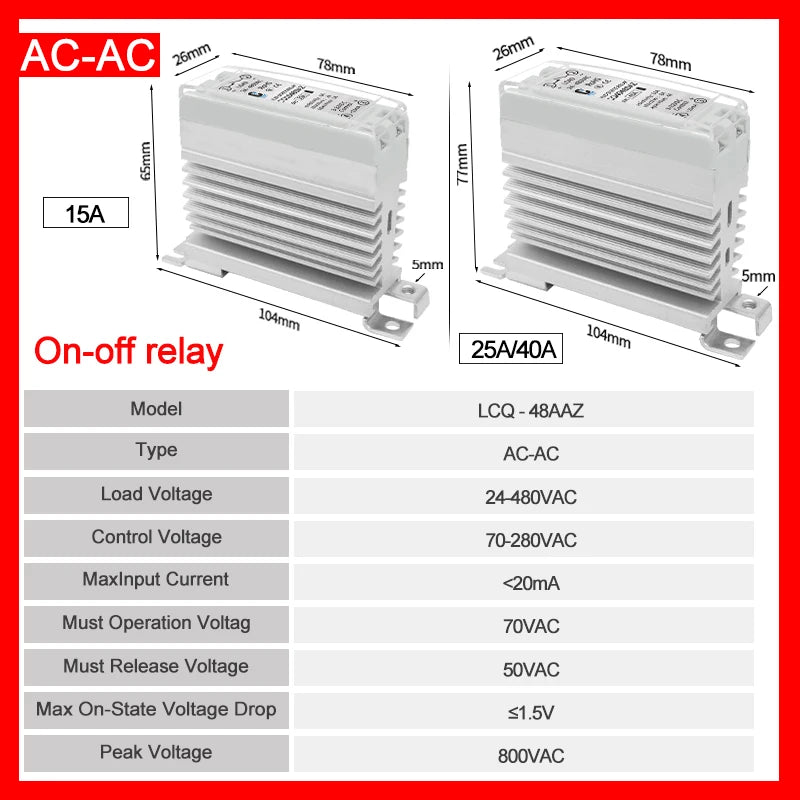

AA: AC Control AC  Input：AC70-280V  Load：AC24-480V

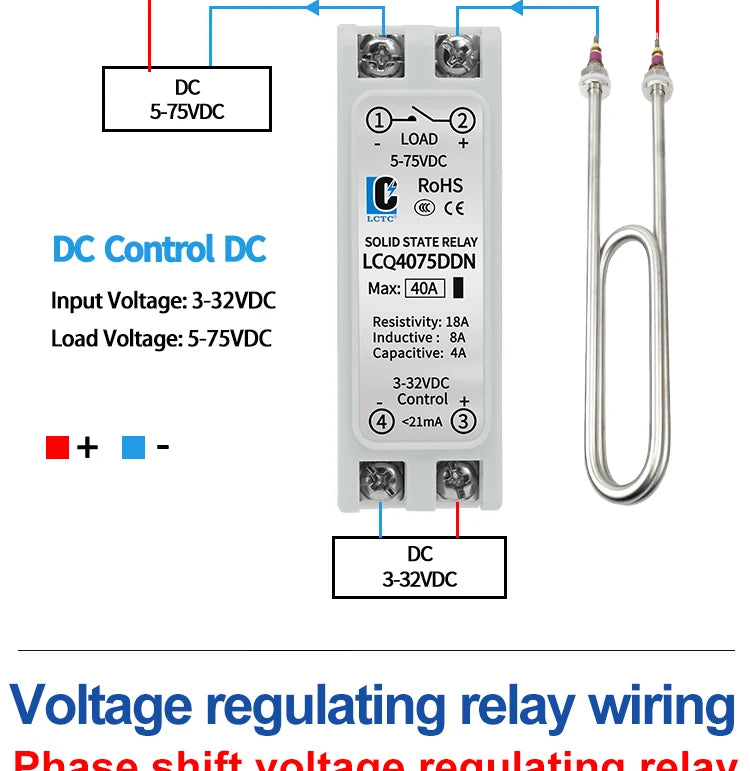

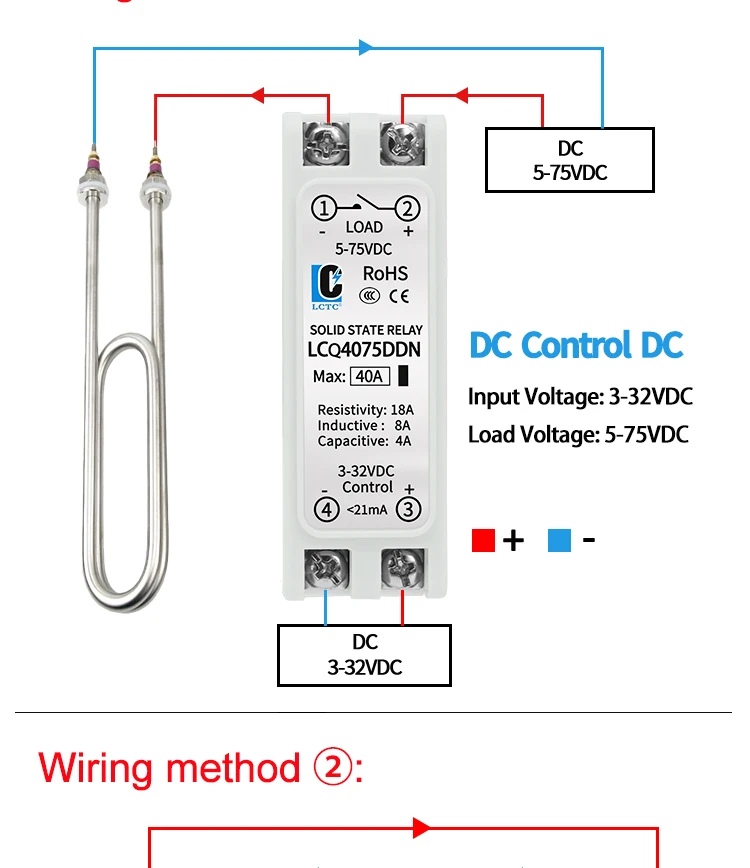

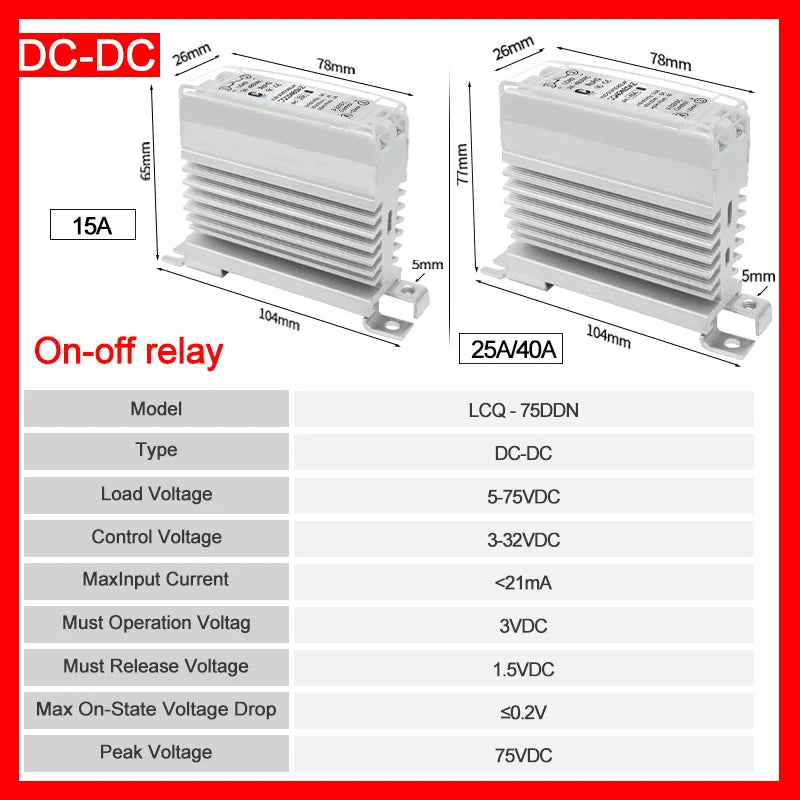

DD: DC Control DC  Input：DC3-32V     Load：DC5-75V

STEP 2: Choose a correct current's type


For Resistive load: Current of SSR =3 x working current of load

resistive load such as resistance furnace, incandescent lamp, oven, heating rod, electric water heater.


For Inductive load: Current of SSR =6 x working current of load

inductive load such as motor, fan, transformer, pump, air conditioner and other loads with inductives.


For Capacitive load: Current of SSR =10 x working current of load

capacitive load such as compensating capactitors, batteries and other loads with capacitors.

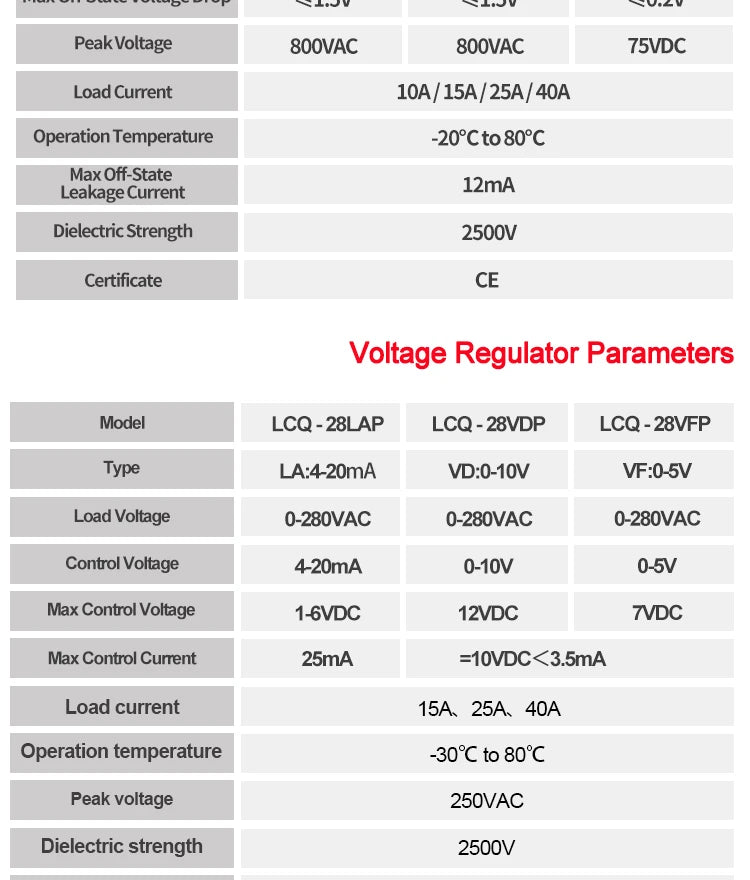

Voltage Rgulator Selection：

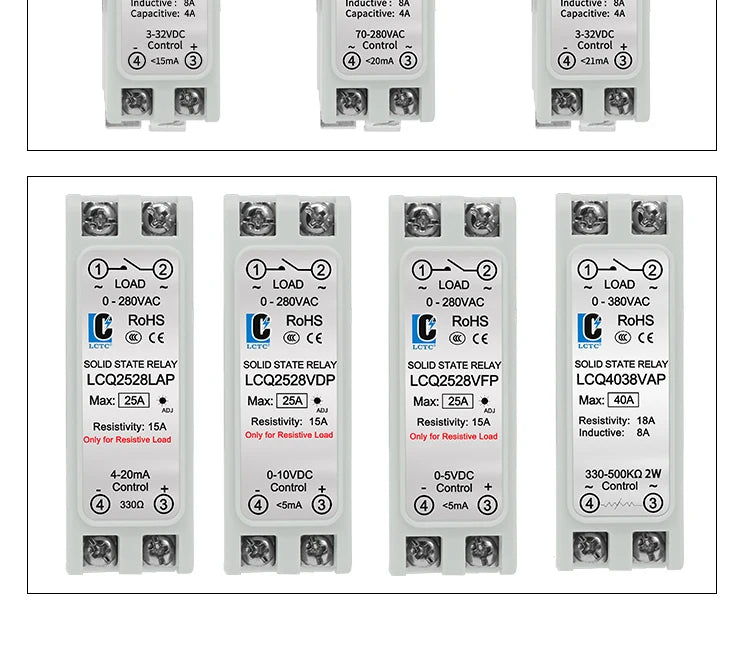

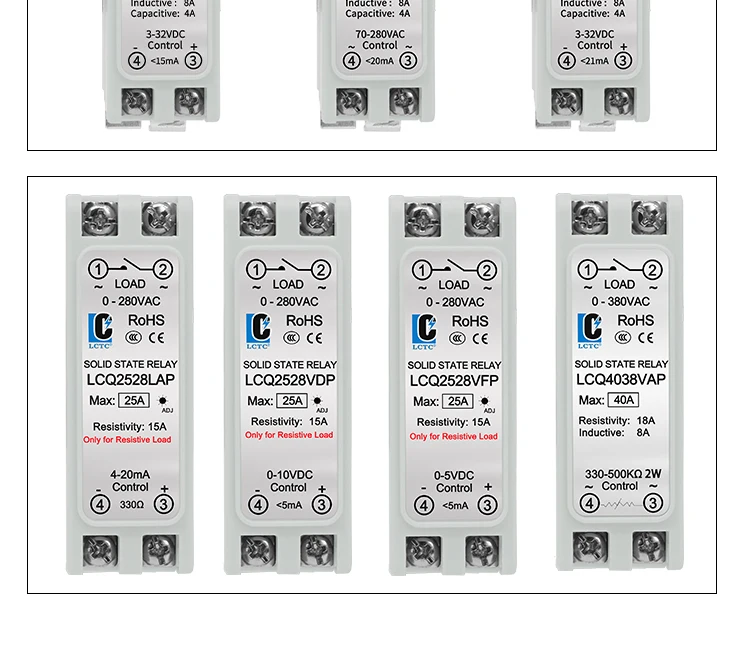

STEP 1: Choose a correct control Mode

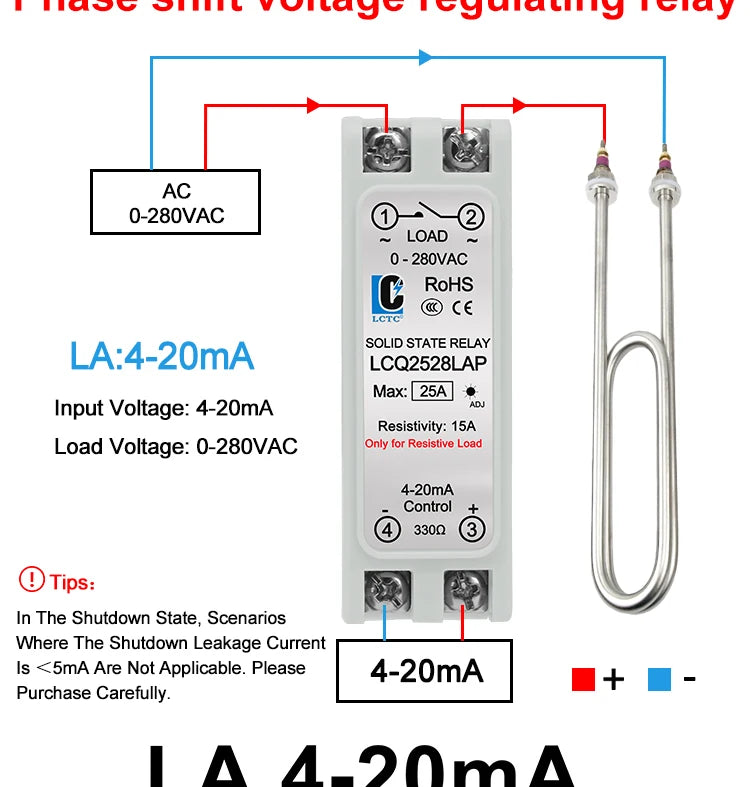

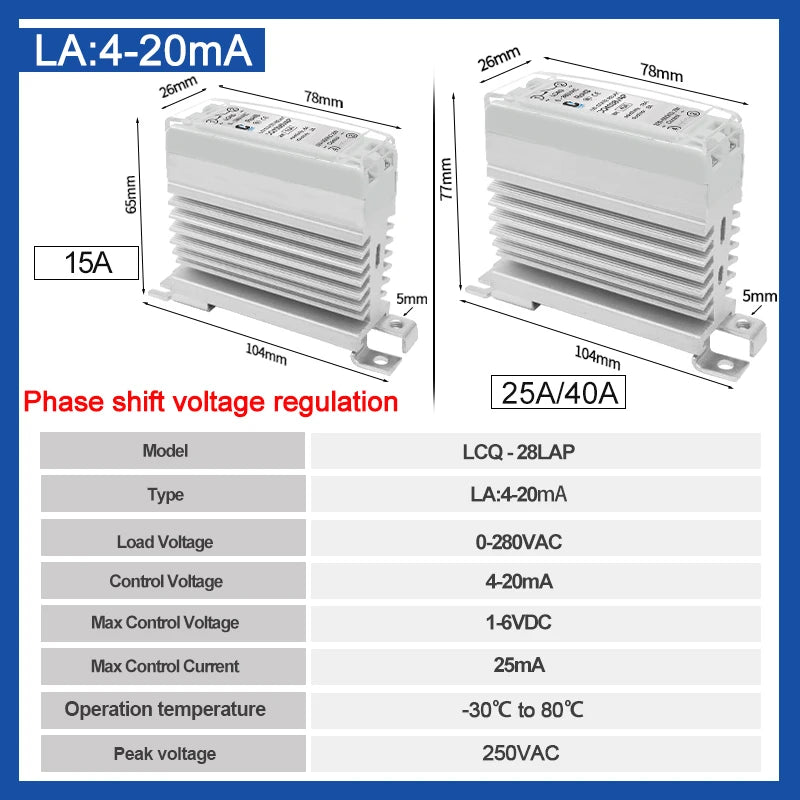

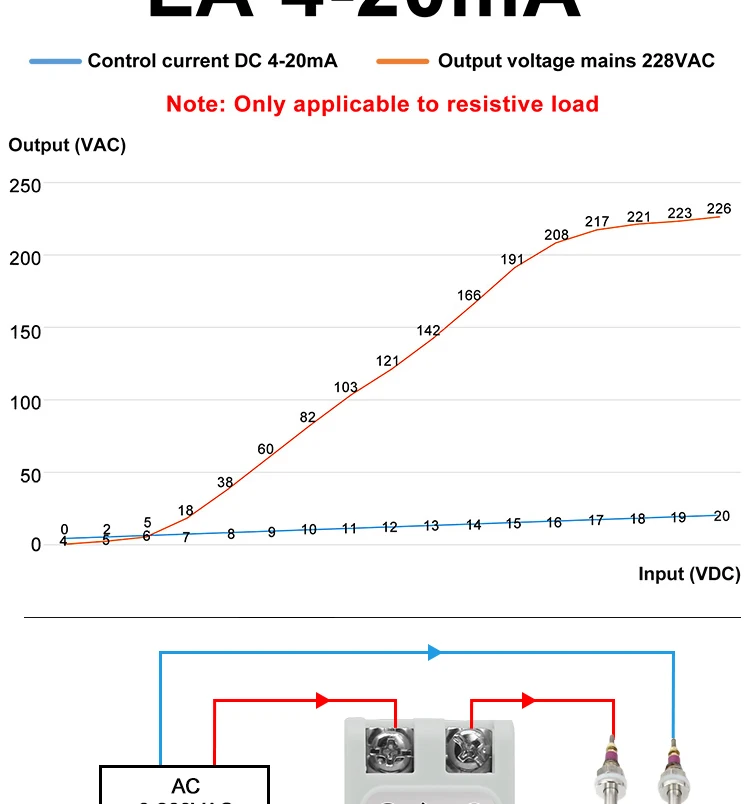

LA:4-20mA      Load：0-280VAC     Input：4-20mA

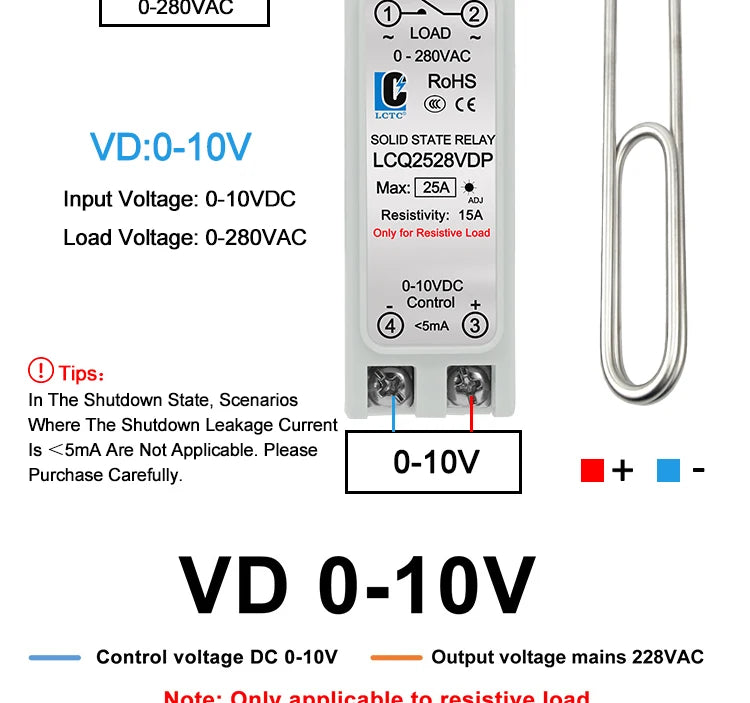

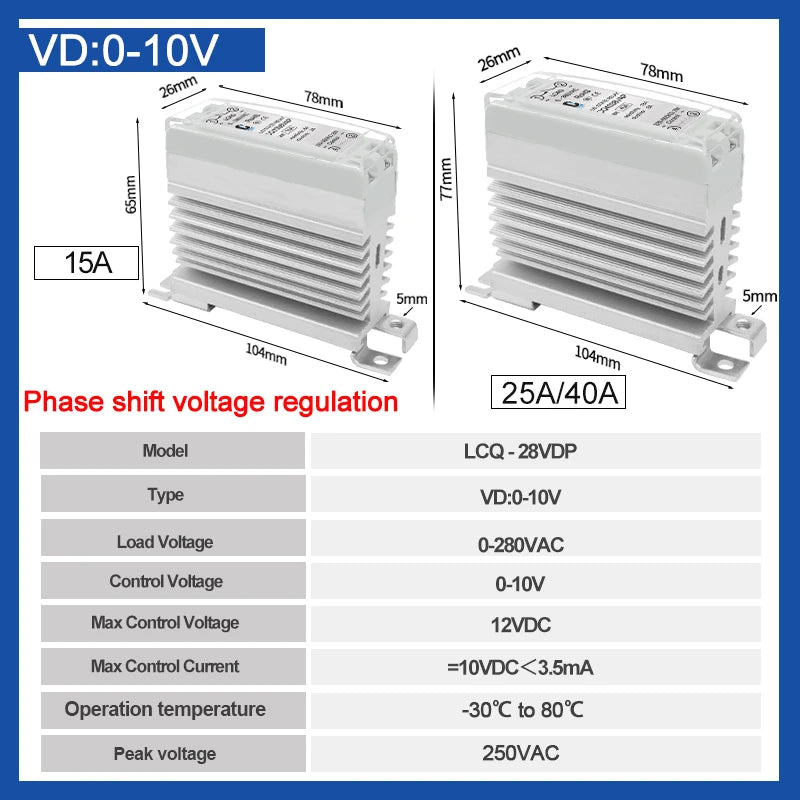

VD: 0-10V        Load：0-280VAC      Input：0-10V

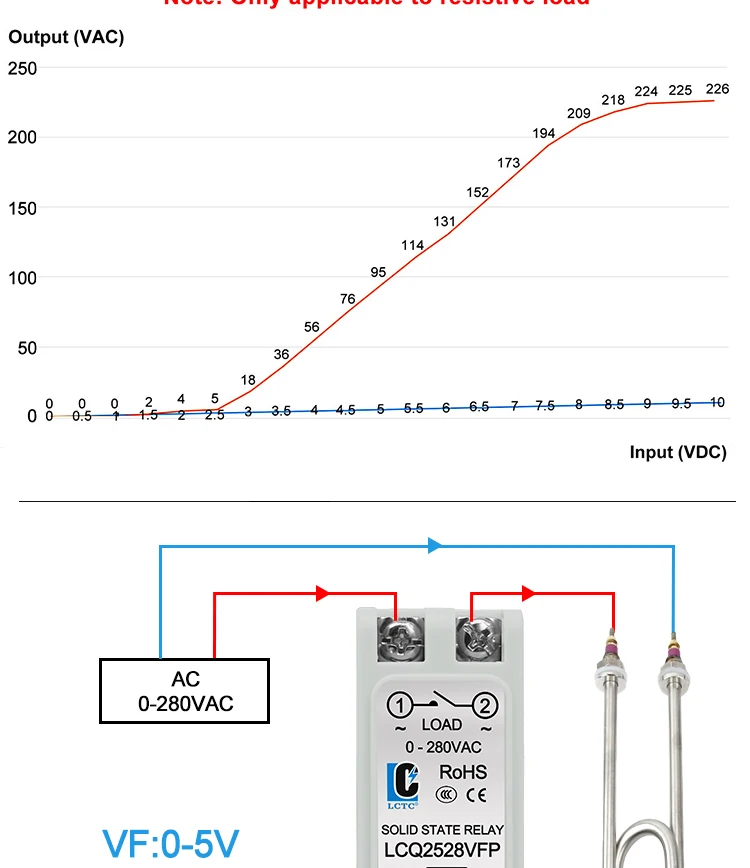

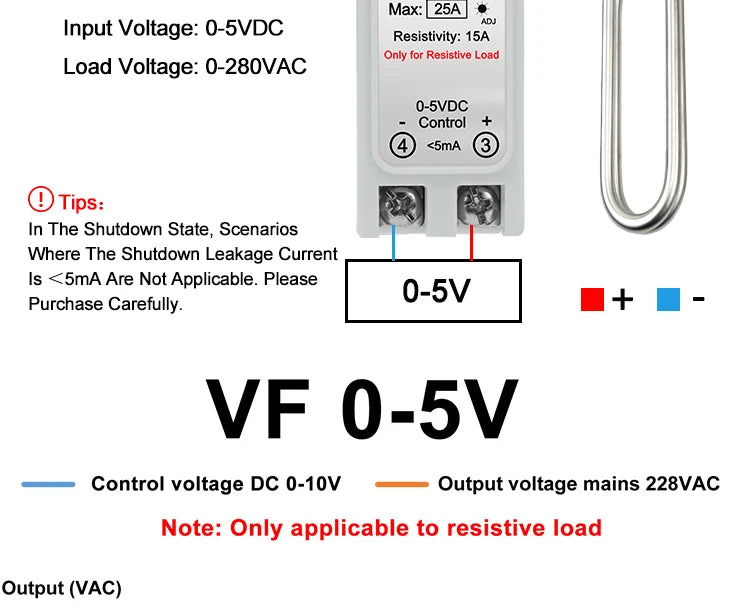

VF: 0-5V          Load：0-280VAC      Input：0-5V


STEP 2: Choose a correct type for current


For Resistive load: Current of SSR =2 x working current of load

resistive load such as resistance furnace, incandescent lamp, oven, heating rod, electric water heater.


Note: Voltage regulating relays can only be used for resistive loads
