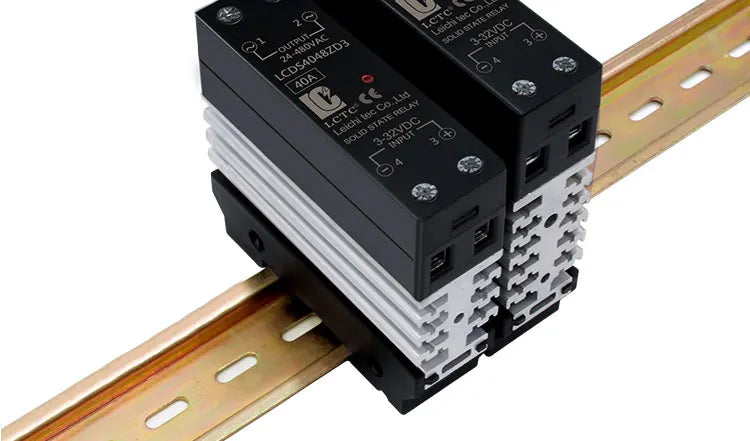

LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay

LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay

25A / DC - AC
$119.16
$119.16 $0.00
Skip to product information
LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
  • LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
LCTC SSR Solid State Relay Single Phase Din Rail Mounted Slim Relay With Heat Sink 10A 25A 40A 50A 60A 80A Industrial Relay
$119.16
$119.16 $0.00
Size
Current Range
Description

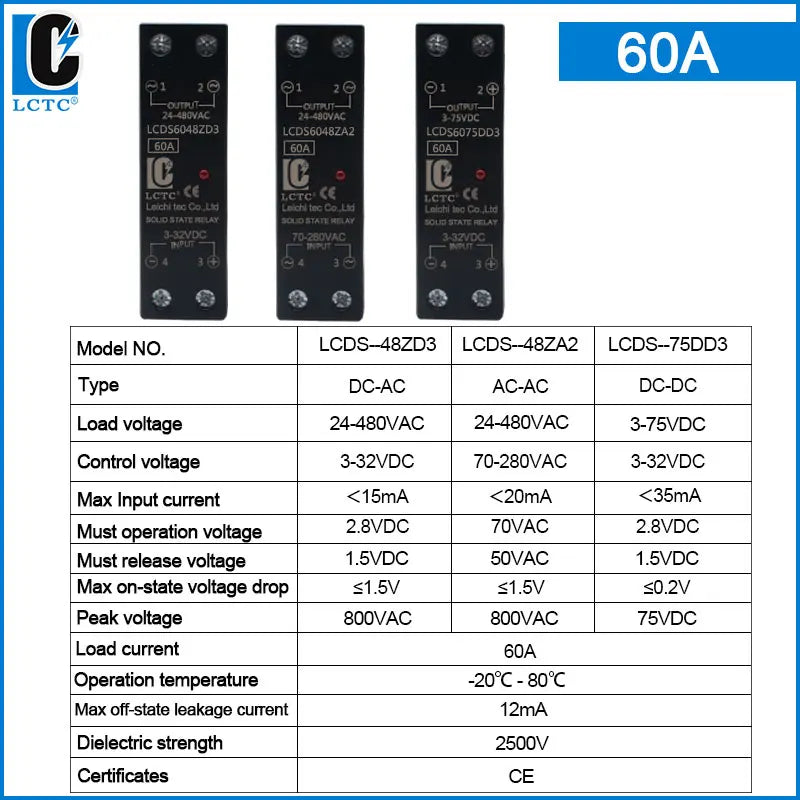

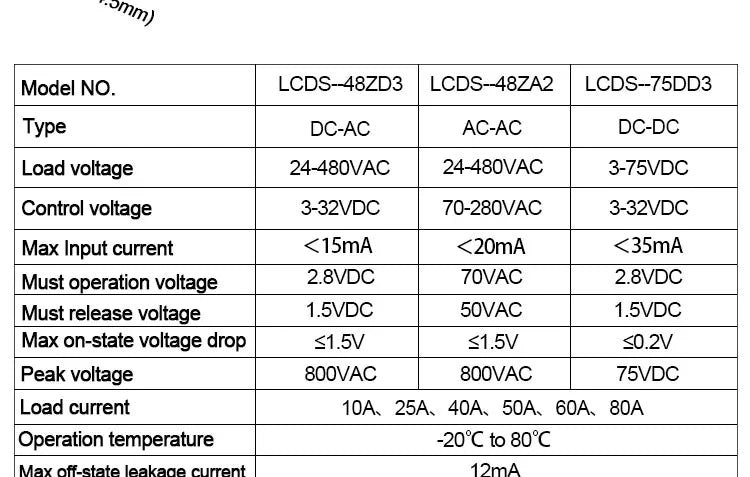

SPECIFICATIONS

Brand Name: LCTC

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: LCDS 10-4048ZD3/LCDS 10-4048ZA2/LCDS 10-4075DD3

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: Protective

Voltage: 220V

is_customized: Yes

semi_Choice: yes

STEP 1: Choose a correct control Model

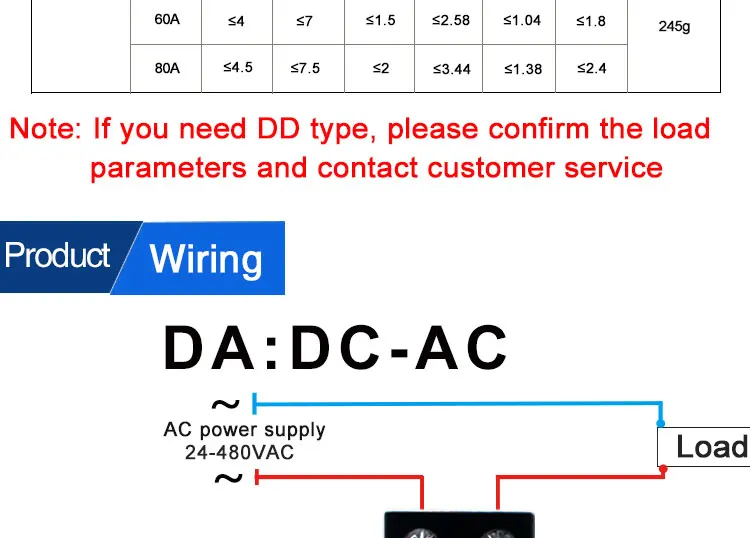

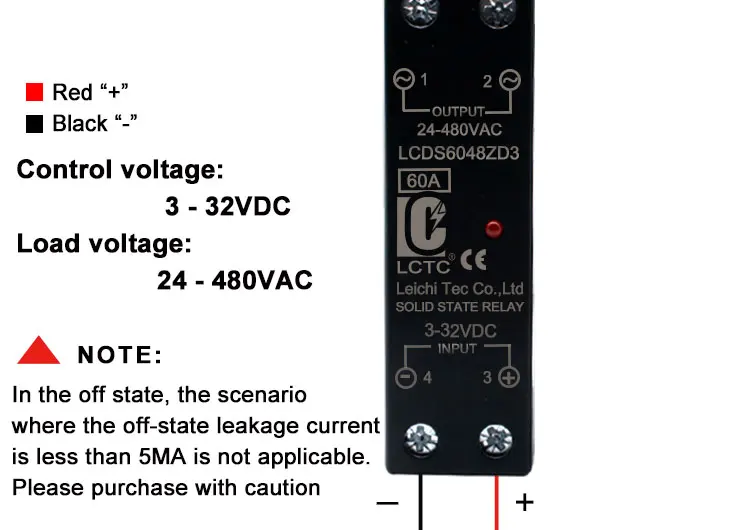

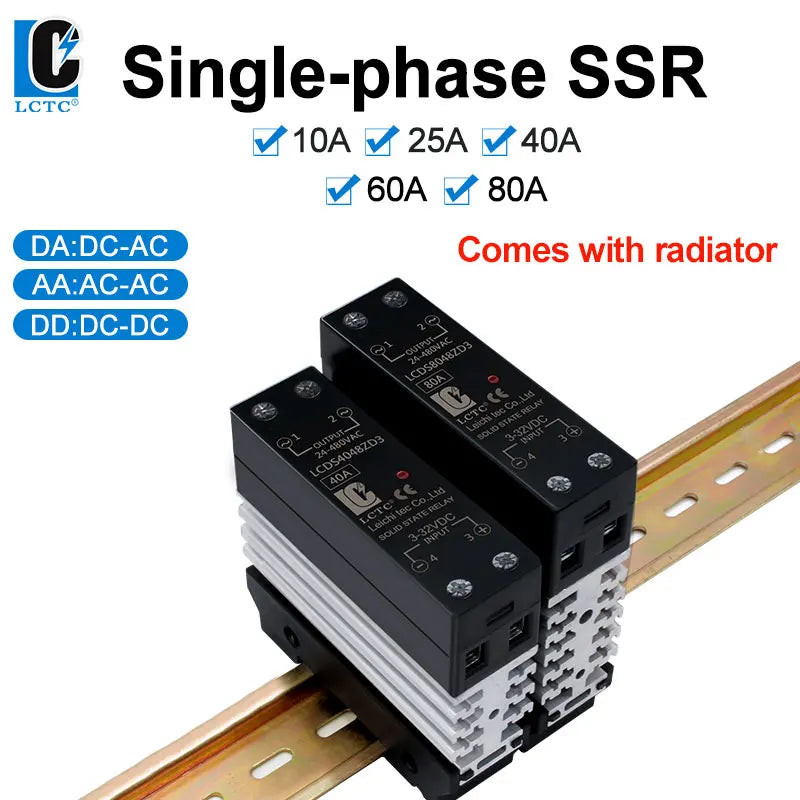

DA: DC Control AC  Input：DC3-32V     Load：AC24-480V

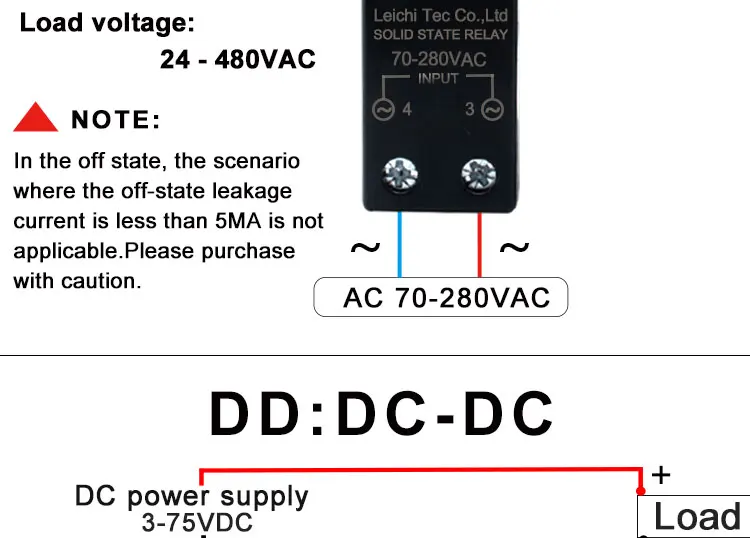

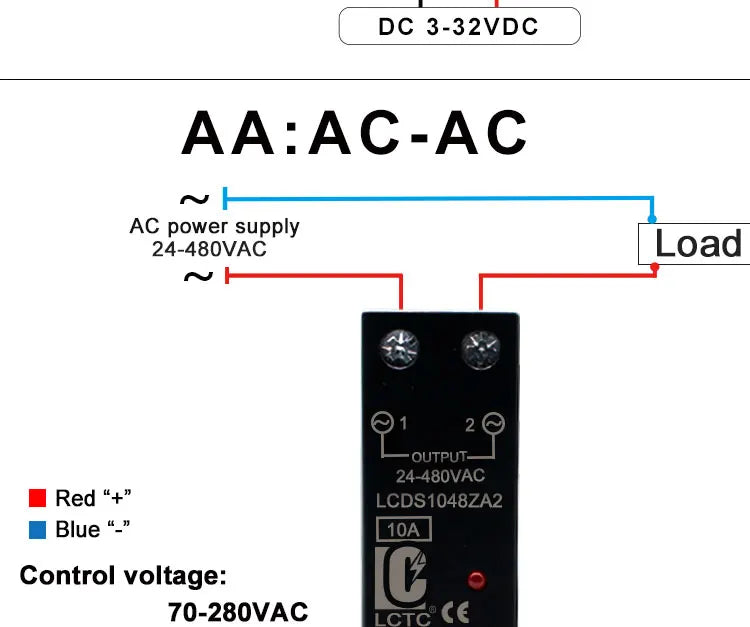

AA: AC Control AC  Input：AC70-280V  Load：AC24-480V

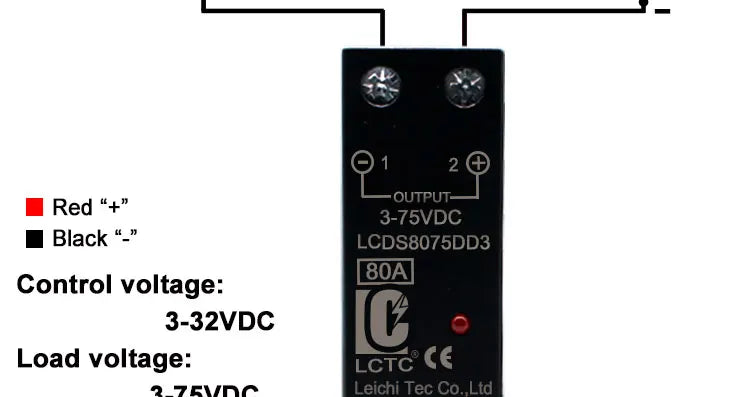

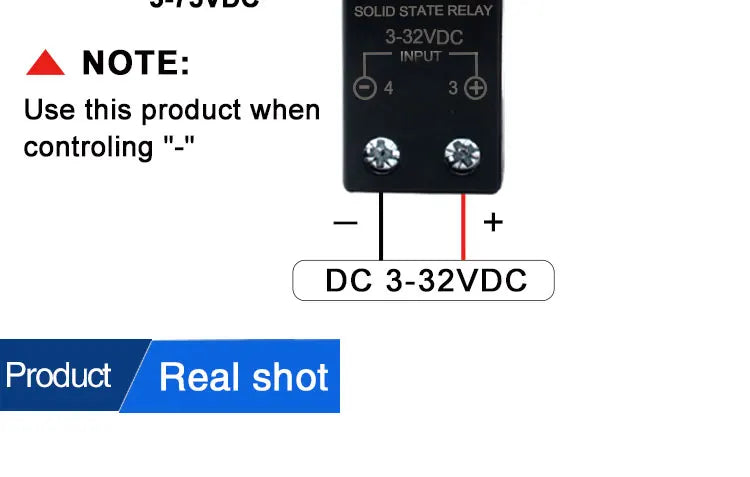

DD: DC Control DC  Input：DC3-32V     Load：DC3-75V

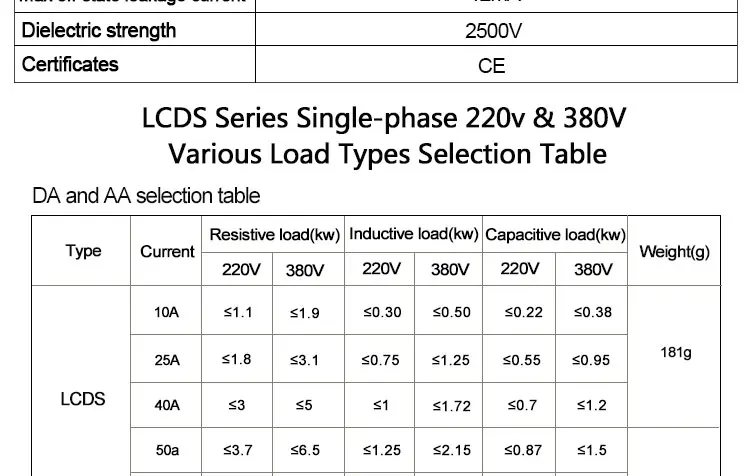

STEP 2: Choose a correct type for current


For Resistive load: Current of SSR =3 x working current of load

Resistive load such as Resistance furnace, Incandescent lamp, Oven, Heating rod, Electric water heater.


For Inductive load: Current of SSR =6 x working current of load

Inductive load such as Motor,Fan,Transformer,Pump,Air conditioner and other loads with inductives.


For Capacitive load: Current of SSR =10 x working current of load

Capacitive load such as Compensating capactitors,Batteries and other loads with capacitors

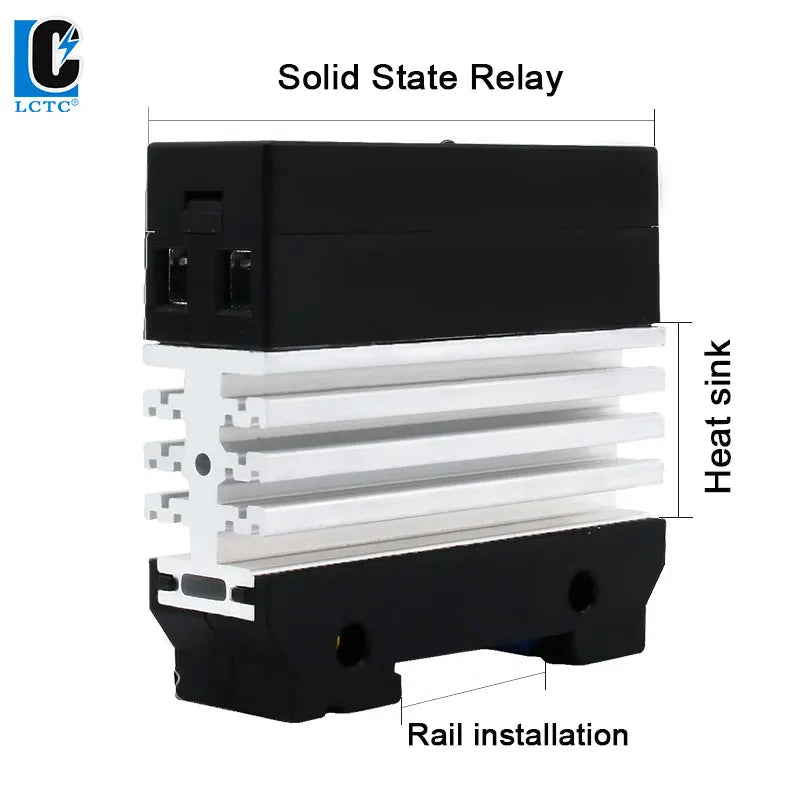

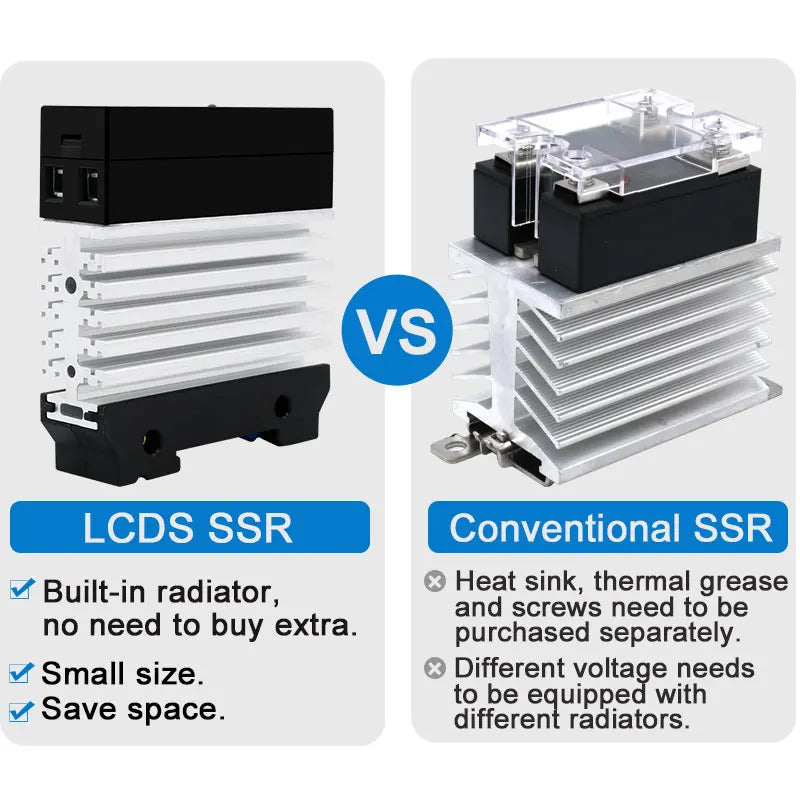

STEP 3: Choose a suitable heat sink
The temperature of heatsink at use must below 80℃ .

Don't forget to apply heat-conductive silicon grease between SSR and heatsink.


Attentions !!!

1: SSR cannot be tested without load, and must be added load of more than 50W to test.

2: Use fast fuse(70% Amp of rated SSR) to protect SSR from load short circuit.

3: Zero-cross Or Random turn-on.
The default is zero cross SSR.
Random turn-on needs to be customized.
