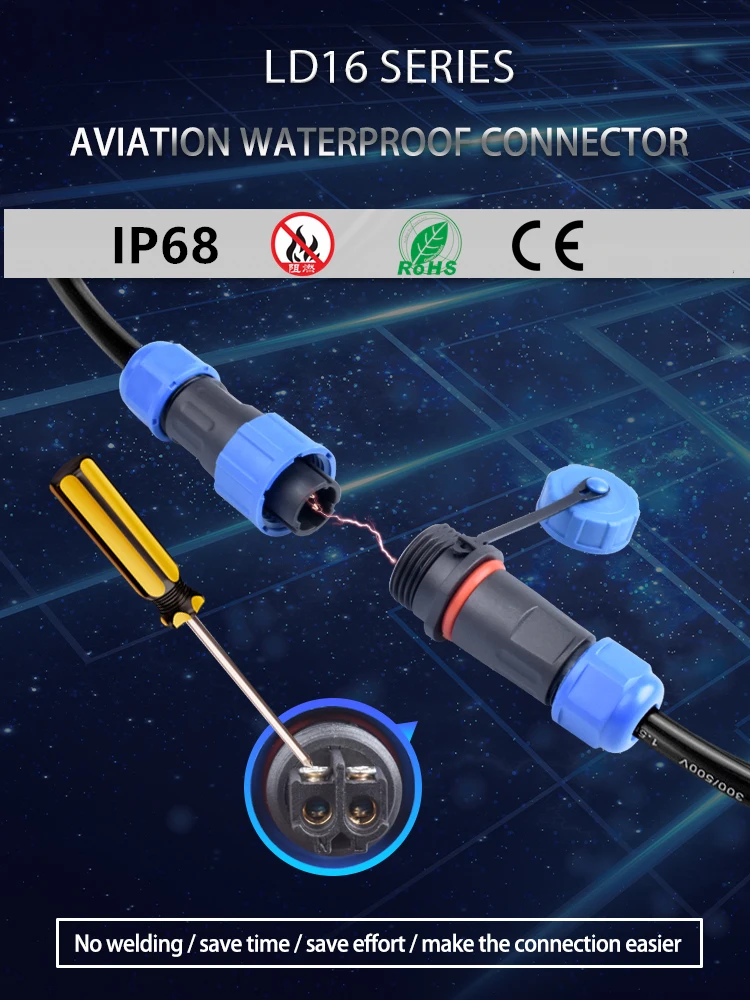

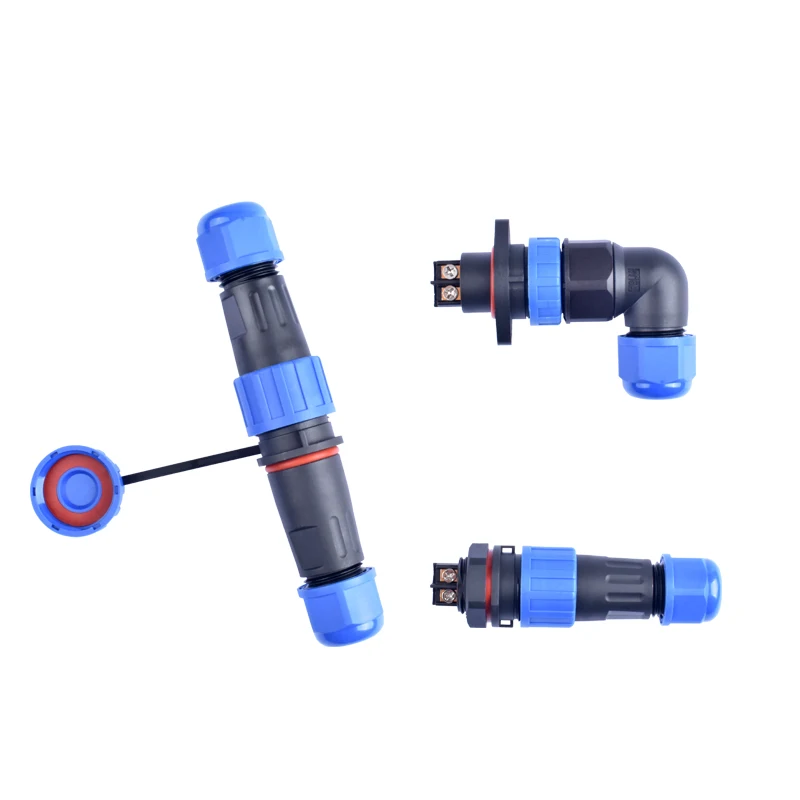

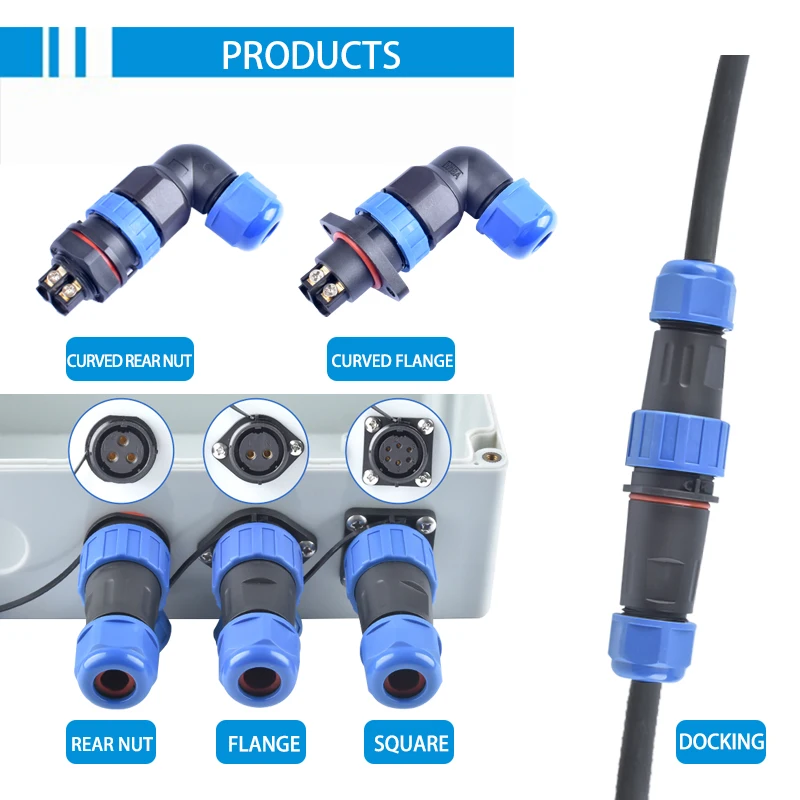

LD16 IP68 Waterproof Connector Socket Plug Back Nut Docking Flange 2 Pin 3 Pin 4 Pin Screw Crimping Without Welding Connector
W16A-FLANGE-2P
$19.60
Sale price
$19.60
Regular price
$0.00
Skip to product information
LD16 IP68 Waterproof Connector Socket Plug Back Nut Docking Flange 2 Pin 3 Pin 4 Pin Screw Crimping Without Welding Connector
$19.60
Sale price
$19.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE,RoHS
Choice: yes
Connection: thread connection
Contact material: copper (gold plated, silver plated)
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Housing gender: male female seat
Insulator: thermoplastic PPS high temperature resistant 260
Model Number: LD16
Operating temperature: -25 degrees C~110 degrees C
Origin: Mainland China
Sealing ring: silica gel
Shell material: thermoplastic PA66
Voltage: 380 V,250V
semi_Choice: yes

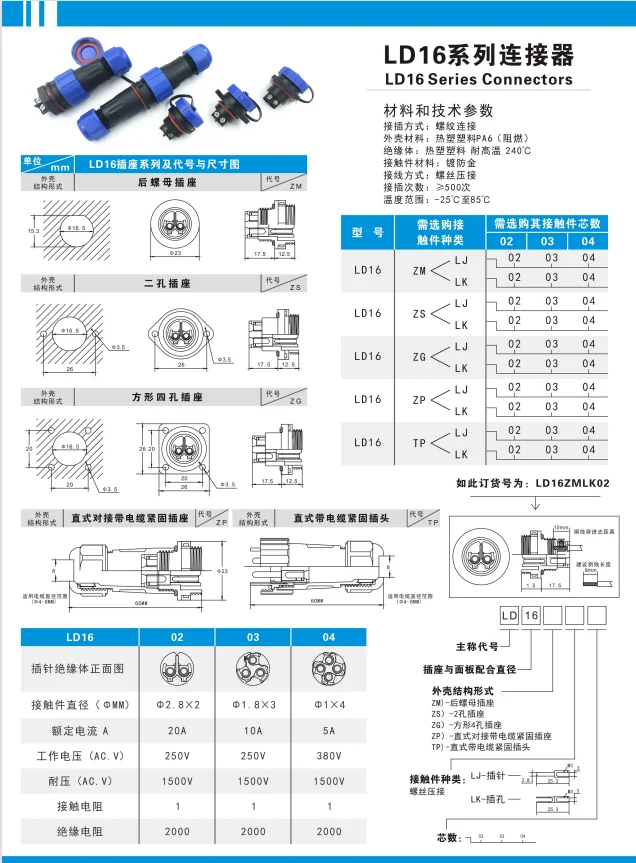

Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)

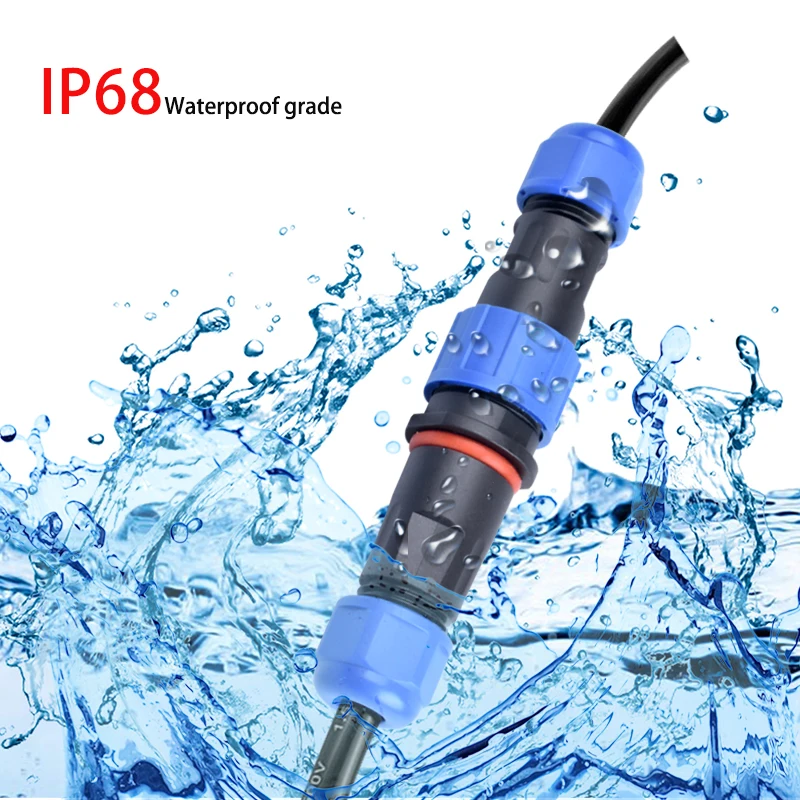

Sealing: in line with IP68
Applicable wire diameter: diameter 4.0~7.5mm
Mechanical life: more than 500 times
