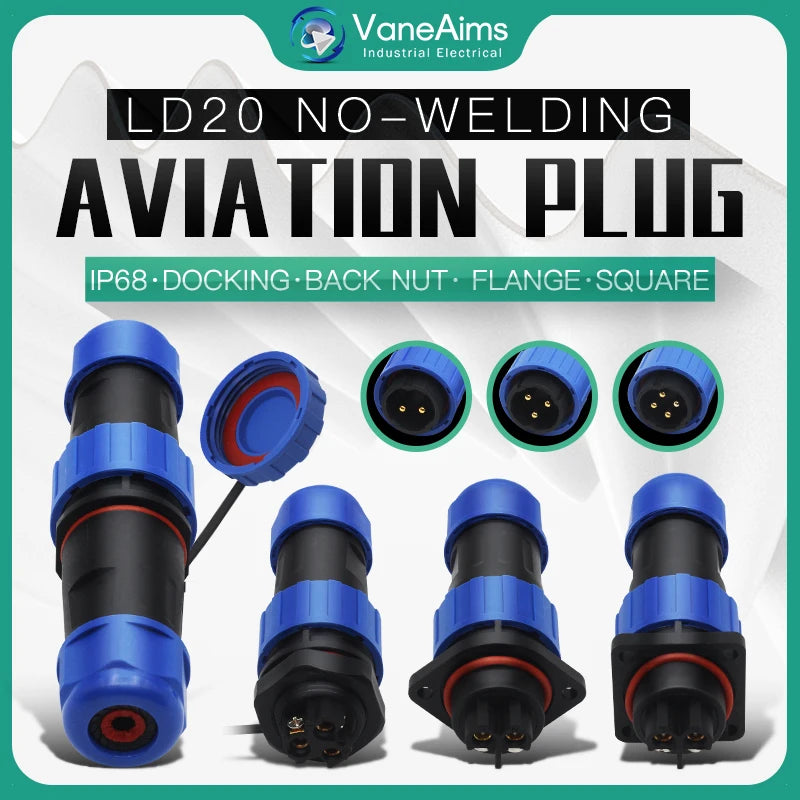

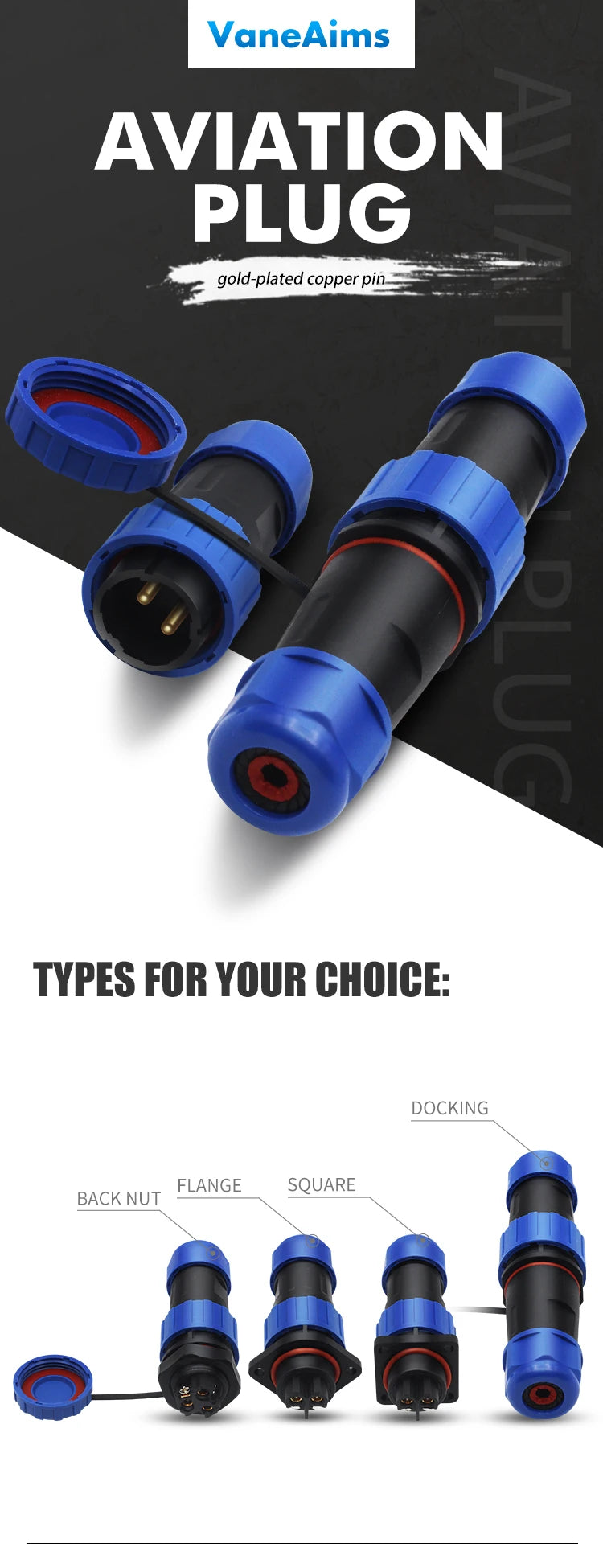

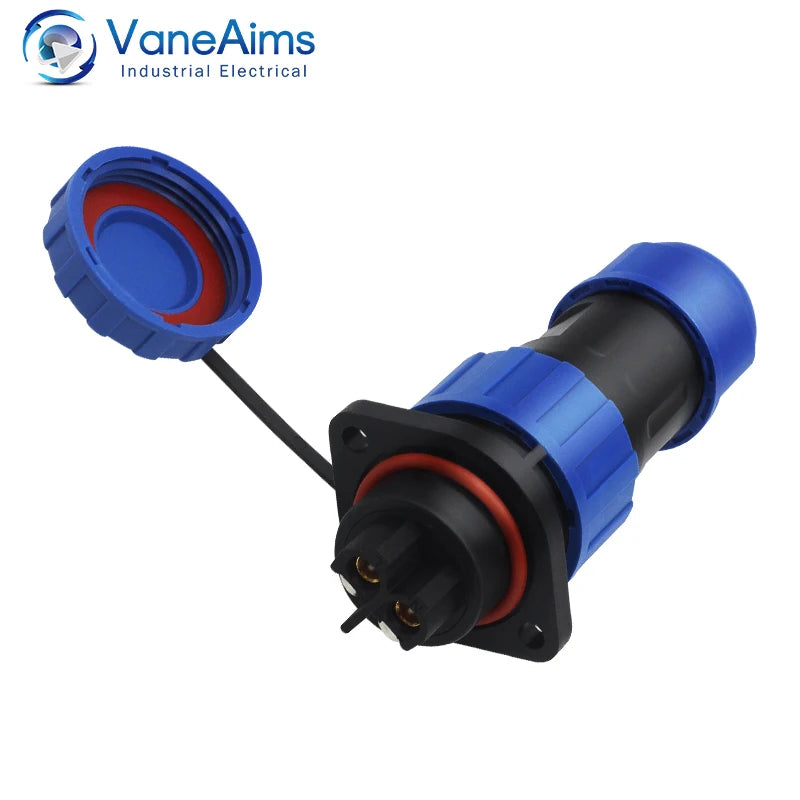

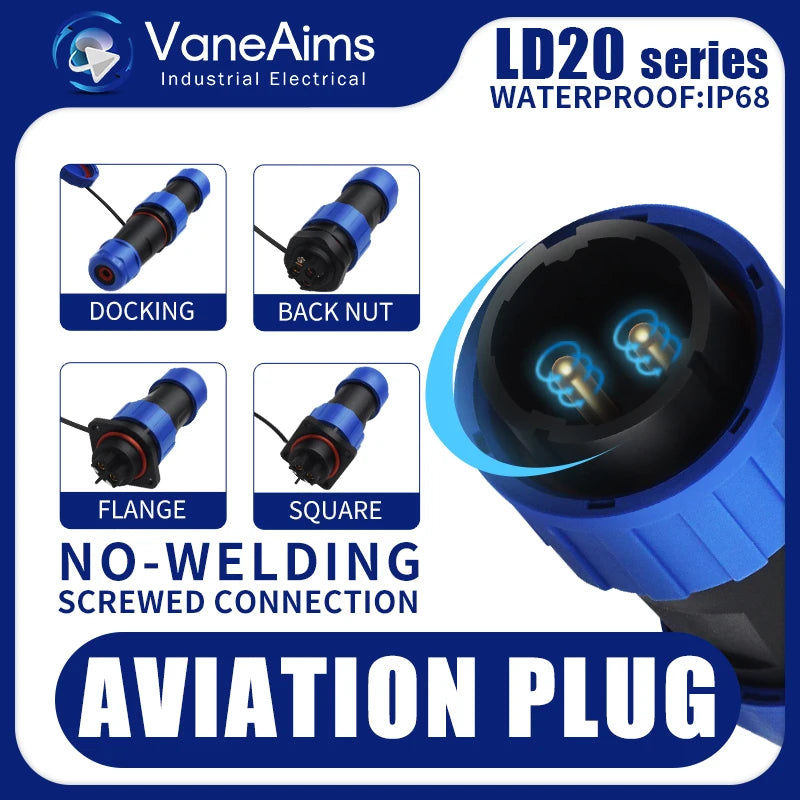

LD20 2/3/4/5/6/7/8/9/10/11/12 Pin Male + Female 20mm Circular Wire Panel Aviation Connector Socket Industrial Waterproof Connect

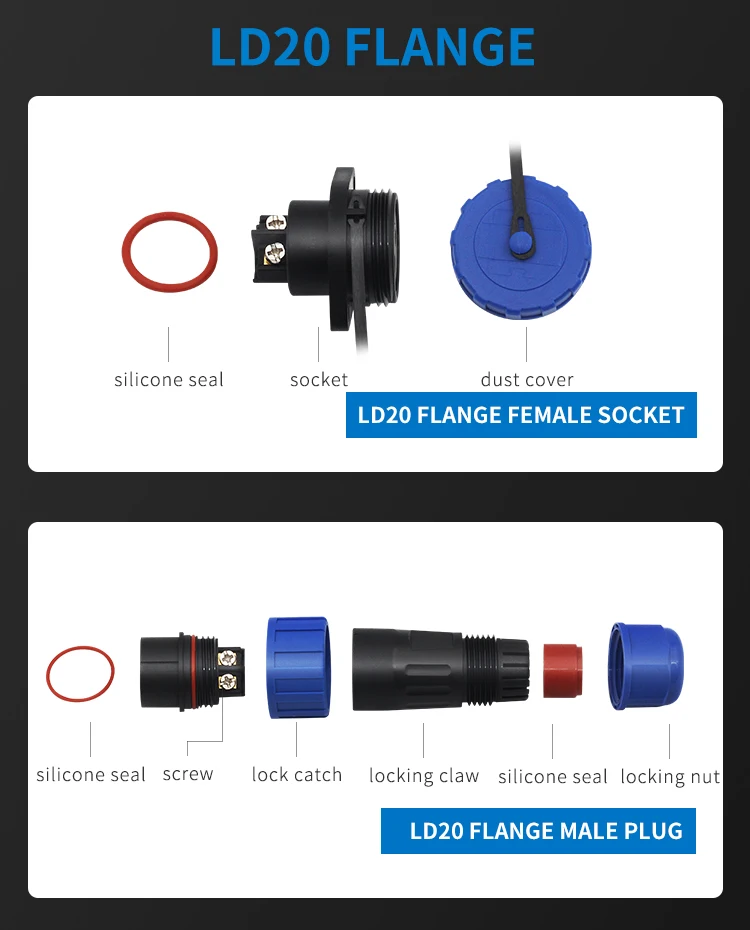

Flange LD20-FL / 2P
$19.48
Sale price
$19.48
Regular price
$0.00
Skip to product information
LD20 2/3/4/5/6/7/8/9/10/11/12 Pin Male + Female 20mm Circular Wire Panel Aviation Connector Socket Industrial Waterproof Connect
$19.48
Sale price
$19.48
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VaneAims
Certification: NONE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: LD20
Origin: Mainland China
Voltage: 220 V
LD20 2/3/4/5/6/7/8/9/10/11/12 Pin Male + Female 20mm Circular Wire Panel Aviation Connector Socket Industrial Waterproof Connect

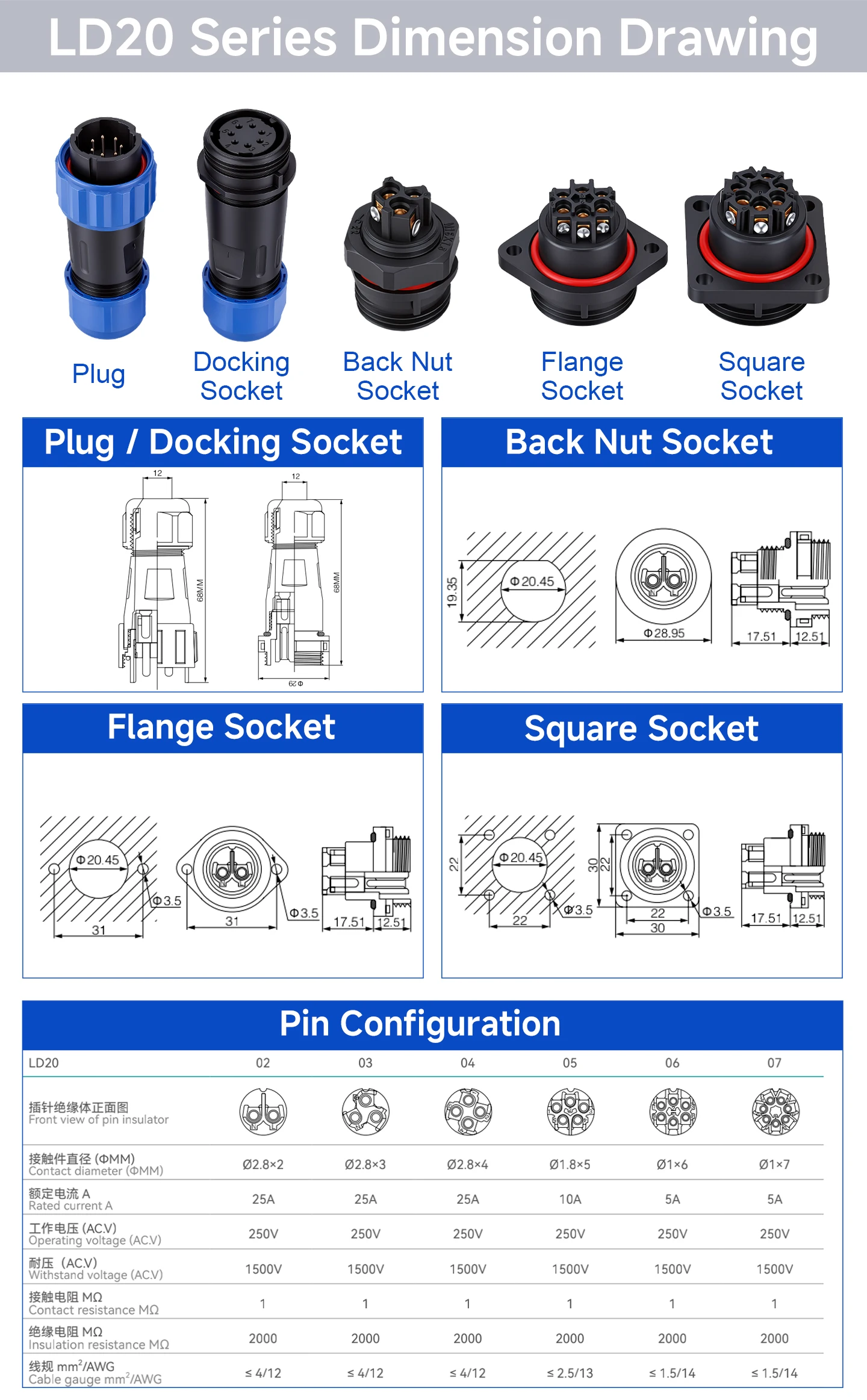

Technical Parameters
Pin Options: 2Pin / 3Pin / 4Pin/5pin/6pin/7pin
2Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)
3Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)
4Pin: Ø2.8mm Contact, Rated Current 25A, Cable ≤4mm²(AWG12)
5pin: Ø1.8mm Contact, Rated Current 10A, Cable ≤2.5mm²(AWG13)
6pin: Ø1mm Contact, Rated Current 5A, Cable ≤1.5mm²(AWG14)
7pin: Ø1mm Contact, Rated Current 5A, Cable ≤1.5mm²(AWG14)
Operating Voltage: AC 250V
Withstand Voltage: AC 1500V
Contact Resistance: ≤1Ω
Insulation Resistance: ≥2000MΩ
