SPECIFICATIONS

LHT00SU1 8-Channel Logic Analyzer Virtual Oscilloscope I2C SPI CAN Uart USB Connection 16Mhz With Testing Clamp Line USB Wire

Function:

Data Logger

I2C controller

PWM controller

Frequency meter

Remote controller

Frequency generator

Pulse / edge counter

Dual channel voltmeter

8-channel logic analyzer

Mixed signal oscilloscopes and logic analyzer

Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)

8 digital channel + 1 analog channel logic analyzer, support for multiple protocols

Analog Specification:

Sensitivity: 78mV

Sampling channel: 1 channel

Input voltage range: -10V to + 10V

Maximum analog bandwidth: 3MHz

Number of input channels: 2 channel

Maximum vertical resolution: 256 level

The maximum sampling frequency: 16MHz

Digital Specification:

Number of channels: 8

Input voltage: 0V-5.3V

Input Low level: <0.8V

Input high level: >1.4V

Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2

The communication interface parameters:

USB parameters: USB2.0 high-speed 480Mbps

System requirements:

Need 2G or more hard disk

Memory Requirements 128M or more

You need to install Framework 3.5 SP1

Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1

Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)

Celeron 4 2.0G or Pentium 4 1.8G higher processor

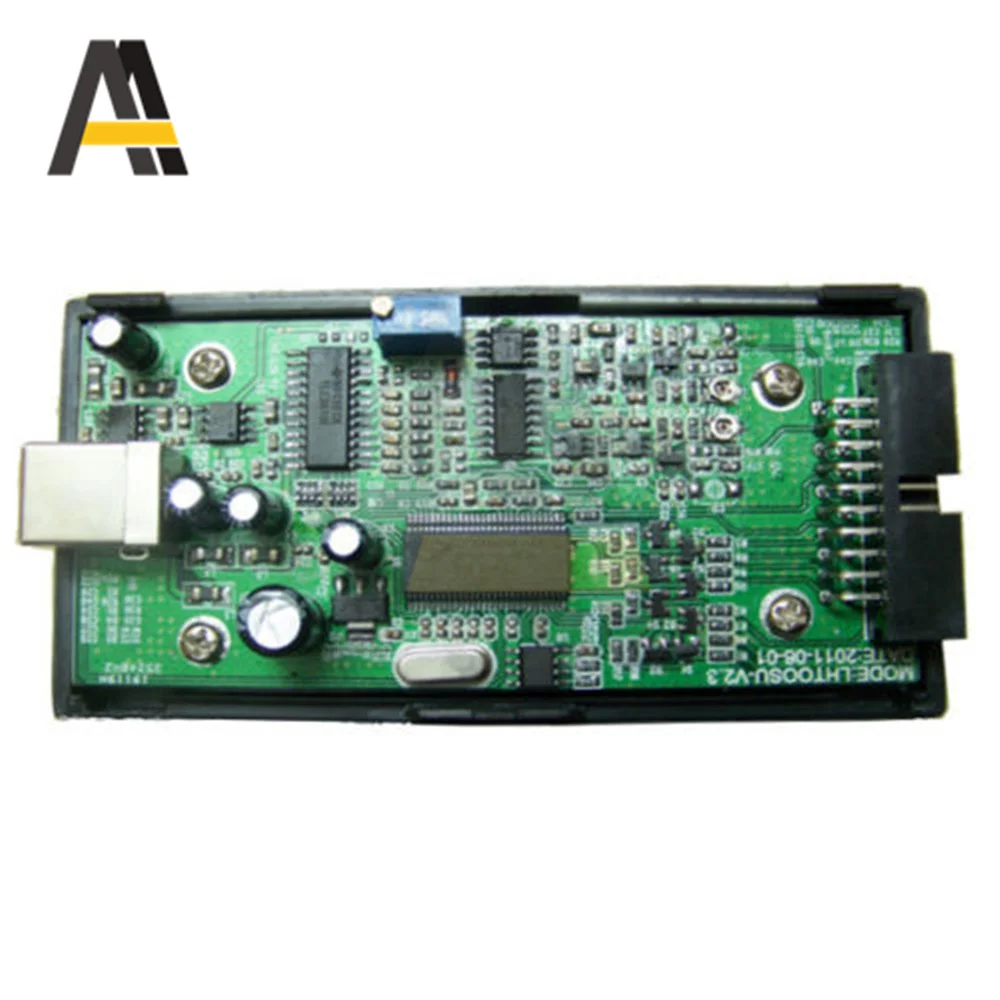

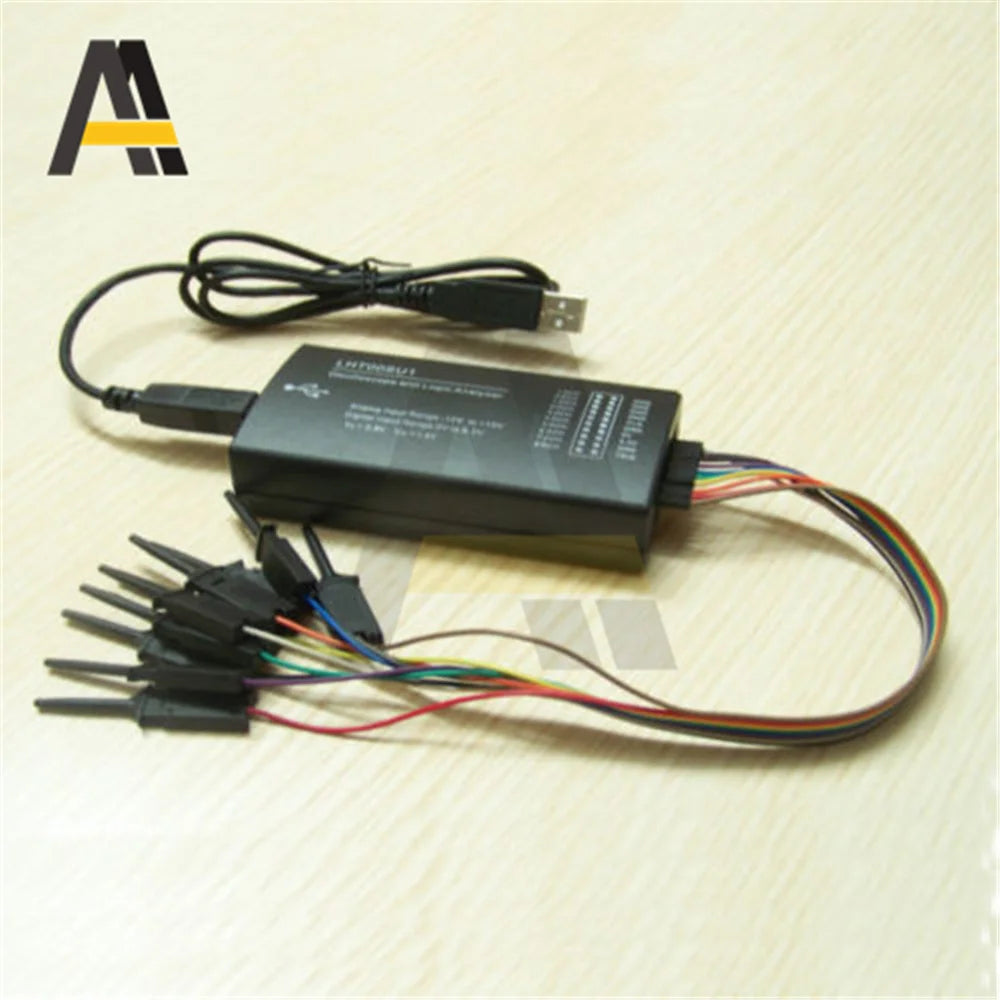

Package list:

1 x USB connection line

1 x Testing clamp line (with 10 test clip)

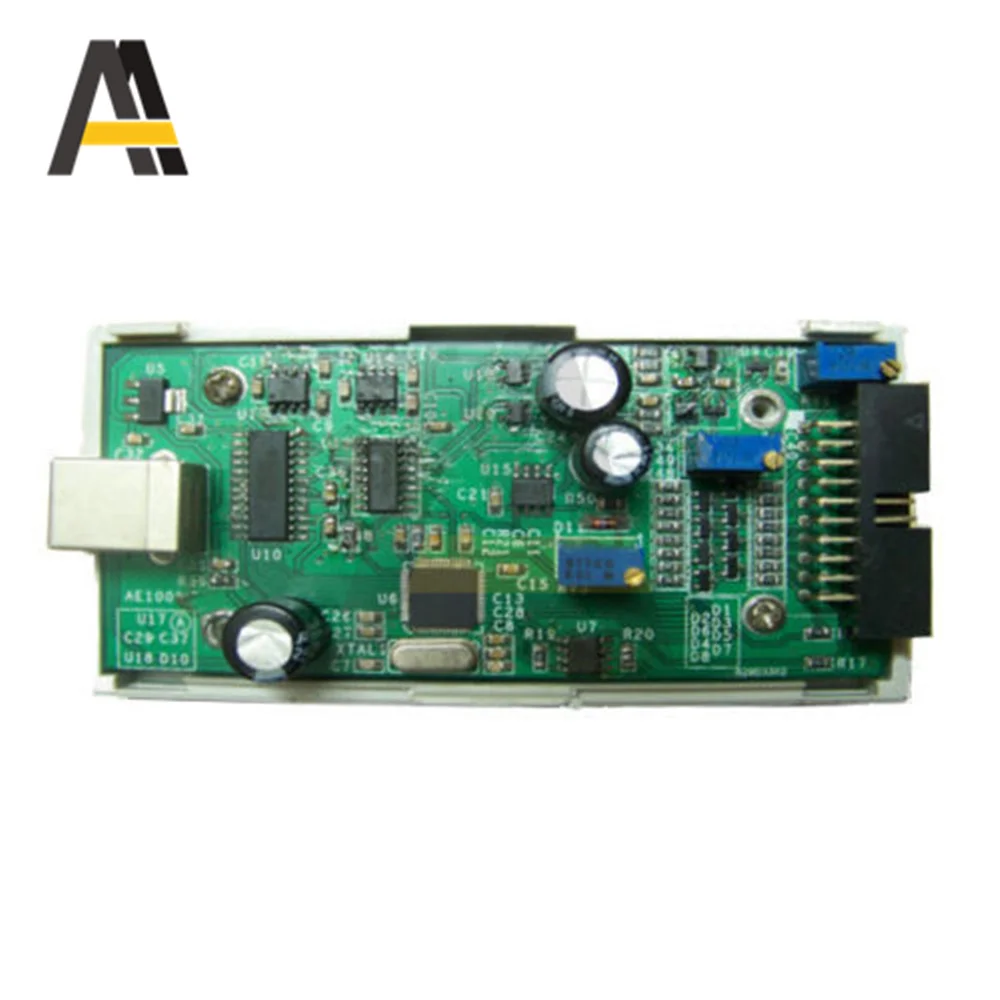

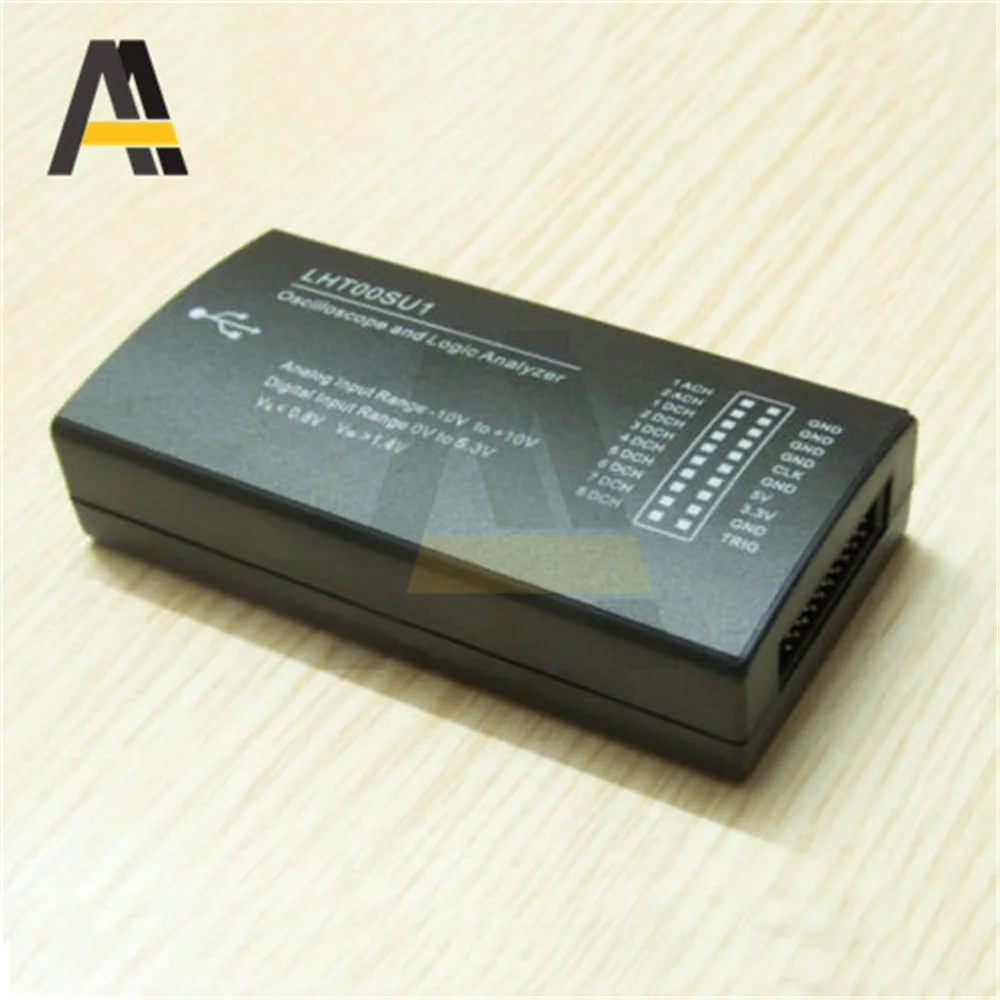

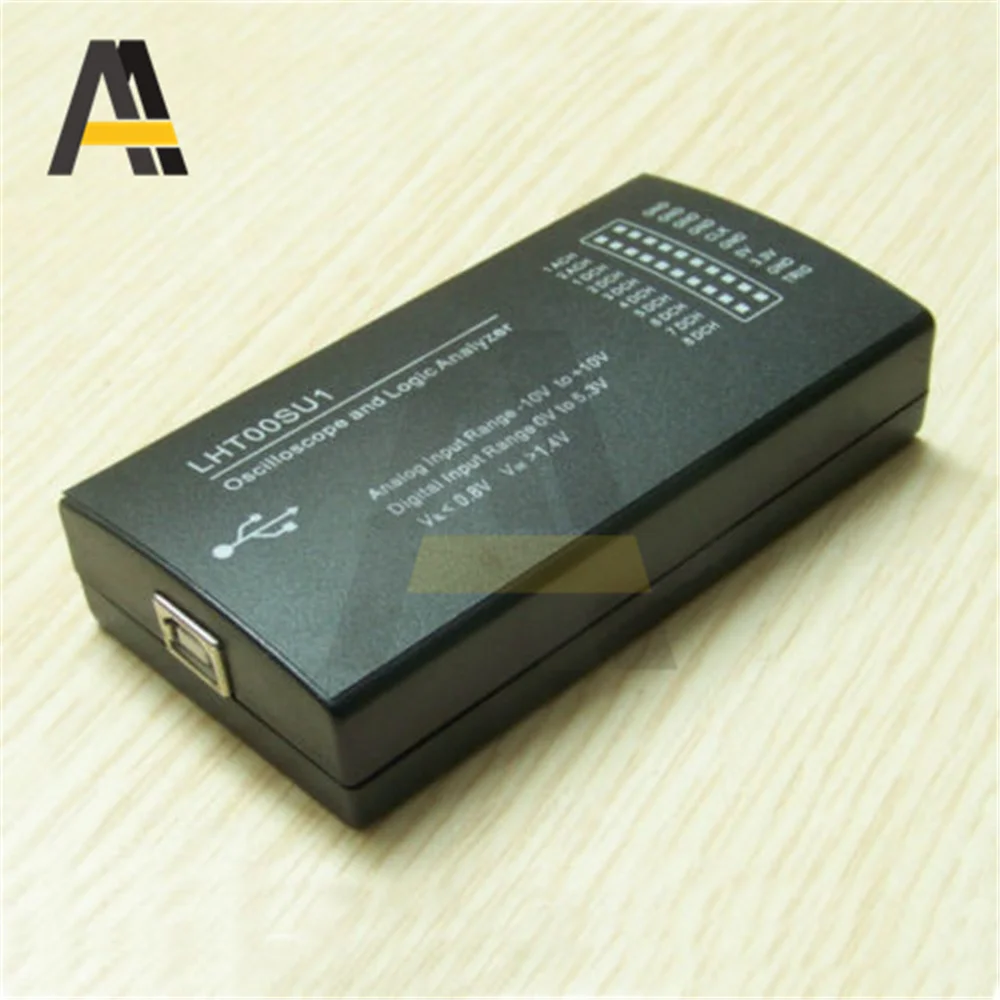

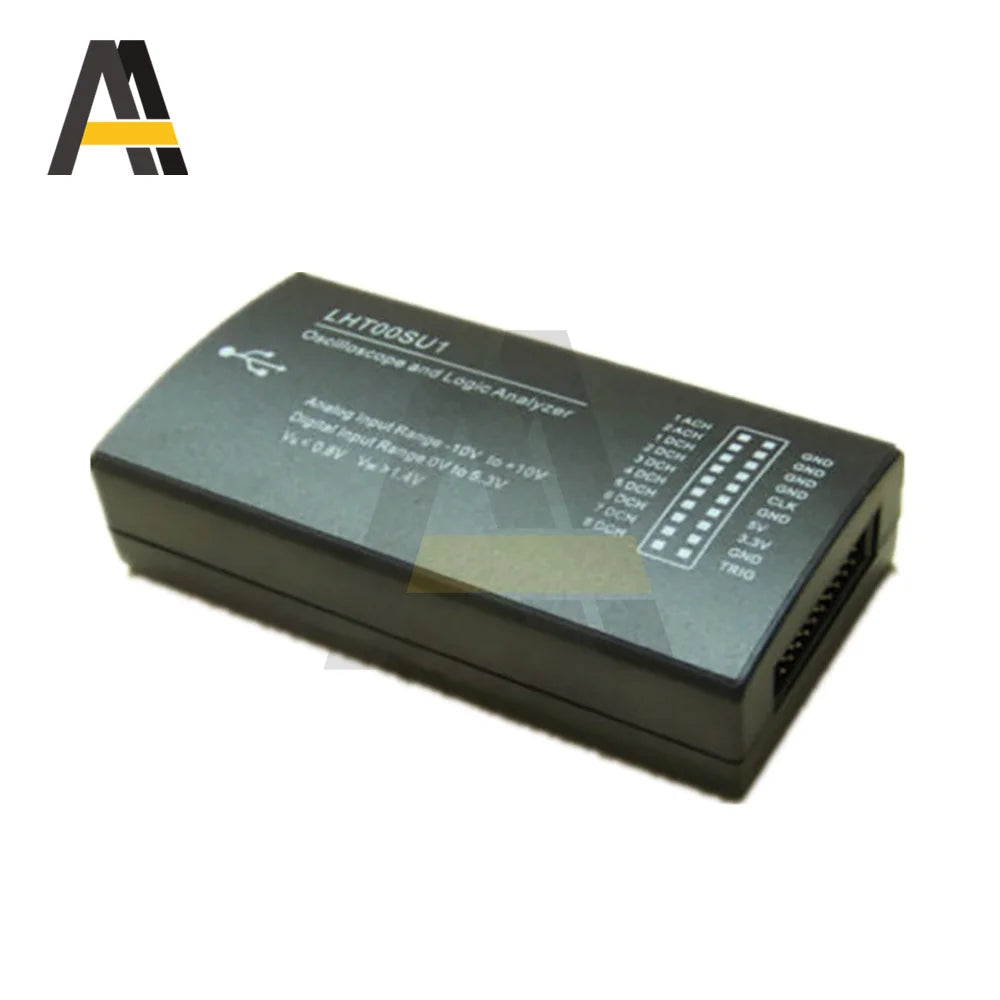

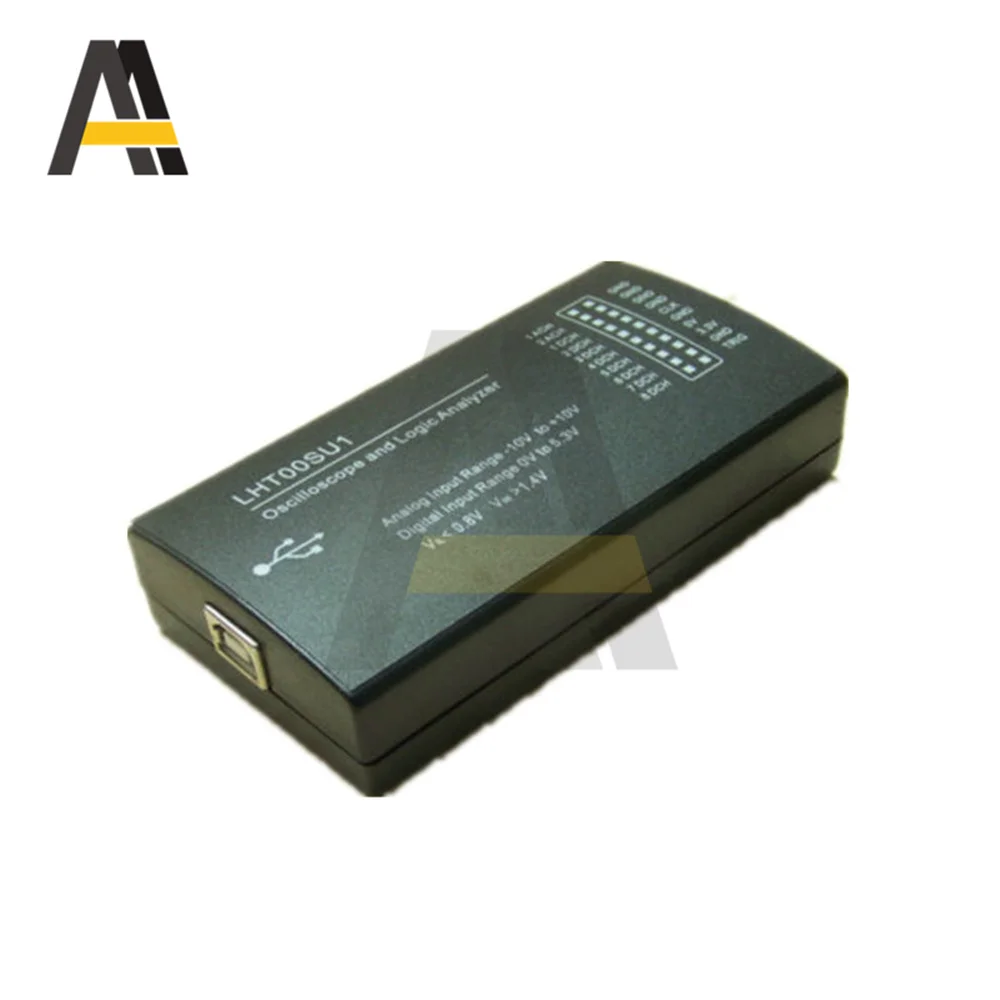

1 x LHT00SU1 Oscilloscope Logic Analyzer

Note:

If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.
