SPECIFICATIONS

11 special functions:

1.Dual input oscilloscope (single channel, 16Msps, 3MHz bandwidth)

 2.8-channel logic analyzer

3.data logger

4.Dual voltage meter

5.Mixed Signal Oscilloscopes and Logic Analyzers

 6.

7.remote controller

 8.PWM controller

 9.frequency generator

10.I2C controller

11.Pulse/edge counter

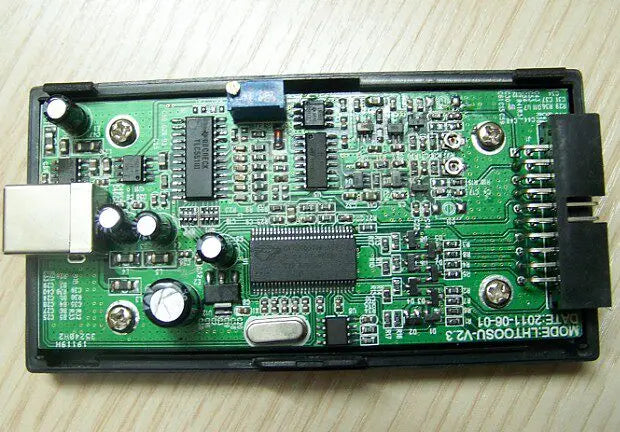

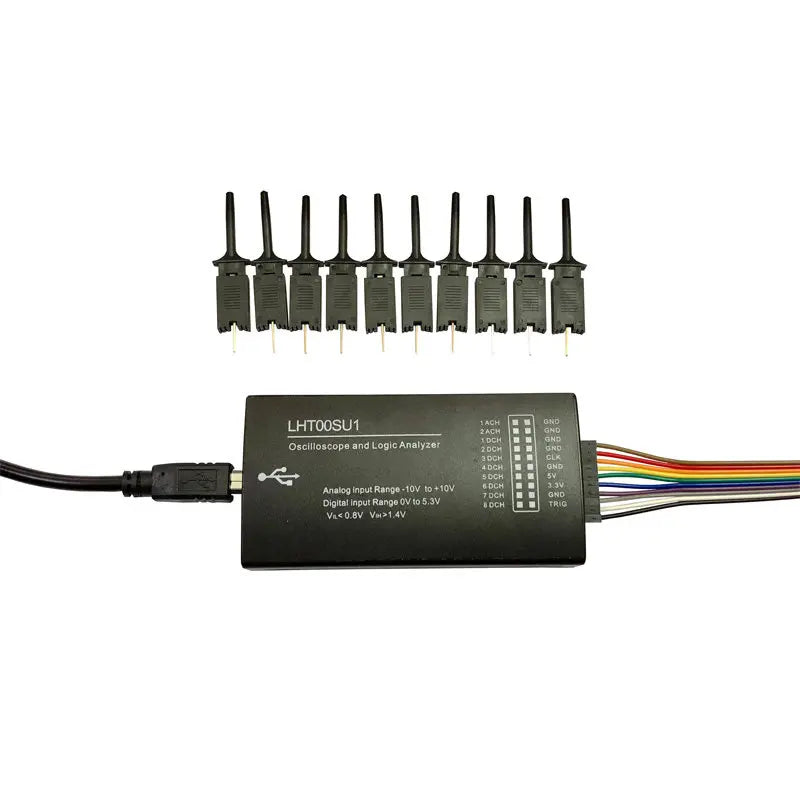

Shipping list:

machineone;

One test cable clip (with 10 test clips)

UOne SB connection cable

1. System requirements:Support operating system Win2000/XP/Vista/WIN7 (32bit) Celeron 4 2.0G or Pentium 4 1.8G or above processor. USB2.0 high-speed interface is required. USB2.0 full speed or USB1.1 is not supported. Memory requirement is 128M or above. 2G or above hard disk is required. Framework 3.5 SP1 needs to be installed.

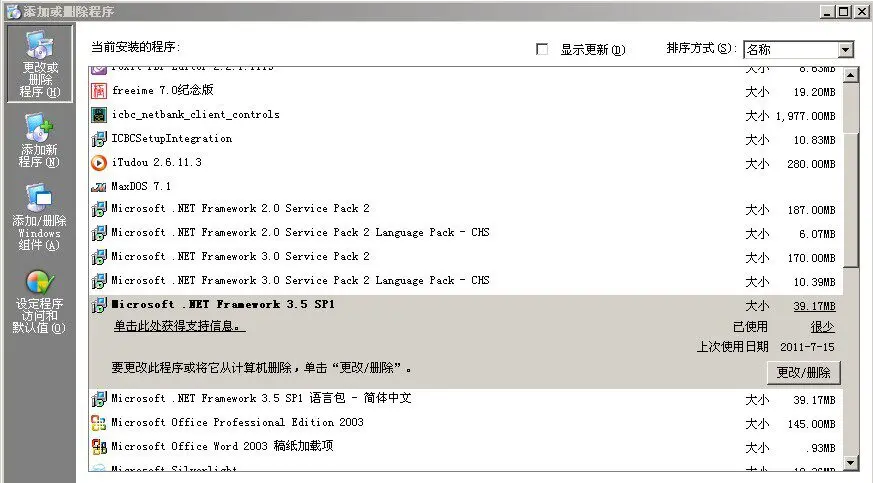

If your system is WINDOWS XP, please check whether your computer has the .NET 3.5 SP1 component. If not, please download and install it from the Microsoft official website.

2. Hardware(1). Analog parameters Number of input channels: 2 channels Number of sampling channels: 1 channel Maximum sampling frequency: 16MHz Maximum analog bandwidth: 3MHz Input voltage range: -10V~+10V Sensitivity: 78mV Maximum vertical resolution: 256 levels

(2). Digital part parameters Number of channels: 8 Input voltage: 0V-5.3V Input low level: <0.8V Input high level: >1.4V Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS/2 (3). Communication interface parameters USB parameters: USB2.0 high speed 480Mbps

3. Function

(1) 1) Dual input oscilloscope (single channel, 16Msps, 3MHz bandwidth)

2)8-channel logic analyzer

3)mixed signal oscilloscope

4)Dual channel voltmeter

5)data logger

6)Remote controller

7)PWM signal generator

8)frequency generator

9)I2C debugging assistant

10) Pulse counter

(2)8 digital channels + 1 analog channel logic analyzer, supports multiple protocols

The following is some actual measured data:

Oscilloscope: ATTEN ADSL1102CAL; Signal source: VICTOR VC2002

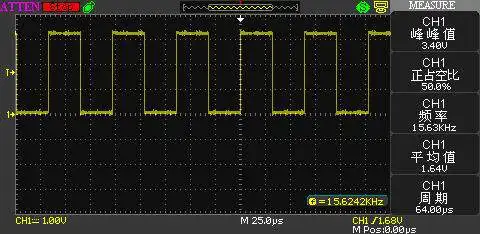

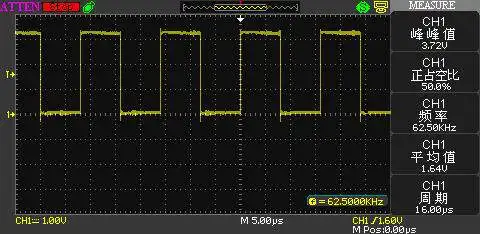

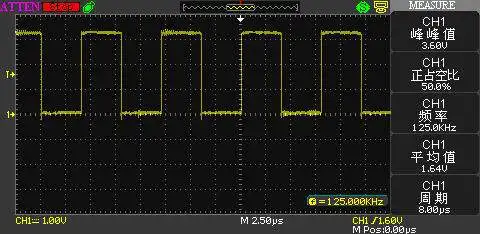

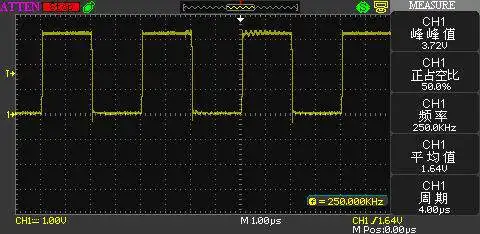

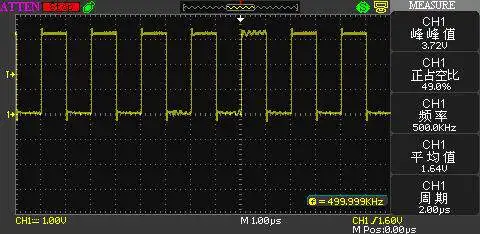

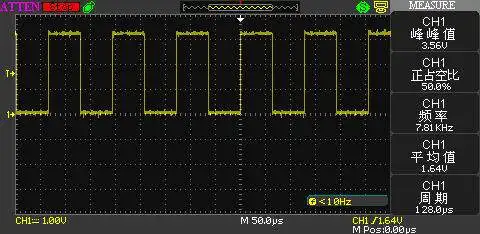

Output channel signal test picture:
