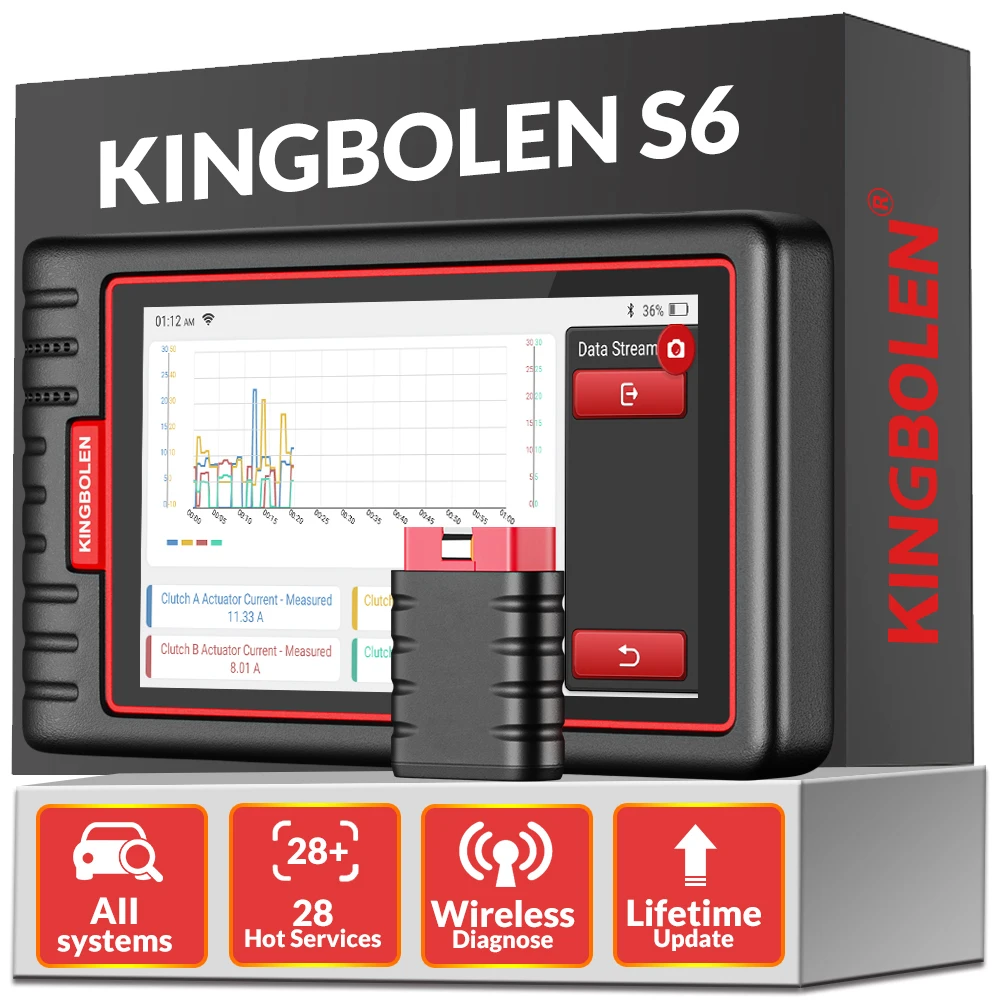

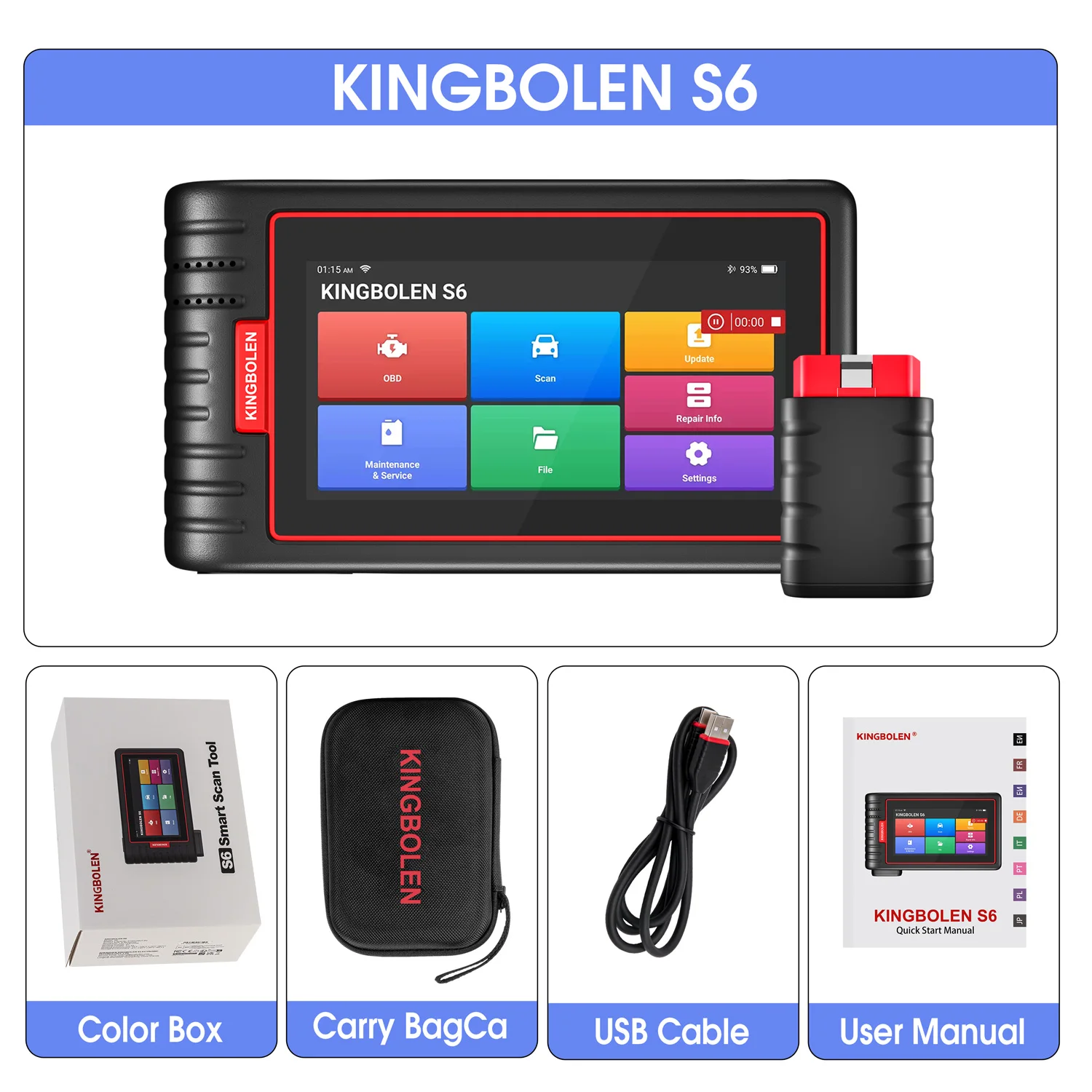

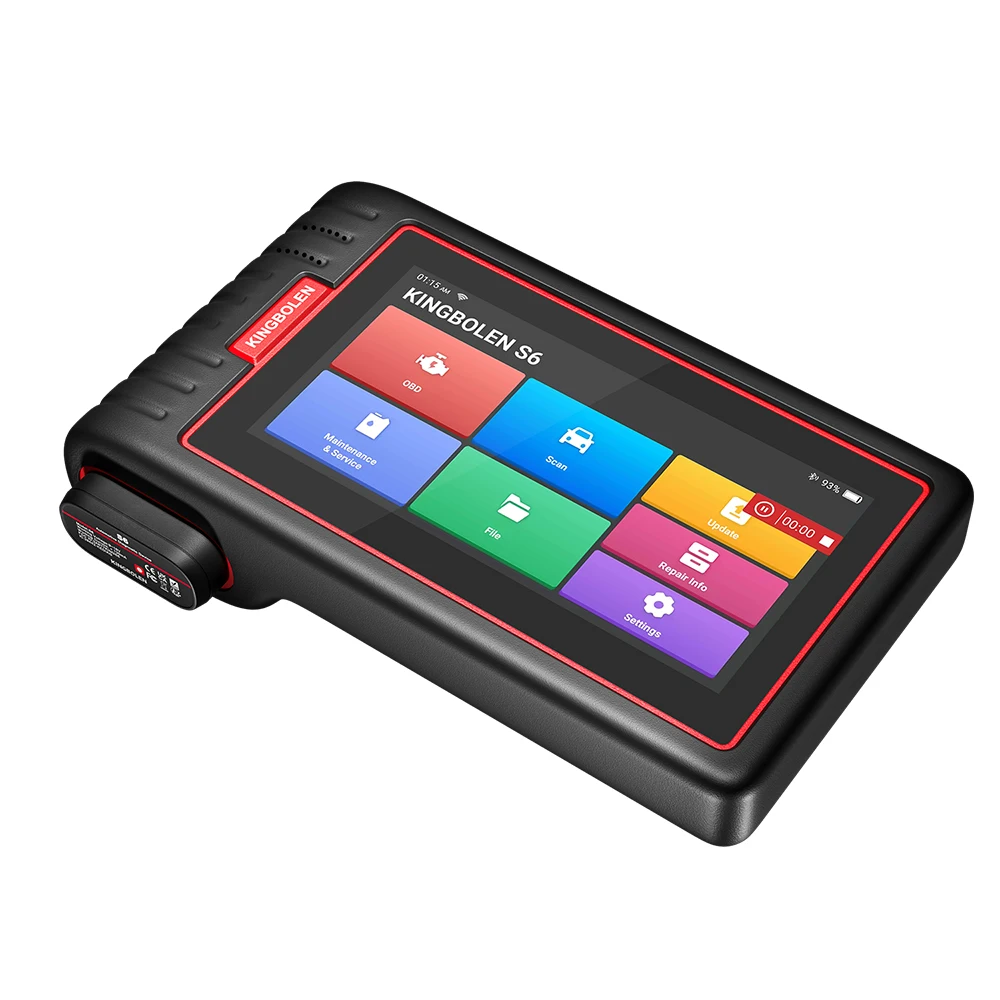

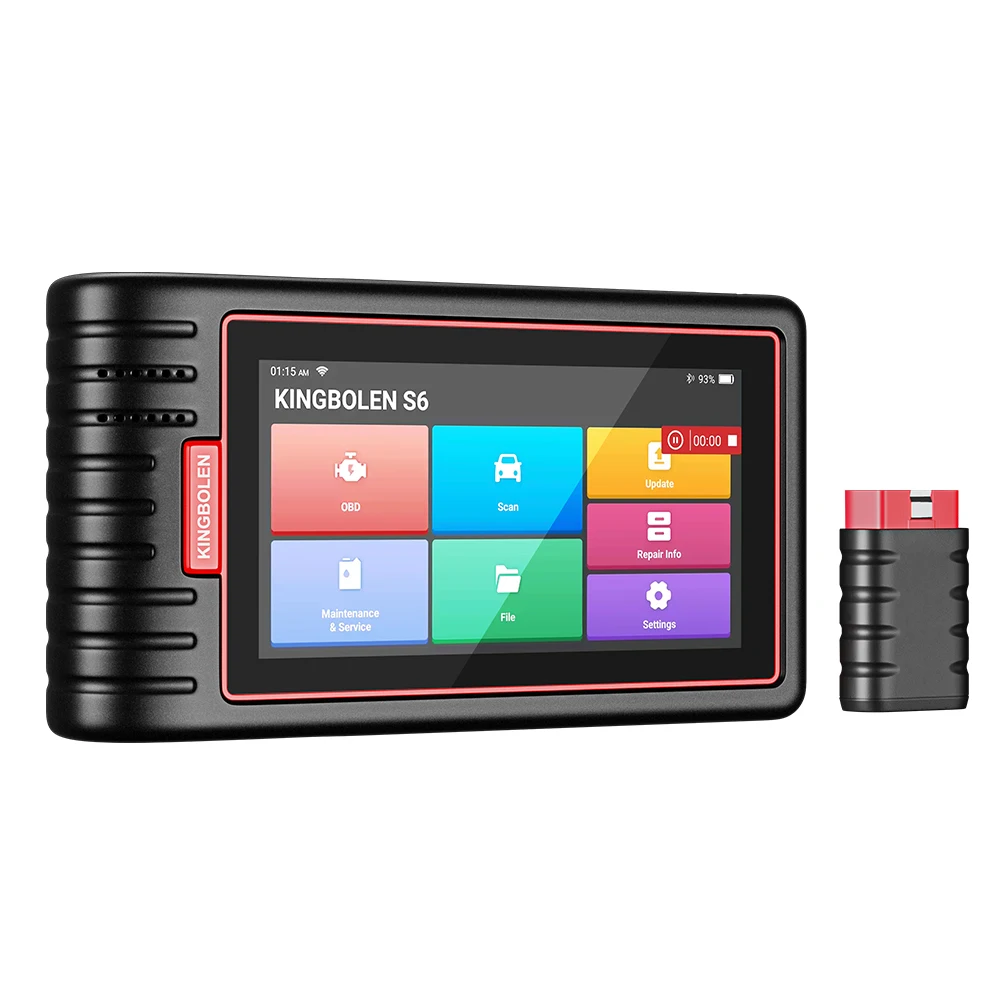

Highlight of Upgraded version KINGBOLEN S6

💥💥💥 【Lifetime Free Update】All Functions lifetime Free Update, no subscription fees !!!

🏆🏆🏆【CAN FD Protocol】Support CAN FD Protocol, support more new cars.

⭐⭐⭐⭐⭐ 【Main function】Support All system, 28 Resets function, all OBD2 function.

⭐⭐⭐⭐【Other Function】Auto VIN Scan, 4-in-1 Live Data Streams, Diagnostic Report, Remote Diagnosis.

⭐⭐⭐⭐【support FCA AutoAuth】access to the security gateway module on 2017 and newer for Fiat/ for Chrysler/ for Dodge/ for Jeep vehicles (2017-2024), so that the diagnostic tool can clear codes, relearns etc.

（Please note: KINGBOLEN S6 only provides a login and purchase portal, and users are required to register for an FCA account and pay a membership fee in order to perform the relevant automotive diagnostics)

⭐⭐⭐⭐【TPMS Expansion】The S6 can be used with VENU-i Pro and TPMS G2 to activate and read tire pressure information by receiving low-frequency or high-frequency signals. Check for any abnormalities promptly to prevent tire pressure problems.

⭐⭐⭐【Support 18 Languages】English, Polish, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Turkish, Dutch, Swedish, Hungarian, Slovak, Greek, Arabic, Korean, Traditional Chinese

1. SAS - Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.

After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

2. Brake Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad.

After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

3. Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336' gear not learned'.

In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

4. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance.

Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

5. IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

6. Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

7. TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.

8. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

9. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity.

lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

10. Elec.Throttle Adaption

Electronic throttle adaptation is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.

11. DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

12. Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13. AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14. Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding/ tilting sunroof memory function,temperature threshold outside the car etc.

15. A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem.

In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

16. EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17. Language Change

This function is used to change the system language of the vehicle central control panel.

18. A/F Reset

This function is applied to set or learn Air/ Fuel ratio parameters.

19. Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

20. NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust.

lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalyticconverter learned value stored in the engine ECu.

21. Seats Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

22. Stop/ Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function inECU(provided that the vehicle has a hidden function and supported by hardware).

23. Transport Mode

ln order to reduce power consumption, the following functions may be disabled,including limiting thevehicle speed, not waking up the door opening network, and disabling the remote control key, etc.

At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

24. Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

25. Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.

26. AdBlue Rest (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.

27. ODO Reset
a) ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a cardiagnostic computer and data cable, so that the odometer shows the actual mileage.

b) Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.

28. Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared.

Since the data inside the airbag computer is disposable,it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.

more udpating

DTC Lookup & Google Chrome Query DTC

KINGBOLEN S6 has a separate DTC database, which supports the independent fault code query function. At the same time, the device has a "Google Chrome" browser. If you encounter an unclear DTC code, it is convenient to query the DTC.

KINGBOLEN S6 car list

*** Please note that not all vehicle models support all the features described above; the number of supported features depends on your vehicle model and year.

For ASTON MARTIN
For AUDI
For Ford (Austrilia)
For Holden (Austrilia)
For BENZ (For Mercedes-Benz/ For Maybach)
For BAIC/ For Senoua (BAIC)/ For Weiwang (BAIC)/ For BJEV
For MERCEDES-BENZ
For BMW/ For Rolls Royce/ For Mini
For Fiat (Brazil)
For GM (Brazil)
For CHANGAN
For GWM
For Changhe
For CHRYSLER ( For Chrysler/ For Dodge/ For Jeep)
For CITROEN
For CMC
For DAEWOO
For Daihatsu
For DFSK/ For Fengguang (Dongfeng)
For Ferrari
For FIAT (For Fiat/ For Abarth/ For Alfa Romeo/ For Lancia/ For Nanjing Fiat)
For BYD
For Foton
For GAZ
For GM (For GM/ For Chevrolet/ For Cadillac/ For Buick)
For Hafei
For GAZ
For HMAZDA
For Haima
For HONDA (For Honda/ For Acura)
For Brilliance
For Hyundai
For IKCO
For Mahindra (India)
For Maruti (India)
For TATA (India)
For JMC
For IVECO
For IZH
For JAC/ For JAC Refine
For Gonow
For JINLONG
For JOYLONG
For JPISUZU
For KIA
For LANDROVER (For Jaguar/ For Land Rover)
For Lifan
For SGMW (United Pakistan)
For LUXGEN
For Mahindra
For Perodua (Malaysia)
For Proton (Malaysia)
For Maruti
For Maserati
For Maxus
For Mazda
For Mitsubishi
For MVM
For Nissan/ For Infiniti/ For GTR (Nissan)
For MITSUBISHI (For Mitsubishi/ For Mitsubishi Guangzhou)
For Opel/ For Vauxhall/ For Opel (South Africa)
For PAZ
For Perodua
For Peugeot
For Porsche
For Proton
For Chery
For Qoros
For Renault/ For Dacia/ For Samsung Renault
For ROVER
For SAAB
For MG (SAIC)
For Saipa
For Samsung
For Seat
For SeAZ
For SGM/ For Buick (China)
For Skoda
For Smart
For Spark
For Sprinter
For Ssangyong
For Subaru
For Suzuki
For Tata
For Toyota/ For Lexus
For Trumpchi
For UAZ
For Ford
For VAZ
For Volvo
For VOLKSWAGEN
For Weili
For FAW (Tianjin)
For Xinkai
For ZAZ
For Polarsun
For Zotye
For ZX Auto
