LILYGO® T-Beam ESP32 Development Board SX1262 LoRa Wireless Module GPS NEO-M8N 433/868/915MHz WiFi Bluetooth Integrated Circuits

LILYGO® T-Beam ESP32 Development Board SX1262 LoRa Wireless Module GPS NEO-M8N 433/868/915MHz WiFi Bluetooth Integrated Circuits

$375.40

$375.40 $0.00

Description

SPECIFICATIONS

Brand Name: lilygo

Condition: New

High-concerned chemical: none

Origin: Mainland China

SX1262 433MHz AXP192: Q341

SX1262 433MHz AXP2101: Q424+H531

SX1262 868MHz AXP192: Q160

SX1262 868MHz AXP2101: Q397+H531

SX1262 915MHz AXP192: Q215

SX1262 915MHz AXP2101: Q400+H531

Supply Voltage: 5V

Type: Module

is_customized: Yes

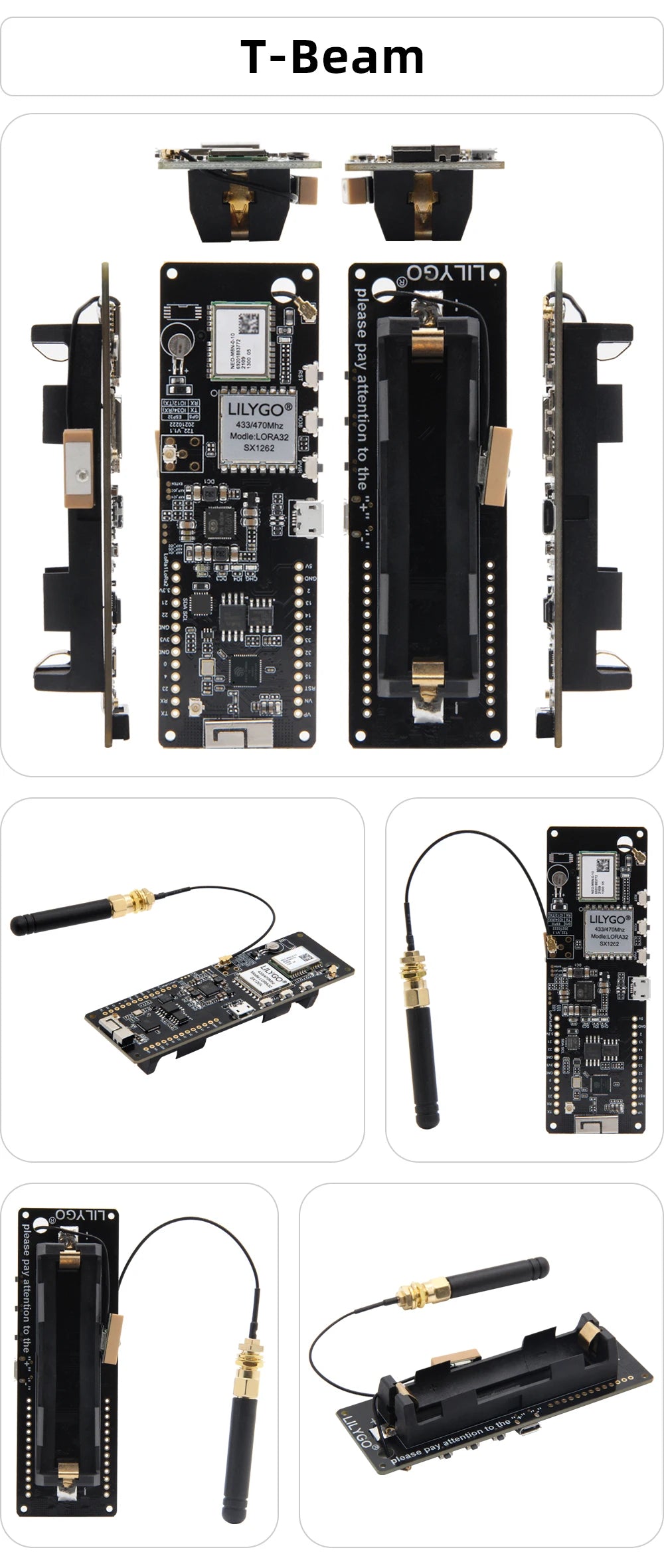

T-Beam

Powerful Processor and Storage

The T-Beam Board is equipped with the MUC – ESP32 dual-core Xtensa LX6 processor, providing outstanding performance and reliability. With 8MB of PSRAM and 4MB of SPI Flash storage, you have ample space to run your applications and store data.

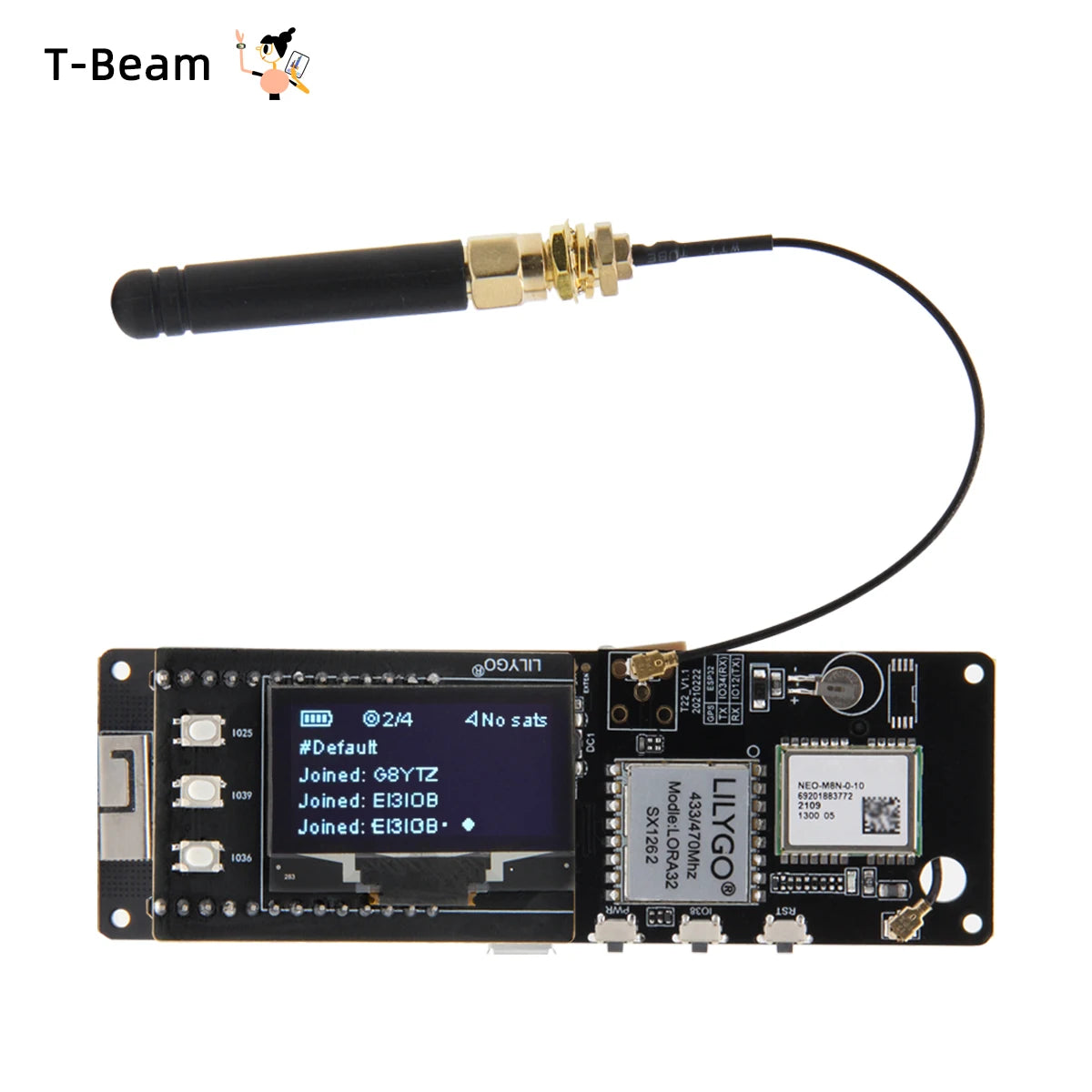

Clear Display

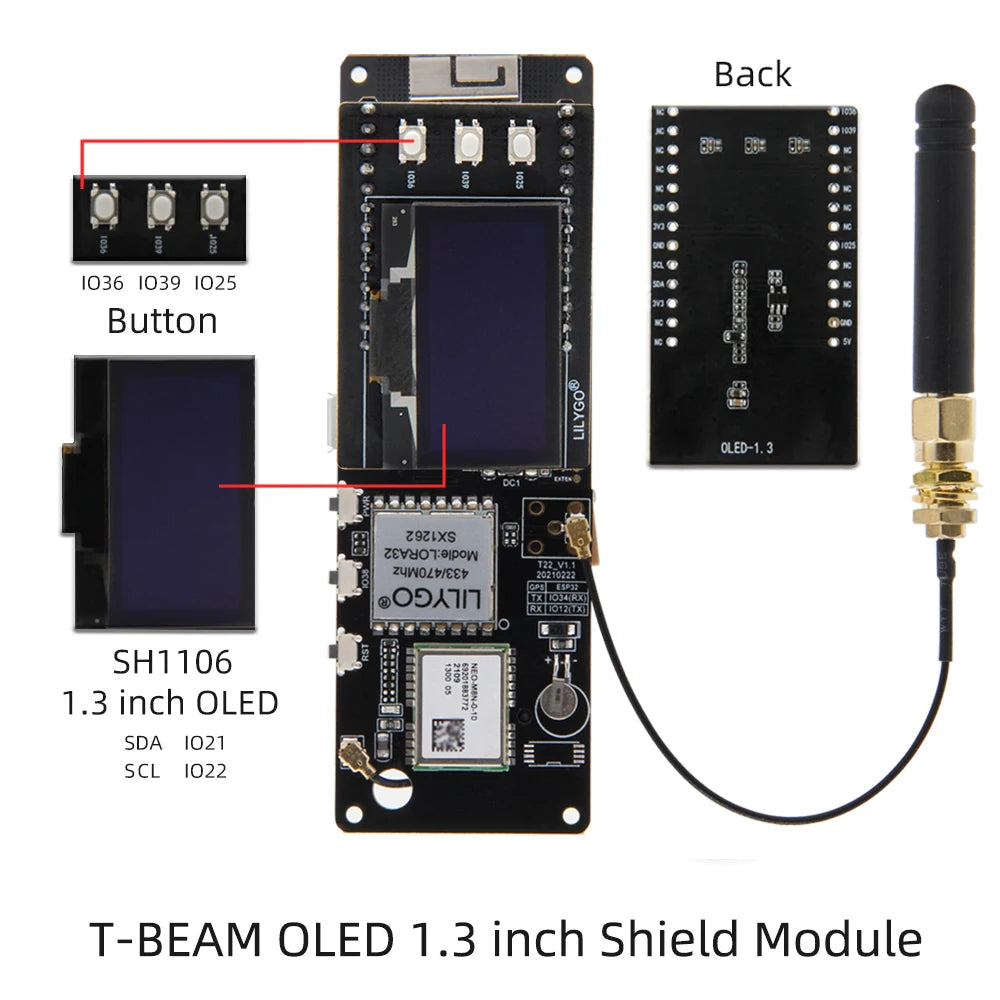

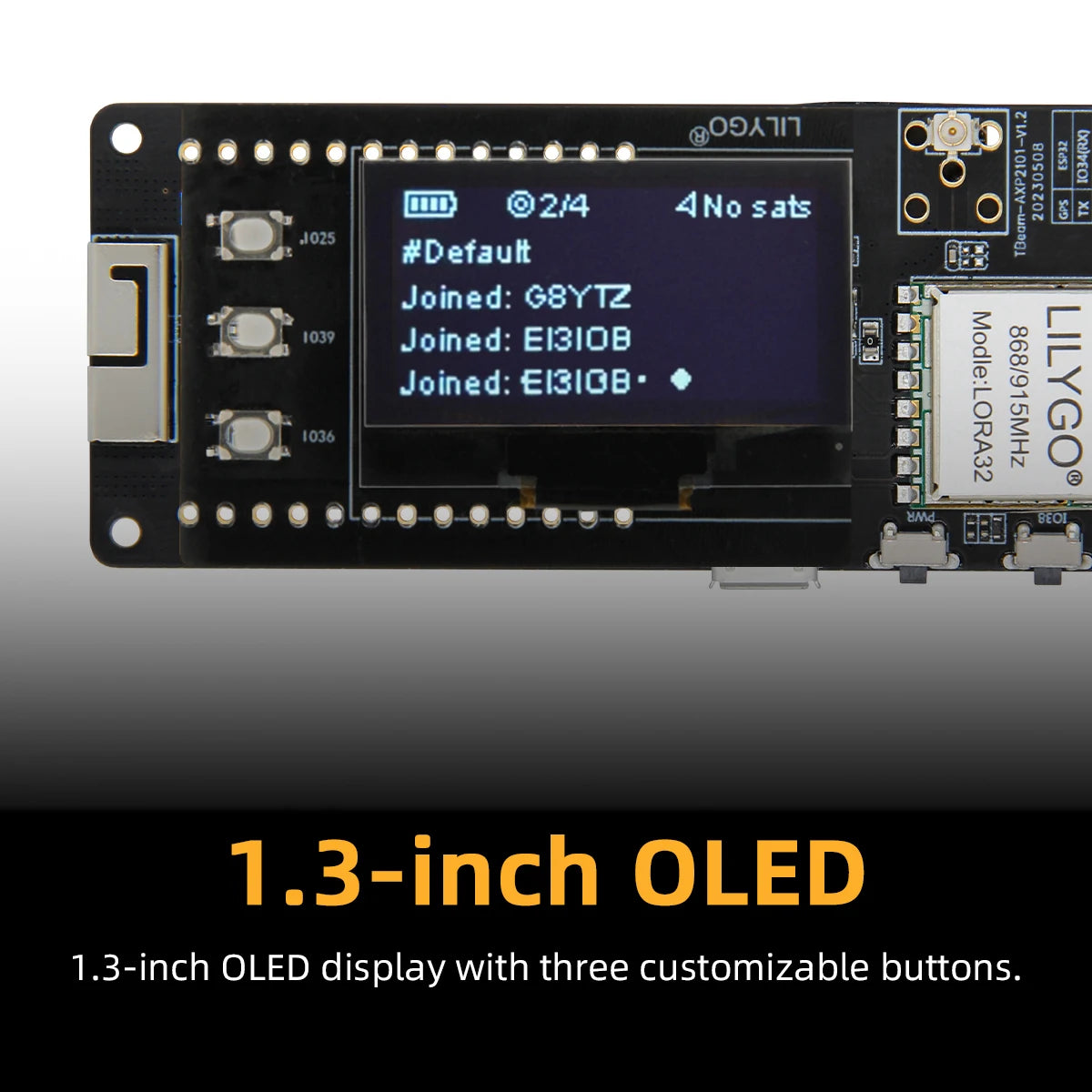

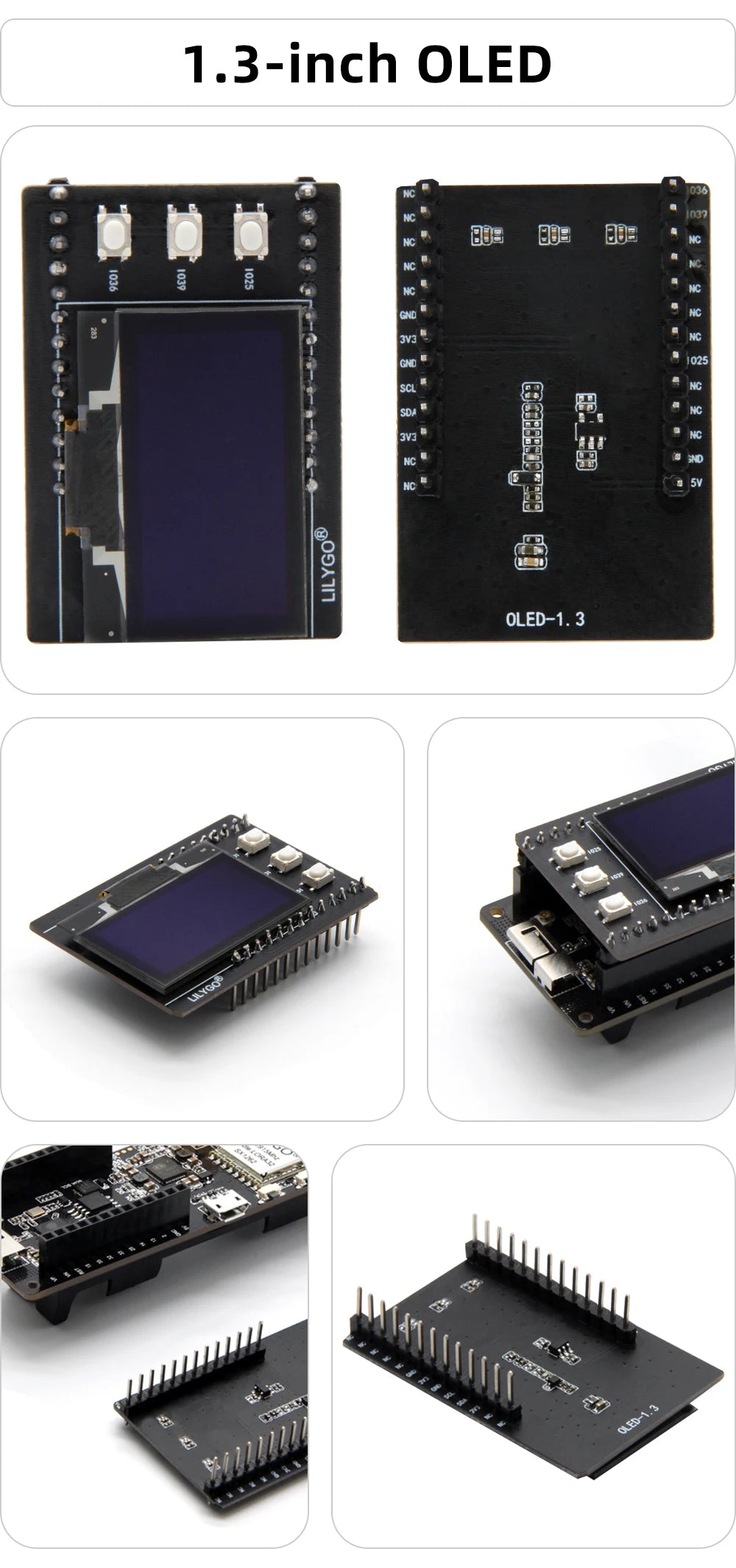

Featuring a 1.3-inch OLED display with three buttons (IO36 IO39 IO25) and SH1106 I2C driver, the T-Beam Board offers a clear interface and intuitive operation.

Seamless Connectivity

The T-Beam Board provides 802.11 b/g/n WiFi with speeds up to 150 Mbps, supporting both Bluetooth 4.2 Classic and LE. With a "3D antenna" soldered on the PCB, it ensures a robust and stable wireless connection.

LoRa Communication

Based on the Semtech SX1262 transceiver connected to ESP32 via SPI interface, the T-Beam Board supports 433/868/915MHz LoRa radio with an IPEX antenna. It boasts a high-efficiency PA with a power output of +22 dBm and low power consumption with an RX current of 4.6 mA.

Accurate Positioning

Integrated with the Ublox NEO-M8N GNSS module and a ceramic antenna, the T-Beam Board achieves a sensitivity of -167 dBm. It supports the simultaneous use of multiple satellite systems, including GPS, GLONASS, BeiDou, and Galileo, ensuring precise positioning in any environment.

Convenient Debugging and Programming

Featuring a micro USB port with the CH9102 chip, the T-Beam Board provides a convenient interface for debugging and programming.

Powerful Power Management

The AXP2101 Power Management Unit ensures the T-Beam Board operates efficiently and stably. It supports power supply from 5V USB and a 18650 battery (not supplied), offering you flexible usage options.

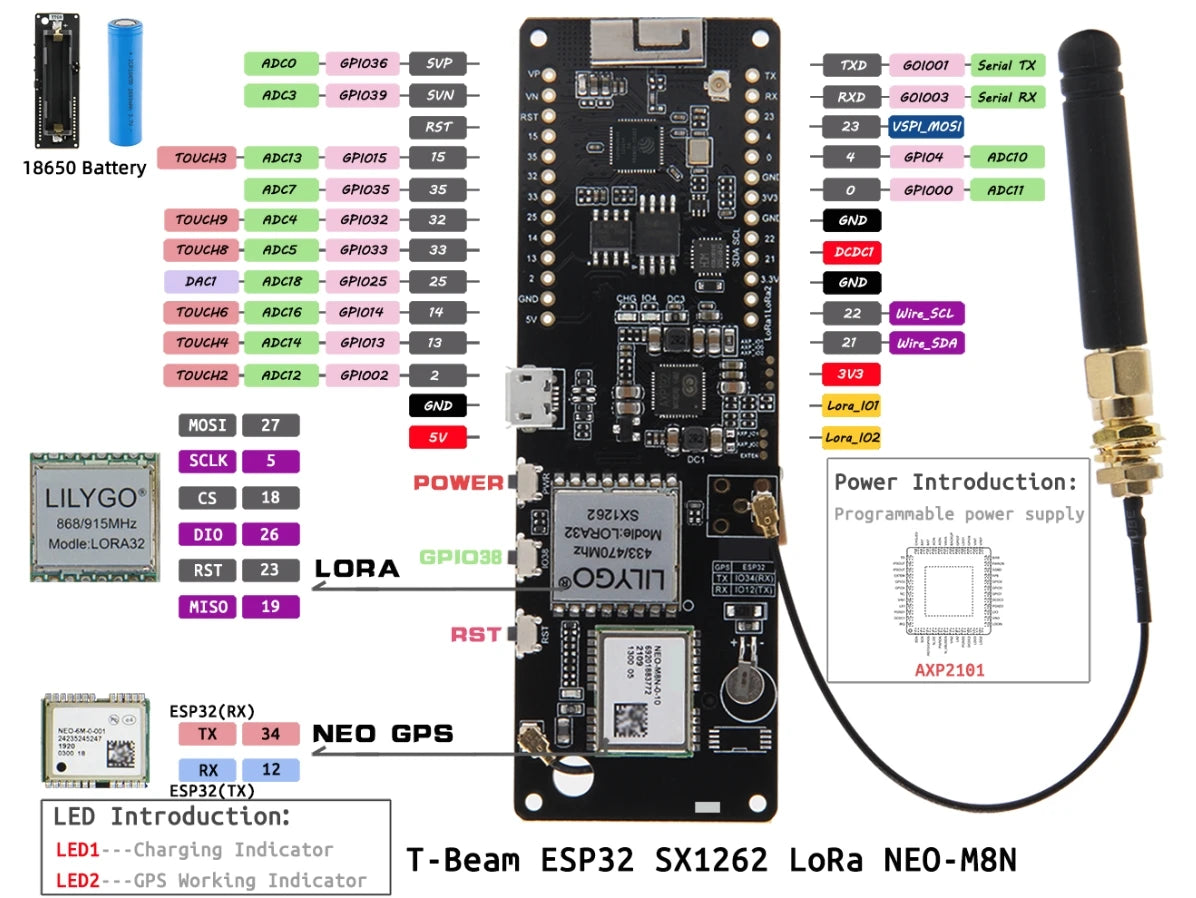

Product PINMAP

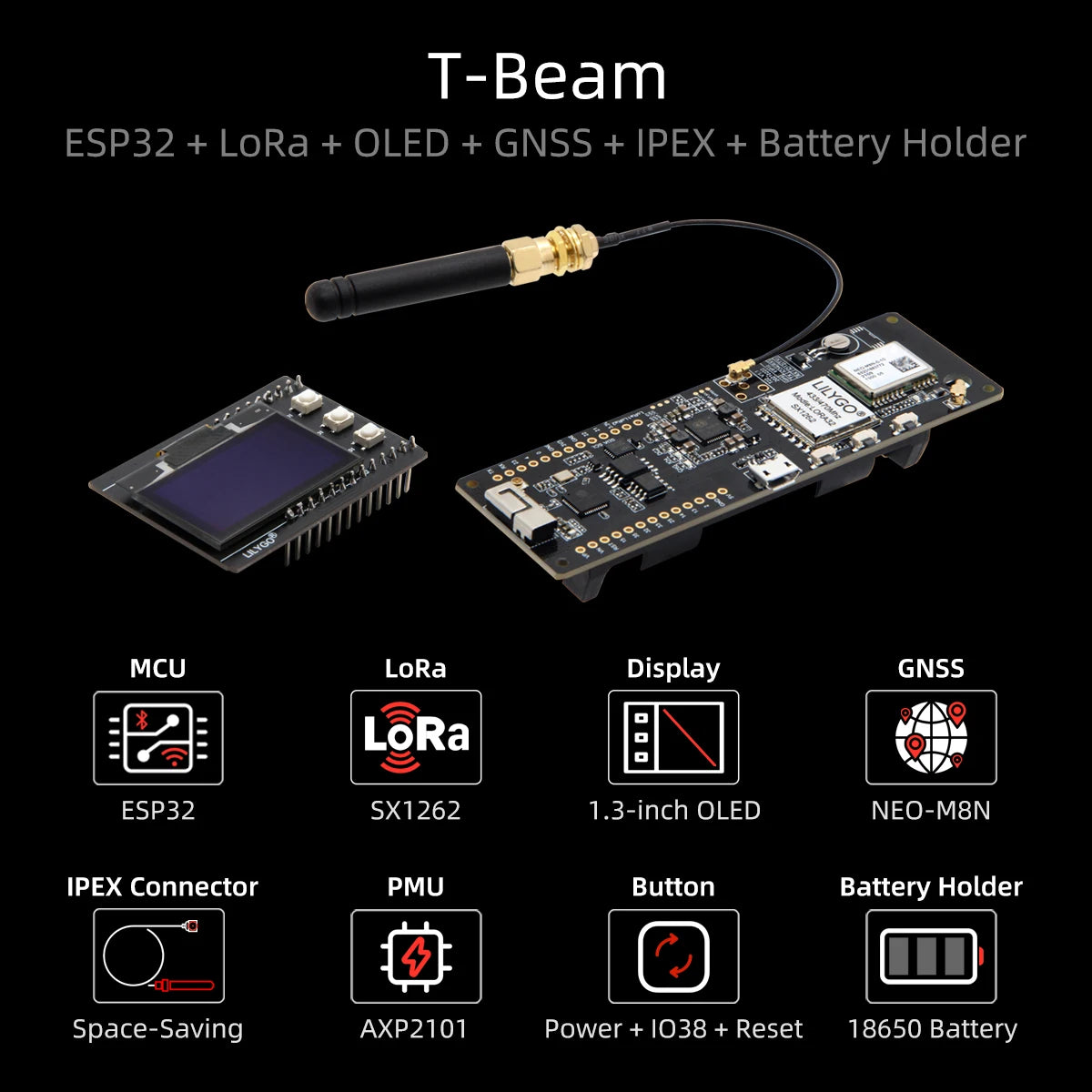

Specifications

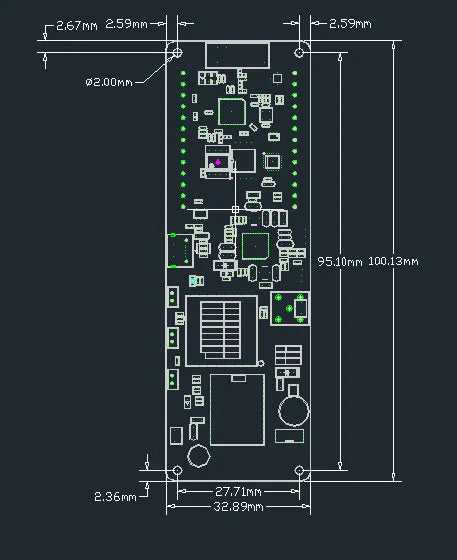

T-Beam board specifications

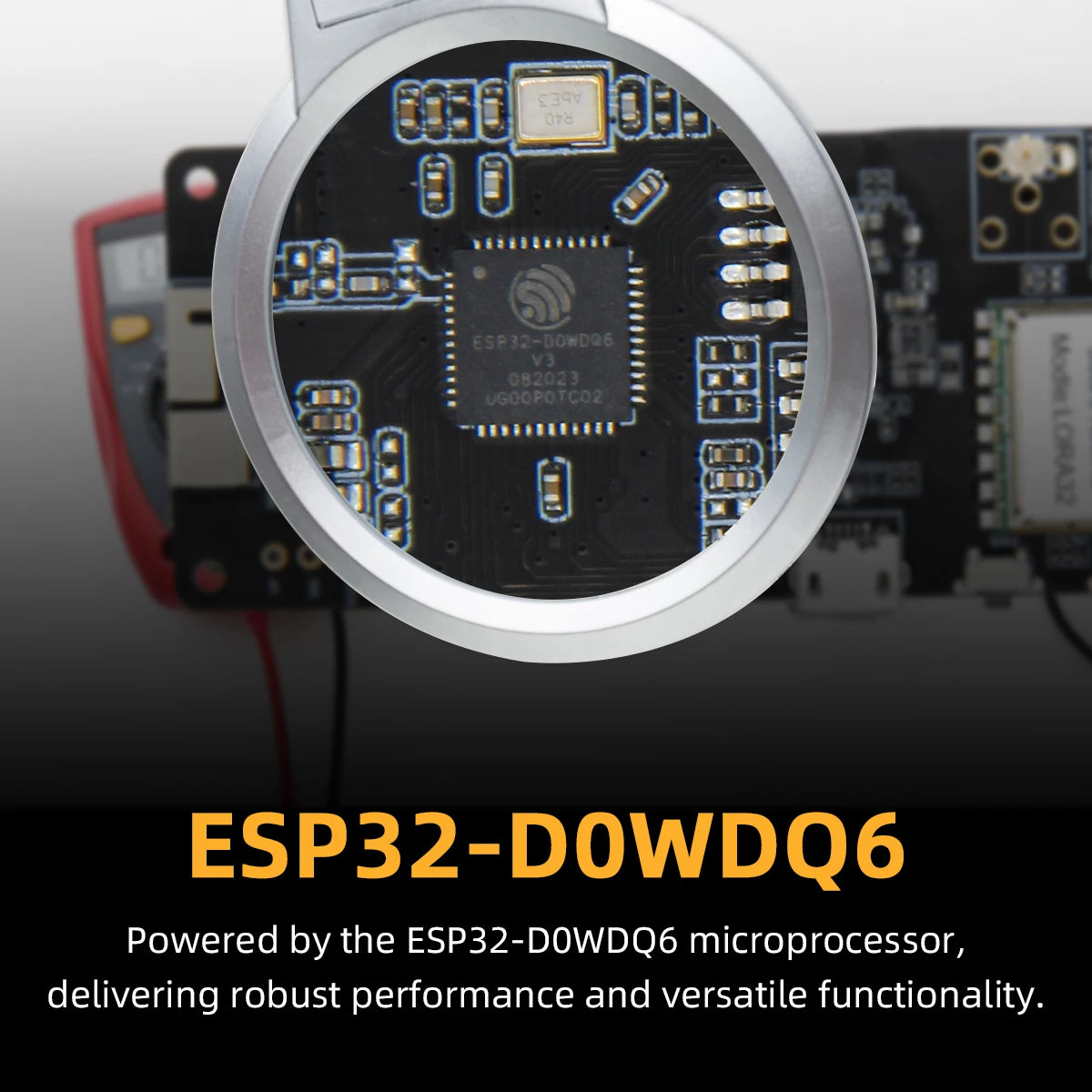

MUC – ESP32 dual core Xtensa LX6 processor with WiFi and Bluetooth
Memory – 8MB PSRAM
Storage – 4MB SPI Flash
Display – 1.3-inch OLED display with Three buttons (IO36 IO39 IO25), (SH1106 I2C driver)
Connectivity
- 802.11 b/g/n WiFi up to 150 Mbps + Bluetooth 4.2 Classic and LE with “3D antenna” soldered on PCB
- LoRa
  - Based on Semtech SX1262 transceiver connected to ESP32 via SPI interface
  - 433/868/915MHz LoRa radio with IPEX antenna
  - Power Output – +22 dBm High Efficiency PA
  - Low Power – RX current of 4.6 mA
- Location – Ublox NEO-M8N GNSS module with ceramic antenna
  - Sensitivity -167 dBm
  - Supports Simultaneous use of multiple satellite systems, including GPS, GLONASS, BeiDou, Galileo.
Debugging / Programming – micro USB port with CH9102 chip
Power Management Unit – AXP2101
Misc – buttons (Power Reset and IO38)
Power Supply
- 5V USB

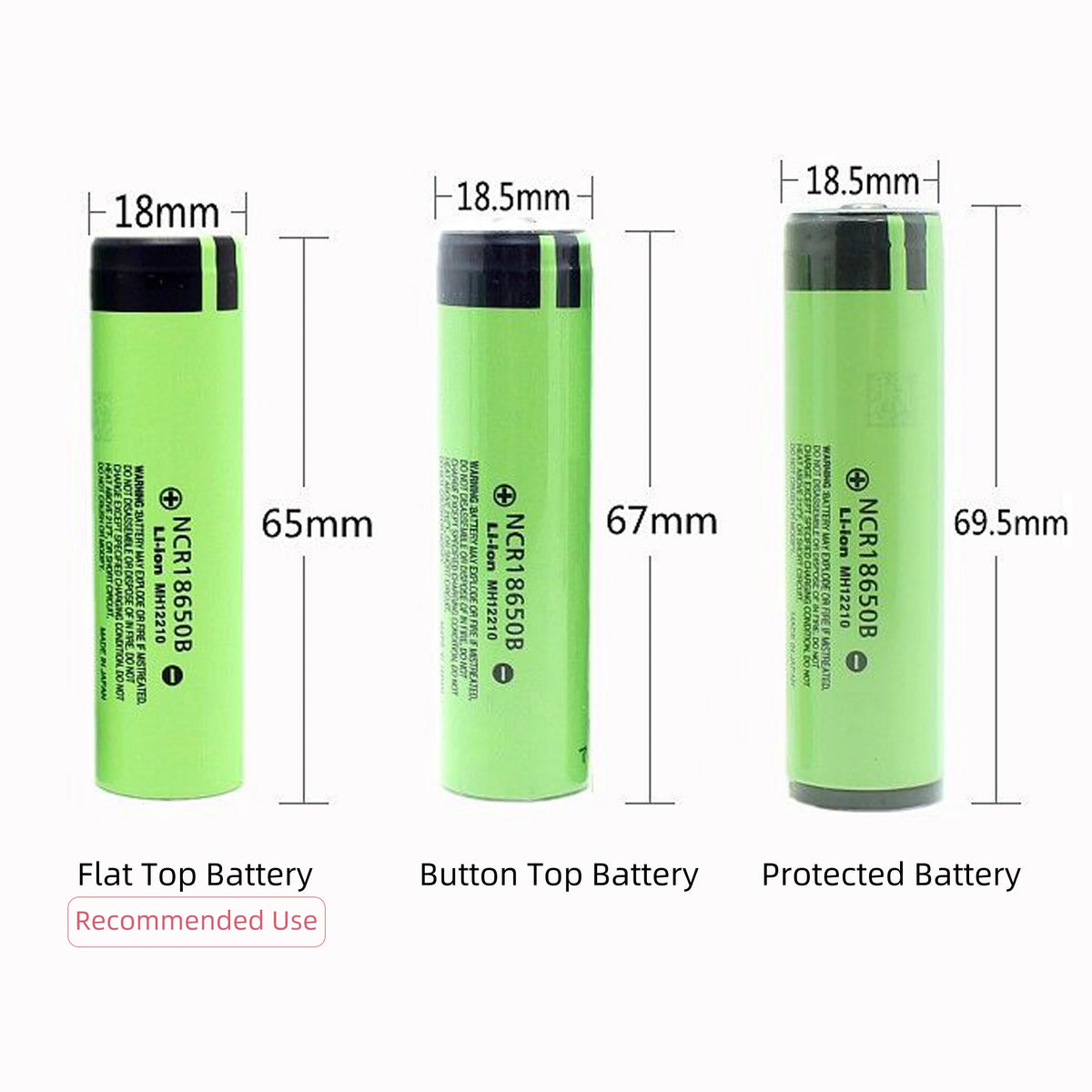

- 18650 battery (not supplied)
