LILYGO® TTGO T-SIM7000G SIM Development Board ESP32 WiFi Bluetooth GPS Module SIM7000G SIM7000E SIM7000A SIM7000JC 4/16MB Flash
T-SIM7000G 9102 4MB
$308.12
Sale price
$308.12
Regular price
$0.00
Skip to product information
LILYGO® TTGO T-SIM7000G SIM Development Board ESP32 WiFi Bluetooth GPS Module SIM7000G SIM7000E SIM7000A SIM7000JC 4/16MB Flash
$308.12
Sale price
$308.12
Regular price
$0.00
Description

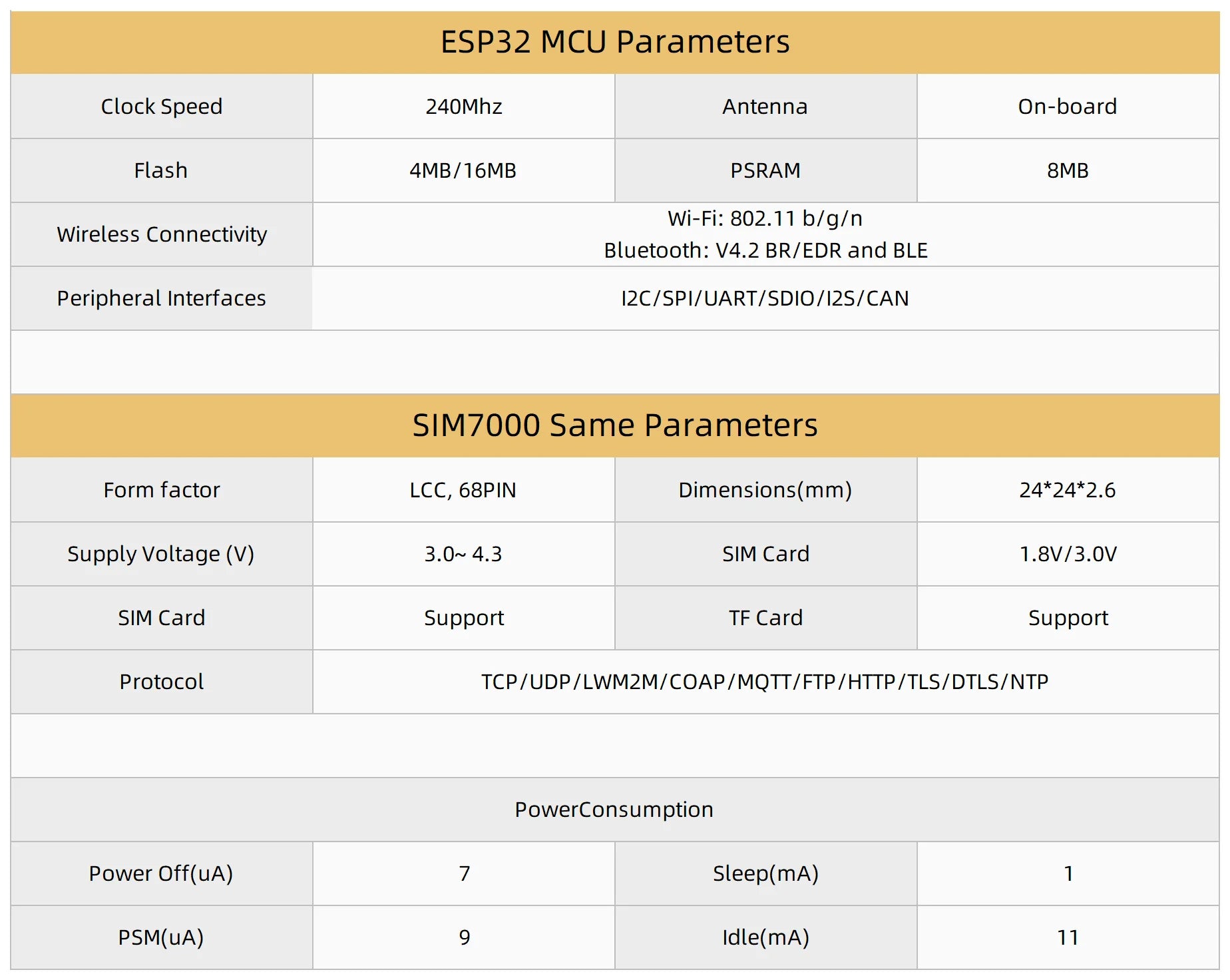

SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Compatible Audio & Video Equipment Style: Amplifier,player

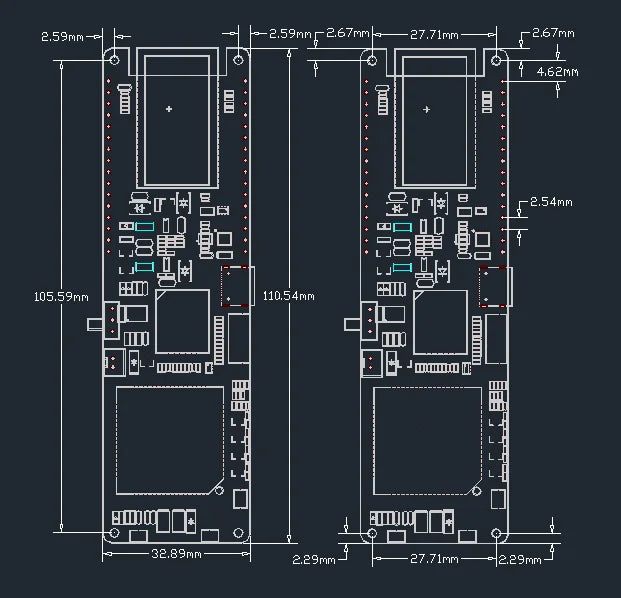

Dimensions (WxHxD)): 111mm*37mm*20mm
High-concerned chemical: none
Model Number: T-SIM 7000G
Origin: Mainland China
Package: Yes
Special Feature: Others
T-SIM7000G 9102 16MB: Q170
T-SIM7000G 9102 4MB: Q141
Weight: 50g
Version update includes:
Enhanced battery protection against reverse polarity, overcharging, and over-discharging.
Improved GPS power management to reduce power consumption, with a minimum sleep mode power of 300uA.
Upgraded charging functionality with the inclusion of a solar charging IC."
Notes for new Users:
SIM7000/SIM707G does not support a 4G network. Please ensure that the USIM card you use supports 2G(GSM)/NB-IOT access, SIM7070 positioning and cellular cannot be used simultaneously. Please disconnect the network when positioning, and turn off GPS when connecting to the network
Notice:
This module is a development board designed for verification test experiments.
When purchasing, it must be used in compliance with local wireless management regulations, including the selection of frequencies that comply with local laws.

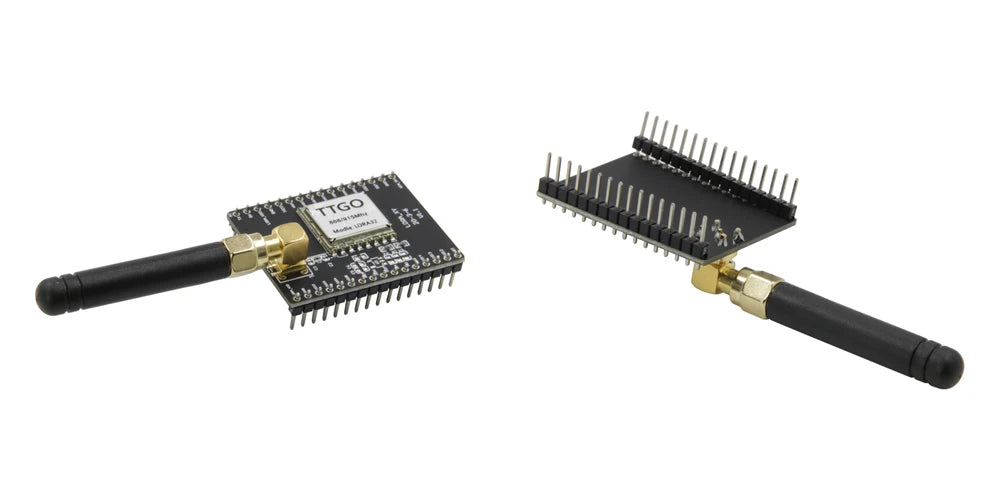

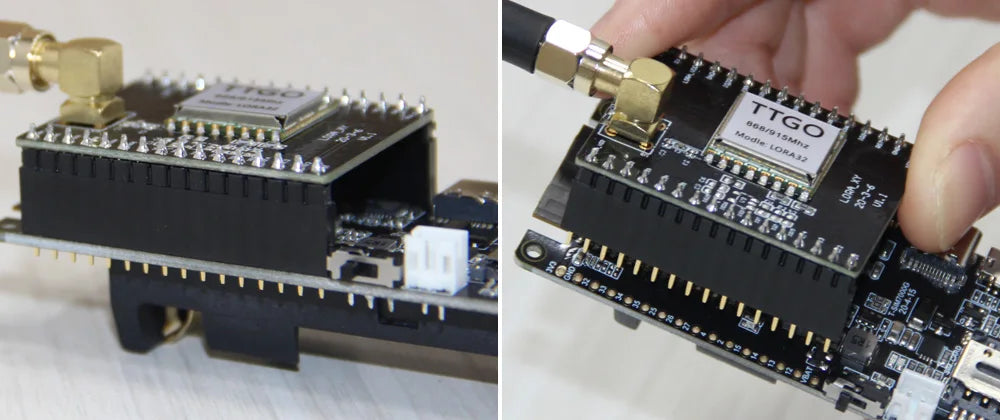

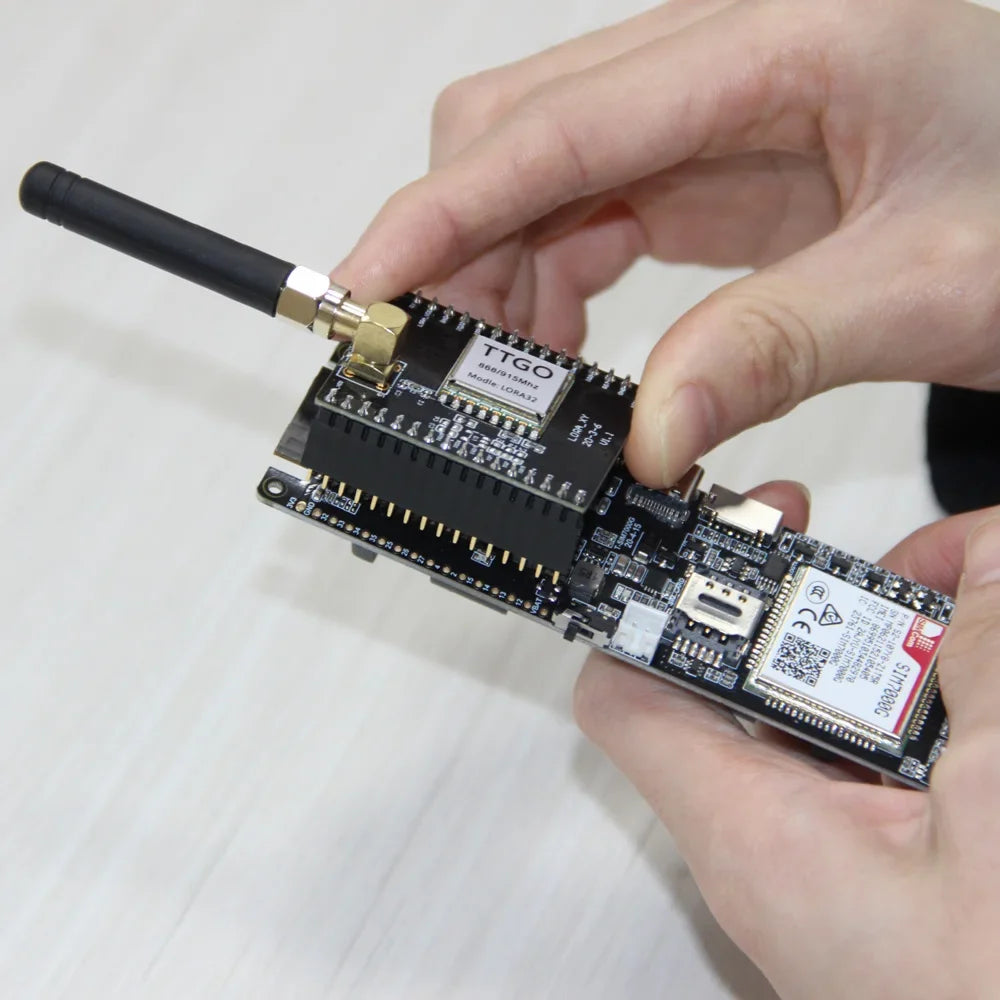

T-SIM7000G can be used with Lora 868/915Mhz function Shield | ||

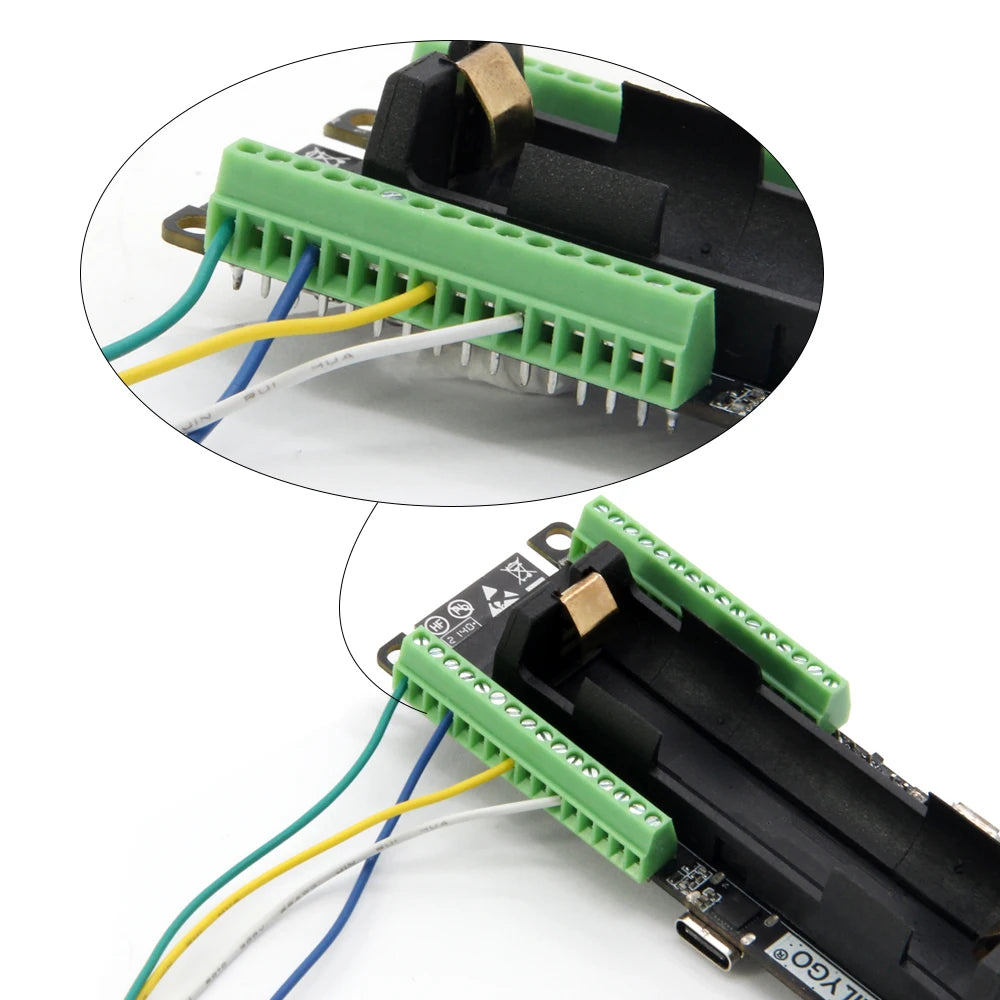

16PIN 2.54mm Terminal Screw Terminals Block Connector 150V 6A | ||

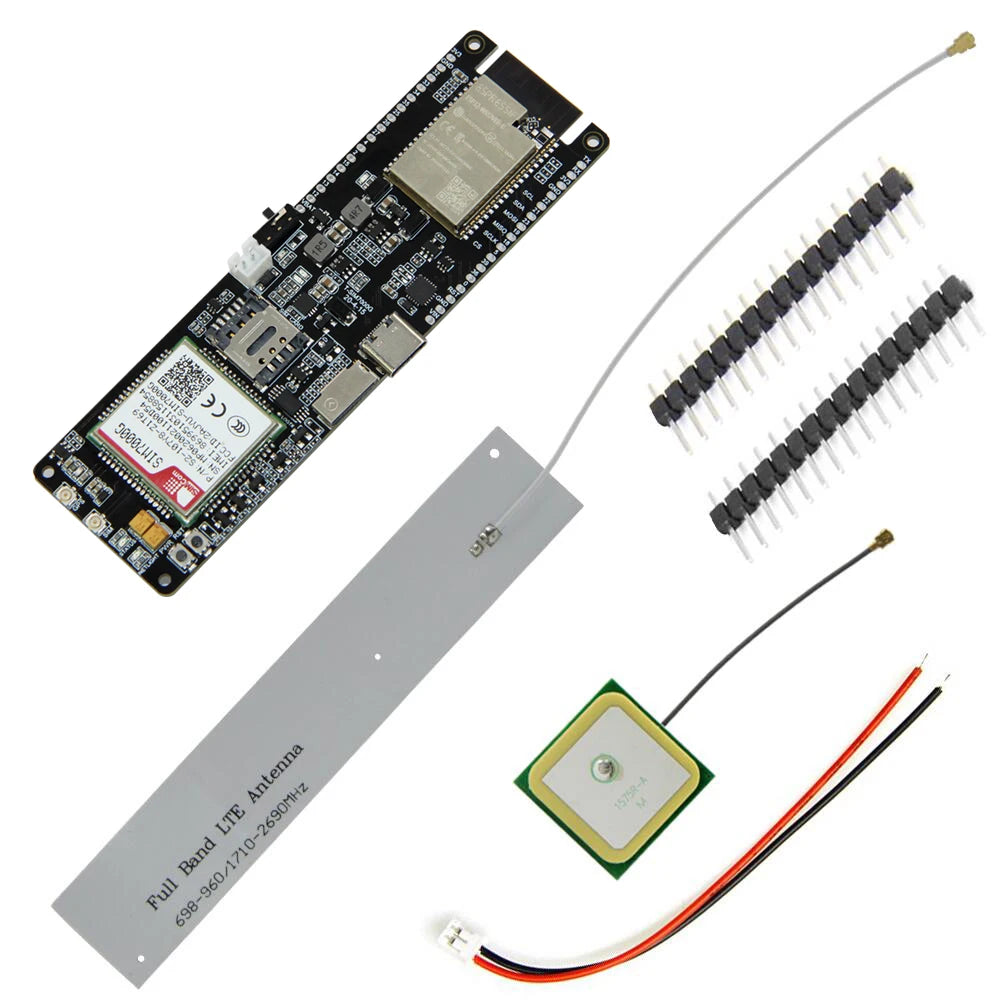

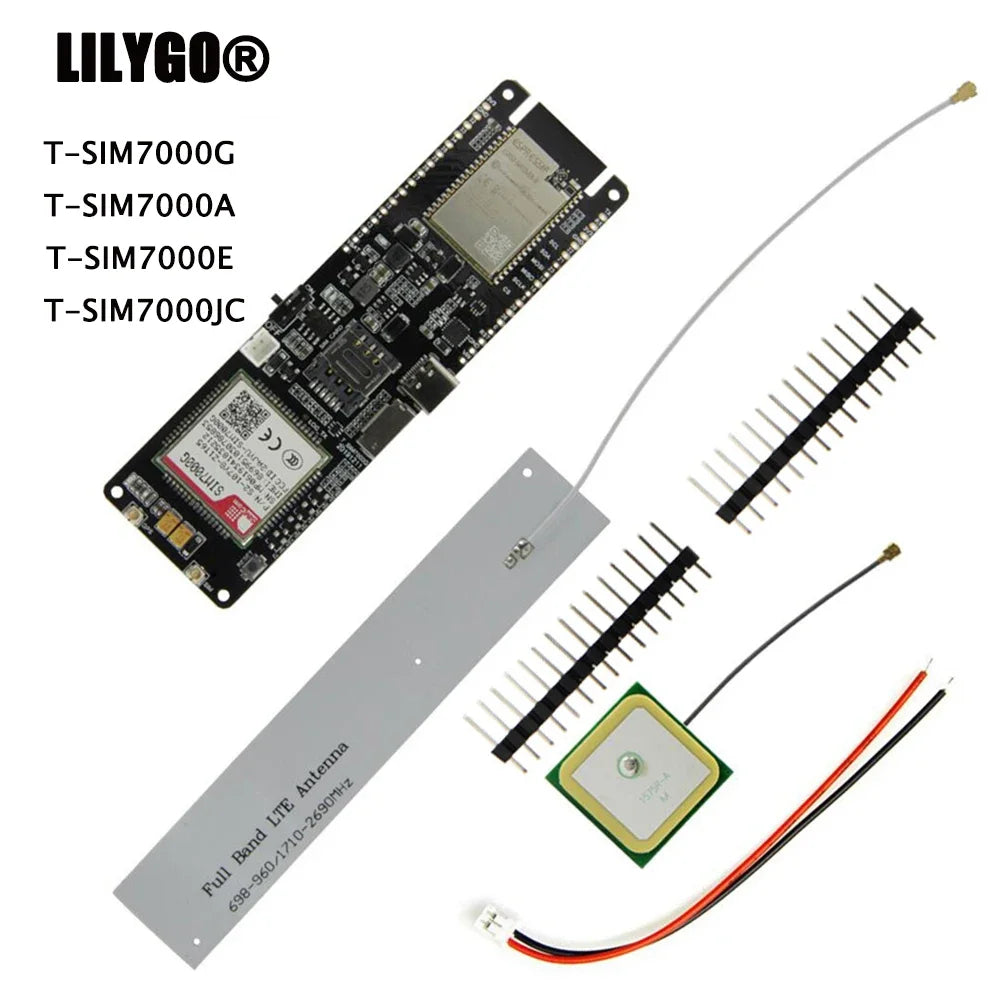

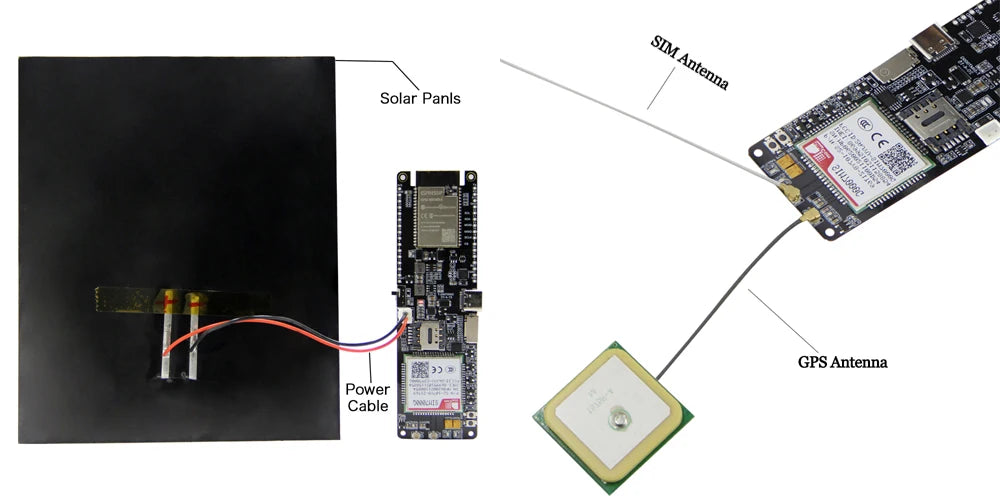

What's in the box?
1x T-SIM7000

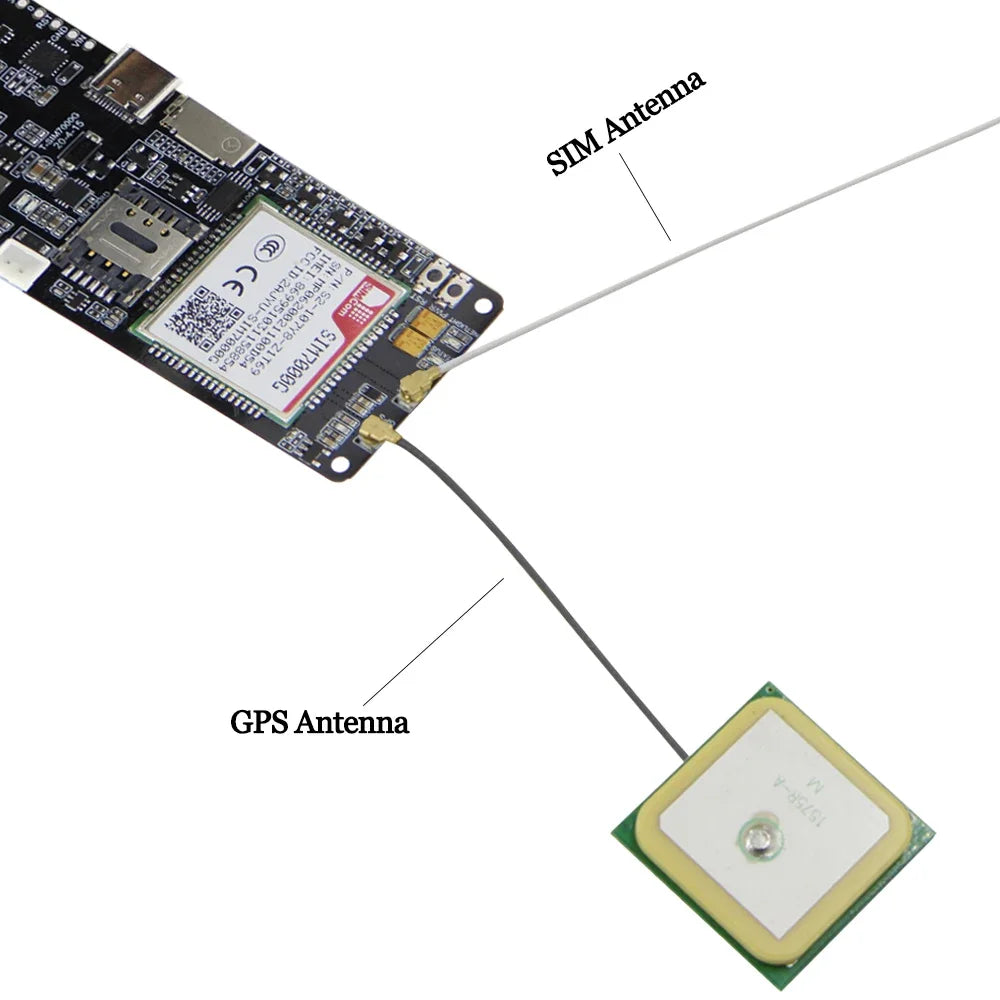

1x SIM antenna
1x GPS antenna
1x Power cable
2x Pin
Notes for new Users
SIM7000/SIM707G does not support a 4G network. Please ensure that the USIM card you use supports 2G(GSM)/NB-IOT access,SIM7070 positioning and cellular cannot be used simultaneously. Please disconnect the network when positioning, and turn off GPS when connecting to the network
pin VIN is a USB input; if a battery is being used to power the device, there will be no voltage output from VIN, meaning 3.3v is the only power output.
When using the built-in battery pack the on/off switch will function as normal, supplying/cutting off power to the board, However, if an external battery pack is used and attached to the VBAT pin the on/off switch will be bypassed meaning the only way to shut off will be to disconnect the batteries.
On/off switch is for battery use only, it will not function when plugged into USB.
Battery voltage can not be read when plugged into USB using the onboard BAT ADC(35)
Recommended solar panels are 4.4v to 6v DO NOT EXCEED OR BOARD MAY BE DAMAGED
When an SD card in you can not upload software in Arduino IDE since the SD card uses IO2 as CS, the SD card must be removed when uploading a new sketch.
On Version 20200415, When using GPS the SIM7000G(GPIO4)/SIM7070G(GPIO5)(Physical pin number 48) needs to be set to HIGH to enable the antenna

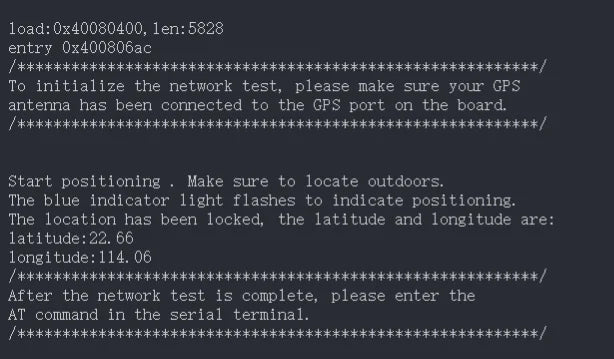

modem.sendAT("+CGPIO=0,48,1,1");once finished the pin can be set LOWmodem.sendAT("+CGPIO=0,48,1,0");to prevent power leaking to the GPS antenna, This will make help battery life. If using USB or battery life is not a concern, it can be left HIGH.If you are unable to access the network, please try , which will test the network connection. There are also binary files in the firmware directory; you can use the Flash Download Tools to download.
How to change the connection method?
For example, the

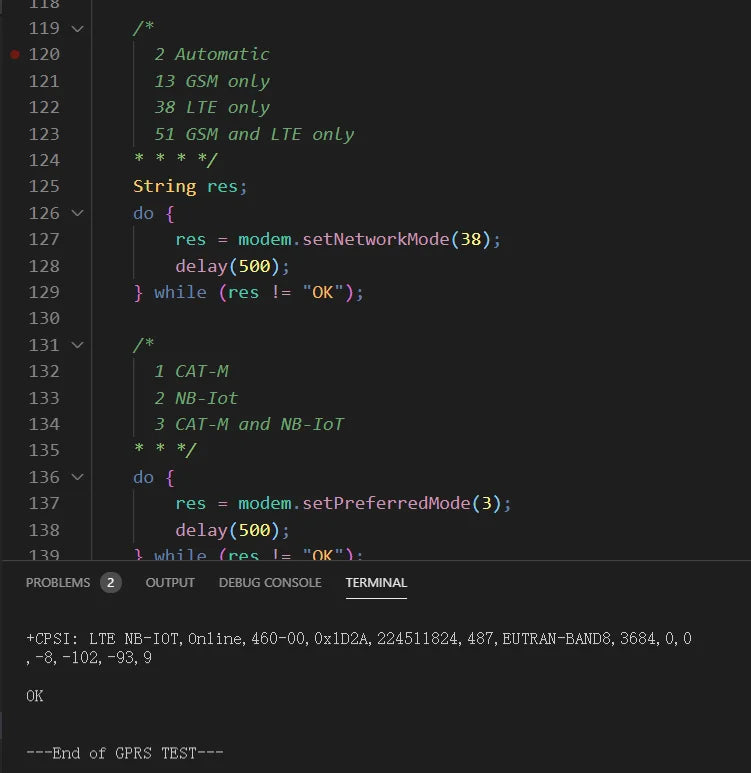

Arduino_TinyGSM/AllFunctions.ino, you only need to changemodem.setNetworkMode(38);to the corresponding number, and your network access speed depends on the carrier of the SIM card you use. Before using it, you can communicate with the operator of your SIM card.The effect is as follows:

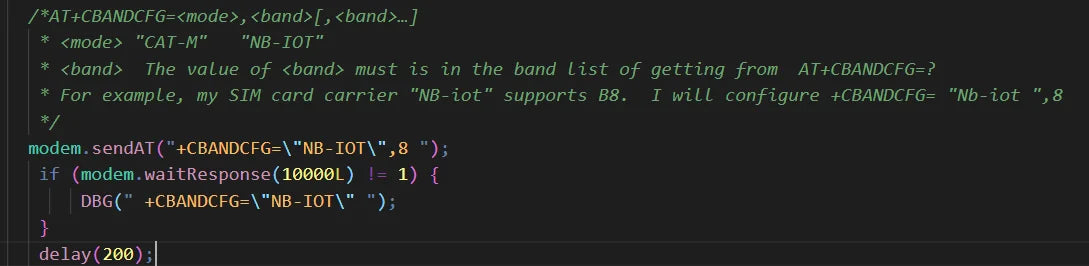

11. The initial network registration may be slow. Please be patient. You can configure the locked band as shown in the following figure.
12. How to update firmware?
Upgrade guidelines
