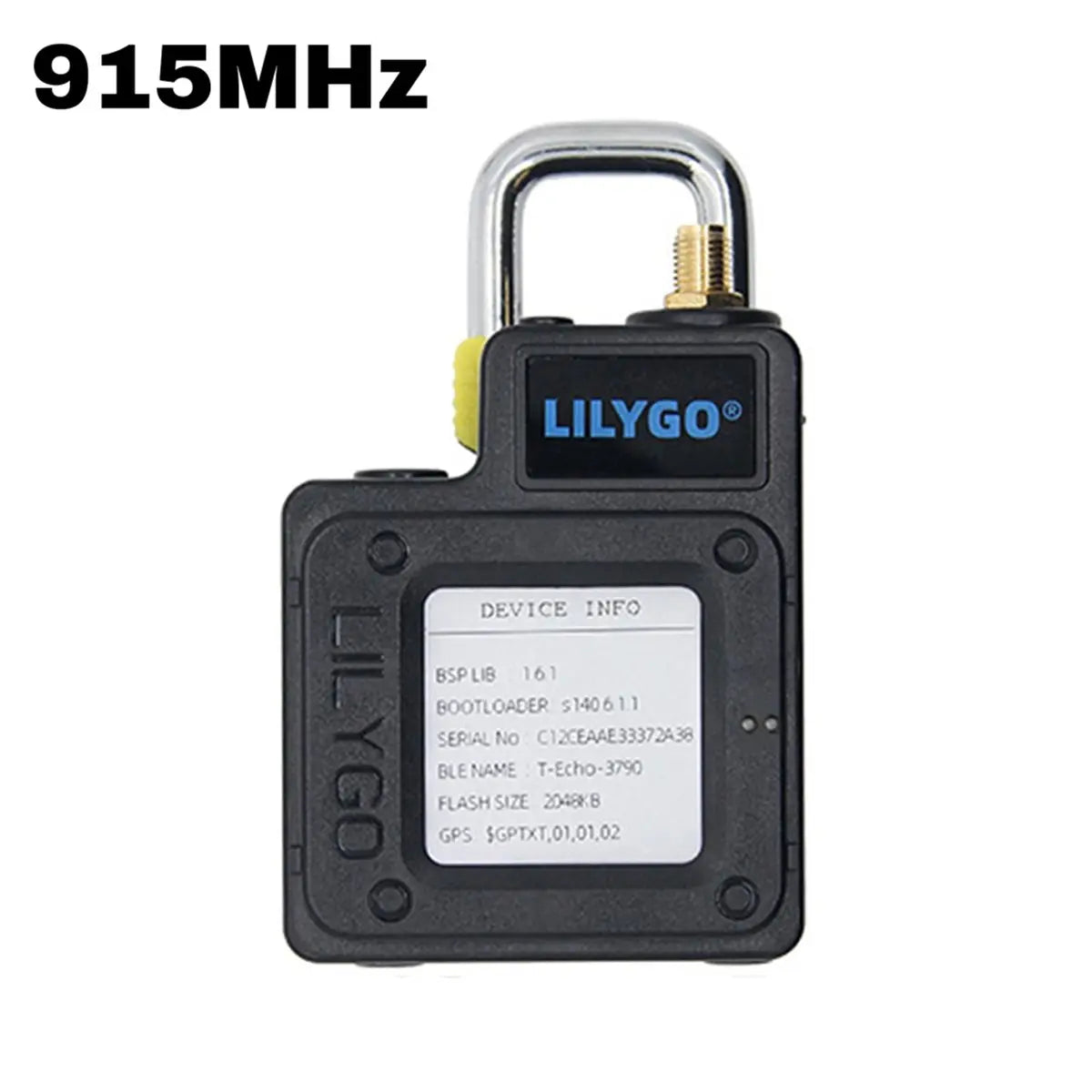

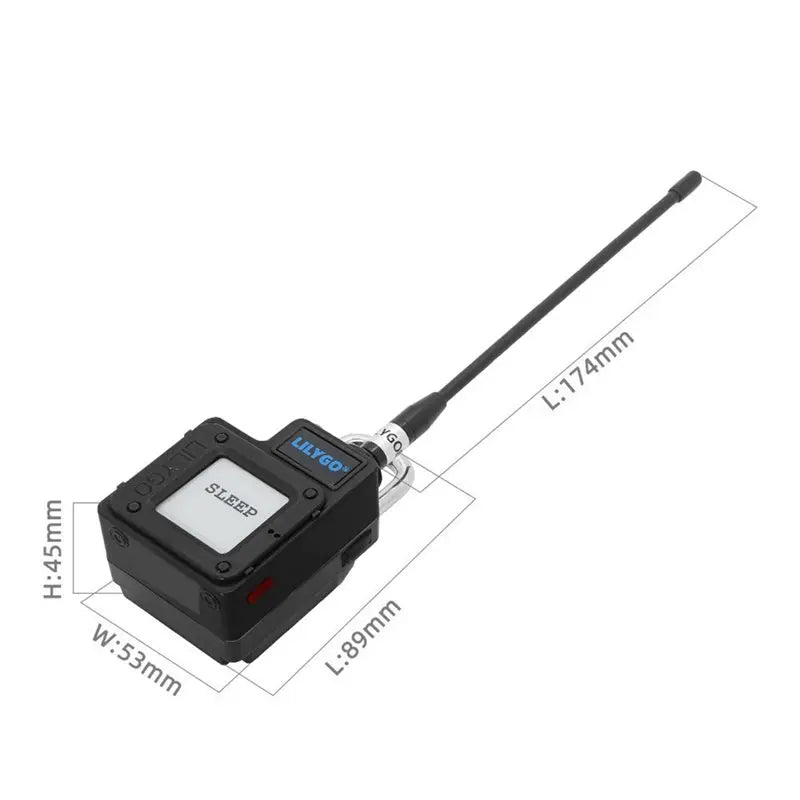

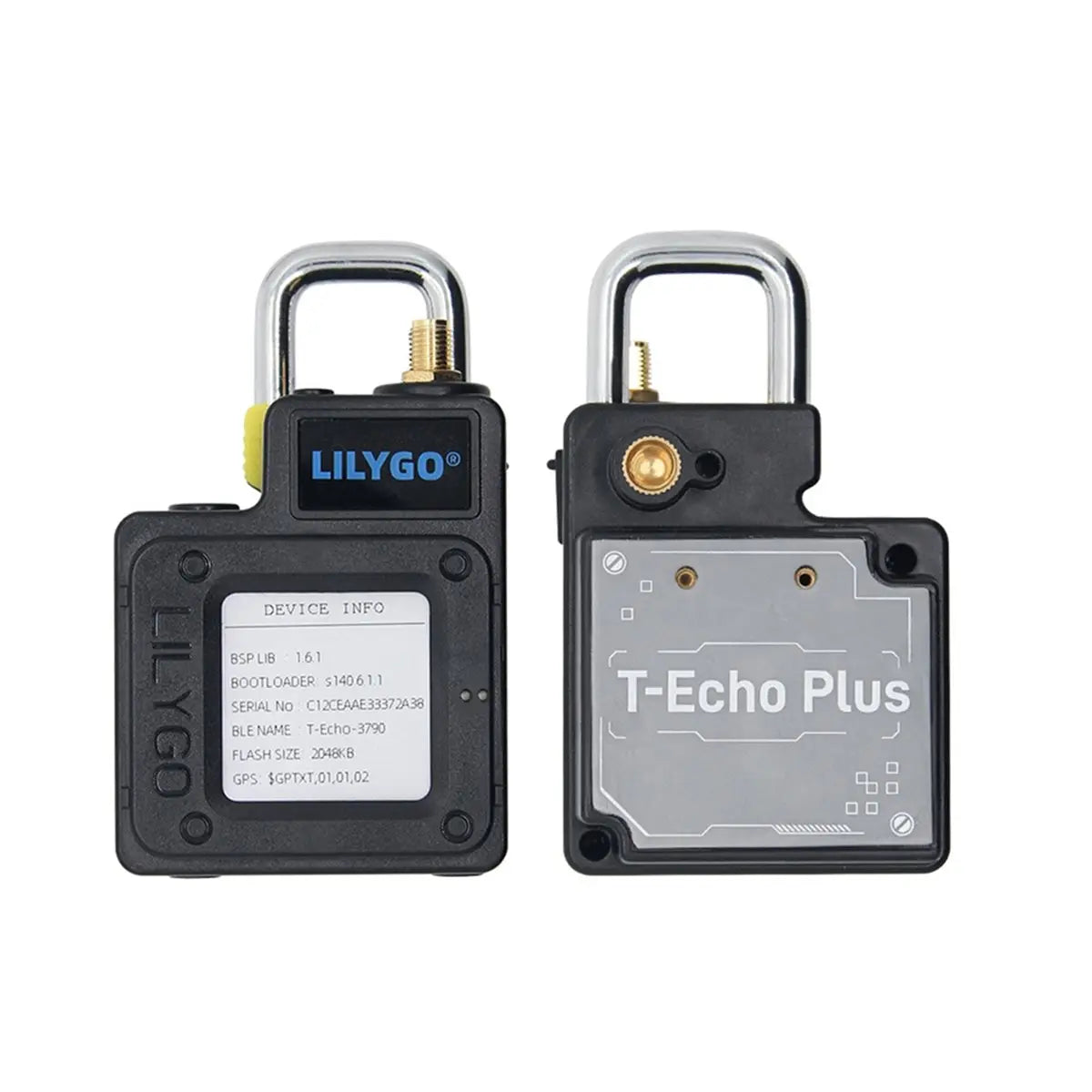

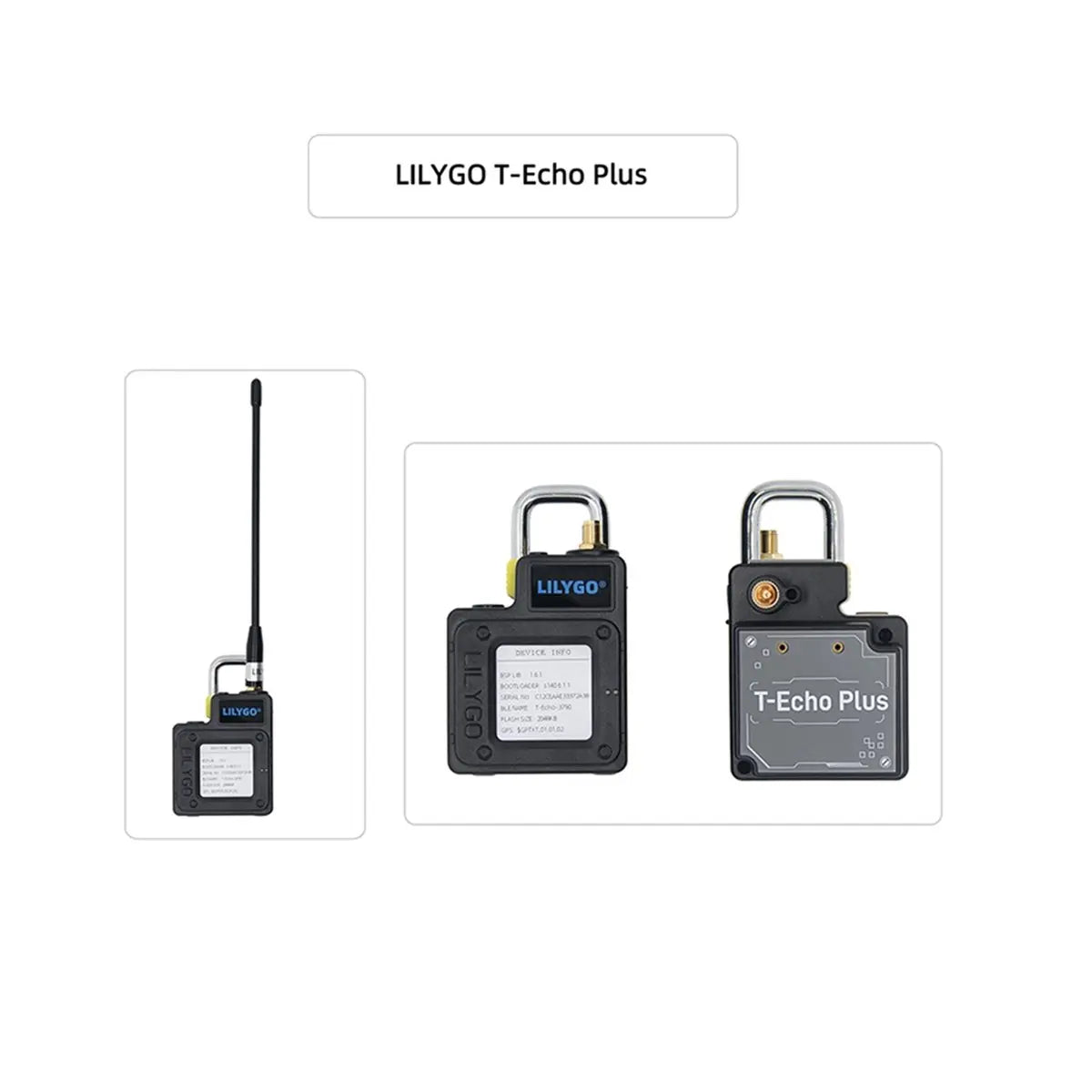

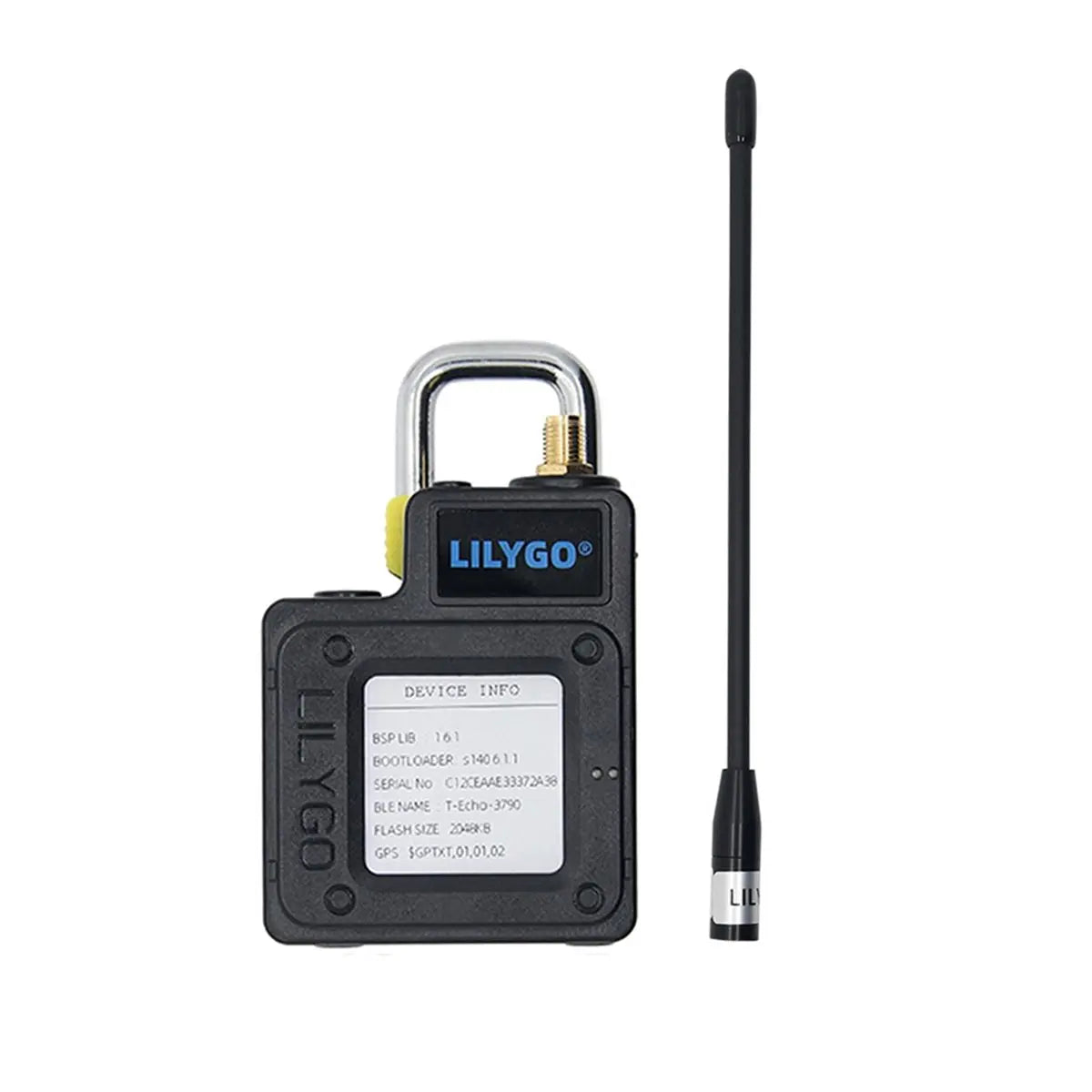

LILYGO TTGO Meshtastic T-Echo Plus SX1262 L76K Lora Wireless Module W/Buzzer BHI260AP 1.54 E-Paper GNSS RTC NRF52840
As Shown 915MHz
$483.72
Sale price
$483.72
Regular price
$0.00
Skip to product information
LILYGO TTGO Meshtastic T-Echo Plus SX1262 L76K Lora Wireless Module W/Buzzer BHI260AP 1.54 E-Paper GNSS RTC NRF52840
$483.72
Sale price
$483.72
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Compatible Audio & Video Equipment Style: Amplifier
Electronic: no
High-concerned chemical: none
Origin: Mainland China
Specification 1: Meshtastic TEcho Plus L76K LoRa
Specification 2: NRF52840 SX1262 LoRa
Specification 3: Meshtastic TEcho Plus L76K LoRa
Specification 4: L76K LoRa SX1262 Wireless Module
Specification 5: Meshtastic TEcho Plus Module
Type: IR
LILYGO TTGO Meshtastic T-Echo Plus SX1262 L76K Lora Wireless Module W/Buzzer BHI260AP 1.54 E-Paper GNSS RTC NRF52840

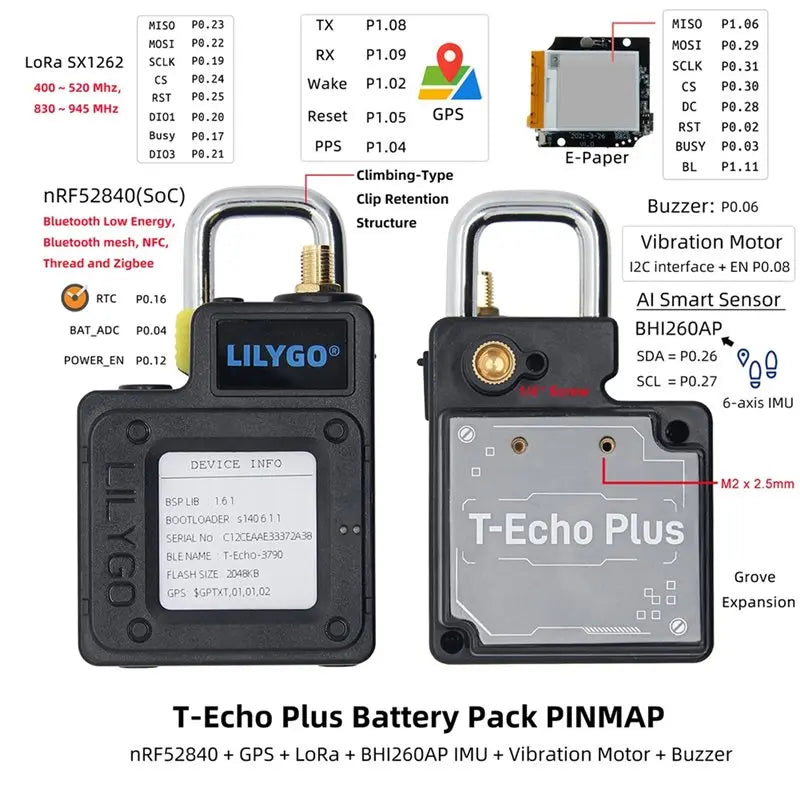

MCU: NRF52840
FLASH: 2MB
RAM: 256kB
Bus protocols: UART, SPI, TWI, PDM, I2S, QSPI
Wireless communication: Bluetooth 5, Thread Bluetooth Mesh, ANT, 802.15.4, Zigbee Expandable BME280 digital humidity, pressure, and temperature sensor
Global frequency coverage: 400-520, 830-945 MHz
1.54-inch SPI e-ink screen Resolution: 200x200
All refresh times: 2 seconds
L76K Multi-System Positioning GNSS Module: GPS/GLONASS/ QZSS
Plus version new features: BHI260AP IMU + Vibrations Motor + 2400mAh Battery + Buzzer
Color:As Shown
Material:ABS
Specification:915MHz/868MHz
Package Contents:
1 * Meshtastic T-Echo Plus L76K LoRa Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
FLASH: 2MB
RAM: 256kB
Bus protocols: UART, SPI, TWI, PDM, I2S, QSPI
Wireless communication: Bluetooth 5, Thread Bluetooth Mesh, ANT, 802.15.4, Zigbee Expandable BME280 digital humidity, pressure, and temperature sensor
Global frequency coverage: 400-520, 830-945 MHz
1.54-inch SPI e-ink screen Resolution: 200x200
All refresh times: 2 seconds
L76K Multi-System Positioning GNSS Module: GPS/GLONASS/ QZSS
Plus version new features: BHI260AP IMU + Vibrations Motor + 2400mAh Battery + Buzzer
Color:As Shown
Material:ABS
Specification:915MHz/868MHz
Package Contents:
1 * Meshtastic T-Echo Plus L76K LoRa Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
