LIN 2.1/SAE J2602 Transceiver LIN Bus Module Master-Slave Protocol Controller 20KBD UART TTL232 RS485 K-line Can Data Analyzer
Default Title
$26.04
Sale price
$26.04
Regular price
$0.00
Skip to product information
1.Description:
It is a TTL_UART to LIN bus module.The module uses TJA1021 IC.It is mainly used for communication monitoring and maintenance of LIN bus equipment.
2.Feature:
1 Pure data signal conversion
2 Its data is stable
3 It has a green power indicator that shows the working status.
4 It can monitor and maintain LIN bus device communication.
3.Description:
1 Product Name:TTL_UART to LIN Bus Module
2 Product Chip:TJA1021
(Has been changed to fully compatible and more stable performance SIT1021T)
3 Working Voltage:DC 12V/24V
4 Work Temperature:-25℃~85℃
5 Work Humidity:5%~95%RH

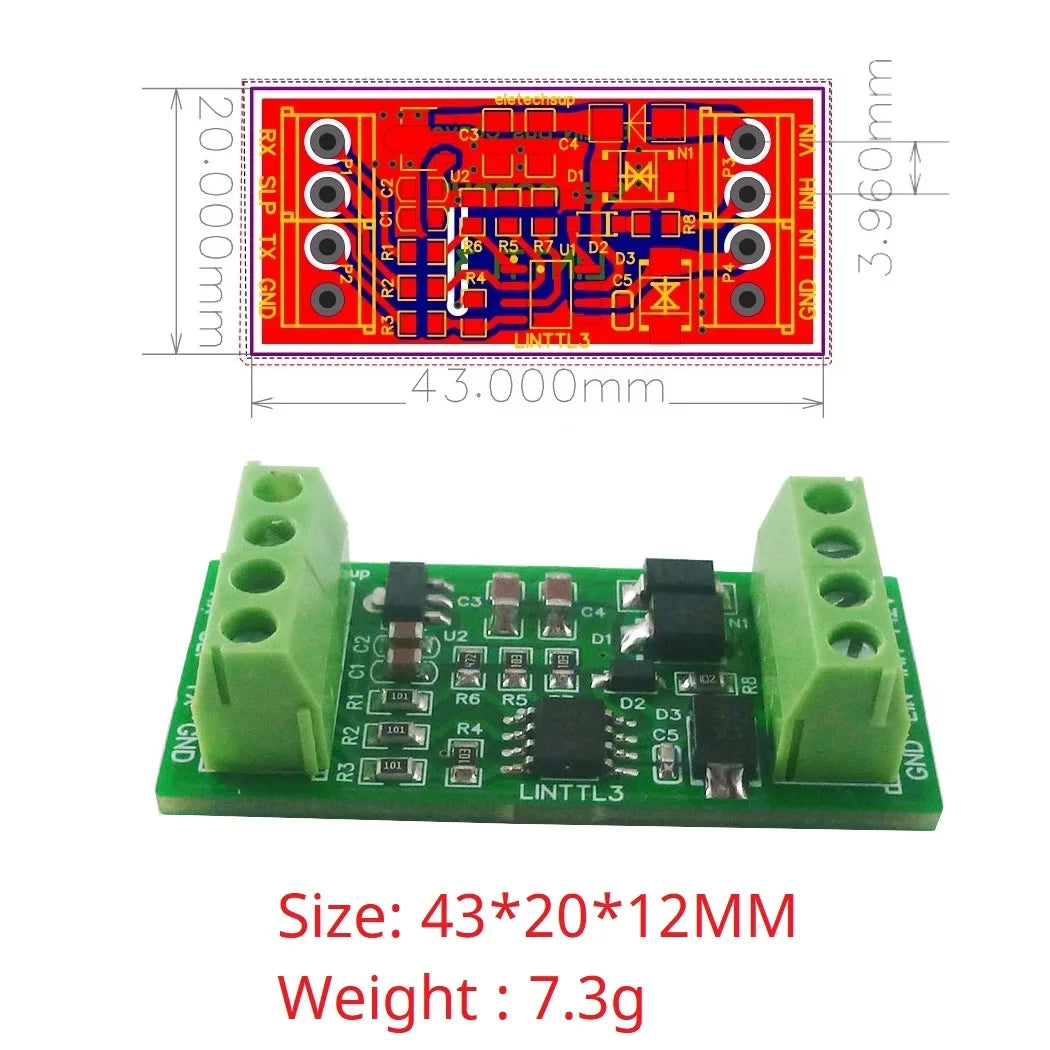

6 Size:43*20*12mm
7 Weight : 7.3g
4.Specific Function Introduction:
1 The measured baud rate of the module can reach 57600bps,and the recommended maximum operating frequency is less than 20Kbps.
2 This module is just a level conversion module and does not participate in conversion analysis such as software protocols.
3 When the module is connected to the computer's COM port,the computer can receive data,but it cannot communicate with your slave device as a host.The computer's com port cannot generate the 13-bit start bit in the LIN protocol,but it can be connected to a development board such as a microcontroller.
4 Power supply anti-reverse connection protection, LIN bus anti-surge protection
6 Compatible with 3.3V/5V microcontroller system

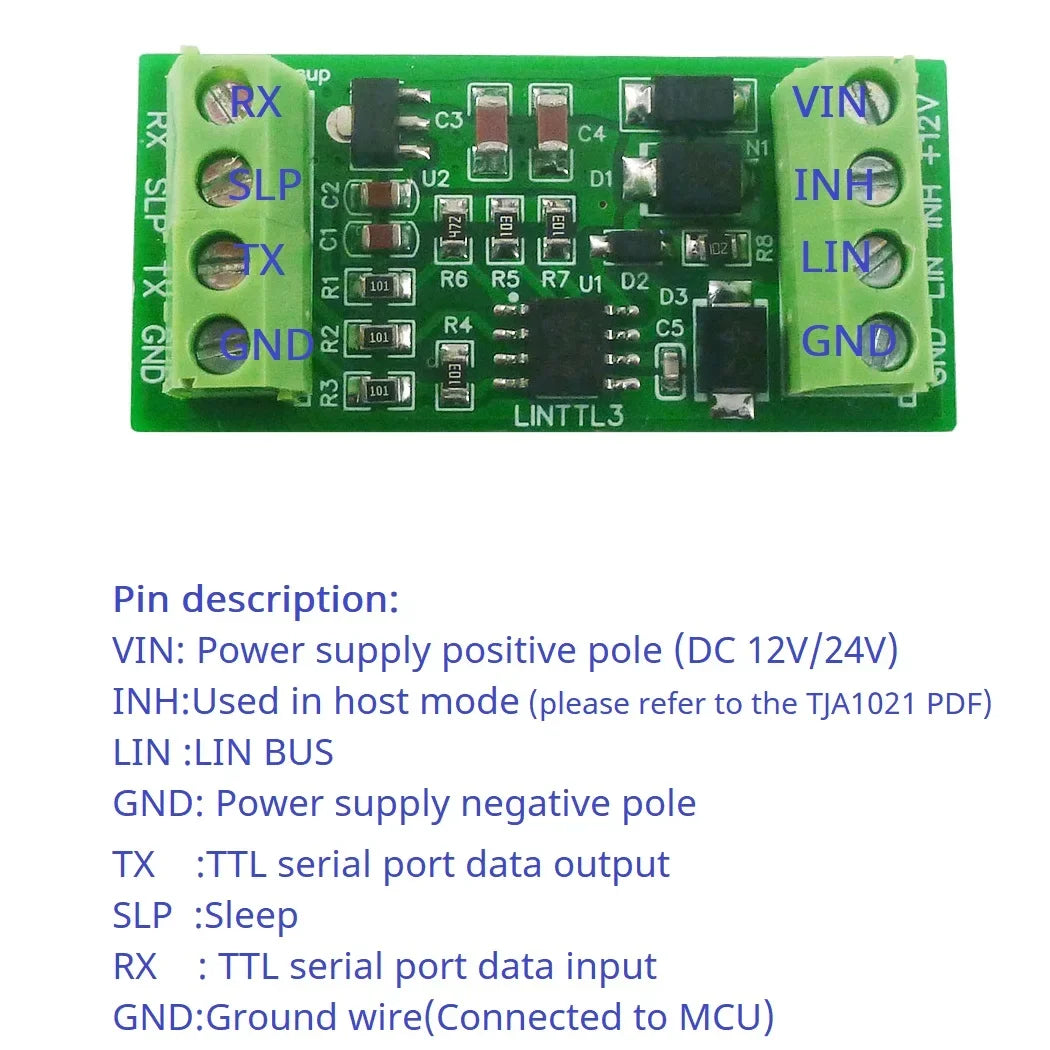

Pin description:
VIN: Power supply positive pole (DC 12V/24V)
INH:Used in host mode (please refer to the TJA1021 PDF)
LIN :LIN BUS
GND: Power supply negative pole
TX :TTL serial port data output
SLP :Sleep
RX : TTL serial port data input
GND:Ground wire(Connected to MCU)
5.Package:
1pcs TTL_UART to LIN Bus Module(Upgraded version)
LIN 2.1/SAE J2602 Transceiver LIN Bus Module Master-Slave Protocol Controller 20KBD UART TTL232 RS485 K-line Can Data Analyzer
$26.04
Sale price
$26.04
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
High-concerned chemical: none
Origin: Mainland China
Output Current: 10MA
Output Frequency: 20Khz
Output Type: SINGLE
Size: 43*21*13MM
The Correct Product Manual: https://1drv.ms/u/c/f5c7cfff112f0ffe/Ef4PLxH_z8cggPVBQwAAAAABw-66IR-wvReowF5Ftlu-WA?e=Krr11t
Type: DC/DC Converters
Weight: 7.5g
is_customized: Yes
1.Description:
It is a TTL_UART to LIN bus module.The module uses TJA1021 IC.It is mainly used for communication monitoring and maintenance of LIN bus equipment.
2.Feature:
1 Pure data signal conversion
2 Its data is stable
3 It has a green power indicator that shows the working status.
4 It can monitor and maintain LIN bus device communication.
3.Description:
1 Product Name:TTL_UART to LIN Bus Module
2 Product Chip:TJA1021
(Has been changed to fully compatible and more stable performance SIT1021T)
3 Working Voltage:DC 12V/24V
4 Work Temperature:-25℃~85℃
5 Work Humidity:5%~95%RH
6 Size:43*20*12mm
7 Weight : 7.3g
4.Specific Function Introduction:
1 The measured baud rate of the module can reach 57600bps,and the recommended maximum operating frequency is less than 20Kbps.
2 This module is just a level conversion module and does not participate in conversion analysis such as software protocols.
3 When the module is connected to the computer's COM port,the computer can receive data,but it cannot communicate with your slave device as a host.The computer's com port cannot generate the 13-bit start bit in the LIN protocol,but it can be connected to a development board such as a microcontroller.
4 Power supply anti-reverse connection protection, LIN bus anti-surge protection
6 Compatible with 3.3V/5V microcontroller system
Pin description:
VIN: Power supply positive pole (DC 12V/24V)
INH:Used in host mode (please refer to the TJA1021 PDF)
LIN :LIN BUS
GND: Power supply negative pole
TX :TTL serial port data output
SLP :Sleep
RX : TTL serial port data input
GND:Ground wire(Connected to MCU)
5.Package:
1pcs TTL_UART to LIN Bus Module(Upgraded version)
