LIN Bus Analysis Controller USB to LIN Debugger LIN Bus Analyzer（1PCS）

LIN Bus Analysis Controller USB to LIN Debugger LIN Bus Analyzer（1PCS）

$80.20

$80.20 $0.00

Description

SPECIFICATIONS

Brand Name: DIYmall

Camera Equipped: No

Communication method: Other

Compatibility: All Compatible

High-concerned chemical: none

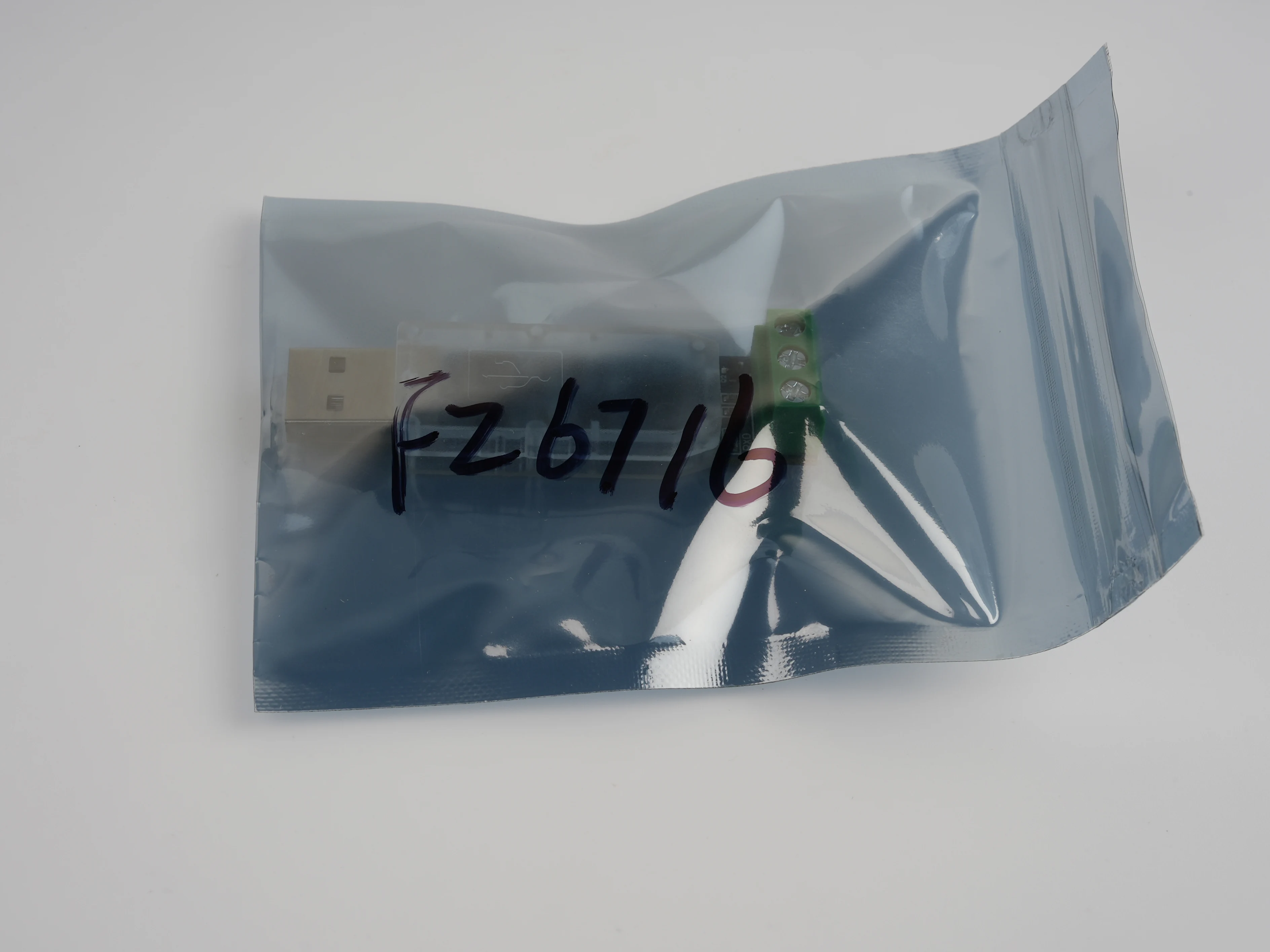

Model Number: FZ6716

Origin: Mainland China

State of Assembly: Ready-to-Go

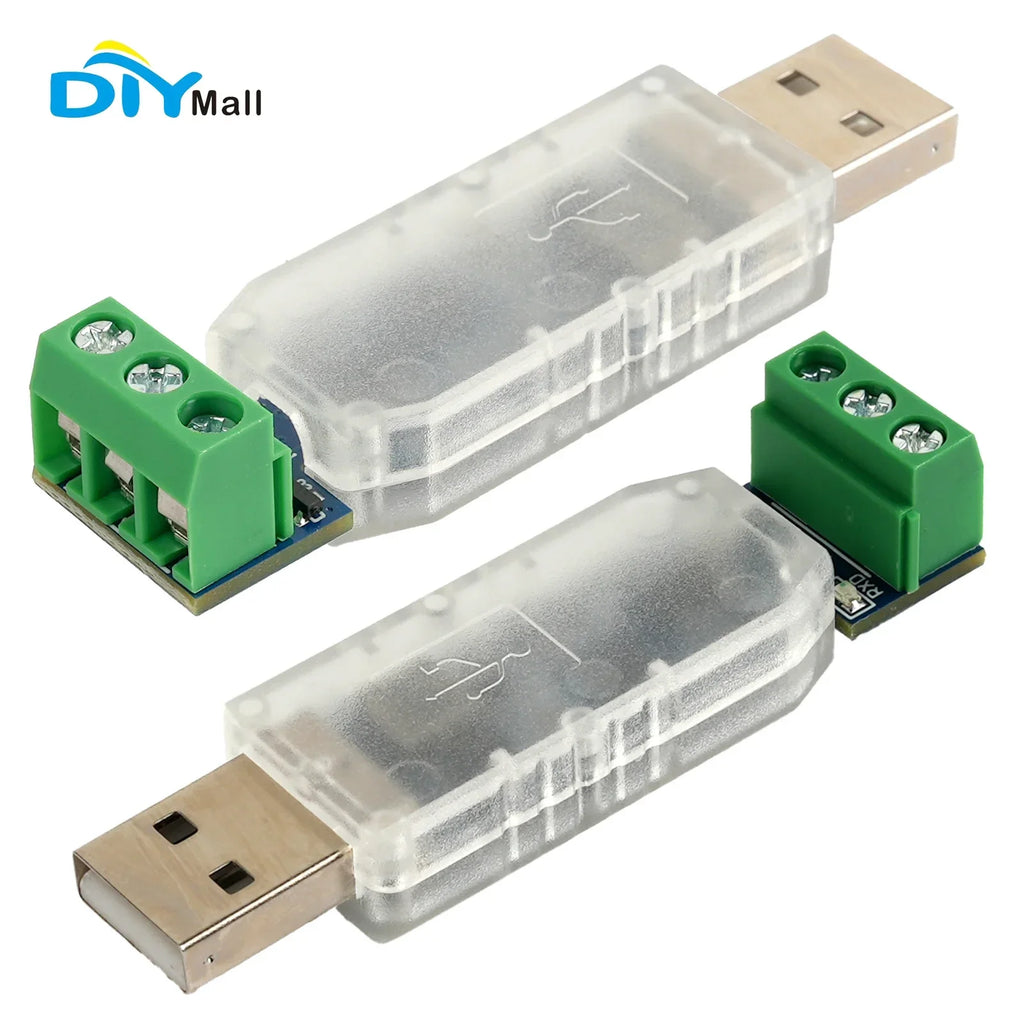

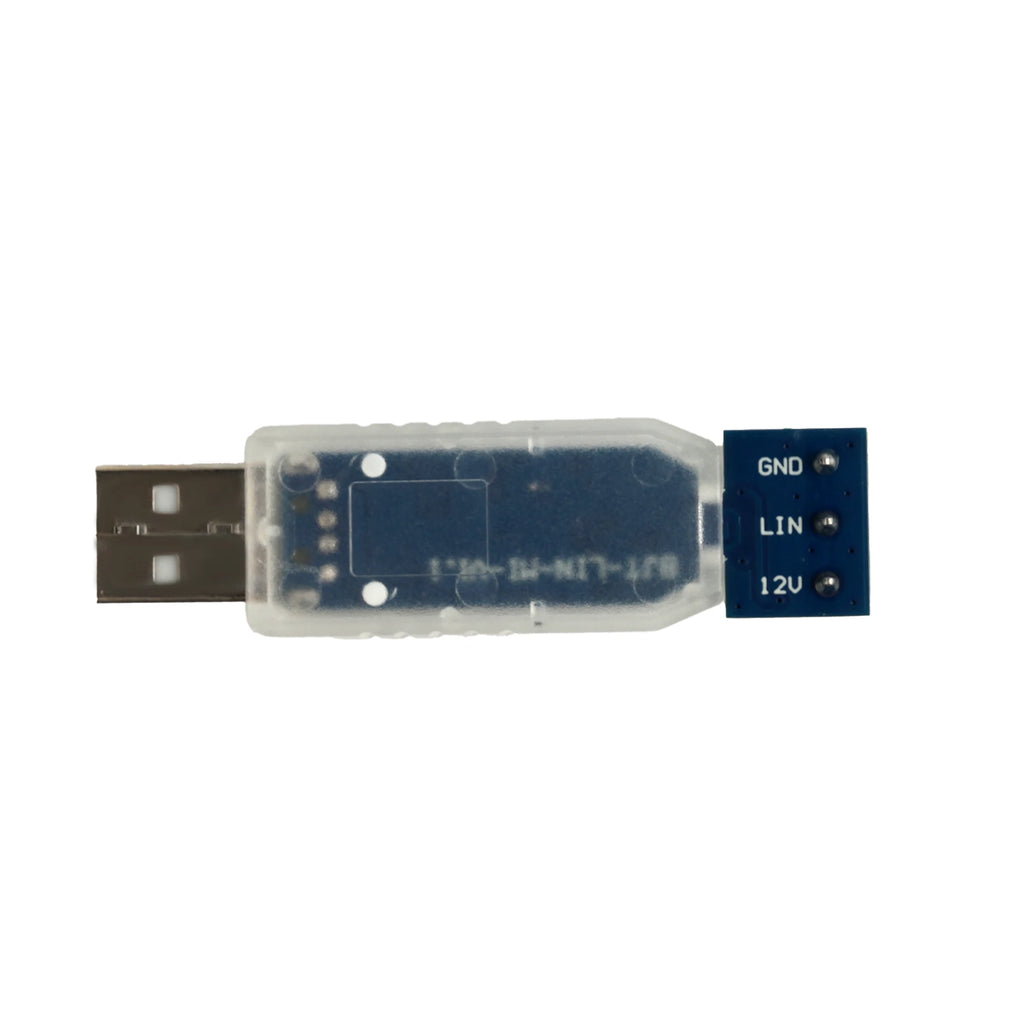

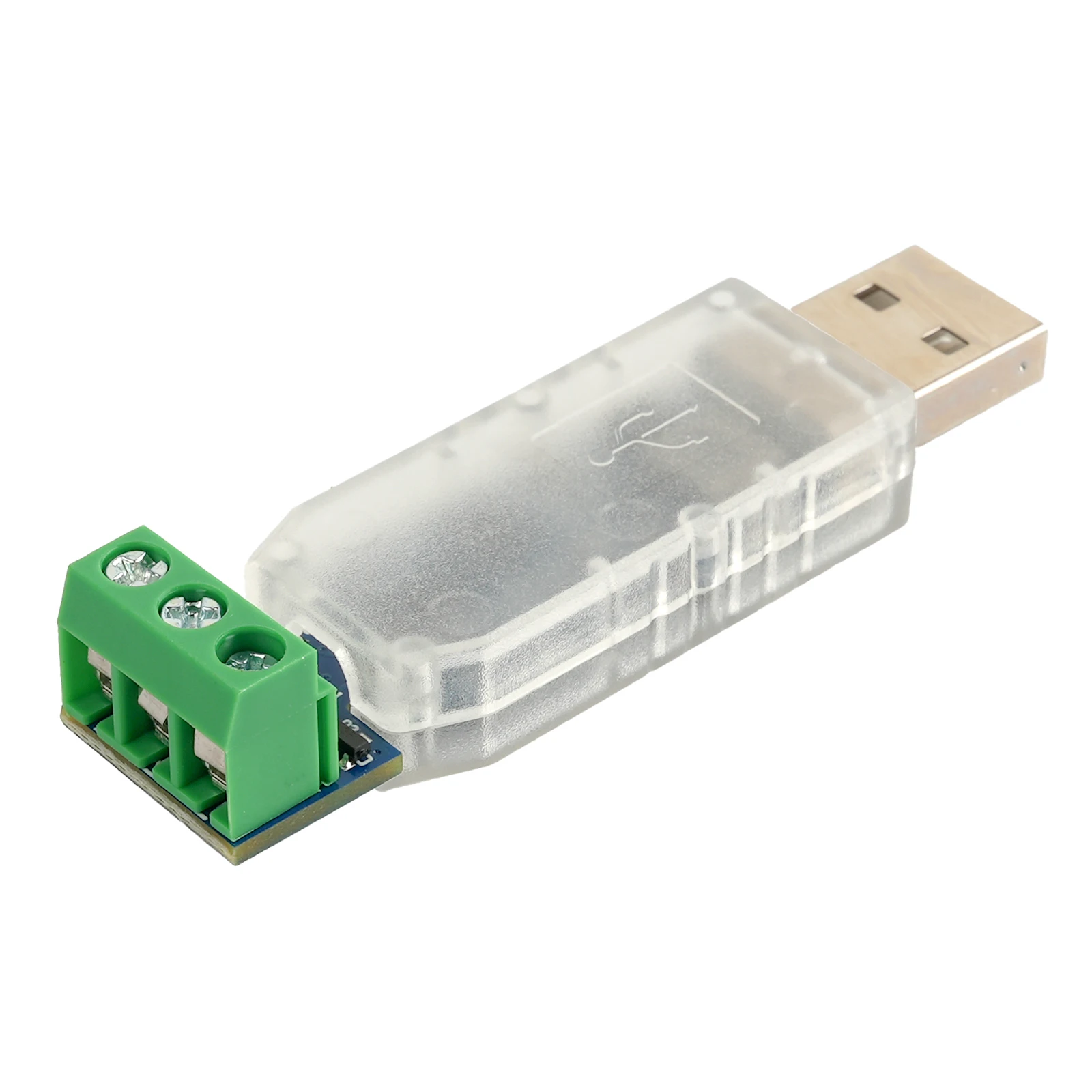

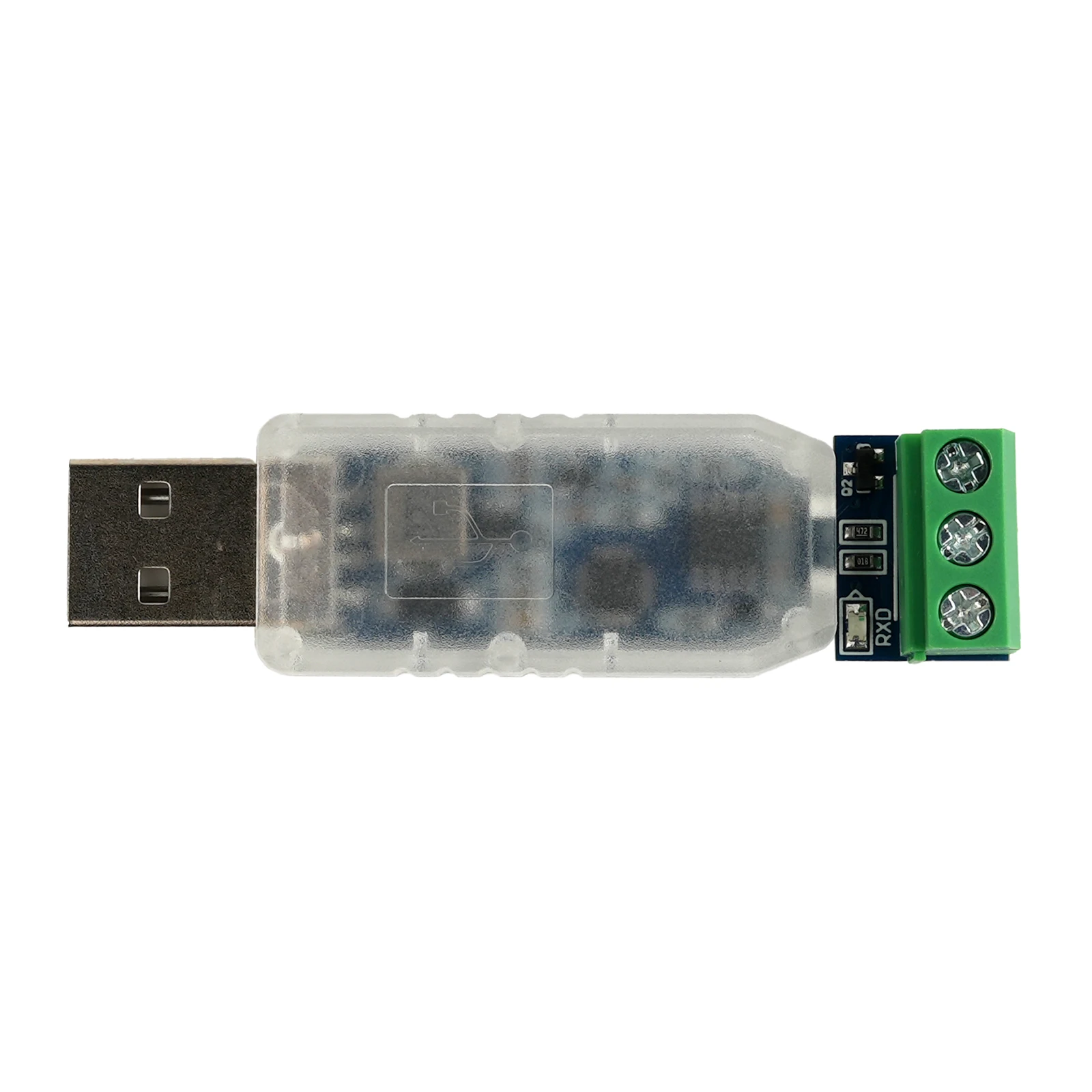

LIN bus analysis controller USB to LIN debugger LIN bus analyzer

Features:

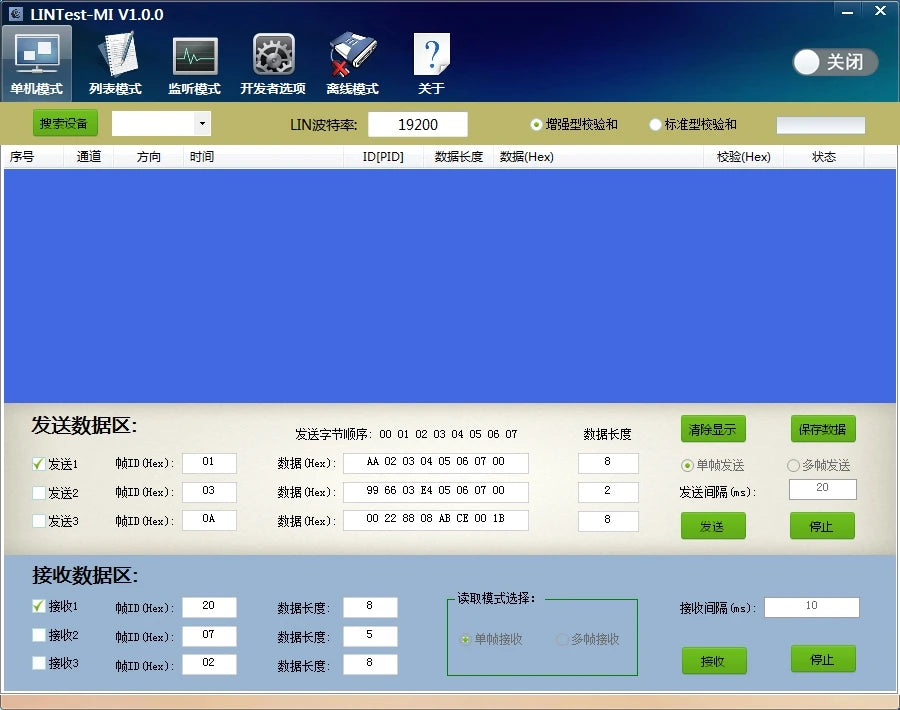

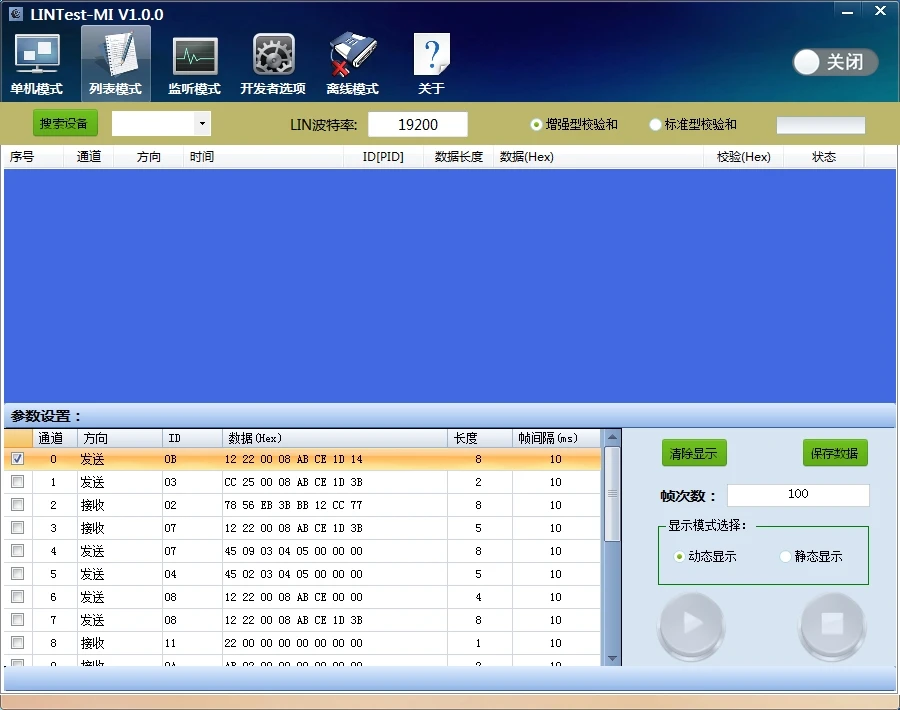

1. Support the host to send and receive LIN bus data.
2. Support the slave to send and receive LIN bus data (up to 16 channels supported).

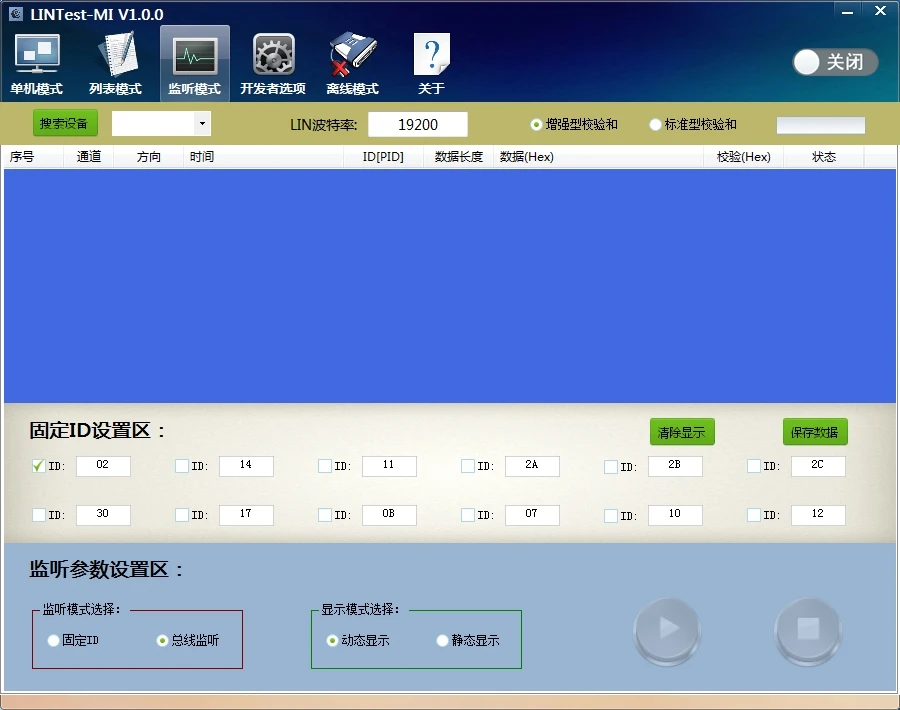

3. Support LIN bus data monitoring function.
4. Support LIN bus data playback.

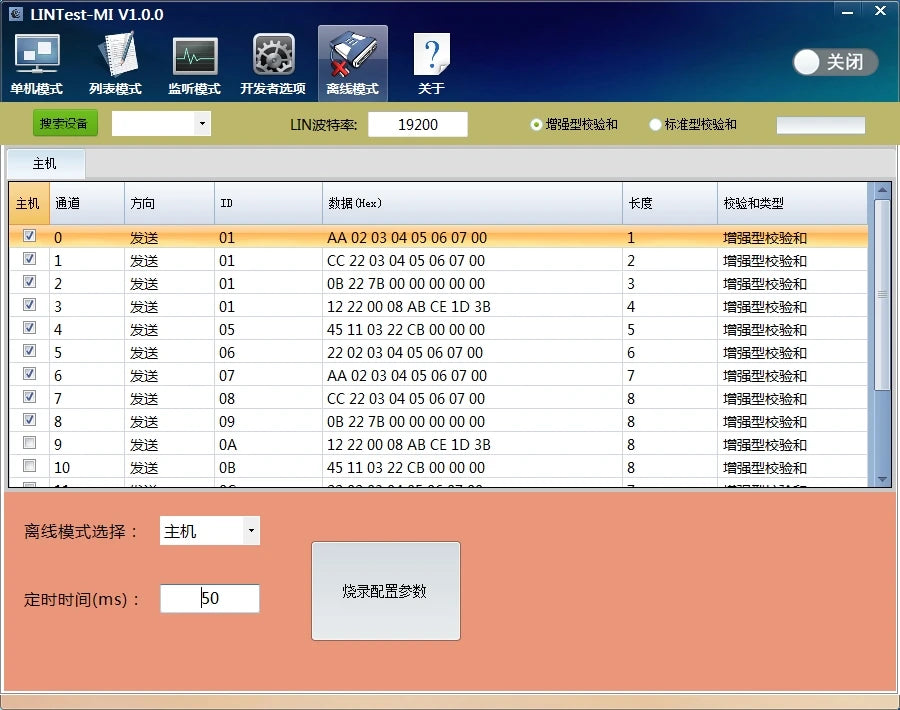

5. Supports offline sending function. You can burn messages (up to 16) through the host computer without using a computer. After connecting to the power bank for power, you can send LIN messages.
6.LIN baud rate range: 4800 to 20000bps, 19200bps is commonly used.

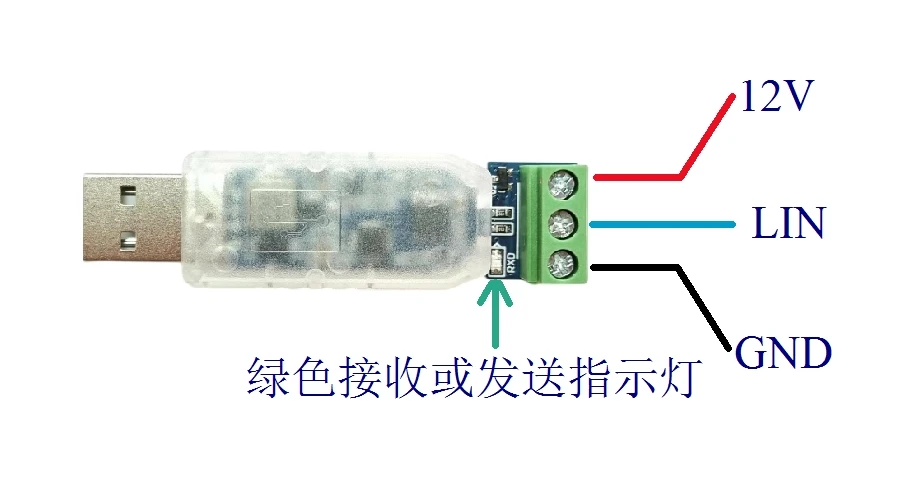

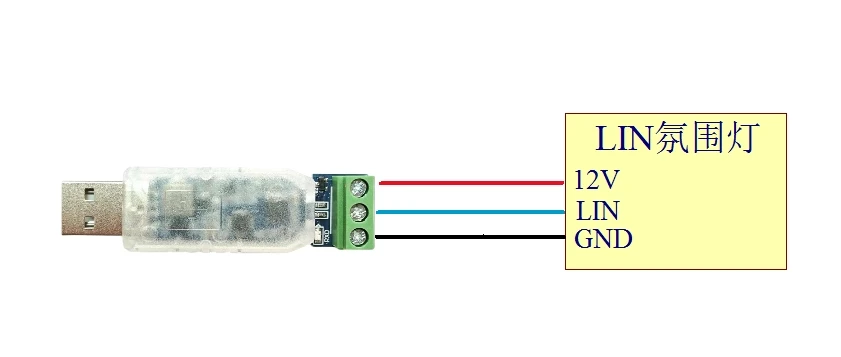

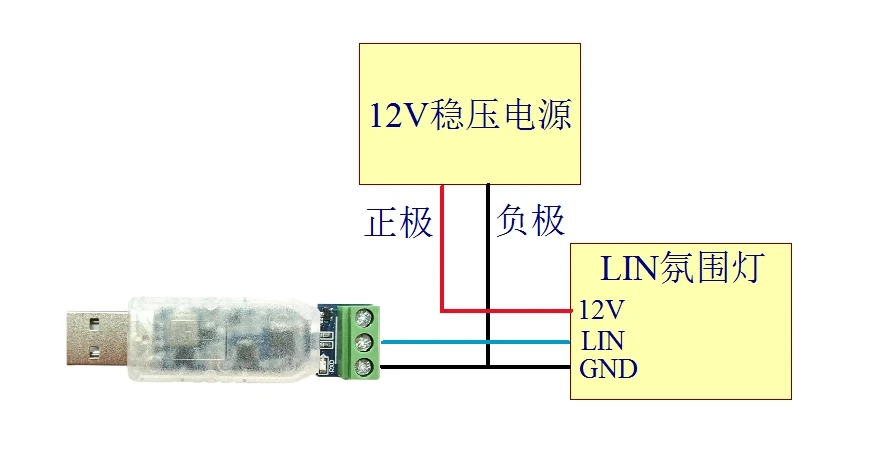

7.12V output, current up to 0.5A.
8.LIN protocol supports LIN 1.X, LIN 2.X.
9. Supports secondary development of the host computer. Secondary development requirements can be quickly completed by writing serial communication according to the serial communication protocol.

Note:

LINTest-MI does not support mobile APP control, does not support LDF files, and does not support baud rate identification. It is a low-end MINI version of LINTest-M and is mostly used in auto repair and LIN communication offline control fields that require high cost performance.

Please contact customer service to obtain software and secondary development program materials, thank you very much for your understanding!
Alternatively, you can download through Baidu Netdisk:
https://pan.baidu.com/s/1_Ojn18kR1aRvnqJFltdLjg?pwd=9o5b
