SPECIFICATIONS

Brand Name: VENGIM

Choice: yes

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 6012

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Electromagnetic Relay

Use: General Purpose

Voltage: 220V

is_customized: Yes

semi_Choice: yes

Liquid level control relays are regulators for conductive liquids that keep liquids within the limits between a maximum level and a minimum level and ensure the protection of submerged pumps against dry running. It can be used in wells, tanks...

Information:

– Power supply：①VG6112: 220V AC  ②VG6012: 24-240 AC/DC

– Frequency supply： 50/60 Hz

– Operating temperature：-20℃~+55℃

– Storage temperature：-30℃~+70℃

– Setting accuracy-full range：±10%

– Contacts type：1 C/O (SPDT)

– Output ontacts：5A/240 VAC,24 VDC (Resistive Load)

– Output type：relay

– Dimenssion：90×18×65mm

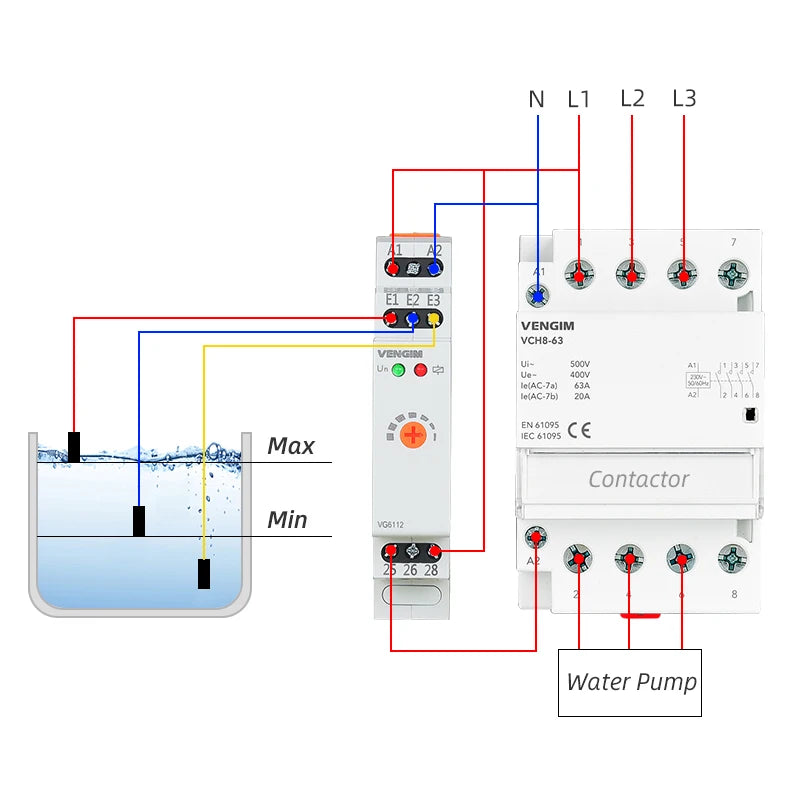

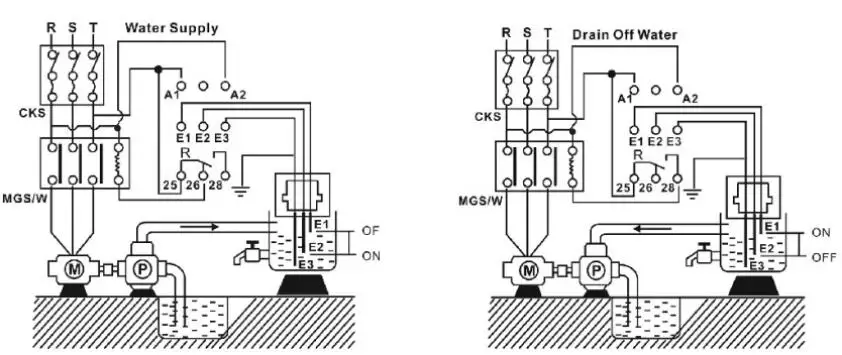

VG6112: Water Supply

When the water level reaches E1, the pump stops automatically.

When the water level drops below E2, the pump operates automatically.

VG6112: Drain Off Water

When the water level reaches E1, the pump starts automatically.

When the water level drops below E2, the pump stops automatically.

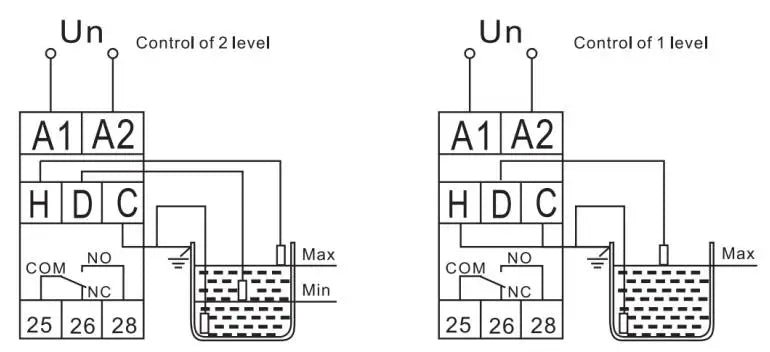

VG6012: Control of 2 level & Control of 1 level

Water supply: When the water level reaches H&D(2 level: H, 1 level: D), the pump stops working. When the water level drops below D, the delay starts(in 1 level). When the time is up, the pump starts working and supplies water.

Drain Off Water: When the water level reaches H&D(2 level: H, 1 level: D), the pump starts working and starts to drain. When the water level drops below D, the delay starts(in 1 level). When the time is up, the pump stops working and stops draining.

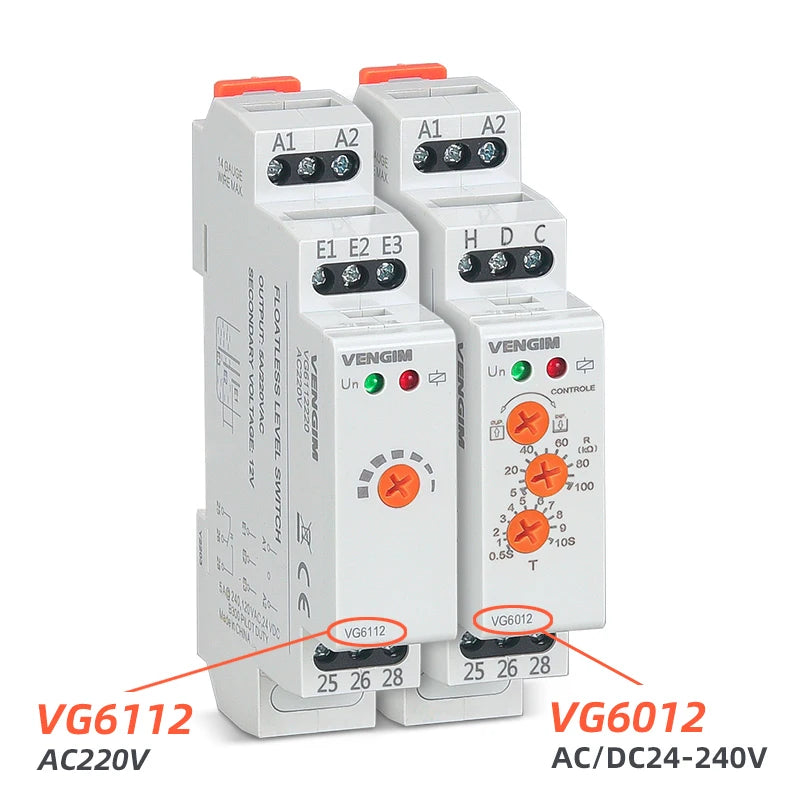

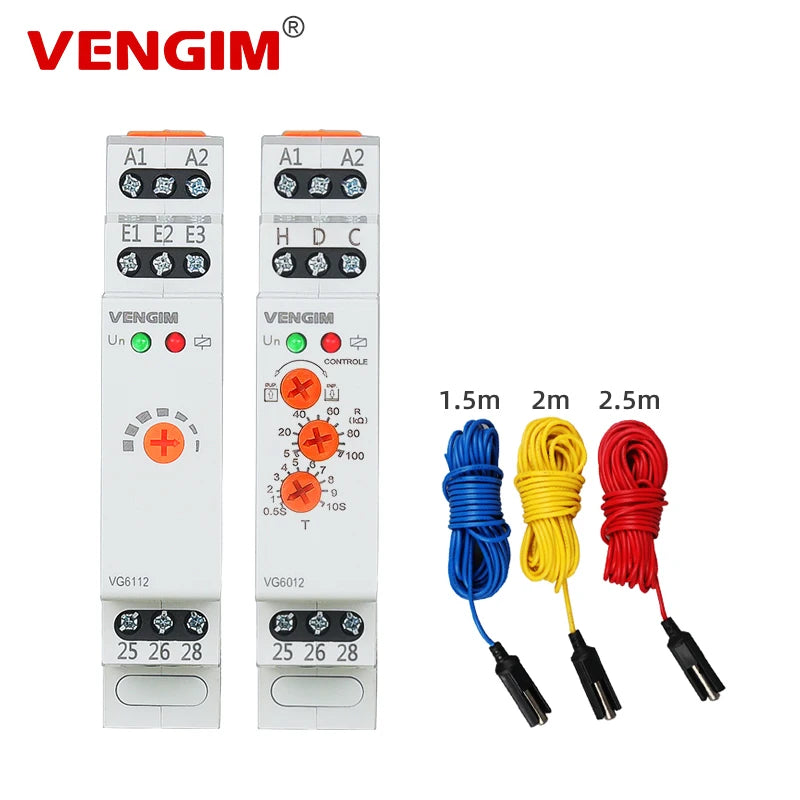

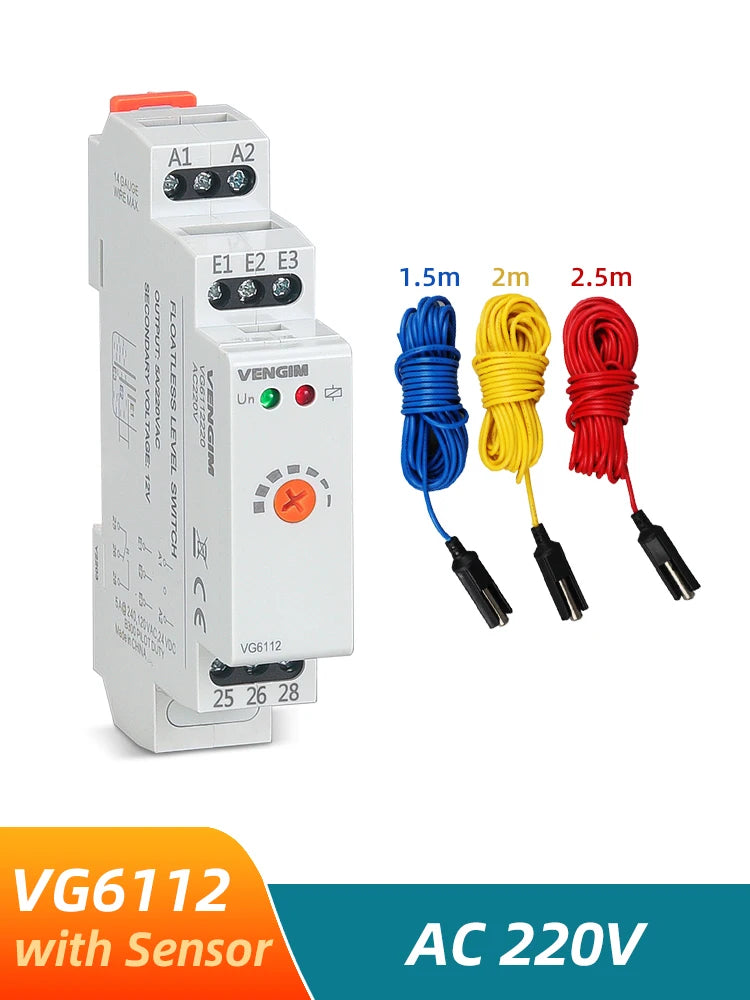

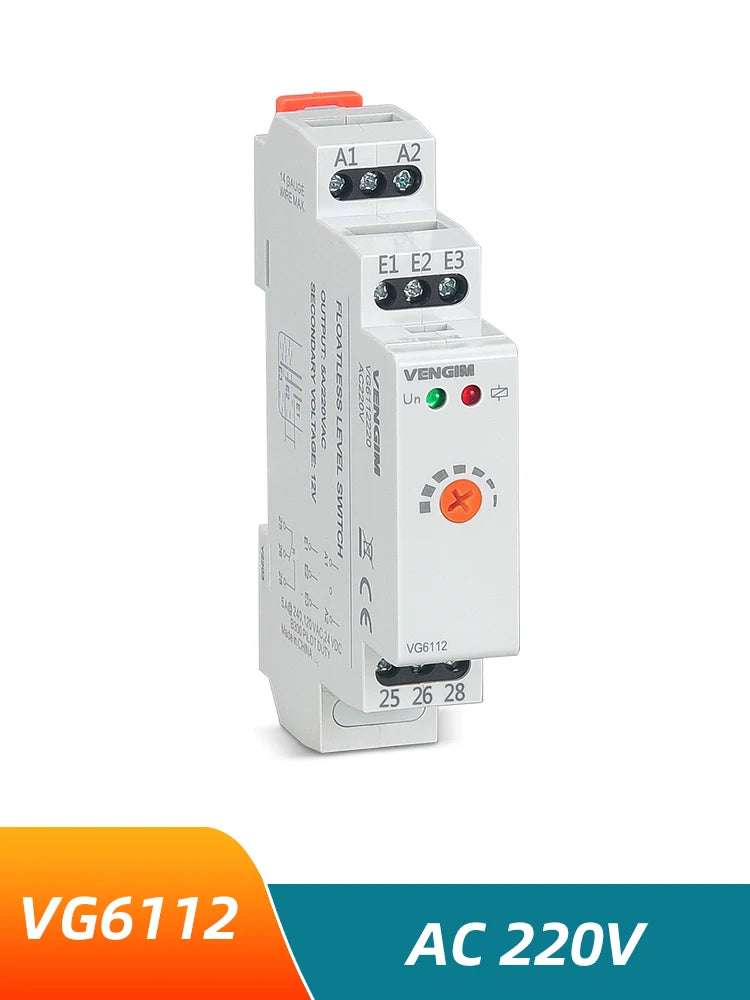

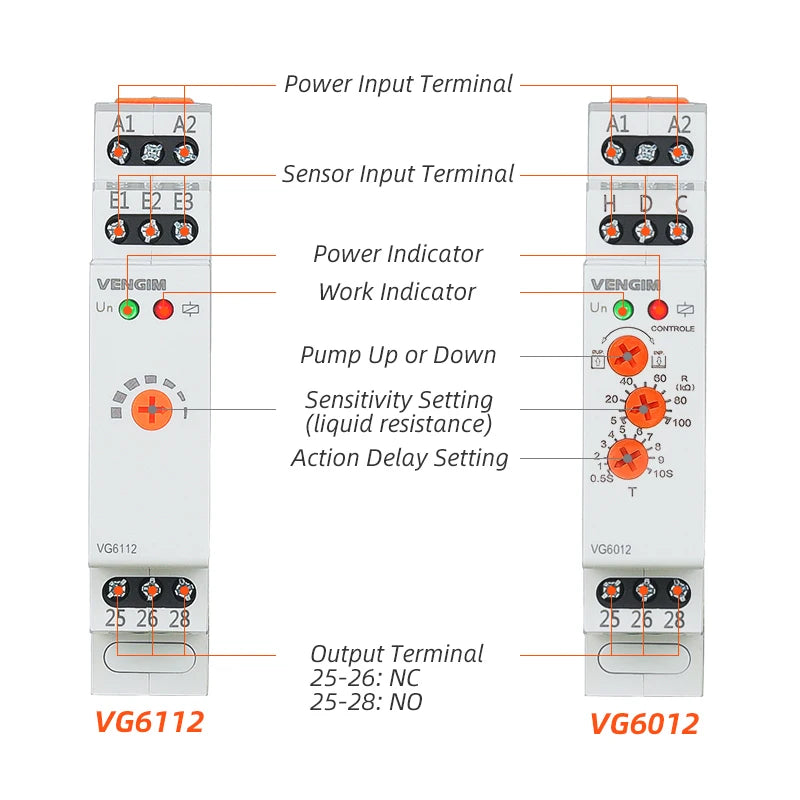

VG6112:

Power supply：220 VAC

Sensitivity Adjustable

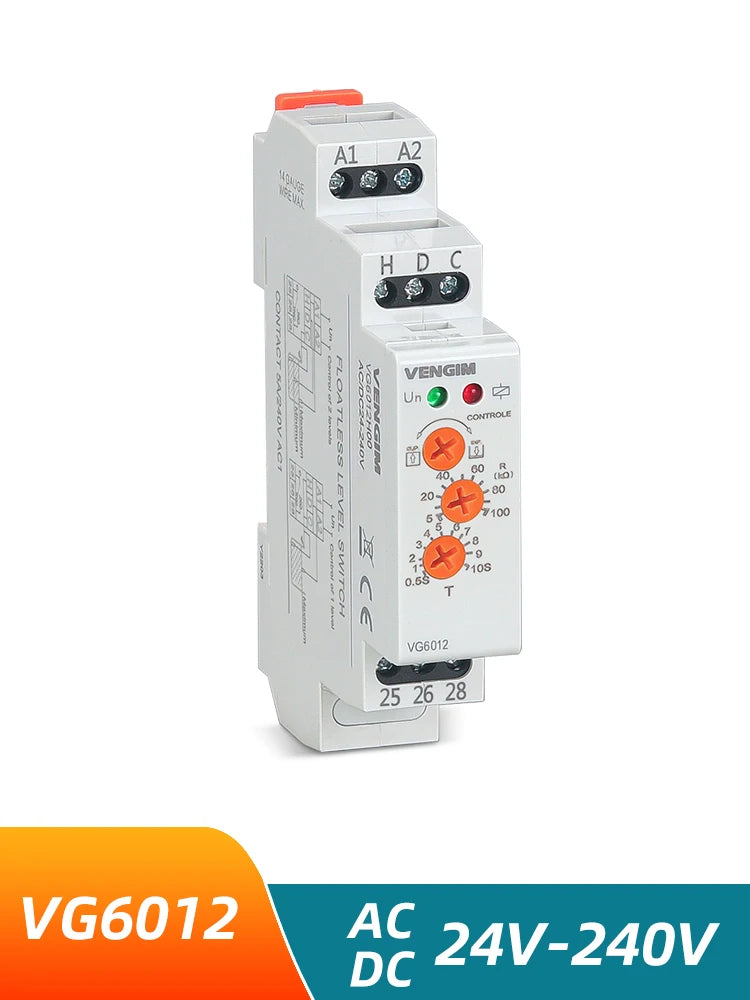

VG6012:

Rated supply voltage：24-240 VAC/DC

Function Adjustable： Pump up or down

Sensitivity Adjustable： 5-100 kΩ

Delay Adjustable： 0.5-10 seconds

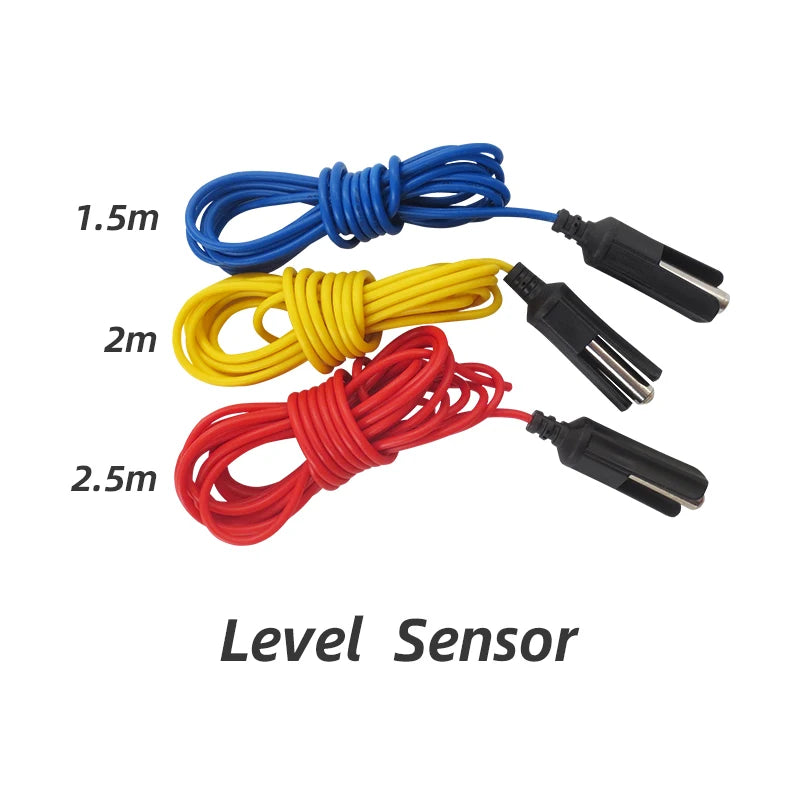

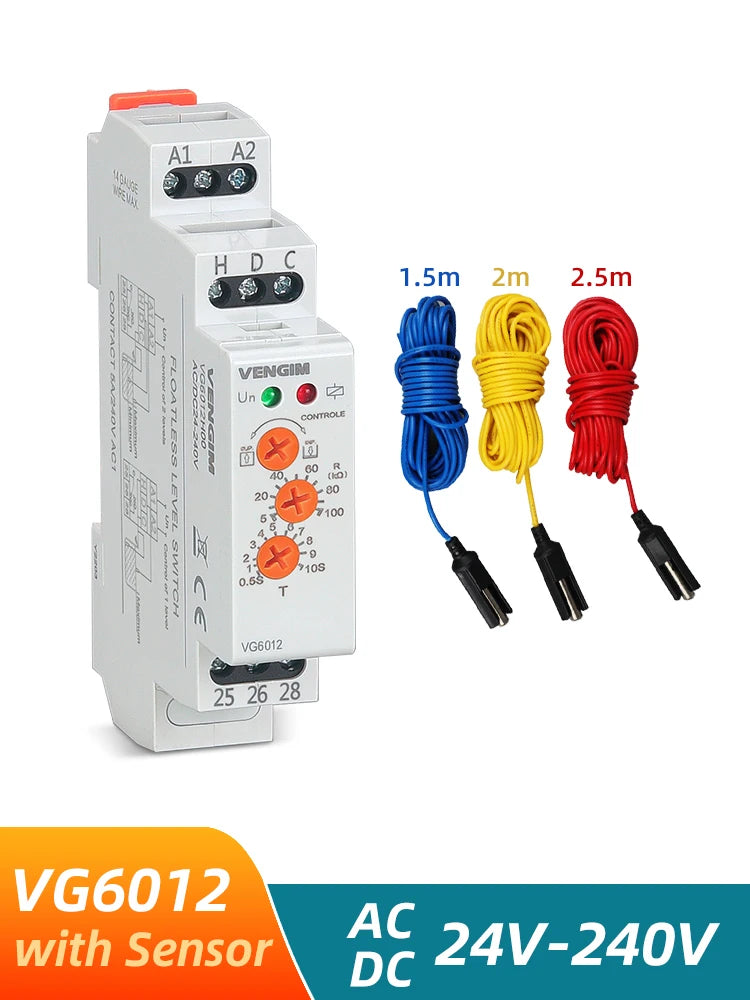

Liquid Level Sensor, Water Level Sensor

Material: Stainless Steel

Blue: 1.5m

Yellow: 2m

Red: 2.5m

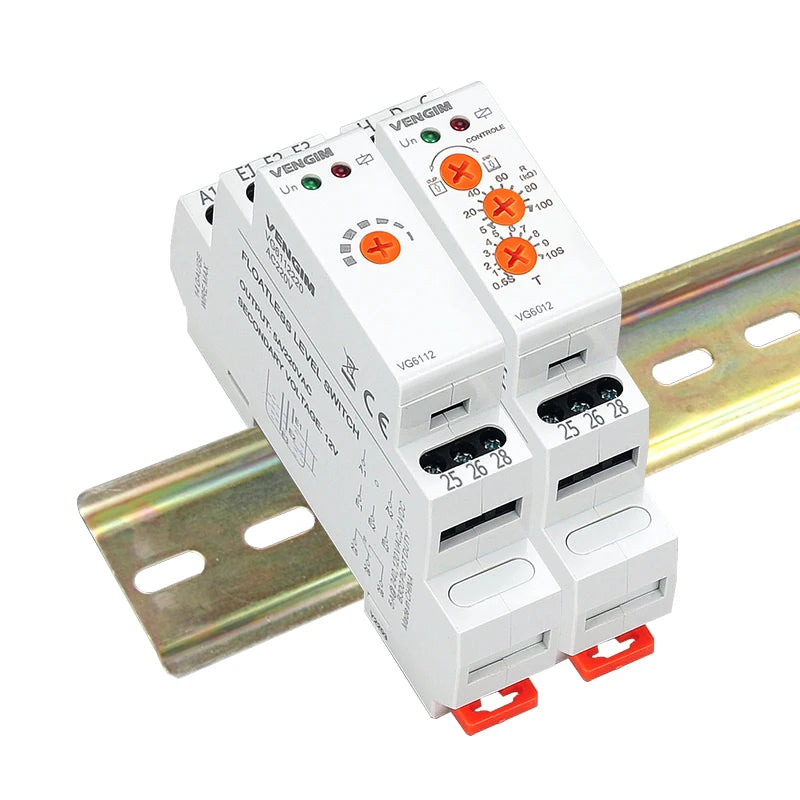

Din Rail Mounted
