SPECIFICATIONS

Features:

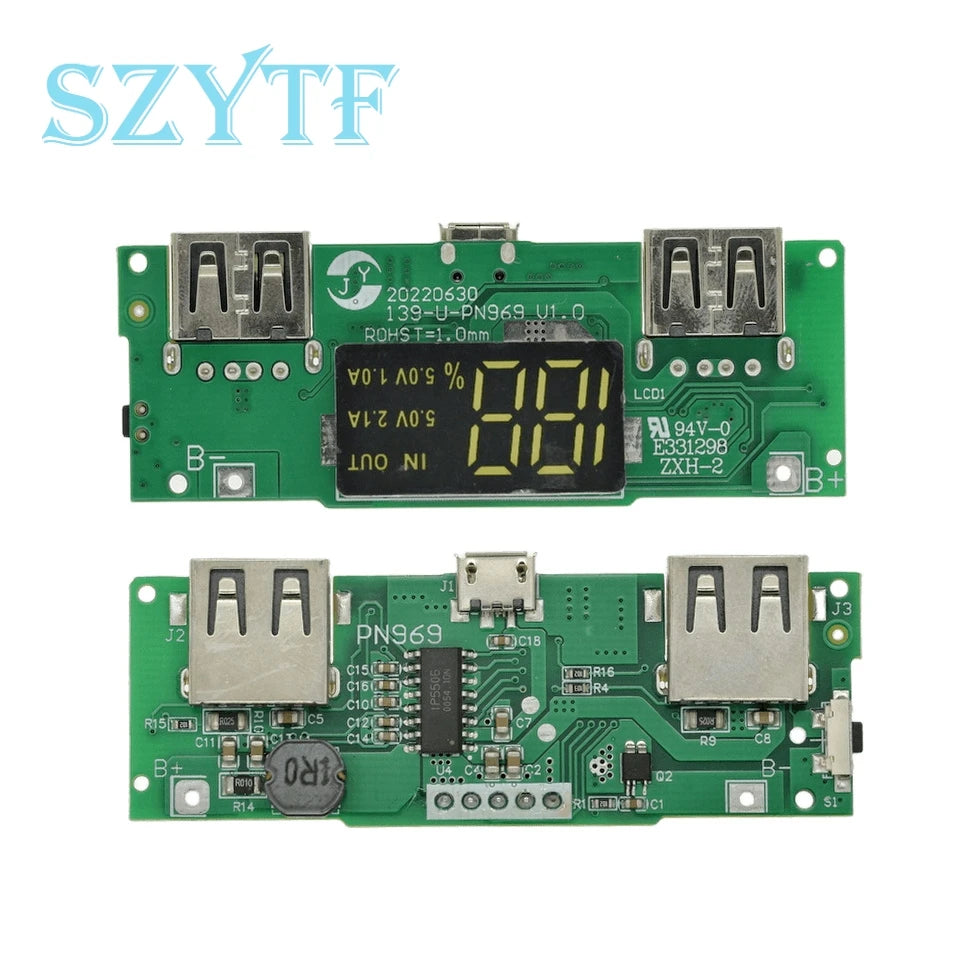

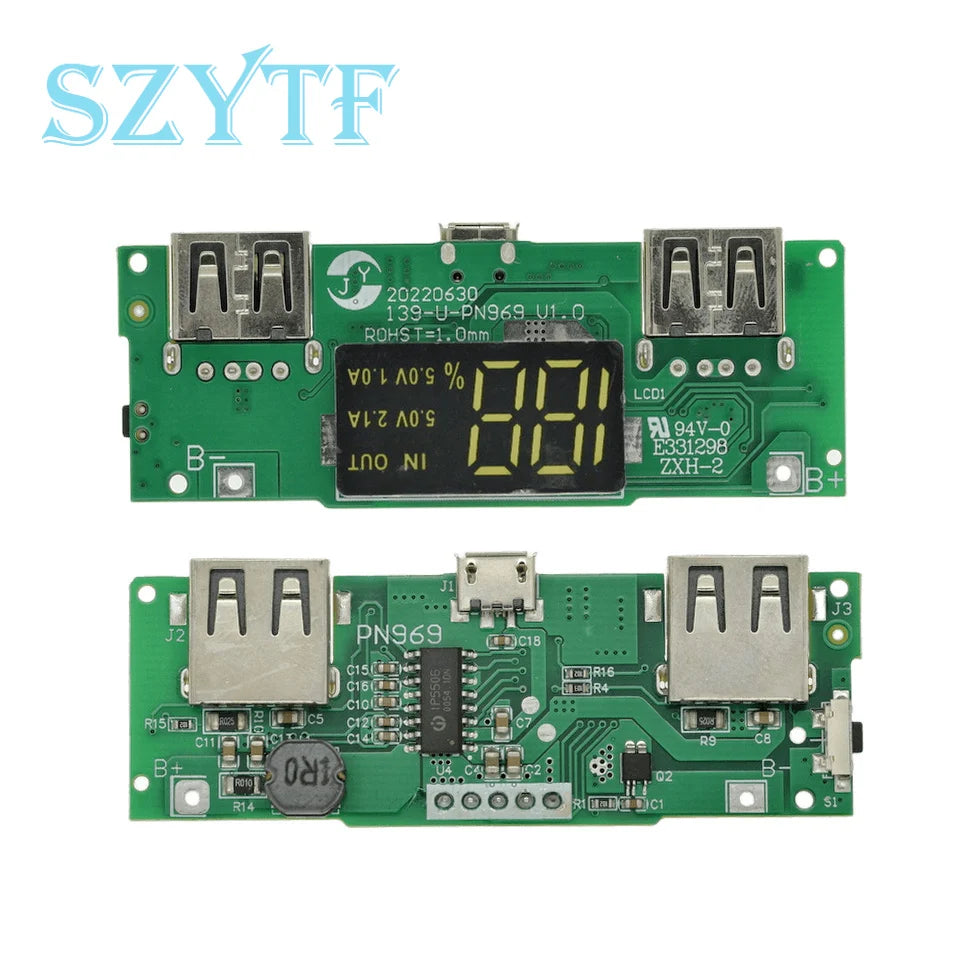

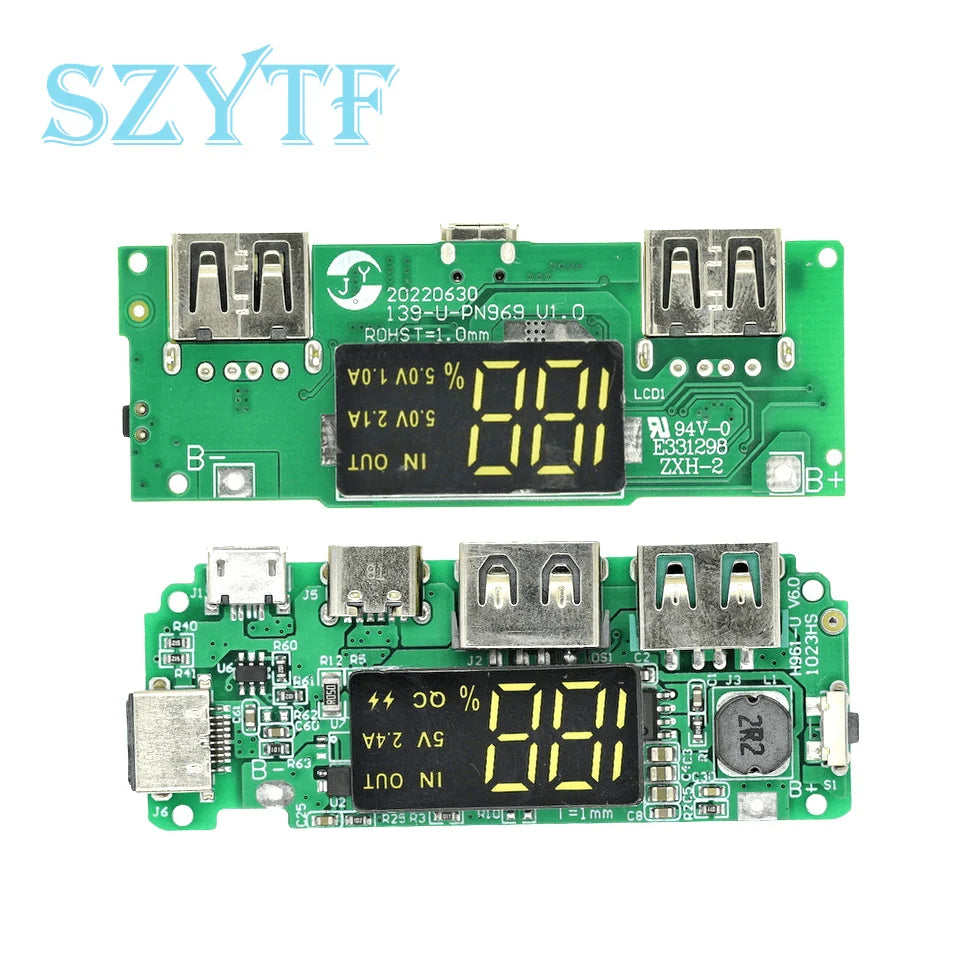

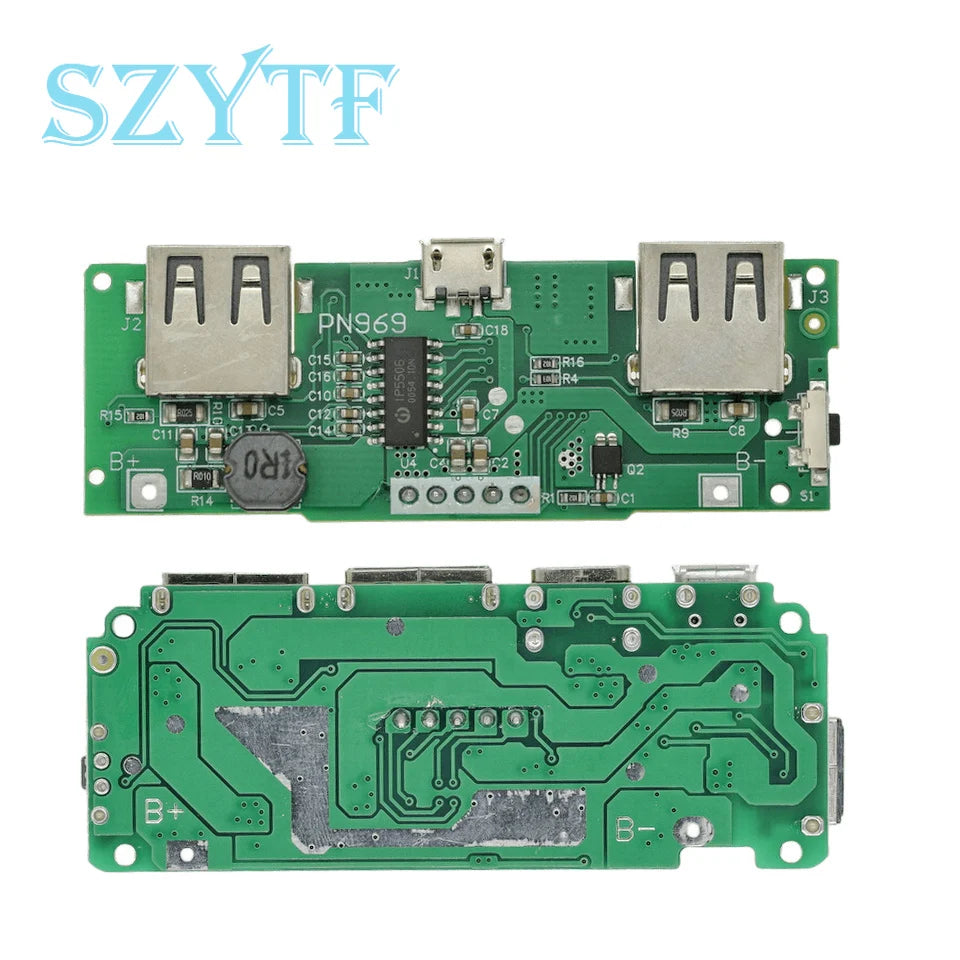

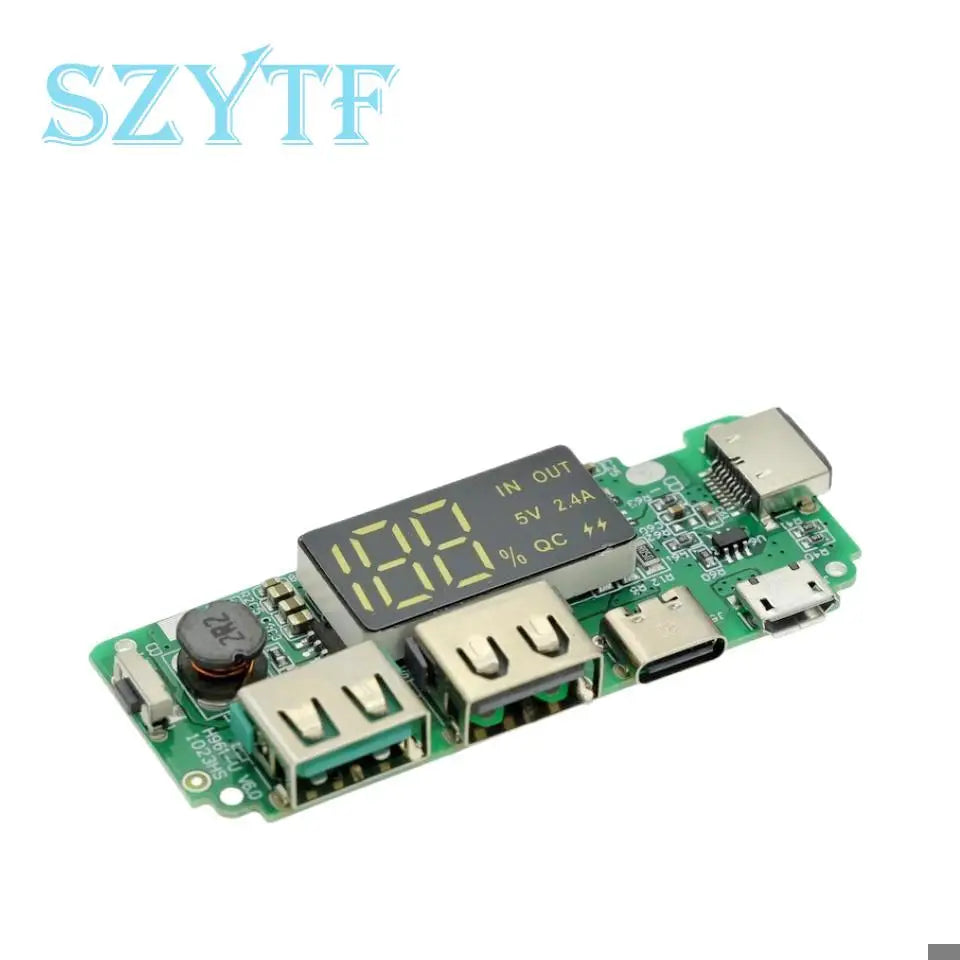

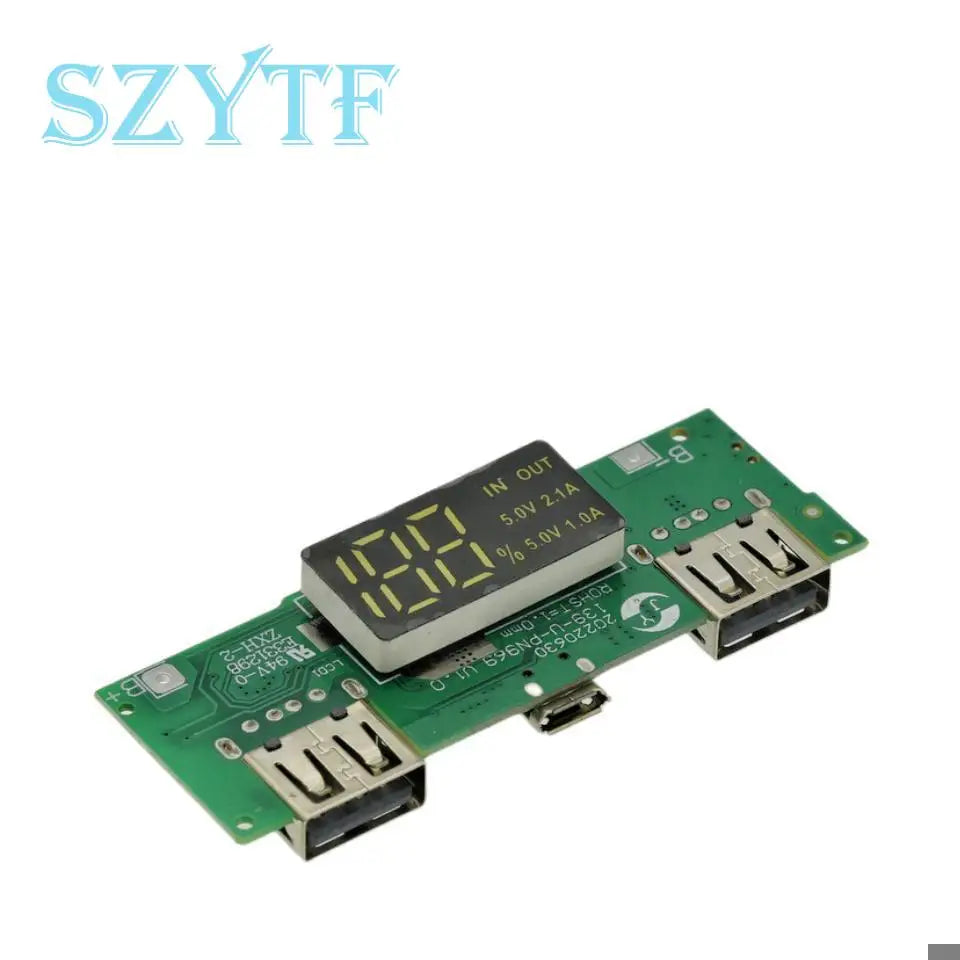

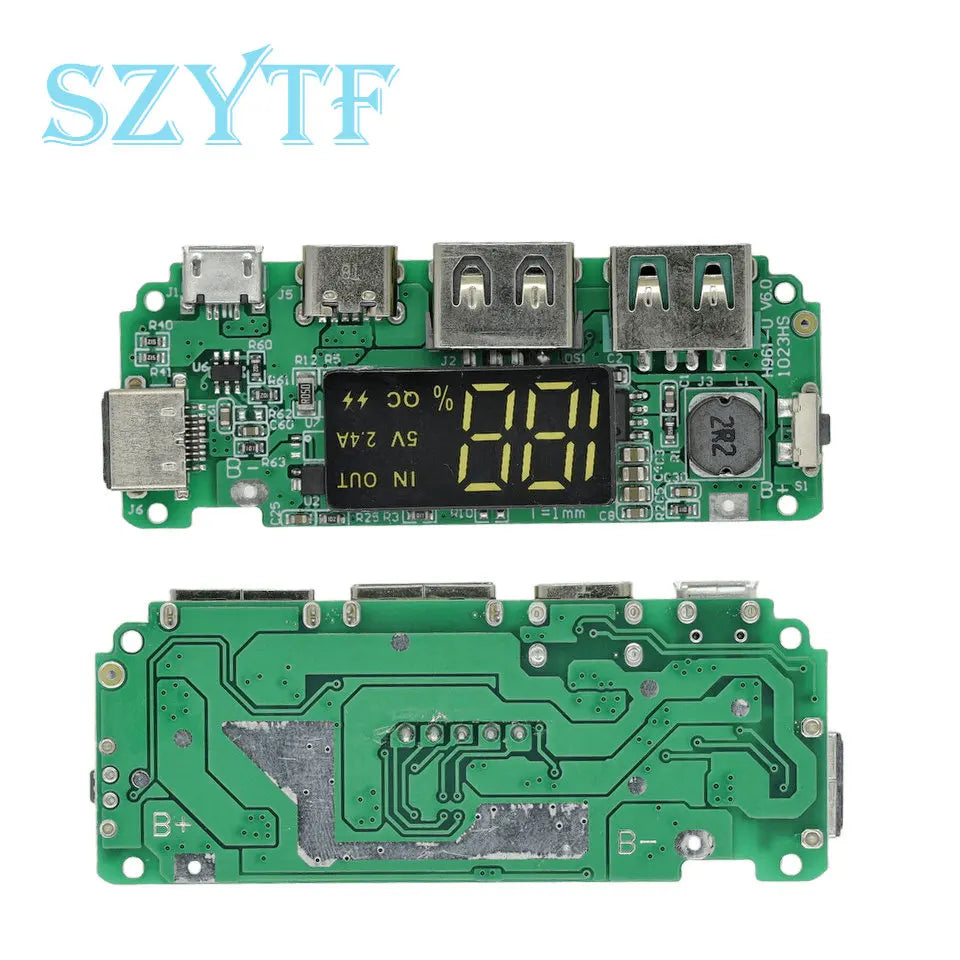

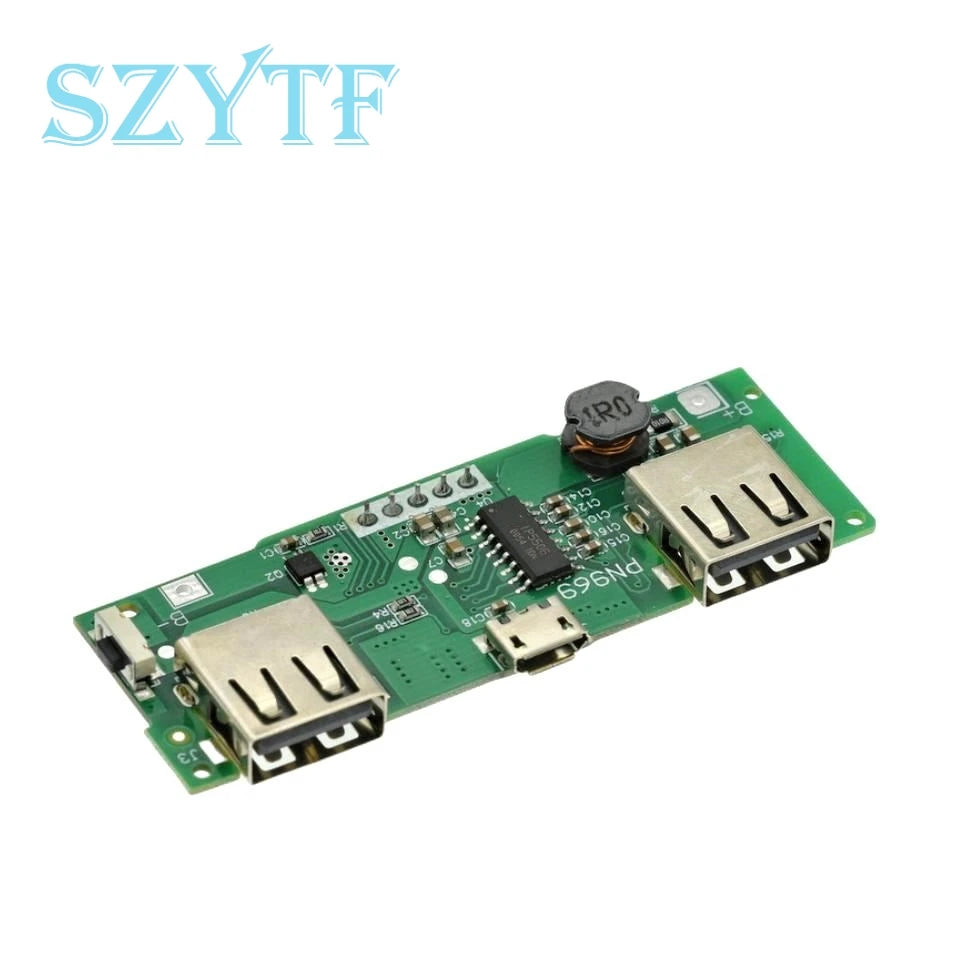

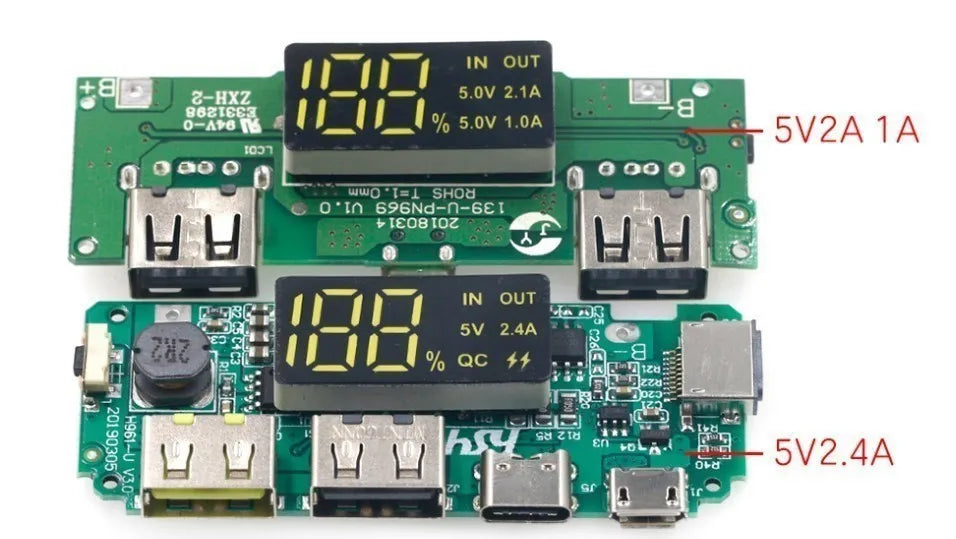

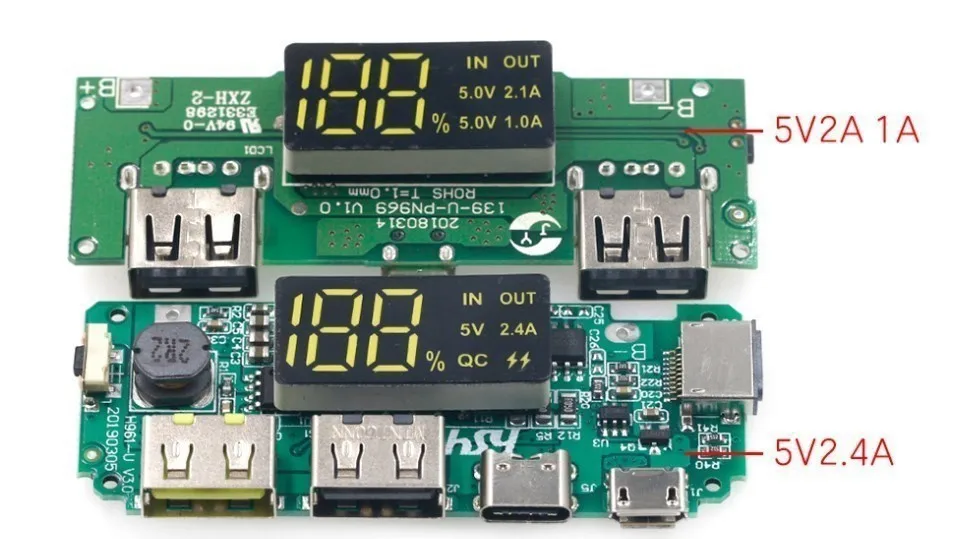

Portable Mobile Power Supply Module.

Supports 3 USB cables.

Hold down the button after standby, LED digital display power supply.

LED digital screen shows current battery power when charging.

When discharging, the LED digital screen displays the current power, and the display saves about 30 seconds (double-click button to restore the display).

After charging and discharging, the system will provide accurate battery instructions.

Product Parameter

Weight: 10.8g

IR of PCM: ≤65 mΩ

Allowed 0V change: Yes

Constant current: 2.4A

Dual output current: 5V 2.4A

Input voltage B+ to B-: 3.0 - 4.2V

Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB

Button function: Press and hold the button after standby, the LED digital screen displays the power

Specification

The LED digital screen displays the current battery charge while charging.

When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display). The system will provide an accurate battery indication after a complete charge and discharge.

Prevent Overcharge Protection

Detection voltage: 4.20±0.05V

Release voltage: 4.100±0.05V

Detection delay time: <200 ms

Prevent Overdischarge Protection

Detection voltage: 3.0±0.10

Release voltage: 3.10±0.10V

Detection delay time: <100 ms

Short Circuit Protection

Short detection delay time: <50μS

Release Conditions: Cut off load

Normal Current Consumptio

Normal current consumption of PCM: Max 60μA

Stanby current consumption: Max 50μA

Suggest Working Conditions

Max continuous charge/discharge current: 1.5/2.4A

Suggest working temperature: -5～45℃

Specifications:

Material: ABS

Size: 65*25*5mm/2.56*0.98*0.2"

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3mm measuring deviation due to manual measurement.
