LJC18A3-B-Z/BX Approach Sensor Cylindrical Capacitive Proximity Switch 10mm Detecting Distance NPN/PNP NO/NC DC6-36V
$15.12
Sale price
$15.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CNMAWAY
Certification: NONE,NONE
Current: 200 mA
Detecting distance: 10mm
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: Capacitive proximity switch
High-concerned chemical: none
Is Smart Device: no
Item Type: SWITCHES
Material: Copper
Model Number: LJC18A3-B-Z/BY/AY/BX/AX
Origin: Mainland China
Product Name: Capacitive proximity switch
Switch Type: Proximity Switch,PNP/NPN NO/NC
The diameter: 18mm
Voltage: 6~36V DC(9V 12V 18V 24V 36V)
Warranty: 1Y
Wire: 3-Wire type
LJC18A3-B-Z/BY: PNP Normally Open 3-Line type 18mm diameter ; 10mm detection distance

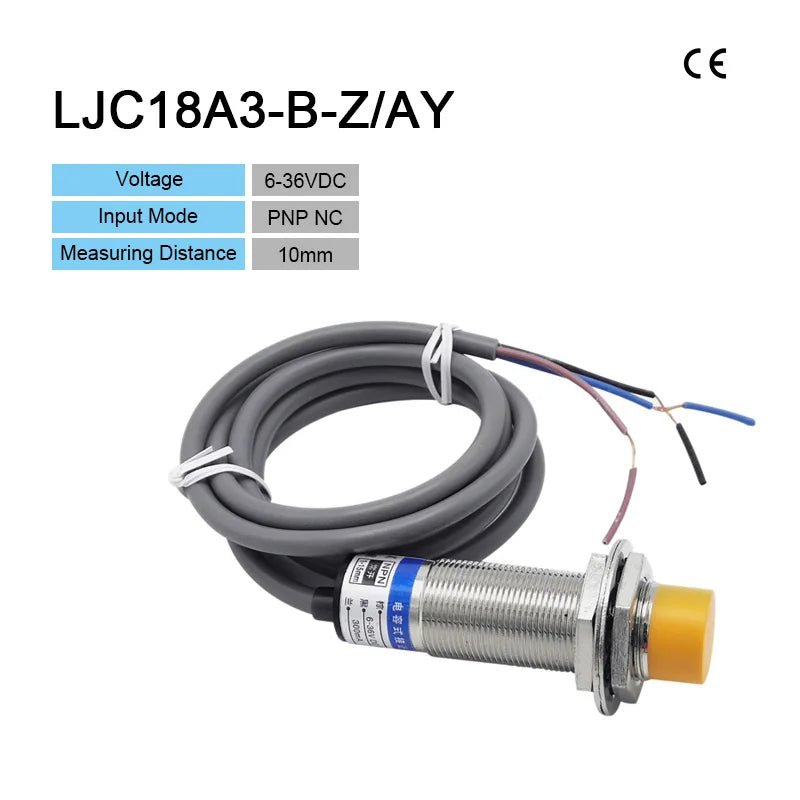

LJC18A3-B-Z/AY: PNP Normally Close 3-Line type 18mm diameter ; 10mm detection distance
LJC18A3-B-Z/BX: NPN Normally Open 3-Line type 18mm diameter ; 10mm detection distance
LJC18A3-B-Z/AX: NPN Normally Close 3-Line type 18mm diameter ; 10mm detection distance
[Main Parameter]
Detection distance :10mm ± 10%
Set distance:0~8mm
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
