SPECIFICATIONS

Brand Name: Keshy

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

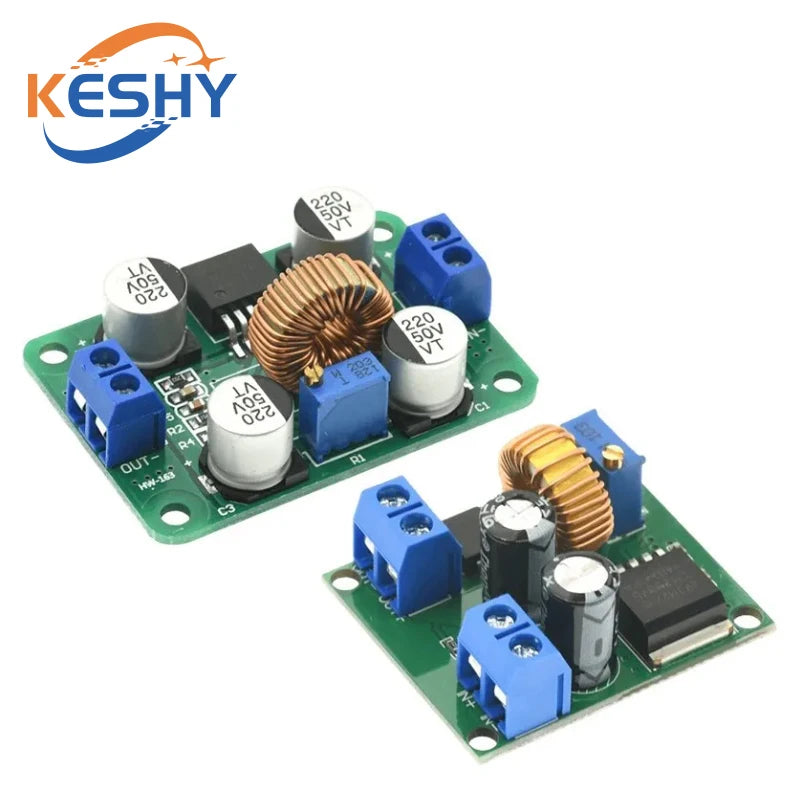

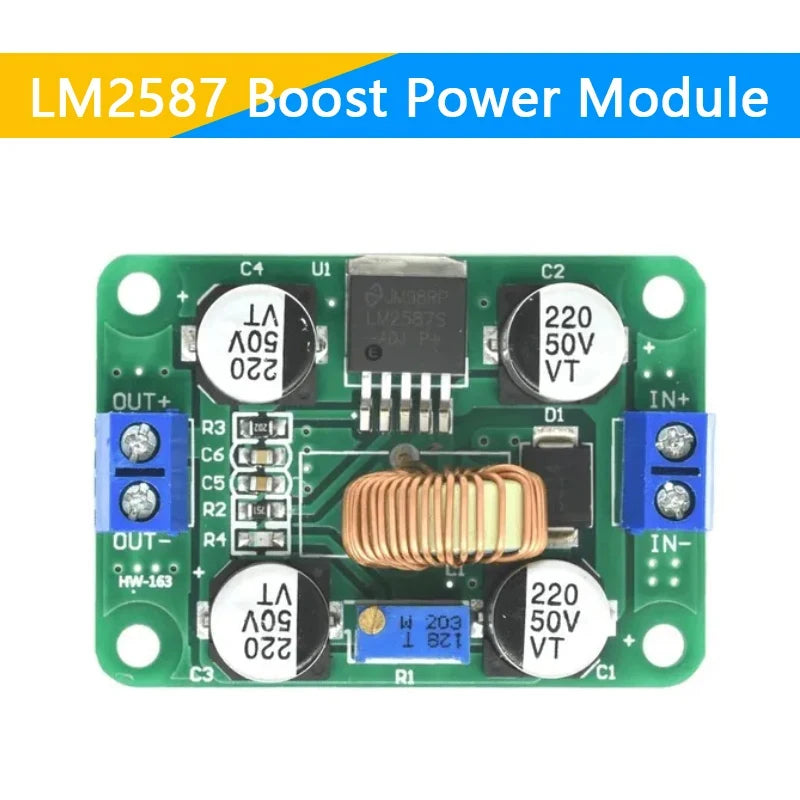

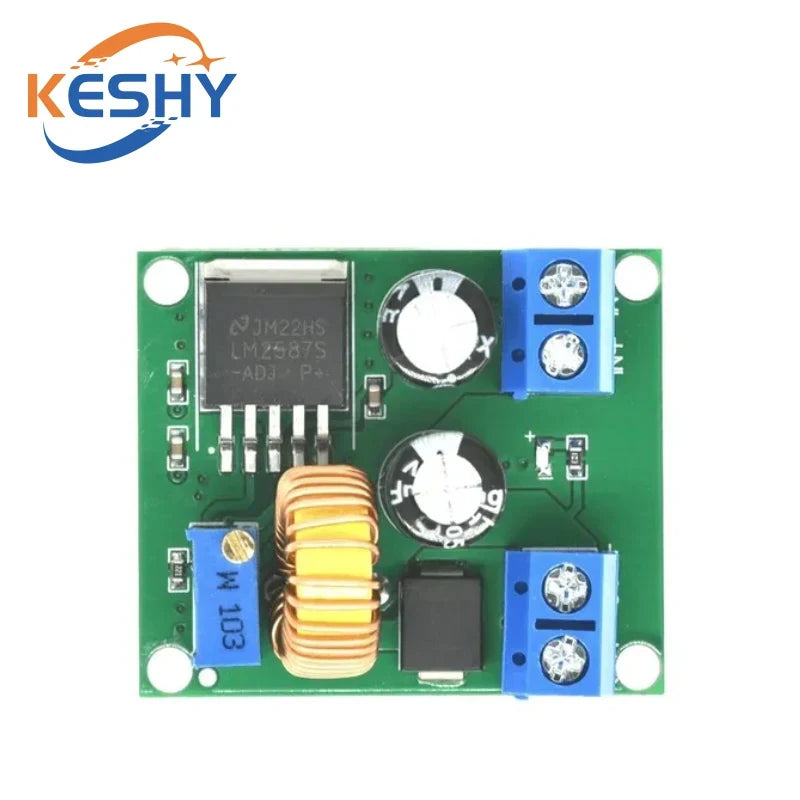

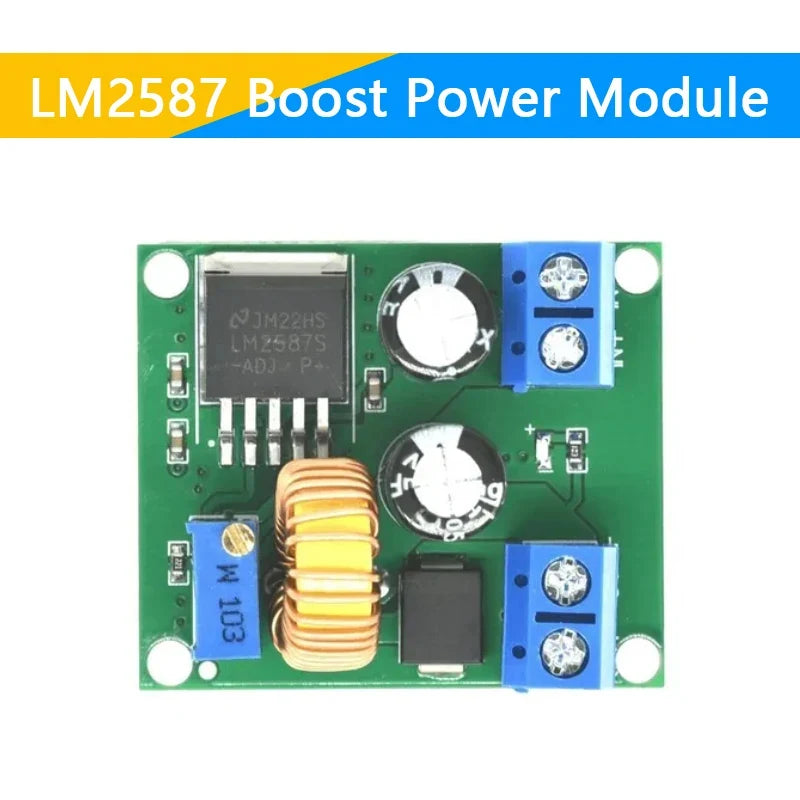

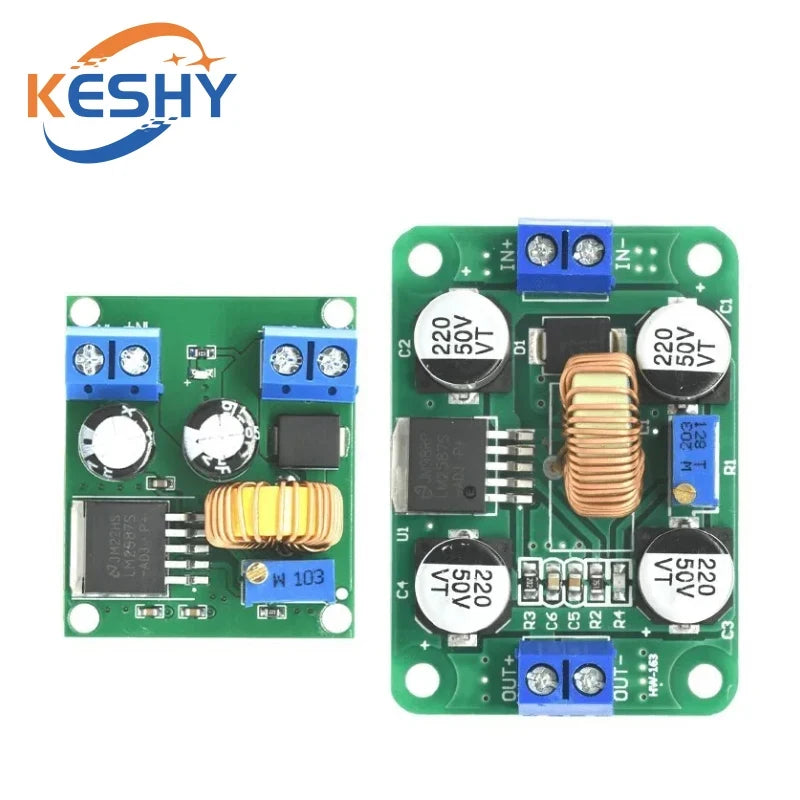

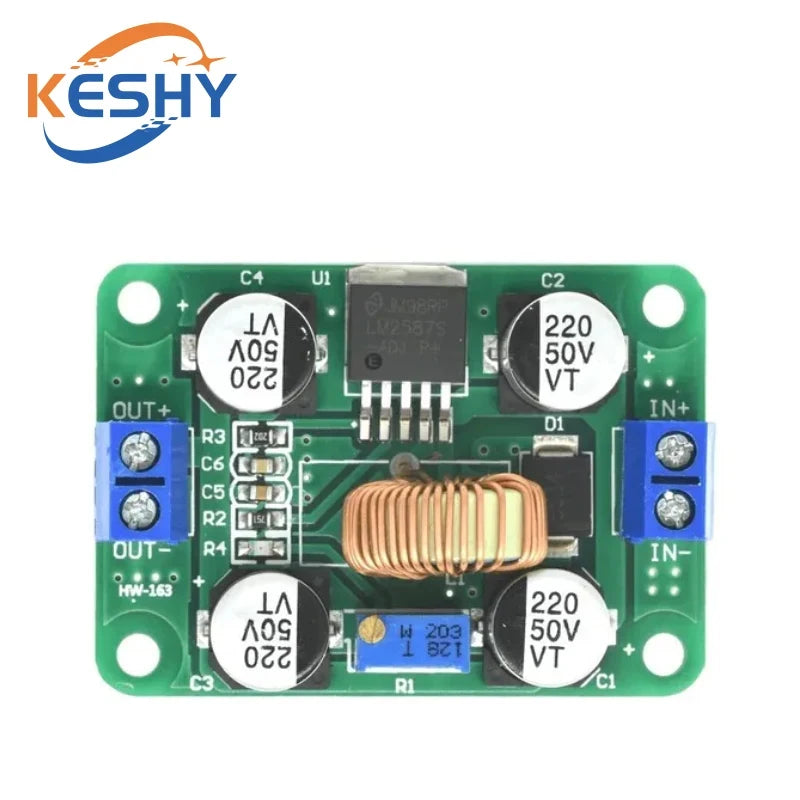

DC adjustable booster module LM2587

Module parameters:

Input voltage range: 3.5V-30V (The output set voltage must be higher than the input voltage)

Output voltage range: 4.0V-30V

Maximum input current: 5A (Output current under rated conditions is calculated according to power conservation

Uin*Iin* Efficiency =Uout*Iout)

Continuous working current: 3A (good ventilation and heat dissipation conditions output voltage and input voltage ratio can not be greater than 3)

Application example:

7.4V booster 12V applied in model aircraft camera.

Adjustable high-efficiency booster circuit DC-DC booster, input voltage (4 to 30) V, output adjustable (5 to 30) V, input maximum input current 5A, efficiency up to 92%, the use of a dedicated large-package booster chip beyond the LM2577, not the mung bean boost IC can and output drive power up to 30W.

Note:When you test, if the output voltage is not higher than the input voltage, please adjust the potentiometer clockwise, the output voltage will increase, please do not adjust counterclockwise, so that the module will be damaged or even damaged in the case of high input voltage!
