SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

is_customized: Yes

Features:

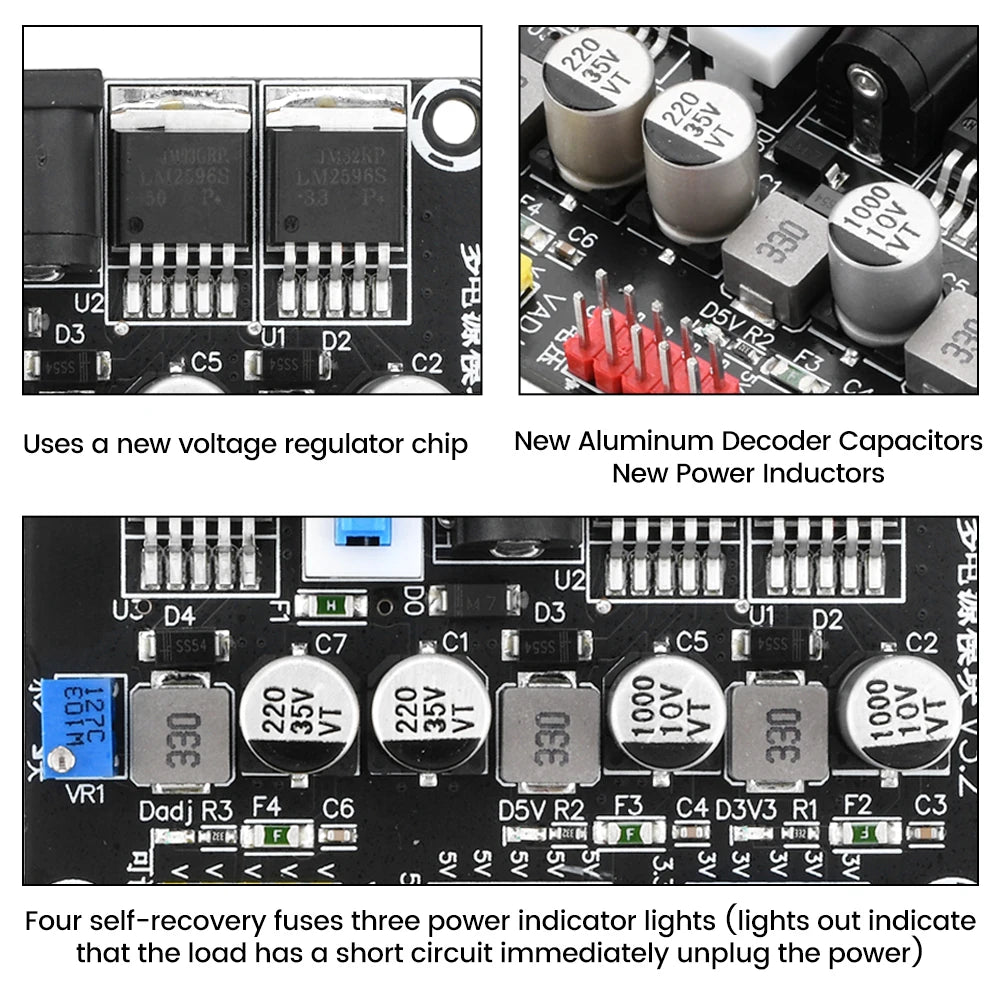

1. Good performance, using a brand new LM2596 voltage regulator chip (LM2596-3.3V, LM2596-5V, LM2596-ADJ).
2. High quality materials, brand new aluminum electrolytic capacitors, brand new power inductors.
3. High safety performance, with four self restoring fuses to ensure safe use.
4. With power indicator lights, there are three power indicator lights. If the indicator lights are off, it indicates that there is a short circuit in the load. Immediately unplug the power supply.
5. Widely applicable, suitable for various power supplies such as smart car competitions, electronic competitions, robot competitions, laboratory experiments, etc.

Parameter:
Product color: Black
Main chip: LM2596-3.3V, LM2596-5V, LM2596-ADJ
Input: DC7V~25V,>1A
Output voltage: DC3.3V, DC5V, DC1.25V Vin
The type of DC power input interface is: DC 5.5mm * 2.1mm

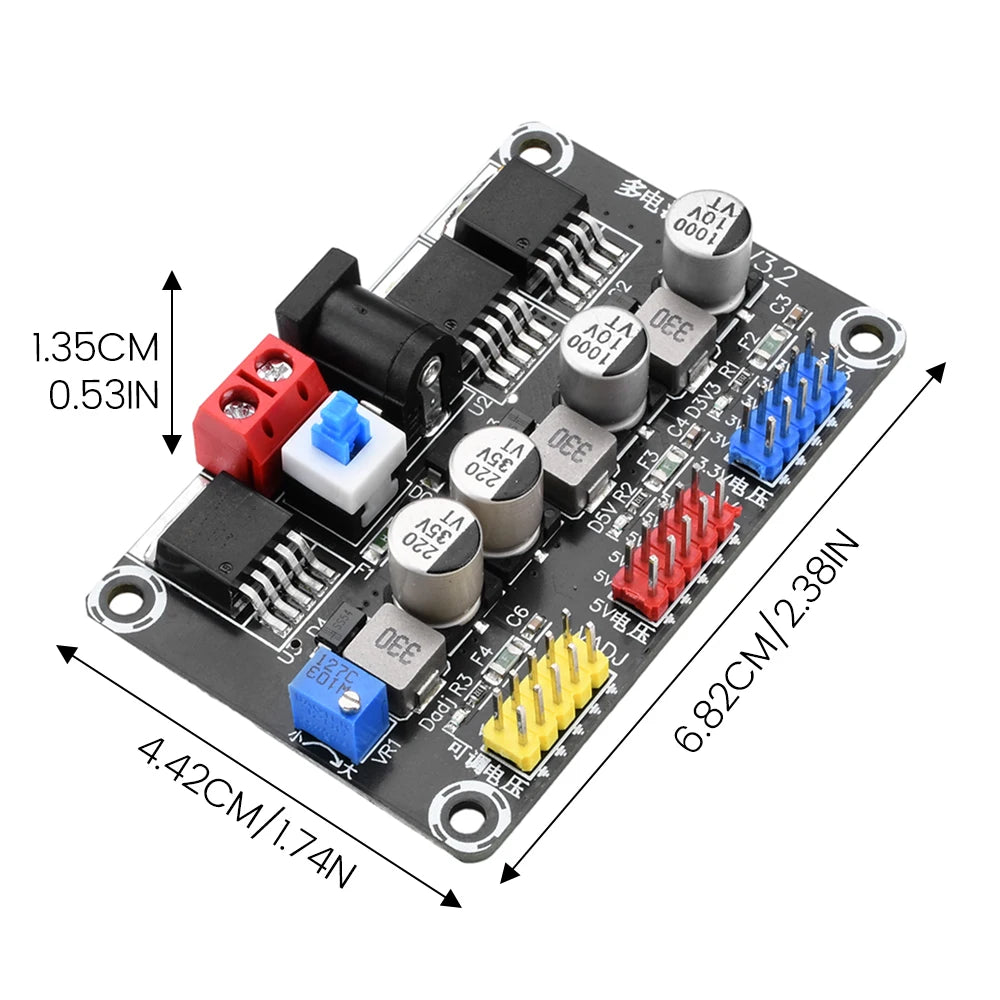

Product size: (length * width * height) 68 * 44 * 12mm
Pin material: gold-plated pin, antioxidant
User: A power module designed specifically for power supply in smart car competitions, electronic competitions, graduation projects, laboratory experiments, etc.

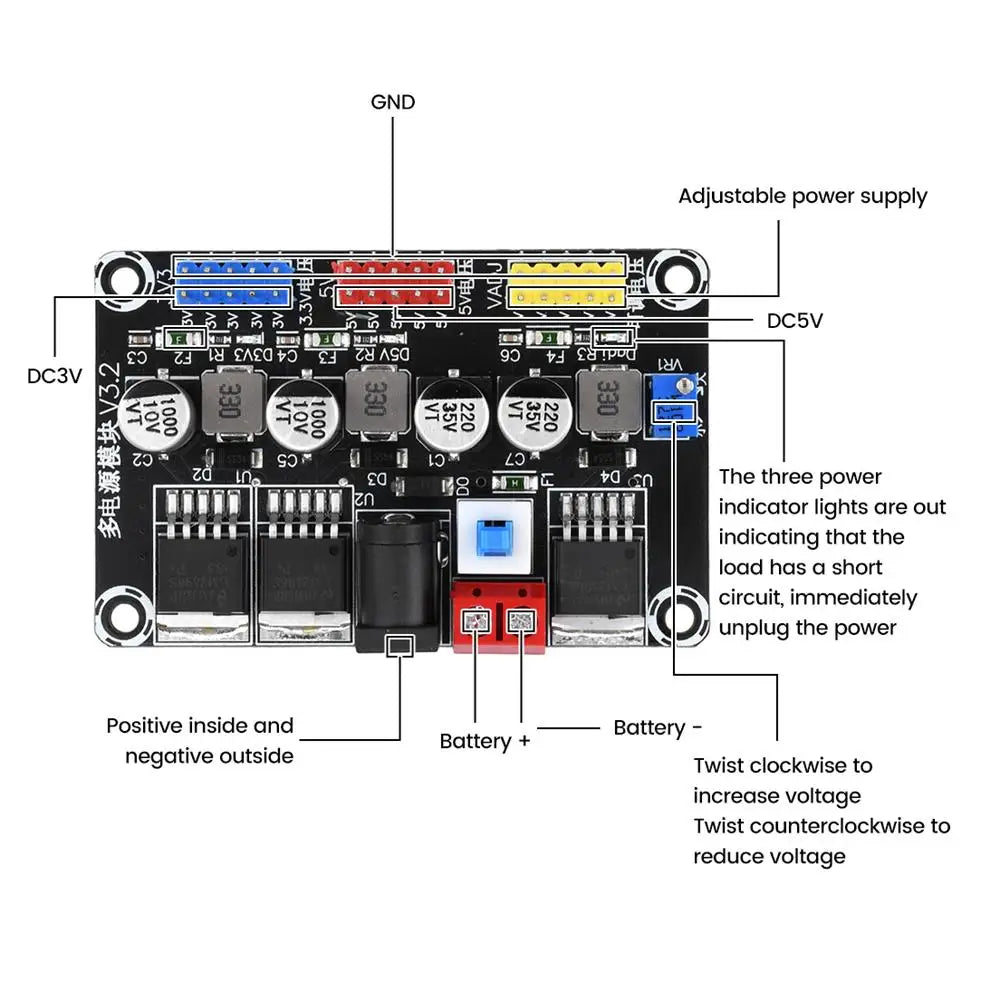

Output voltage description:
DC3.3V: Self recovery fuse 2A, with power indicator light, can supply power to S08 series, S12 series, Kinetics M4 K60/10 series, DSC series, cold fire series, etc. using 3.3V microcontroller and core board;
DC5V: Self recovery fuse 2A, with power supply indicator light, capable of supplying power to S12 series, MPC series microcontrollers and core boards;
DC1.25V-Vin: Self recovery fuse 2A, with power supply indicator light, adjustable output voltage, capable of supplying power to the steering gear;
Note: Users can replace more suitable self recovery fuses and electrolytic capacitors based on chip parameters to better meet their needs.

Package include:
1X Module
