SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Drive IC

Features:
1. Wide input voltage range, supporting DC 3V~40V.
2. Fixed and adjustable voltage options are available to meet different needs.
3. The peak output current reaches 3A, with strong and stable performance.
4. There are various wiring methods available, with flexible choices for soldering and pin insertion.
5. Efficient voltage reduction, simple wiring, safe and reliable.

Parameter:
Input voltage range: DC 3V~40V (the input voltage must be 1.5V or more higher than the output voltage). Cannot boost voltage)
Output voltage range:

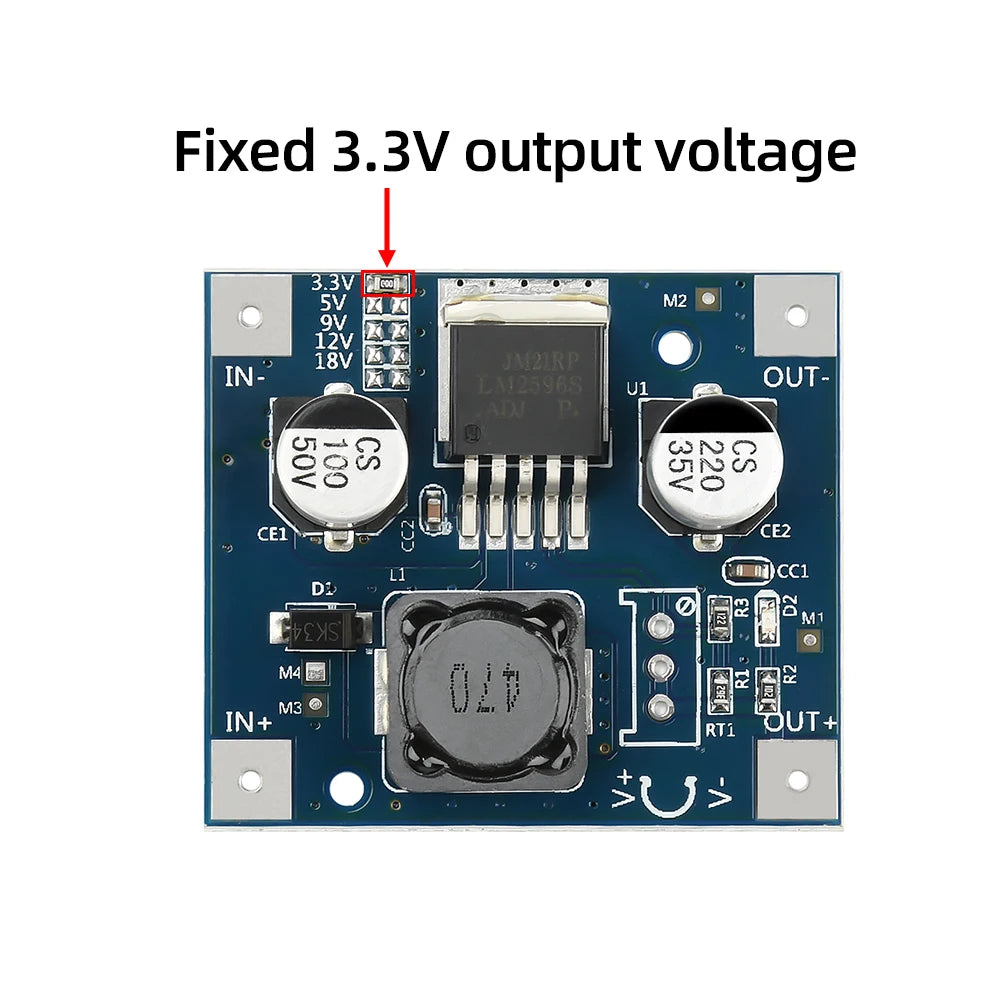

Fixed voltage version: 3.3V/5V/9V/12V/18V selectable

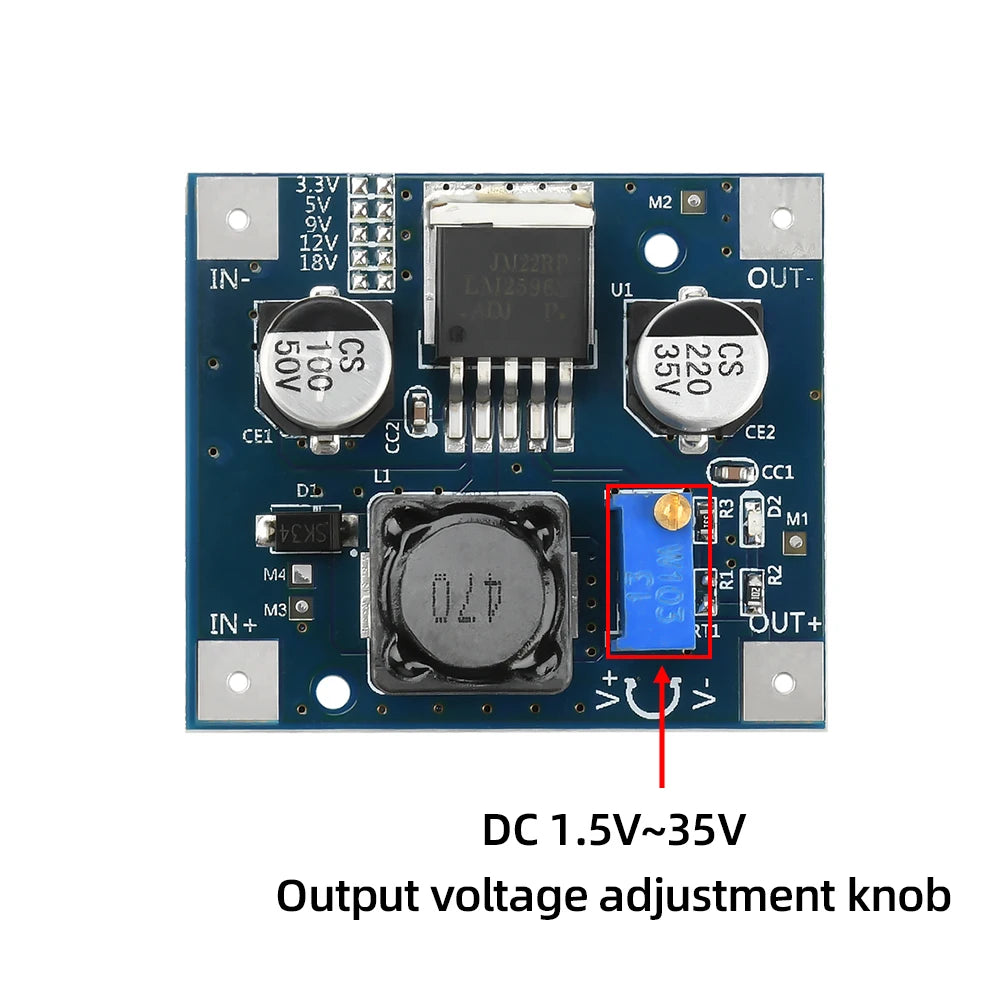

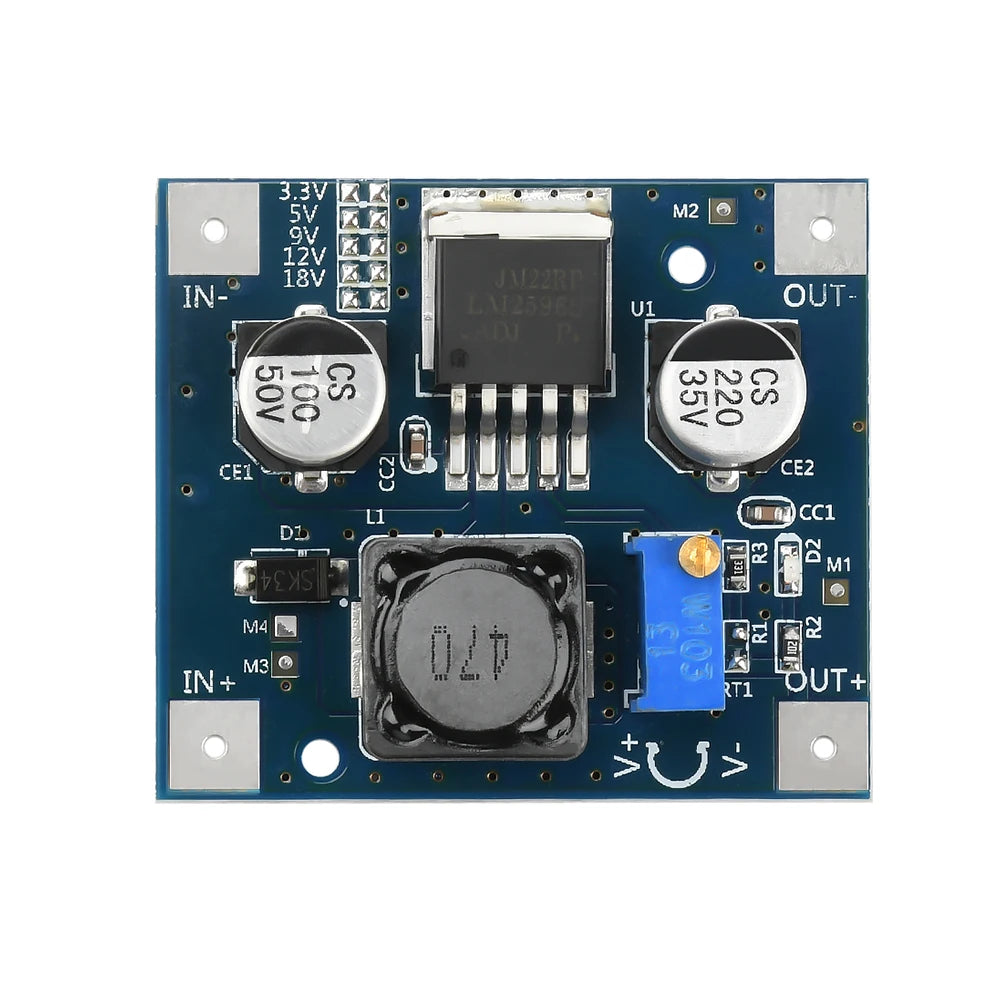

Adjustable version: DC 1.5V~35V voltage continuously adjustable, peak output current of 3A

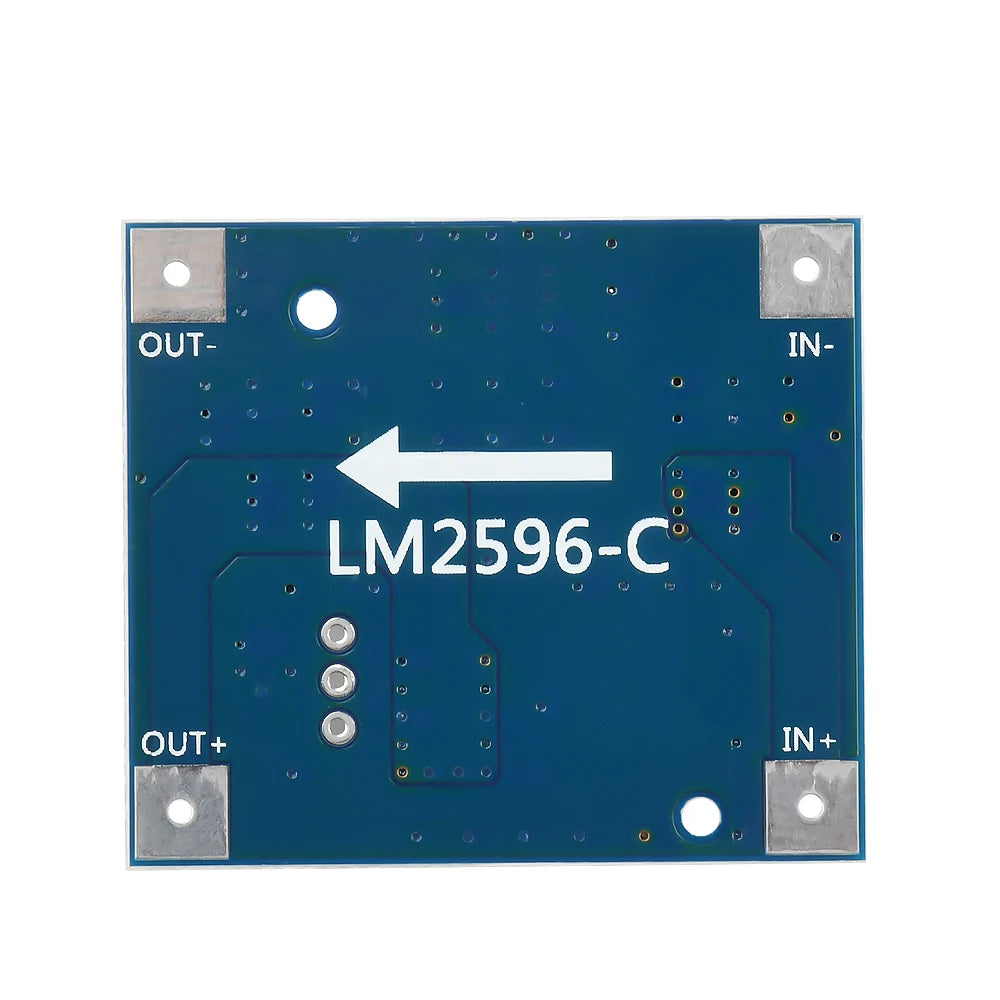

Wiring port description:
Input positive pole: N+
Input negative pole: IN-
Output positive pole: OUT+
Output negative pole: OUT-

Wiring method:
1. Welding, directly solder the power cord to the input (output) port;
2. Solder pins can be inserted into pins through leads or used on hole boards; Alternatively, after adding pins, they can be directly soldered onto the PCB.

Package Include:
1X module
