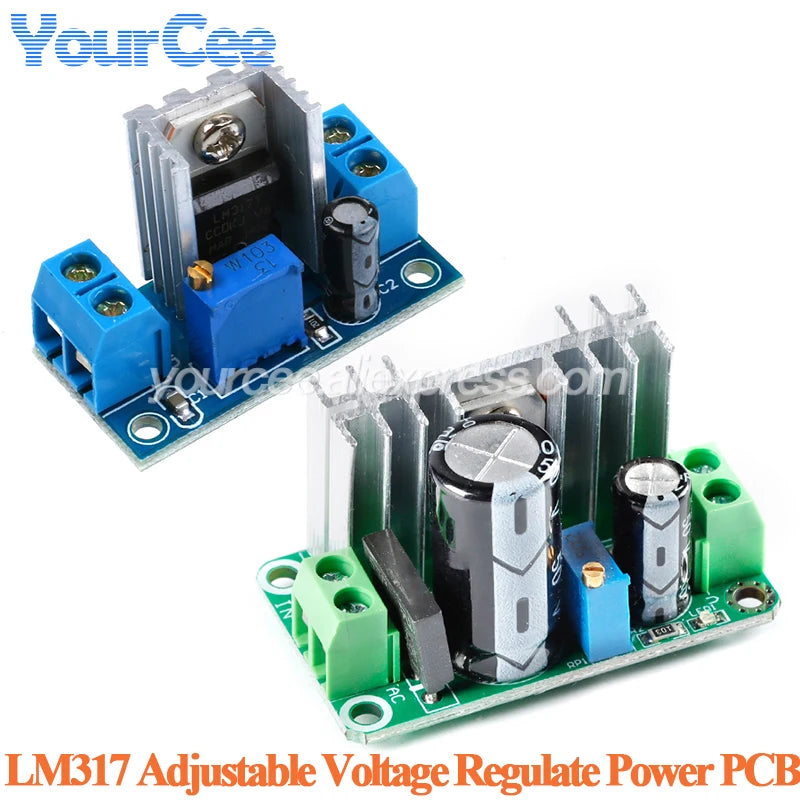

LM317 DC-DC Converter Buck Step Down Circuit Board Module Linear Regulator LM317 Adjustable Voltage Regulator

LM317 DC-DC Converter Buck Step Down Circuit Board Module Linear Regulator LM317 Adjustable Voltage Regulator

$2.32

$2.32 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: Your Cee

Condition: New

Dissipation Power: low

High-concerned chemical: none

Operating Temperature: normal

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: standard

Type: Module

is_customized: Yes

LM317 DC-DC Converter Buck Step-down Circuit Board Module Linear Regulator LM317 Adjustable Voltage Regulator Power Suppl

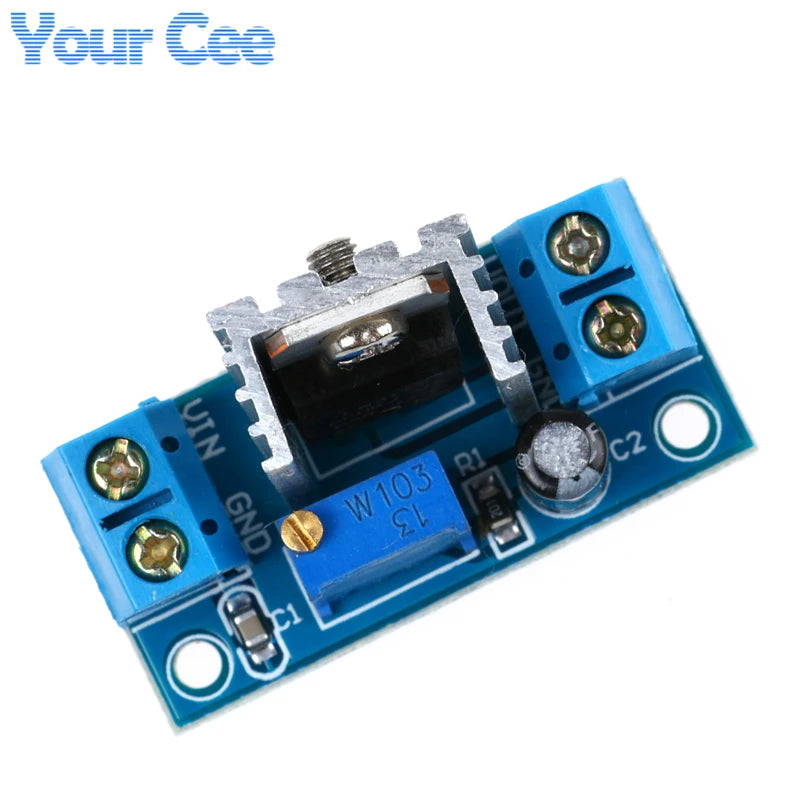

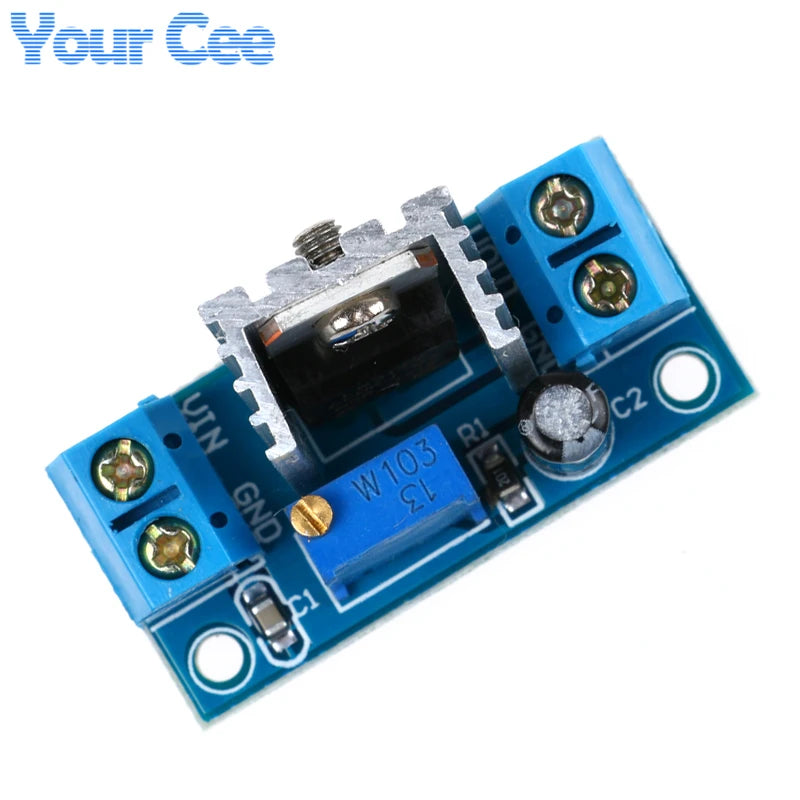

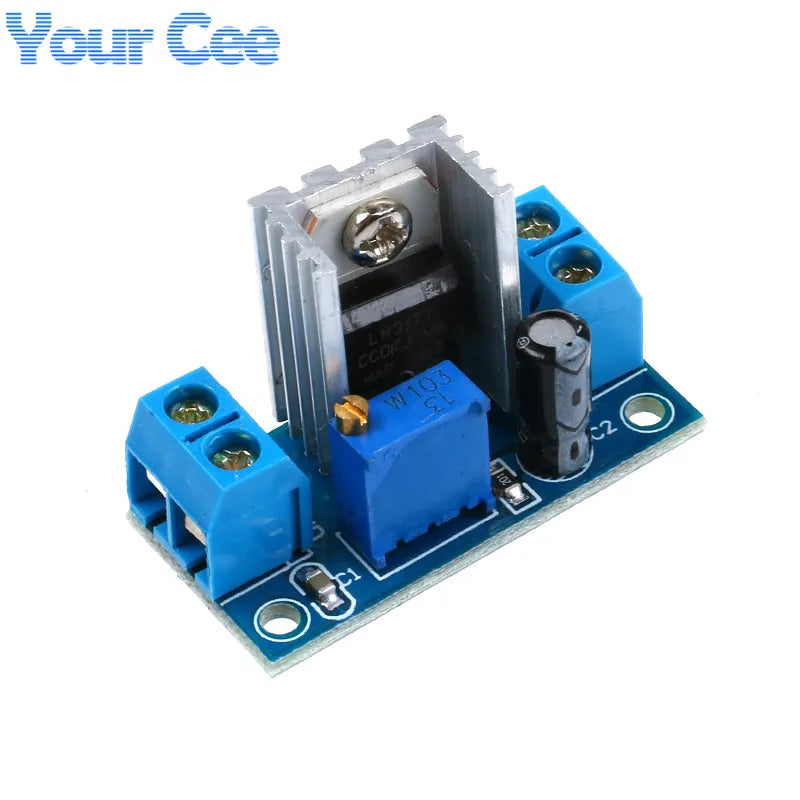

Feature

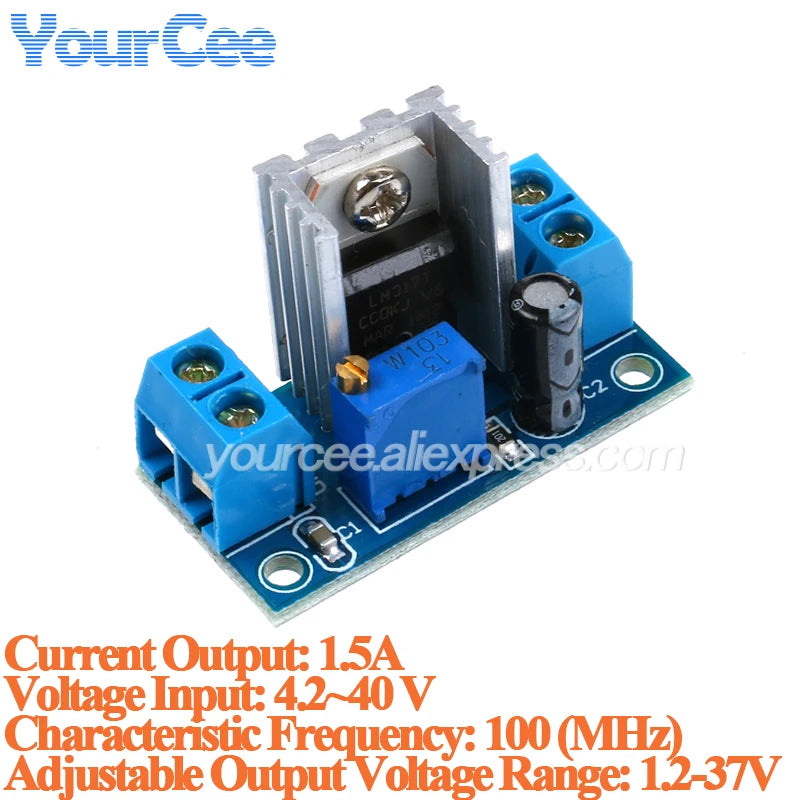

1.Output Current: 1.5A (min), 2.2A (typ)

2.Input-output voltage differential (VI-VO): 40Vdc (max)

3.Adjustable output voltage range: 1.2 ~ 37V

4.Operating temperature: -55 Celsius ~ +150 Celsius

5.Current output: 1.5A

6.Voltage Input: 4.2 ~ 40 V

7.Operating temperature: 0 Celsius ~ 125 Celsius

8.Characteristic frequency: 100MHz

9.Module size: 35.6 mm x16.8 mm

10.Input Method: VIN input is positive, GND Input Negative

11.Output: VOUT output positive, GND output negative

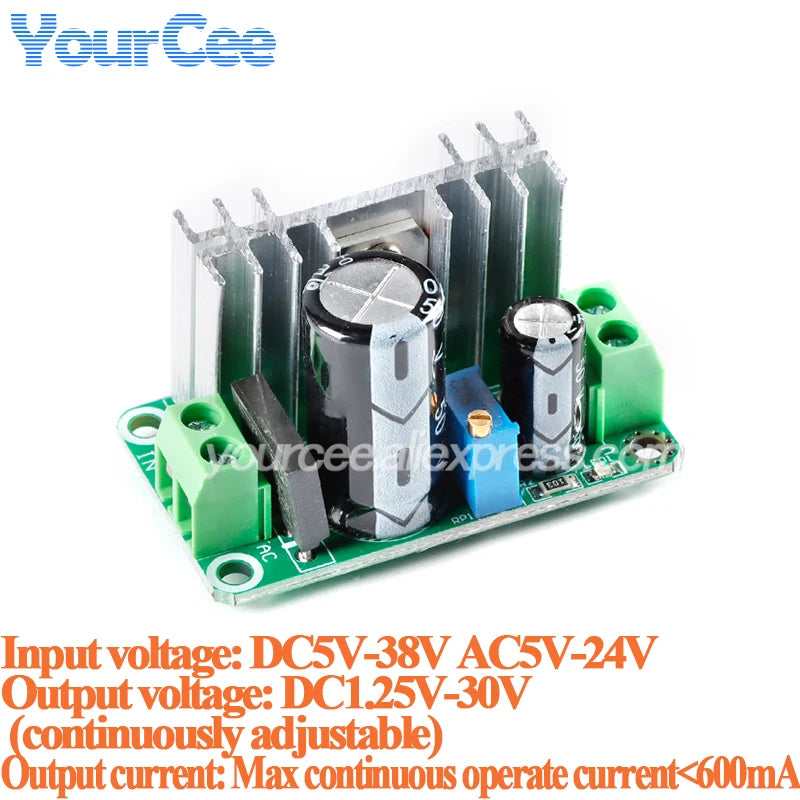

As an excellent voltage regulator, LM317 has the characteristics of high stability, high temperature resistance, high linearity, etc. The output voltage range can reach 1.25V~37V continuously adjustable, and the maximum operating current exceeds 1A (using a large radiator orActive cooling measures).The board has a rectifier bridge and a 1000uF filter capacitor, which can effectively reduce the output ripple and interference.

Input voltage range: DC5V-38V, AC5V-24V

Output voltage range: DC1.25V-30V (continuously adjustable)

Output current range: Maximum continuous working current <600mA (pressure difference does not exceed 10V), when the pressure difference exceeds 10V, please ensure that the output current is <400m

ATerminals: AC input terminal (no polarity), DC output terminal V+ output positive, DC output terminal V- output negative

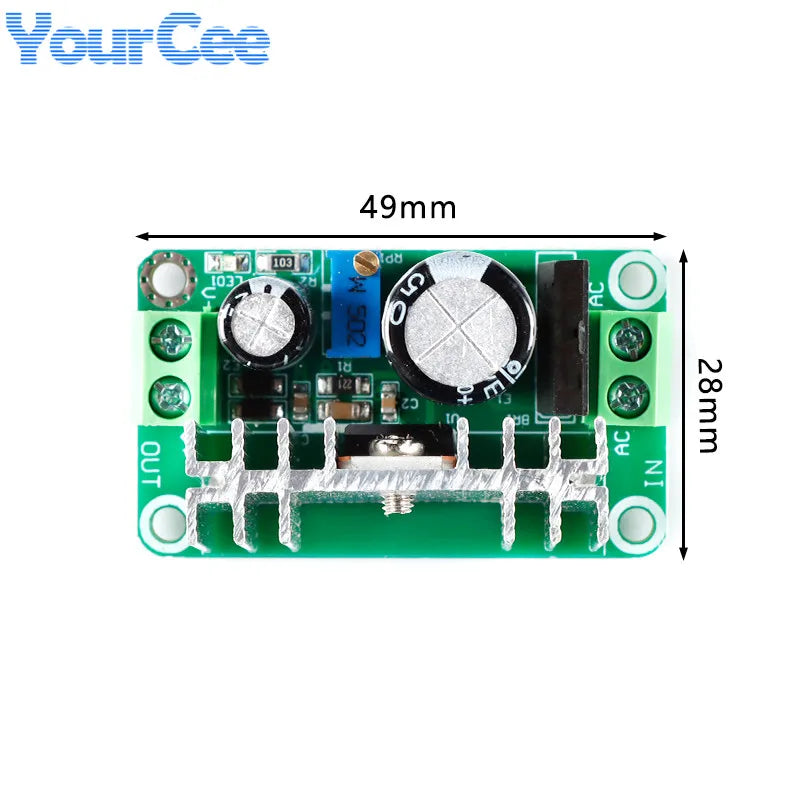

Dimensions: length 48.5mm, width 28.2mm, height 28mm

Operating temperature range: 0°C-100°C (in order to prevent over-temperature damage, you can increase the heat dissipation by yourself or use other active heat dissipation methods).
