SPECIFICATIONS

Brand Name: NONE

Functional Application: -

High-concerned chemical: none

Origin: Mainland China

Place of Origin: Guangdong, China

Product Description

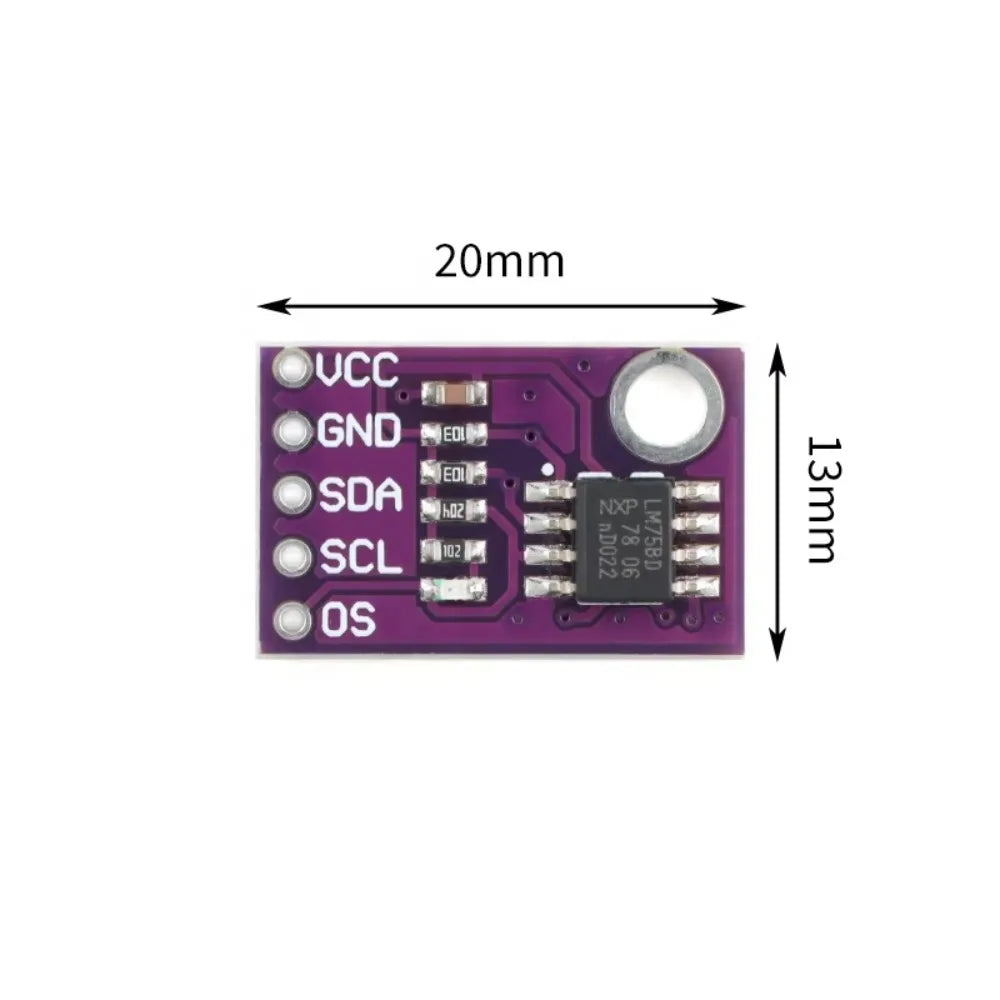

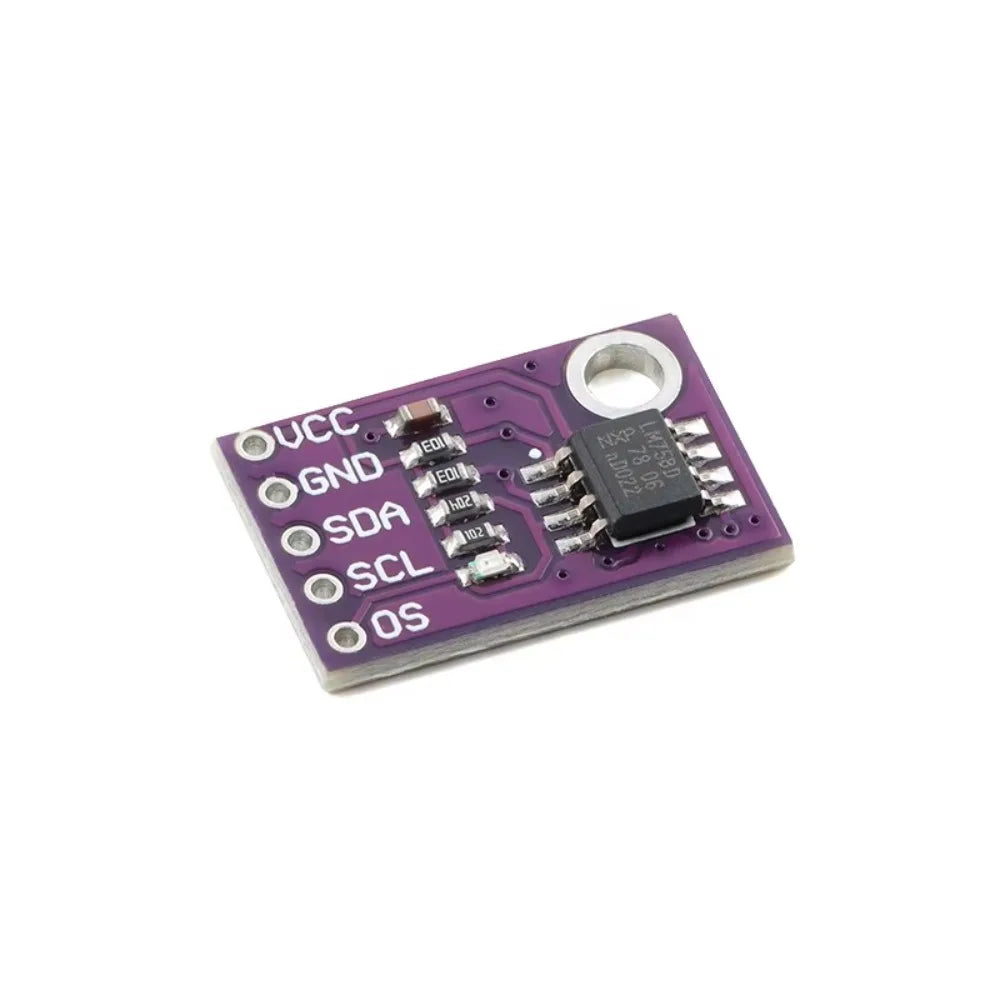

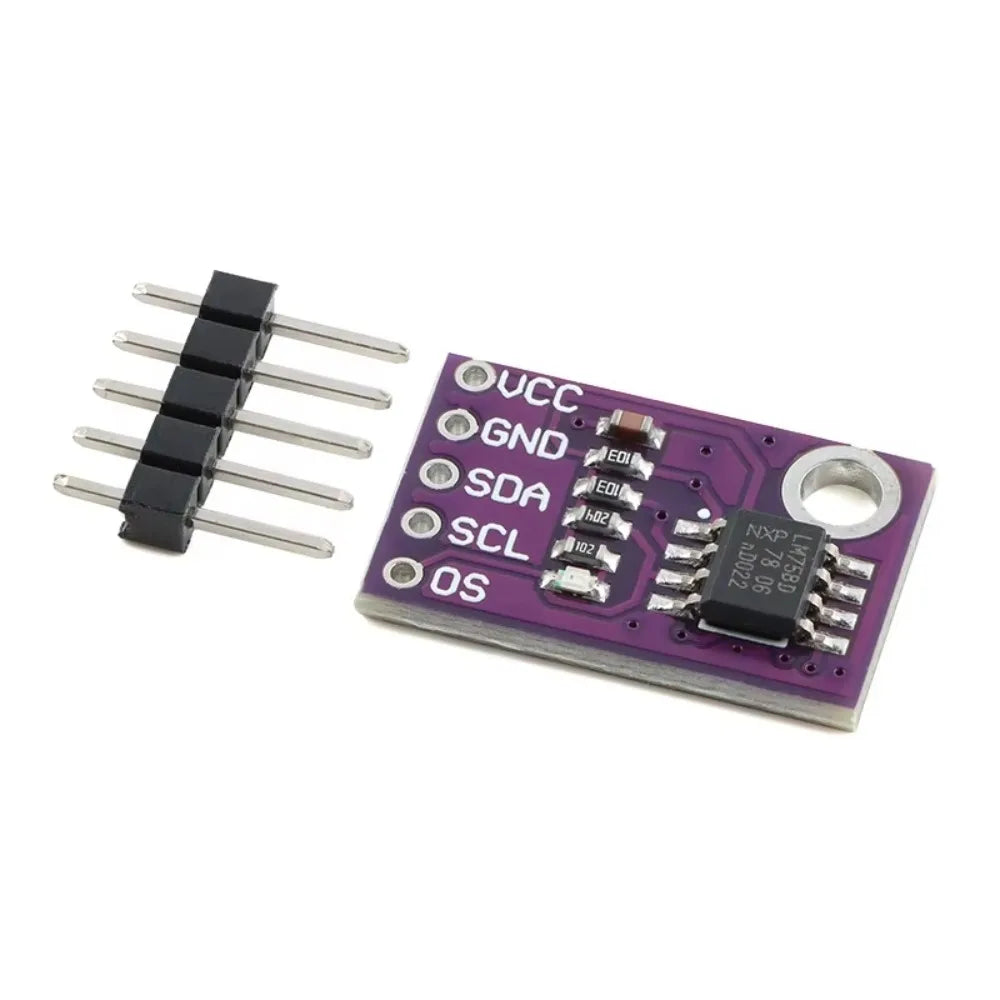

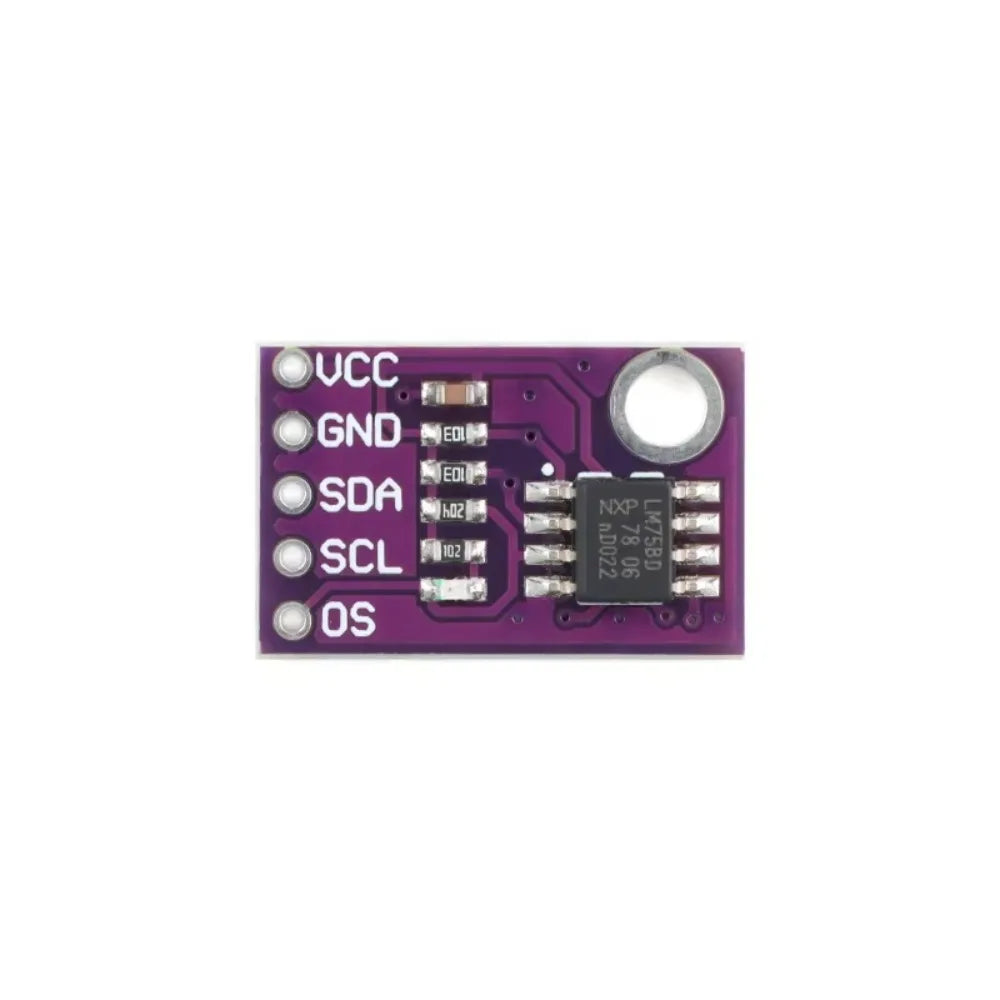

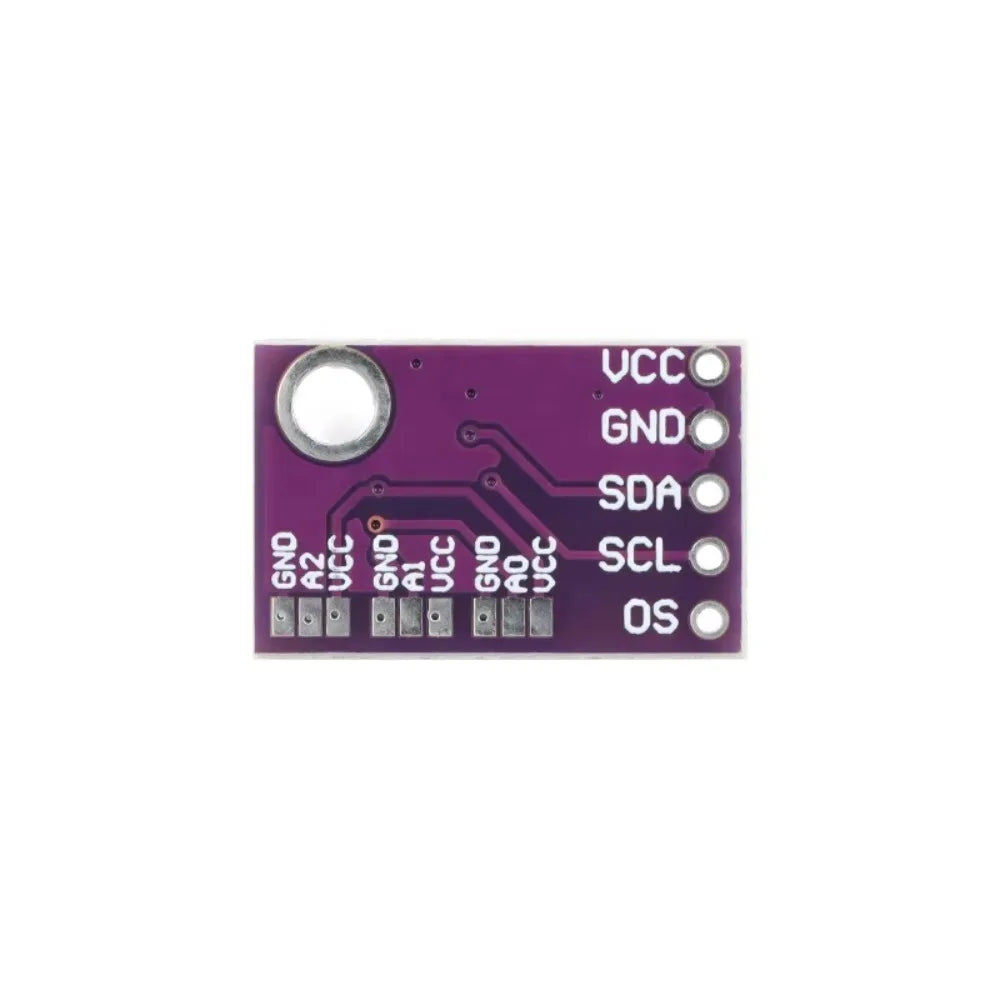

The LM75 is a high-speed I2C interface temperature sensor that can directly convert temperature into a digital signal within a temperature range of -55℃ to +125℃, achieving an accuracy of 0.125℃. The MCU can directly read data from its internal registers via the I2C bus and can operate on four data registers via I2C to set different operating modes. The LM75A has three selectable logic address pins, allowing up to eight devices to be connected simultaneously on the same bus without address conflicts. Features: I2C bus interface, 7-bit device address (slave address 1001xxx), up to 8 devices can be externally connected on the same bus; Power supply range: 2.8V～5.5V, temperature range: -55℃～+125℃; 11-bit ADC provides temperature resolution up to 0.125℃; Temperature accuracy: ±2℃ (-25℃~100℃) ±3℃ (-55℃~125℃) Programmable temperature threshold and hysteresis setpoint; To reduce power consumption, the current consumption in shutdown mode is only 1.0μA; The device can be used as an independent temperature controller when powered on; ESD protection: Under the JESD22A114 standard, it can pass 2000V HBM mode; Under the JESD22A115 standard, it can pass 200V MM mode; Under the JESD22-C101 standard, it can pass 1000V... CDM mode; Latch test up to 100mA under JEDEC standard (JESD78); Small 8-pin packages: SO8, TSSOP8 and ultra-small package XSON8U.
