SPECIFICATIONS

Application: Computer

Brand Name: WC

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

Features:

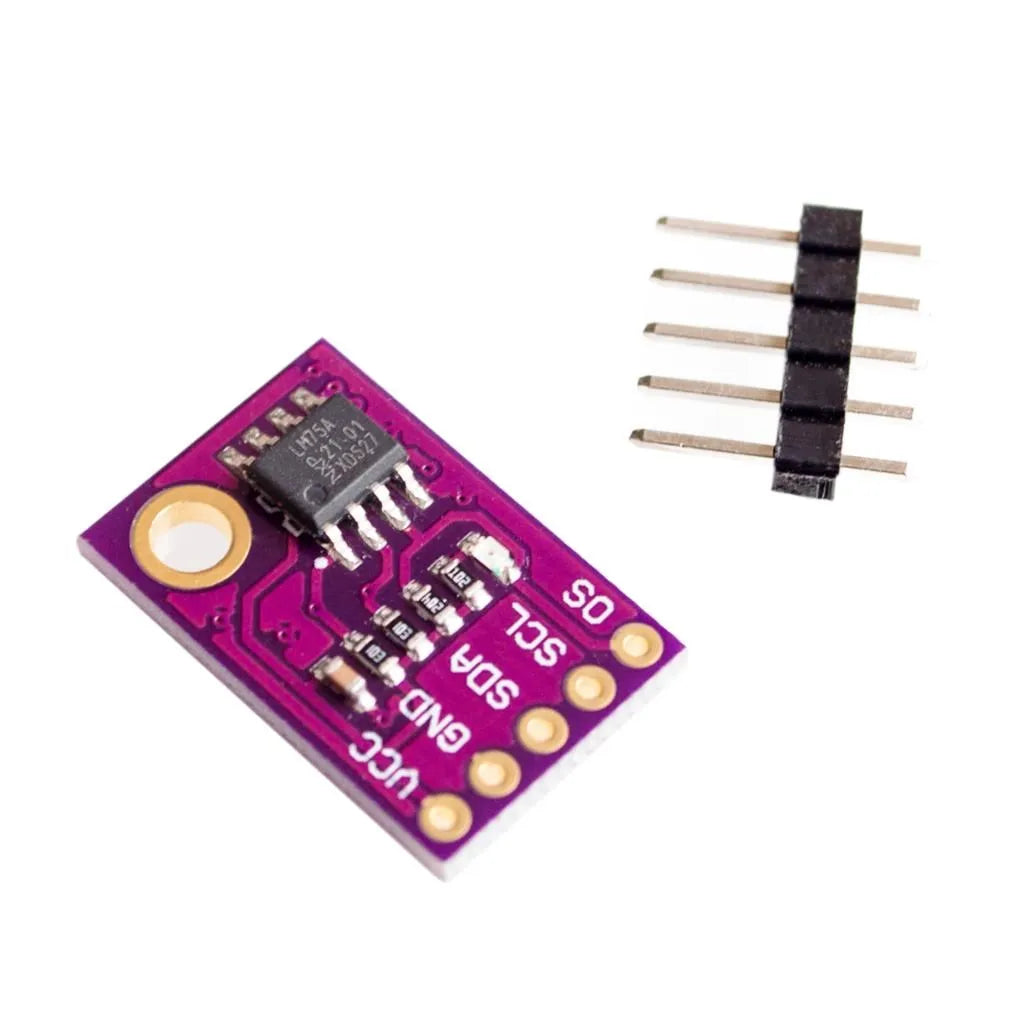

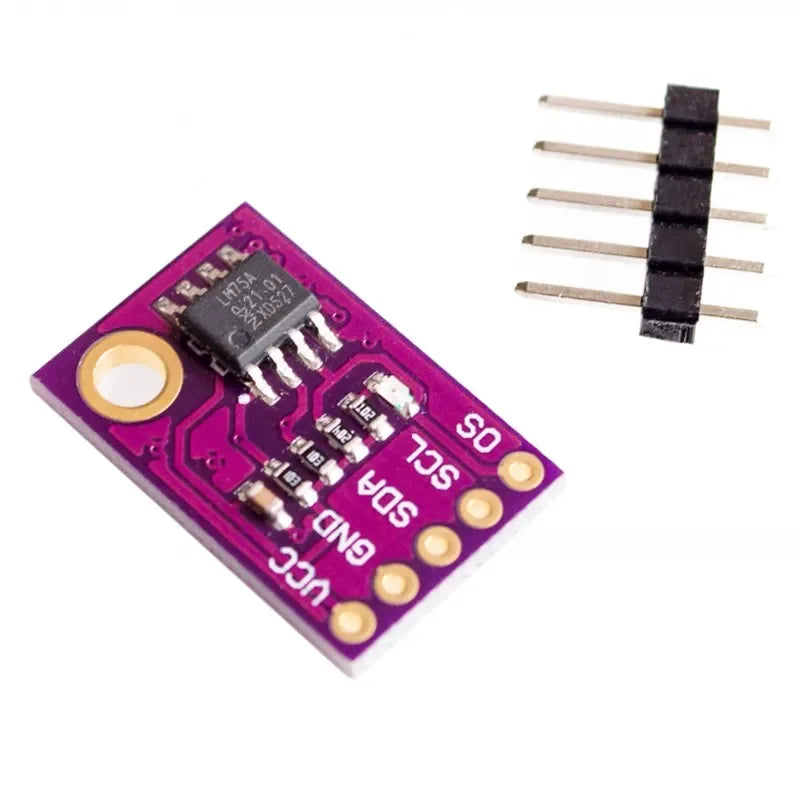

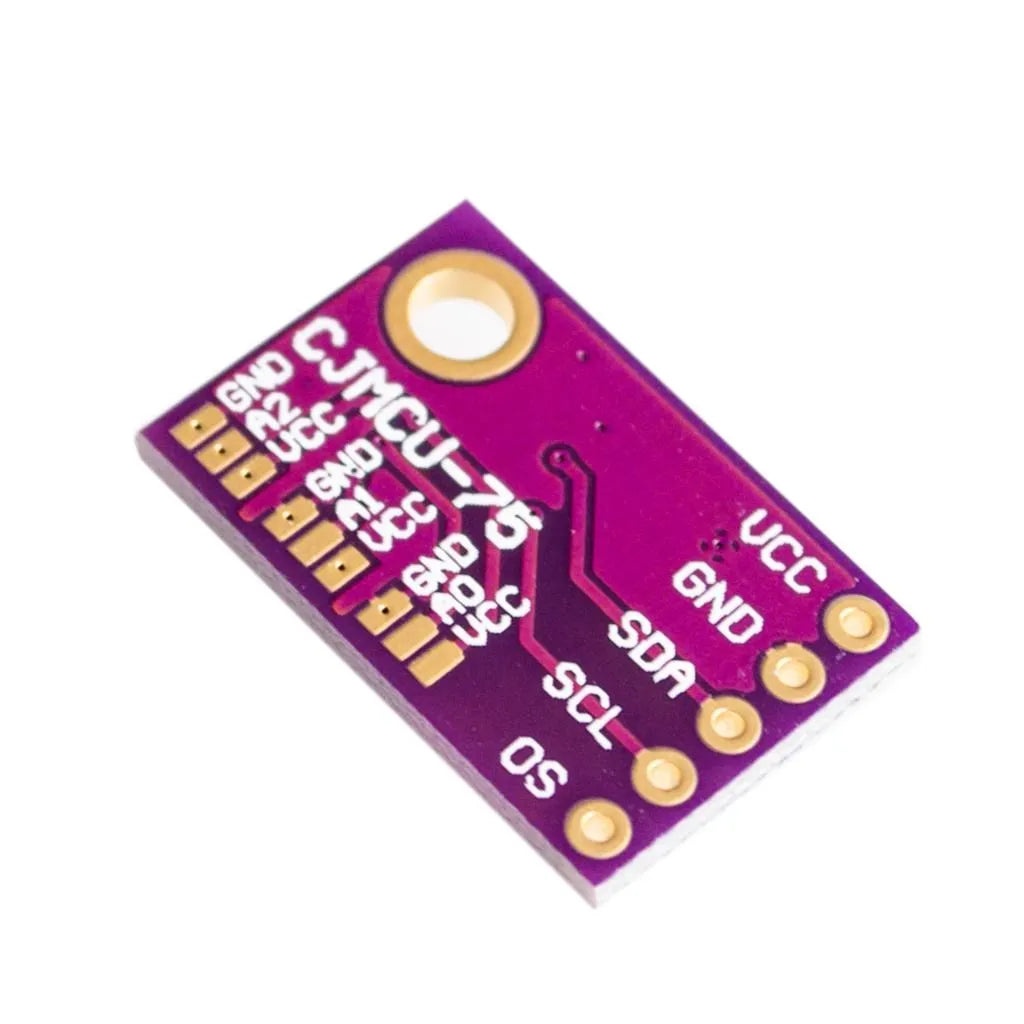

LM75A is a high-speed I2C interface, temperature sensor, in the temperature range -55 ~ + 125 Centigrade The temperature was directly converted to digital signals, and to achieve the accuracy of 0.125 Centigrade. MCU can be read directly via I2C bus data in its internal registers, and through I2C to four data registers operates to set different operating modes. LM75A has three selectable logic address pins, making it possible to connect eight devices without address conflict on the same bus.

Features:
1. I2C bus interface, the device address 7 slave address 1001xxx, can expand outside eight devices on the same bus;
2. Power range: 2.8V ~ 5.5V, temperature range: -55 ~ +125 Centigrade;
3. 11 ADC provides a temperature resolution of 0.125 Centigrade;
4. Temperature accuracy: ±2 Centigrade(-25 ~ 100 Centigrade) ±3 Centigrade (-55 ~ 125 Centigrade)
5. Programmable temperature threshold and hysteresis set points;
6. In order to reduce power consumption, the current consumption in shutdown mode is only 1.0uA;
7. On power-up the device can be used as a stand-alone temperature controllers;
