Load Cell Three-axis Gyroscope Acceleration Tilt Angle Detection High-precision Tensile Force Sensor 0.5% RS485
RS485 / Positive negative15
$107.82
Sale price
$107.82
Regular price
$0.00
Skip to product information
Load Cell Three-axis Gyroscope Acceleration Tilt Angle Detection High-precision Tensile Force Sensor 0.5% RS485
$107.82
Sale price
$107.82
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Material: Polymer
Origin: Mainland China
Output: Analog Sensor
Theory: Resistance Sensor
Type: Biosensor
Use: Consumption Sensor
Specification |
DC power supply: DC 5-30V
Maximum power consumption: <0.15W
Operating temperature: -40°C to 60°C
Tilt Angle parameter range: X-axis -180° to 180°, Y-axis -90° to 90°, resolution 0.01°
Typical accuracy
X and Y axes: Static accuracy ± 0.1°, dynamic accuracy ± 0.5°
Z-axis: Static accuracy ± 0.5°, dynamic integration error exists
Maximum power consumption: <0.15W
Operating temperature: -40°C to 60°C
Tilt Angle parameter range: X-axis -180° to 180°, Y-axis -90° to 90°, resolution 0.01°
Typical accuracy
X and Y axes: Static accuracy ± 0.1°, dynamic accuracy ± 0.5°
Z-axis: Static accuracy ± 0.5°, dynamic integration error exists
Temperature drift: ±(0.5° C to 1° C), (-40°C to +60°C
Response time: <1 second
Protection grade: IP65
Default cable length: 60CM. Customization is available upon request

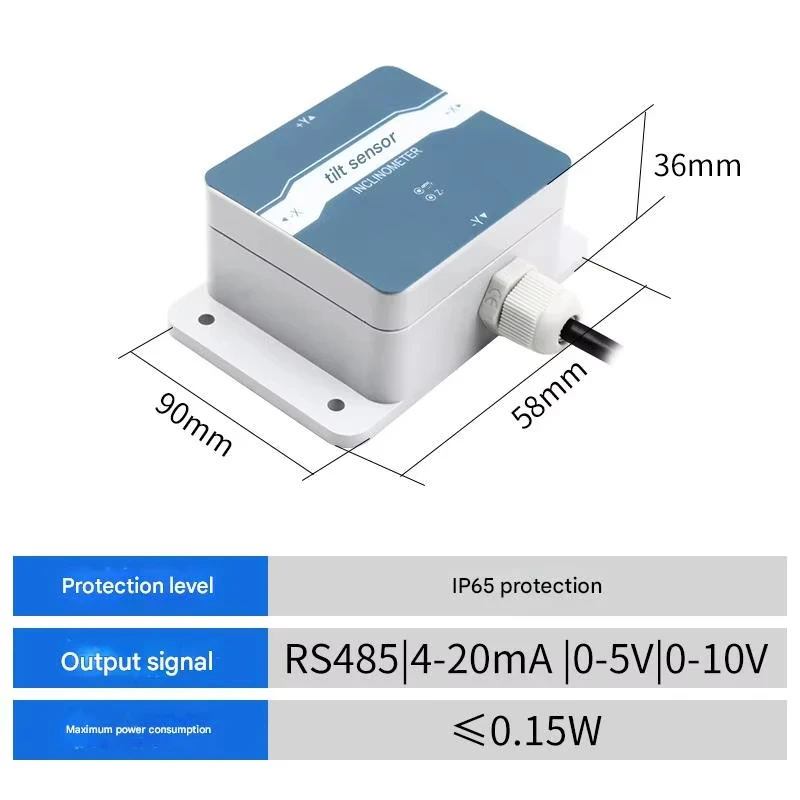

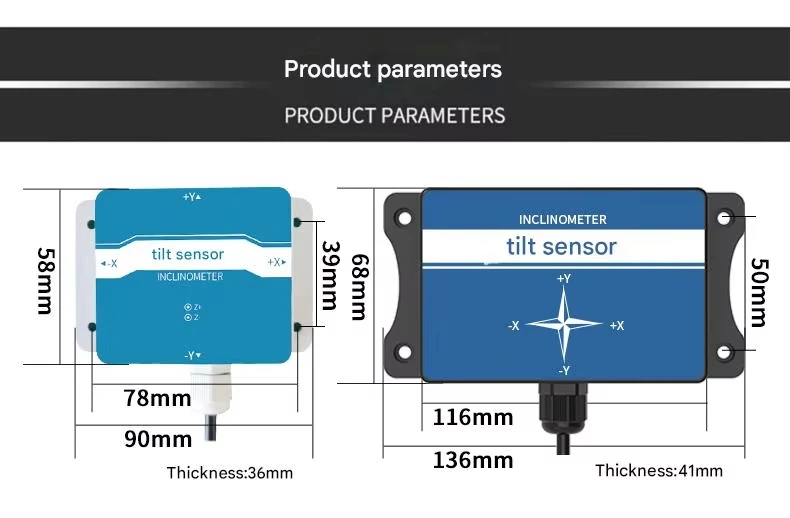

Overall dimensions: 90*58*36MM
Response time: <1 second
Protection grade: IP65
Default cable length: 60CM. Customization is available upon request
Overall dimensions: 90*58*36MM
