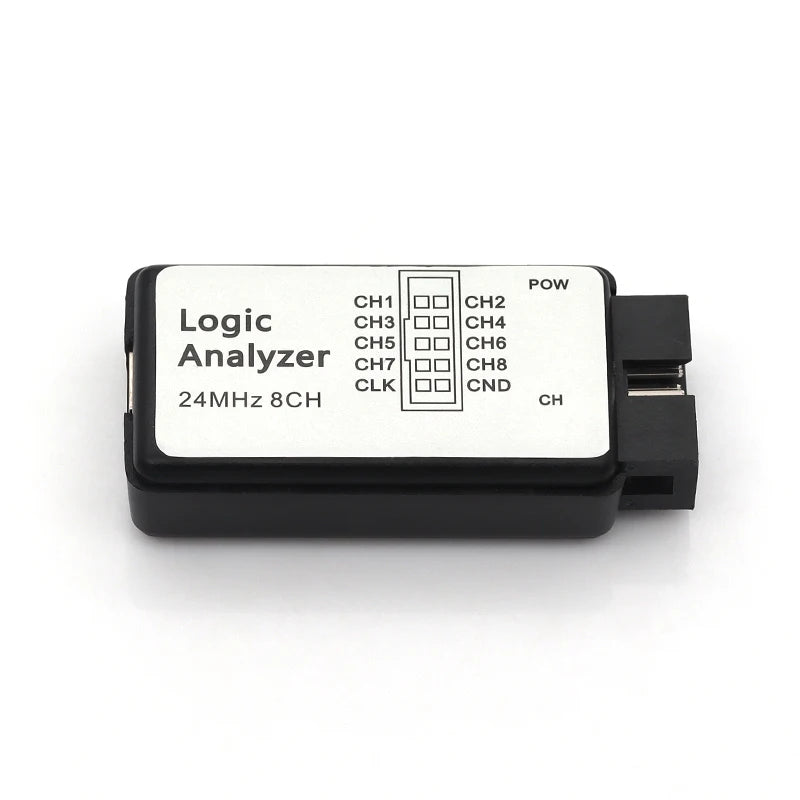

Logic Analyzer 24MHz Logic Analyzer Device USB Logic Analyzer Device Set Mini Digital Pocket Size 8 Channel Input Memory 24MHz

Logic Analyzer 24MHz Logic Analyzer Device USB Logic Analyzer Device Set Mini Digital Pocket Size 8 Channel Input Memory 24MHz

$301.88

$301.88 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: MGQH

Choice: yes

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Origin: Mainland China

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

Feature:

1. USB Logic Analyzer each channel at up to 24M times per second
2. The logic has 8 channel inputs-you can monitor 8 different digital signals simultaneously.
3. Fine workmanship, with good performance and easy to use, has long service life
4. All the way to the logical pen instructions, with a small light to indicate the level of CH1, very intuitive.
5. The data is uploaded in real time, the upper computer adopts compressed storage, and the maximum collection depth is 10T, far exceeding the actual demand
6. Complete support for various trigger modes, rising edge, falling edge, high level trigger, low level trigger, and the above four basic methods combined into a complex trigger

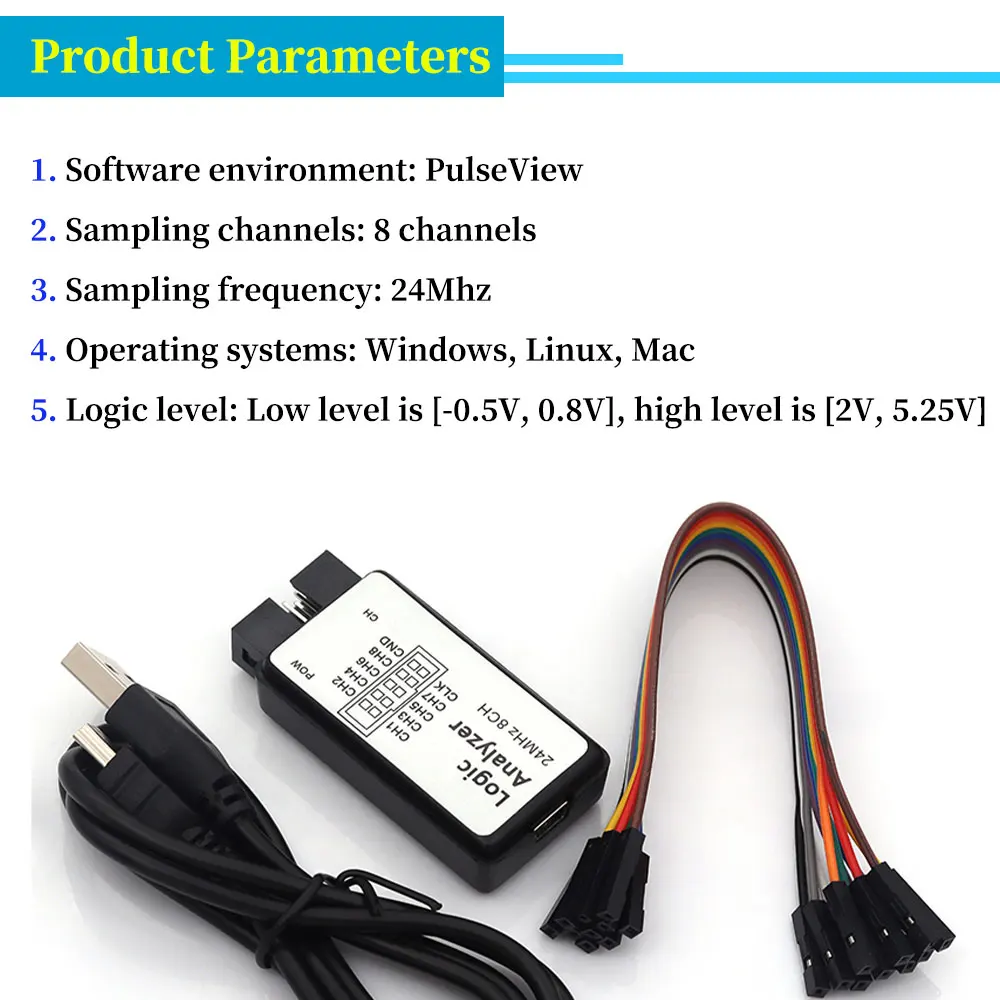

Specification:

Item Type: USB Logic AnalyzerInput Characteristics:
Capacitance: 5PF
Impedance: 100K Ω, (This is the more reasonable impedance we adopted after weighing, and it is only the mainstream parameter.)
VIH (input Can Recognize High Level): Higher than 1.6V is recognized as high level. (It can be used to stably collect signals at 5V, 3.3V, 2.5V, 2.0V level. It can also work in 1.8V level system, but it is not very recommended.)
Sampling Speed Record: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.

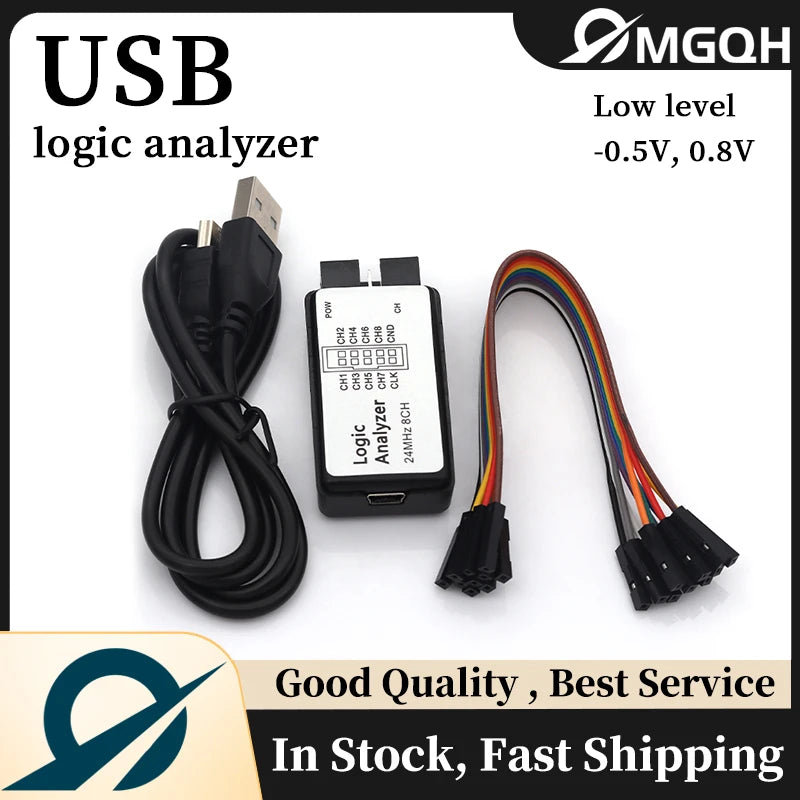

Package List:

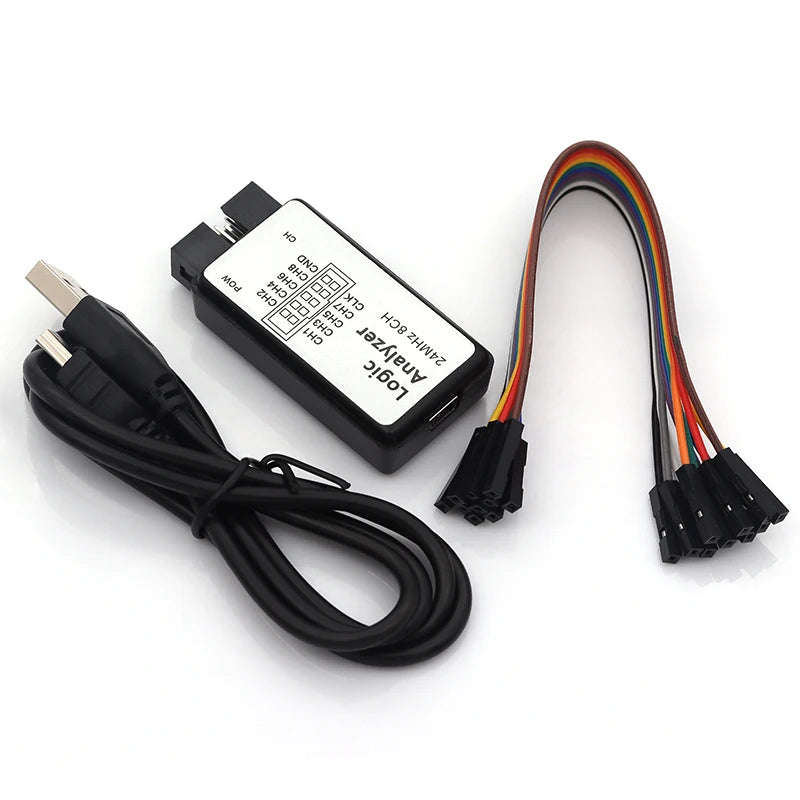

1 x USB Logic Analyzer

1 x USB Cable

1 x Wire
