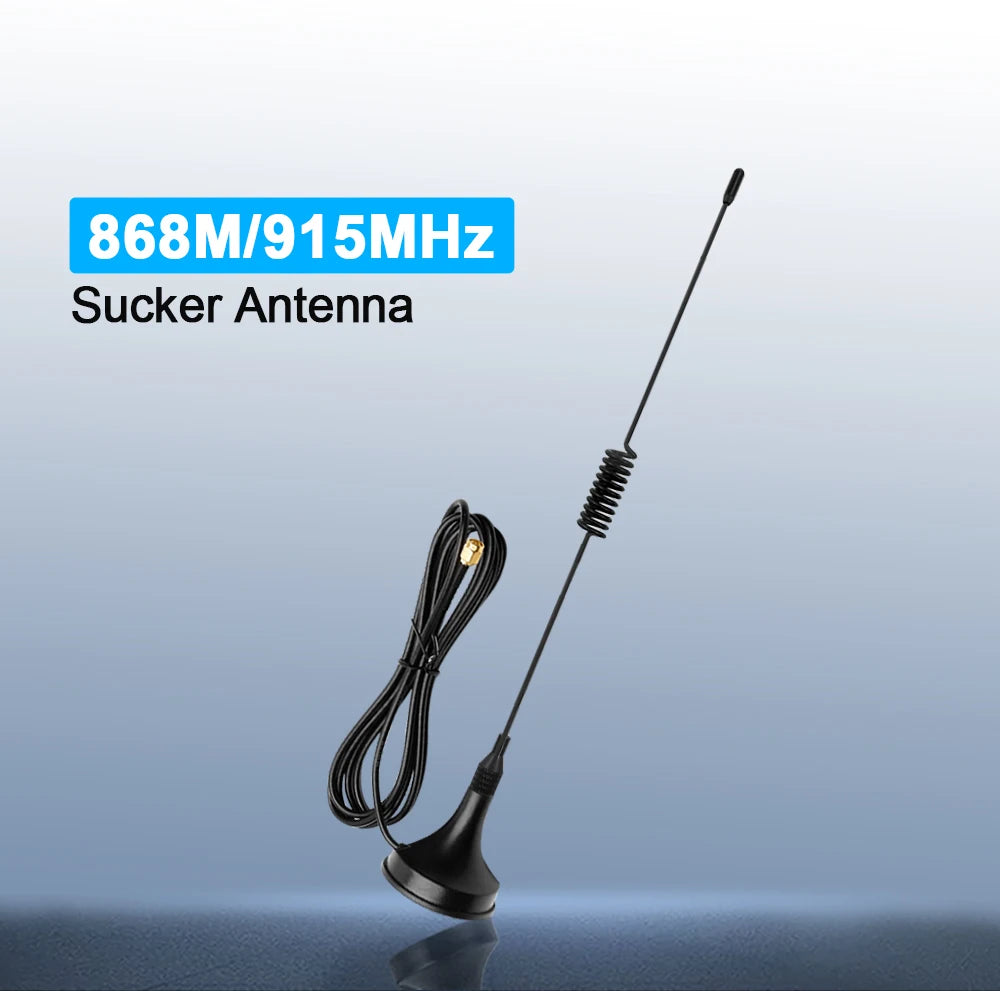

Lora 868MHz 915MHz Antenna with Magnetic Base SMA Male Omni Long Range Antennas 900MHz 1m 2m Pigtail Antena DTU Aerial
1m
$10.00
Sale price
$10.00
Regular price
$0.00
Skip to product information
Lora 868MHz 915MHz Antenna with Magnetic Base SMA Male Omni Long Range Antennas 900MHz 1m 2m Pigtail Antena DTU Aerial
$10.00
Sale price
$10.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: XHCRF
Certification: NONE

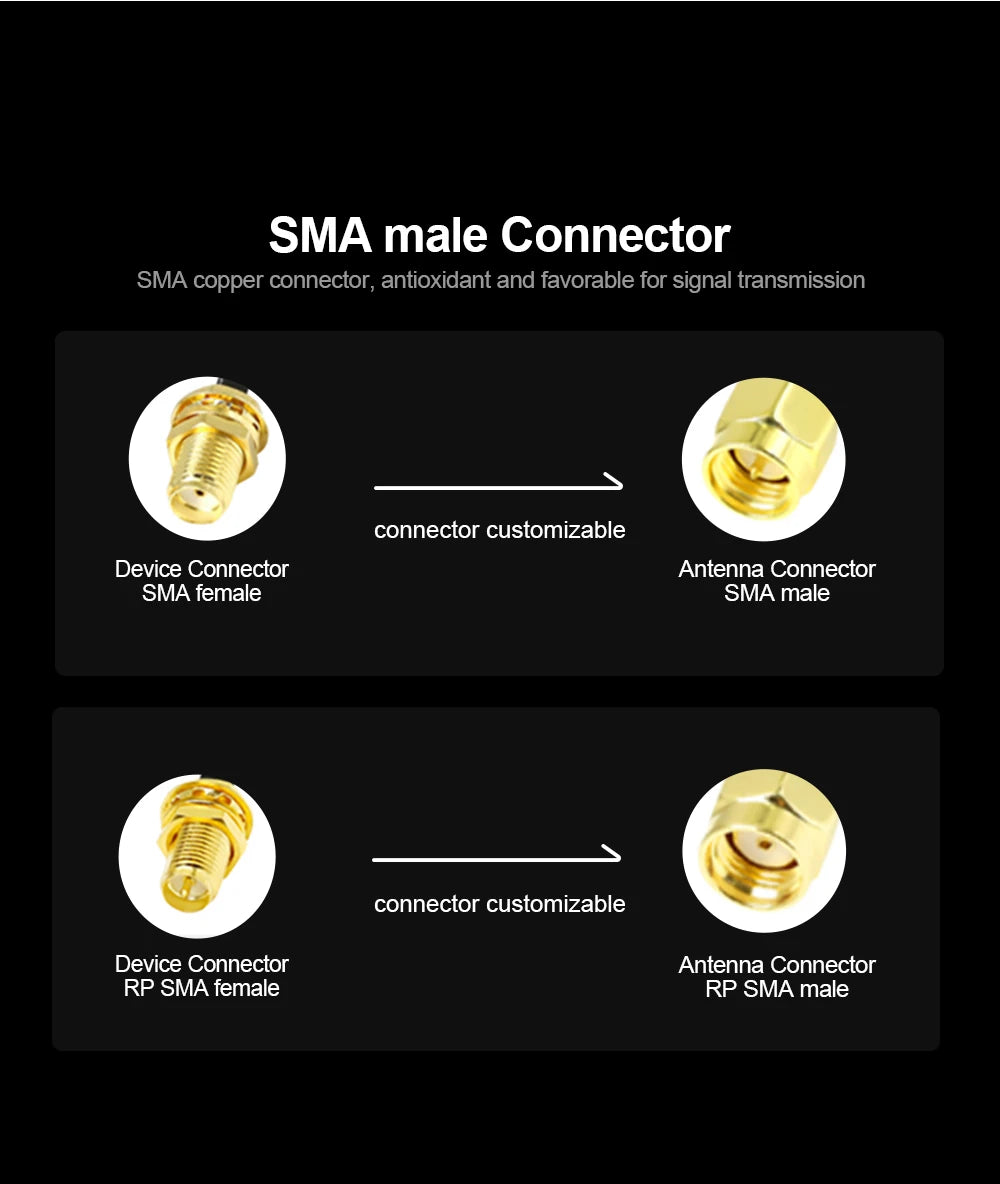

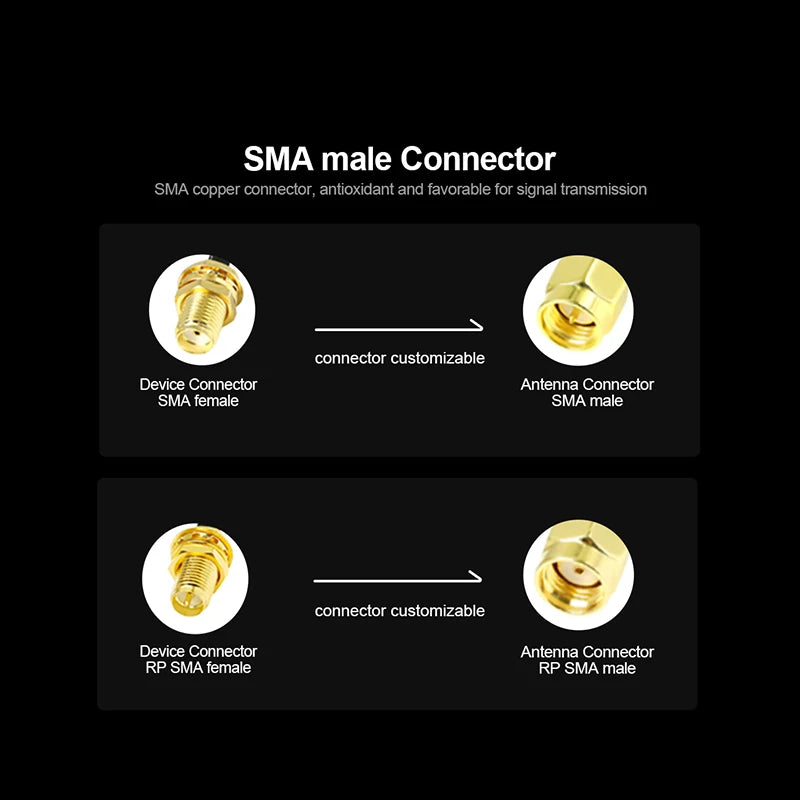

Connector: SMA male
Gain: 4dBi
Gain(dB): 4dBi
High-concerned chemical: none
Impedance: 50Ω
Model Number: TX900-XPL-100(23)
Origin: Mainland China
Electrical Specification |
Mechanical Specification |
||
Frequency/ Band |
868MHz/915MHz |
Connector |
SMA male |
Gain |
4dBi |

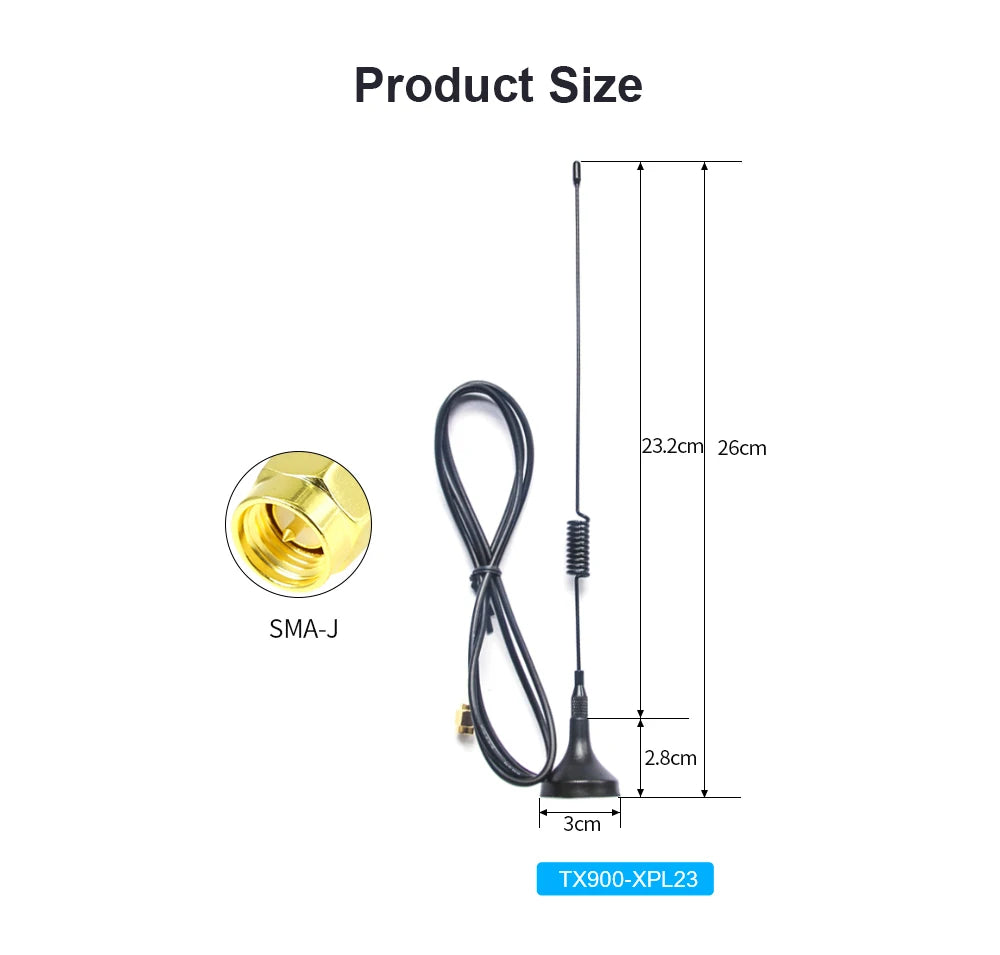

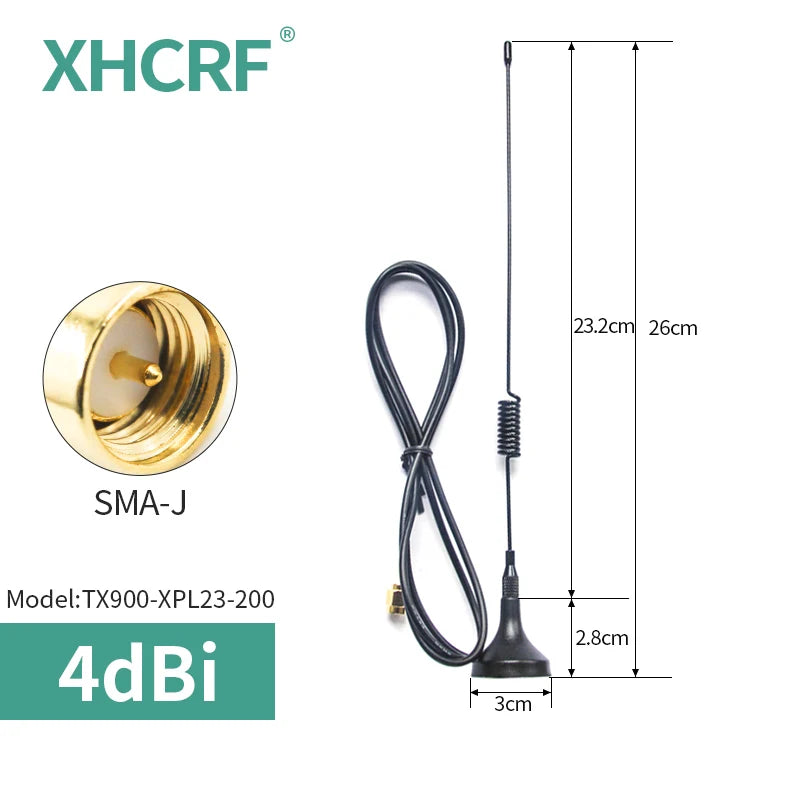

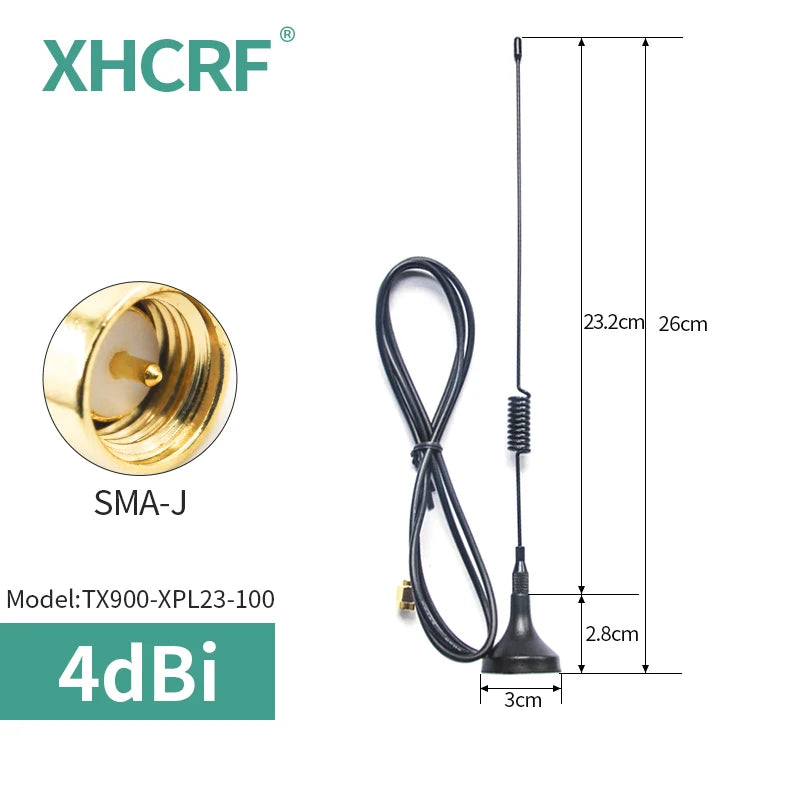

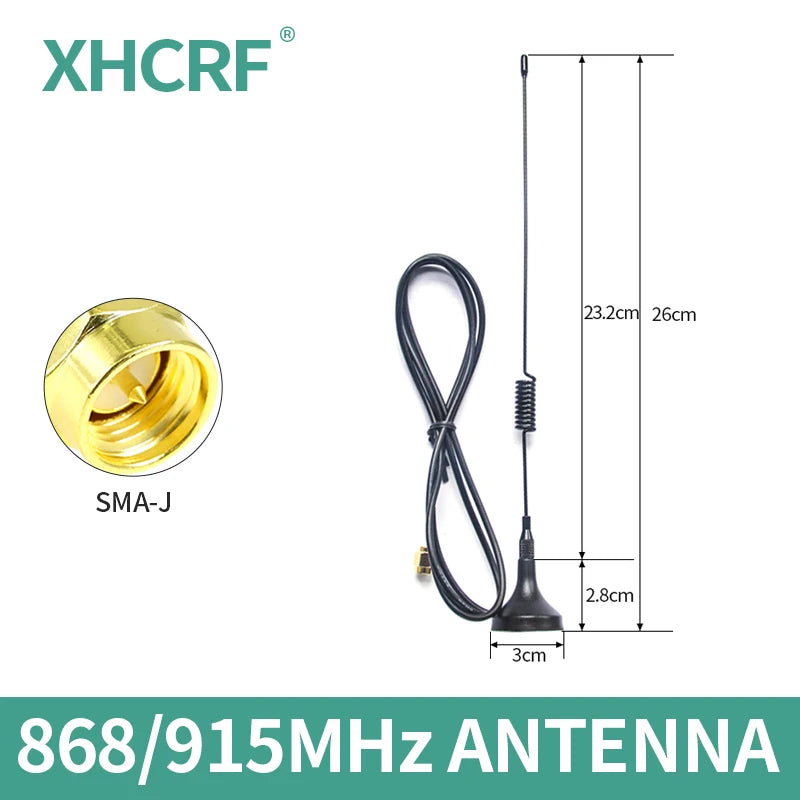

Antenna Height |
260mm |

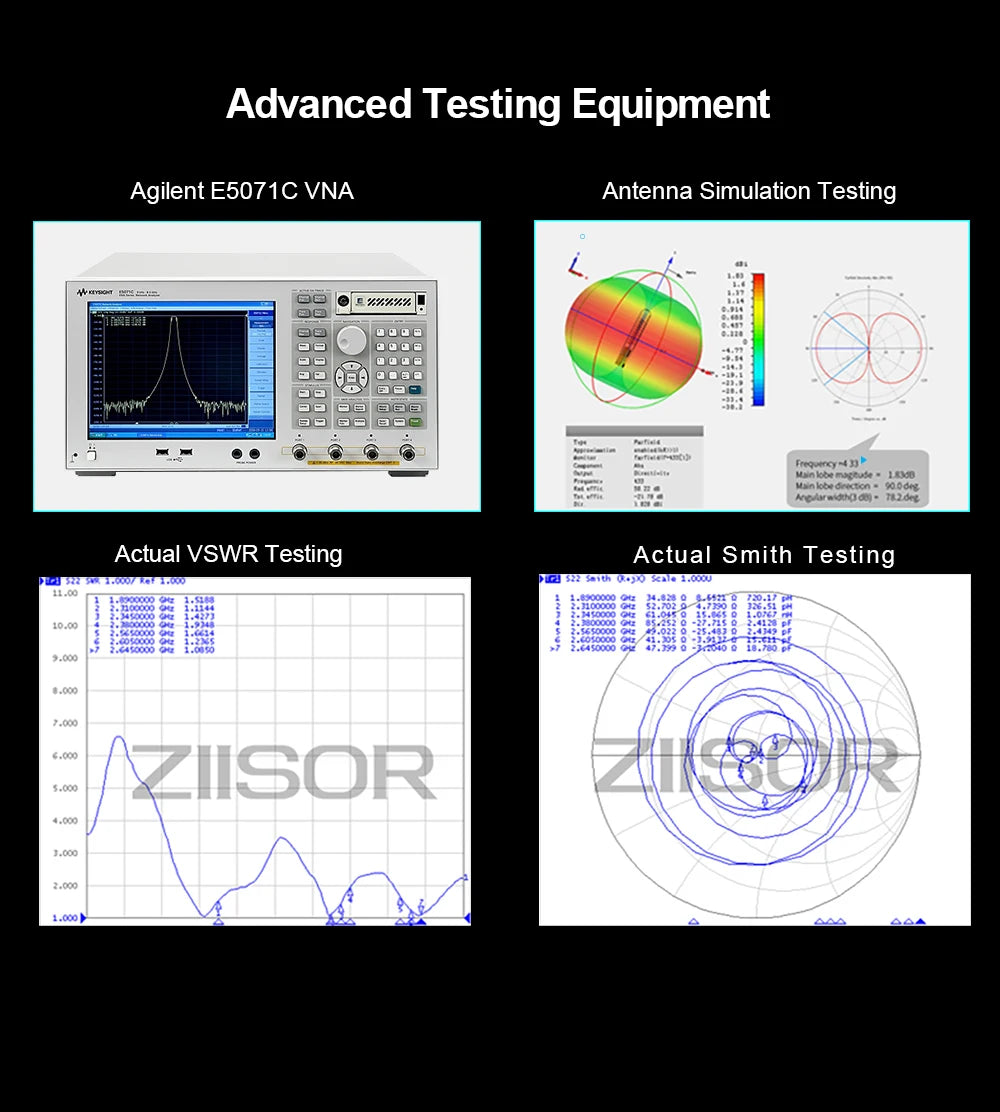

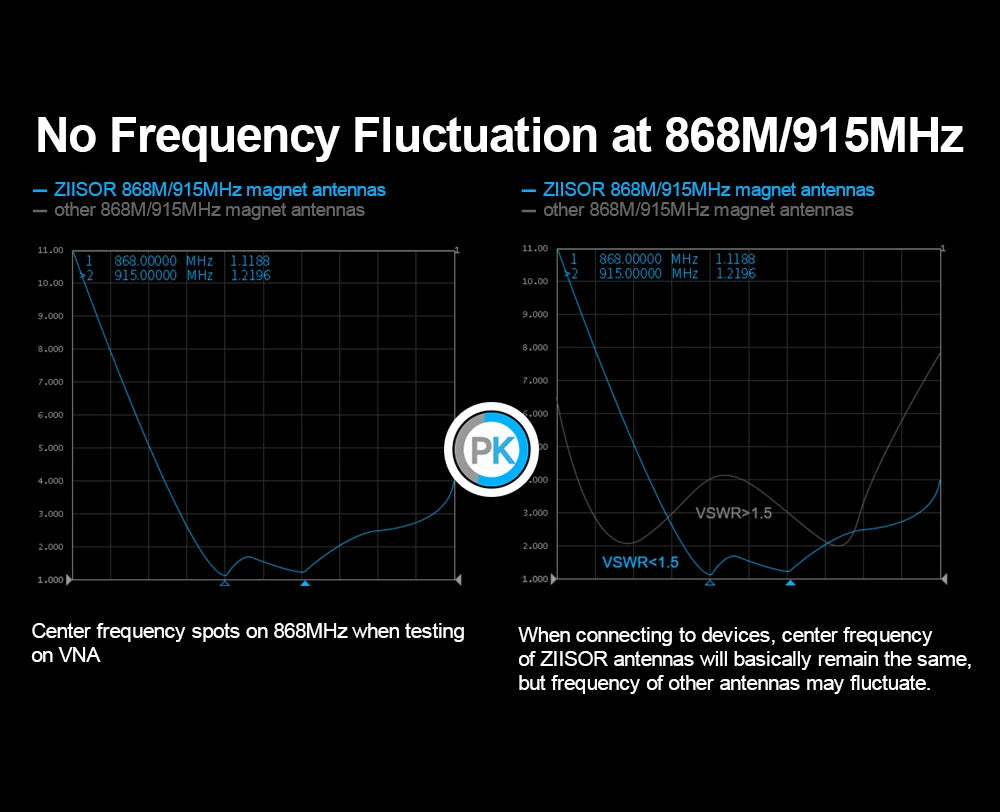

VSWR |
≤1.5 |

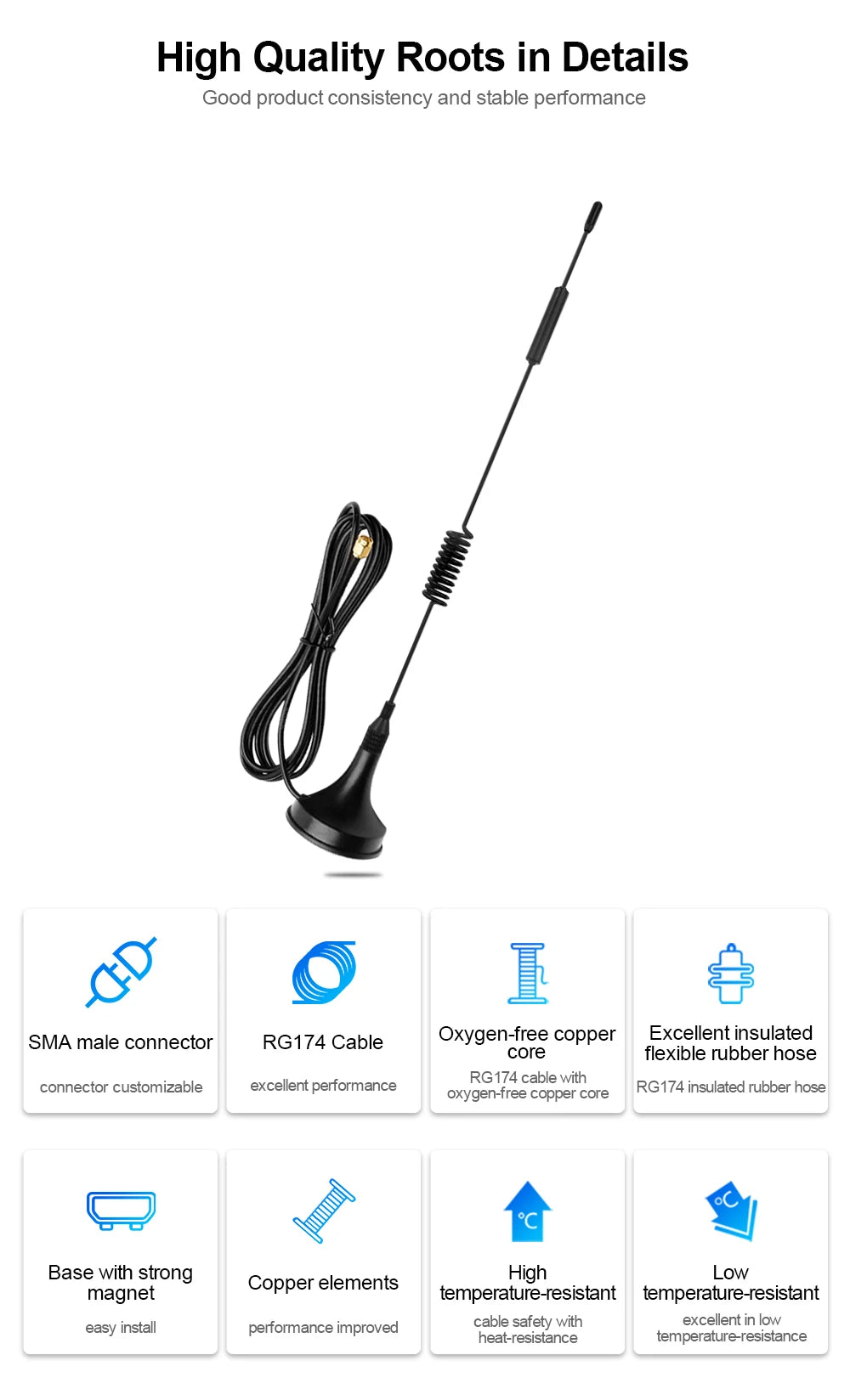

Cable Type |
RG174 |
Polarization |
Vertical |
Cable Length |
1m,2m |

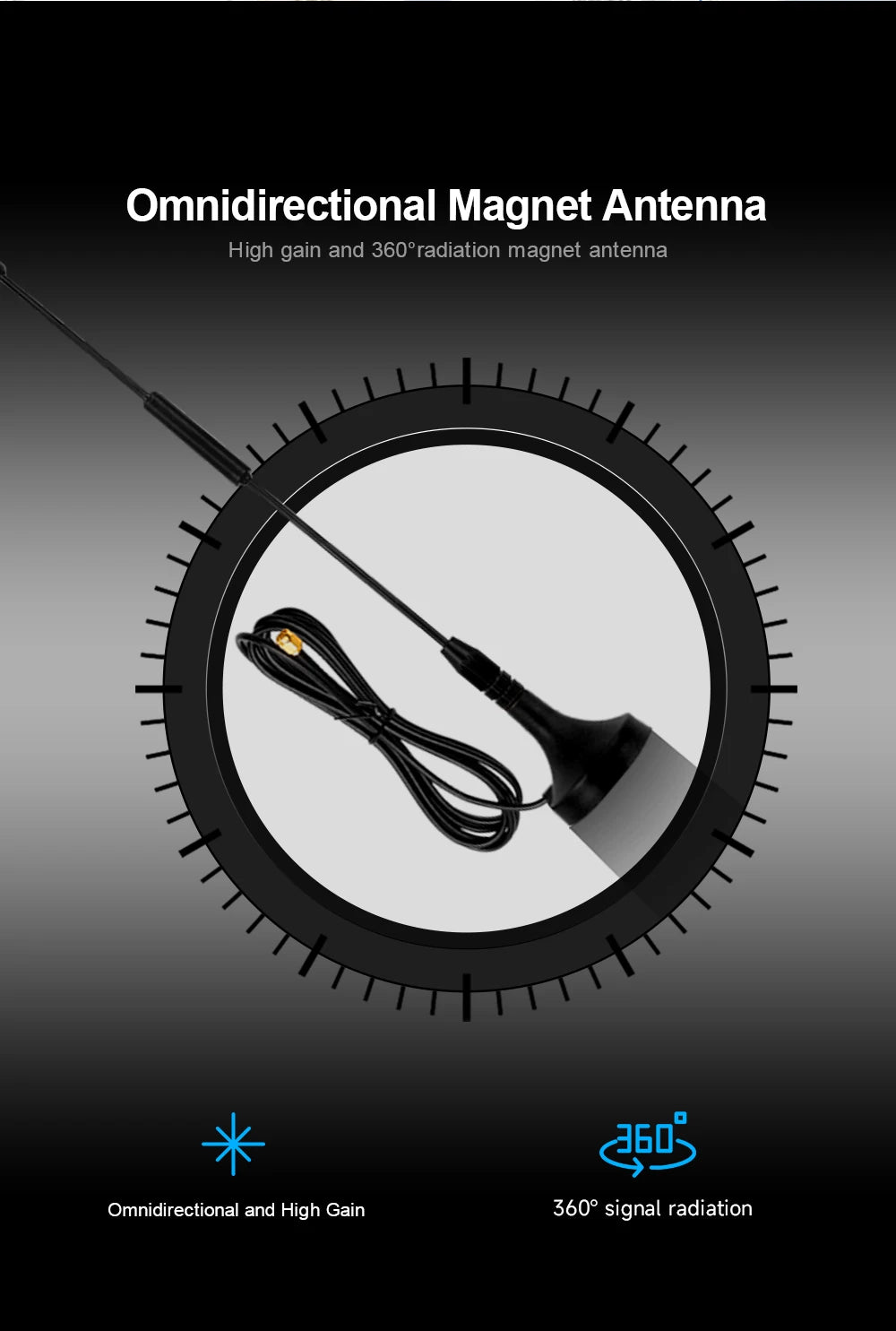

Radiation Direction |
Omnidirectional |

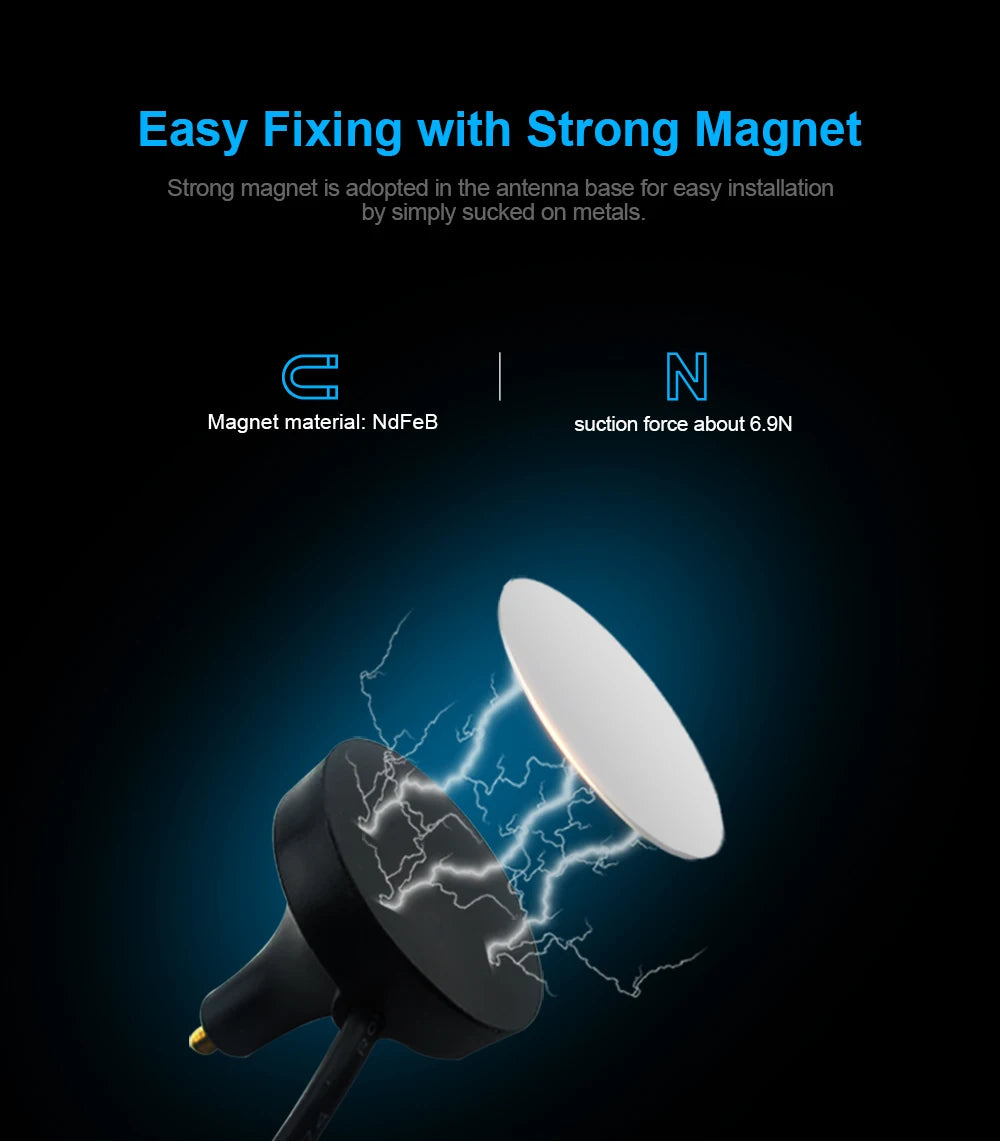

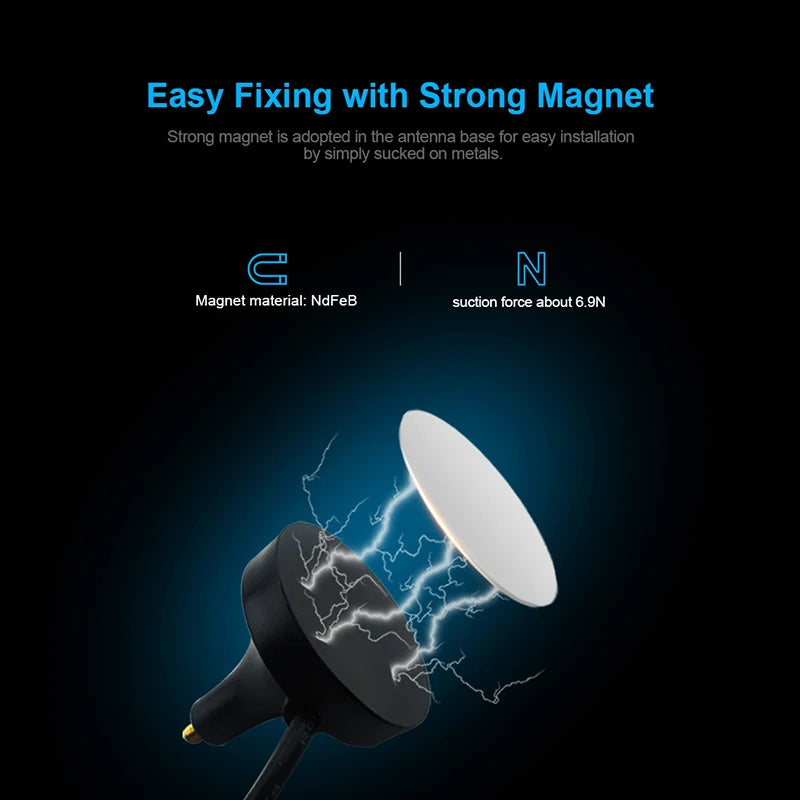

Magnet Base Diameter |
30mm |

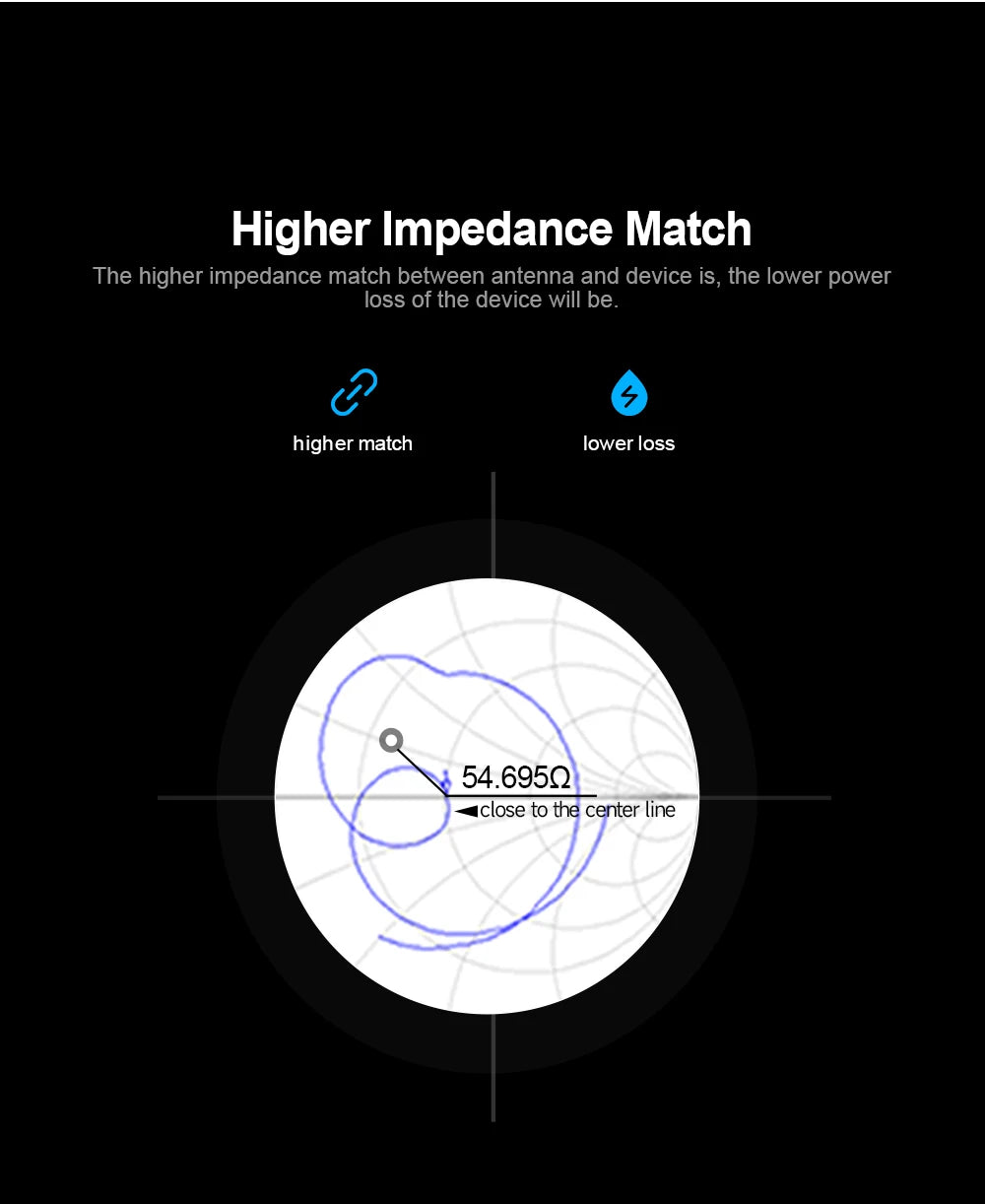

Input Impedance |
50Ω |
Working Temperature |
-40℃~+85℃ |
Power |
50W |
Storage Temperature |
-40℃~+85℃ |
