Lora RFM95 Shield-915MHZ-V1.1
$89.84
Sale price
$89.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module

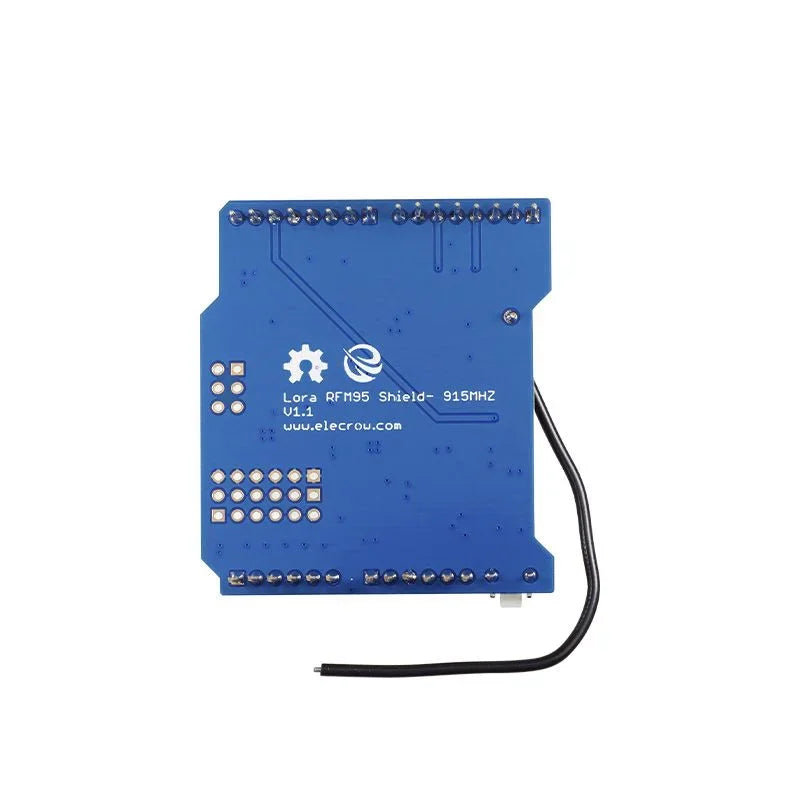

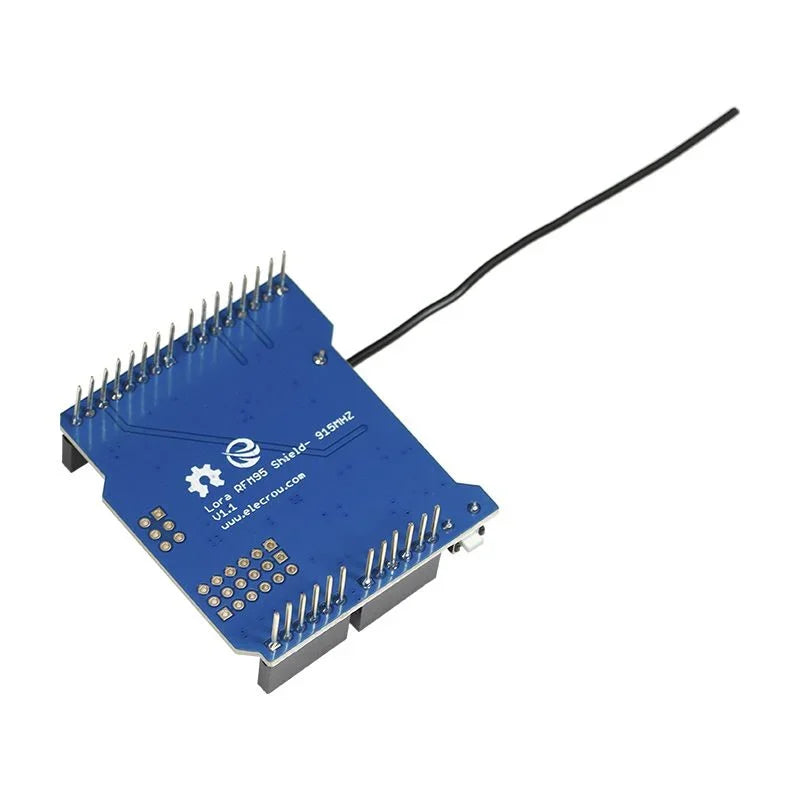

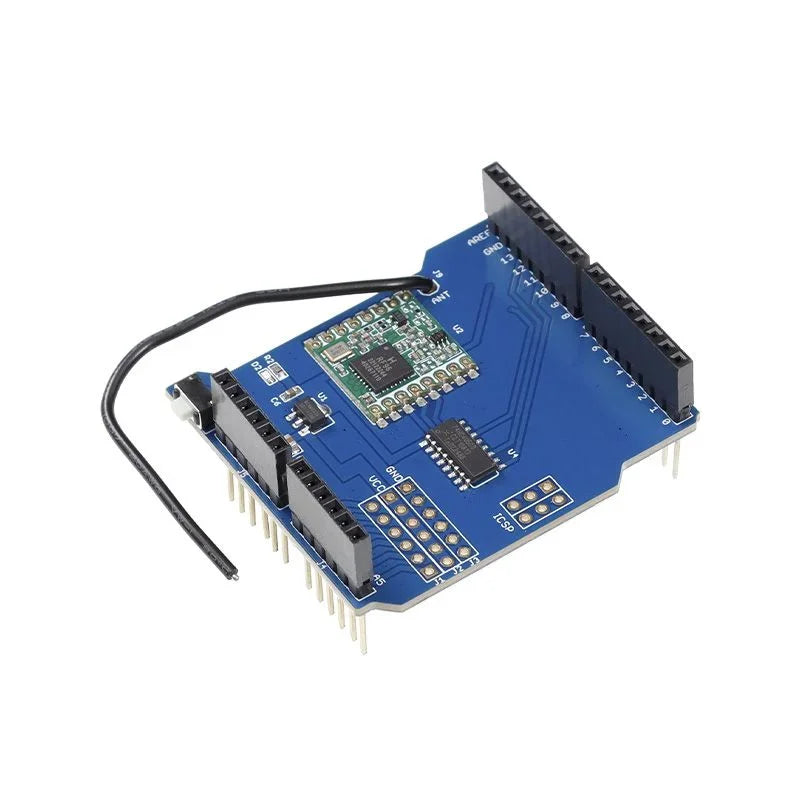

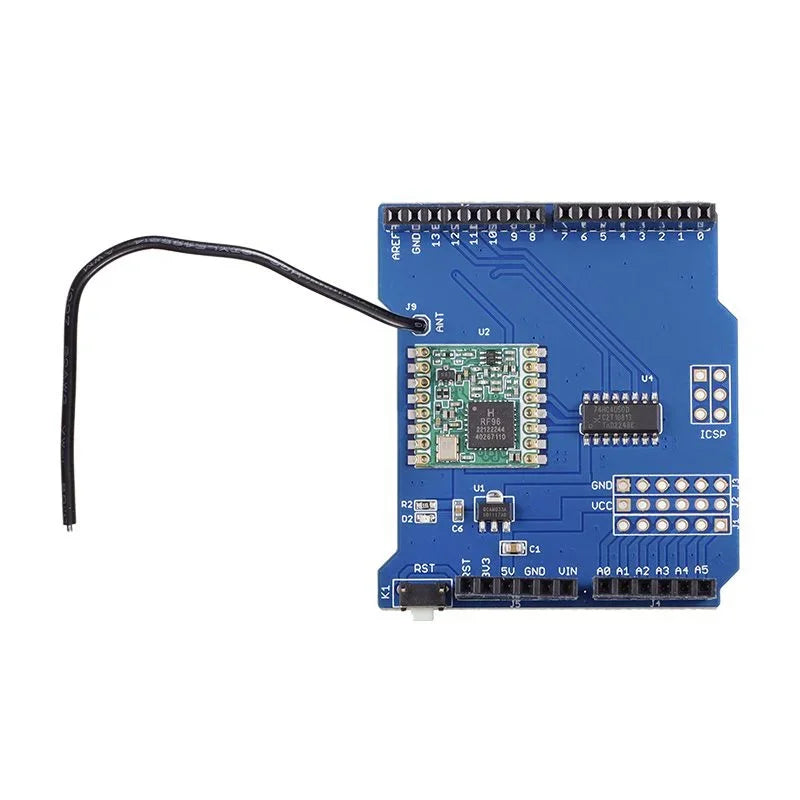

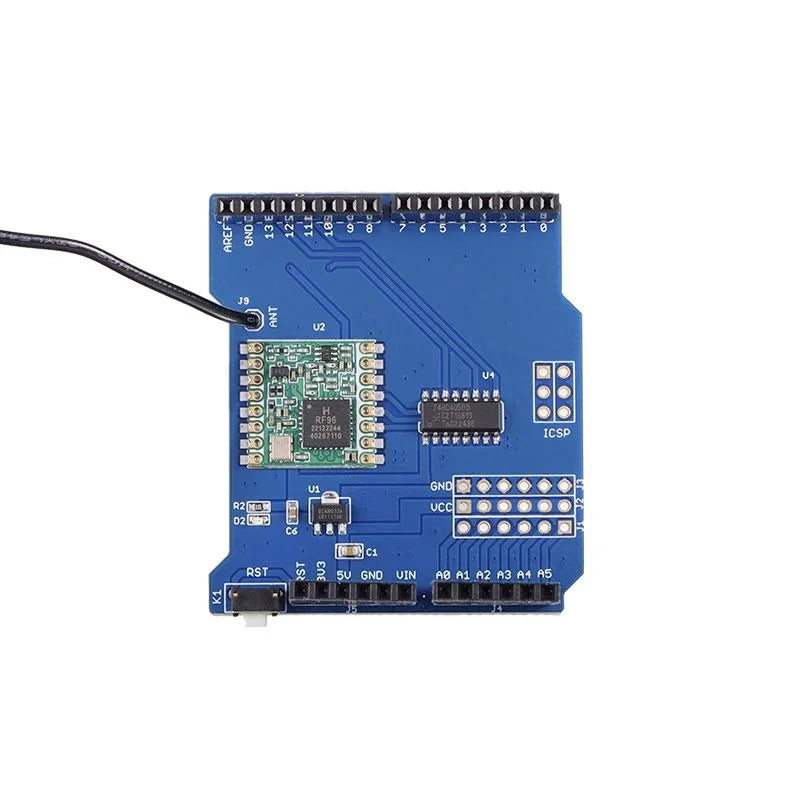

The Elecrow Lora Shield is a long range transceiver on a shield for Arduino form factor and is based on the Open source library. The Lora Shield allows the user to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
Using Hope RF's patented LoRa™ modulation technique the Lora Shield can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. They can easily go 2 km line of sight using simple wire antennas, or up to 20 km with directional antennas and settings tweakings. LoRa™ also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
The RFM95 Shield is an inexpensive and versatile radio module. You can use it to send text or binary data between two or hundreds of modules. It’s perfect for building inexpensive long-range wireless networks for home automation, citizen science, and more.
Features
168 dB maximum link budget
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm
Excellent blocking immunity
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
Built-in bit synchronizer for clock recovery
Preamble detection
127 dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC
Specifications
Frequency Range: 915 MHz
Spreading Factor：6-12
Bandwidth：7.8-500kHz
Effective Bitrate:.018-37.5 kbps
Est. Sensitivity: -111 to -148 dBm
Package list
Lora RFM95 Shield- 915MHZ x1
