SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

PN: LoRa868 v1.1 Communication Module

Type: Module

LoRa868 v1.1 – Long-Range Wireless Module
📡 803-930MHz Range – SX1276 chip with -140dBm sensitivity
🔧 Dual Antenna Options – SMA + MCX patch antenna pads
🔄 Stackable Design – DIP switches for multiple modules
⚡ 300kbps Bit Rate – Multiple modulation modes supported
🔌 SPI Interface – Arduino/UIFlow/MicroPython compatible

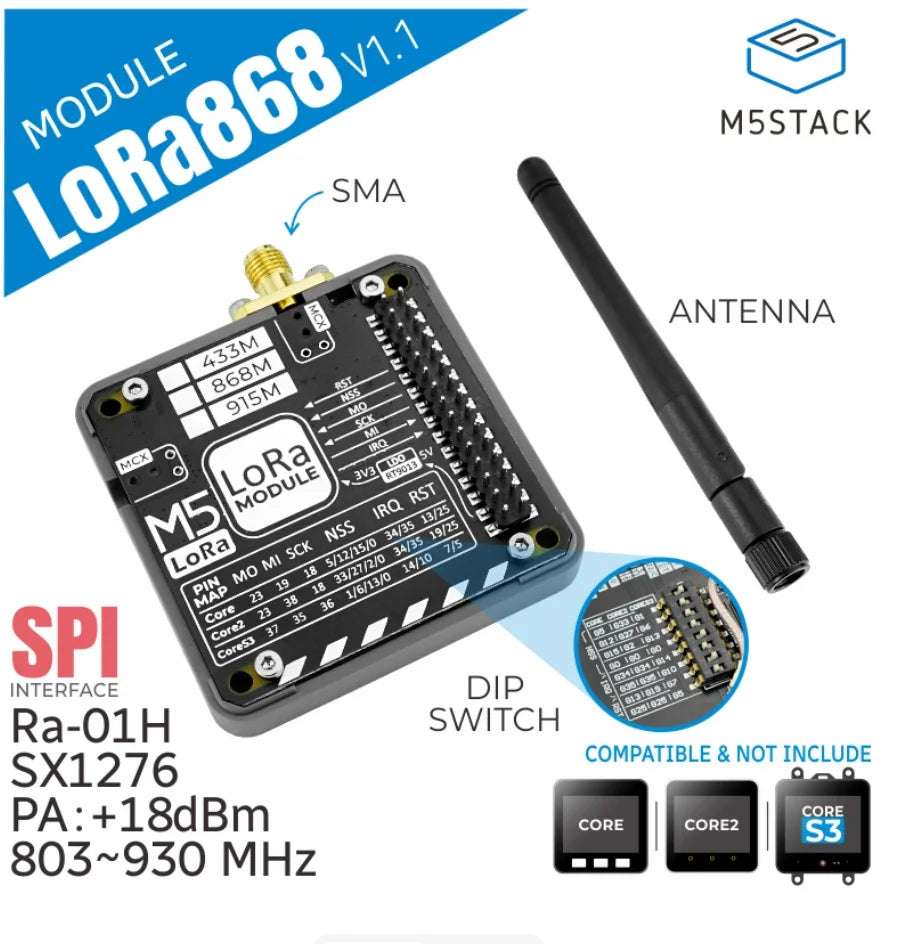

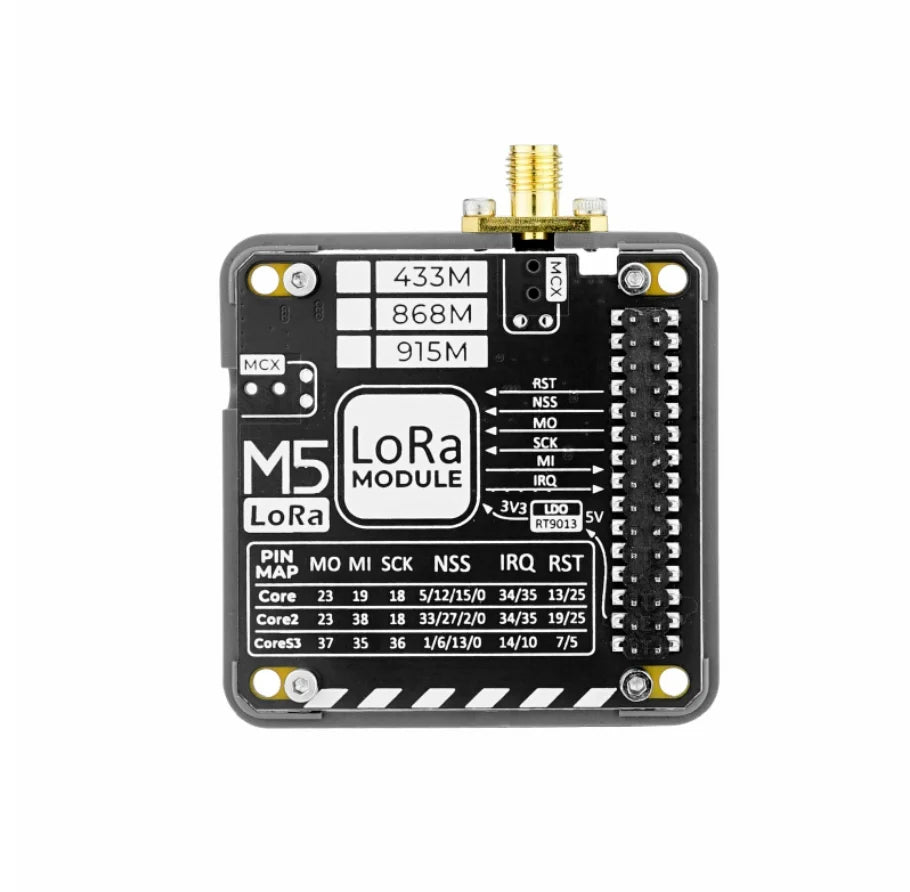

 LoRa868 v1.1 Communication Module – Long-Range 868MHz LoRa with Flexible Antenna Options

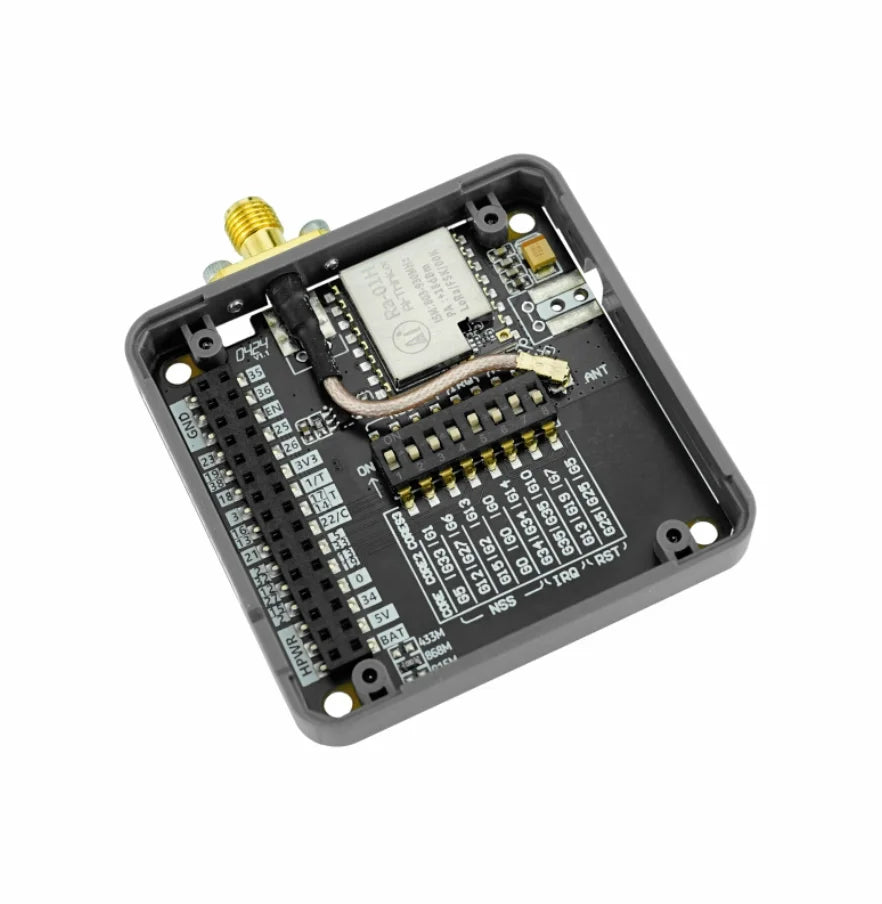

The M5Stack LoRa868 v1.1 is a versatile 868MHz LoRa communication module featuring the Ra-01H (SX1276 chip) for long-range, low-power wireless connectivity. With default SMA antenna, additional MCX patch antenna pads, and configurable DIP switches for pin remapping, it supports multiple stacked modules operating simultaneously. Supporting LoRa, FSK, GFSK, MSK, GMSK, and OOK modulation modes with programmable bit rates up to 300kbps, it's ideal for smart city, industrial automation, and remote monitoring applications.

Key Features & Advantages

• 📡 Multi-Frequency LoRa Operation: 803-930MHz spectrum with -140dBm receiver sensitivity

• 🔧 Flexible Antenna Configuration: Default SMA antenna + dual MCX patch antenna pads

• 🔄 Stackable Multi-Node Support: DIP switches enable multiple module stacking and pin remapping

• ⚡ High-Speed Programmable: Up to 300kbps bit rate with multiple modulation modes

• 🔌 Standard SPI Interface: Easy integration with Arduino, UIFlow, and MicroPython

• 📦 Complete Package: Includes SMA antenna for immediate deployment

Technical Specifications

Applications

• Remote monitoring systems

• Smart city infrastructure

• Home and industrial automation

• Agricultural sensor networks

• IoT device communication

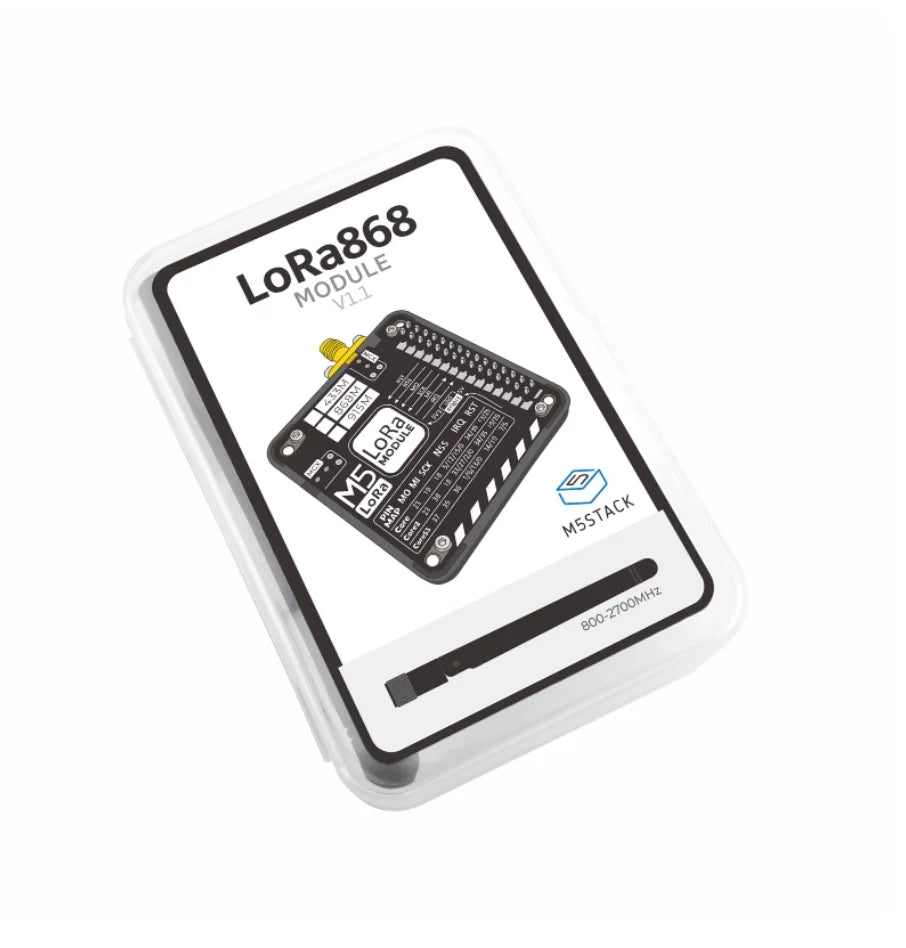

Package Includes

• 1 × LoRa868 v1.1 Module

• 1 × SMA Antenna

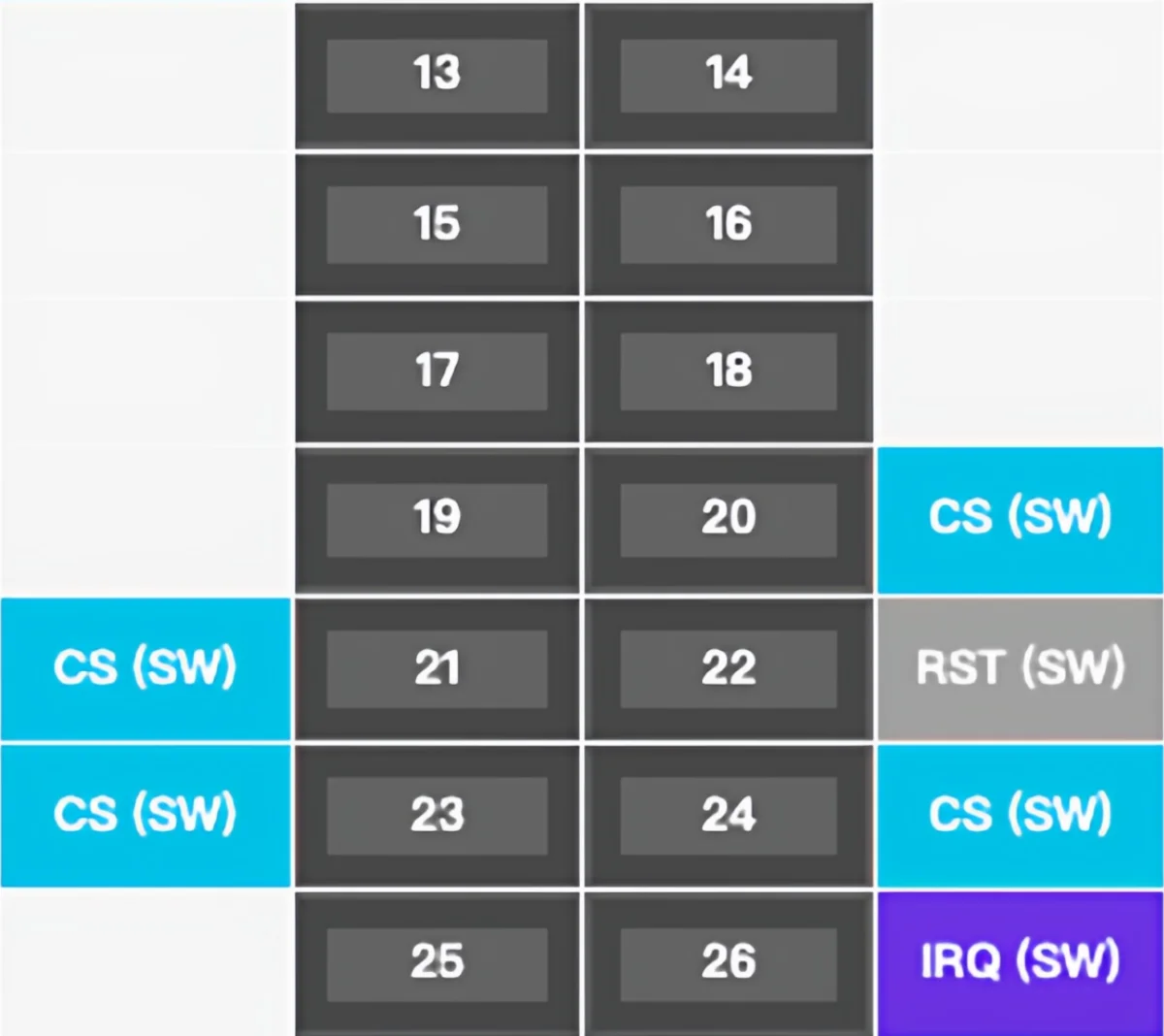

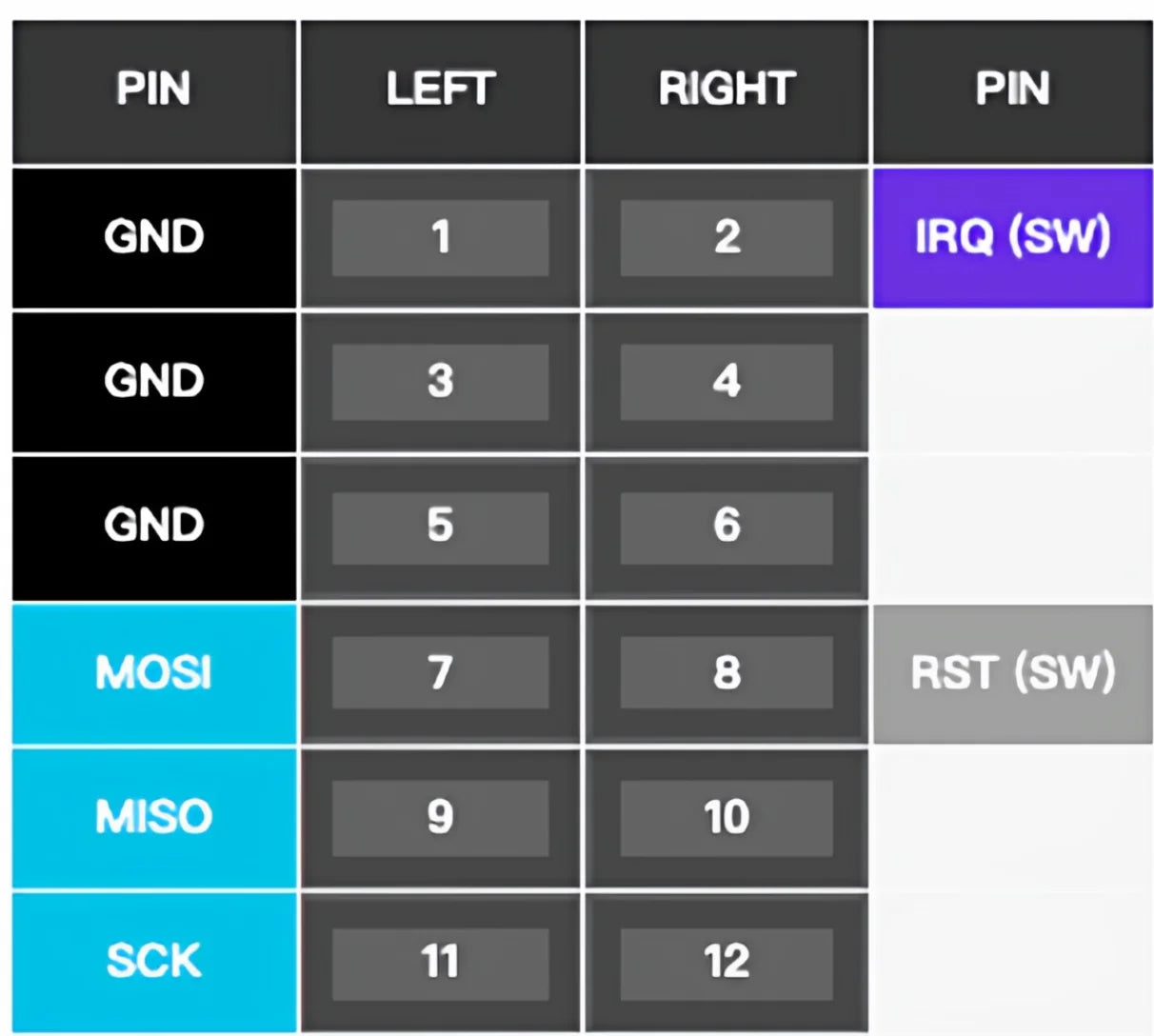

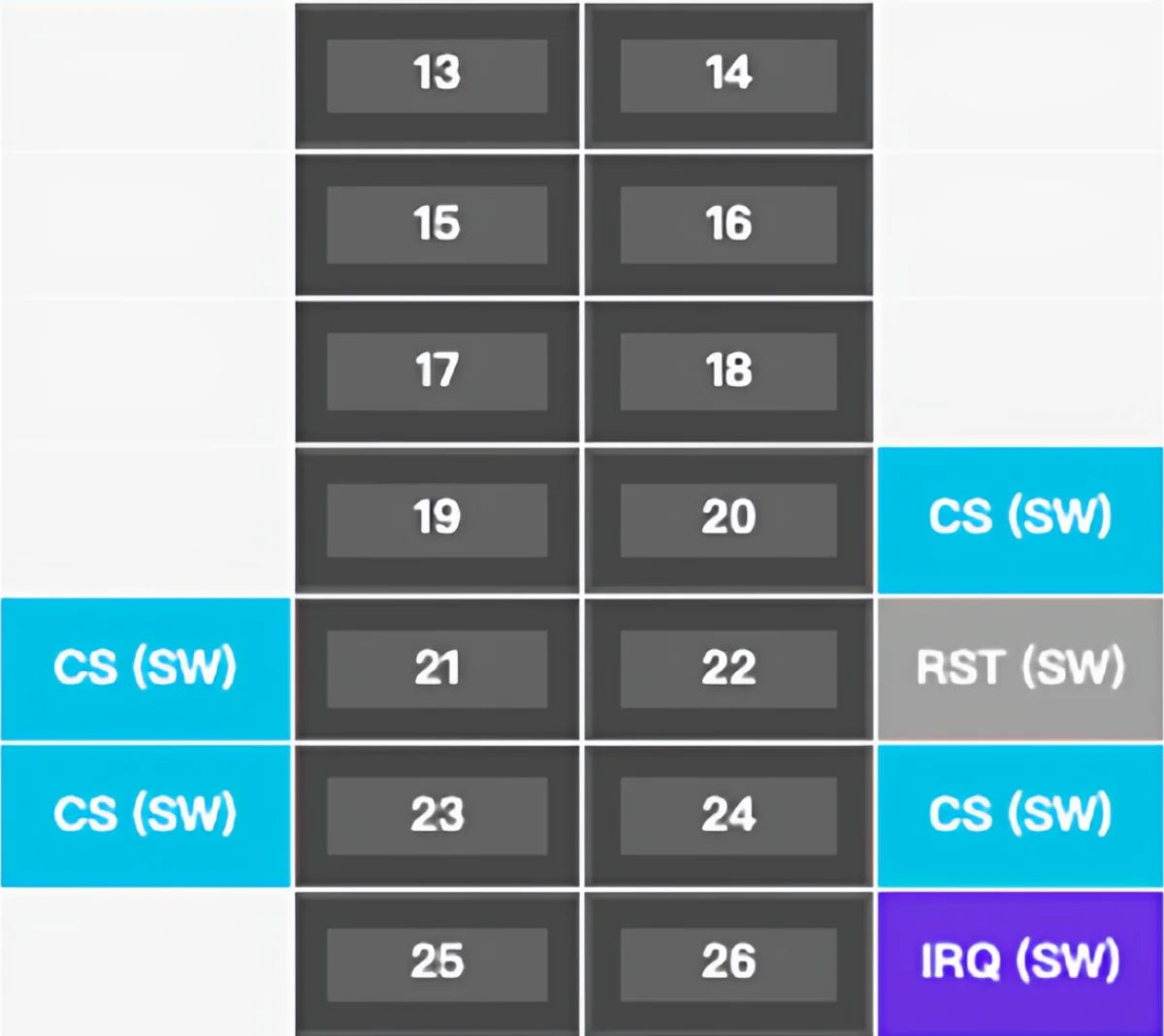

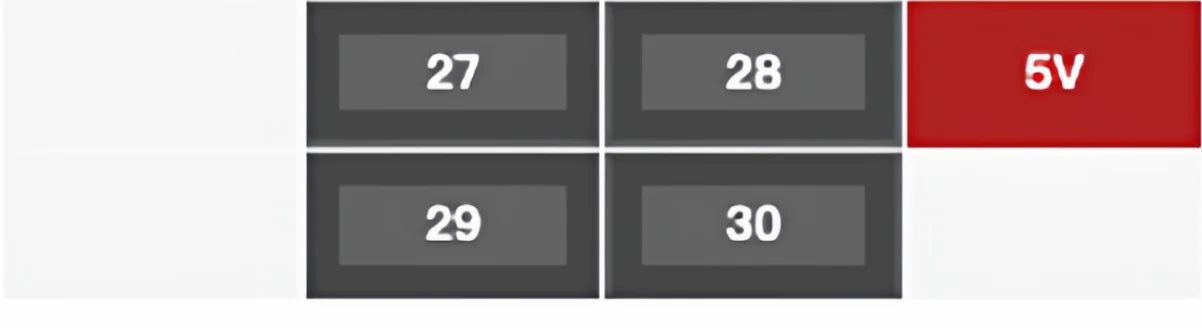

Pin Map
