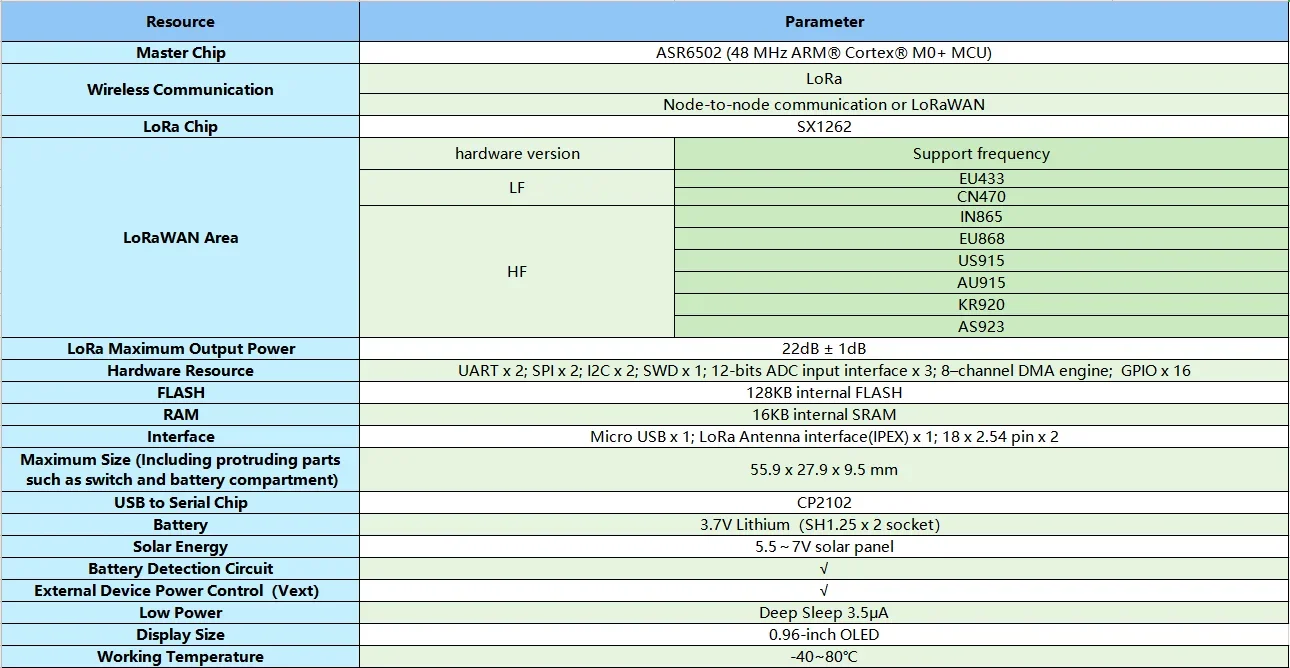

SPECIFICATIONS

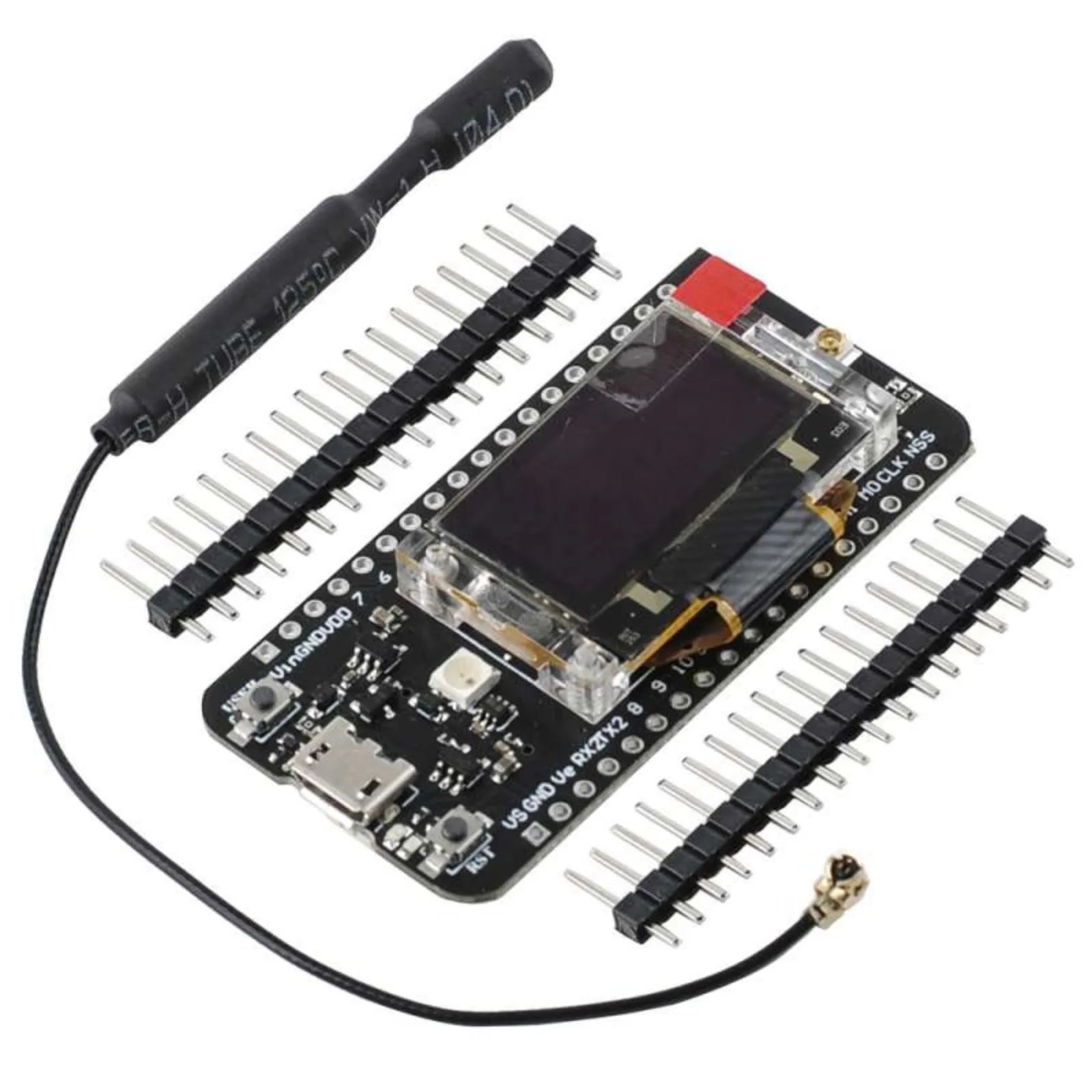

LoRaWAN 868/915MHz Development Kit with CP2102 USB to Serial Port, 0.96-inch OLED Display for Arduino Programming and Debugging

Description:

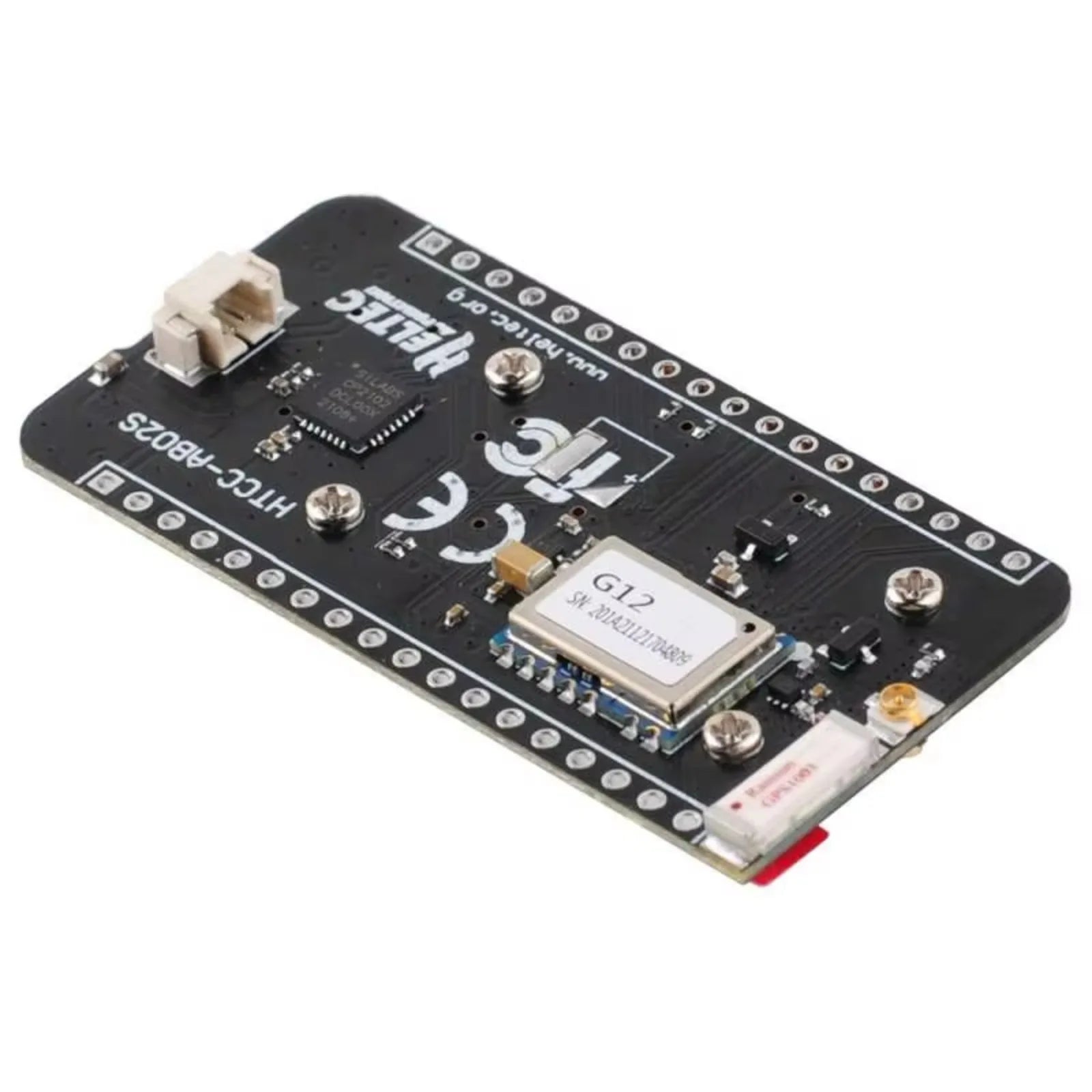

HTCC-AB02S is a Dev-Board. Already integrated G12 GPS module, friendly designed for developers, easy to verify communication solutions.

Feature:
- Perfect Arduino-Compatible;
- CE and FCC certification;
- Based on ASR6052, those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
- LoRaWAN 1.0.2 support;
- Ultra low power design, 21uA in deep sleep;
- Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
- Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

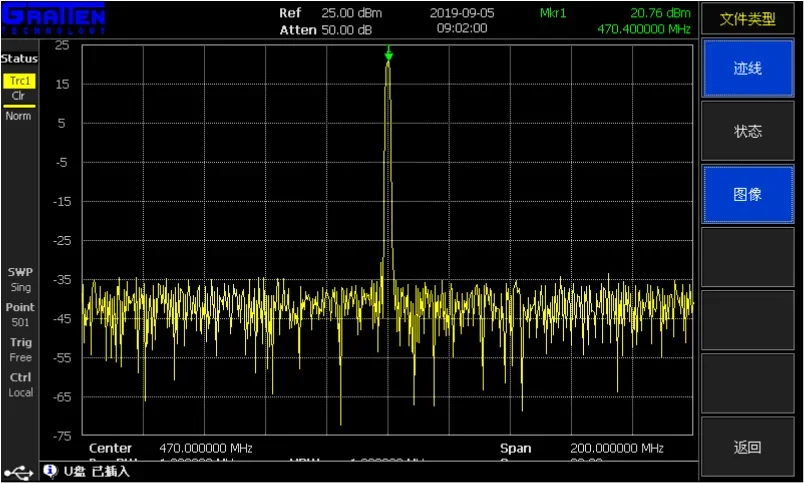

- Good impedance matching and long communication distance;
- Use Air530 GPS module, GPS / Beidou Dual-mode position system support;

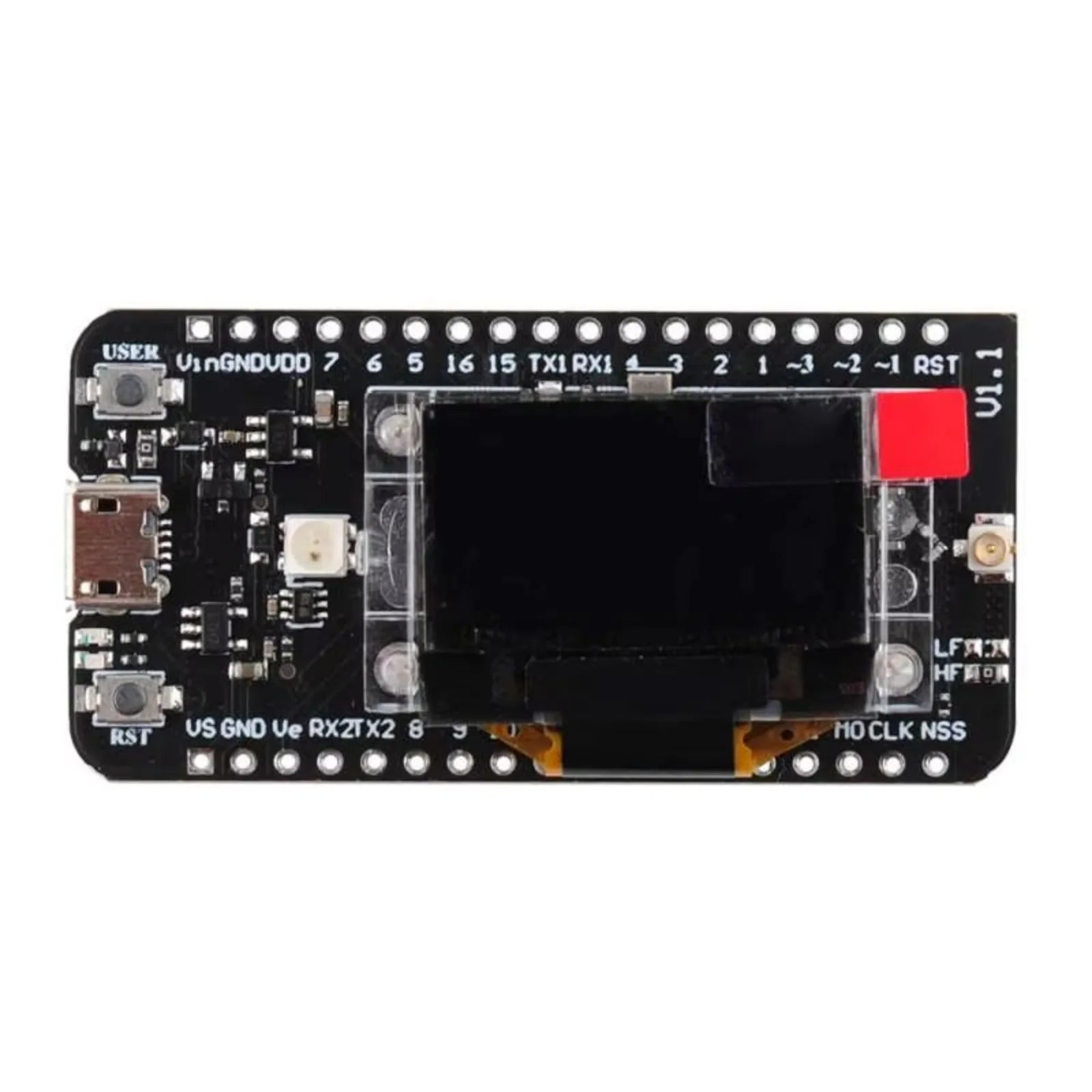

- Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.

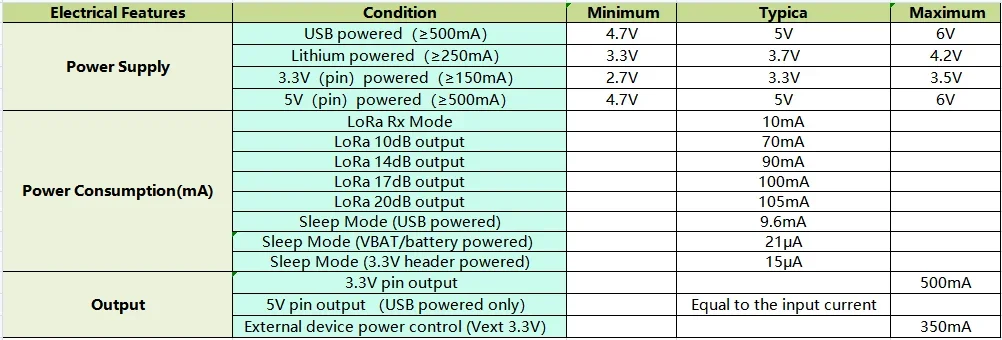

Electrical characteristics

Package includes:
1 X LoRa GPS Module
or

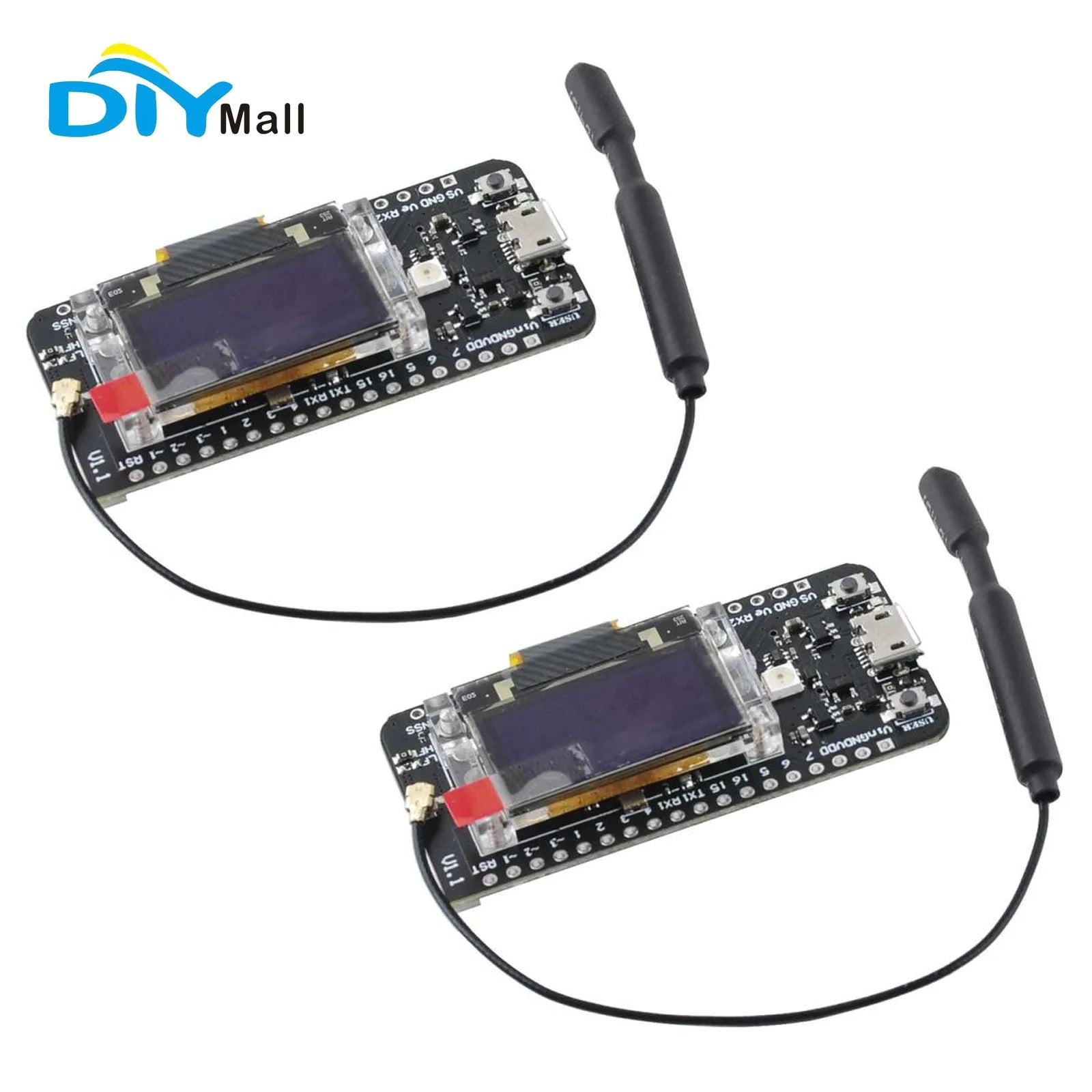

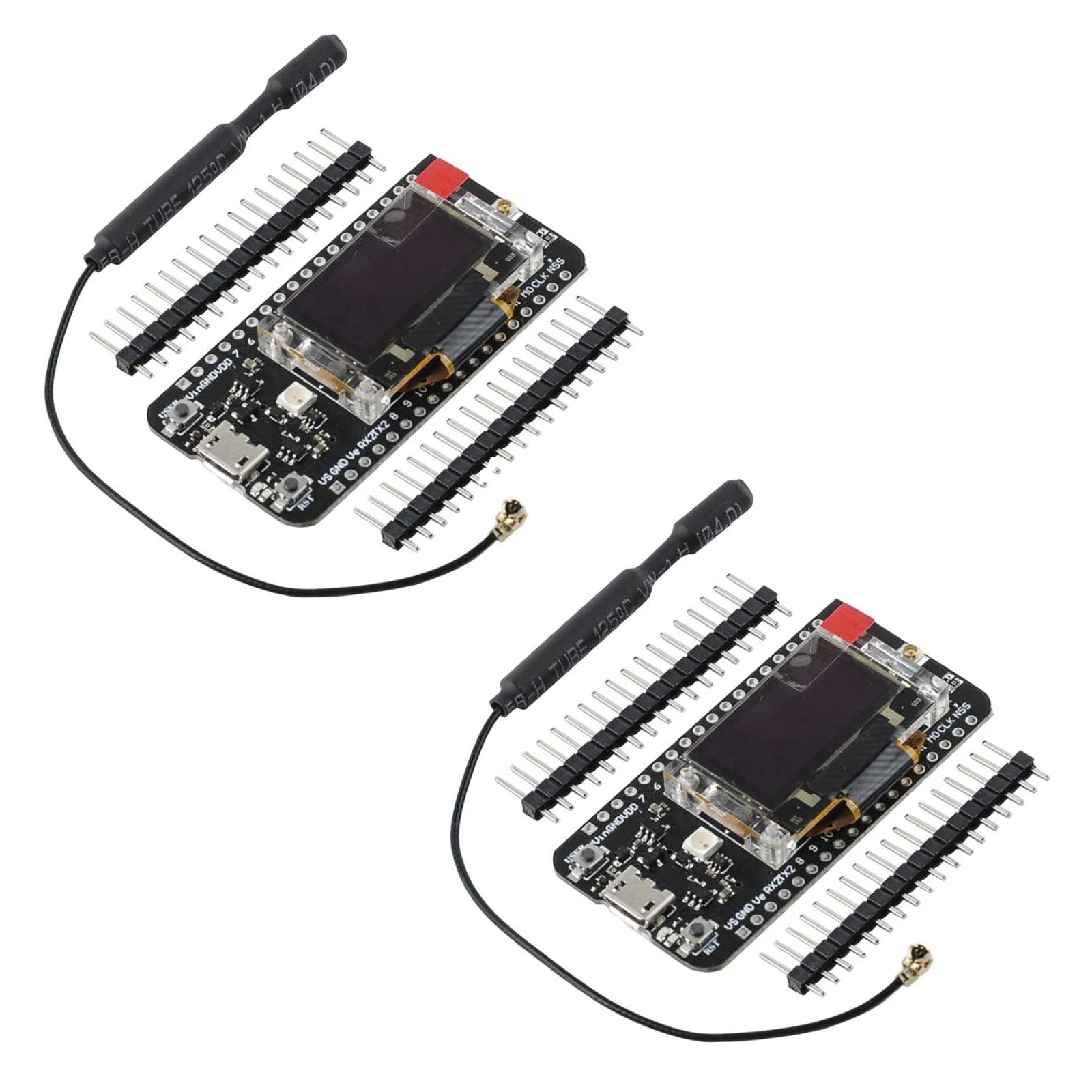

2 X LoRa GPS Module
