SPECIFICATIONS

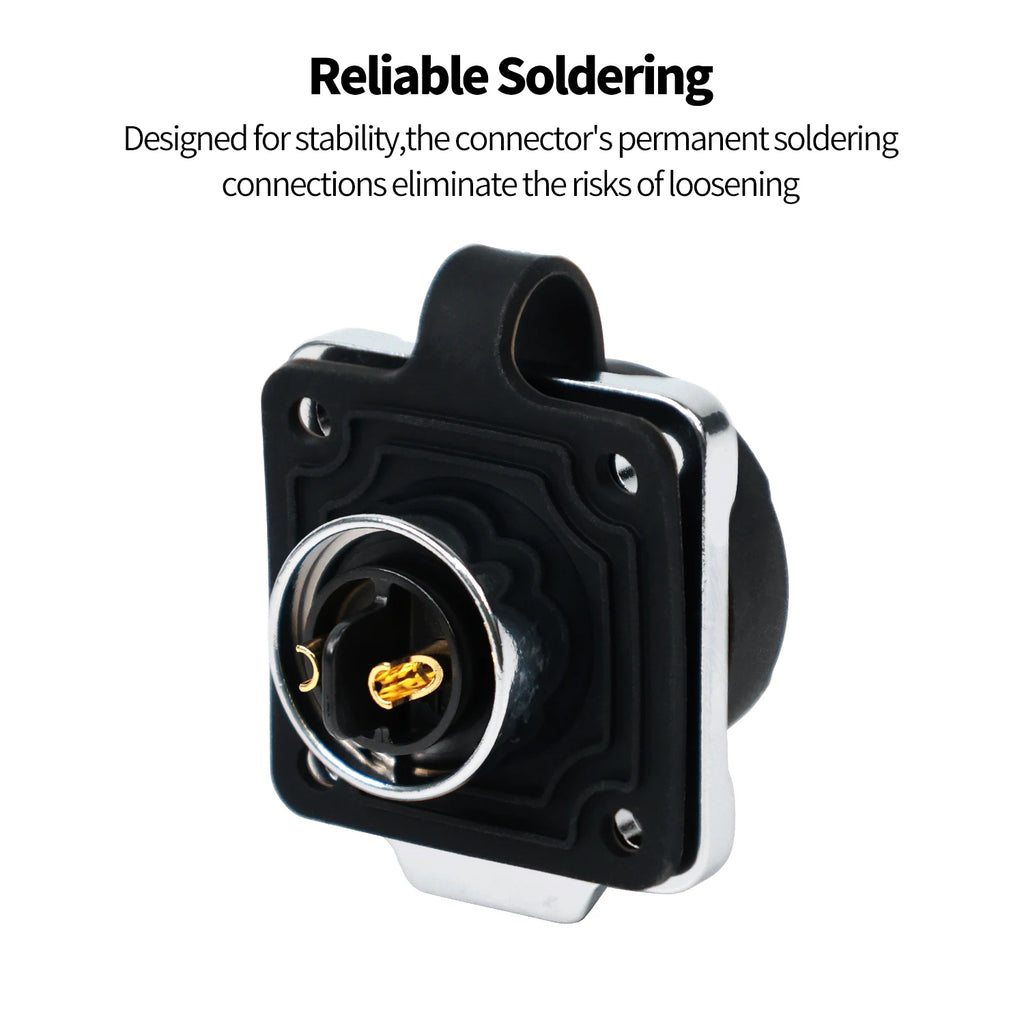

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range(2-4Pin): 8.5mm~10.0mm

Cable O.D Range(5-9Pin): 6.5mm~8.5mm

Certification: CE,UL,RoHS,weee

Contact Resistance Max(2-4Pin): 3mΩ

Contact Resistance Max(5-9Pin): 5mΩ

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Insulation Resistance Min: 500MΩ

Mechanical Life (Min): 2000 Times

Model Number: LP-16-90°-BJS-SK&DK Set

Number of Pins: 2/3/4/5/7/8/9Pin

Operating Temperature: -25°C~+85°C

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Current(2-4Pin): 10A

Rated Current(5-9Pin): 5A

Salt Spray (Min): 72h

Voltage: 自定义编辑

Wire Gauge(2-4Pin): 1.0~1.5mm²/18-16AWG

Wire Gauge(5-9Pin): 0.34~0.5mm²/22-20AWG

Withstanding Voltage(2-4Pin): 2000V AC

Withstanding Voltage(5-9Pin): 1500V AC

Working Voltage(2-4Pin): 400V AC

Working Voltage(5-9Pin): 250V AC

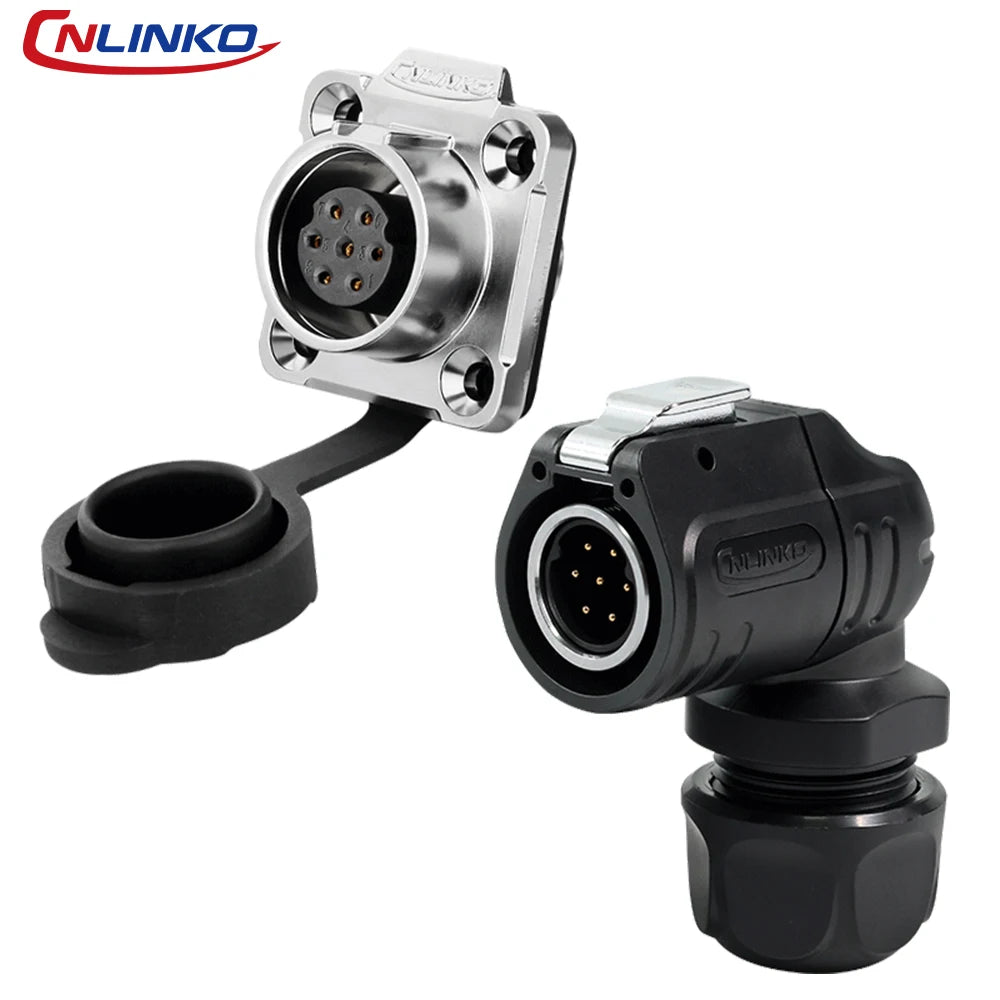

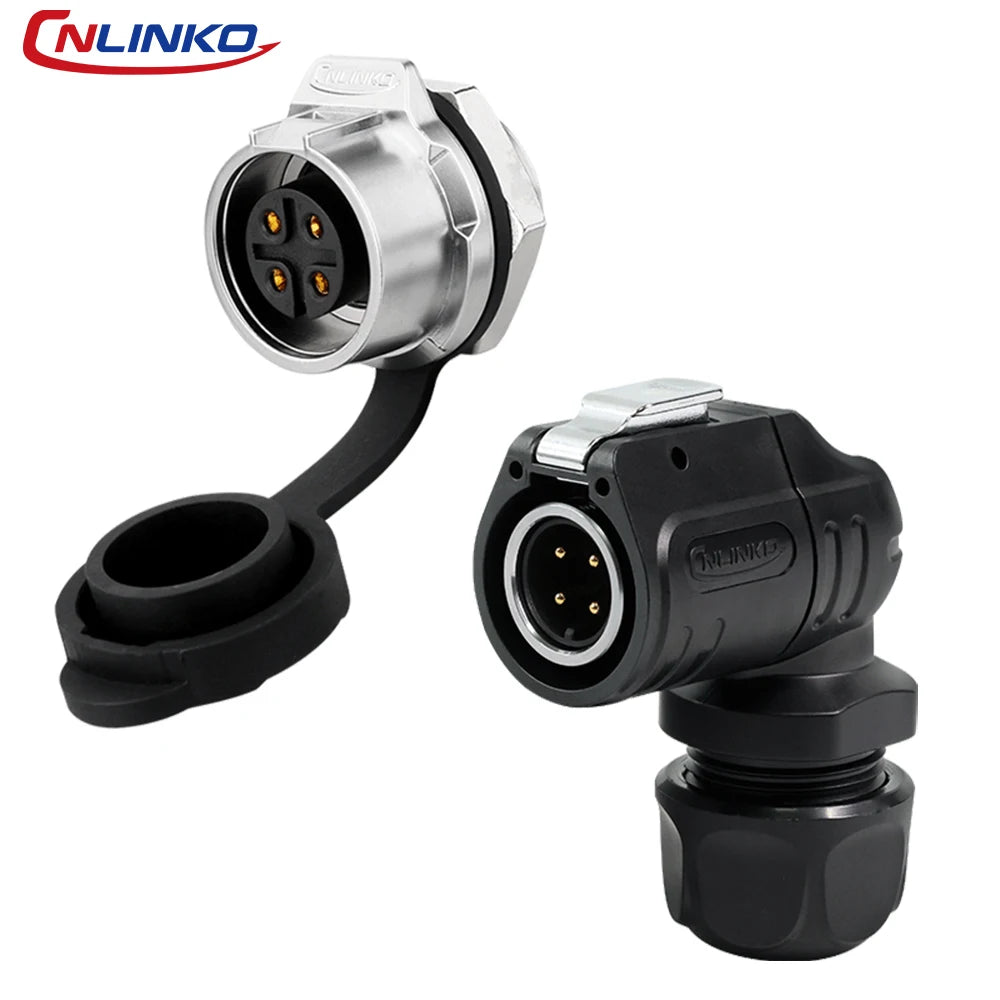

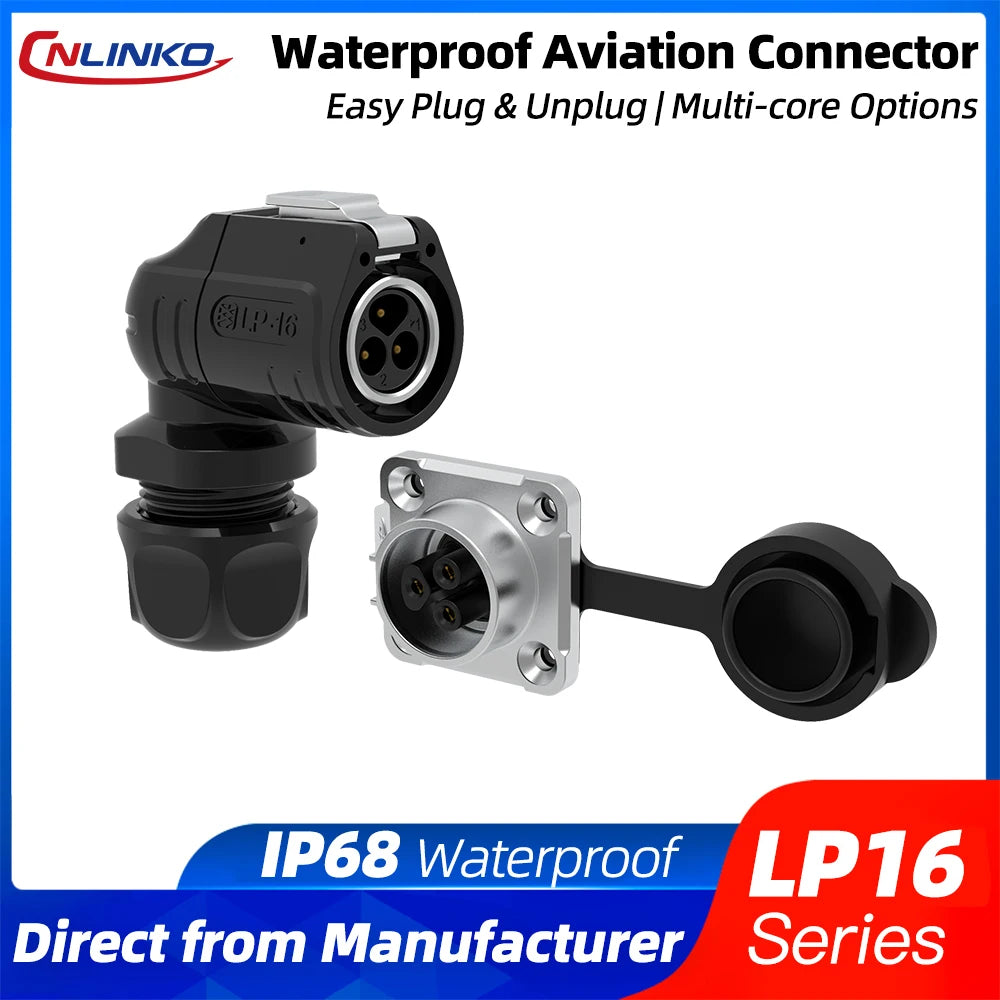

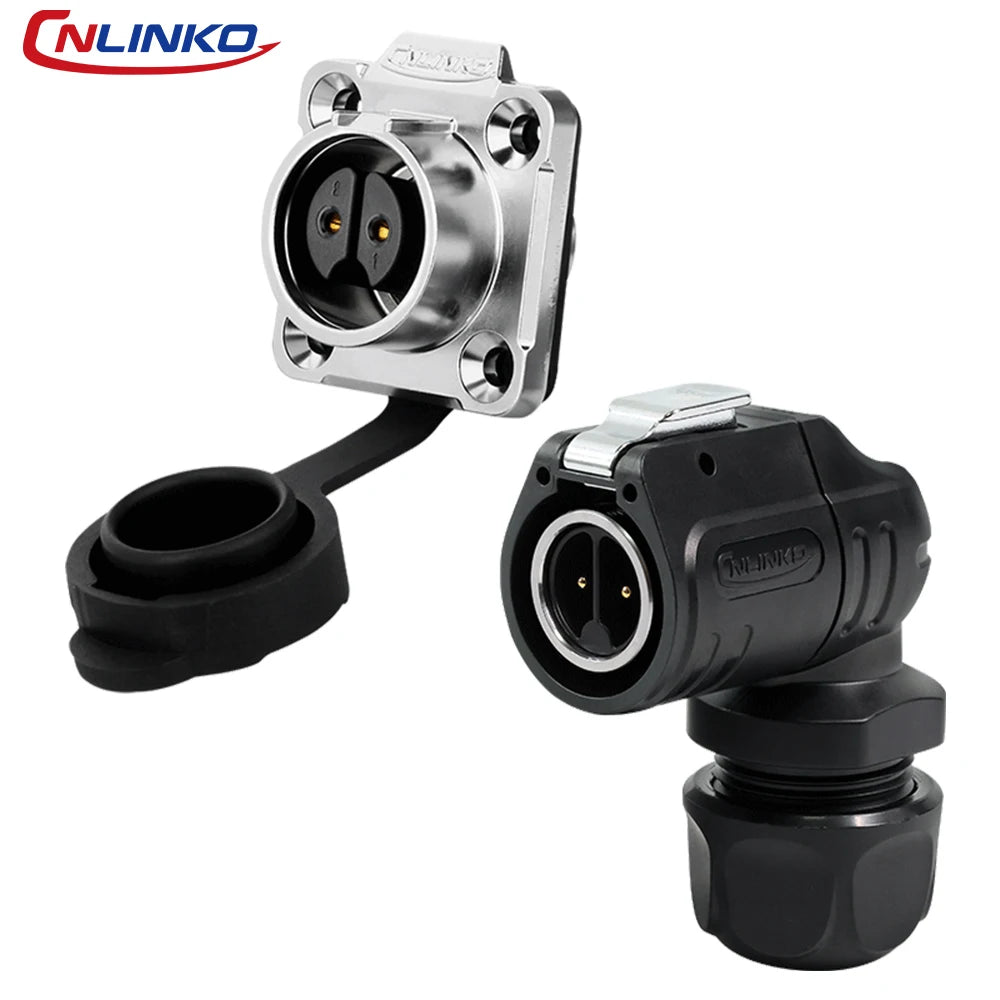

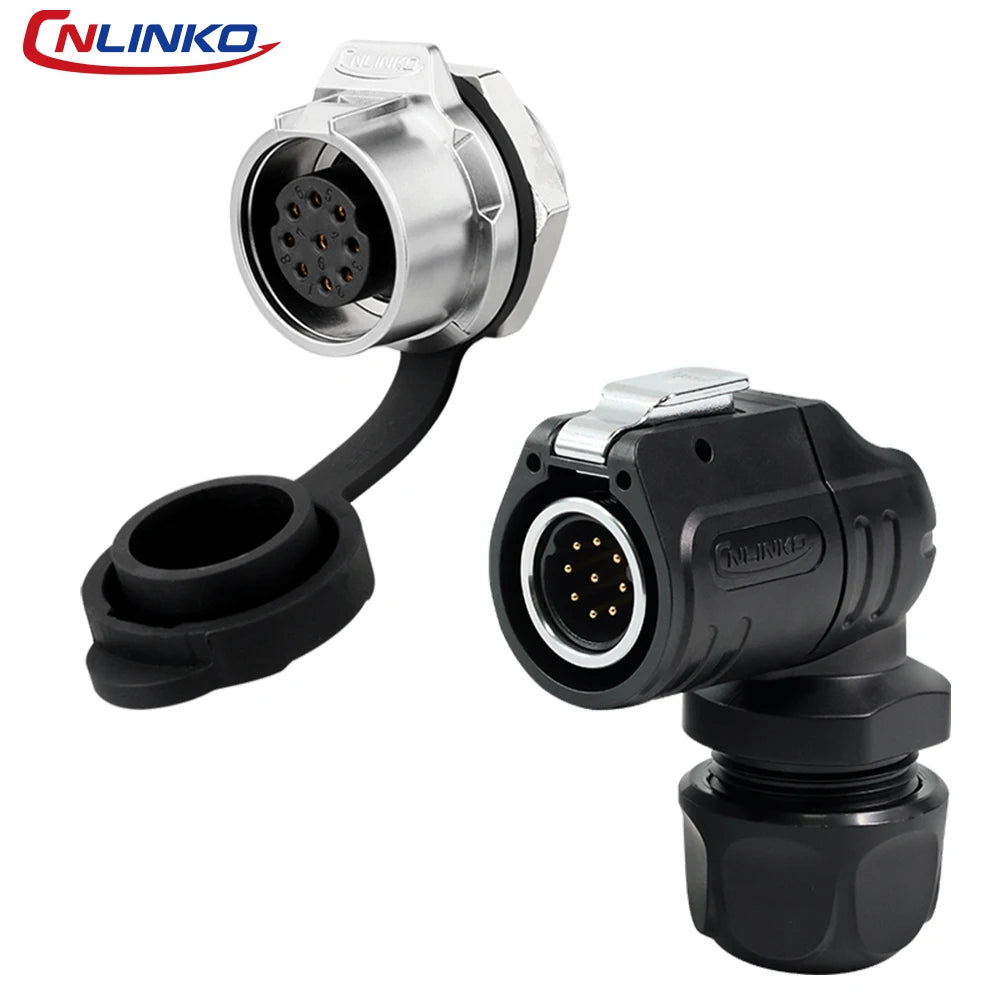

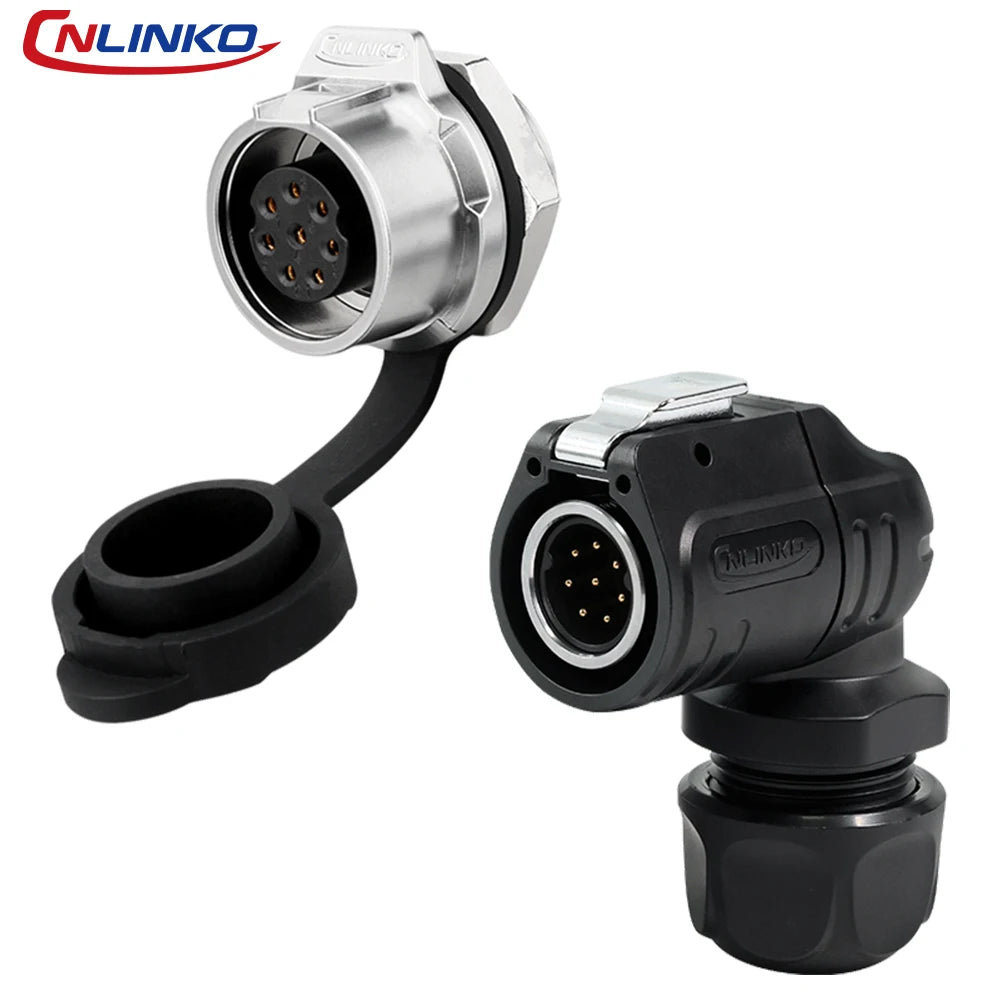

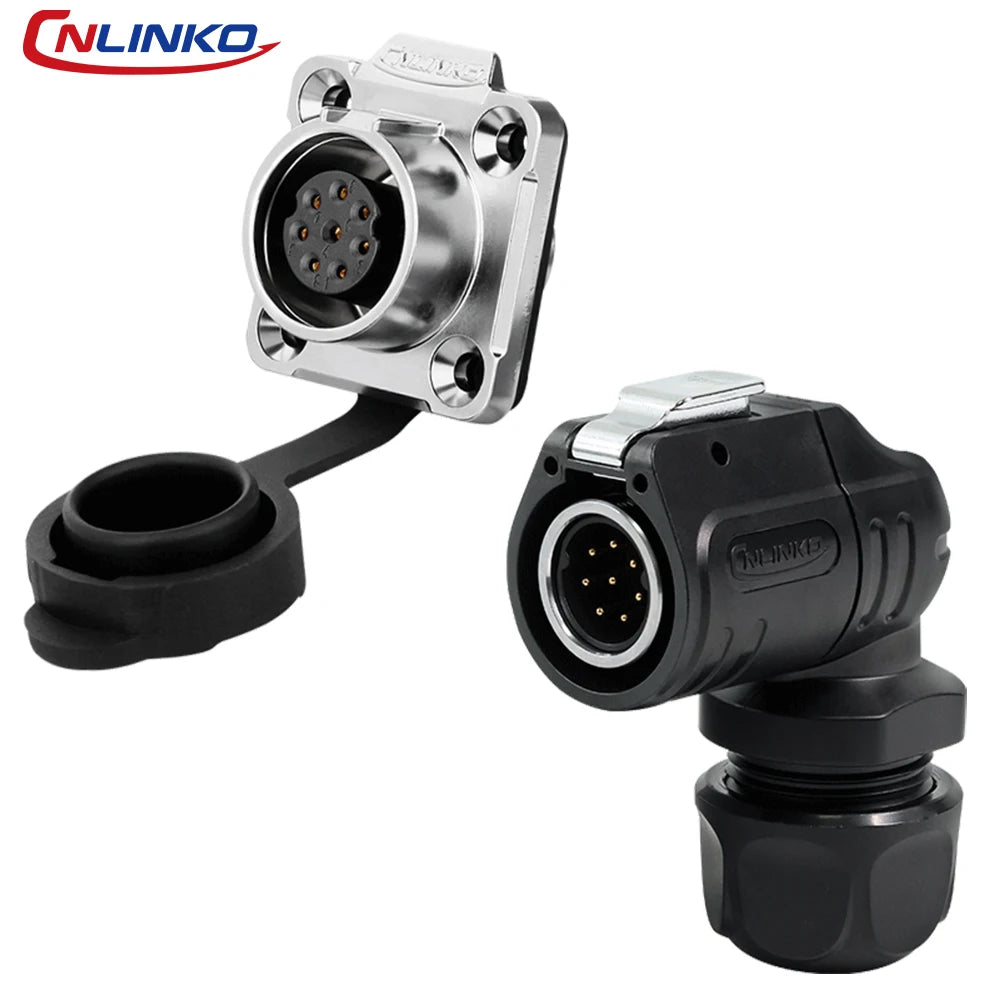

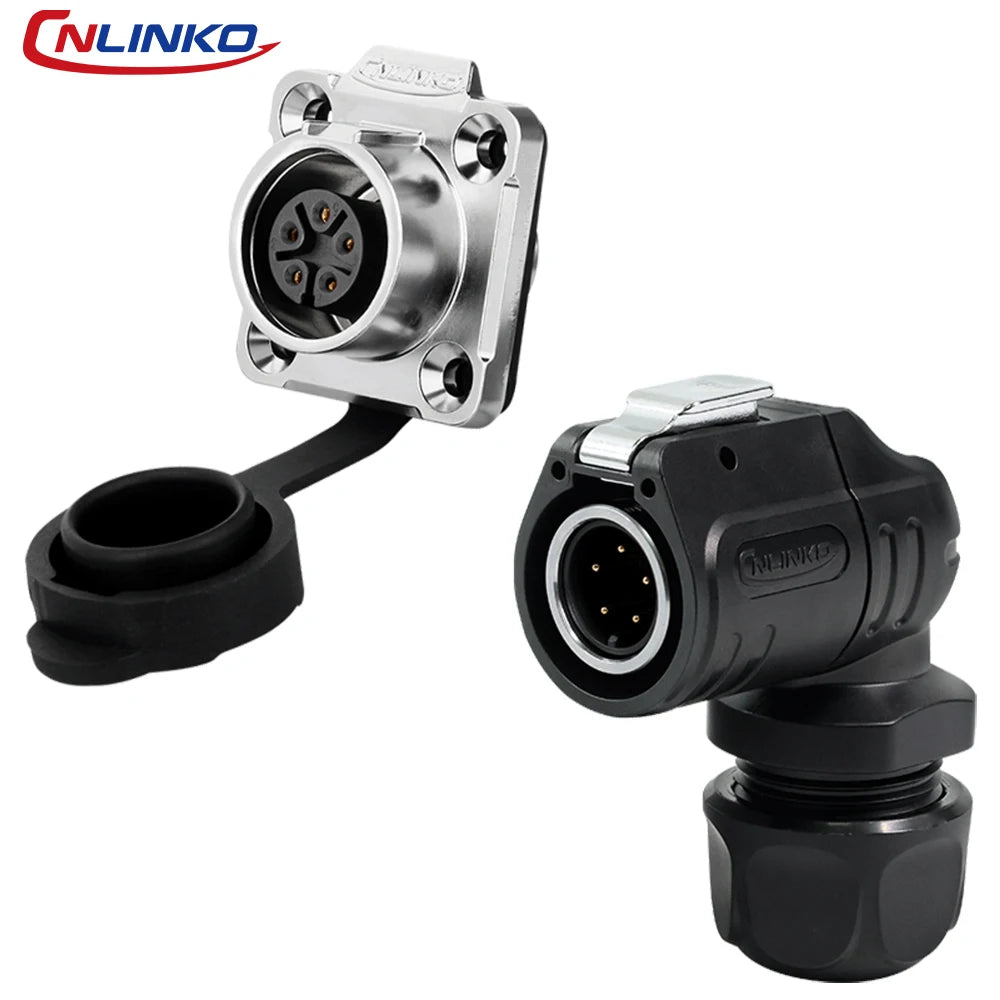

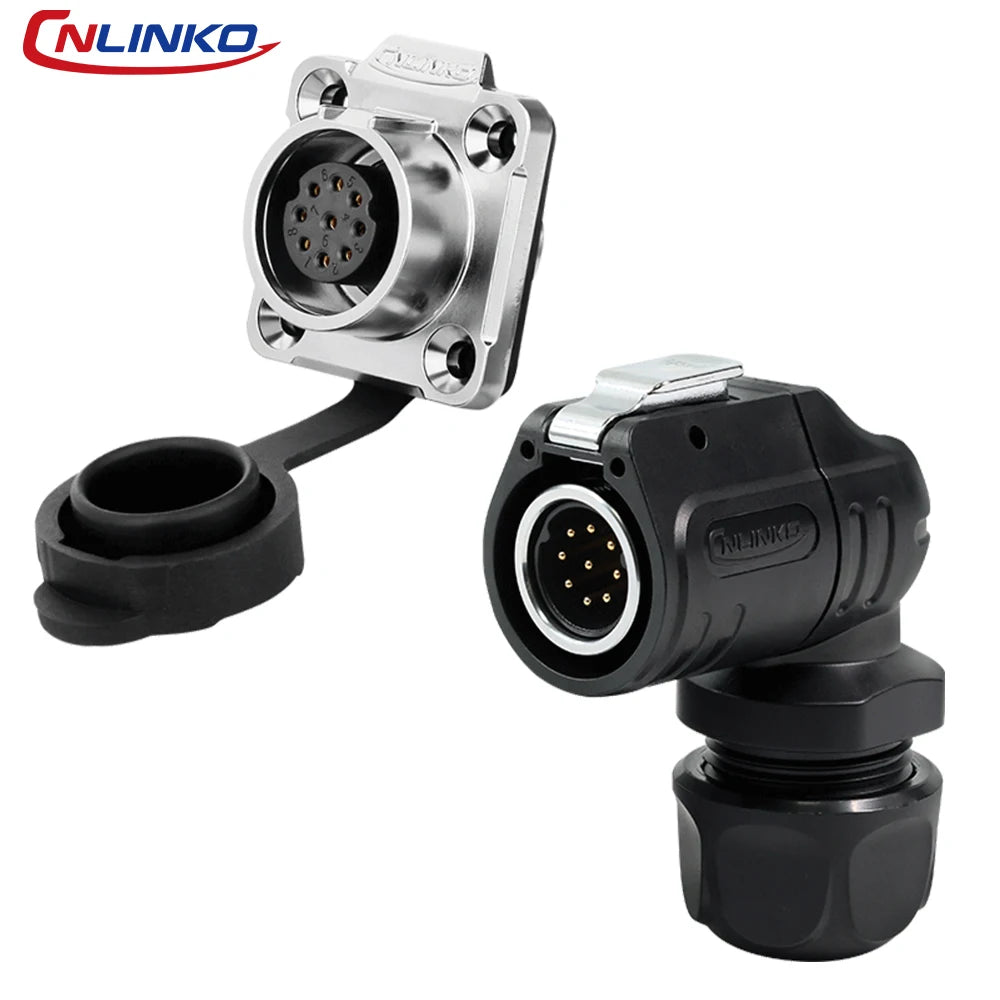

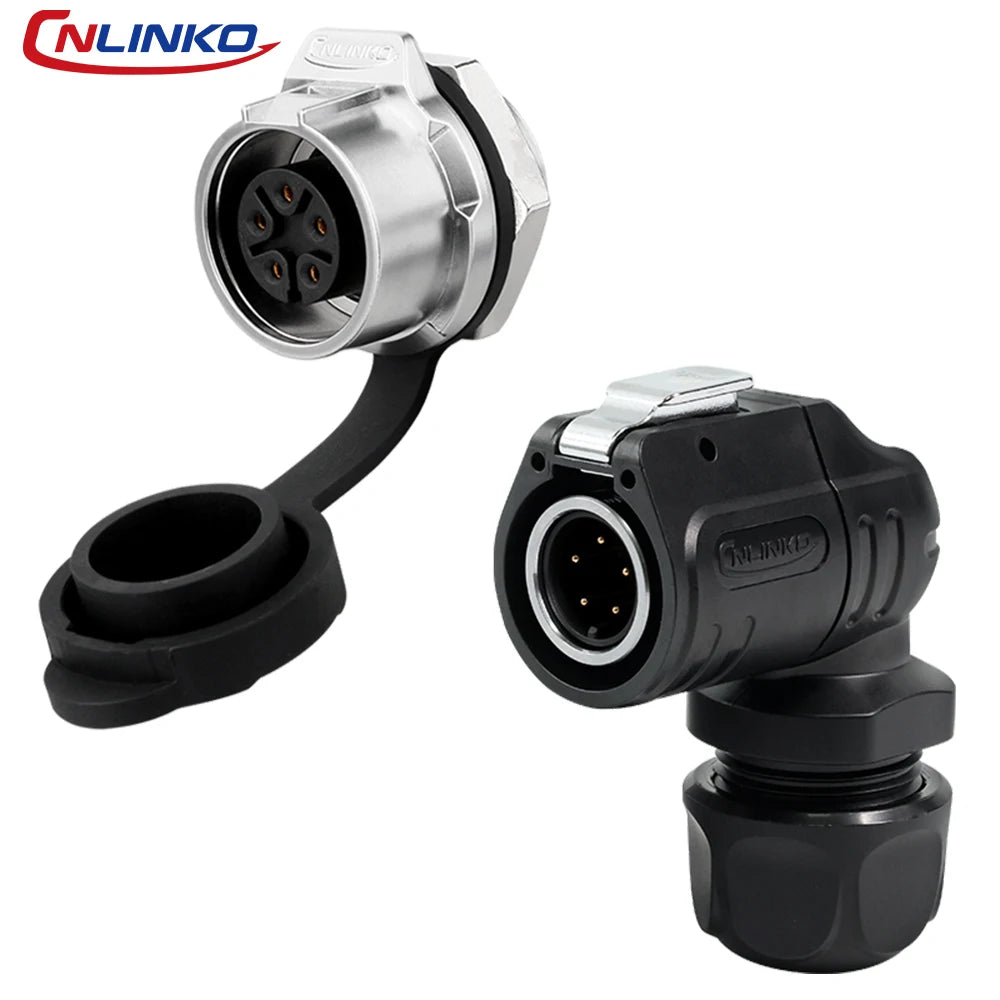

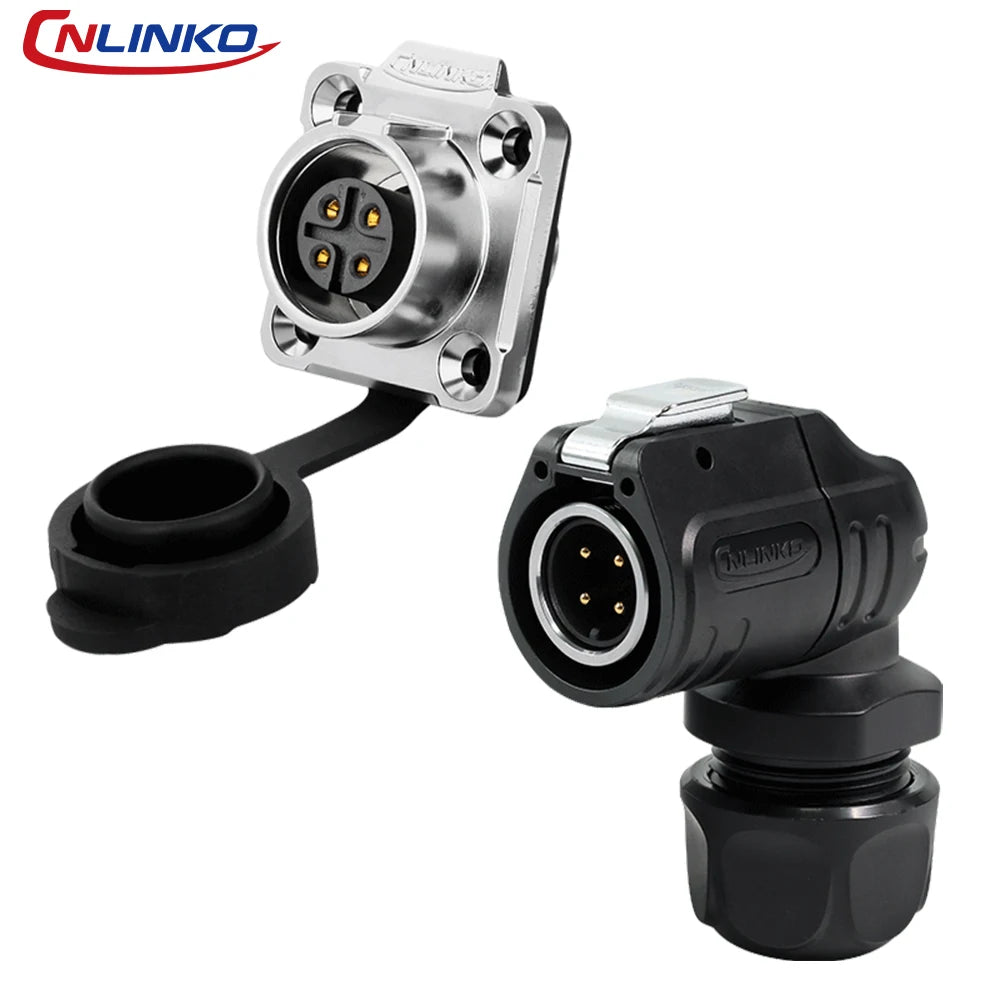

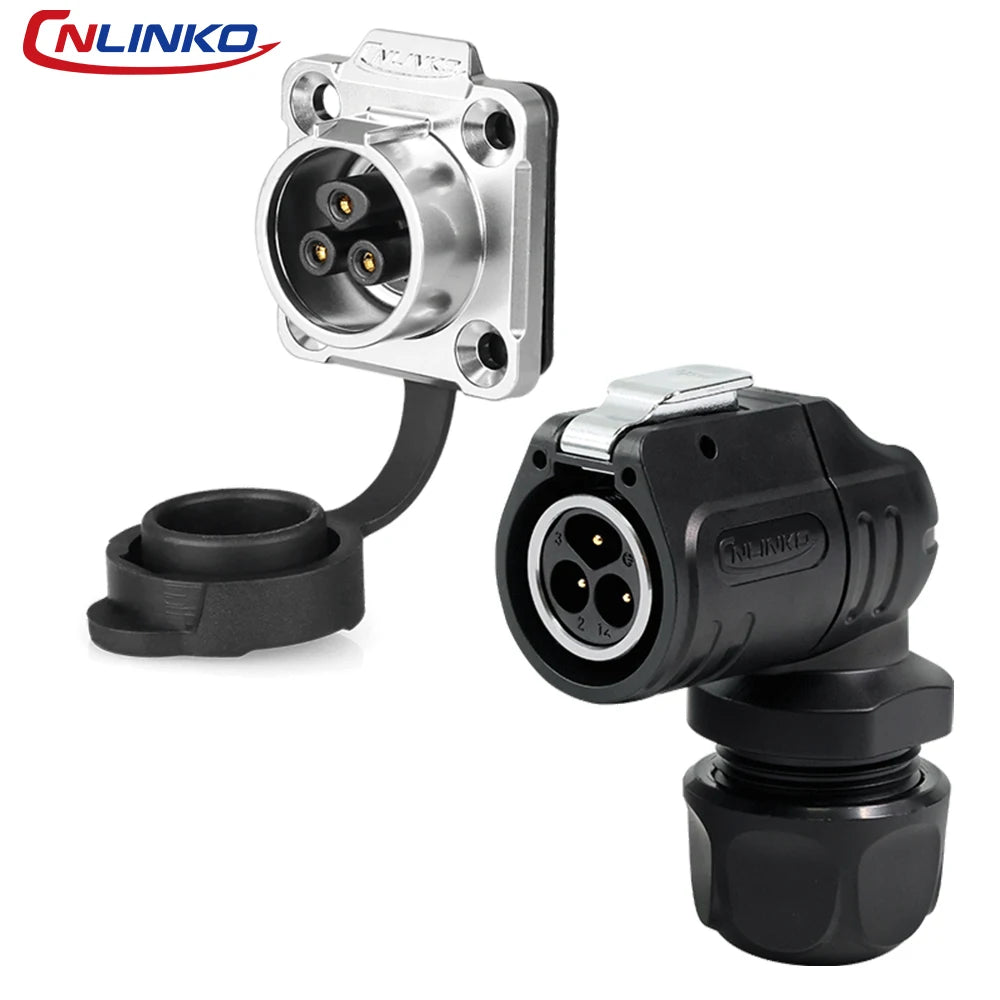

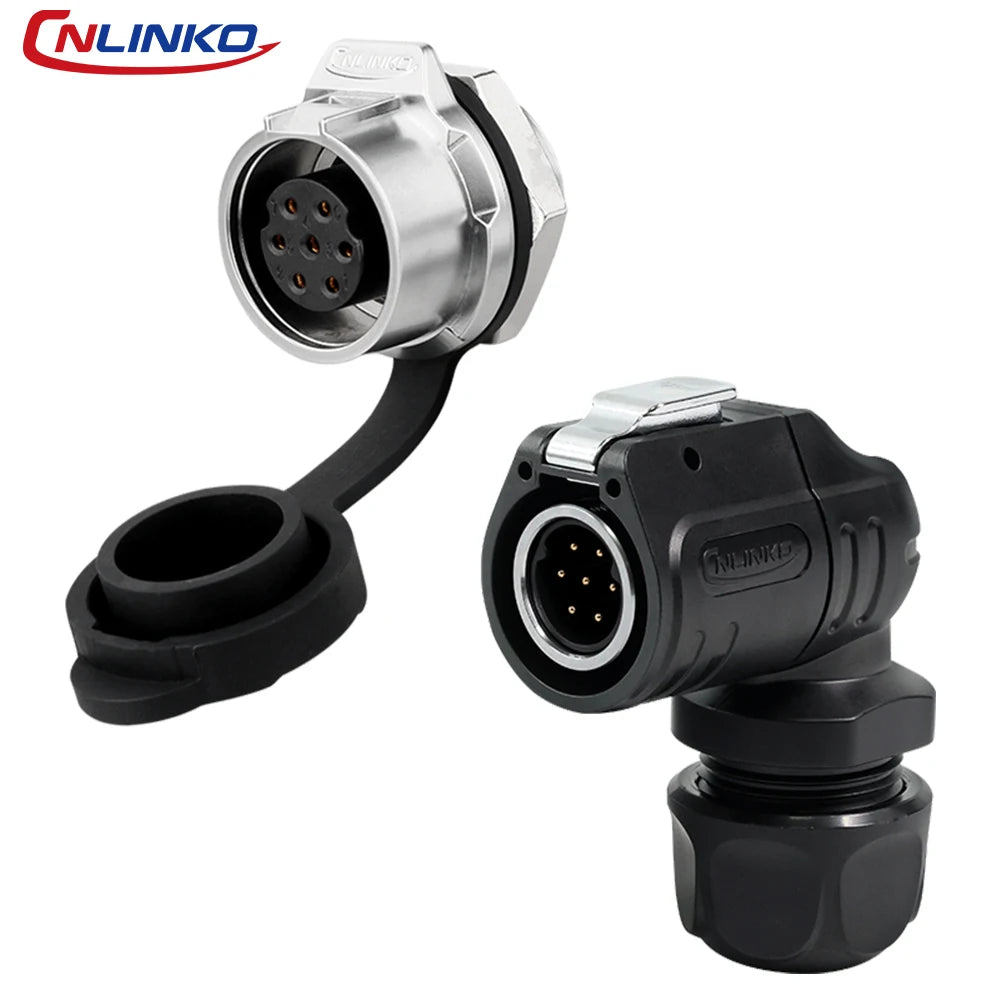

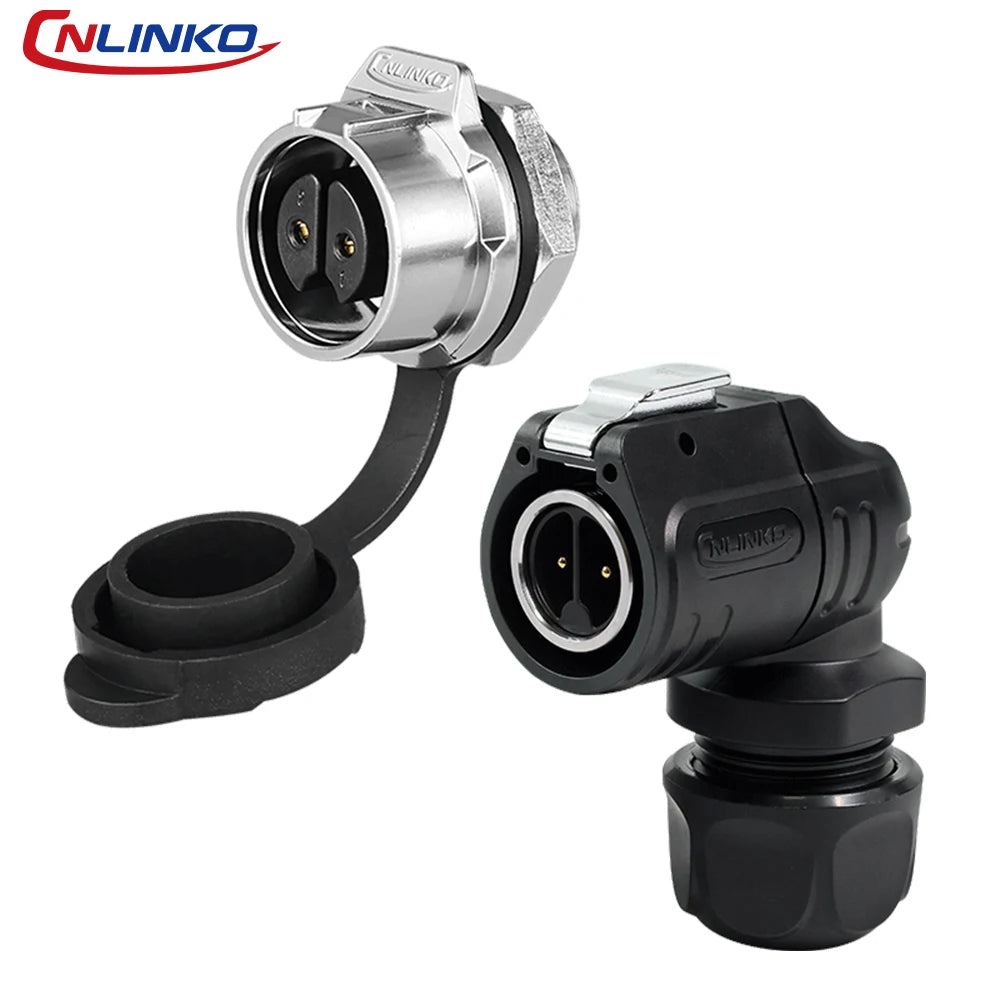

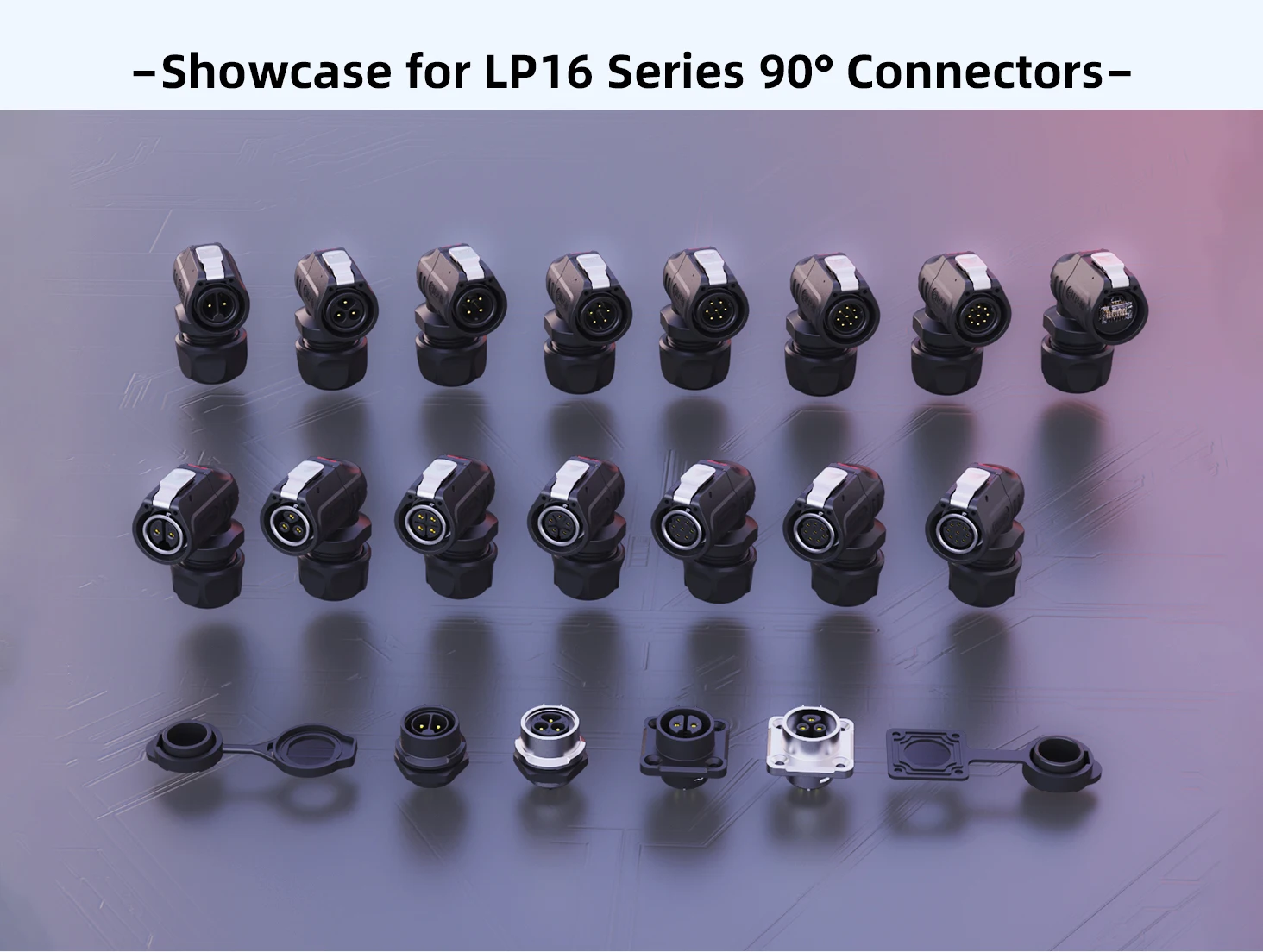

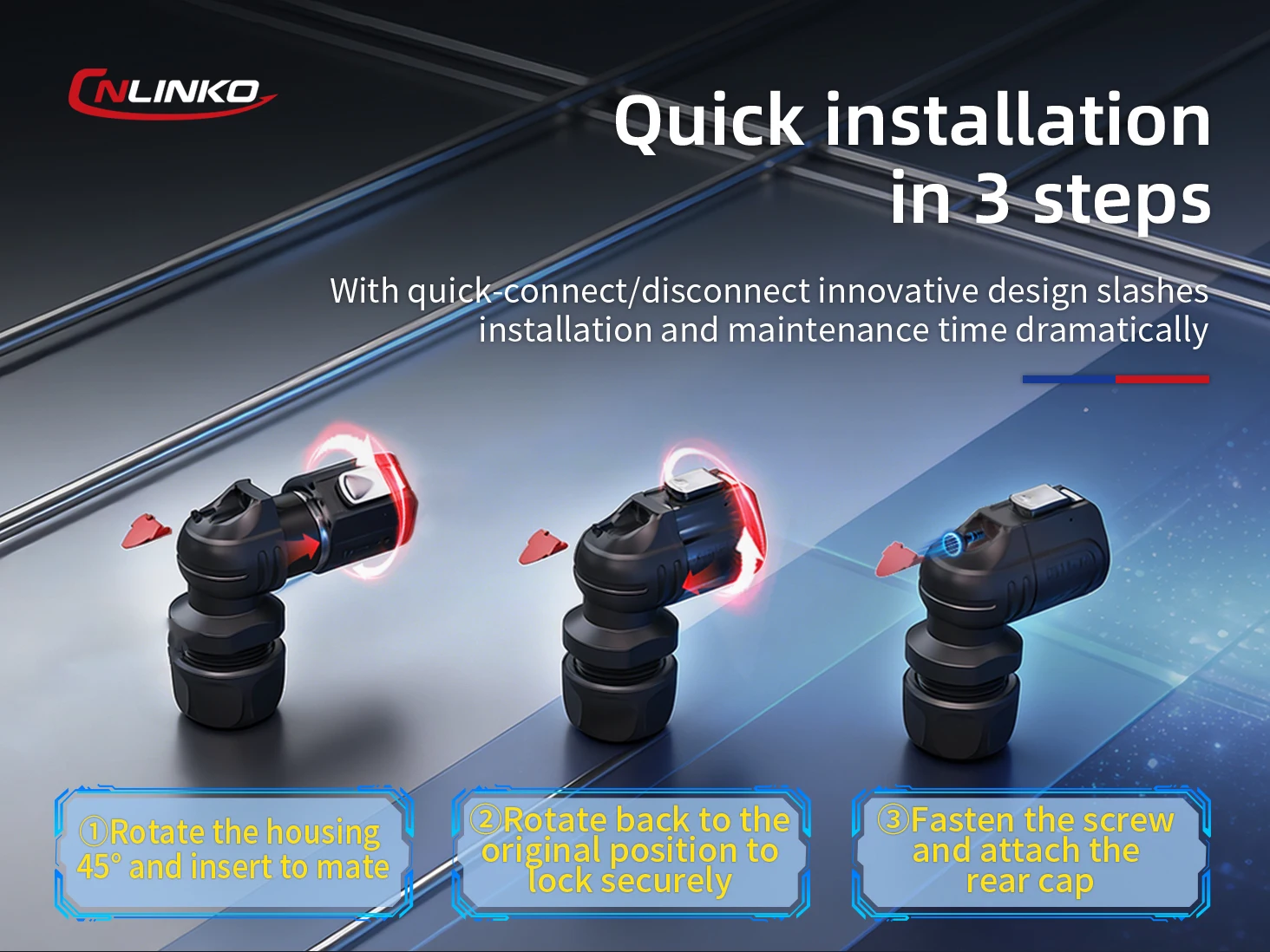

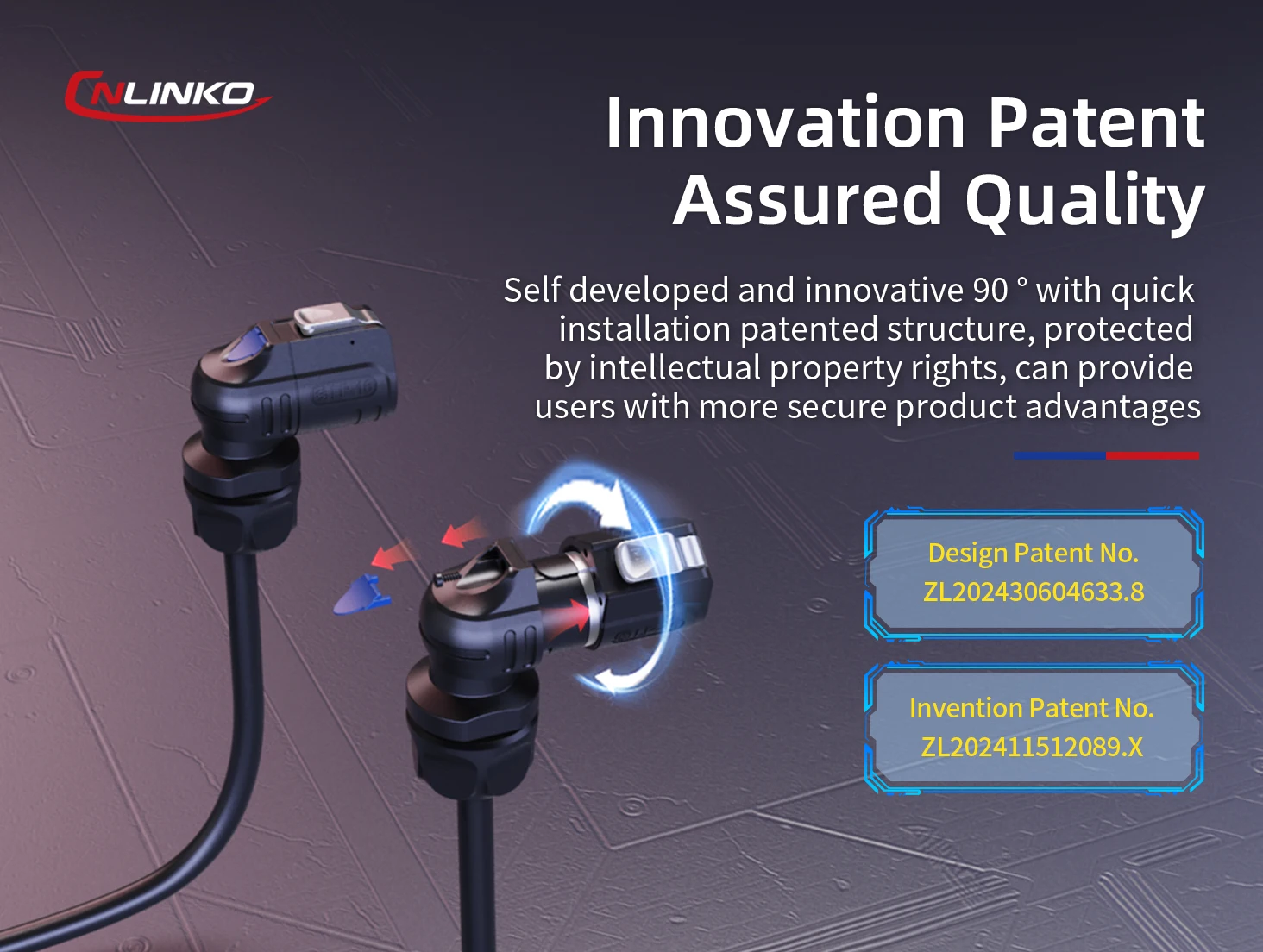

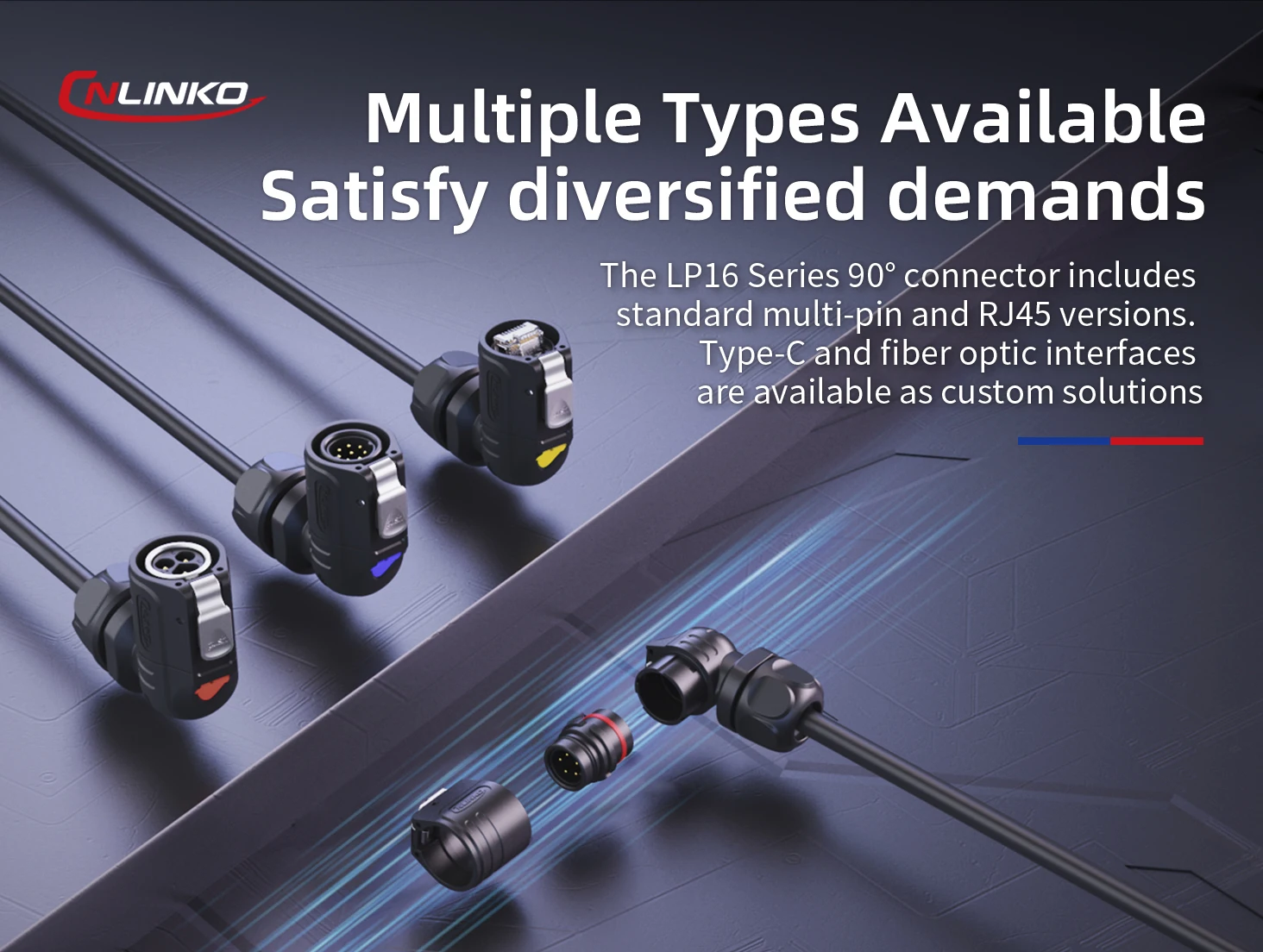

1. LP16 Series Connector: 90° male plug and female socket for quick one-push mating/unmating. Solder termination ensures secure installation. Available in 2,3,4,5,7,8,9 pins. Note: Max soldering ≤3s/point. Do not mate under power.

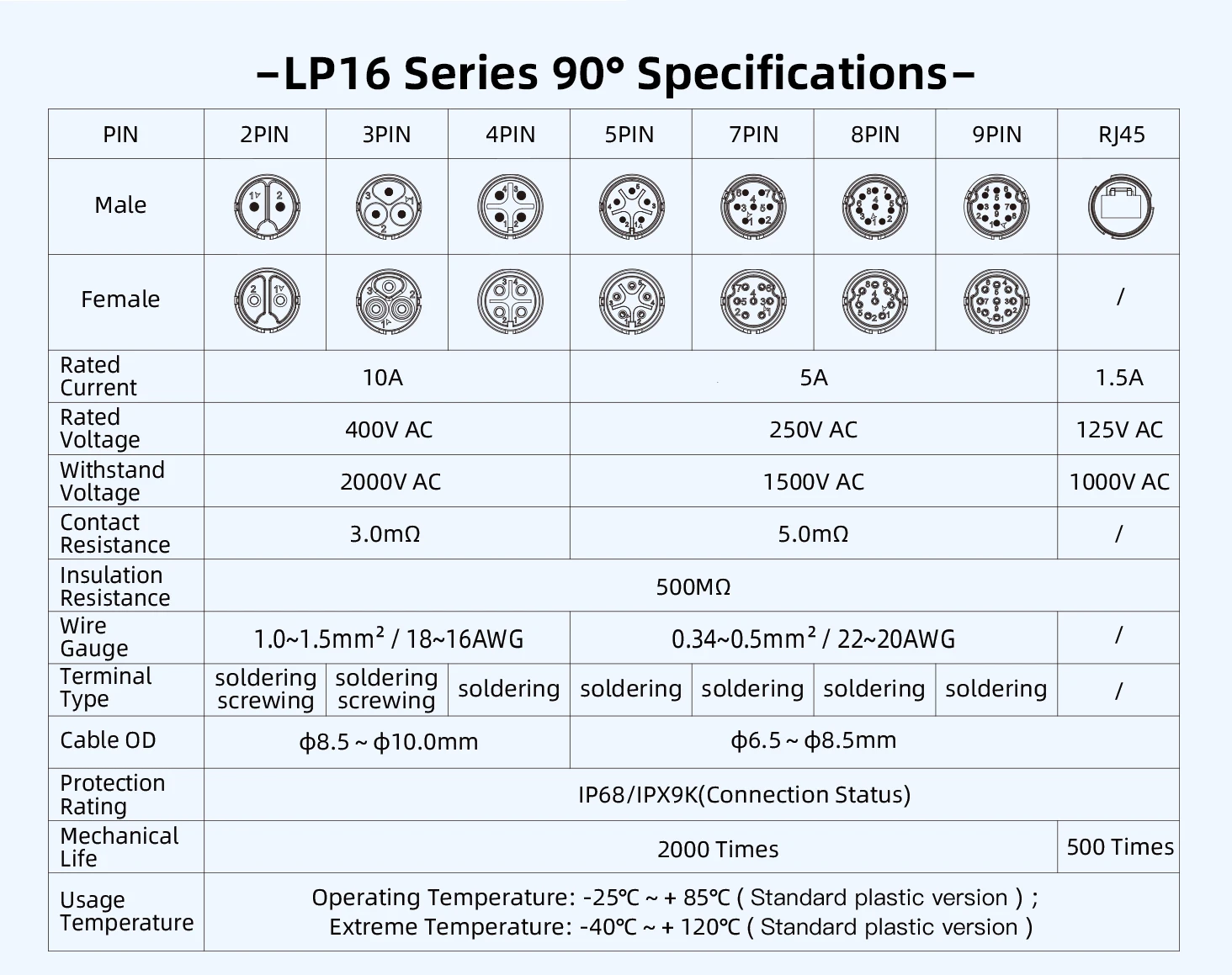

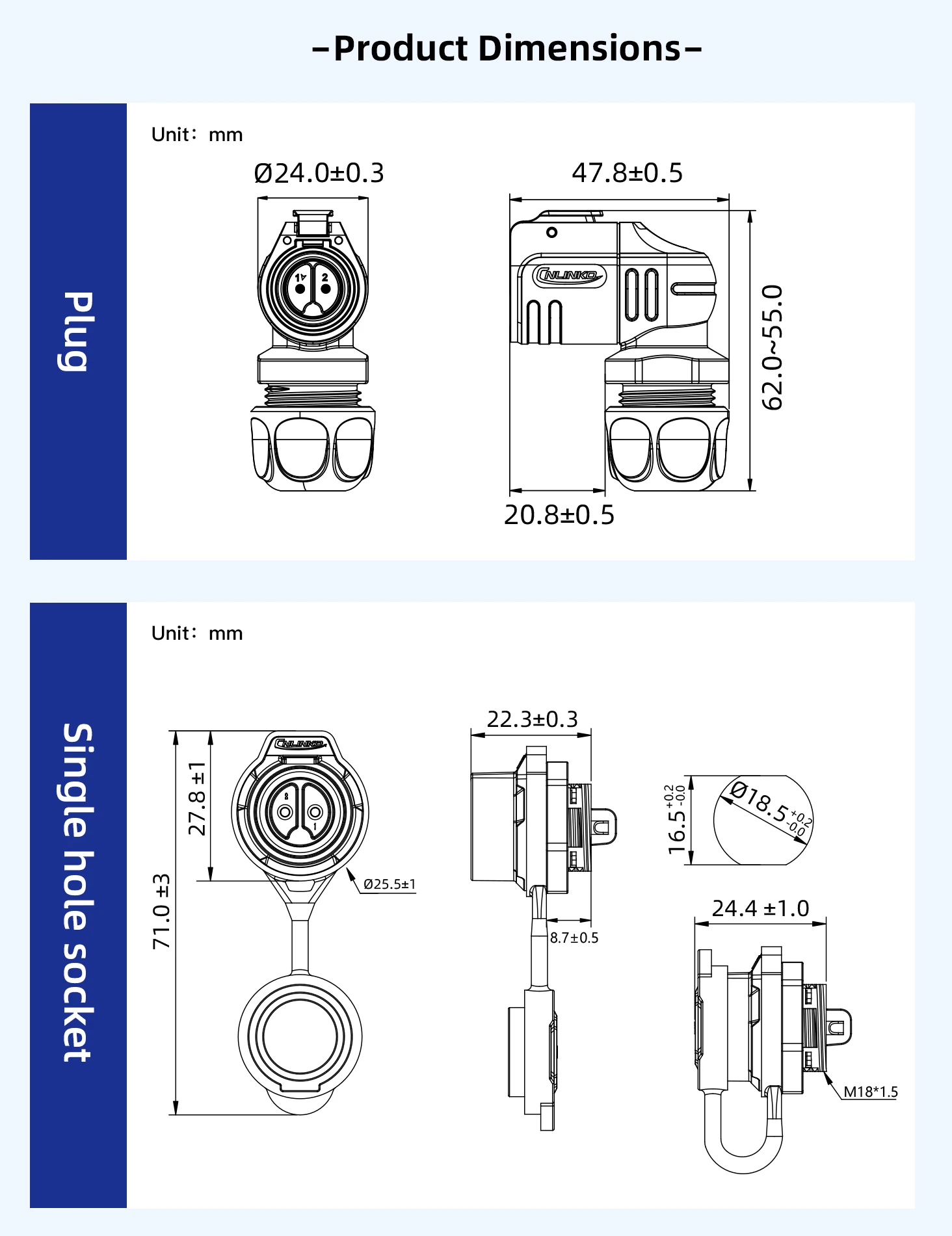

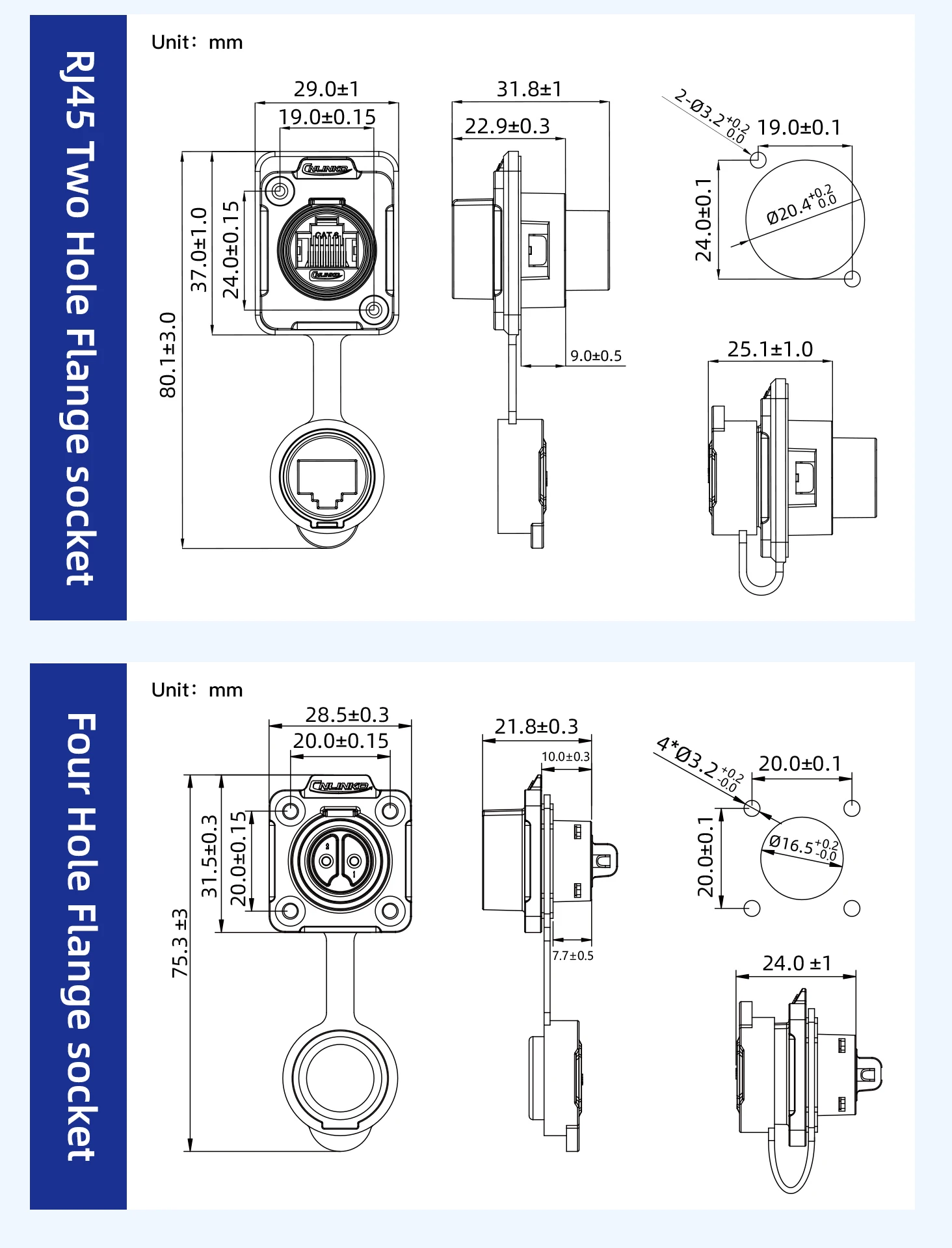

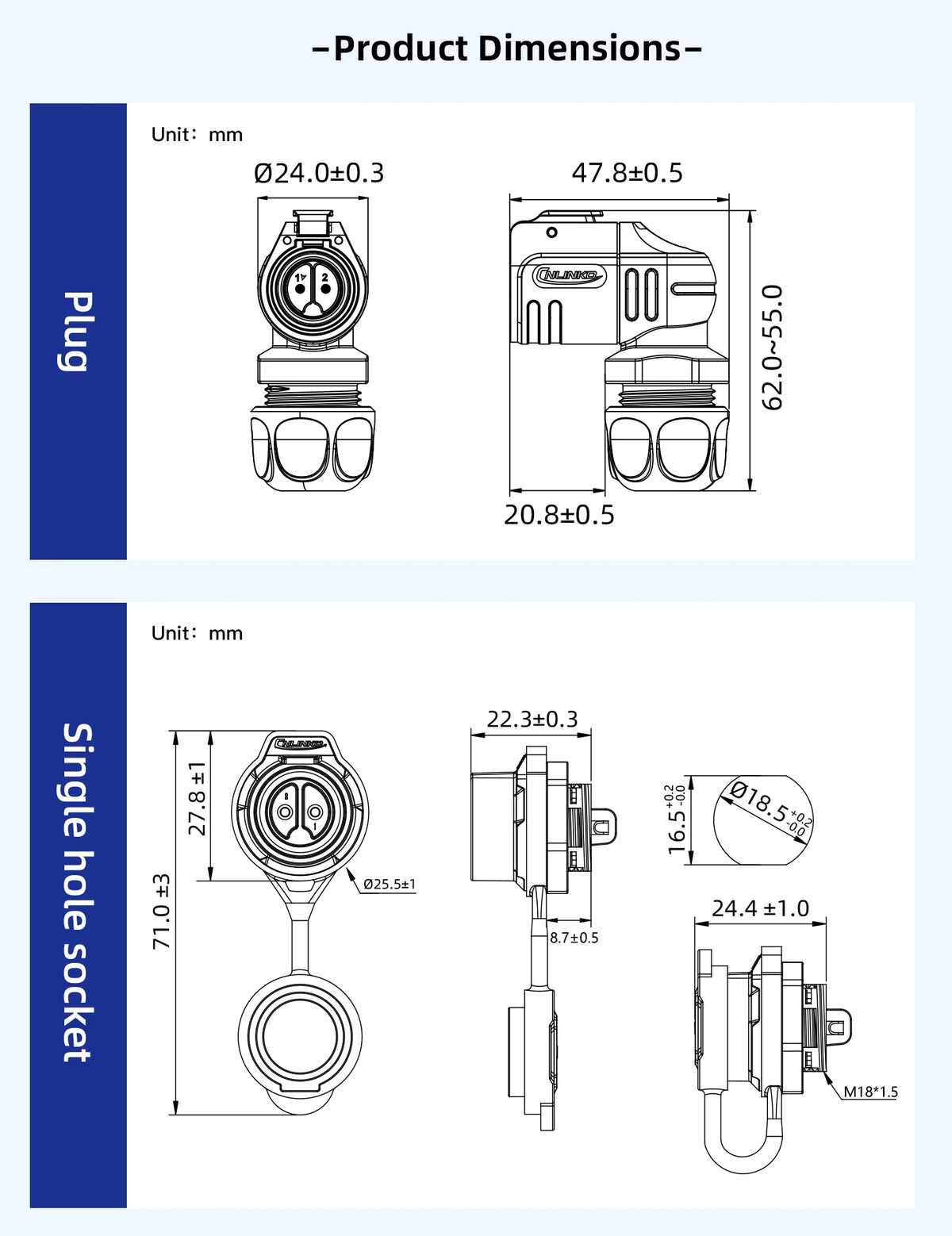

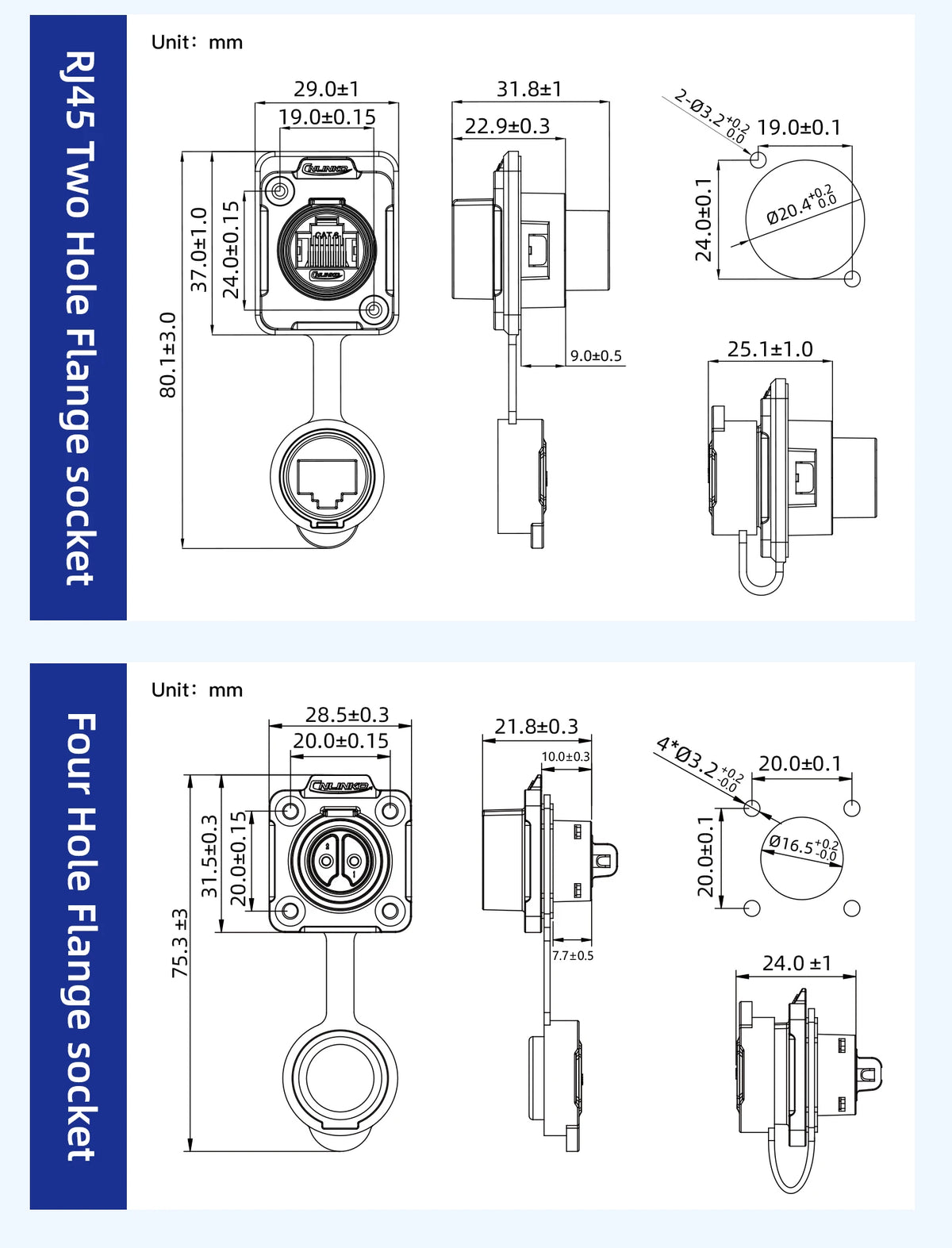

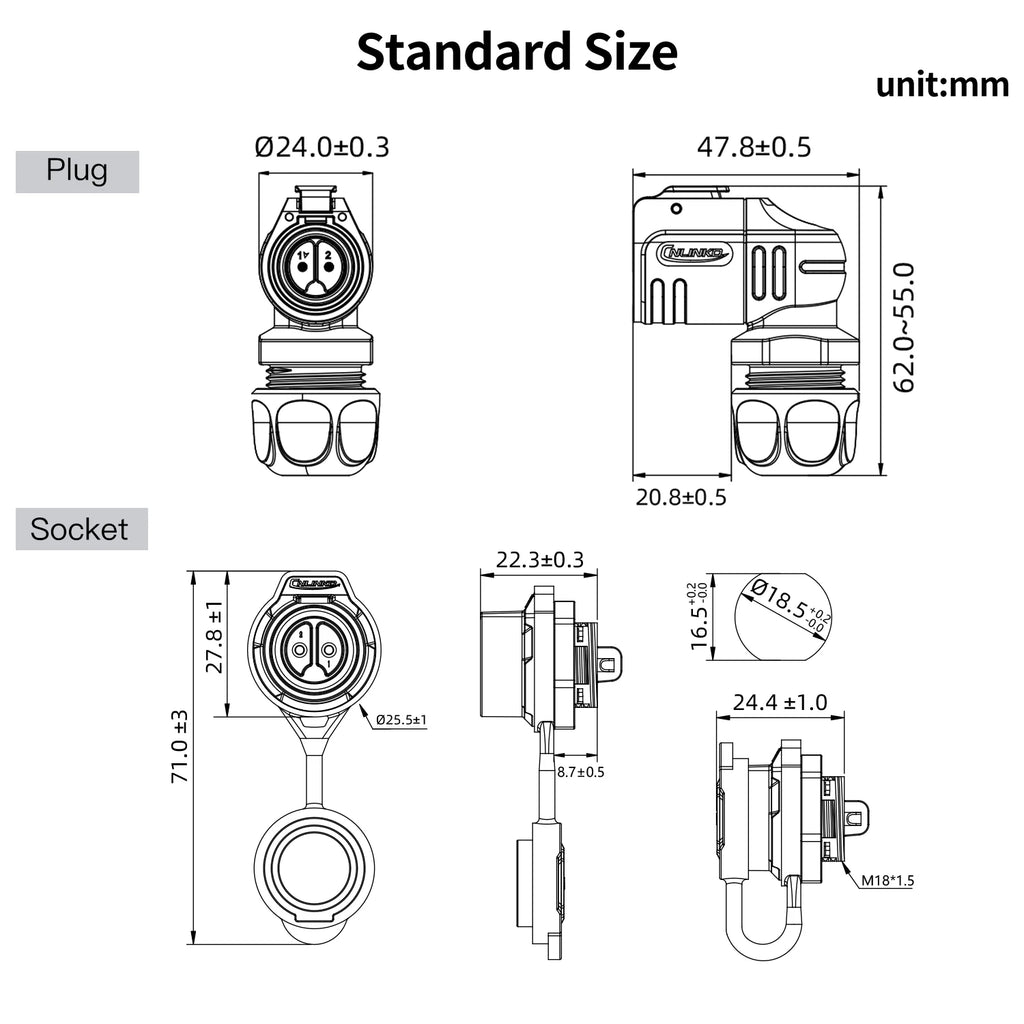

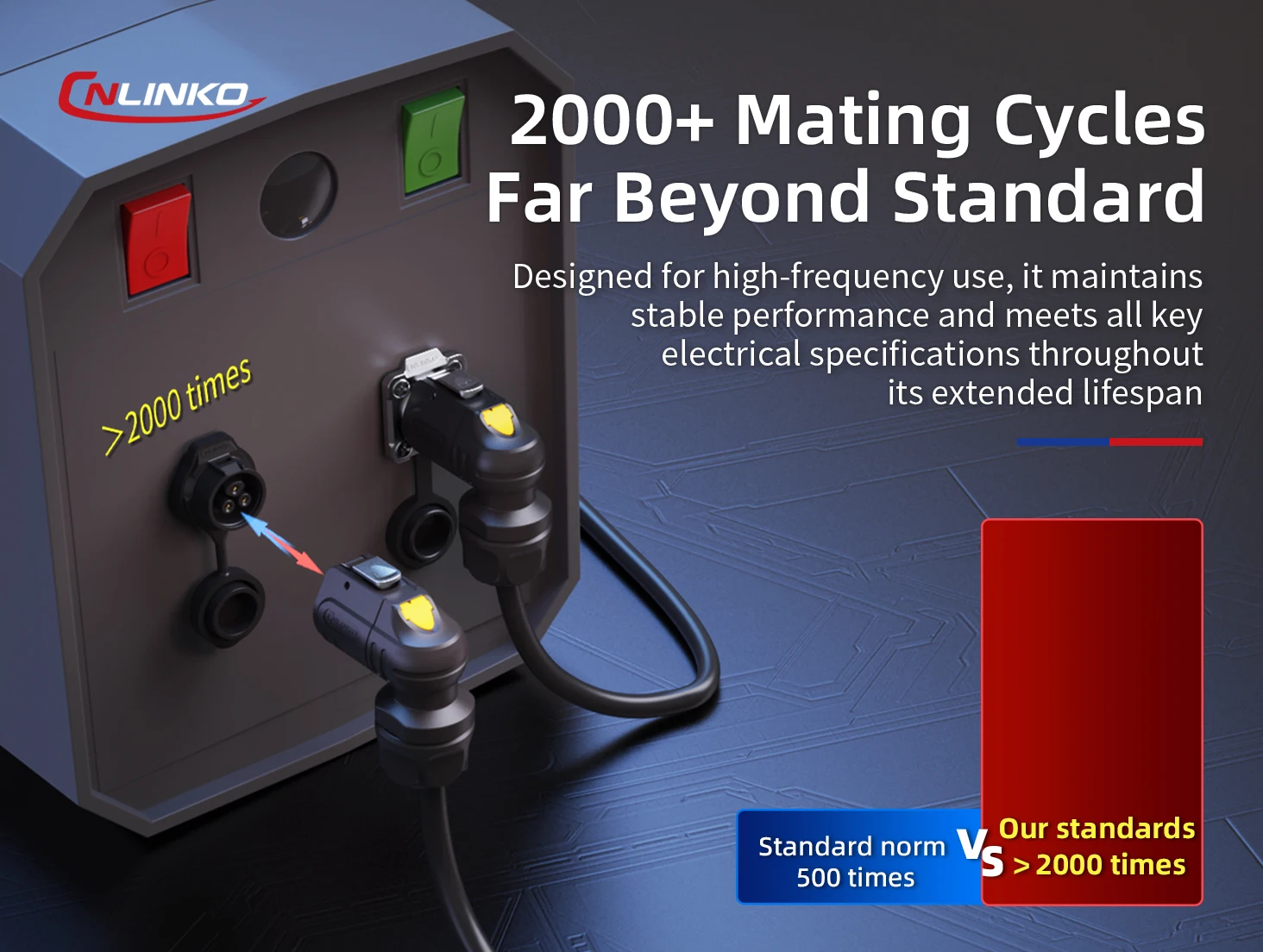

2. Standard Specifications: Supports 1.0-1.5mm²/18-16AWG, Φ8.5-10.0mm. 10A, 400V, 2000V withstand. Contact resistance <3.0mΩ, insulation >500MΩ. 2000+ cycles, -40°C~120°C. Φ1.5mm contacts (2-9 cores). Note: Do not mate under power.

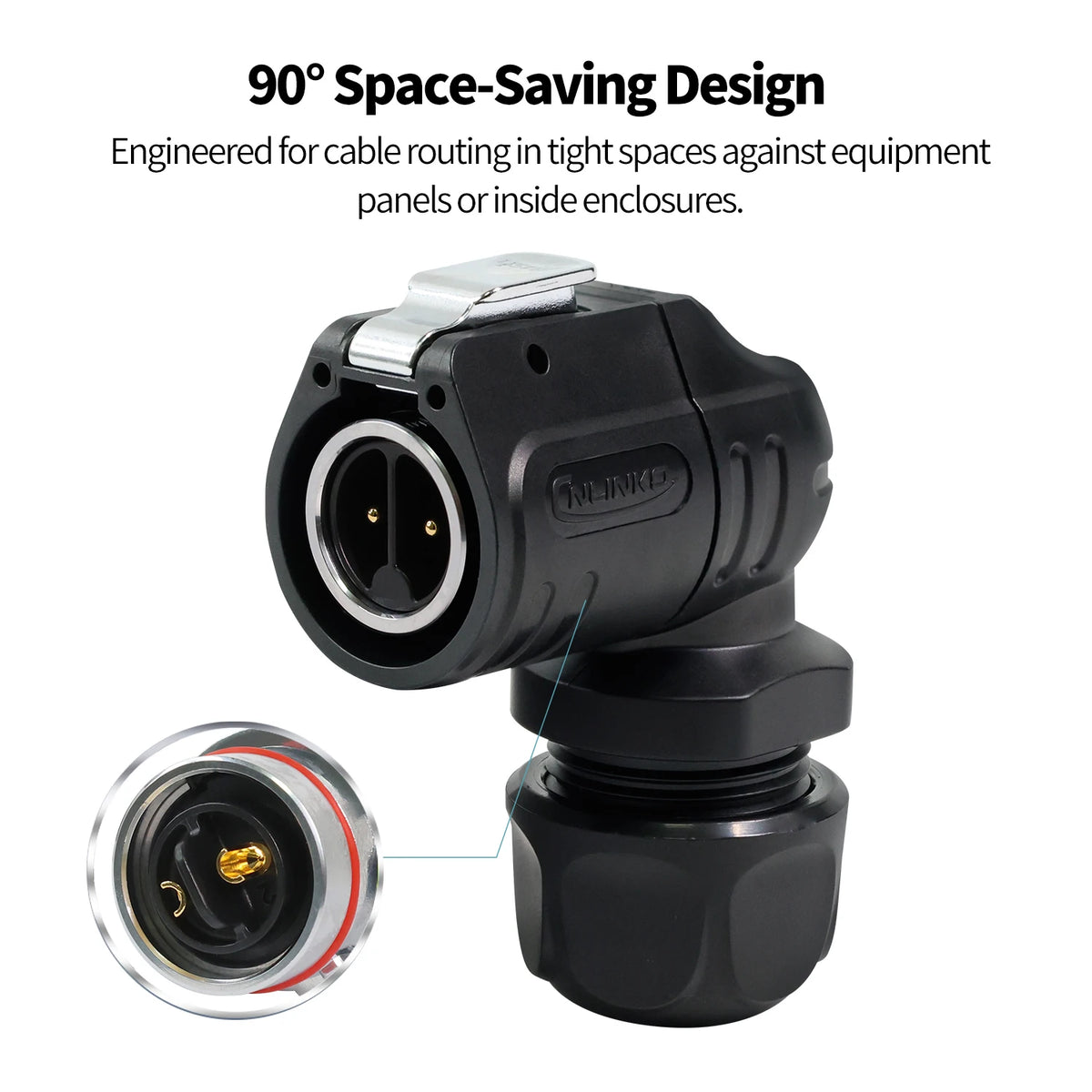

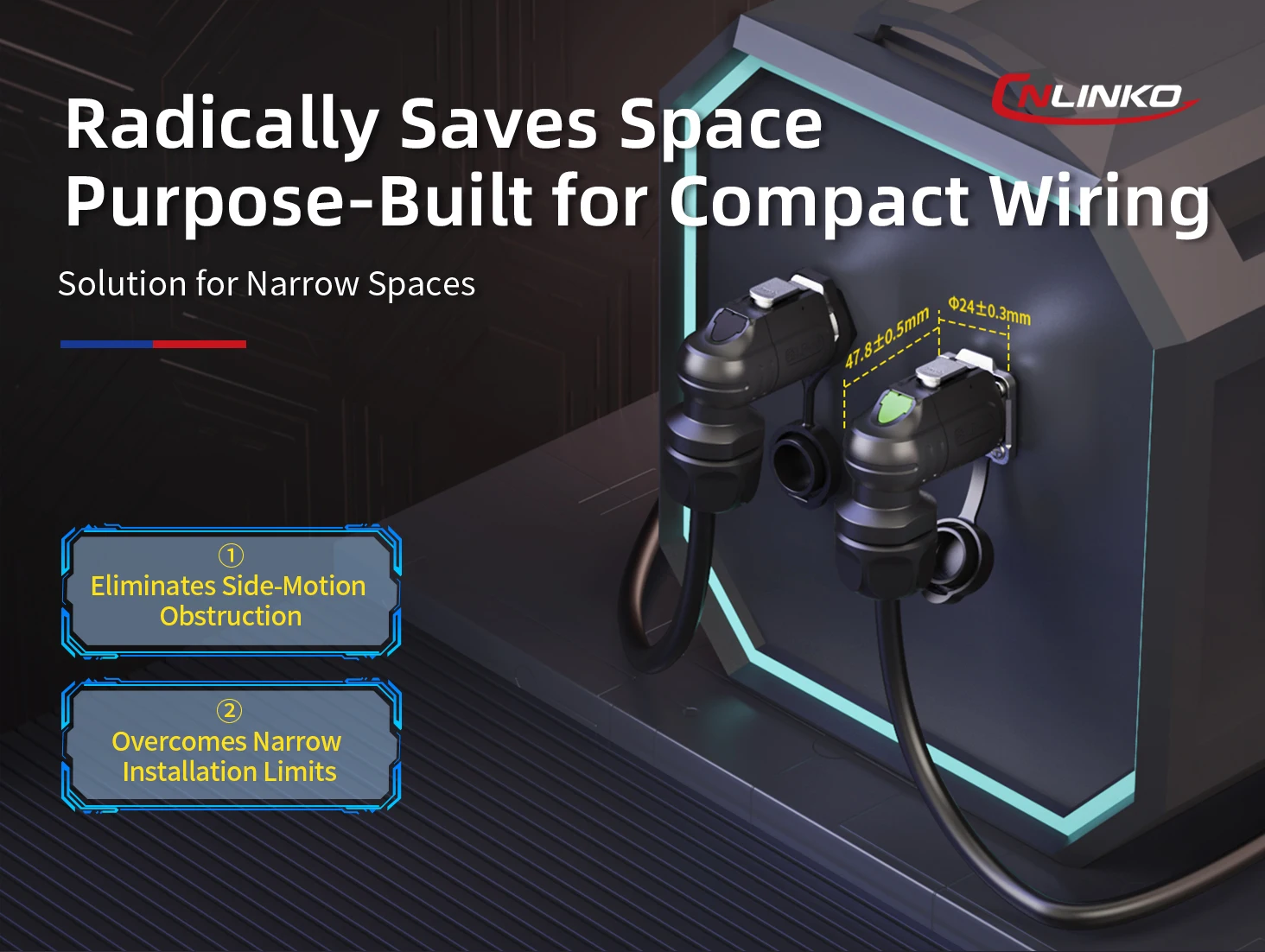

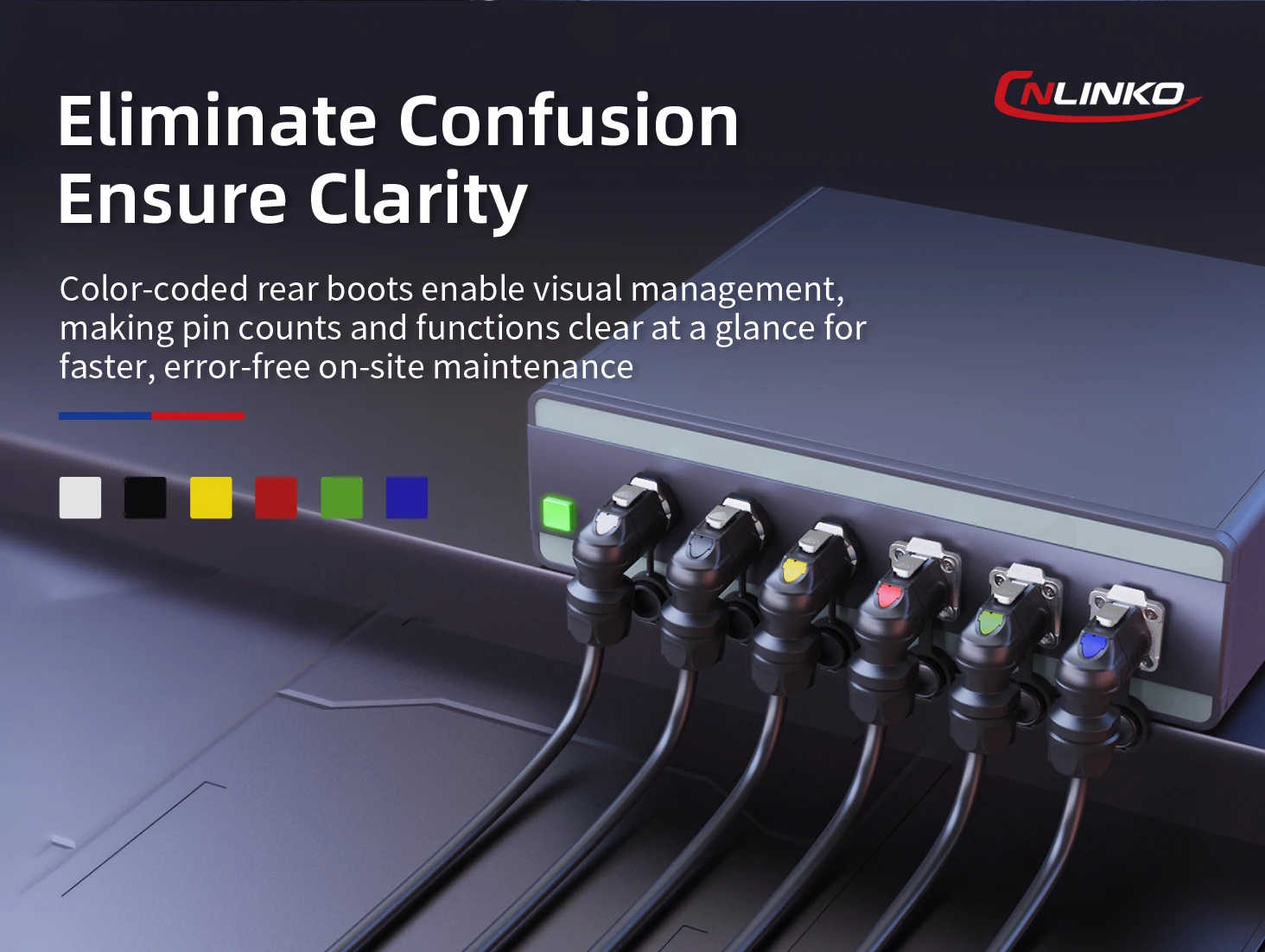

3. Space-Saving 90° Design: Right-angle saves space, reduces cable stress, prevents sharp bends, enables clean panel/enclosure installation. Polarized guide slot prevents mismating.

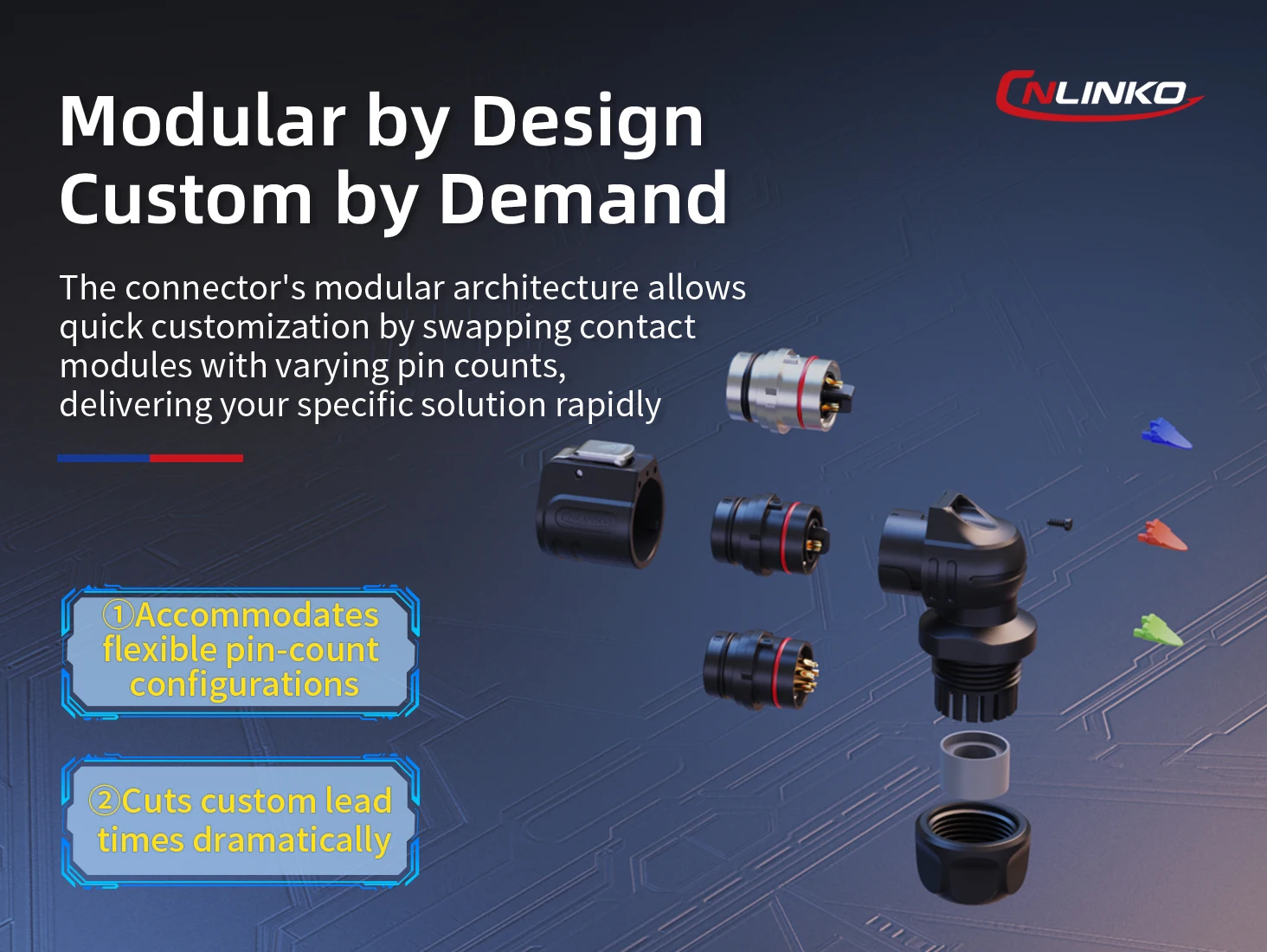

4. Robust Materials: Engineering plastic shell, zinc alloy (pearl chrome) hardware, gold-plated copper contacts. Silica gel seals against moisture/dust/corrosion. Industrial-grade for heat resistance & durability.

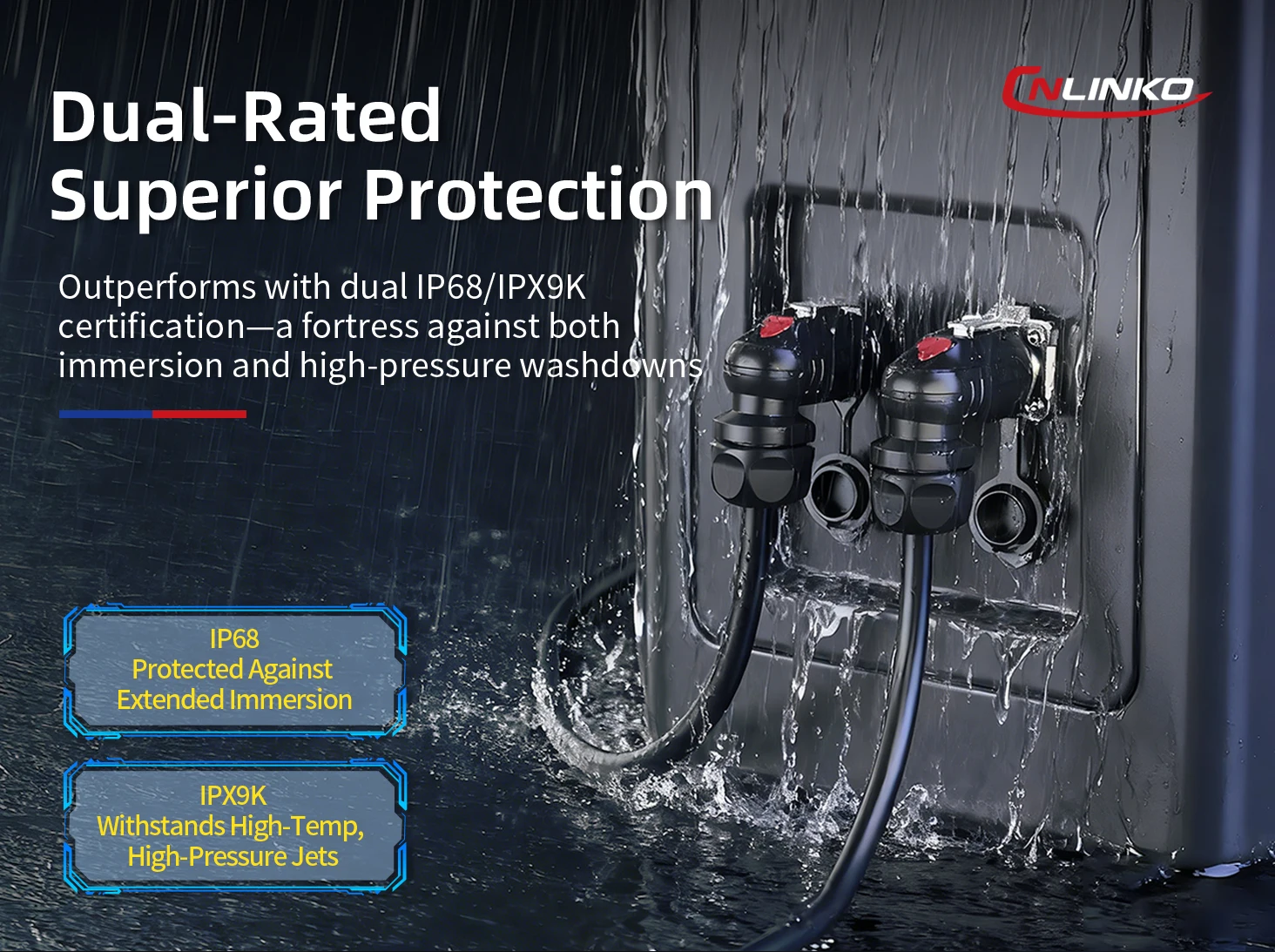

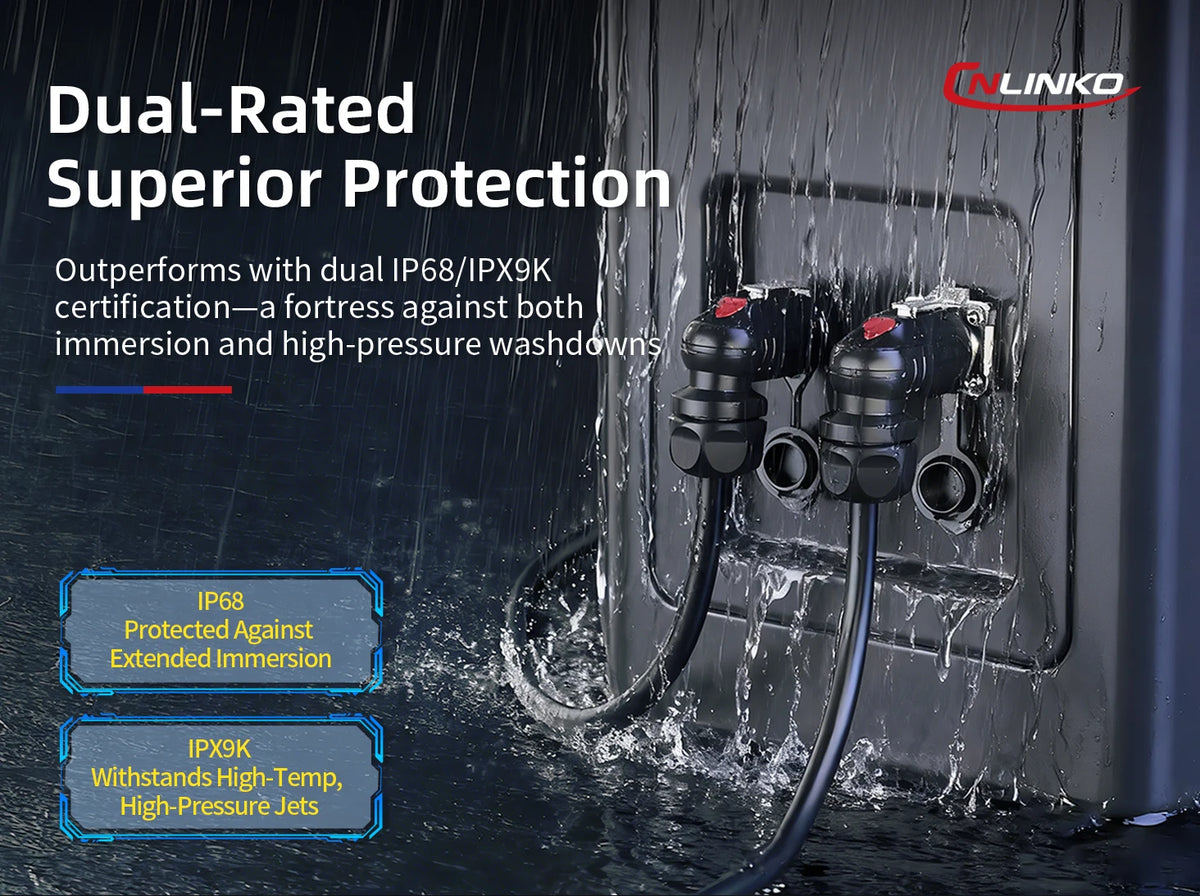

5. Versatile Industrial Applications: IP68 when mated. Ideal for lighting, robotics, power supplies, machinery, automotive, marine, outdoor tools, sensors, control cabinets, automation, renewable energy, communications, heavy machinery, aerospace.
