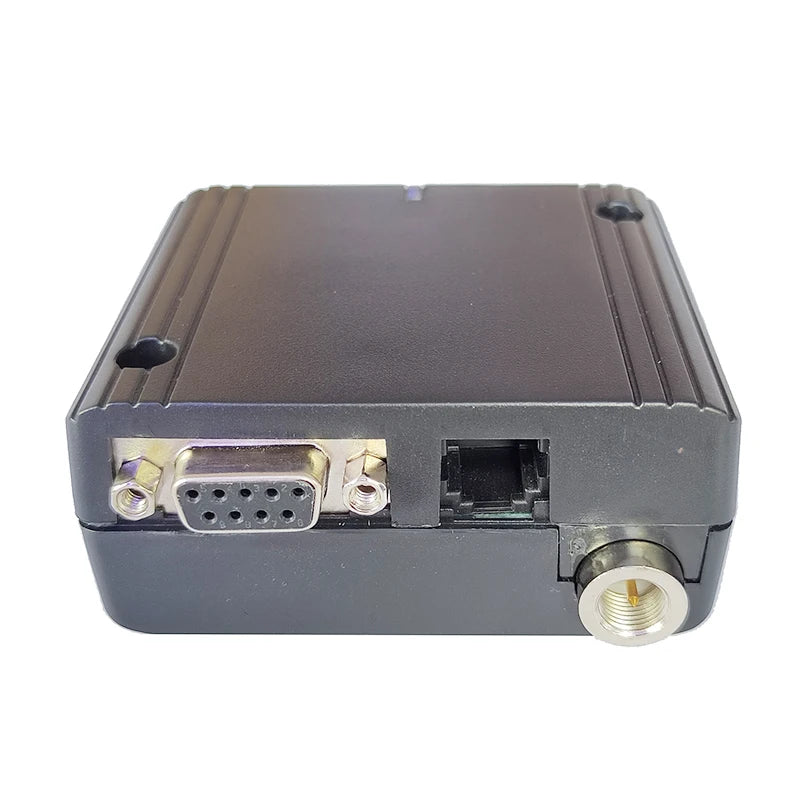

LTE Modem RS232 USB Built-in SIM7600E SIM7600SA SIM7600G SIM7600G-H 4G Cat1 Cat4 Global Module
SIM7600G
$347.20
Sale price
$347.20
Regular price
$0.00
Skip to product information
LTE Modem RS232 USB Built-in SIM7600E SIM7600SA SIM7600G SIM7600G-H 4G Cat1 Cat4 Global Module
$347.20
Sale price
$347.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Item Type: Bluetooth/Wi-Fi/Wireless Module
Origin: Mainland China
Part Number: LTE Modem

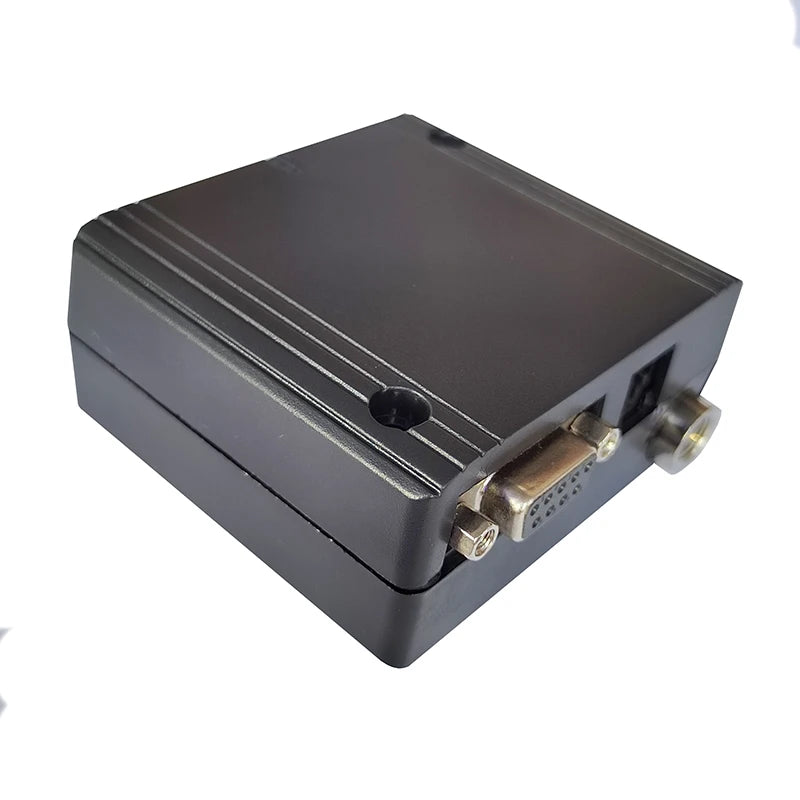

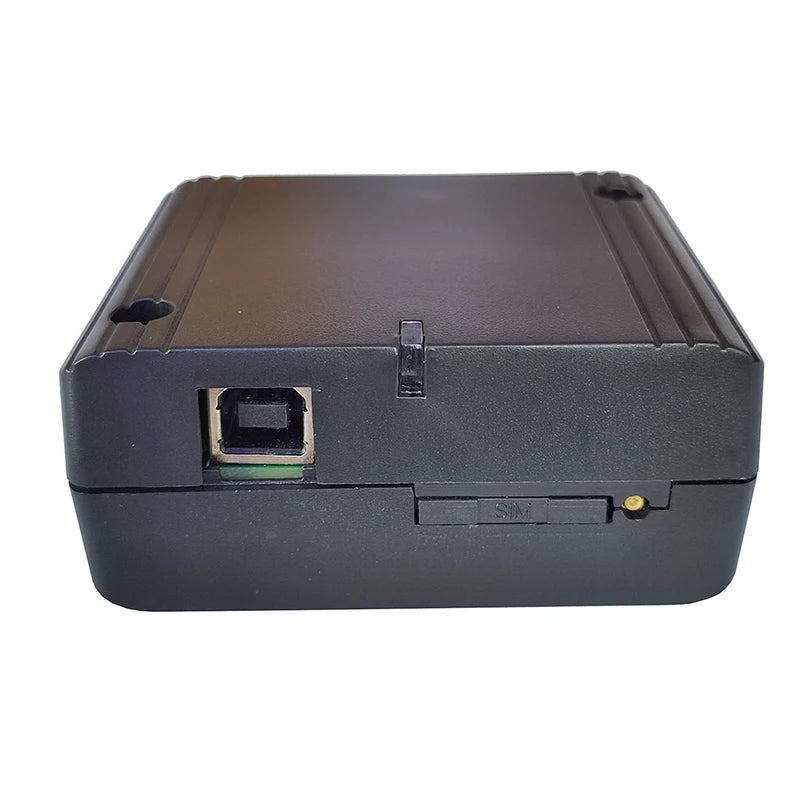

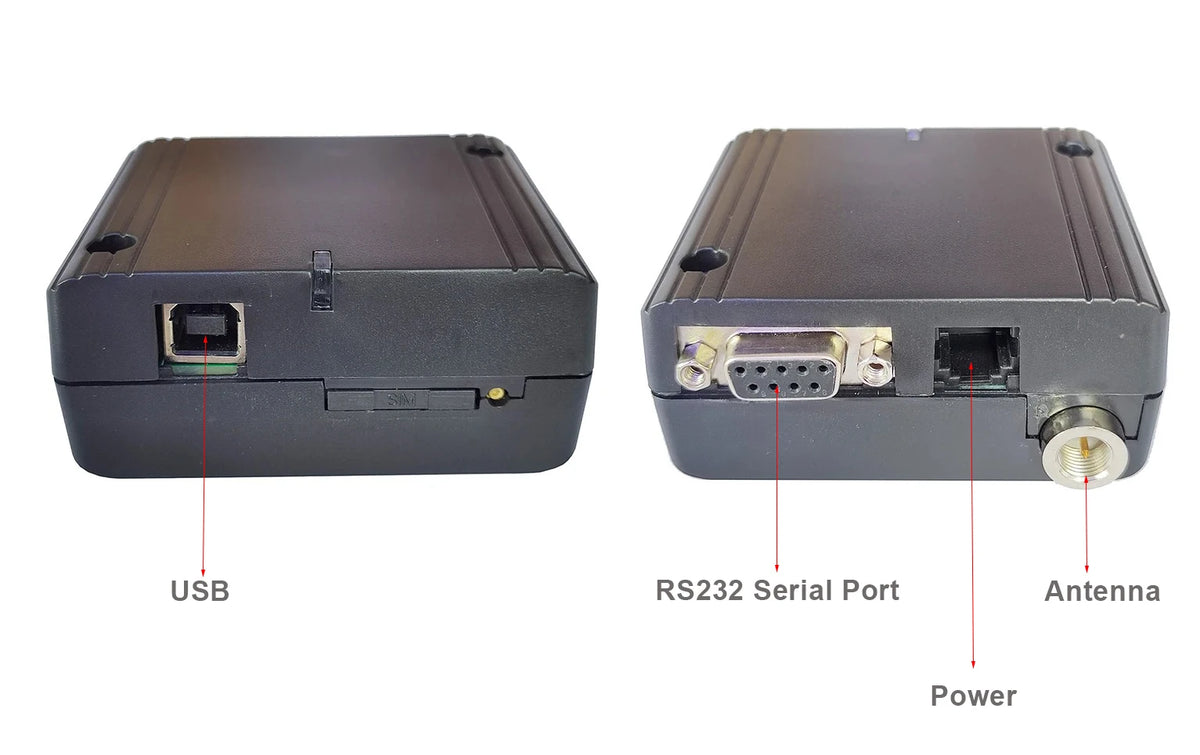

Connector: RS232+USB
Power Supply: 6-24V
SIM7600CE: 900/1800MHz China
SIM7600SA: 850/900/1800/1900MHz Australia/South America
SIM7600E: 900/1800MHz Asia/Europe/Africa
SIM7600G: 850/900/1800/1900MHz Global

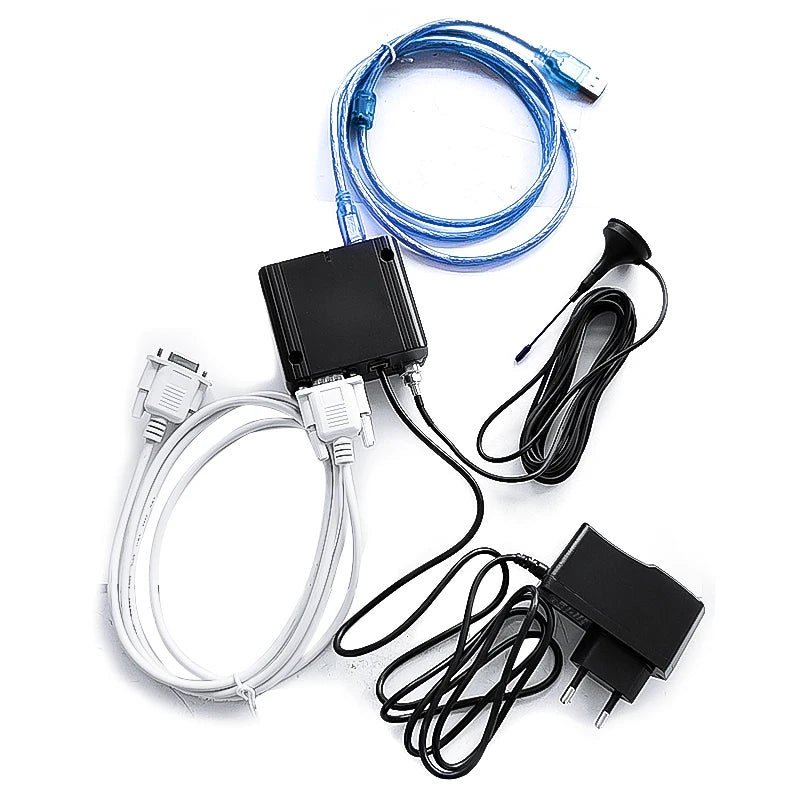

Packing List: Modem*1 Serial port cable*1 Antenna*1 AC adapter
SIM7600X
The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.
The SIM7600 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
- LCC1 form factor with abundant interfaces
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600 series are compatible with the SIM7500/SIM7600-H series modules
Product Details
Product |
SIM7600A |
SIM7600SA |
SIM7600E |
|
Form Factor |
LCC, 87PIN |
LCC, 87PIN |
LCC, 87PIN |
|
Dimensions(mm) |
30.0*30.0*2.9 |
30.0*30.0*2.9 |
30.0*30.0*2.9 |
|
Frequency Bands |
LTE-FDD |
B2/B4/B12 |
B1/B2/B3/B4/B5/B7/B8/B28/B66 |
B1/B3/B5/B7/B8/B20 |
LTE-TDD |
B40 |
B38/B40/B41 |
||
WCDMA |
B2/B5 |
B1/B2/B5/B8 |
B1/B5/B8 |
|
GSM |
850/900/1800/1900MHz |
900/1800MHz |
||
GNSS |
o |
o |
o |
|
Temperature |
-40℃ ~ +85℃ |
-40℃ ~ +85℃ |
-40℃ ~ +85℃ |
|
Electrical Features | ||||
Supply Voltage(V) |
3.4~ 4.2 |
3.4~ 4.2 |
3.4~ 4.2 |
|
|
Power Consumption (mA) |
LTE |
2.3 |
2.3 |
2.3 |
|
WCDMA, DRX=9 |
3.3 |
3.3 |
3.3 |
|
|
GSM, BS_PA_ MFRMS=2 |
2.8 |
2.8 |
2.8 |
|
Data Transfer | ||||
LTE(Mbps) |
10(DL)/5(UL) |
10(DL)/5(UL) |
10(DL)/5(UL) |
|
HSPA+(Mbps) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
|
WCDMA(Kbps) |
384(DL)/384(UL) |
384(DL)/384(UL) |
384(DL)/384(UL) |
|
GPRS/EDGE(Kbps) |
236.8(DL)/236.8(UL) |
236.8(DL)/236.8(UL) |
||
Software Features | ||||
Protocol |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/Multi-PDP/ FTP/FTPS/HTTP/HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/HTTPS/DNS |
|
TLS |
● |
● |
● |
|
File System |
● |
● |
● |
|
Audio Record/Play |
o |
o |
o |
|
TTS |
o |
o |
o |
|
DTMF |
o |
o |
o |
|
LBS |
● |
● |
● |
|
FOTA |
● |
● |
● |
|
Jamming Detection |
● |
● |
● |
|
Android RIL |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/7.0/8.0/9.0 |
|
USB Driver |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
|
WWAN (RNDIS) |
● |
● |
● |
|
ECM |
● |
● |
● |
|
MBIM |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
|
NDIS |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
|
Firmware Upgrade |
USB/FOTA |
USB/FOTA |
USB/FOTA |
|
Interfaces | ||||
SIM Card |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
|
UART |
● |
● |
● |
|
USB |
● |
● |
● |
|
PCM |
o |
o |
o |
|
ADC |
● |
● |
● |
|
SD Card |
● |
● |
● |
|
SPI |
o |
o |
o |
|
I2C |
● |
● |
● |
|
Diversity Receiver |
● |
● |
● |
|
Certification | ||||
Regulatory |
FCC/PTCRB/RoHS/REACH/IC |
CE-RED/ACMA/FCC/ RoHS/REACH/Anatel |
CE-RED/RoHS/REACH/ IMDA/GCF |
|
Carrier |
AT&T/Rogers |
Telstra |
DTAG/Vodafone |
|
