SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

Output: Digital Sensor

Theory: Ambient Light Sensor

Use: Ambient Light Sensor

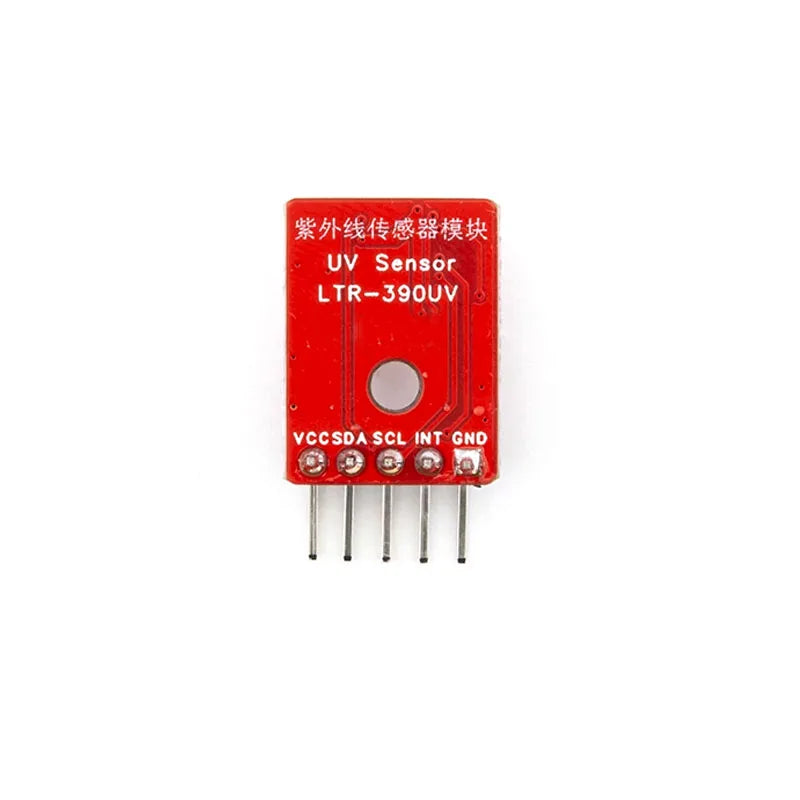

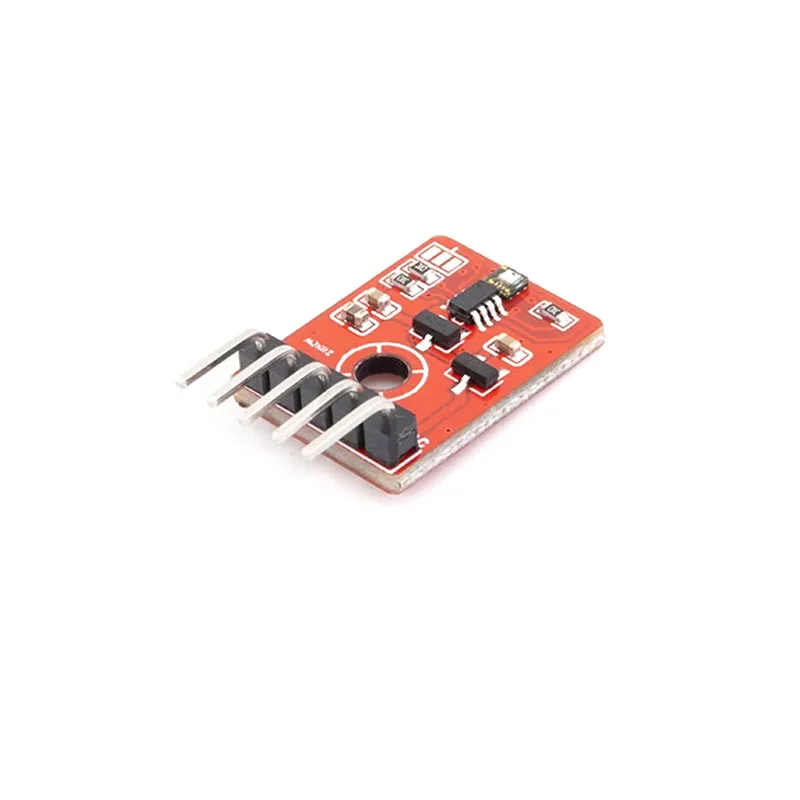

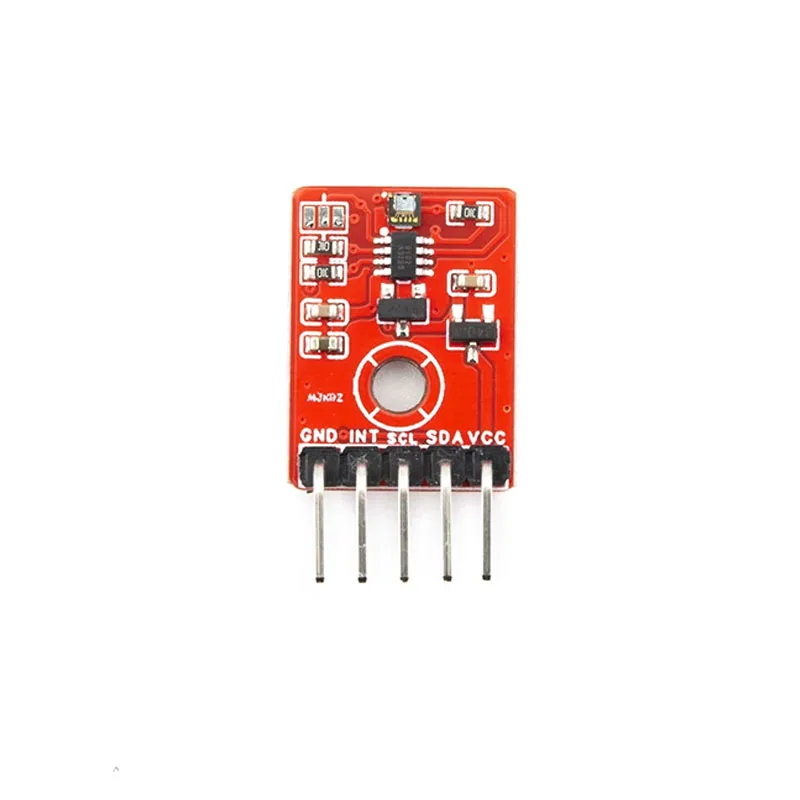

LTR390UV Digital UV Index & Ambient Light Sensor Module with I2C Interface

The LTR390UV is a highly integrated environmental light sensor (ALS) and ultraviolet sensor (UVS) with a low-voltage I2C interface. It converts light intensity into a digital output signal that can be directly transmitted via I2C, offering a linear ALS response across a wide dynamic range. This makes it especially suitable for high-brightness applications. Featuring a programmable interrupt function with hysteresis for event response, the LTR390 stands out as one of the few cost-effective UV sensors on the market while maintaining excellent performance.

With a spectral response range of 280nm to 430nm (UVA band) and raw data output capability, it can measure UV index in ambient light to help protect skin and eyes from sun damage. The module is equipped with a professional level-shifting IC that supports 3.3V–5V microcontroller communication and includes reverse-connection protection.

Feature:

• I2C communication (100kHz or 400kHz)

• Compatible with 3.3V and 5V systems

• 13–20 bits effective resolution

• Interrupt function

• Spectral response close to human eye perception

• Suitable for UV intensity and ambient light detection

• Ideal for educational experiments, weather studies, and light detection projects

• Can be used in UV index monitors and outdoor UV detection devices

• IC: LTR390-UV

• Operating voltage: DC 3.3V to 5V

• Operating current: Approx. 2.73mA (with 18-bit data acquisition time of 100ms)

• Communication interface: I2C

• UV response wavelength: 280nm to 430nm

• ALS spectral response wavelength: 450nm to 700nm

• Output type: Digital

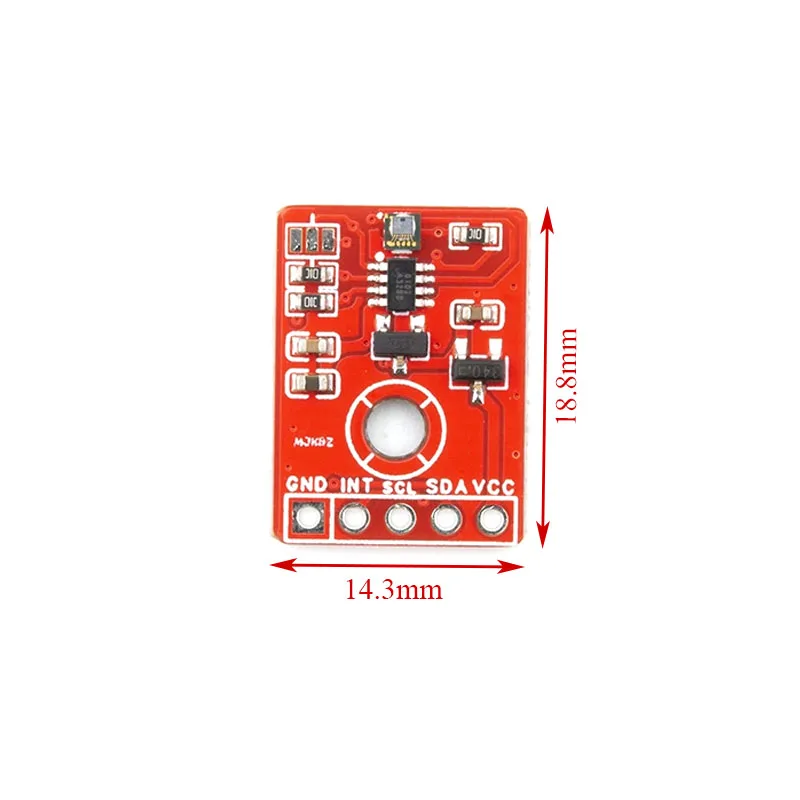

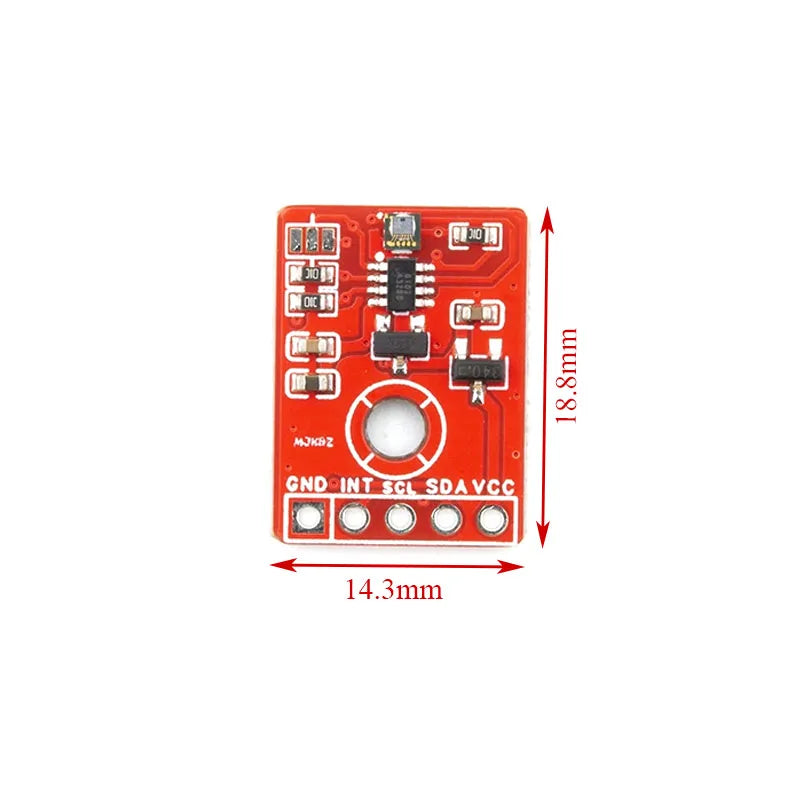

• Dimensions: 18.8mm (L) × 14.3mm (W) × 2.8mm (H)

• Mounting holes: 3mm diameter

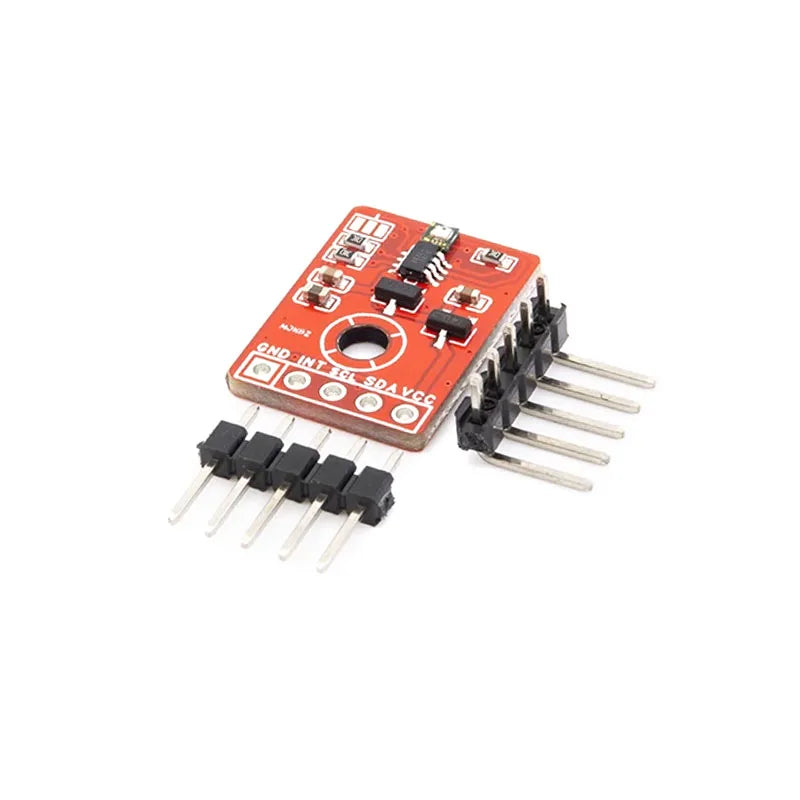

• Pin headers: 4P, 2.54mm pitch

• Sunny day: 30,000 – 300,000 Lux

• Bright indoor daytime: 100 – 1,000 Lux

• Cloudy day: 3,000 – 10,000 Lux

• Cloudy outdoor: 50 – 500 Lux

• Cloudy indoor: 5 – 50 Lux

• Indoor at dusk: 10 Lux

• Sunrise/sunset: 300 Lux

• Nighttime: 0.001 – 0.02 Lux

• Moonlit night: 0.02 – 0.3 Lux

• Office without natural light: 30 – 50 Lux

• Flashlight exposure: 8,000 – 15,000 Lux
