SPECIFICATIONS

Brand Name: Waveshare

High-concerned chemical: none

Model: Luckfox Lyra Pi

Origin: Mainland China

Type: others

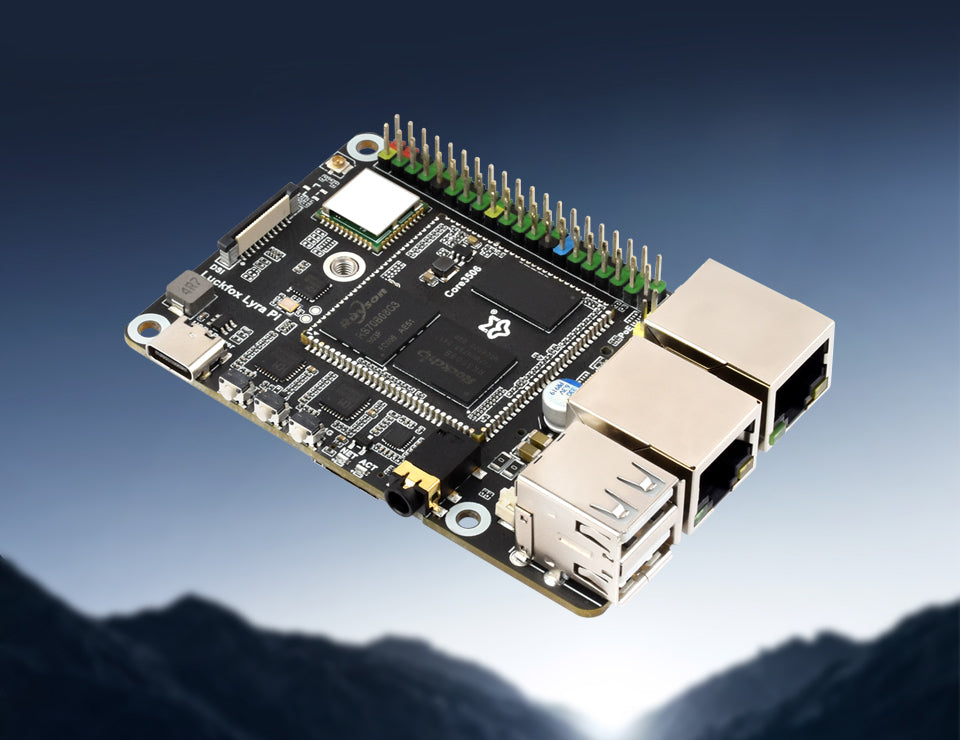

Luckfox Lyra Pi

The Luckfox Lyra Pi is a cost-effective Linux micro development board, based on the Luckfox Core3506 chip to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, SDIO, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allowing for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.

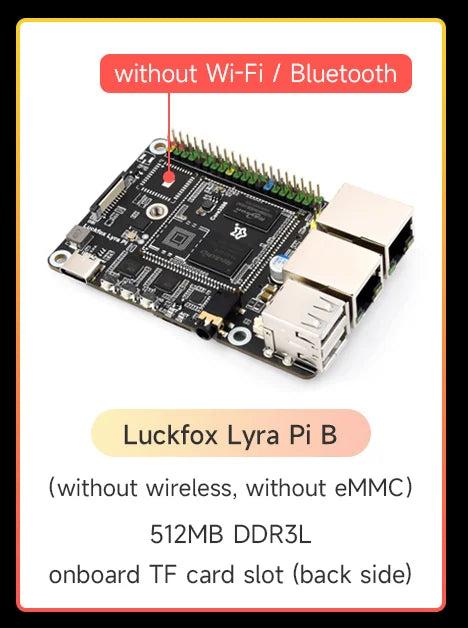

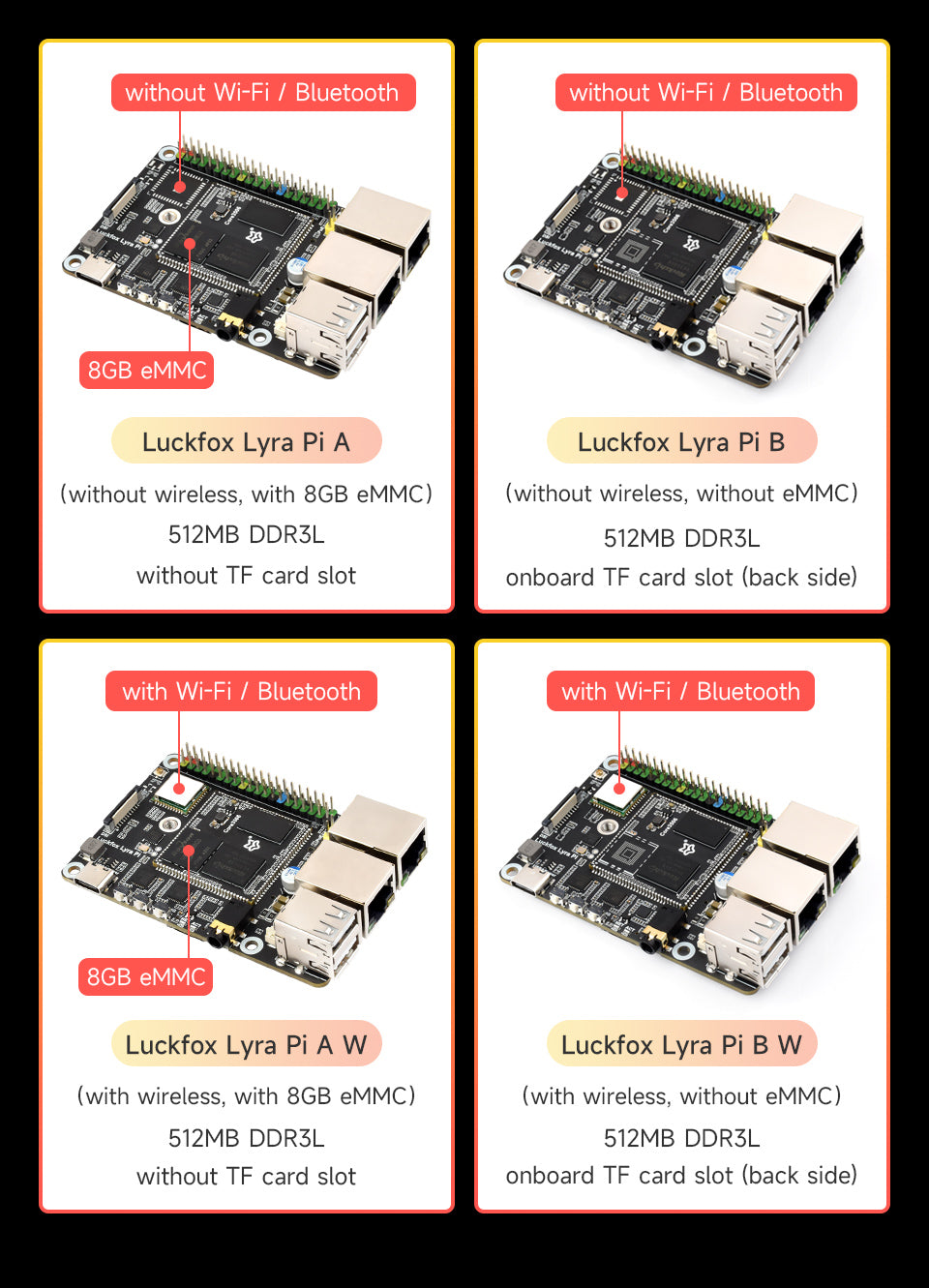

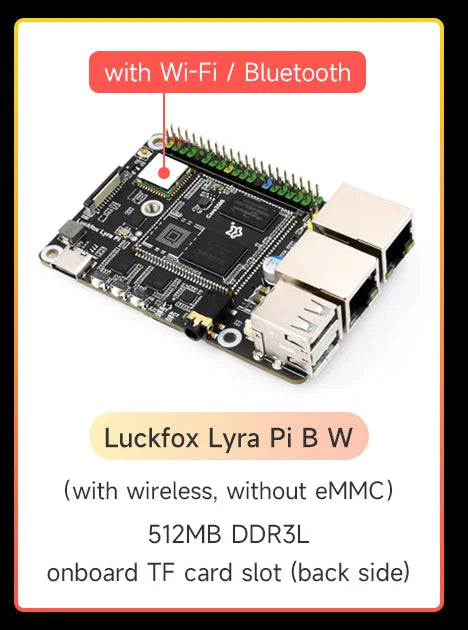

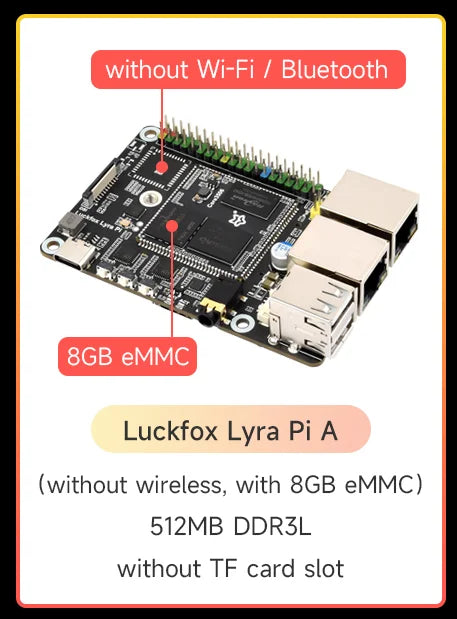

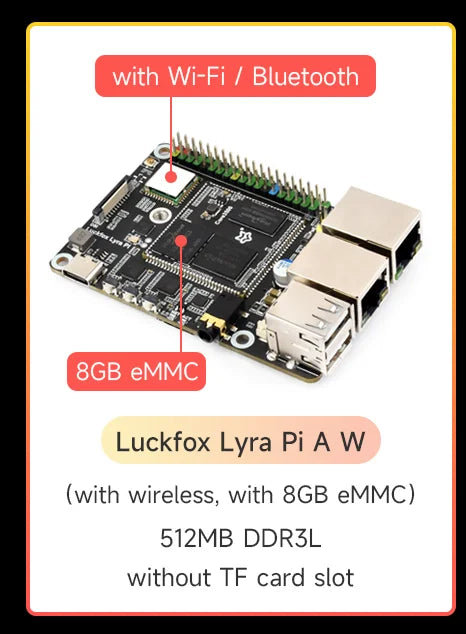

Development Board Versions
Version Comparison

Model

PI A

PI B

PI A W

PI B W

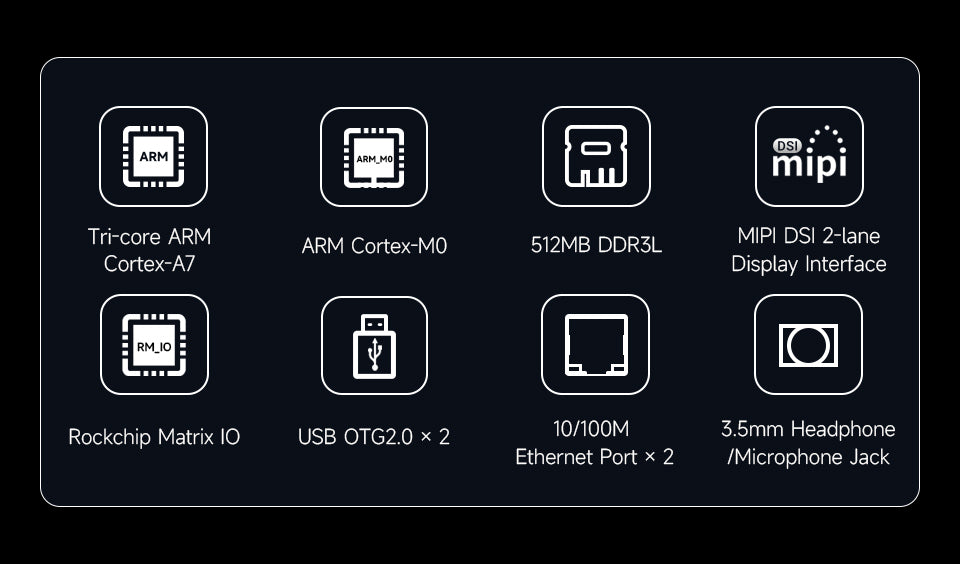

Processor

Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0

Memory

512MB DDR3L

USB

Original USB OTG2.0 × 1,
Extended USB HOST2.0 × 3 via HUB

Display

MIPI DSI 2-lane

GPIO

23 × Rockchip Matrix IO pins + 5 × GPIO pins

Default Storage

8GB eMMC

TF card (NOT included)

8GB eMMC

TF card (NOT included)

Wireless

-

Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE

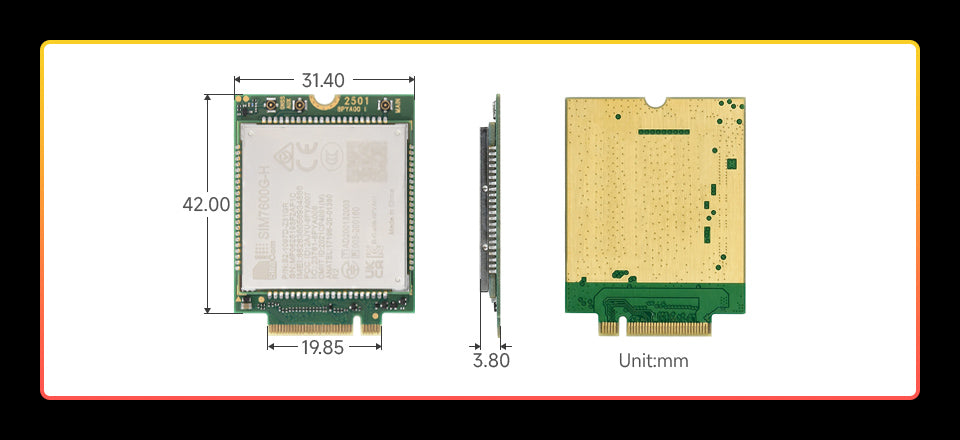

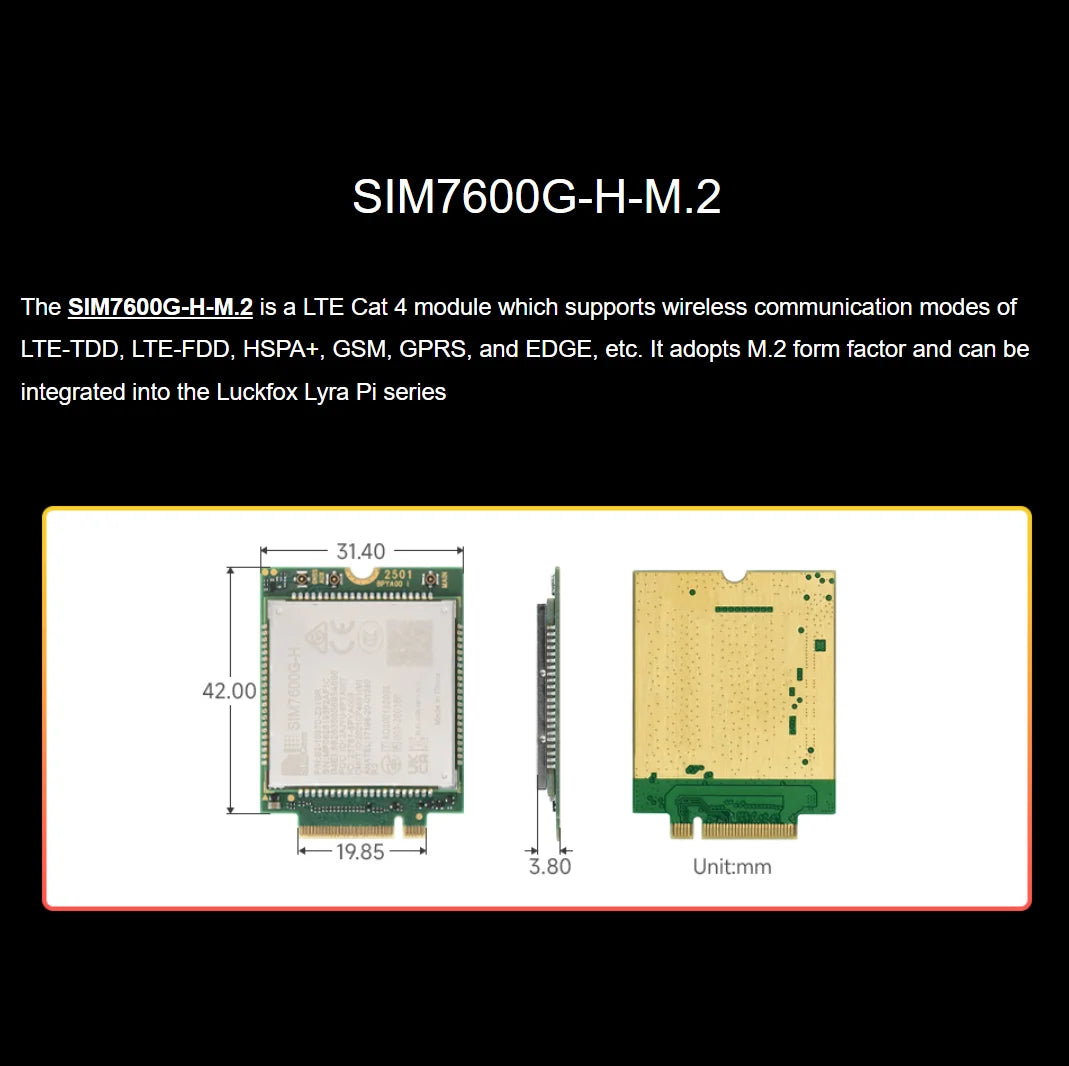

SIM7600G-H-M.2

The SIM7600G-H-M.2 is a LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc. It adopts M.2 form factor and can be integrated into the Luckfox Lyra Pi series

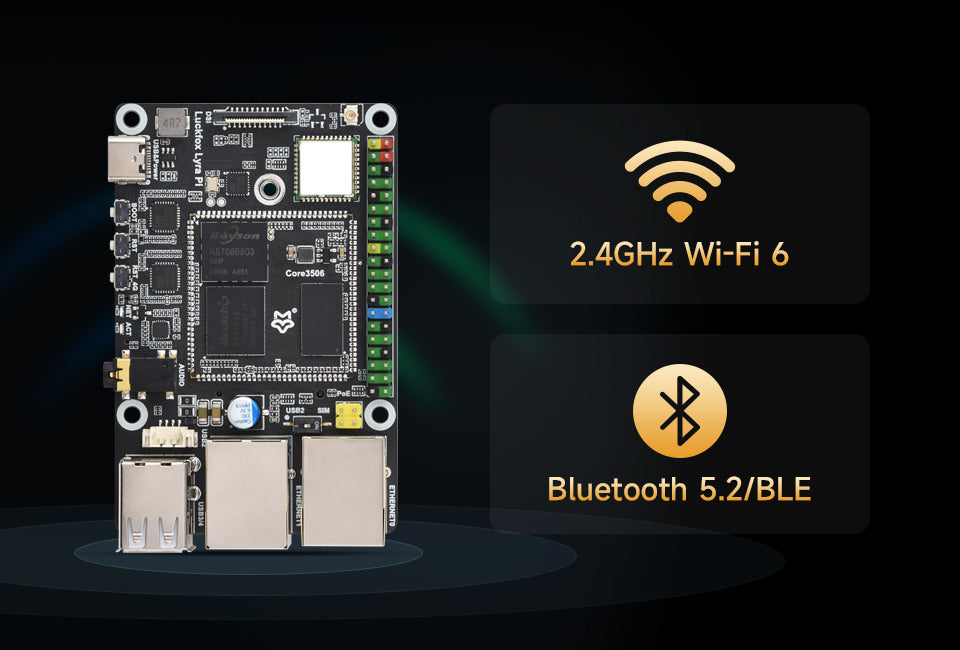

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Reserved PoE Module Header

More Flexible for Power Supply

* the PoE module is NOT included.

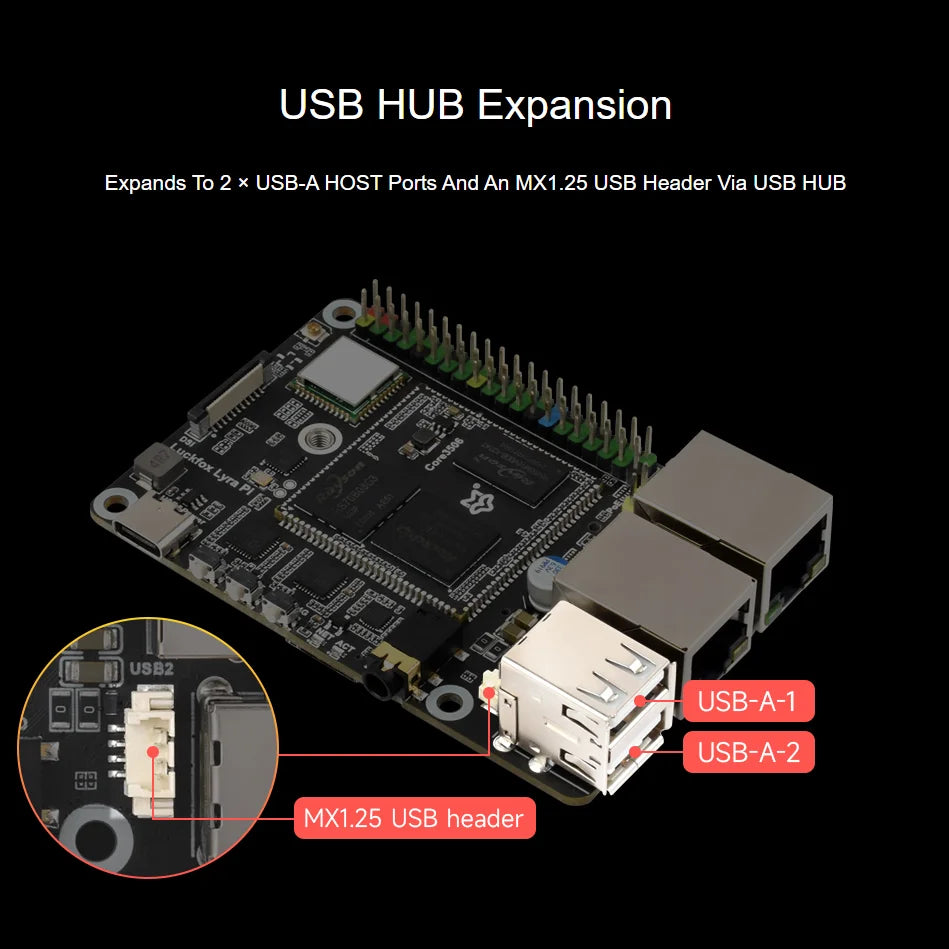

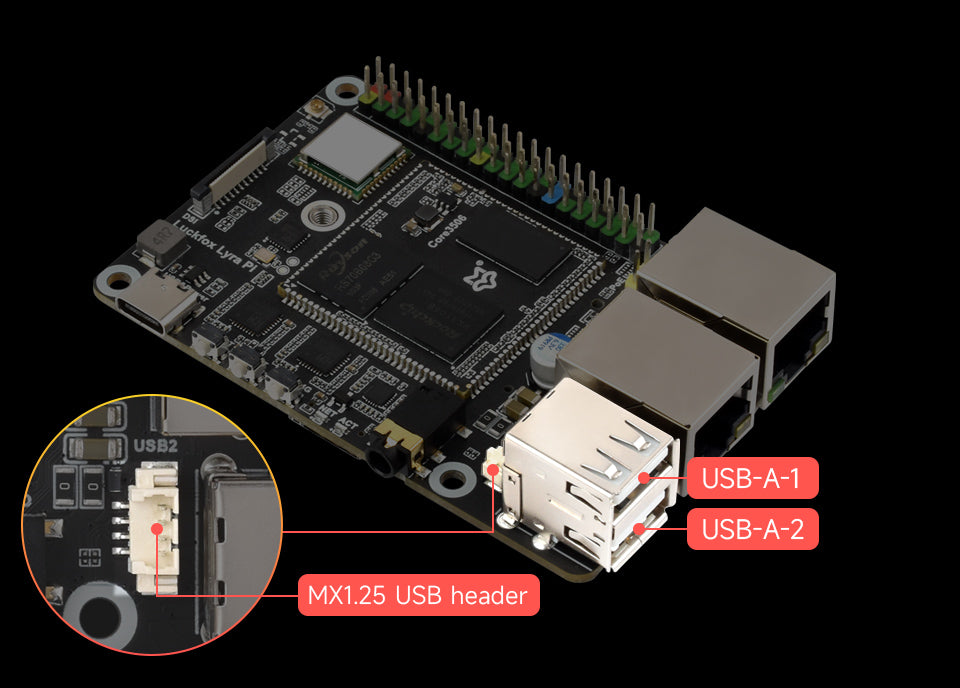

USB HUB Expansion

Expands to 2 × USB-A HOST ports and an MX1.25 USB header via USB HUB

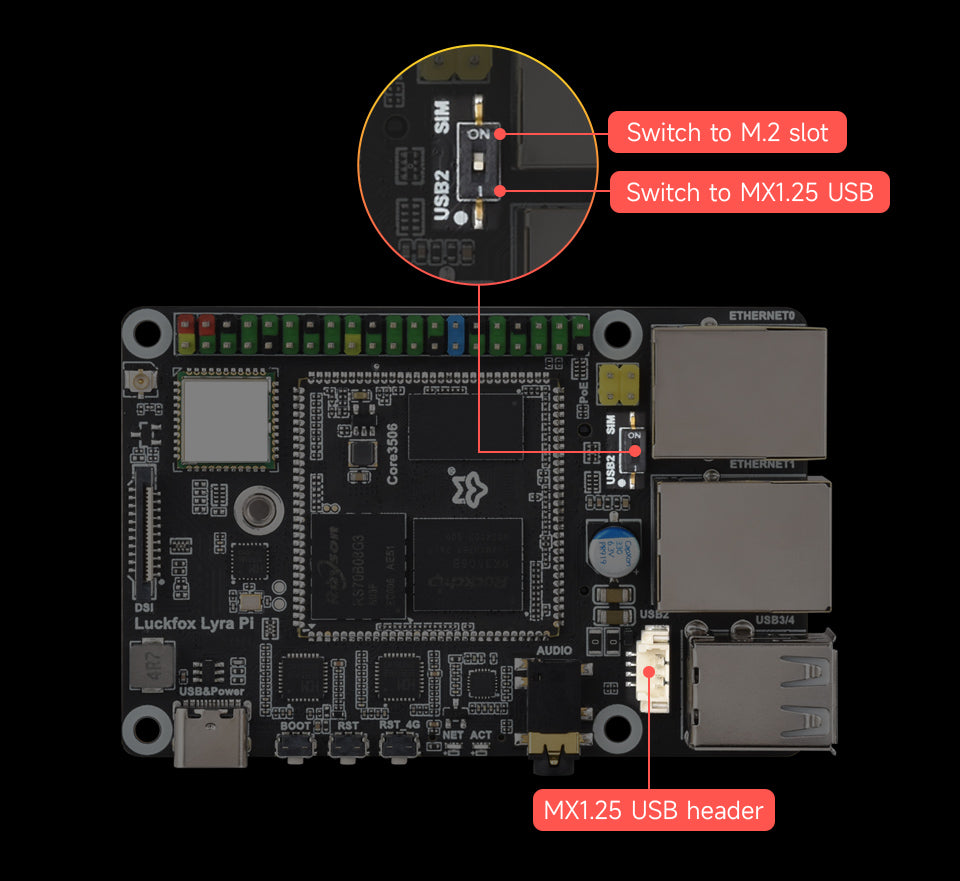

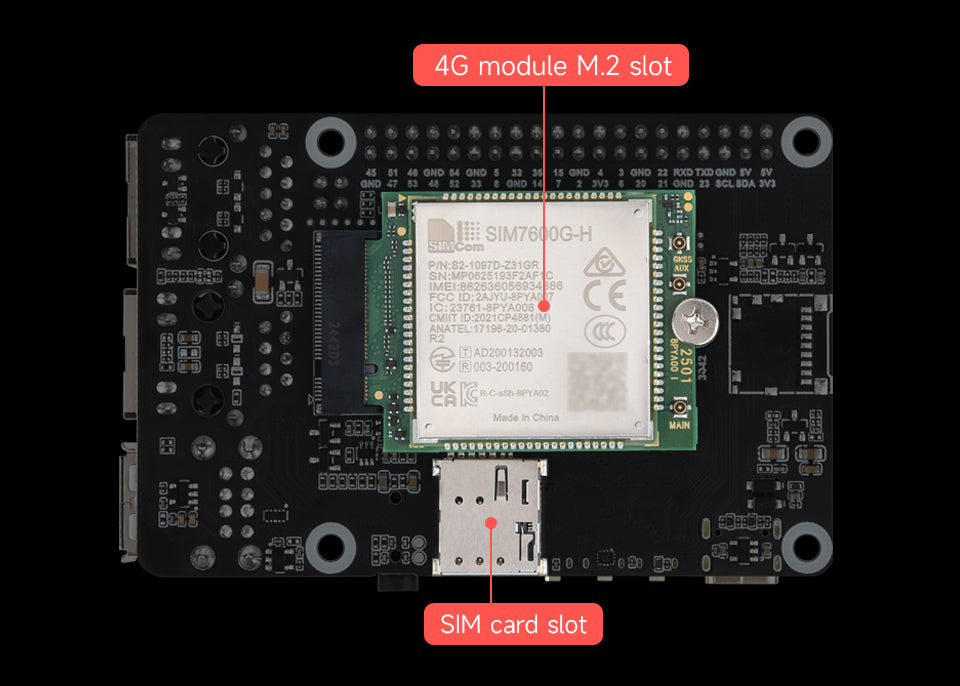

Onboard M.2 slot for 4G Module

The USB signal of the MX1.25 USB port can be switched to 4G module M.2 slot via DIP switch, only compatible with the SIM7600G-H-M.2 4G module



* for reference only, please refer to the part list for detailed package content.

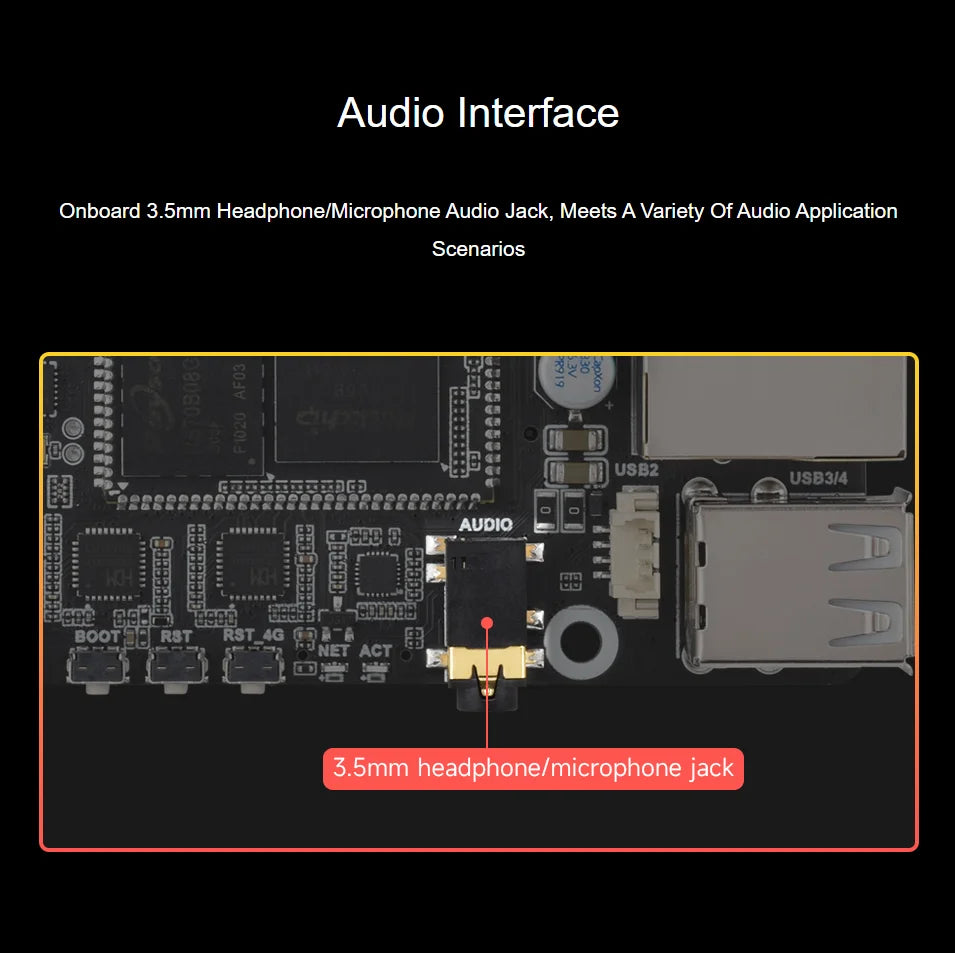

Audio Interface

Onboard 3.5mm headphone/microphone audio jack, meets a variety of audio application scenarios

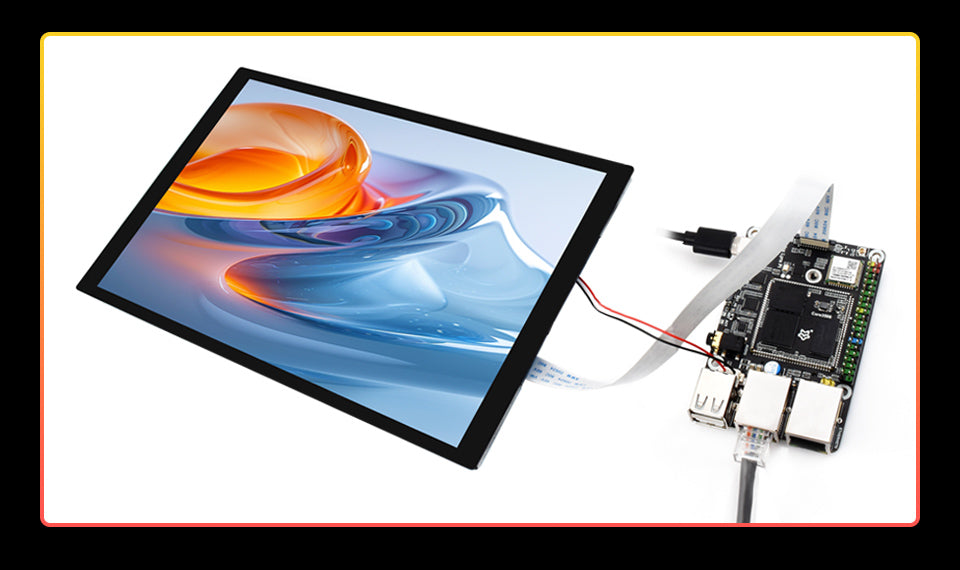

MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens


Supports up to 1280 × 1280 @ 60Hz resolution. The resolution of the screen in the picture is 800 × 1280.
* for reference only, please refer to the part list for detailed package content.

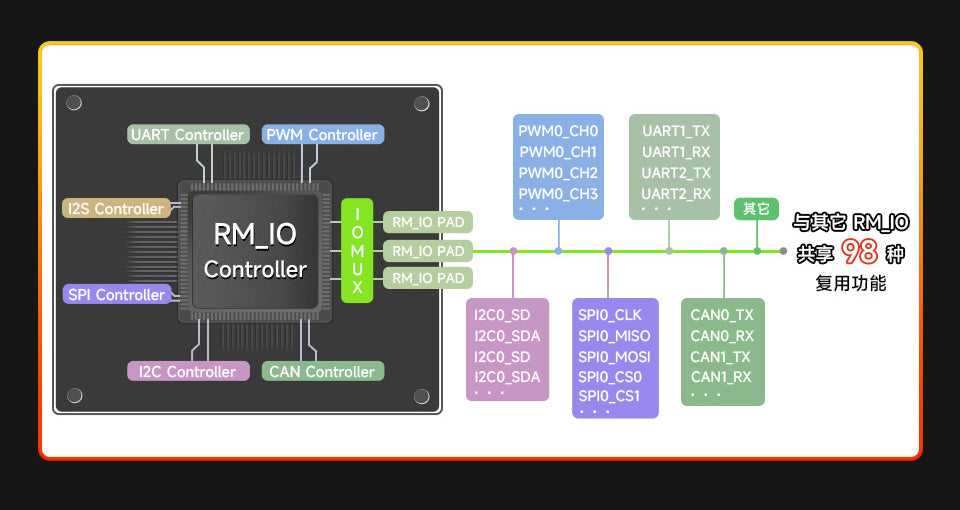

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Suitable for more application examples

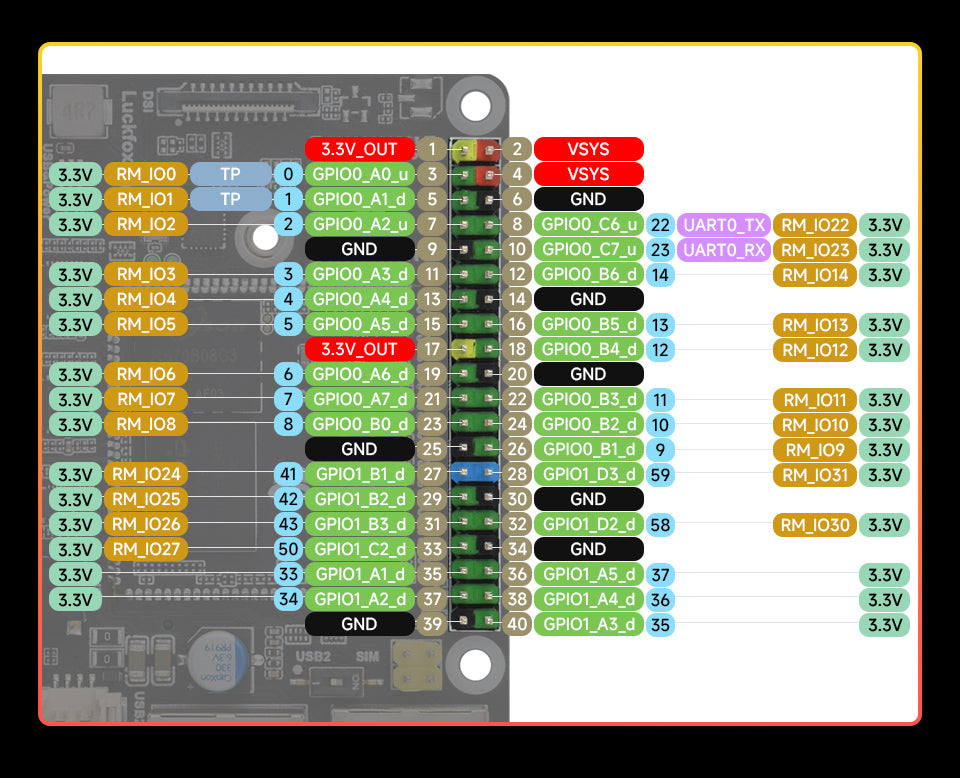

Pin definition

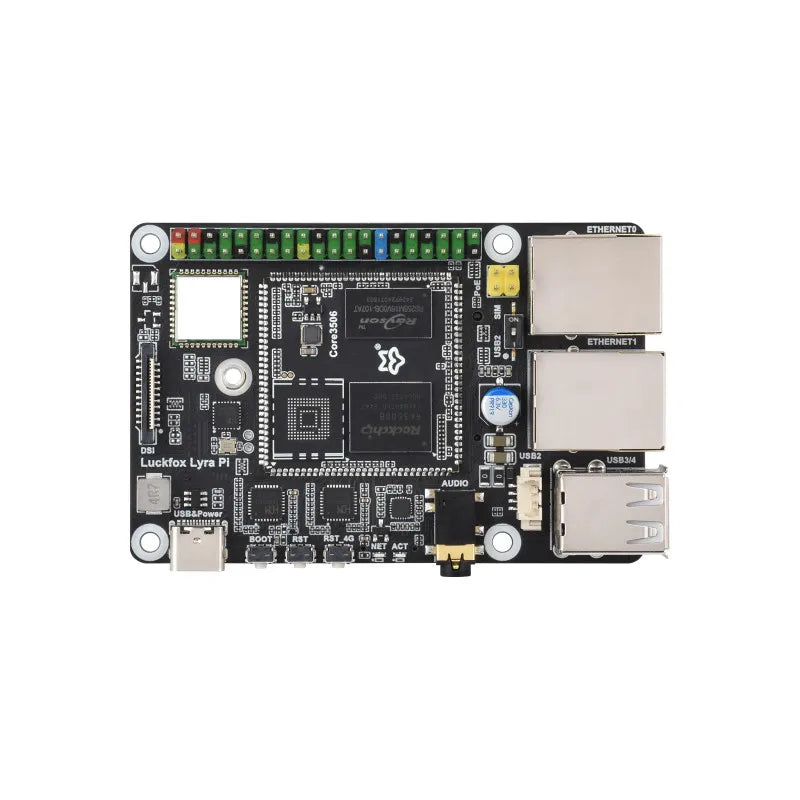

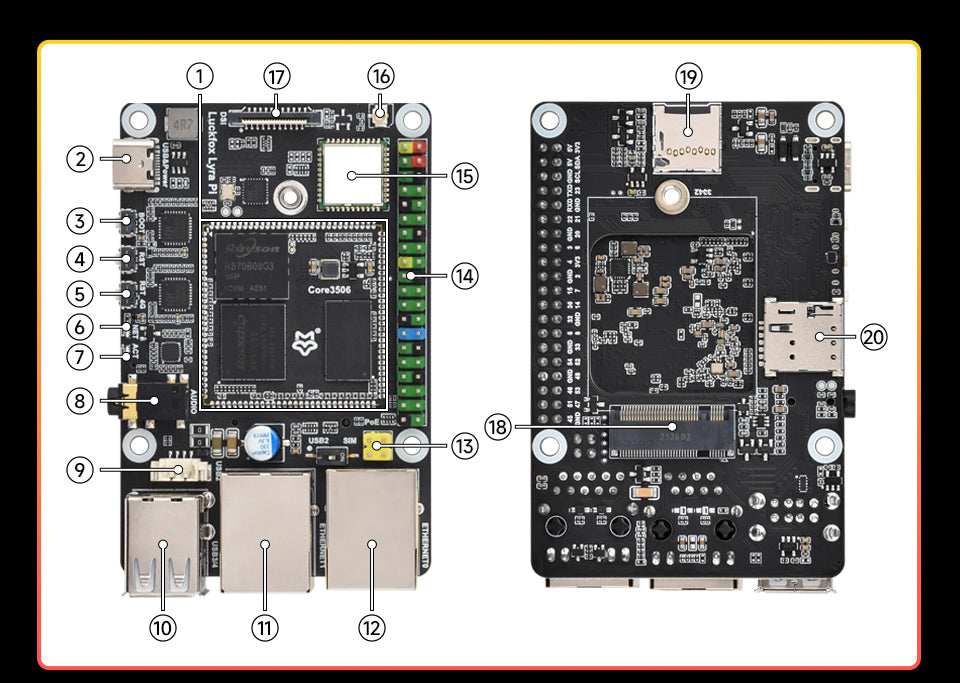

What's On Board

  1. Core3506
    RK3506B core module, optional for eMMC

  2. USB Type-C OTG0 port
    for power supply and program burning

  3. BOOT button
    Press it when powering on or resetting to enter download mode

  4. RESET button
    for rebooting the Core3506 system

  5. 4G-RESET button
    for rebooting the 4G module

  6. 4G NET LED
    for indicating the operating status of the 4G module

  7. USER-LED
    for indicating system operating status in the default image

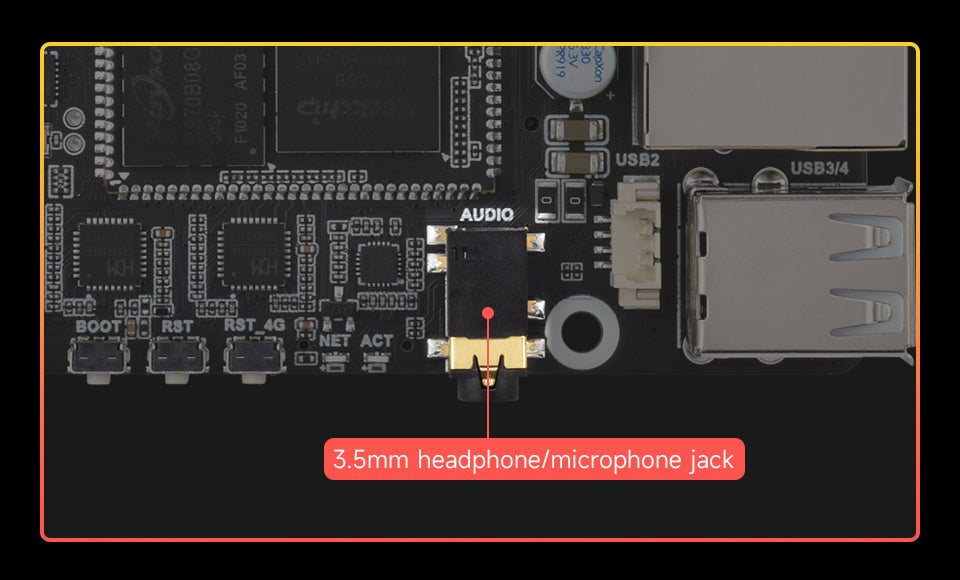

  8. 3.5mm headphone/microphone jack
    Supports single-channel audio capture or output

  9. MX1.25 4P header
    Supports conversion to USB-A HOST interface or for LCD screen power supply

  10. USB-A HOST ports
    Expands 2x USB-A ports via USB-HUB chip

11.RJ45 100M Ethernet port

12.RJ45 100M Ethernet port (with PoE support)
Supports power supply via PoE switch with network cable

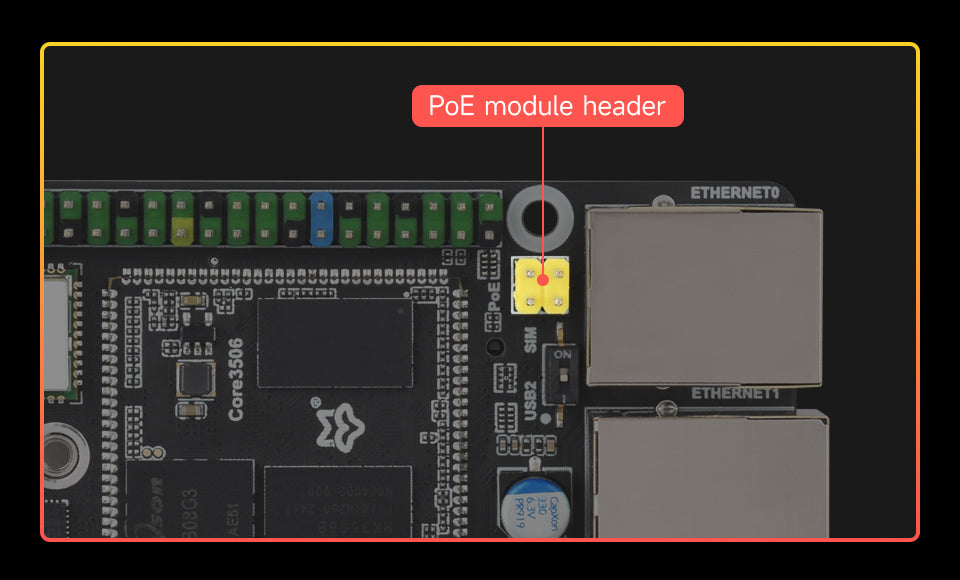

13.PoE module header

14.40PIN GPIO header
Compatible with some Raspberry Pi HATs

15.WIFI/Bluetooth module (optional)
2.4G WiFi 6 / BT5.2 / BLE Bluetooth module

16.Antenna connector

17.DSI interface
MIPI DSI 2-lane

18.4G module M.2 slot
Supports SIM7600G-H-M.2 4G module

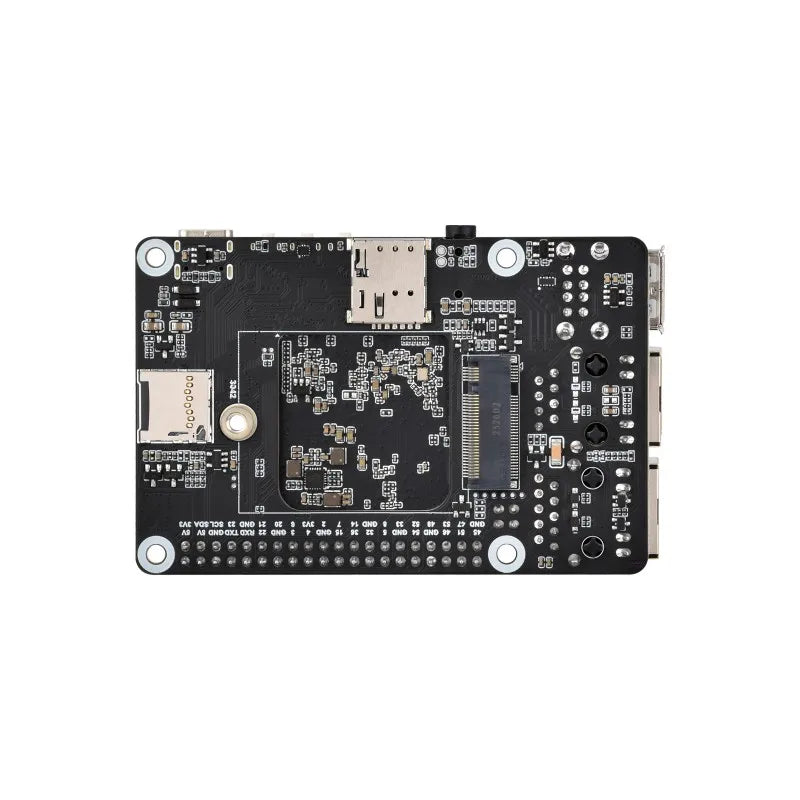

19.TF card slot
for Lyra Pi B versions only

20.SIM card slot

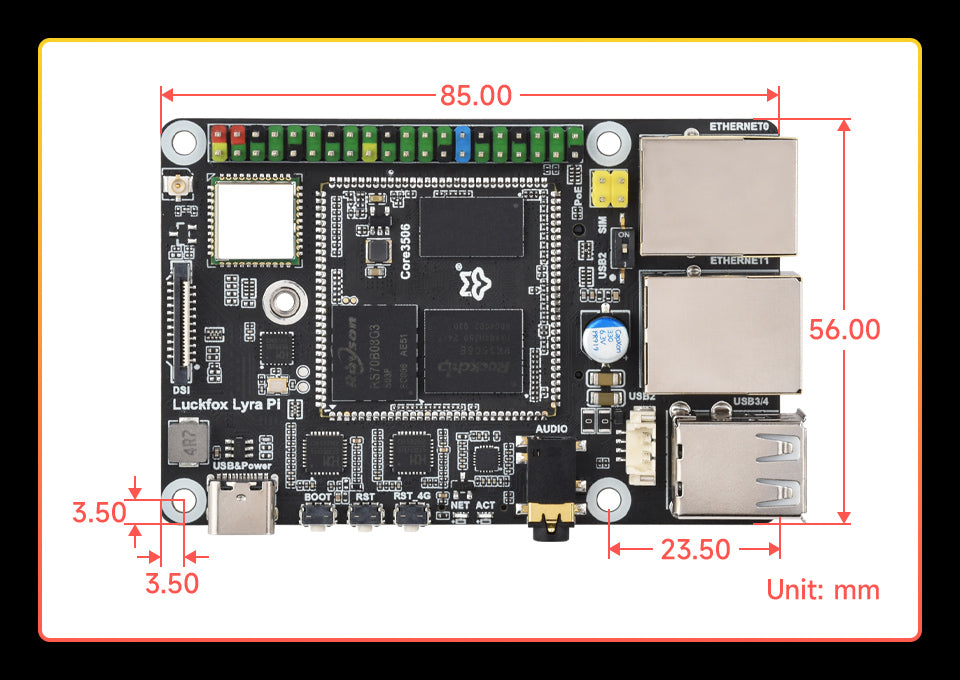

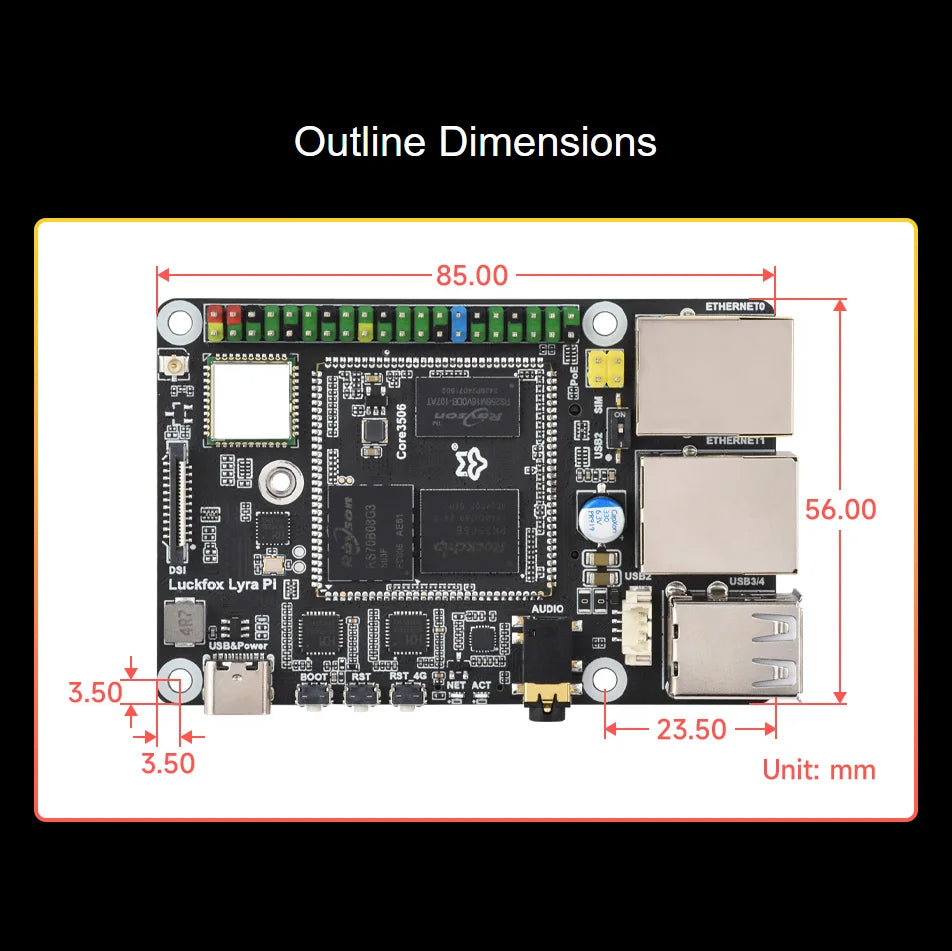

Outline Dimensions


Certificate of Authorization
Resources & Services
Wiki: https://wiki.luckfox.com/Luckfox-Lyra-Pi

Package Content


Weight: 0.087 kg

Luckfox Lyra Pi A

  1. Luckfox Lyra Pi A x1

  2. 4G Module mounting screw x1

Luckfox Lyra Pi B

  1. Luckfox Lyra Pi B x1

  2. 4G Module mounting screw x1

Luckfox Lyra Pi A W

  1. Luckfox Lyra Pi A W x1

  2. IPX 2.4G 2DB antenna x1

  3. 4G Module mounting screw x1

Luckfox Lyra Pi B W

  1. Luckfox Lyra Pi B W x1

  2. IPX 2.4G 2DB antenna x1

  3. 4G Module mounting screw x1

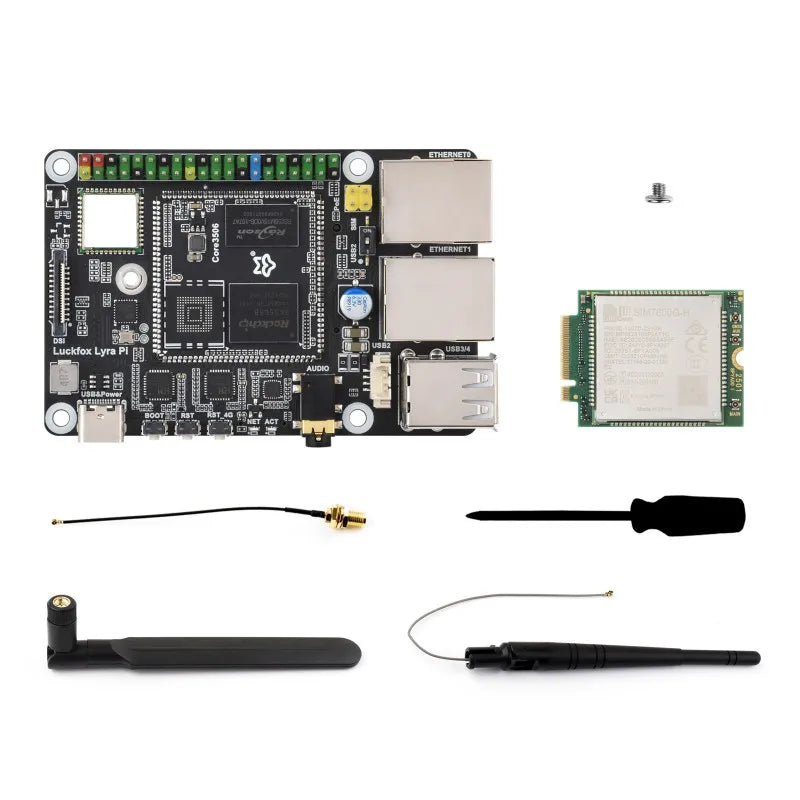

Luckfox Lyra Pi A 4G Kit

  1. Luckfox Lyra Pi A x1

  2. SIM7600G-H-M.2 x1

  3. 4G antenna x1

  4. IPEX4 to SMA cable x1

  5. Screwdriver x1

  6. 4G Module mounting screw x1

Luckfox Lyra Pi B 4G Kit

  1. Luckfox Lyra Pi B x1

  2. SIM7600G-H-M.2 x1

  3. 4G antenna x1

  4. IPEX4 to SMA cable x1

  5. Screwdriver x1

  6. 4G Module mounting screw x1

Luckfox Lyra Pi A W 4G Kit

  1. Luckfox Lyra Pi A W x1

  2. SIM7600G-H-M.2 x1

  3. 4G antenna x1

  4. IPX 2.4G 2DB antenna x1

  5. IPEX4 to SMA cable x1

  6. Screwdriver x1

  7. 4G Module mounting screw x1

Luckfox Lyra Pi B W 4G Kit

  1. Luckfox Lyra Pi B W x1

  2. SIM7600G-H-M.2 x1

  3. 4G antenna x1

  4. IPX 2.4G 2DB antenna x1

  5. IPEX4 to SMA cable x1

  6. Screwdriver x1

  7. 4G Module mounting screw x1
