Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

$481.50

$481.50 $0.00

Color Pico Ultra B POE KIT Luckfox Pico Ultra Pico Ultra POE KIT Luckfox Pico Ultra B

Model Number with Wireless without Wireless

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Drive IC

SKU:27103
Part No.:Luckfox Pico Ultra
Brand:LUCKFOX

SKU:29593
Part No.:Luckfox Pico Ultra B
Brand:LUCKFOX

SKU:26790
Part No.:Luckfox Pico Ultra W
Brand:LUCKFOX

SKU:29594
Part No.:Luckfox Pico Ultra BW
Brand:LUCKFOX

SKU:29596
Part No.:Luckfox Pico Ultra BW PoE Kit
Brand:LUCKFOX

SKU:29595
Part No.:Luckfox Pico Ultra B PoE Kit
Brand:LUCKFOX

SKU:27400
Part No.:Luckfox Pico Ultra PoE Kit
Brand:LUCKFOX

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Memory / Wireless / PoE Module / IPS LCD

Version Comparison

Model	Luckfox Pico Ultra	Luckfox Pico Ultra B
Processor	RV1106G3	RV1106G2
NPU	1TOPS	0.5TOPS
Memory	256MB DDR3L	128MB DDR3L

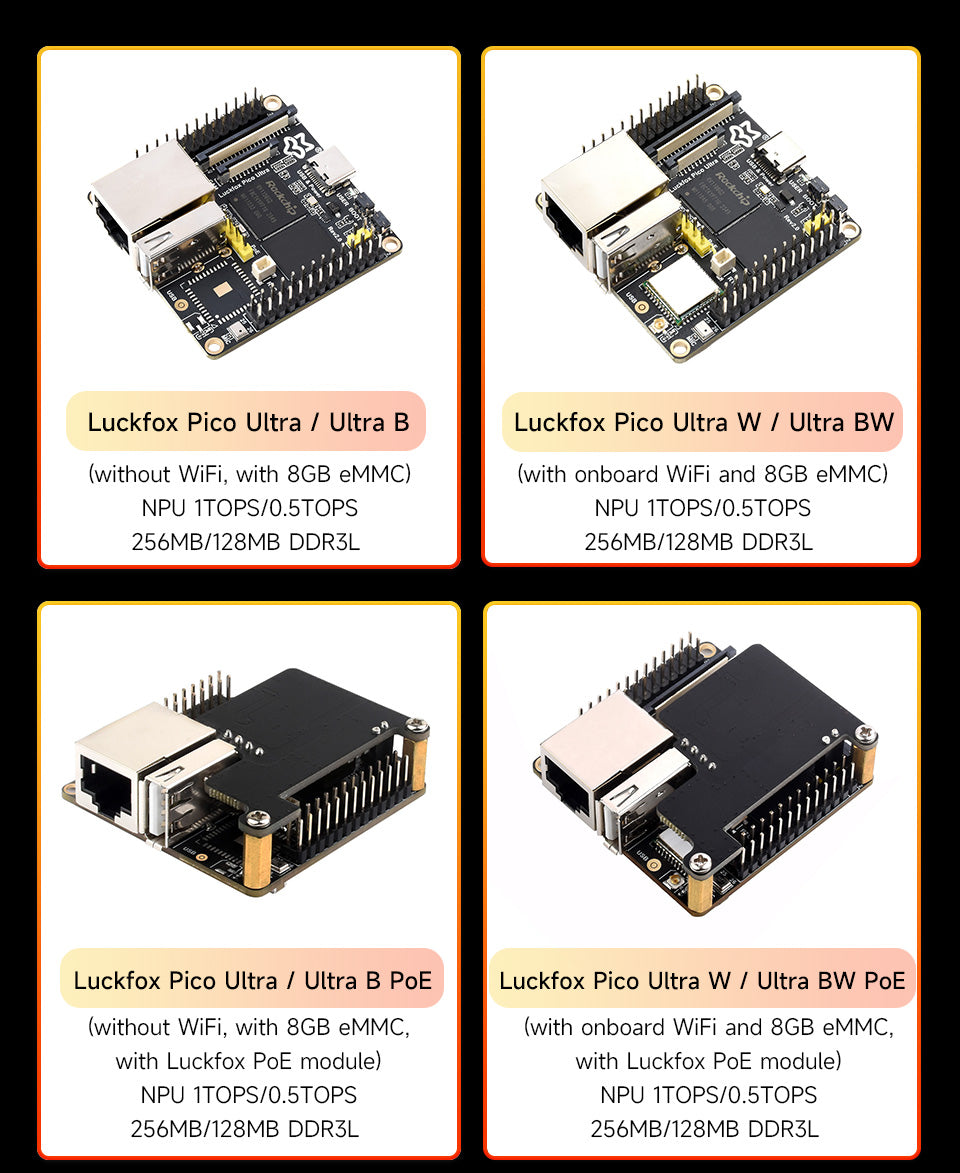

Development Board Versions

Optional for IPS LCD

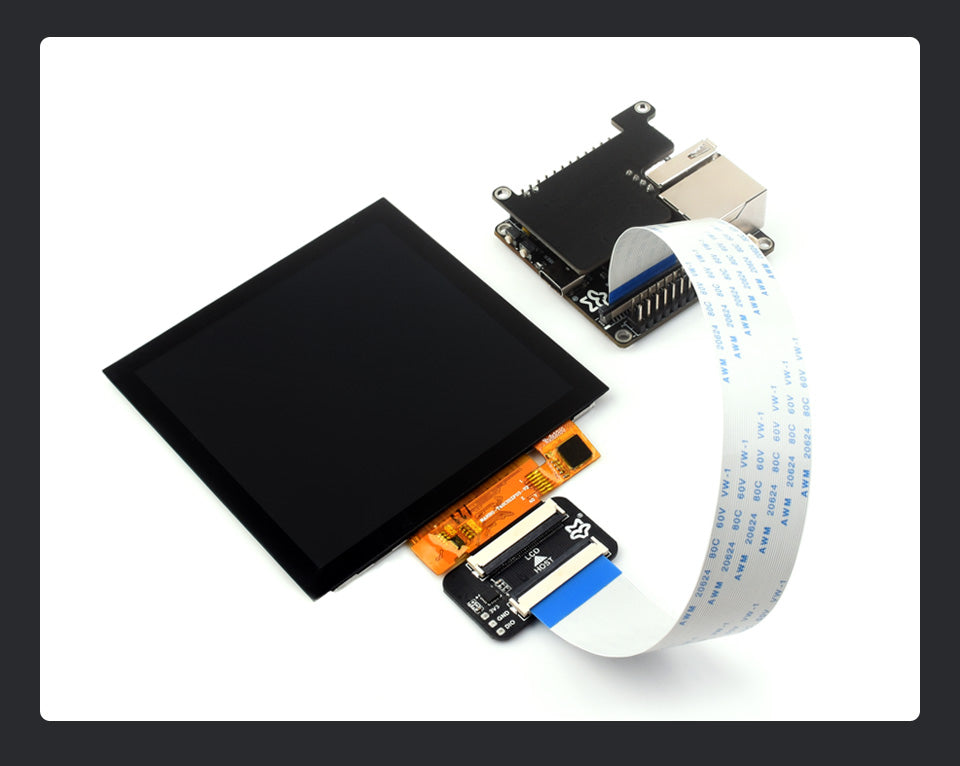

LCD Kit connection example

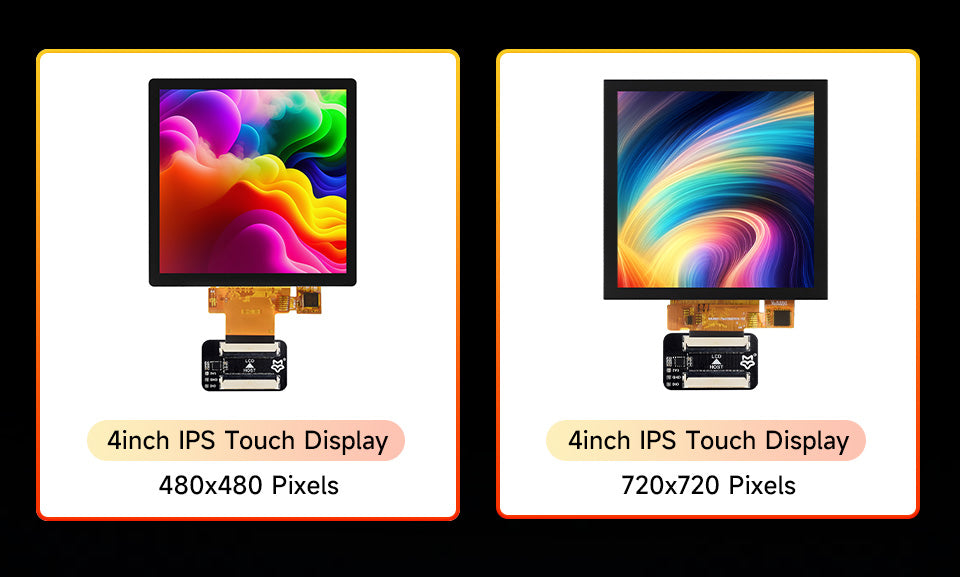

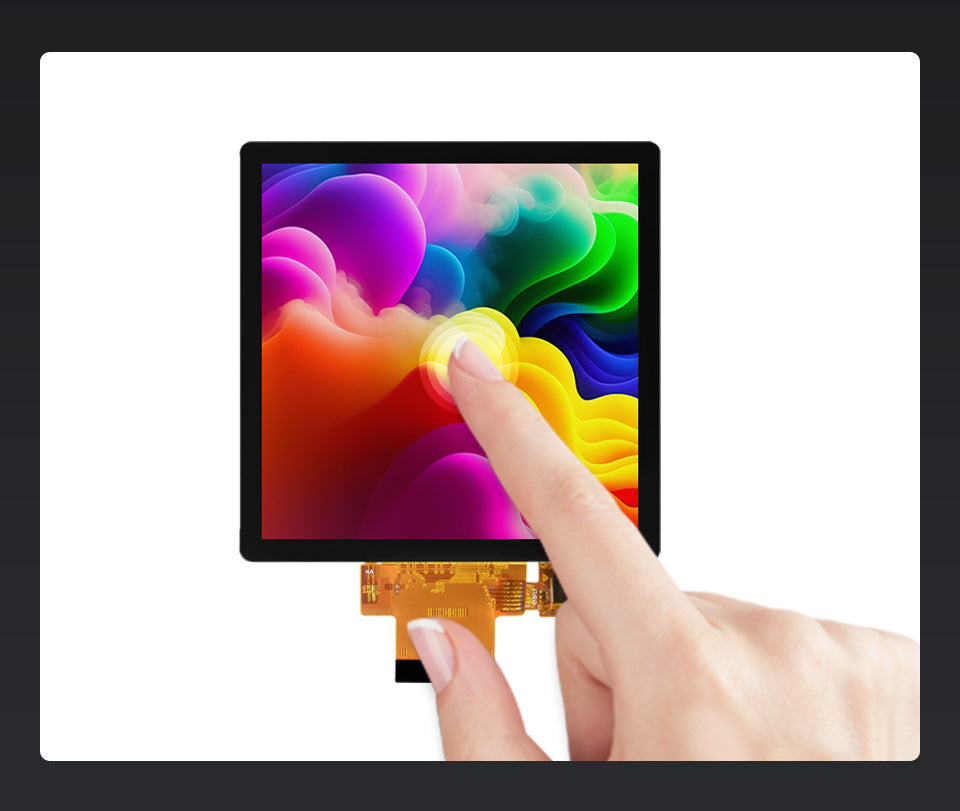

4″ IPS Touch Display Introduction

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LCD Specifications

Model	4inch IPS Touch Display 480x480	4inch IPS Touch Display 720x720
Resolution	480×480	720×720
Communication Interface	RGB666
SIZE	4"
Display Panel	IPS
Touch Type	Capacitive
Touch Chip	GT911
Brightness	400cd/m²
Operation temperature	-20~70°C
Contrast ratio	380:1	1000:1
Viewing Angle	160°	170°
Outline Dimension	84.2×84.2mm (H×V)	84.0×84.0mm (H×V)
Display area	71.86×70.18mm (H×V)	71.93×71.93mm (H×V)
Pixel pitch	0.1497×0.1462mm (H×V)	0.0999×0.0999mm (H×V)
DISPLAY COLOUR GAMUT	-	68% NTSC

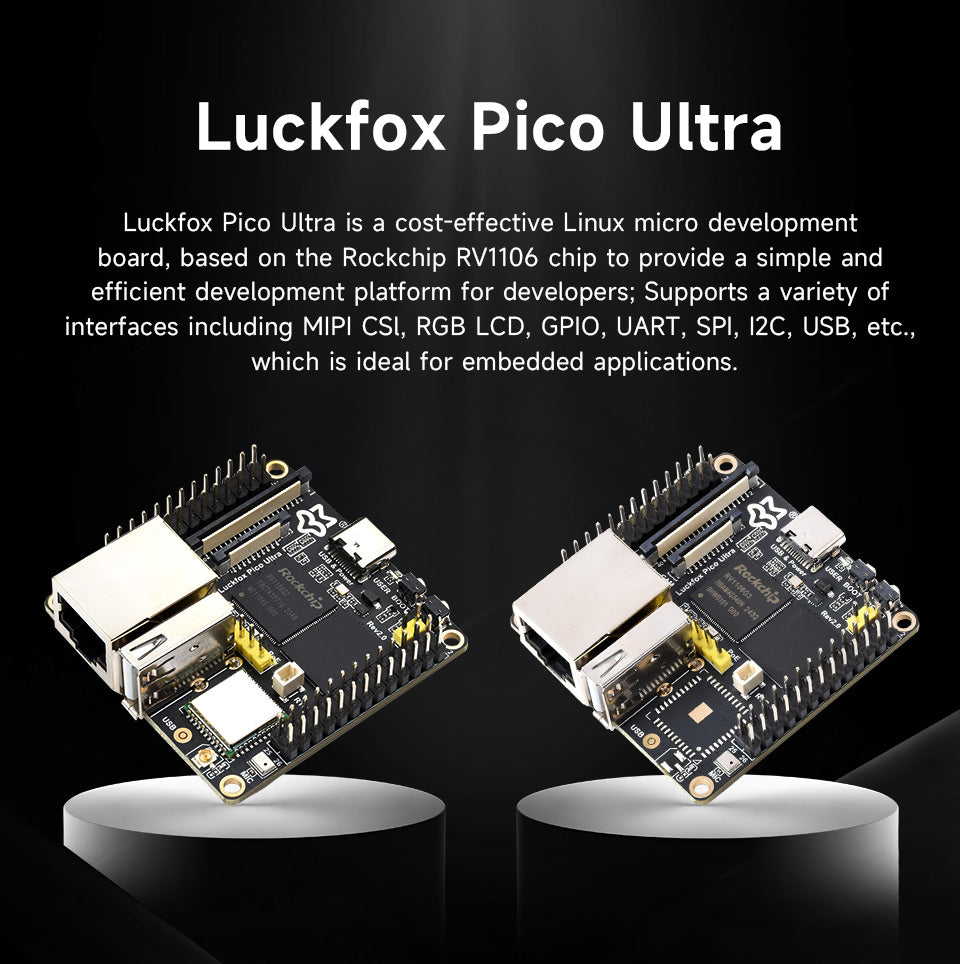

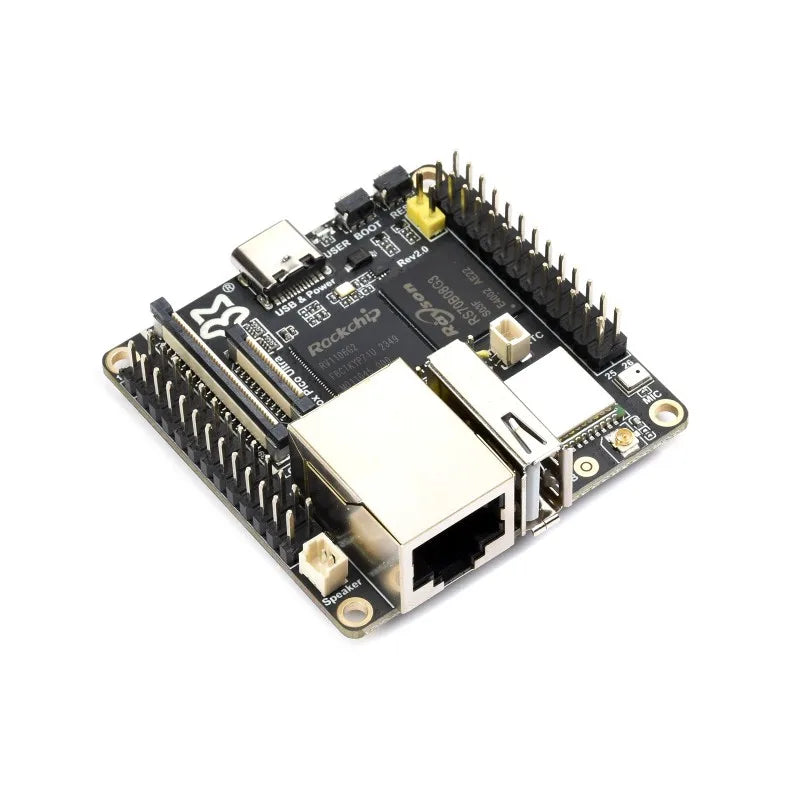

Development Board Introduction

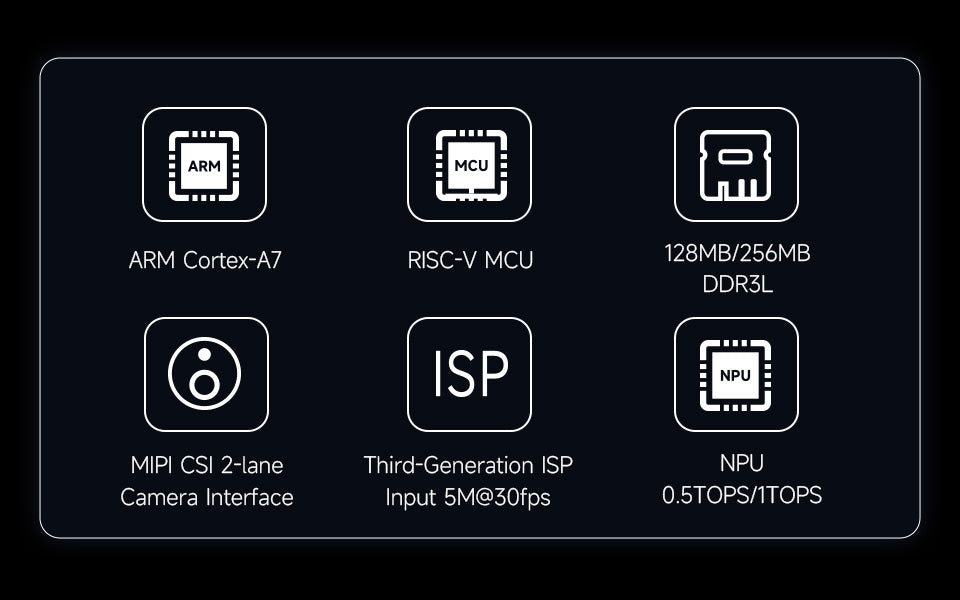

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

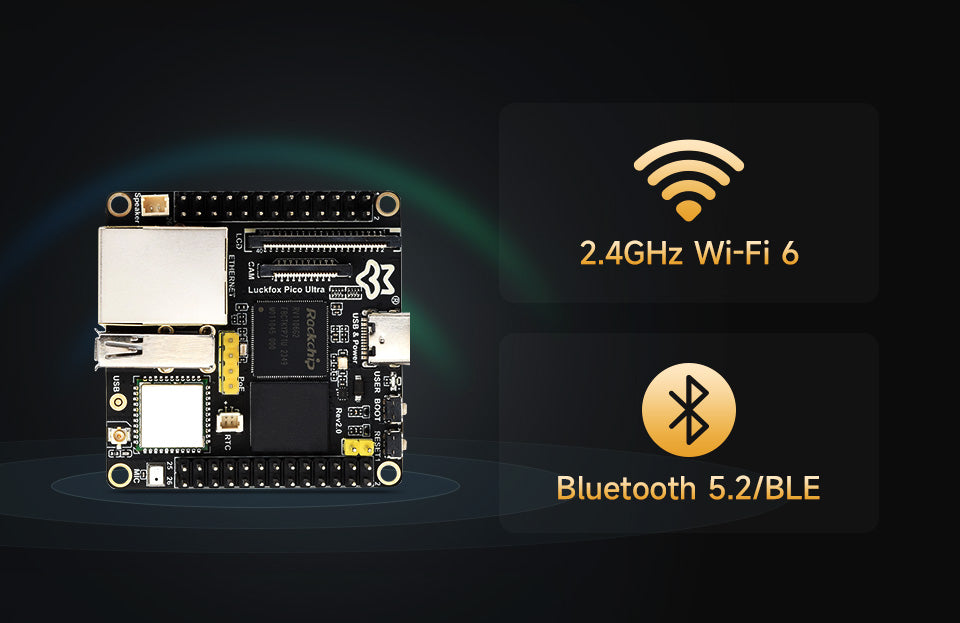

WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

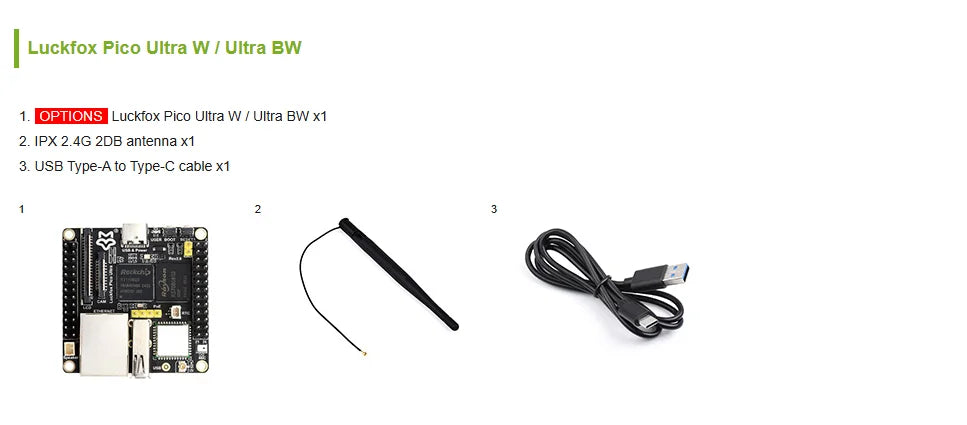

* the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W / Ultra BW series

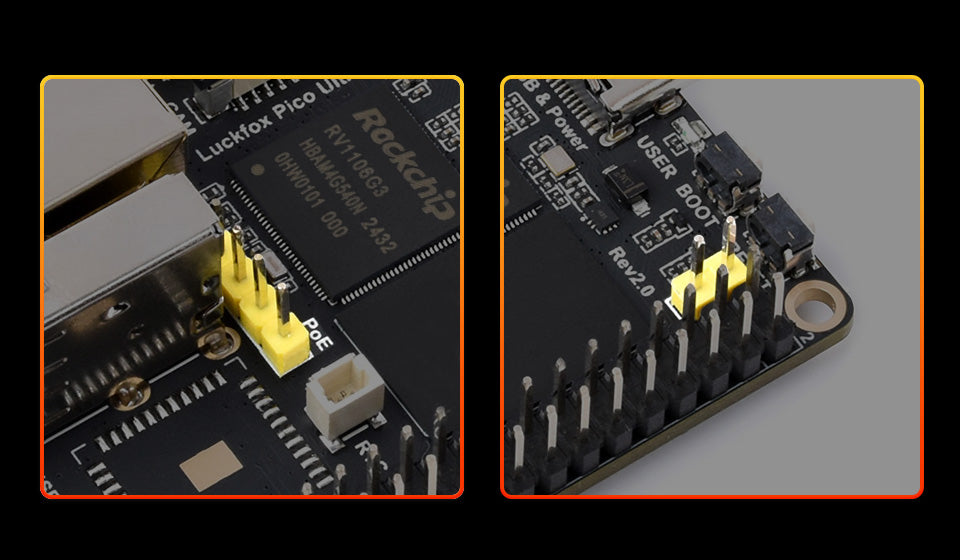

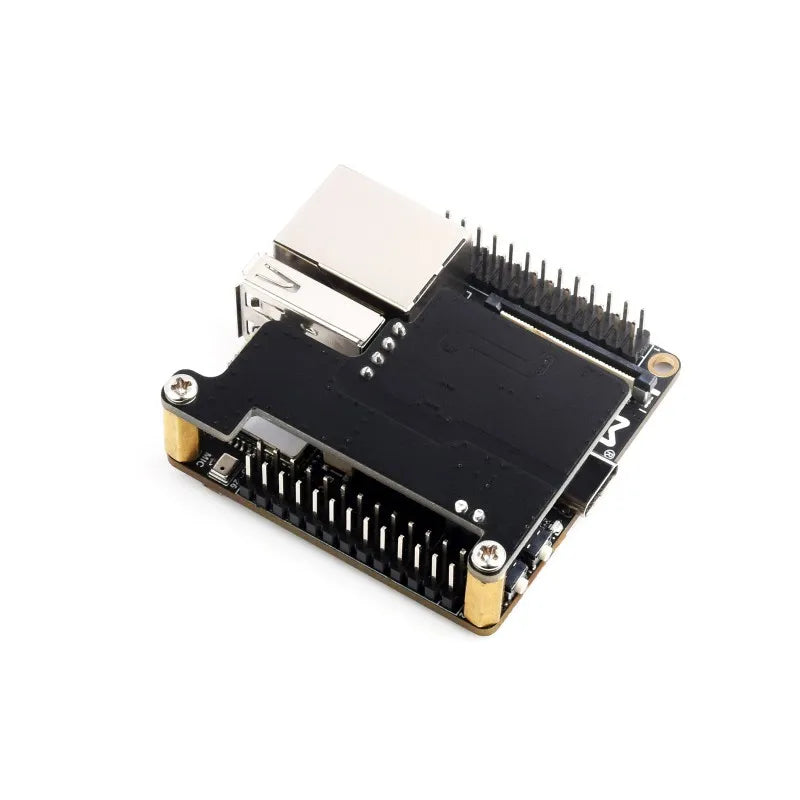

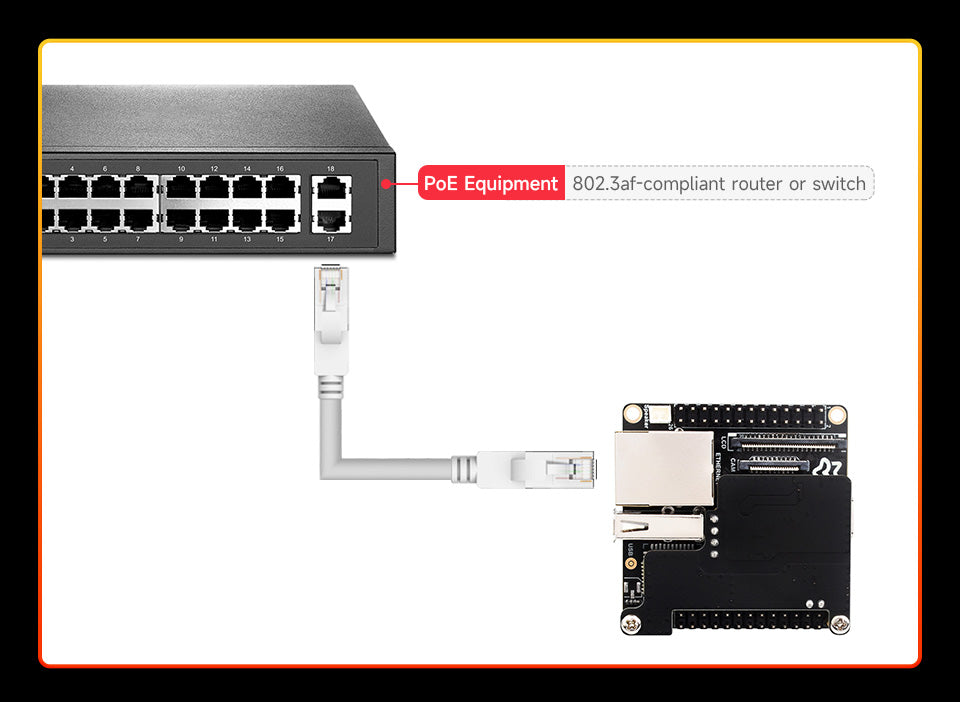

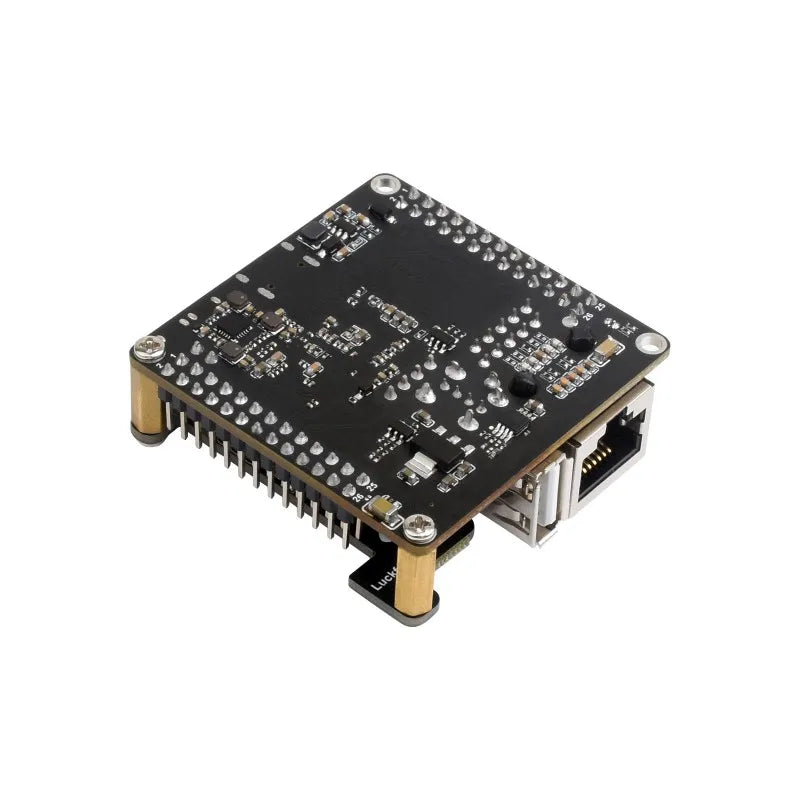

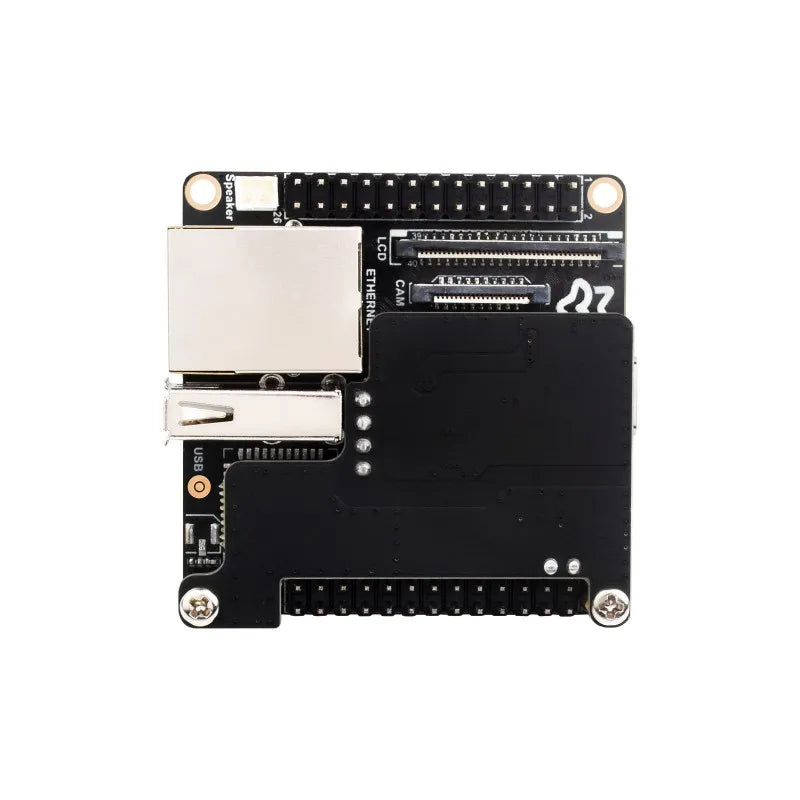

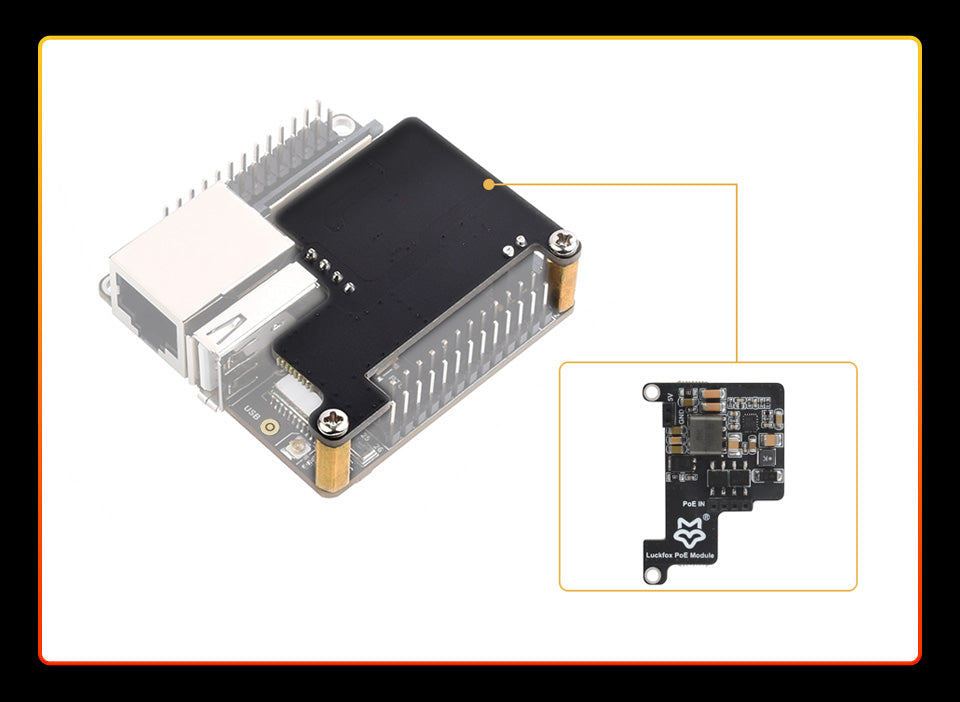

Reserved PoE Module Header

More Flexible for Power Supply

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

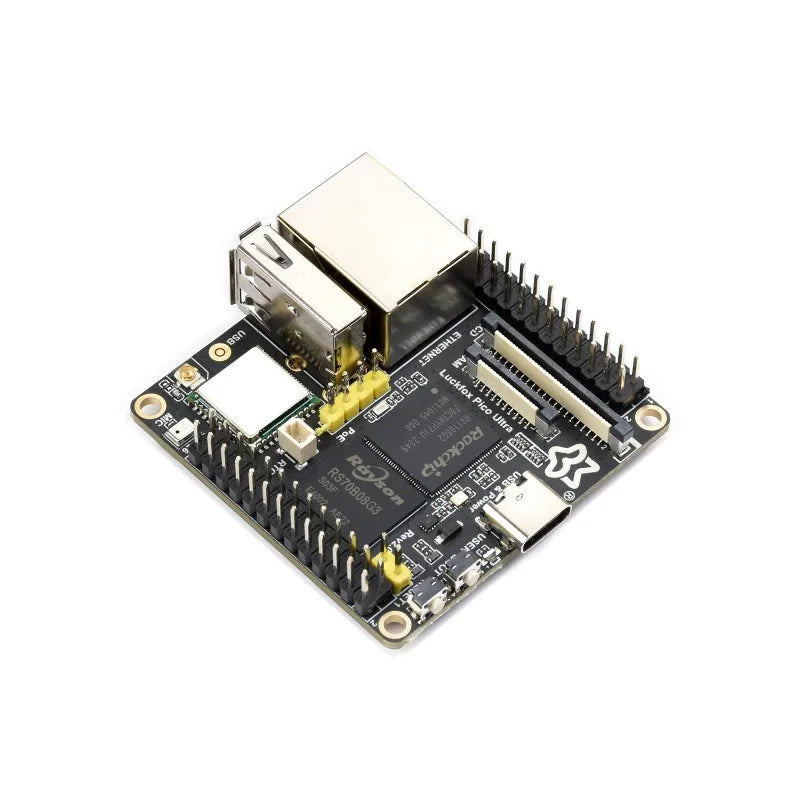

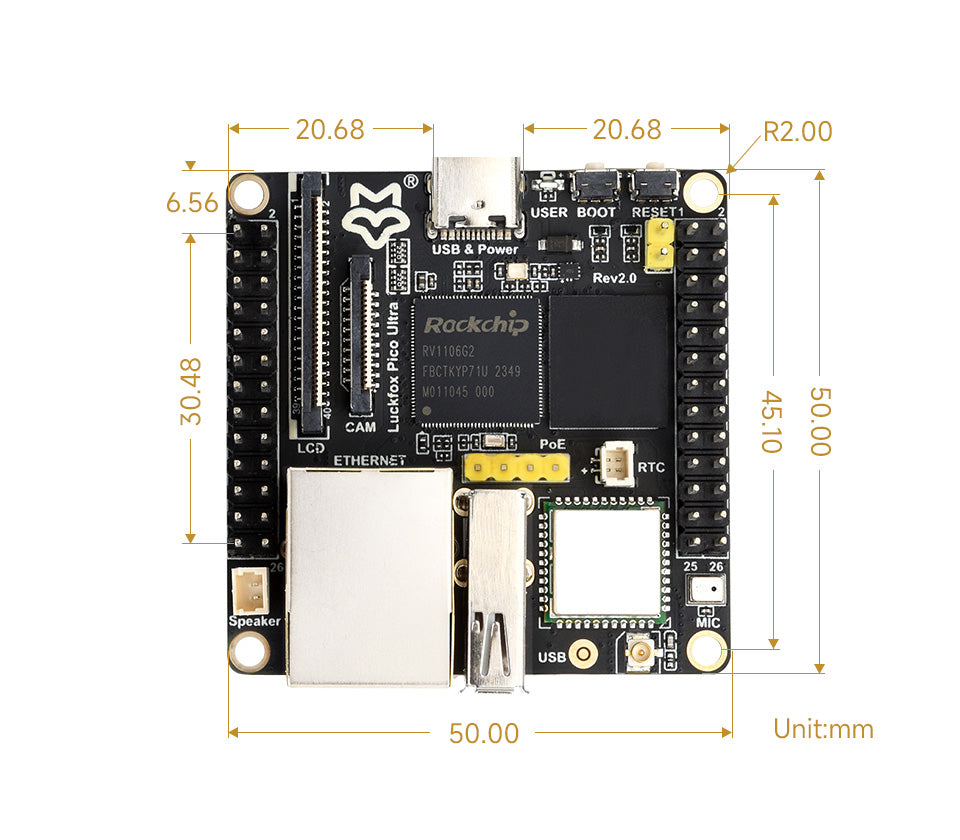

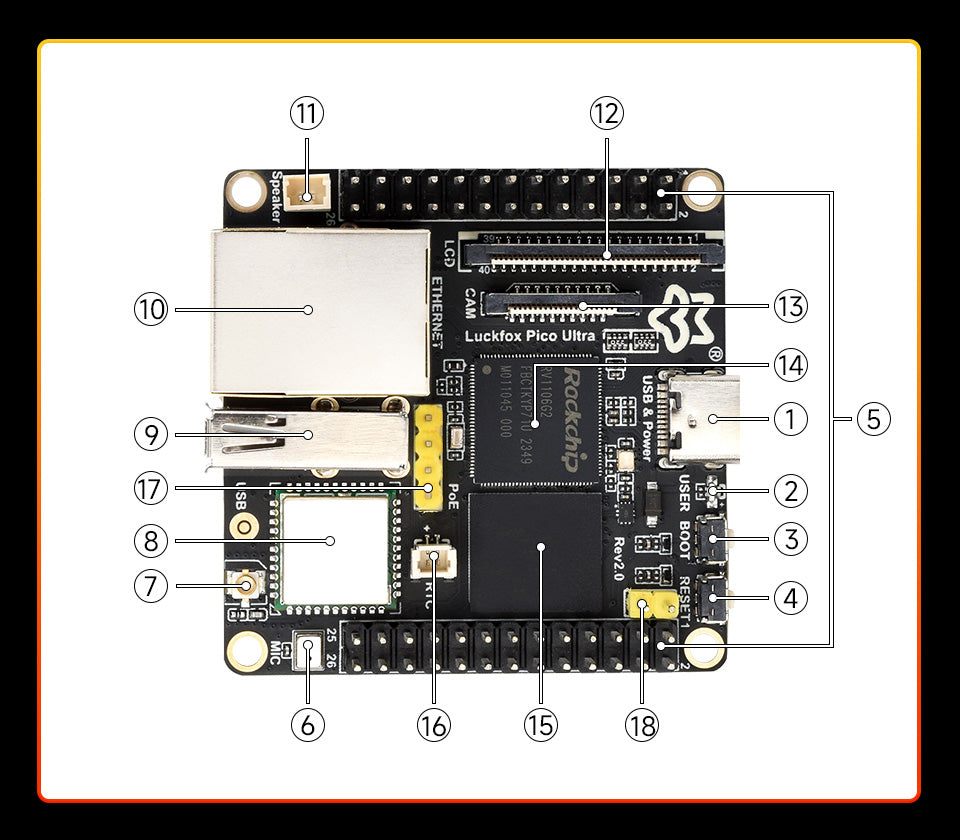

What's On Board

USB Type-C connector
for power supply and program burning
USER-LED
for indicating system operation status in the default image, programmable indicator
BOOT button
Press it when powering on or resetting to enter download mode
RESET button

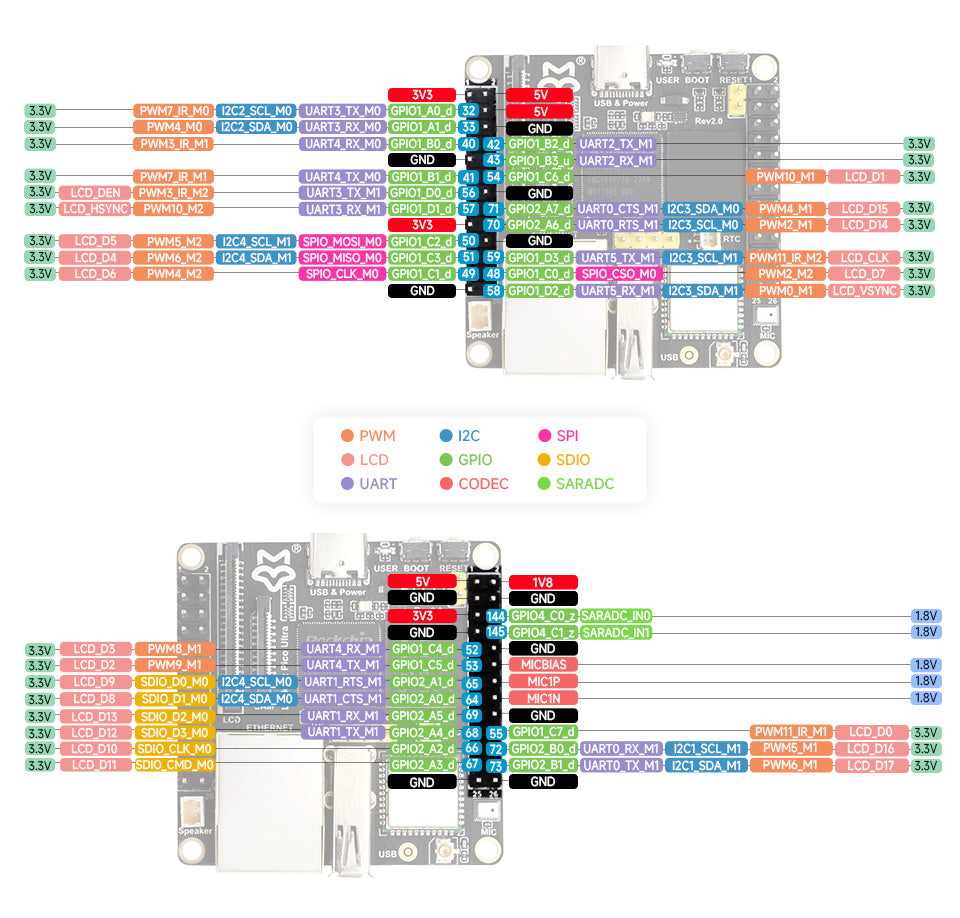

GPIO header
Onboard microphone
Antenna connector
WIFI/Bluetooth module
2.4G WiFi 6; BT5.2/BLE Bluetooth module
USB-A Interface
Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected

RJ45 100M Ethernet port
Speaker header
MX1.25 2P connector, supports 8Ω 1W speaker
RGB LCD Interface
CSI camera interface
MIPI CSI 2-lane
RV1106G3/RV1106G2
Vision processor SoC with built-in ARM Cortex-A7 core
8GB EMMC
RTC battery connector
PoE module header
PoE module / external power supply header
for connecting external 5V power supply or PoE module power supply
