Description

SPECIFICATIONS

Brand Name: JIYUE

Choice: yes

High-concerned chemical: none

Model Number: OEM thermal pad

Origin: Mainland China

Type: Thermal Pad

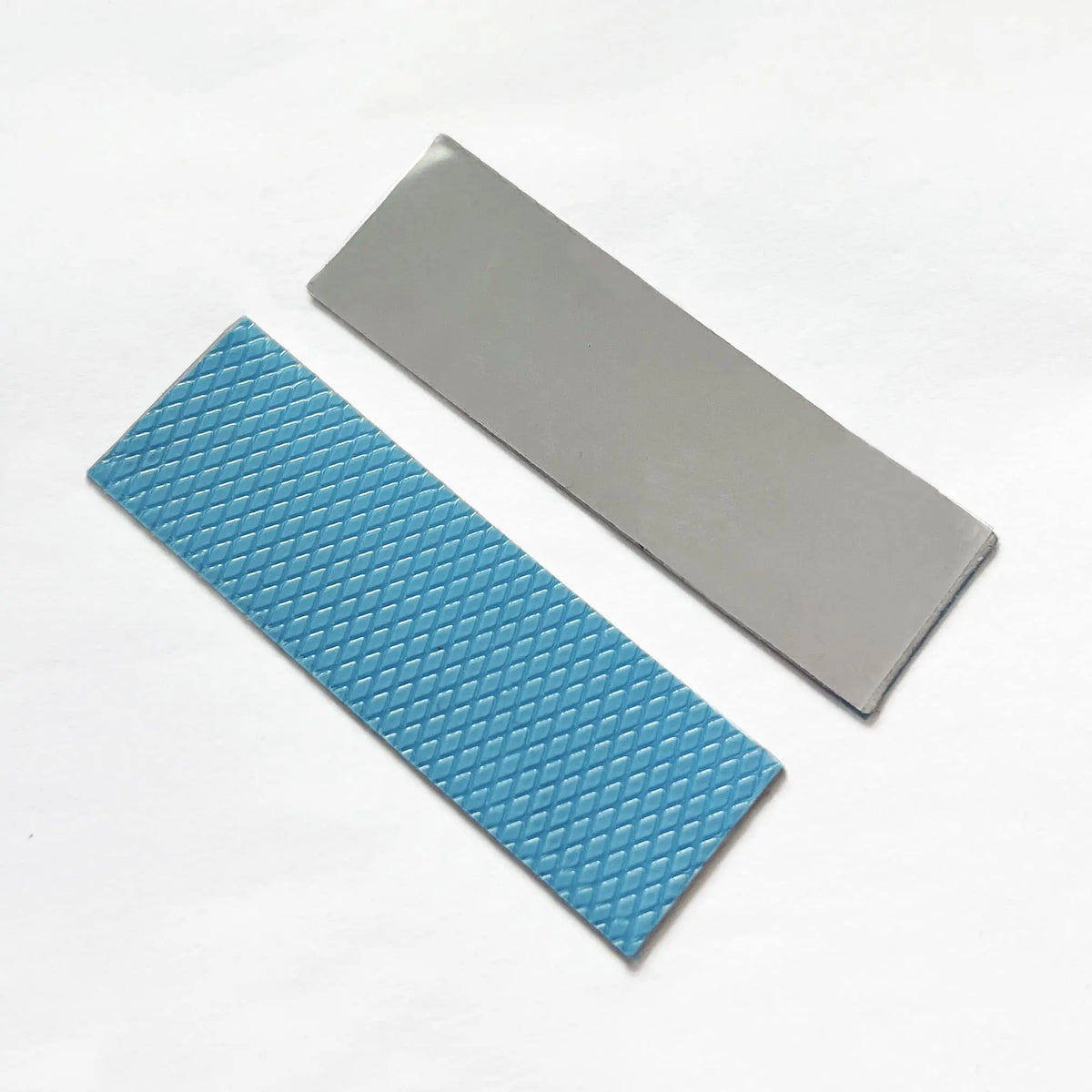

Thermal pad High quality 21W/mK70x20mm Thermal conductivity CPU Heatsink Cooling Conductive Silicone Pad Thermal Pads

Thermal Pads have excellent thermal conductivity and electrical insulation, which can meet the requirements for thermal conductivity and insulation of most electronic products. Professional thermal diffusion assistant for high heating chips and electronic components.

🔰 KEY INDICATORS:

Composition: high thermal conductive powder + silicone
Thermal Conductivity Coefficient:21W/mK
Working Temperature: - 40 to 200 °C
Density: 3.2g/cc
Thickness: 0.5/1.0/1.5/2.0/2.5/3.0mm
Shore : 55 ± 5
Breakdown voltage: 9.8KV
Tensile Strength: 15
[Corrosion Resistance], [Tear Resistance], [Extendable], [Non Toxic].

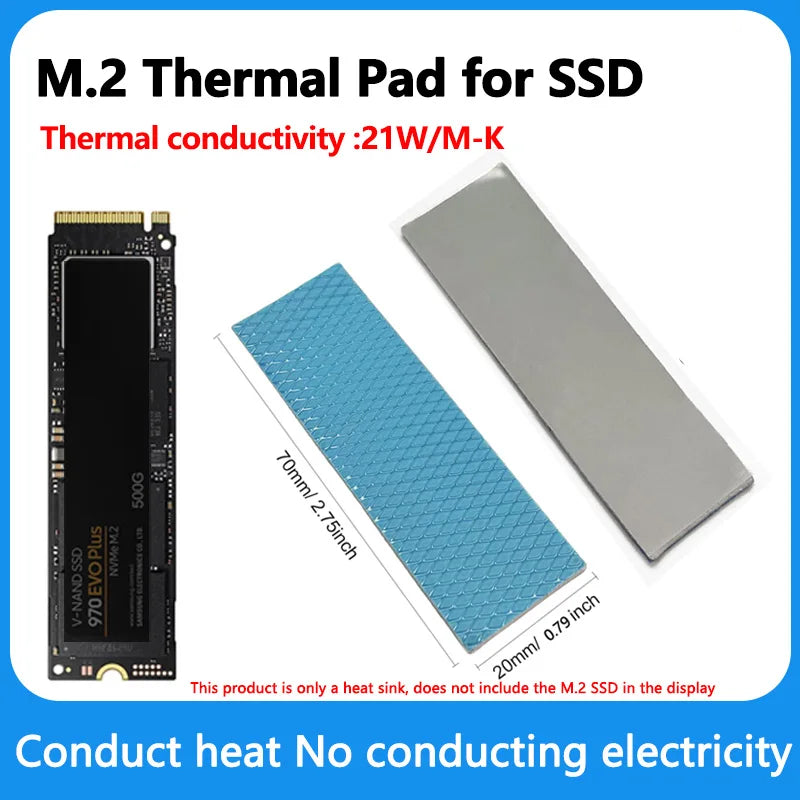

【Dimensions】- thermal pad fits for M.2 2280 SSD (22 x 80mm) Heatsinks.
【Nano Grease Material】- Made from unique Nano Silicon Grease Material, with good thermal conductivity ability.
【Soft and Low Viscosity】- Soft enough and good ductility, compatible with uneven surface of the M.2 SSD. Low viscosity, with no damage to the SSD warranty label.
【Safe and easy to use】- Remove the protective films on both sides of the thermal pad and put it under the M.2 SSD Heatsink.
【 Wide Compatibility】- Item Size: 70 x 20 x 1mm, Compatible Samsung: 850EVO / 860EVO / 960EVO / 970EVO / 950PRO / 960PRO / 970PRO / SM951 / SM961 / PM951 / PM961 / CM871a / PM871 / PM981 / XP941, no cutting required.

(Customize: size/thickness/thermal conductivity/color/packaging)
