SPECIFICATIONS

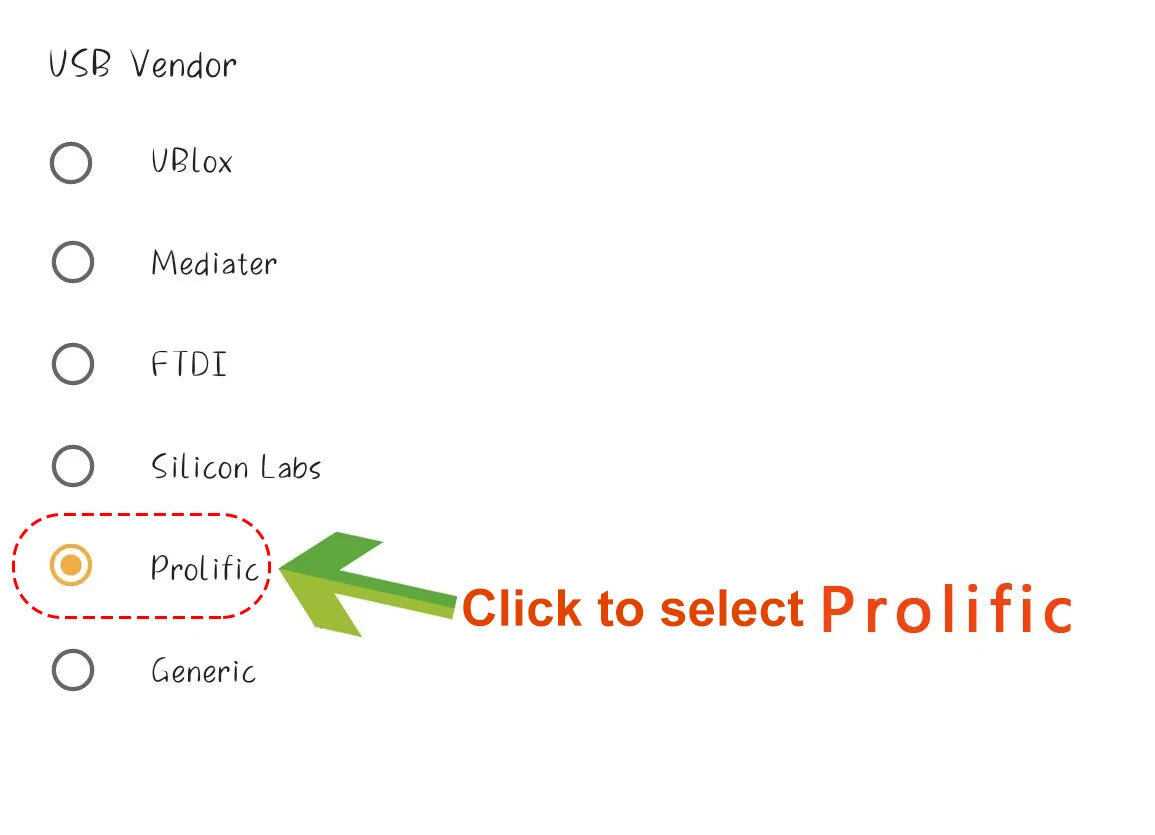

The computer needs to have PL2303GL driver installed before it can be used. Please contact us if you require driver links.

Product description:

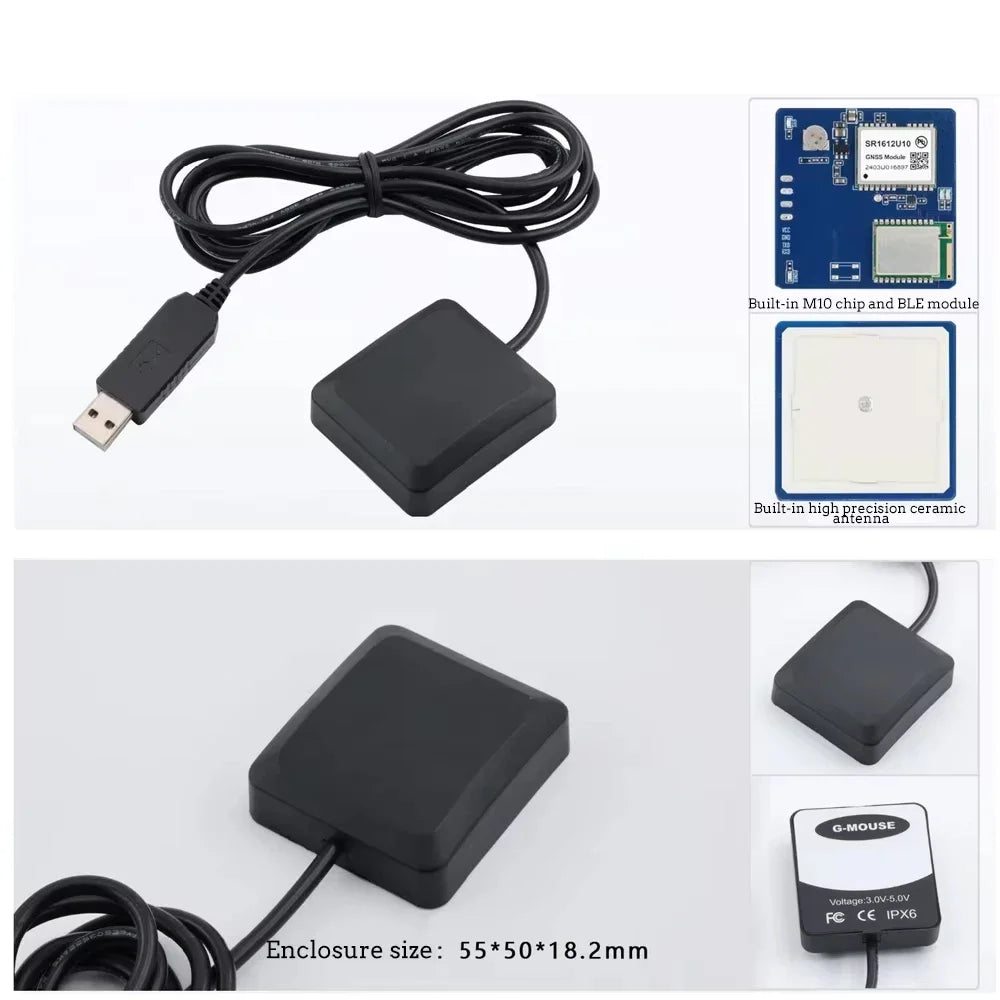

The module adopts u-b-l-o-x positioning chip, which is a G-MOUSE that can track the satellite signals of up to four GNSS constellations at the same time, with low power consumption and high sensitivity. It is able to locate itself quickly and accurately in the city, canyon, under the elevated area and other places with weak signals, as well as any position inside the car. It makes the module can be widely used in car monitoring, bus stop announcement, car navigation, boat navigation, laptop navigation and other products.

Highlights:
- Product main chip: SR1612U10 (UBX-M10050-KB)
- Bluetooth module: BT04-E dual-mode SPP3.0 + BLE4.2

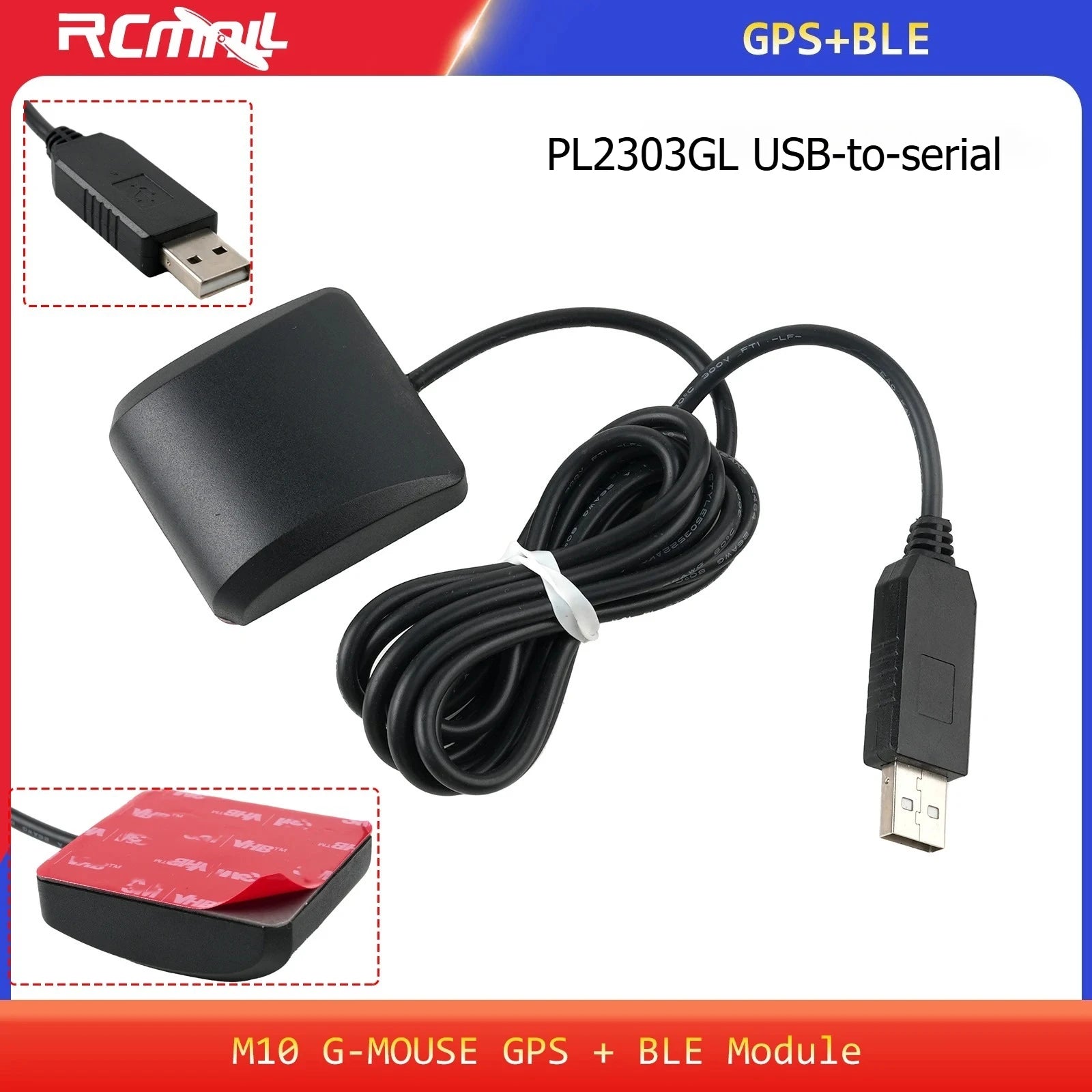

- Built-in USB to TTL using PL2303GL USB-to-serial high-performance conversion chip, USB cable length 2 meters
- Support GPS+Beidou+Galileo+QZSS (default); GPS+GLONASS; GPS+Beidou multiple modes output
- Built-in Flash, free to configure the baud rate, output statement, output rate, second pulse and other parameters.
- Built-in TCXO crystals and Farad capacitors for faster hot-starting
- 1-10Hz positioning update rate

The PL2303GL is a low-cost, high-performance USB-to-serial bridge controller. The PL2303GL provides a convenient, small-form-factor solution for connecting RS232-like full-duplex asynchronous serial devices (TXD/RXD only) to any USB host. Prolific provides highly compatible drivers that emulate traditional COM ports on most operating systems, allowing for easy migration and USB-ready integration of existing COM port-based applications.

Package includes:
1/2/4/10 X SR1612U10 (UBX-M10050-KB) GPS module
