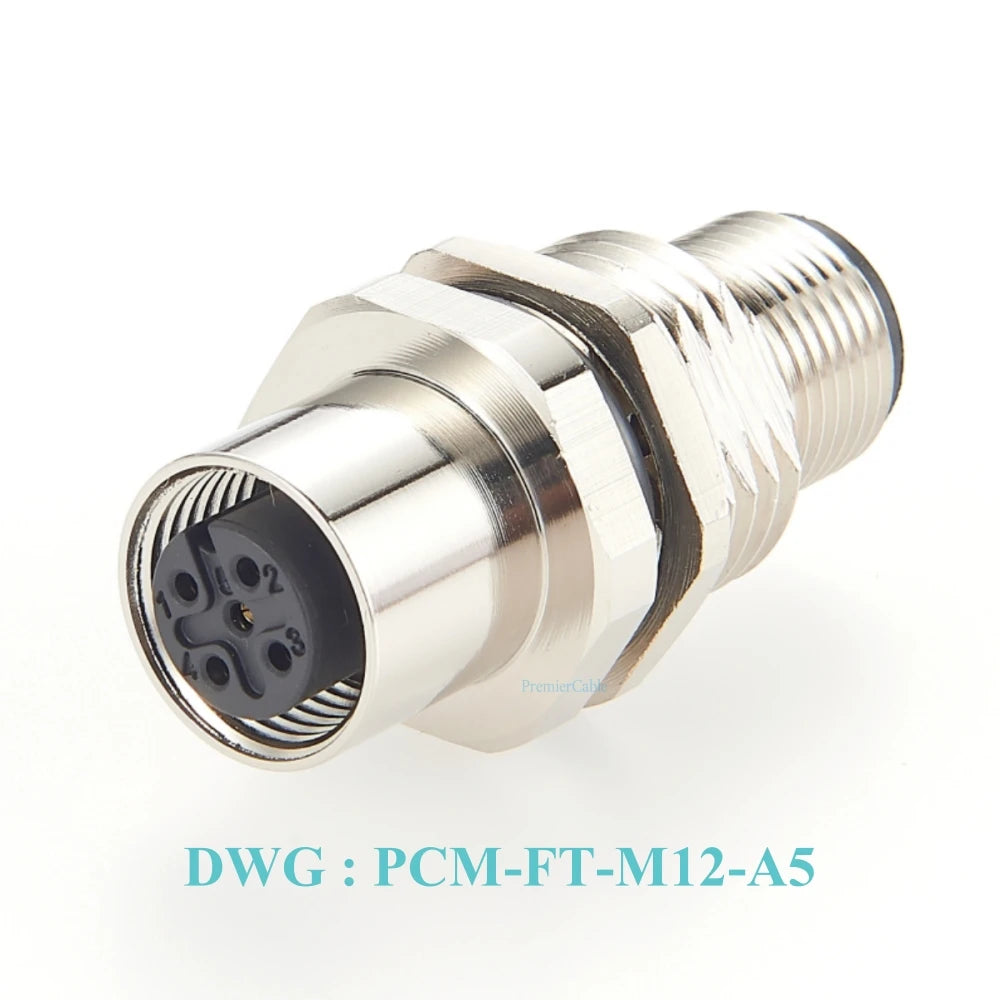

SPECIFICATIONS

Brand Name: PremierCable

Certification: RoHS,UL

Choice: yes

Connector A: M12 A-Coded 5Pin Male

Connector B: M12 A-Coded 5Pin Female

Contact: Cooper, Gold-plated

Current Rating: 4 A

High-concerned chemical: none

Item Type: Cables

Model Number: FT-A5-MF

Origin: Mainland China

Plug Type: None

Sealing: O-ring

Size: 10*10

Temperature range: -40℃~+80℃

protection class: IP67

semi_Choice: yes

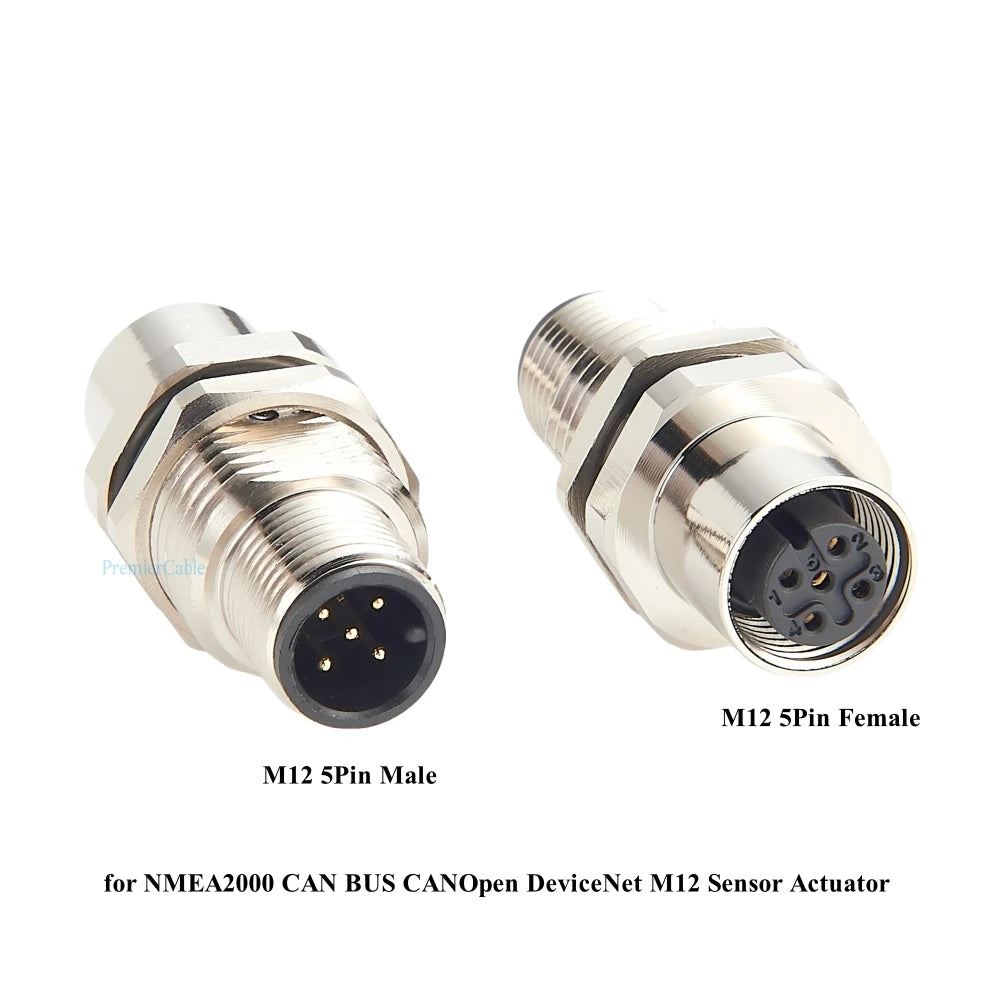

Specification:

Connector A: M12 A-Coded 5Pin Male

Connector B: M12 A-Coded 5Pin Female

Panel Mount: Bulkhead PassThrough Panel Mount

Protection Class: IP67

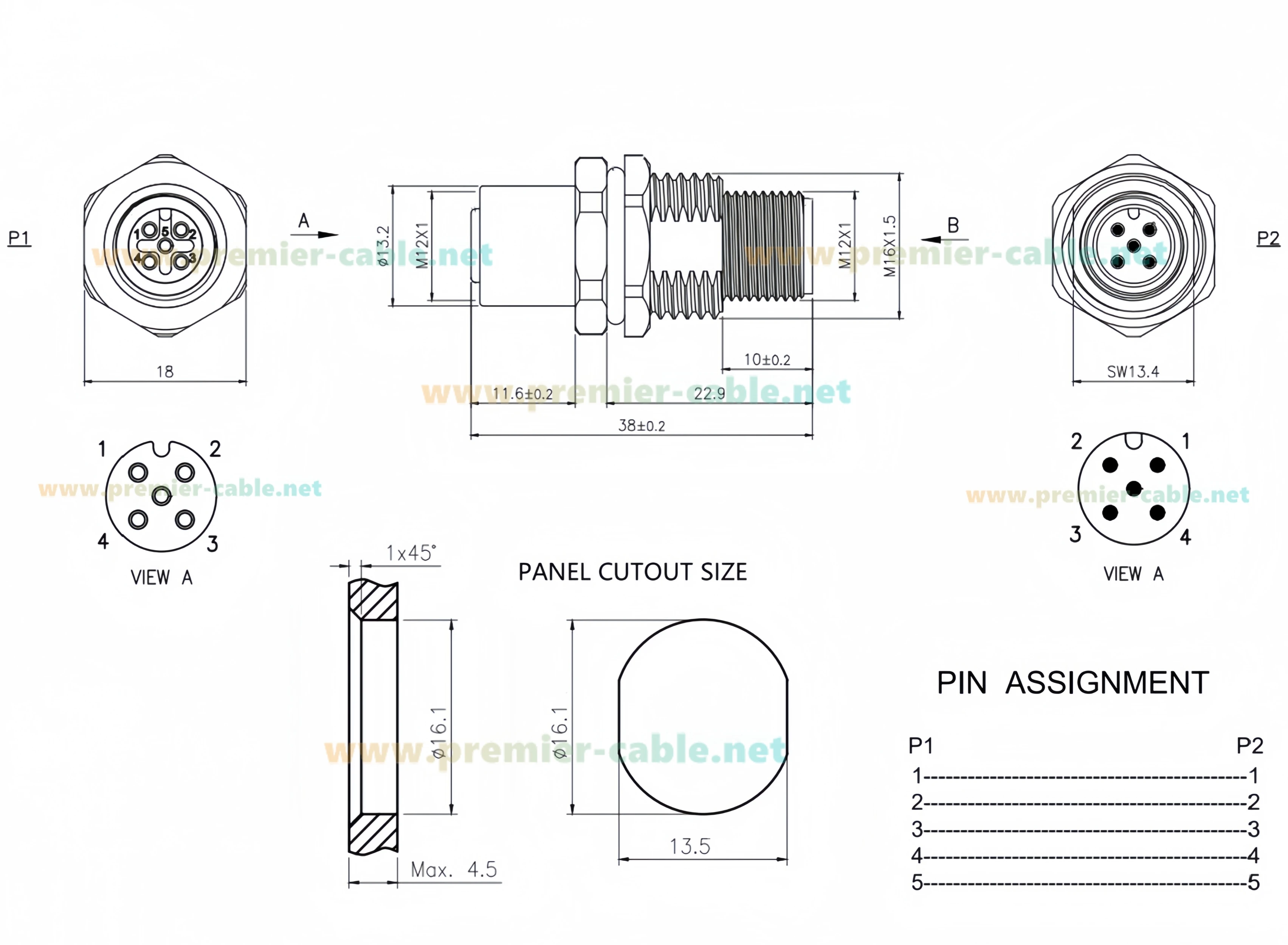

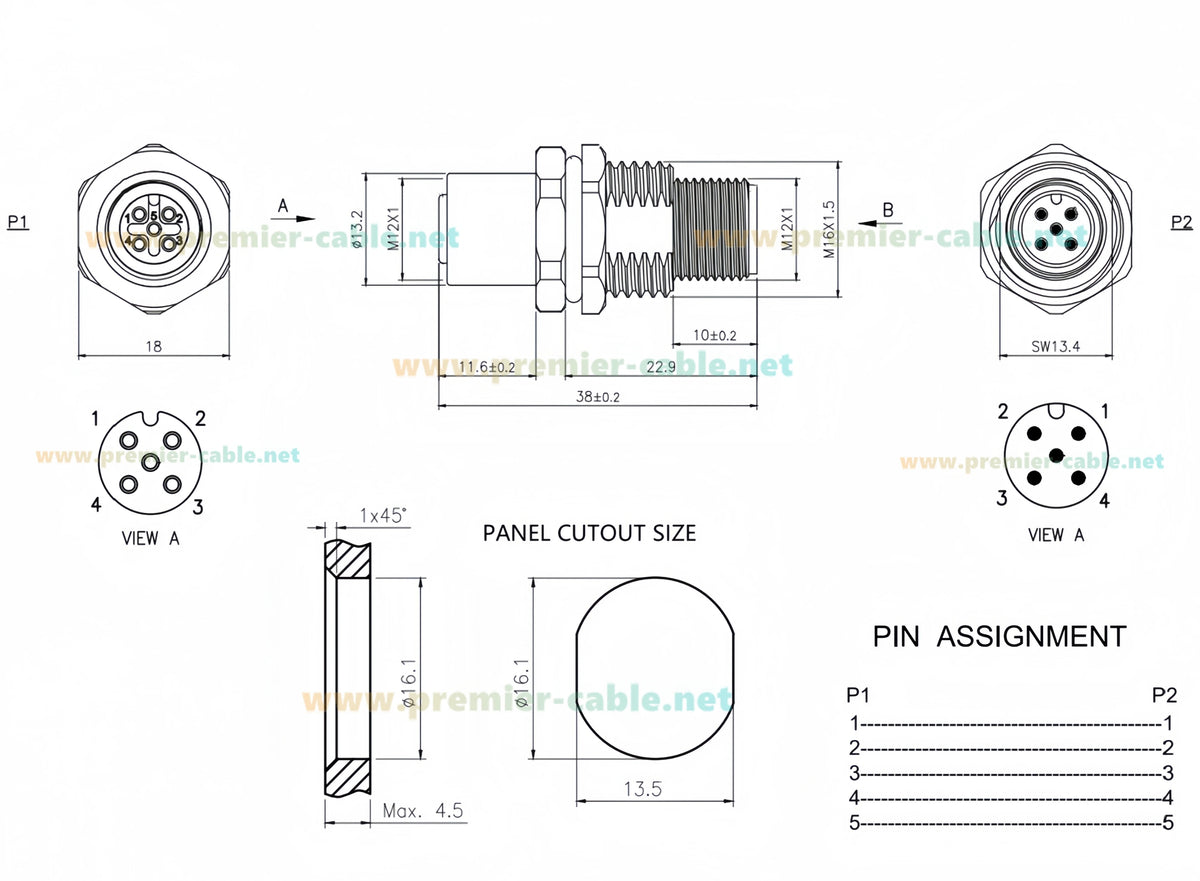

Panel Cutout Size: 16.5mm

Sealing: O-ring

Contact: Cooper, Gold-plated

Temperature range: -40℃~+80℃

Plug-in cycle: ≥100

Rated voltage: 60V AC/DC

Rated current: 4A

Hexagonal nut: M16 X 1.5

Feature:

✔Product Parameter – Connector A: M12 A-Coded 5Pin Male; Connector B: M12 A-Coded 5Pin Female; Plug-in cycle: ≥100; Rated voltage: 60V AC/DC; Rated current: 4A; Hexagonal nut: M16 X 1.5; Sealing: O-ring.

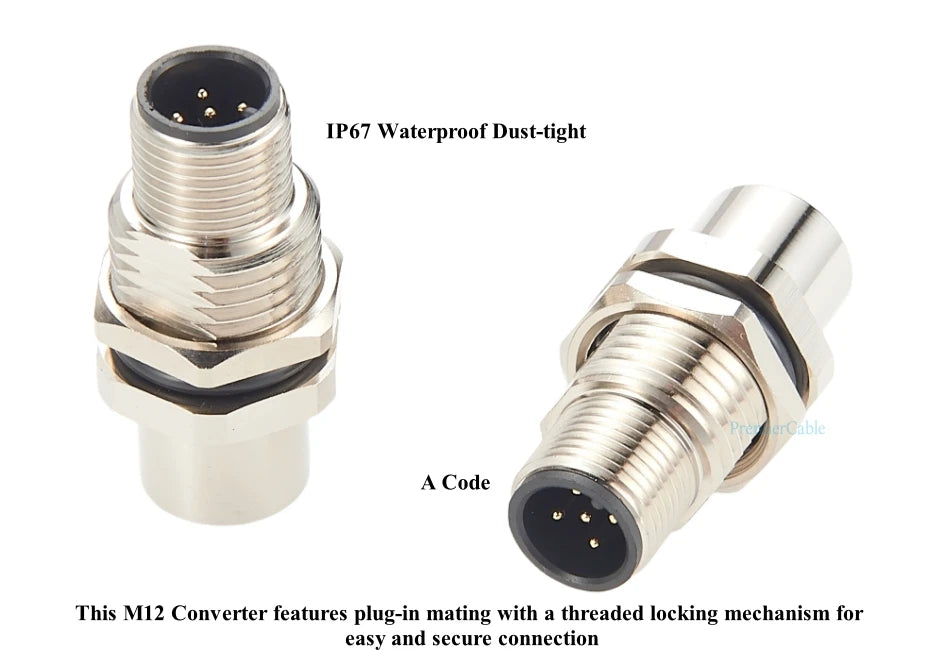

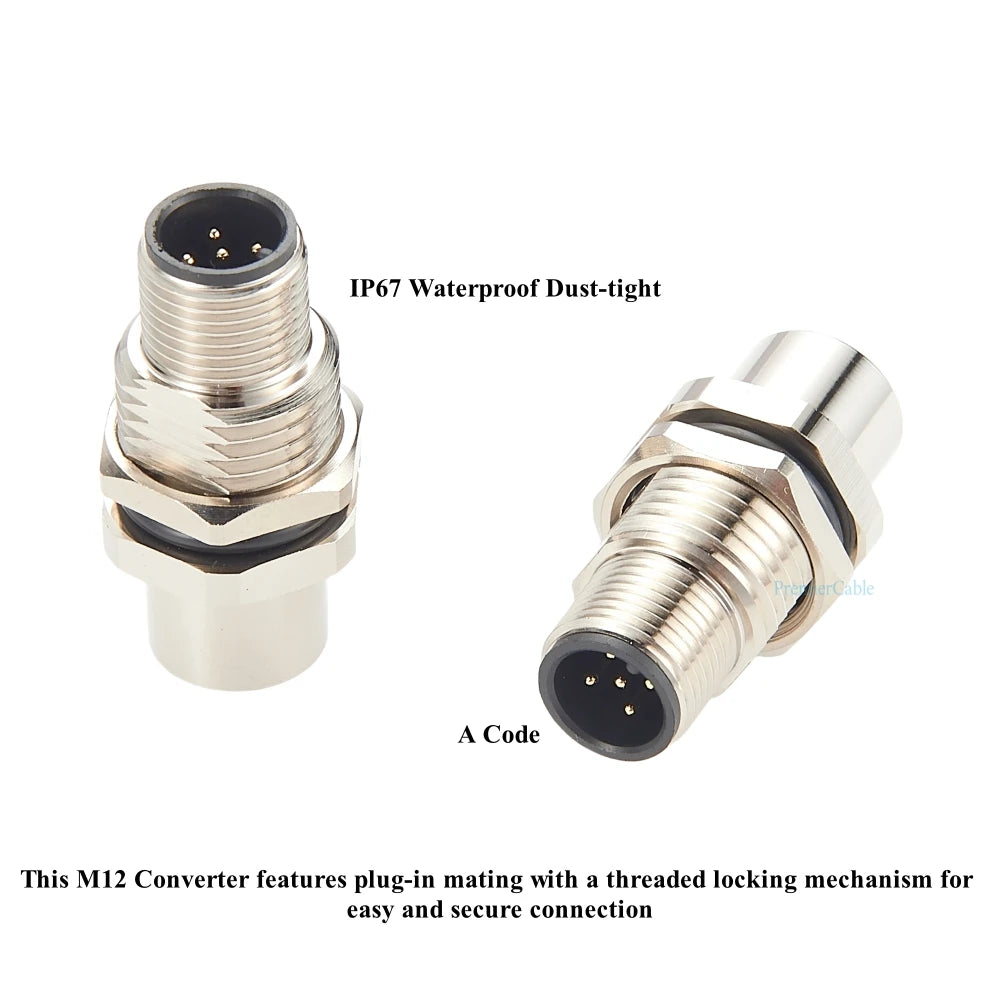

✔Threaded Connection – M12 Male to Female Converter Adapt thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.

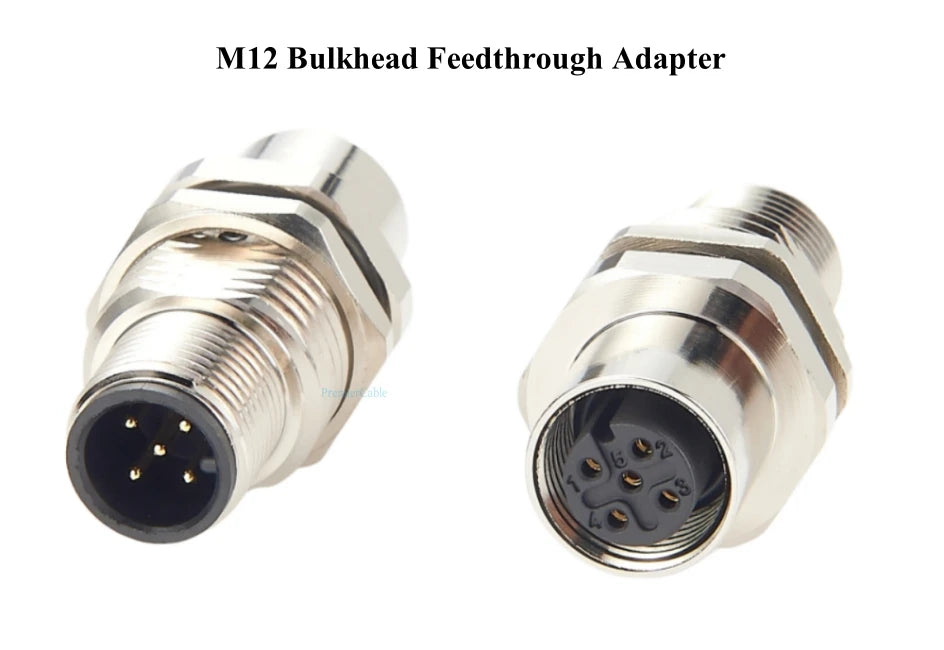

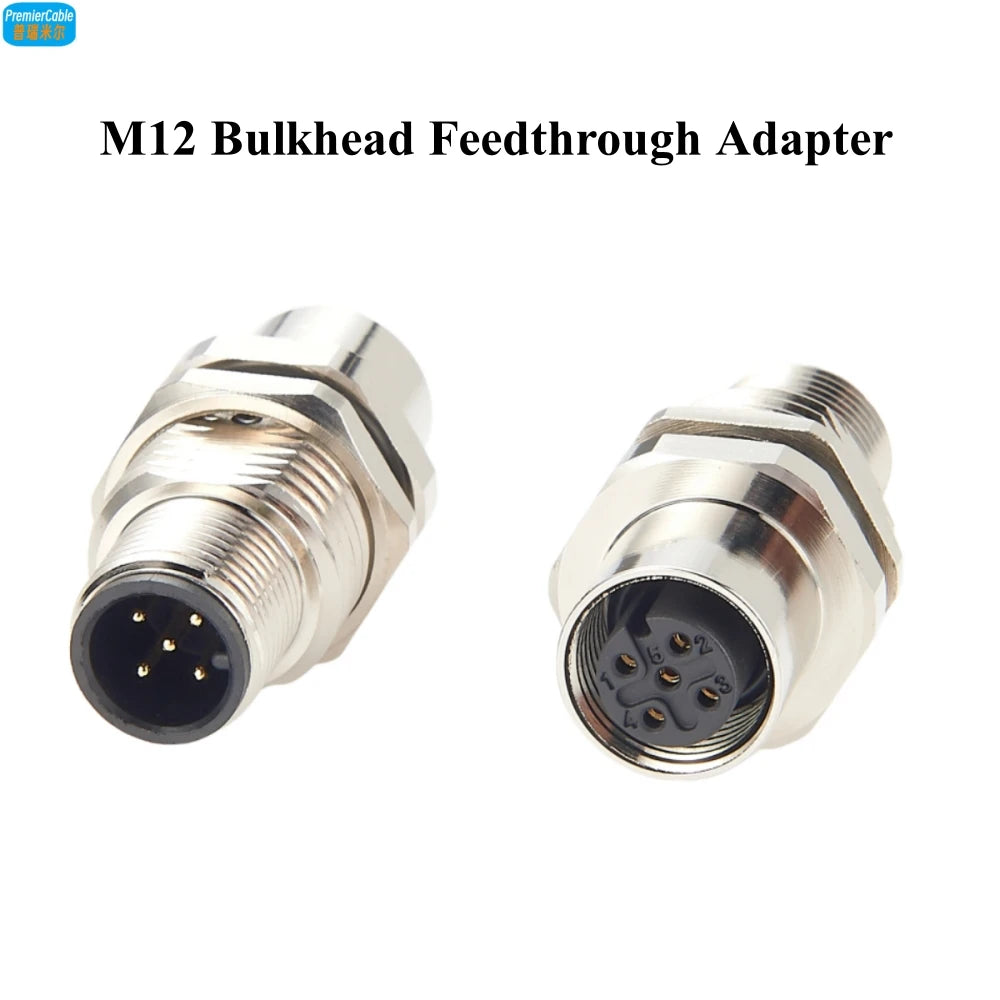

✔Front Panel Mount – M12 Wall Pass-through Panel Adapter Simply cut a 16.5mm hole in the board and secure with the nut,Eesy to install.making it suitable for control panels, automation systems, and industrial enclosures.

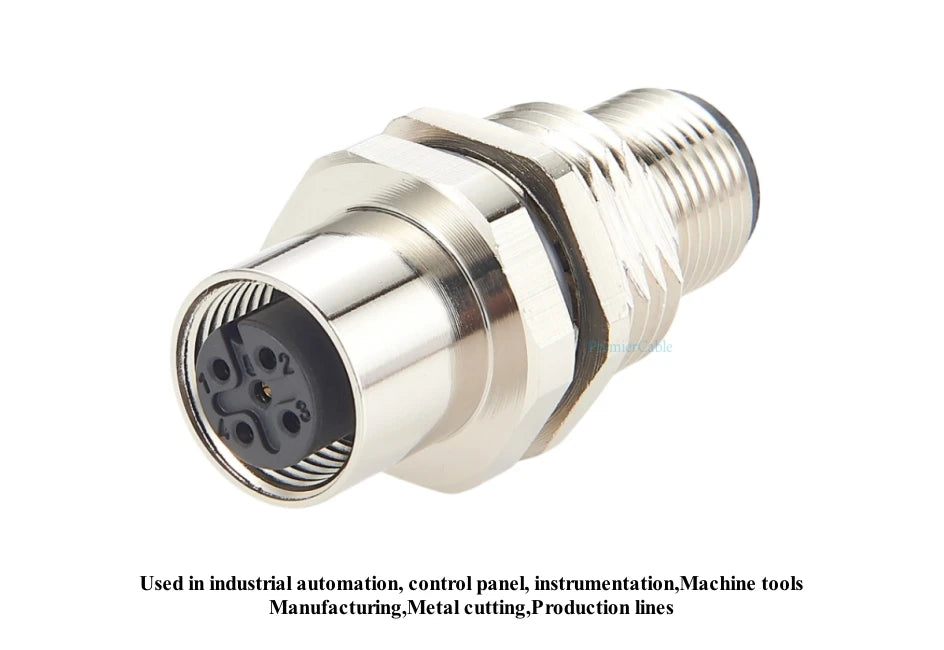

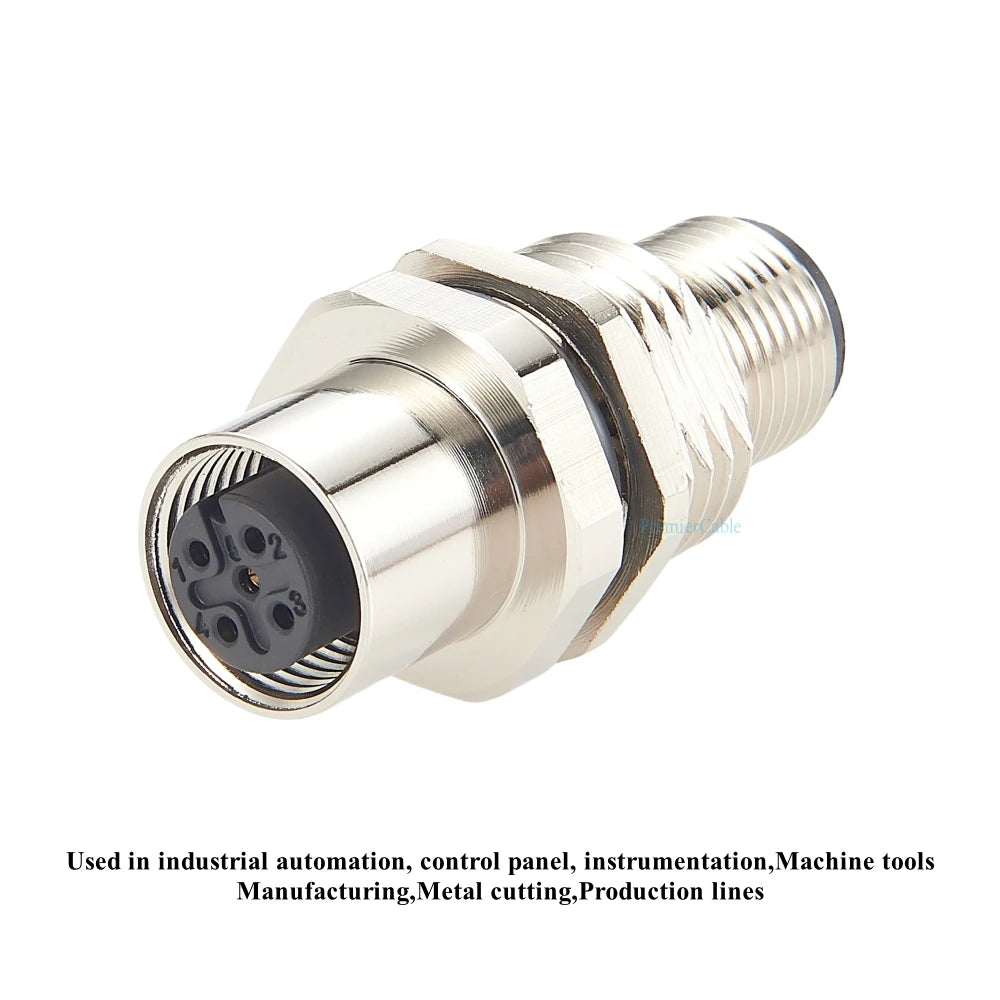

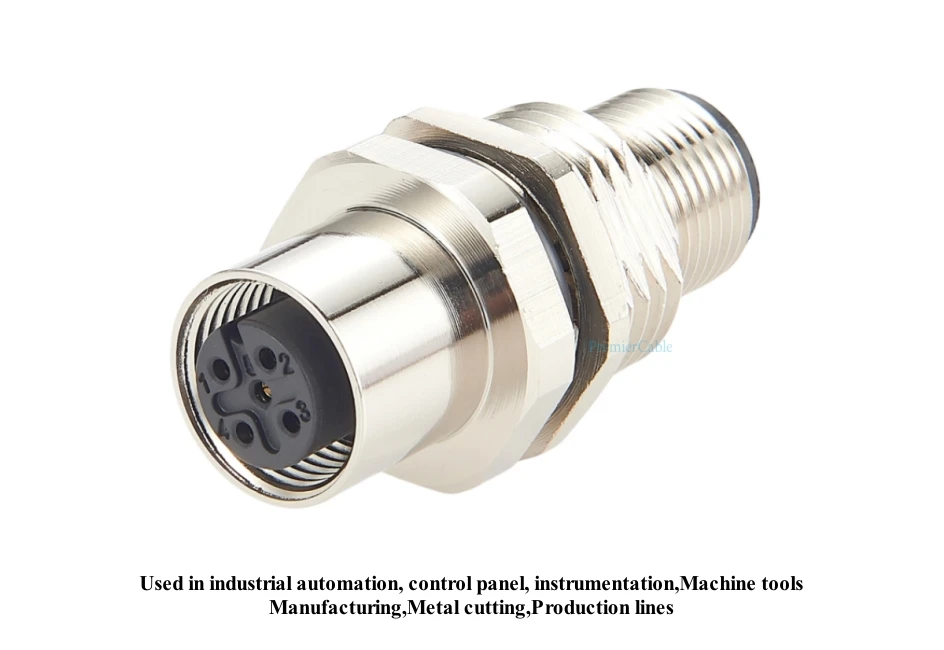

✔Application – M12 Shielded Industrial Circular Connector for NMEA2000, CAN BUS, CANOpen, Profibus, DeviceNet,also for PLCS, Marine, sensors, actuators, machine equipment,industrial automation, industrial network transmission, ships, security and other fields.

✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.

Various Types

+++++++++

Product  Details
