SPECIFICATIONS

Brand Name: Auto-Partner

External Testing Certification: CCC

High-concerned chemical: none

Is Batteries Included: Yes

Item Height: 27

Item Length: 48

Item Type: Alarm Systems & Security

Item Weight: 0.3

Item Width: 48

Material: Original

Model Name: M3 Sensors

Origin: Mainland China

Special Features: TPMS for Motorcycle

Voltage: 12 V

Product choice:

Black: external sensor black

Silver: External sensor Silver

internal Gray: Internal sensor gray

Product Features:

1. Powered by USB cable,2 external sensor

2. Built-in high temperature resistant explosion-proof lithium battery,fast charging, long lasting power

3. Real-time display of highly accurate tire temperature and pressure data of 2 wheels at the same time

4. Quickly detect leak and alarm, extend tire life, balance tire pressure, ensure the safety of motorcycles

5.PSI, BAR two kinds of pressure unit optional, ℃ and ℉ two kinds of temperature unit optional

6. Each sensor has a separate ID code, which has been completed before delivery, can be directly used after installation

7. TPMS dedicated radio frequency technology, the sensor real-time updates data, alarm when tire pressure and temperature are abnormal

8. TPMS dedicated Freescale chip program, 6-in-1, makes the signal more stable and reliable, monitoring data more accurate to ensure traffic safety

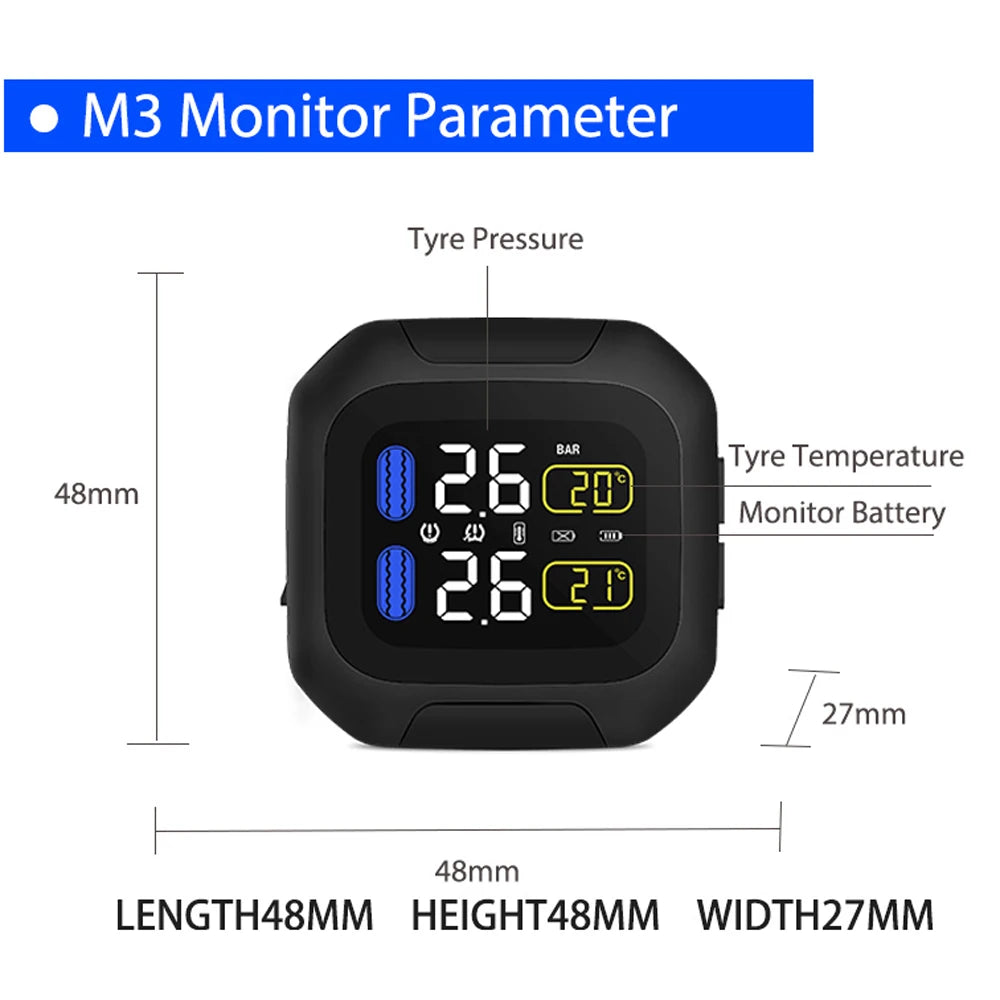

Display parameters:

Size: about 48 * 48 * 27MM/1.89 * 1.89 * 1.06in

Weight: about 50G

Built-in lithium battery capacity: 850 mAh

Working temperature: (- 20 ℃ ~ +80 ℃)

Storage temperature: (- 30 ℃ ~ + 85 ℃)

Receiving frequency: 433.92MHz

Sensor parameters:

Working temperature: (- 40 ℃ ~ + 105 ℃)

Storage temperature: (- 40 ℃ ~ + 120 ℃)

Pressure range: 0 ~ 116psi (0 ~ 8bar)

Pressure accuracy: ± 0.15PSI (± 0.01bar)

Temperature accuracy: ± 3 ℃

Transmission frequency: 433.92MHz

Battery life: about 2 years

Size(approx.): Height: 13mm/0.51in, Diameter: 18mm/0.71in

Weight: about 6.0g
