SPECIFICATIONS

Applicable Object: Other

Brand Name: Aideepen

Certification: NONE

Condition: New

Contact Arrange: SPDT

Contact Load: Low Power

Dropship: Support

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Key Word: Senor Relay

Model Number: Relay

Origin: Mainland China

Power Source: DC,DC

Protect Feature: Sealed

Type: Sensing Switch

Use: General Purpose

is_customized: Yes

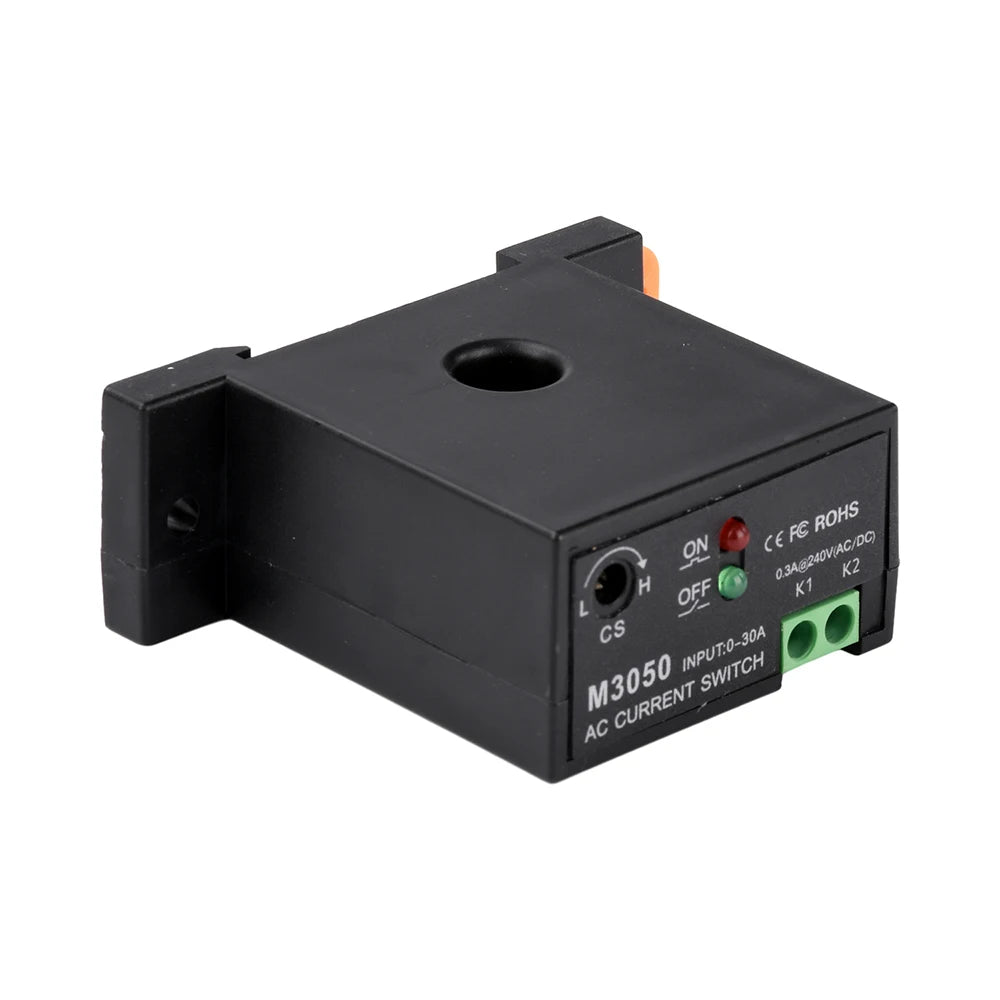

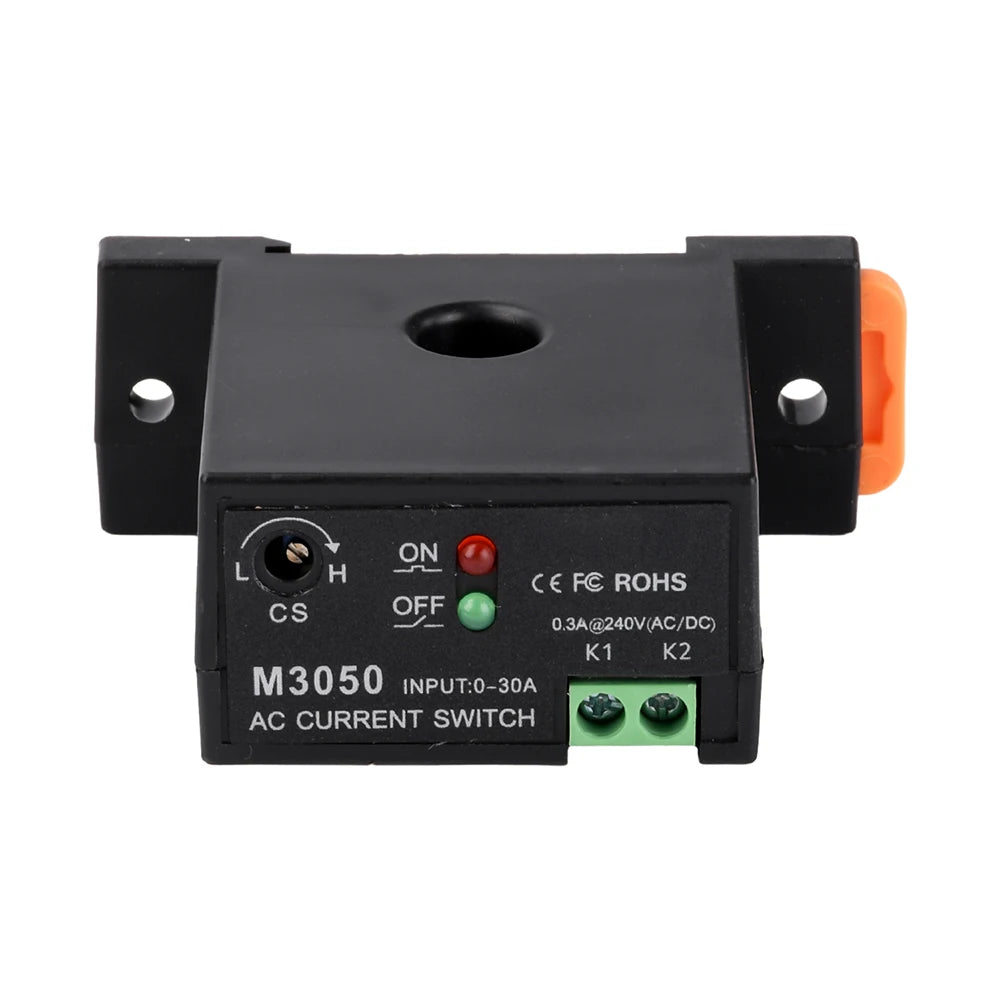

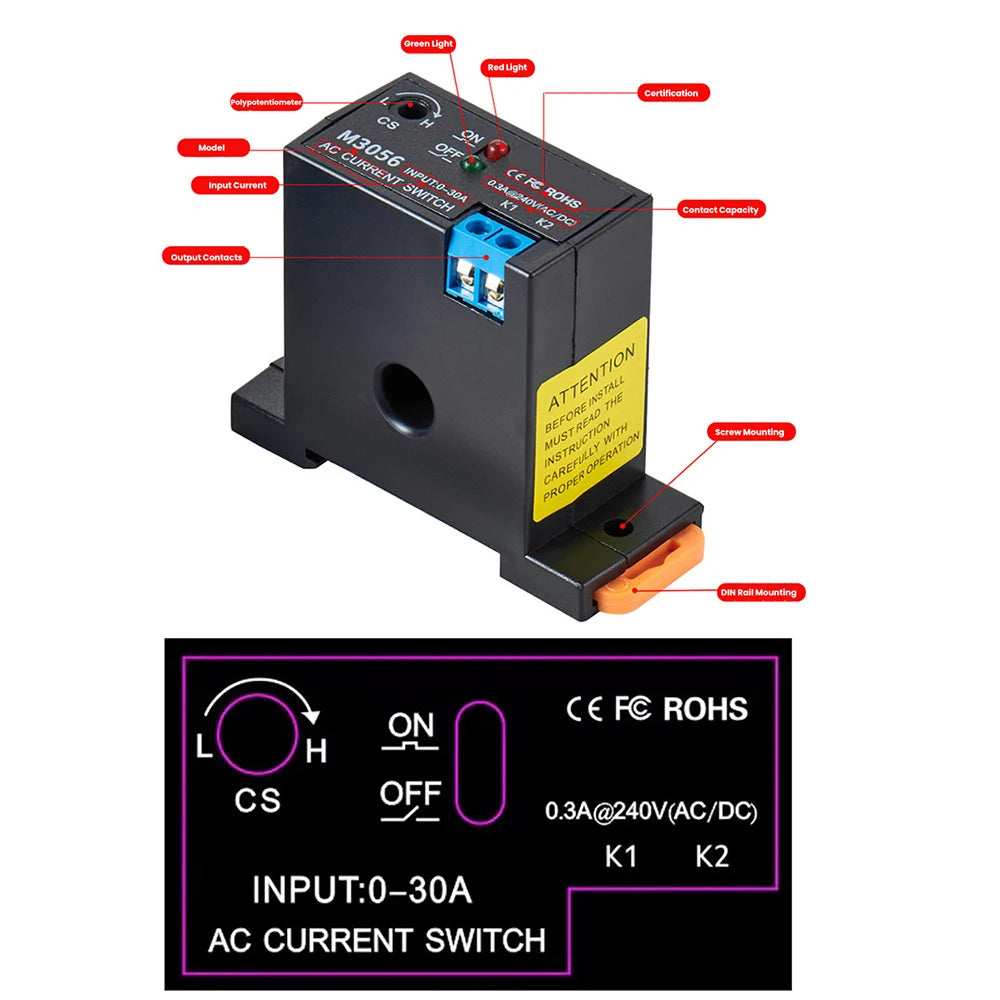

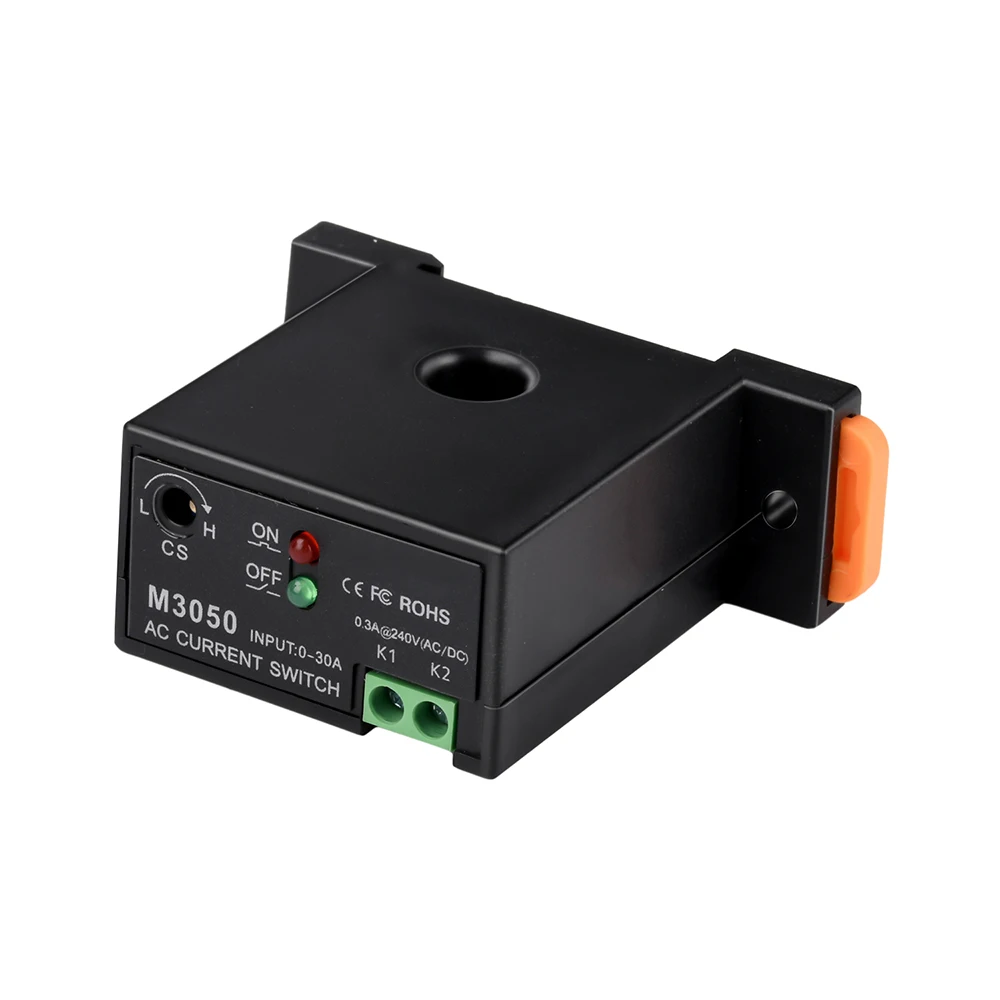

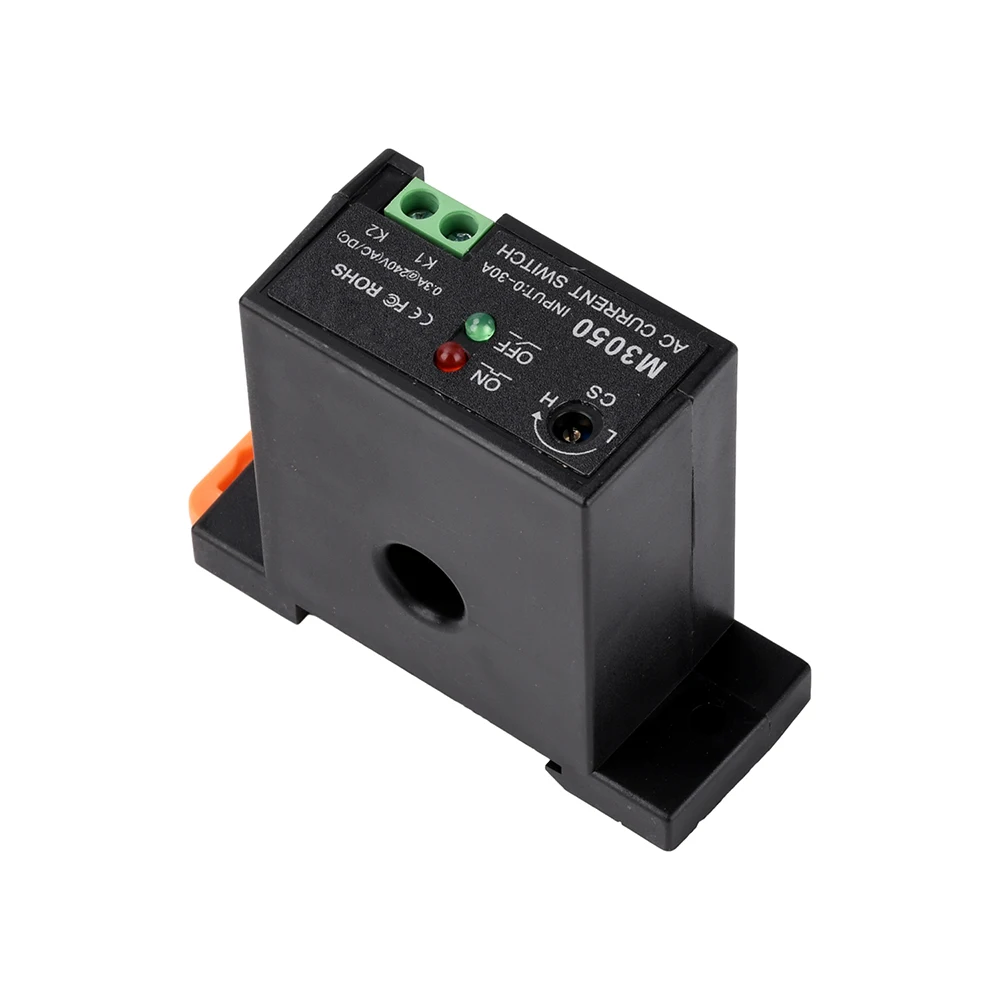

M3050 M3056 M3060 M3066 AC Current Sensing Switch Self-Powered Sensing Switch Induction Relay Power Supply

Features:

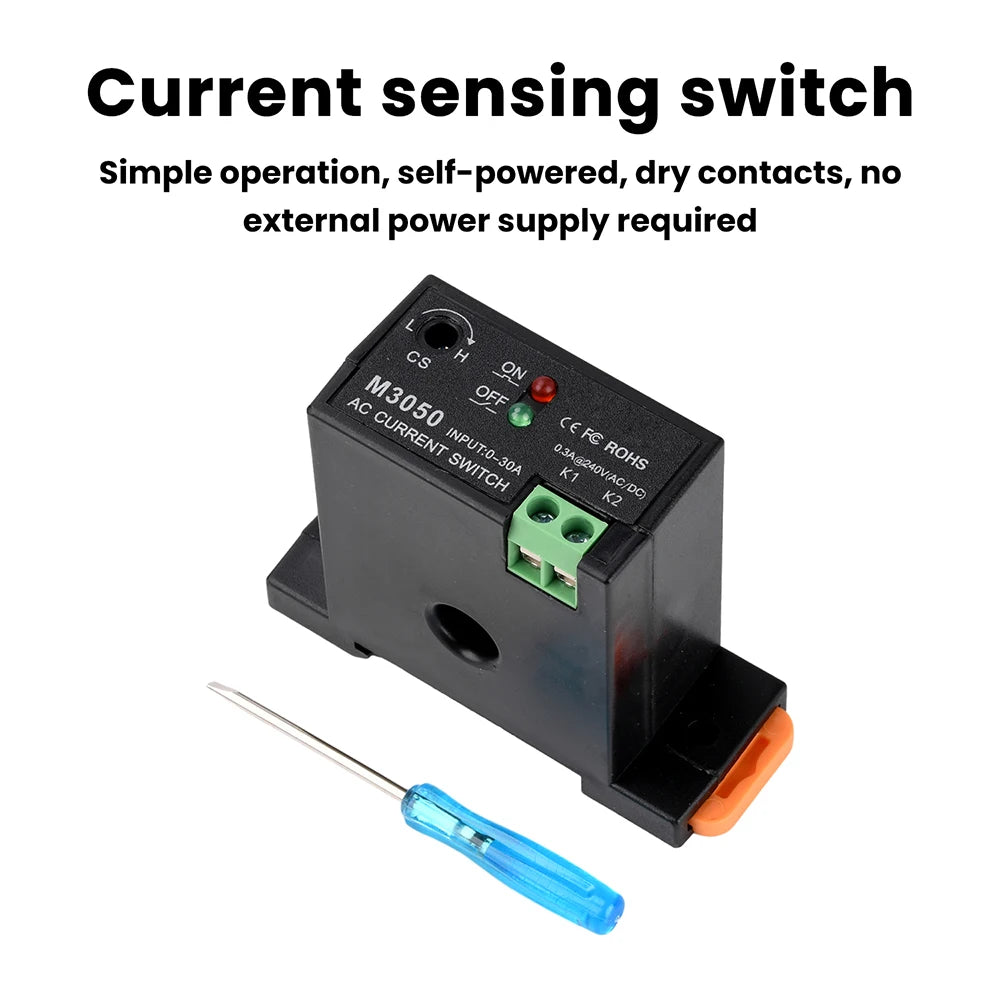

1. Simple operation, self-powered, dry contact, no external power supply required.

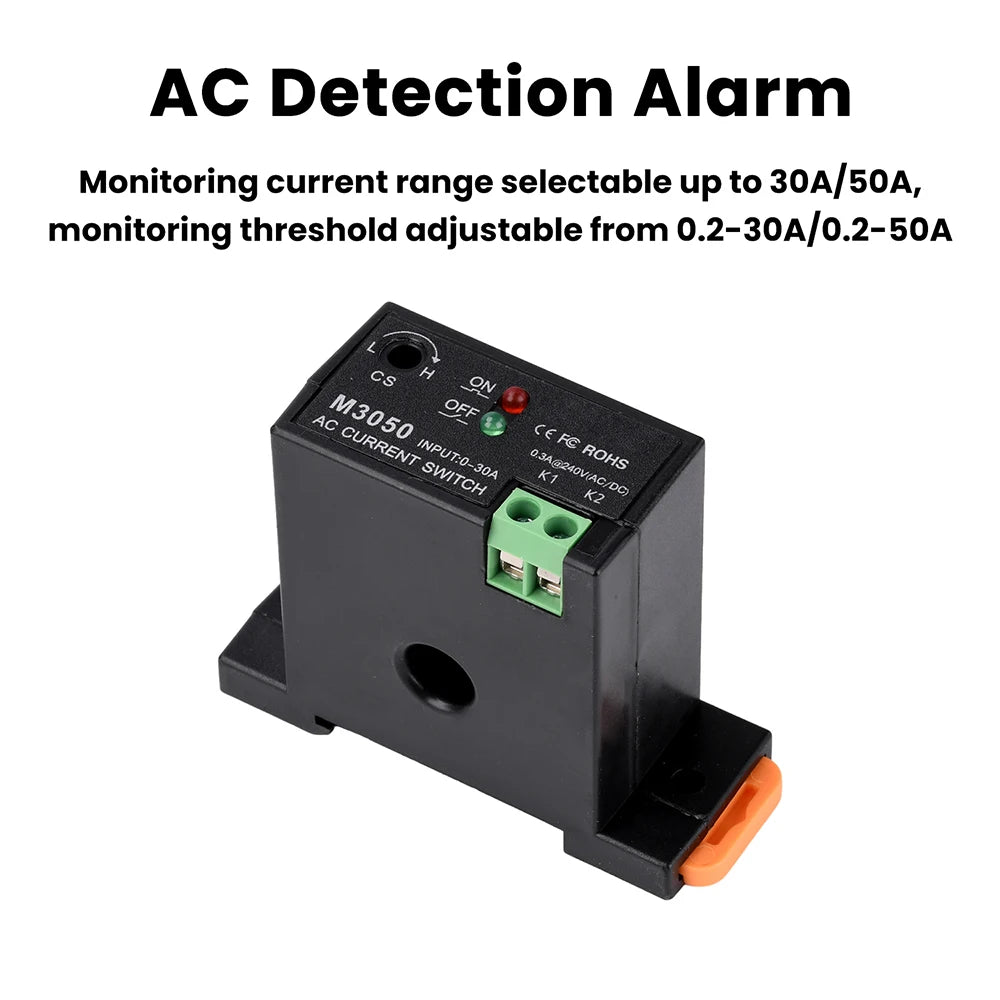

2. Maximum current monitoring range selectable 30A/50A, monitoring threshold adjustable 0.2-30A/0.2-50A.

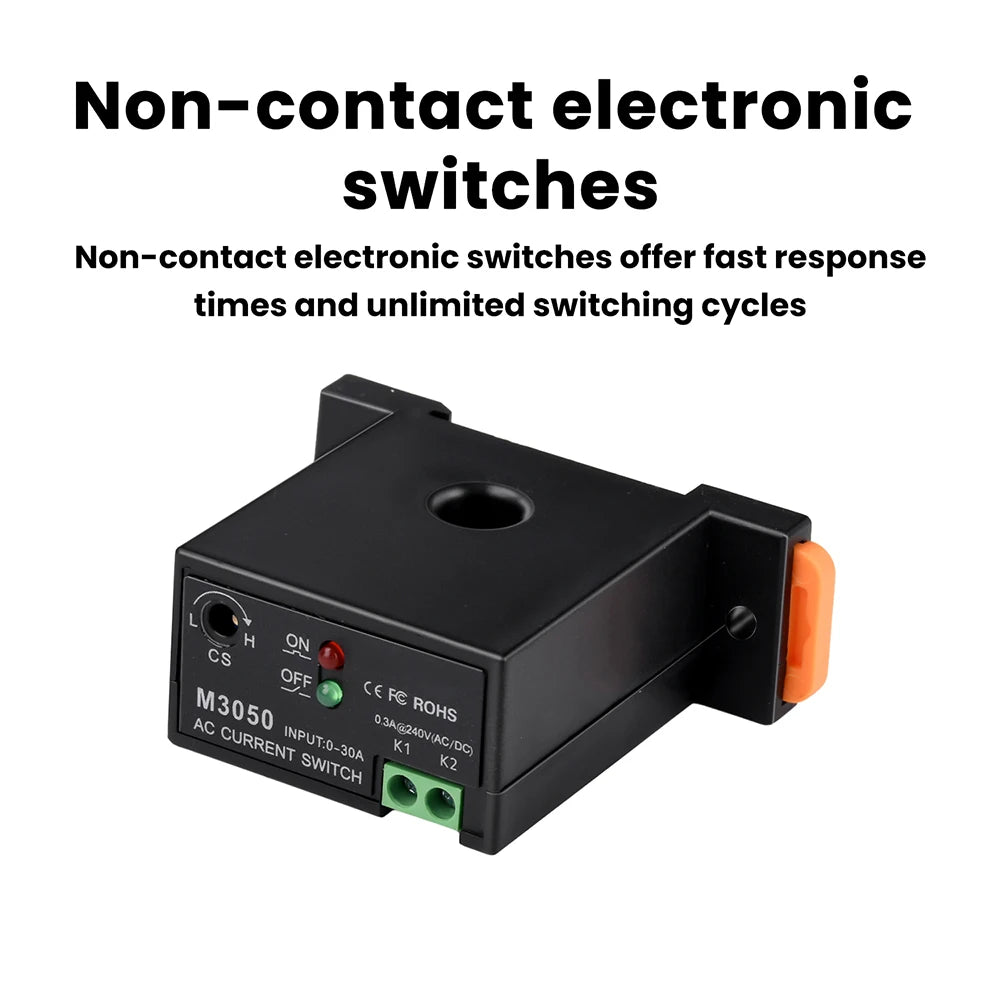

3. Non-contact electronic switch, fast response speed, unlimited switching cycles.

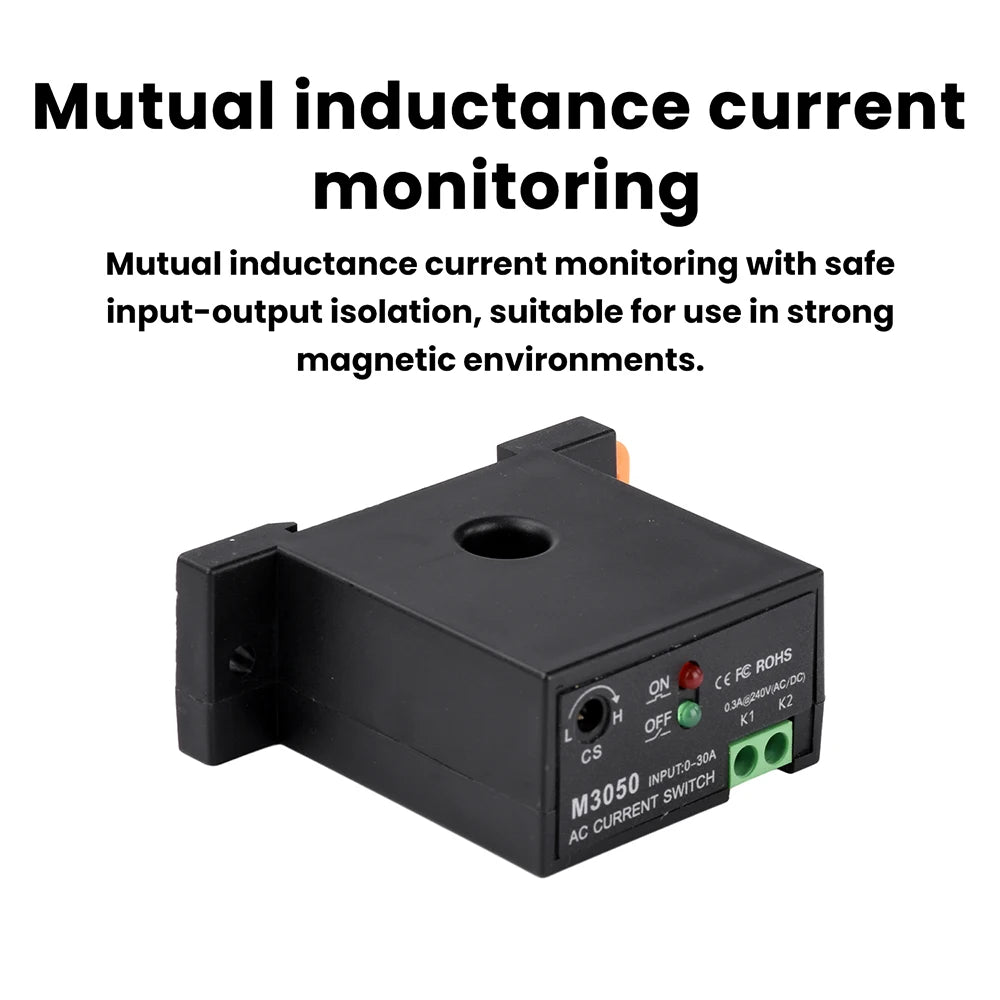

4. Mutual inductance current monitoring, safe input/output isolation, usable in strong magnetic environments.

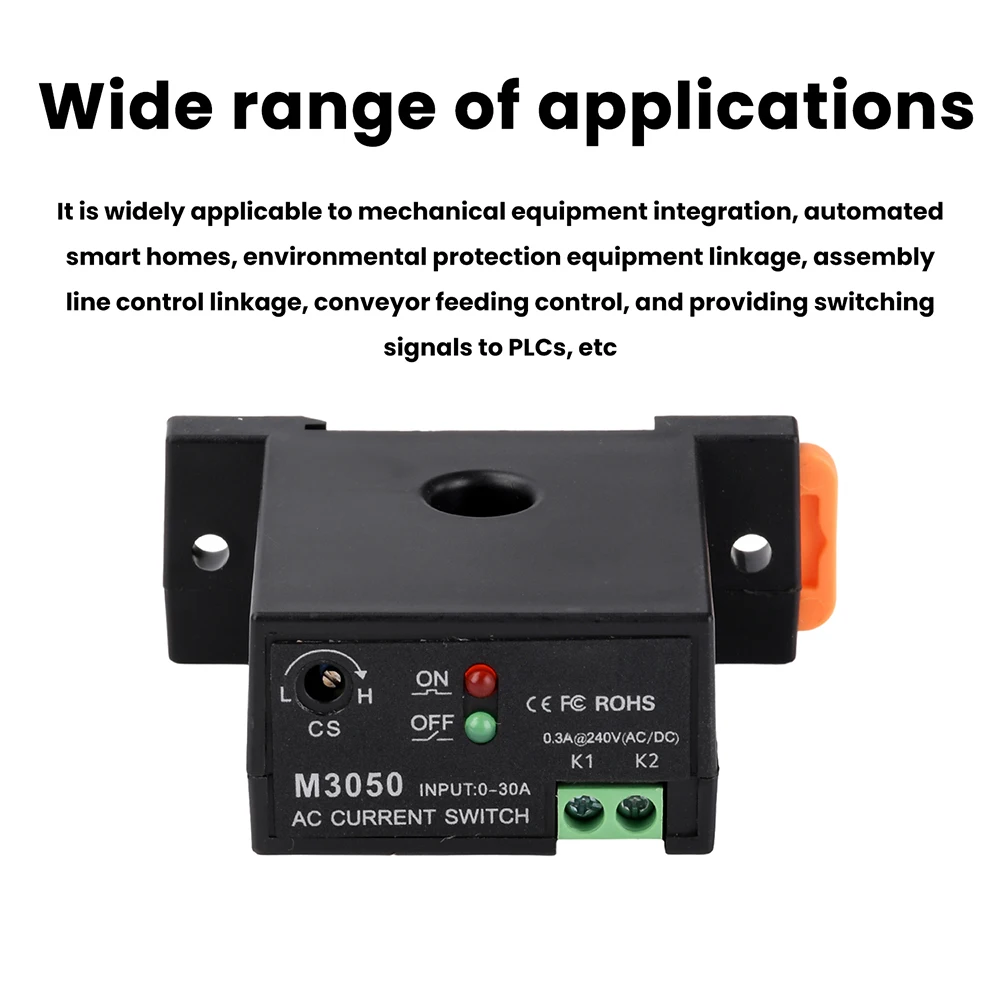

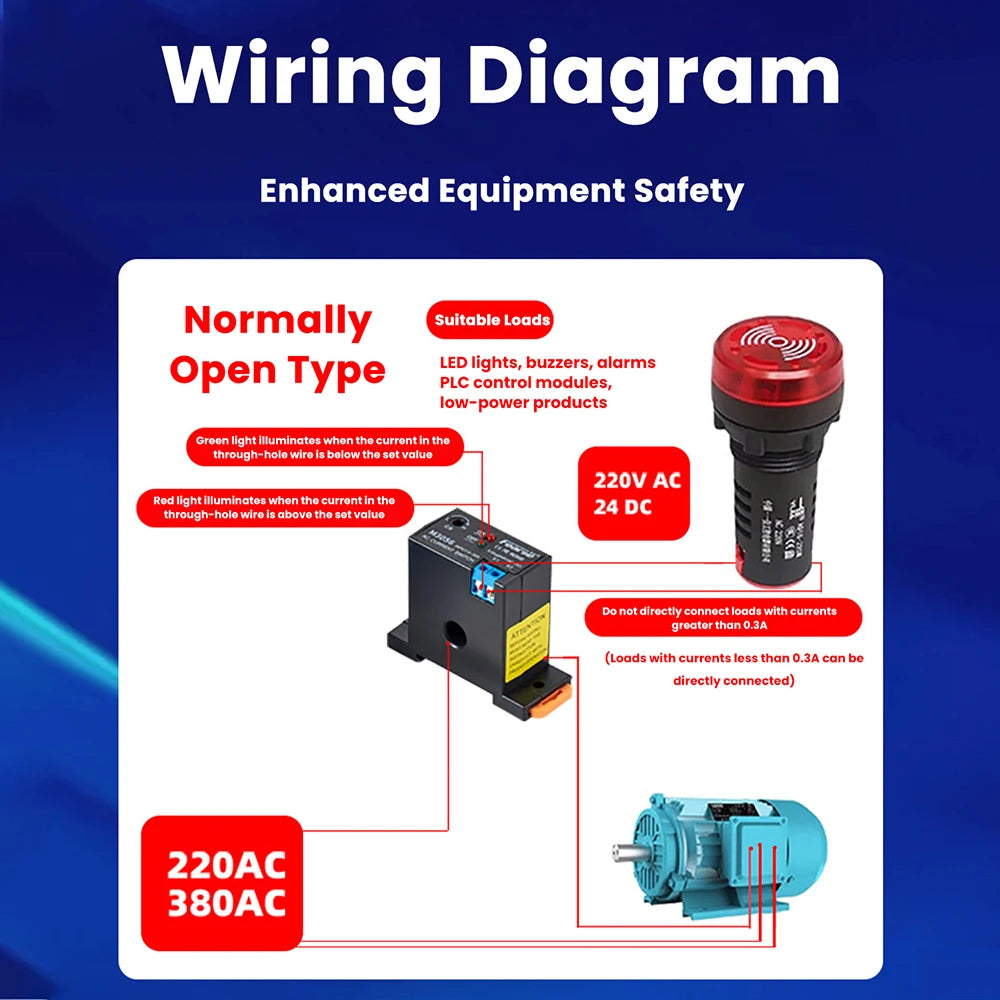

5. Wide range of applications: Widely applicable to mechanical equipment, automated smart homes, environmental protection equipment linkage, production line control linkage, conveyor feeding control, PLC switching signals, etc.

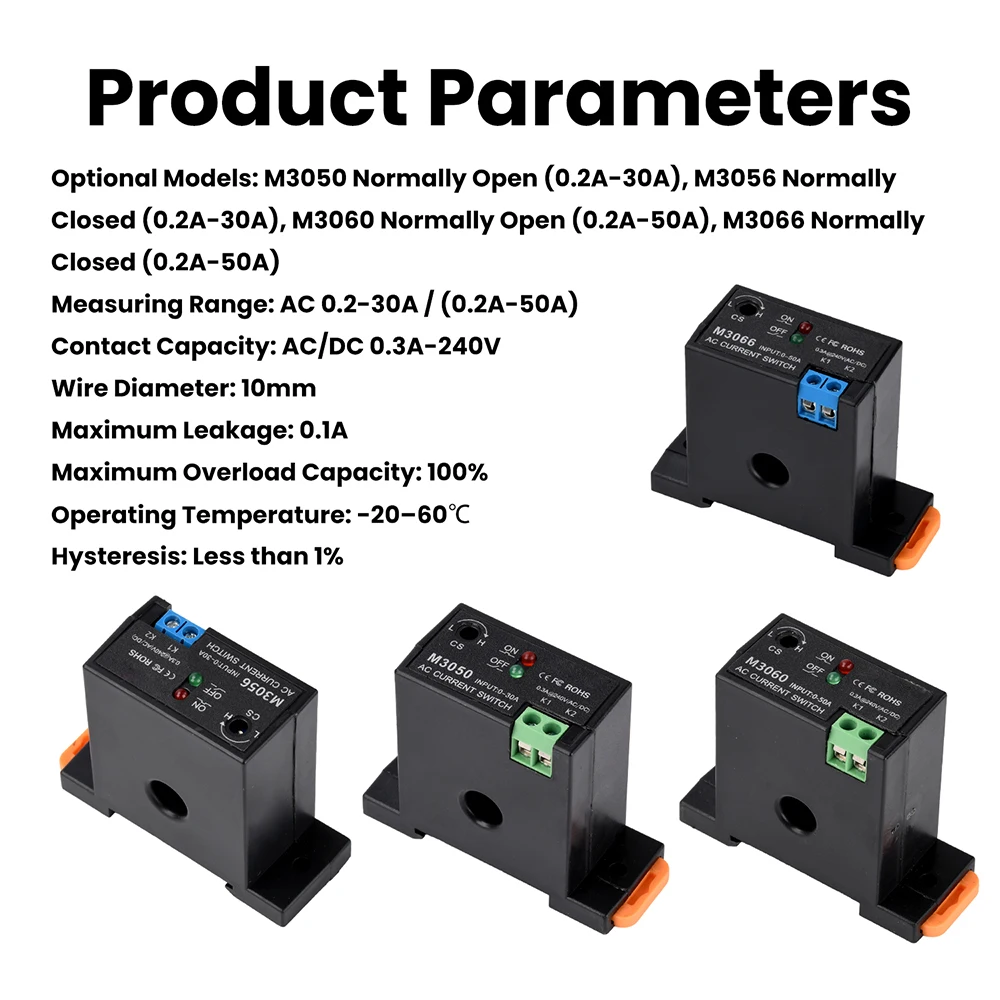

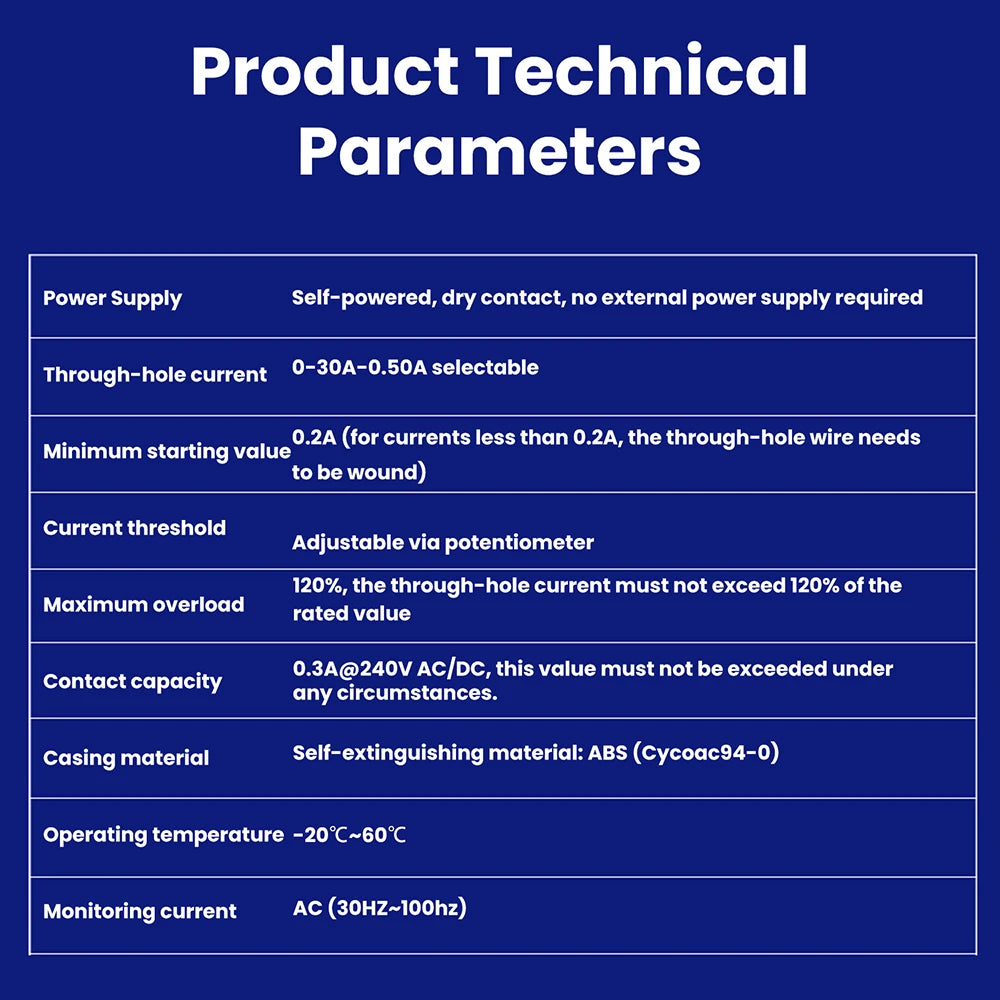

Product Parameters:

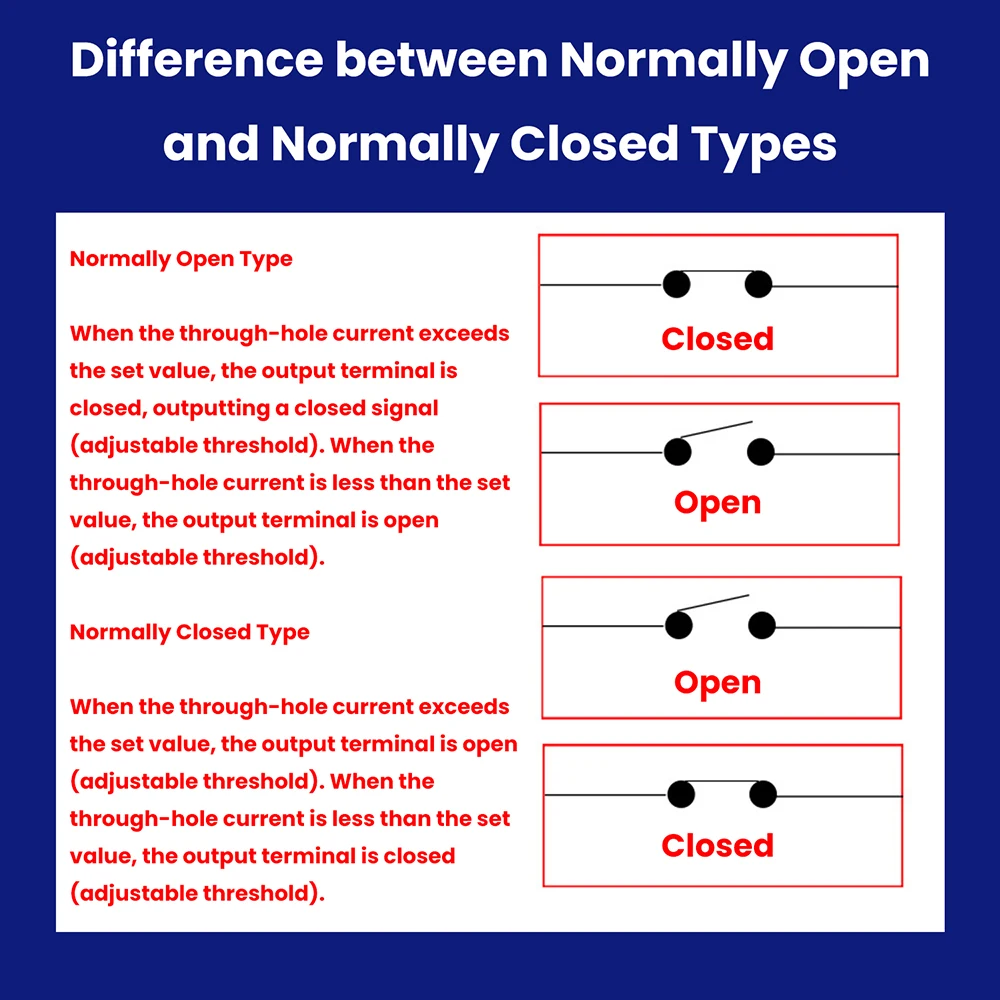

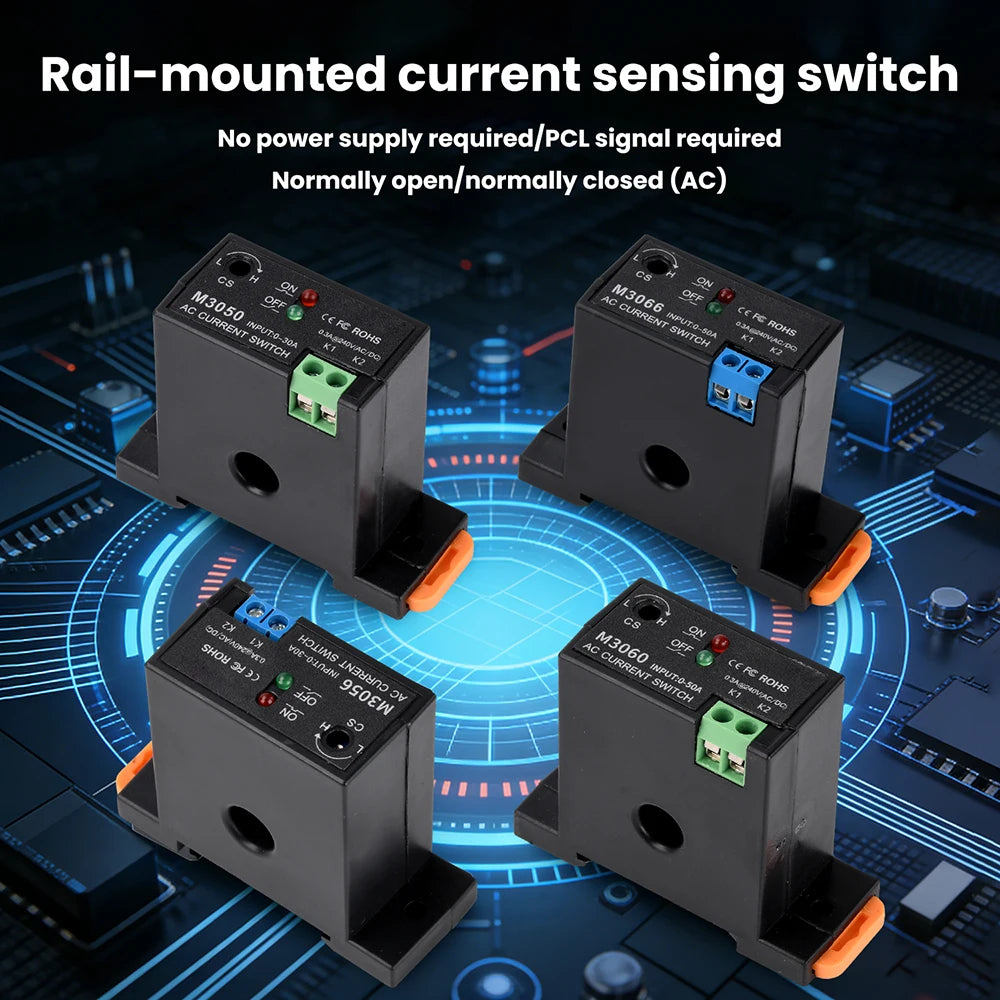

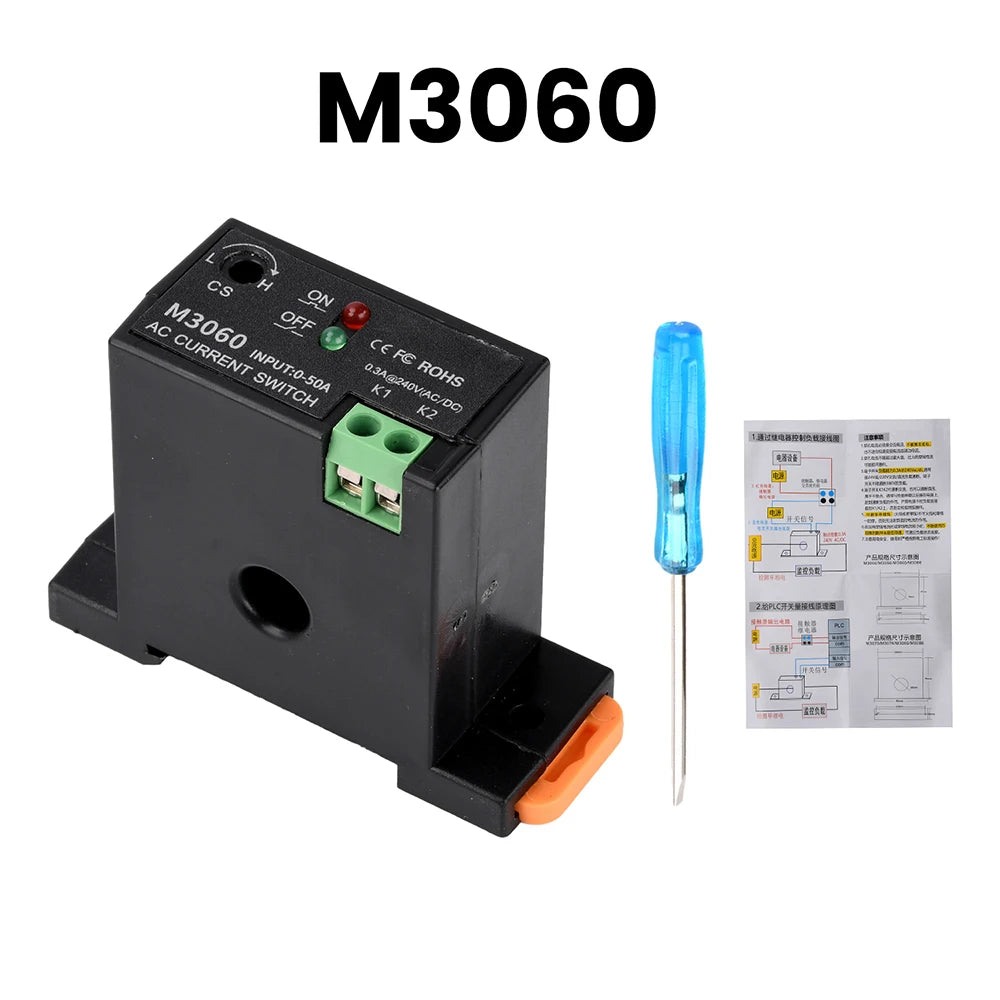

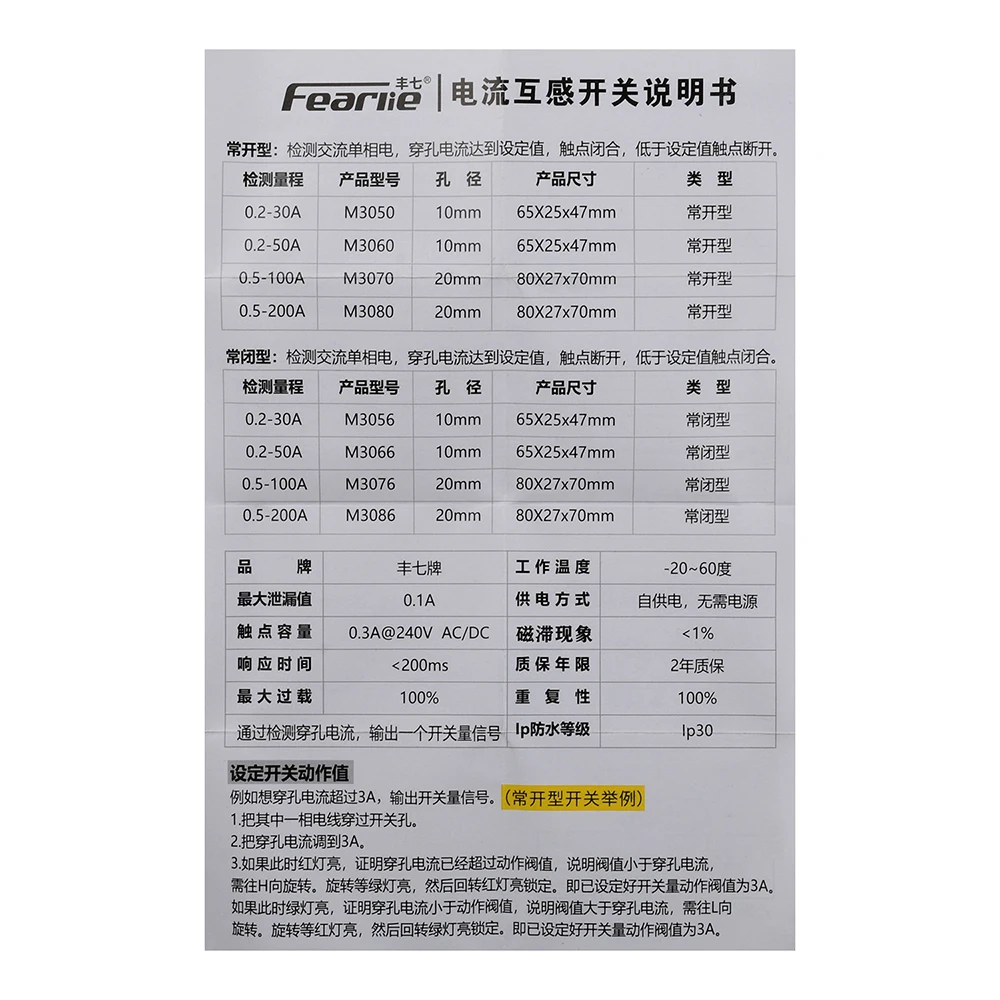

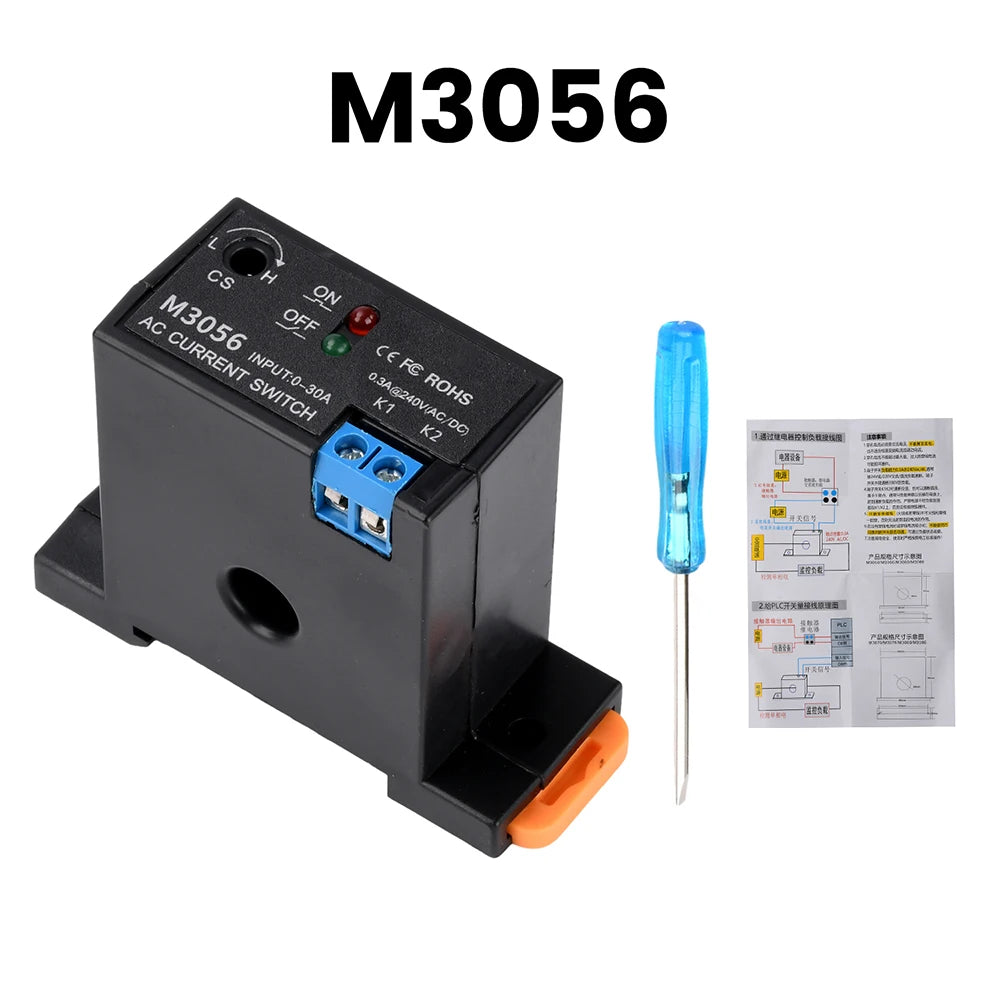

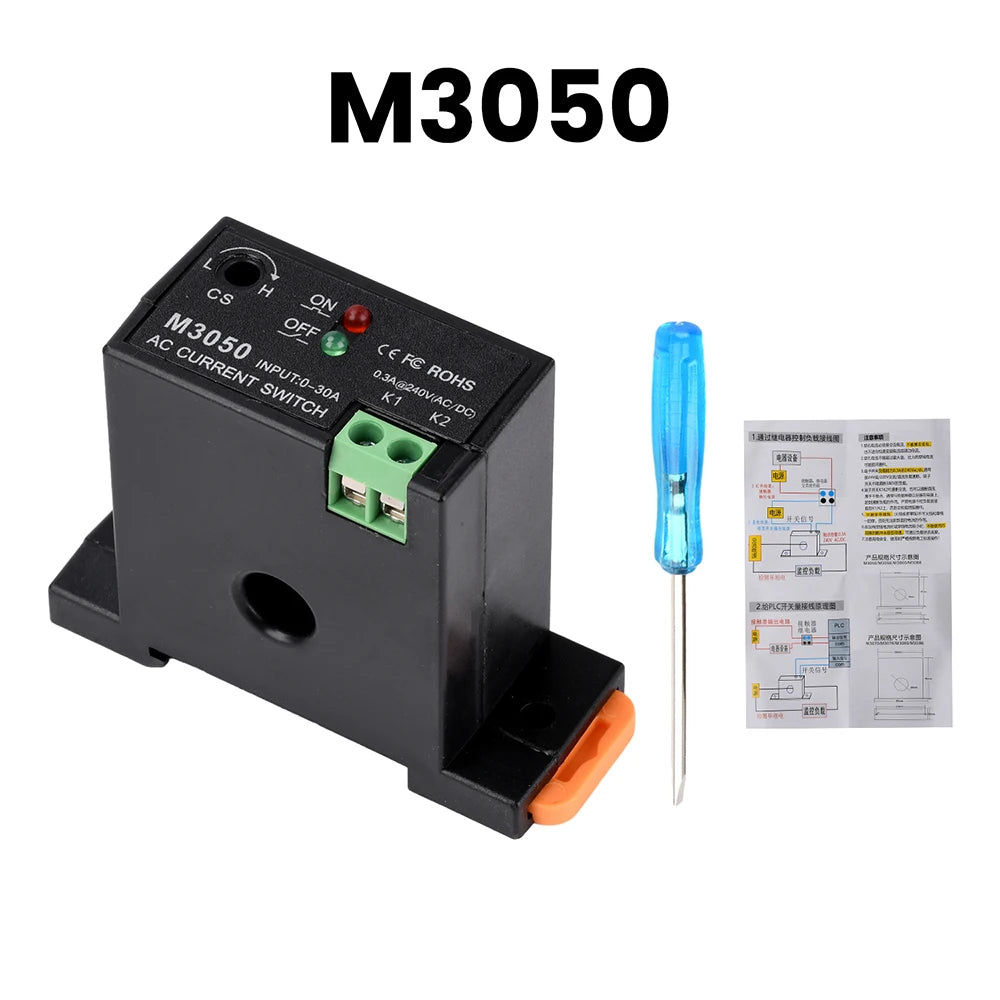

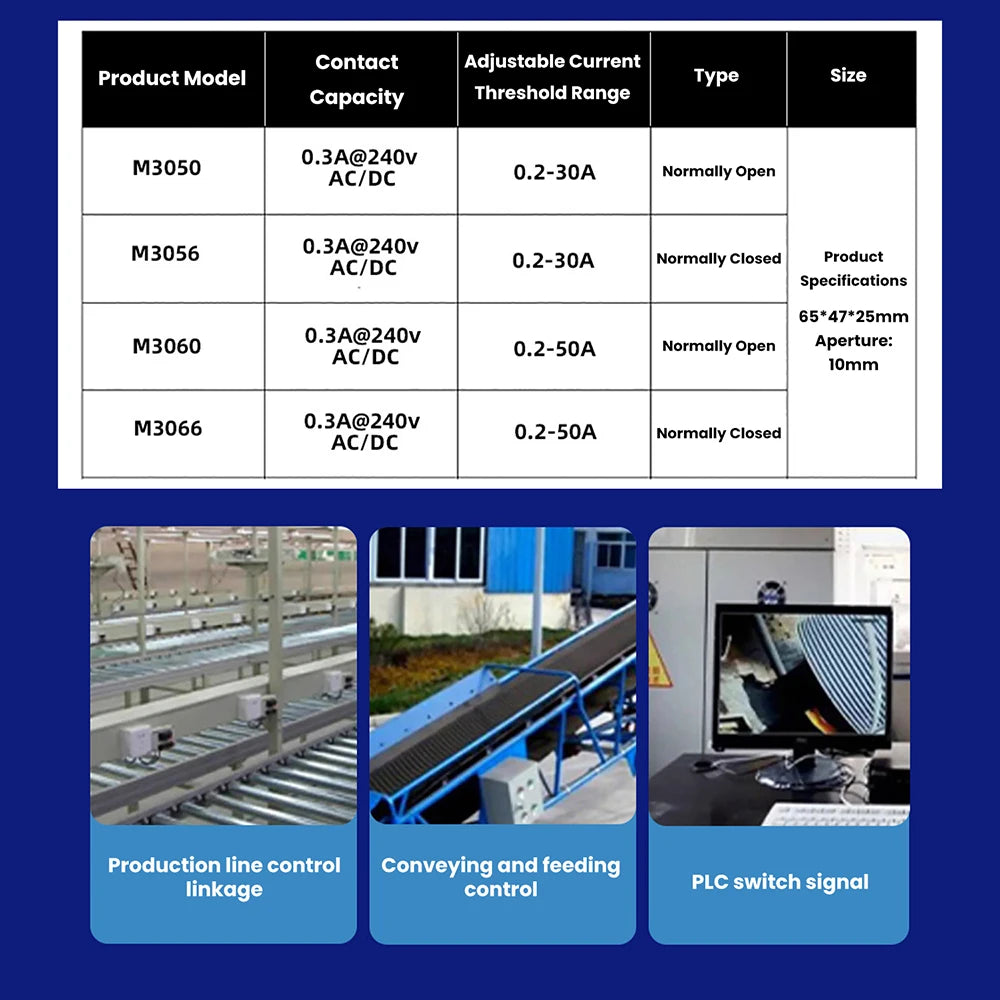

Optional Models: M3050 Normally Open (0.2A-30A), M3056 Normally Closed (0.2A-30A), M3060 Normally Open (0.2A-50A), M3066 Normally Closed (0.2A-50A)

Measuring Range: AC 0.2-30A/(0.2A-50A)

Contact Capacity: AC/DC 0.3A-240V

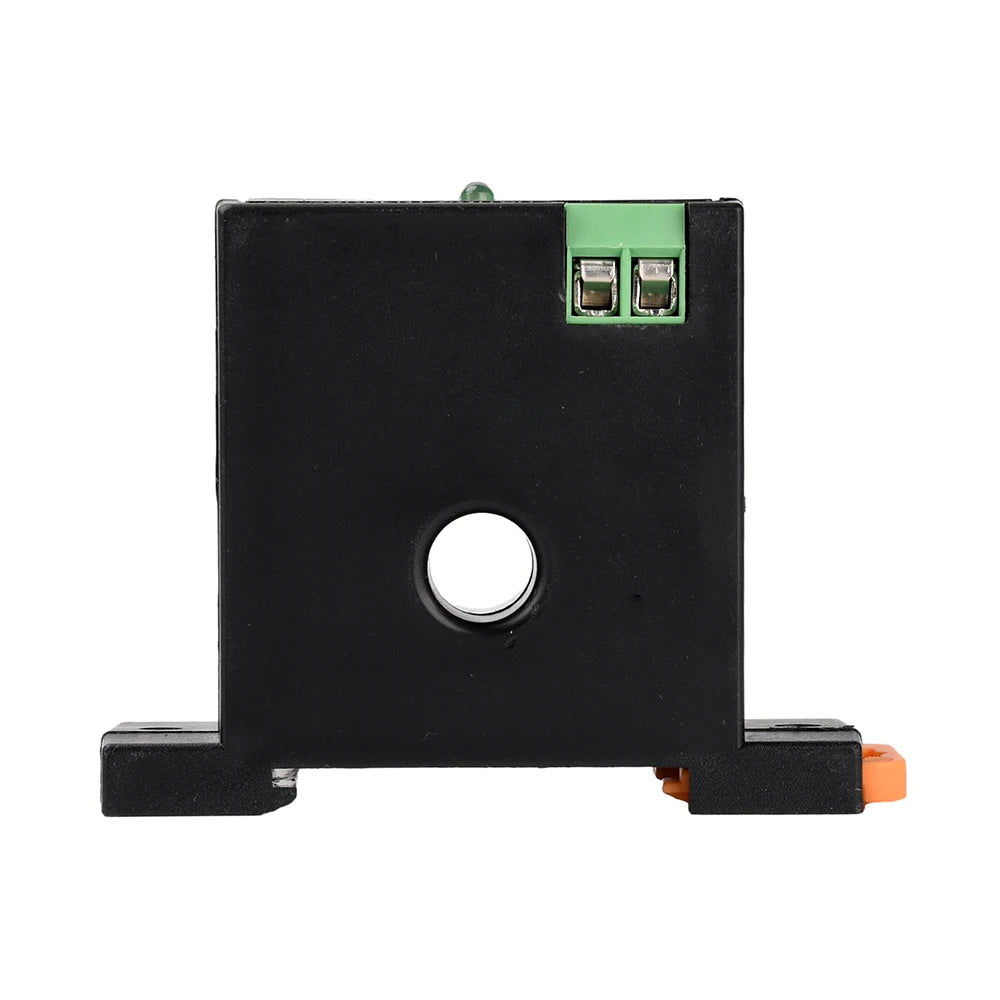

Wire Diameter: 10mm

Maximum Leakage: 0.1A

Maximum Overload Capacity: 100%

Operating Temperature: -20-60℃

Hysteresis: Less than 1%

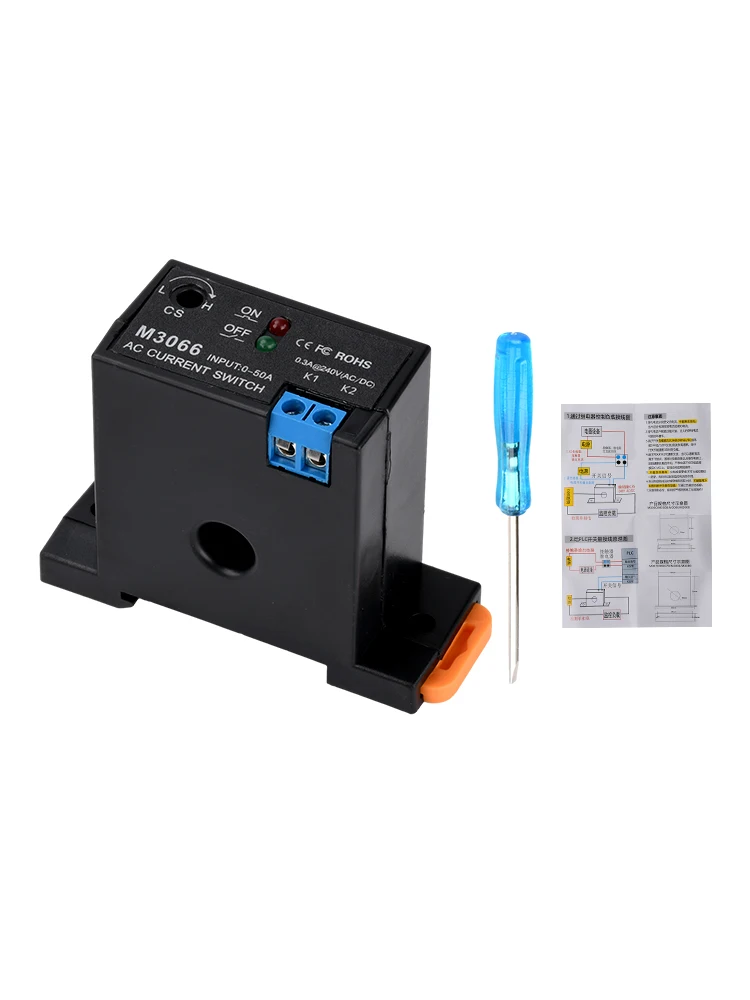

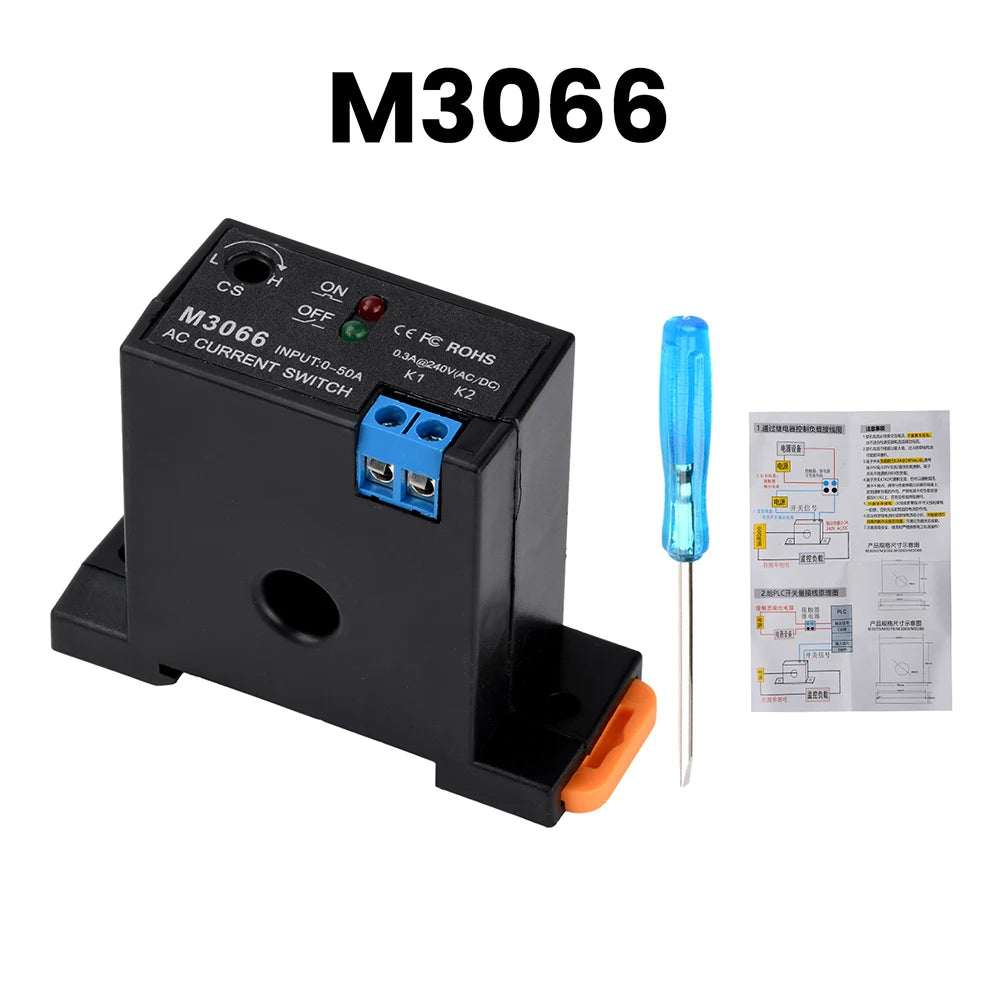

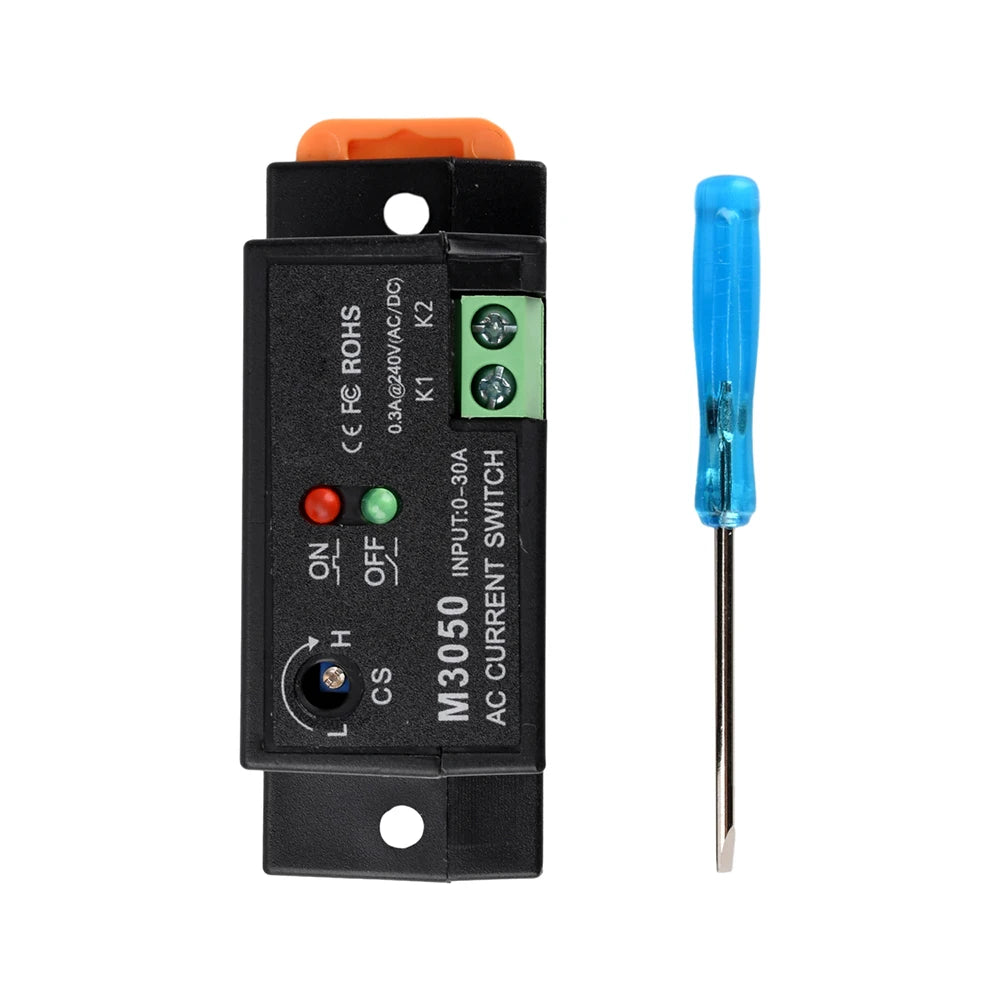

Product List:

Current Sensing Switch *1

Screwdriver *1
